Page 24 of 434
Forward and backward
Pull the lever up and hold it while you slide the
seat forward or backward to the desired position.
Release the lever to lock the seat in position.
Reclining
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See “Precautions on seat belt usage” later
in this section. Also, the seatback can be reclined
to allow occupants to rest when the vehicle is
stopped and the shift lever is in P (Park) or N
(Neutral) position with the parking brake fully
applied.
Seat lifter (if so equipped for driver’s
seat)
Turn either dial to adjust the angle and height of
the seat cushion to the desired position.
WRS0175WRS0176WRS0131
Safety—Seats, seat belts and supplemental restraint system1-3
Page 26 of 434
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit (see “Precautions on seat belt usage” later
in this section) . Also, the seatback can be re-
clined to allow occupants to rest when the ve-
hicle is stopped and the shift lever is in P (Park) or
N (Neutral) position with the parking brake fully
applied.
Seat lifter (if so equipped for driver’s
seat)
Push the front or rear end of the switch up or
down to adjust the angle and height of the seat
cushion.
JUMP SEAT (King cab)
WARNING
●Do not use a child restraint in the driv-
er’s side jump seat. This seating posi-
tion is not suitable for child restraint
installation. A child restraint can be in-
stalled in the passenger’s side jump
seat when the seat extension is un-
folded from the seat base.
● When folding the jump seat, be careful
not to squeeze your finger between the
seat cushion and the body side.
WRS0164LRS0556
Safety—Seats, seat belts and supplemental restraint system1-5

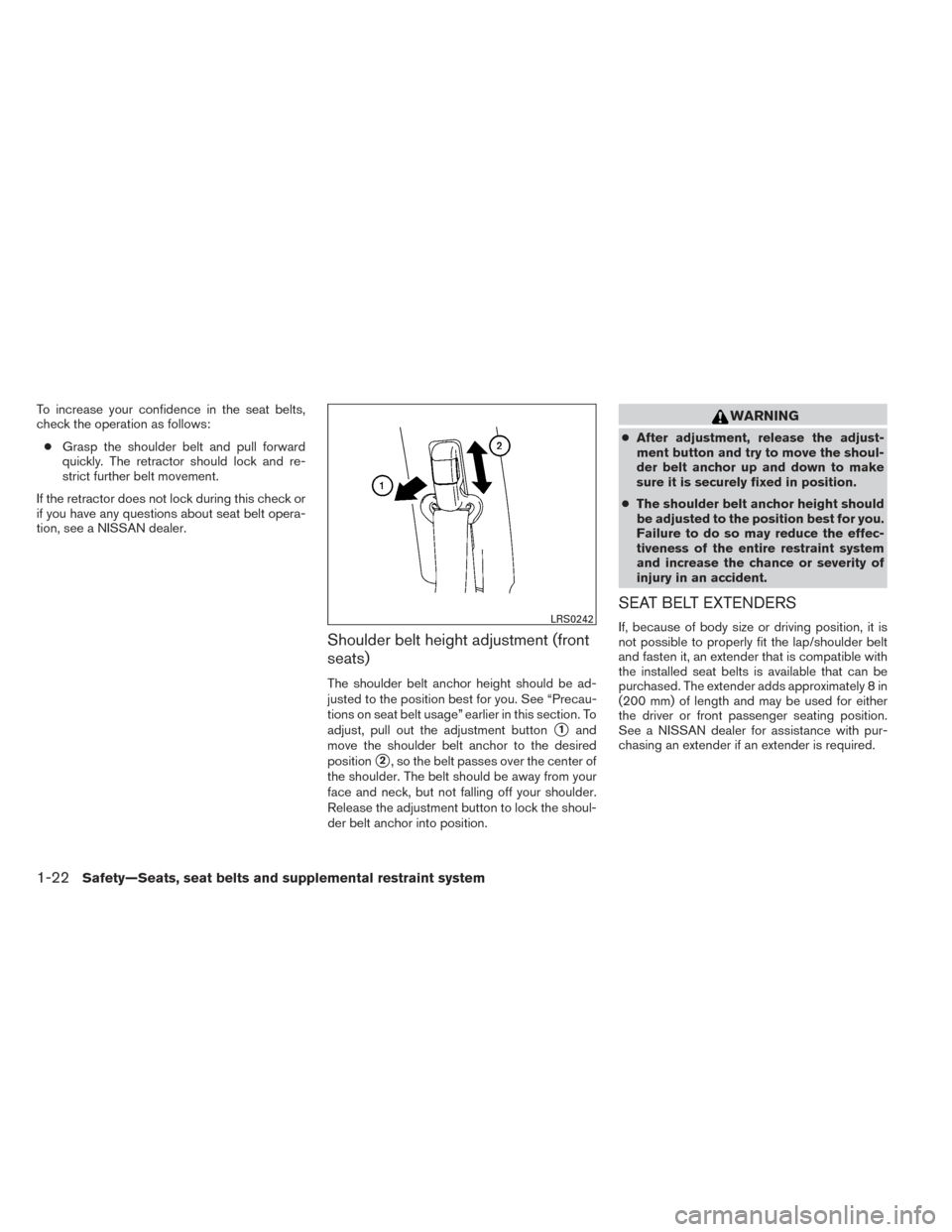

Page 43 of 434
To increase your confidence in the seat belts,
check the operation as follows:● Grasp the shoulder belt and pull forward
quickly. The retractor should lock and re-
strict further belt movement.
If the retractor does not lock during this check or
if you have any questions about seat belt opera-
tion, see a NISSAN dealer.
Shoulder belt height adjustment (front
seats)
The shoulder belt anchor height should be ad-
justed to the position best for you. See “Precau-
tions on seat belt usage” earlier in this section. To
adjust, pull out the adjustment button
1and
move the shoulder belt anchor to the desired
position
2, so the belt passes over the center of
the shoulder. The belt should be away from your
face and neck, but not falling off your shoulder.
Release the adjustment button to lock the shoul-
der belt anchor into position.
WARNING
● After adjustment, release the adjust-
ment button and try to move the shoul-
der belt anchor up and down to make
sure it is securely fixed in position.
● The shoulder belt anchor height should
be adjusted to the position best for you.
Failure to do so may reduce the effec-
tiveness of the entire restraint system
and increase the chance or severity of
injury in an accident.
SEAT BELT EXTENDERS
If, because of body size or driving position, it is
not possible to properly fit the lap/shoulder belt
and fasten it, an extender that is compatible with
the installed seat belts is available that can be
purchased. The extender adds approximately 8 in
(200 mm) of length and may be used for either
the driver or front passenger seating position.
See a NISSAN dealer for assistance with pur-
chasing an extender if an extender is required.LRS0242
1-22Safety—Seats, seat belts and supplemental restraint system

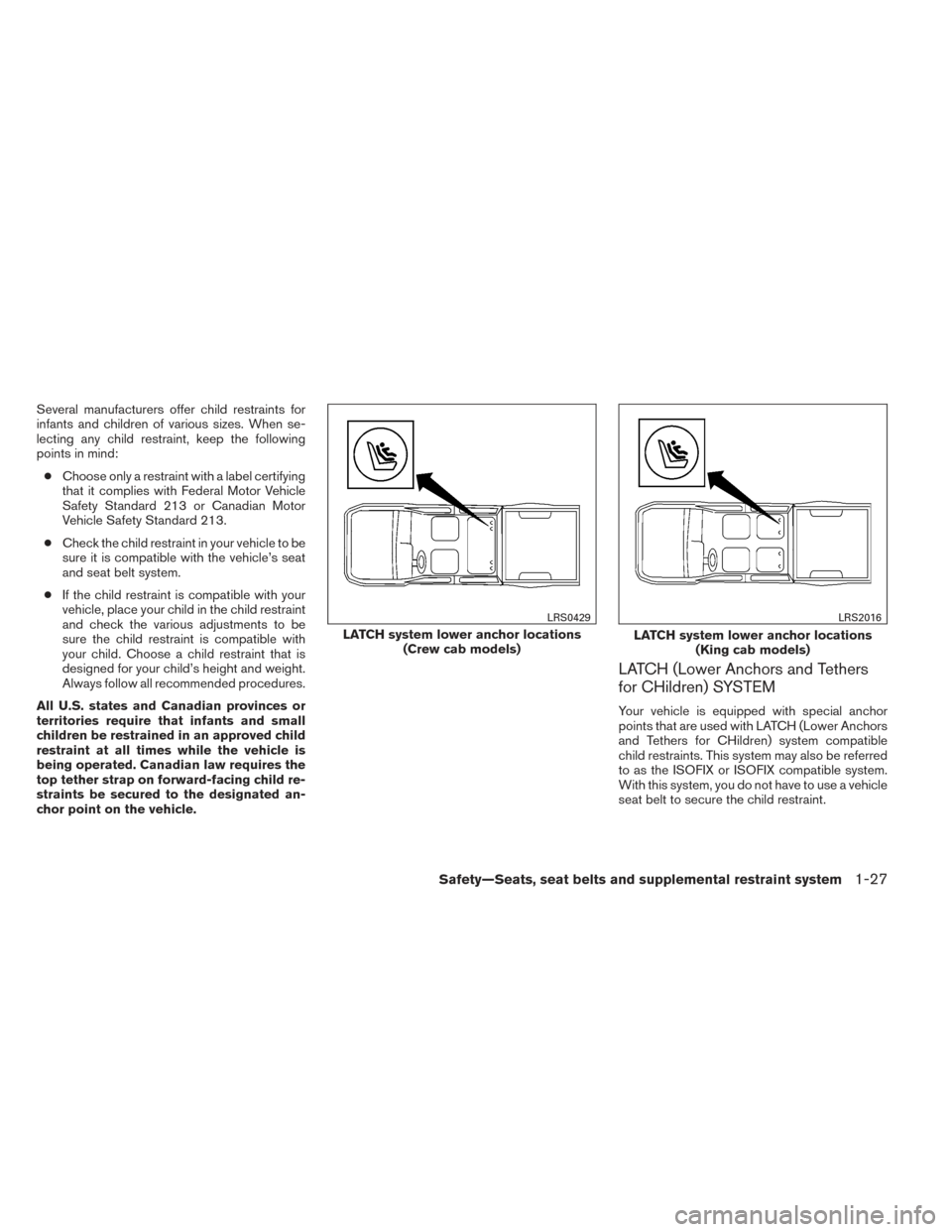

Page 48 of 434
Several manufacturers offer child restraints for
infants and children of various sizes. When se-
lecting any child restraint, keep the following
points in mind:● Choose only a restraint with a label certifying
that it complies with Federal Motor Vehicle
Safety Standard 213 or Canadian Motor
Vehicle Safety Standard 213.
● Check the child restraint in your vehicle to be
sure it is compatible with the vehicle’s seat
and seat belt system.
● If the child restraint is compatible with your
vehicle, place your child in the child restraint
and check the various adjustments to be
sure the child restraint is compatible with
your child. Choose a child restraint that is
designed for your child’s height and weight.
Always follow all recommended procedures.
All U.S. states and Canadian provinces or
territories require that infants and small
children be restrained in an approved child
restraint at all times while the vehicle is
being operated. Canadian law requires the
top tether strap on forward-facing child re-
straints be secured to the designated an-
chor point on the vehicle.
LATCH (Lower Anchors and Tethers
for CHildren) SYSTEM
Your vehicle is equipped with special anchor
points that are used with LATCH (Lower Anchors
and Tethers for CHildren) system compatible
child restraints. This system may also be referred
to as the ISOFIX or ISOFIX compatible system.
With this system, you do not have to use a vehicle
seat belt to secure the child restraint.
LATCH system lower anchor locations (Crew cab models)
LRS0429
LATCH system lower anchor locations (King cab models)
LRS2016
Safety—Seats, seat belts and supplemental restraint system1-27
Page 430 of 434
On-pavement and off-road driving
precautions..................5-6
Precautions on child
restraints .........1-25,1-37,1-50,1-60
Precautionsonseatbeltusage.......1-15
Precautions on supplemental restraint
system ....................1-65
Precautions when starting and driving ....5-2
Pre-tensioner seat belt system .........1-78
Programmable features ..............4-7
Push starting ...................6-13
R
Radio Car phone or CB radio ...........4-65
FM-AM radio with compact disc
(CD) player ..................4-35
FM/AM/SAT radio with compact disc
(CD) player ..............4-40,4-45
Steering wheel audio control switch ....4-63
Readiness for inspection maintenance
(I/M) test .....................9-38
Rear power windows ..............2-49
Rear sliding window ...............2-50
Rear sonar system ................5-40
Rear sonar system off switch ..........2-37
RearViewMonitor................4-10
Rear window defroster switch .........2-27
Recorders Eventdata..................9-39
Refrigerant recommendation ...........9-7
Registering your vehicle in another country . .9-10
Remote keyless entry system ...........3-6
Reporting safety defects (US only) .......9-37Roof rack
.....................2-46
S
Safety Child safety rear door lock ..........3-6
Childseatbelts.....1-25,1-37,1-50,1-60
Reporting safety defects (US only) .....9-37
Seat Jumpseat ...................1-5
Seat adjustment Frontmanualseatadjustment ........1-2
Front power seat adjustment .........1-4
Seatback pockets ................2-44
Seat belt Child safety ..................1-23
Infants and small children ..........1-24
Injured Person ................1-18
Largerchildren................1-24
Precautions on seat belt usage .......1-15
Pregnant women ...............1-18
Pre-tensioner seat belt system .......1-78
Seatbeltextenders .............1-22
Seatbeltmaintenance............1-23
Seatbelts...................1-15
Shoulder belt height adjustment ......1-22
Three-point type with retractor .......1-18
Seat belt warning light ..............2-19
Seats Adjustment ...................1-2
Frontseats...................1-2
Heatedseats.................2-33
Manual front seat adjustment .........1-2
Security indicator light ..............2-22 Security system (NISSAN vehicle immobilizer
system) , engine start
........2-25,3-2,5-12
Self-adjusting brakes ..............8-23
Service manual order form ...........9-39
Servicing air conditioner .............4-27
Setting button ...................4-7
Shifting Automatic transmission ...........5-14
Manual transmission .............5-18
Shiftlockrelease.................5-16
Shoulder belt height adjustment ........
1-22
Side air bag system (See supplemental side air
bag, curtain and rollover air bag systems) . . .1-77
Sonar Rear system .................5-40
Spark plug replacement .............8-19
Speedometer ...................2-4
SRSwarninglabel................1-79
Starting Before starting the engine ..........5-12
Jump starting .................6-11
Precautions when starting and driving ....5-2
Push starting .................6-13
Starting the engine .............5-12
Steering Power steering fluid .............8-14
Power steering system ...........5-34
Tilting steering wheel ............3-13
Steering wheel audio control switch ......4-63
Stoplight.....................8-31
Storage......................2-38
Storage tray ................2-38,2-40
Sunglasses case .................2-42
Sunroof (see Moonroof) .............2-50
Sun visors ....................3-14
Supplemental air bag warning labels ......1-79
