Page 111 of 466

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual 1. Vents (P. 4-15)
2. Headlight/fog light (if so equipped)/turnsignal switch (P. 2-28)
3. Steering wheel switch for audio control
(if so equipped)/Bluetooth® Hands-
Free Phone System (if so equipped)

Page 112 of 466

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual 15. Electronic locking rear differential(E-Lock) system switch (if so
equipped) (P.2-36)
Heated seat switch (if so equipped)
(P. 2-33)
Rear sonar switch (if so equipped)
(P. 2-37)
Vehicle Dynamic Cont

Page 113 of 466

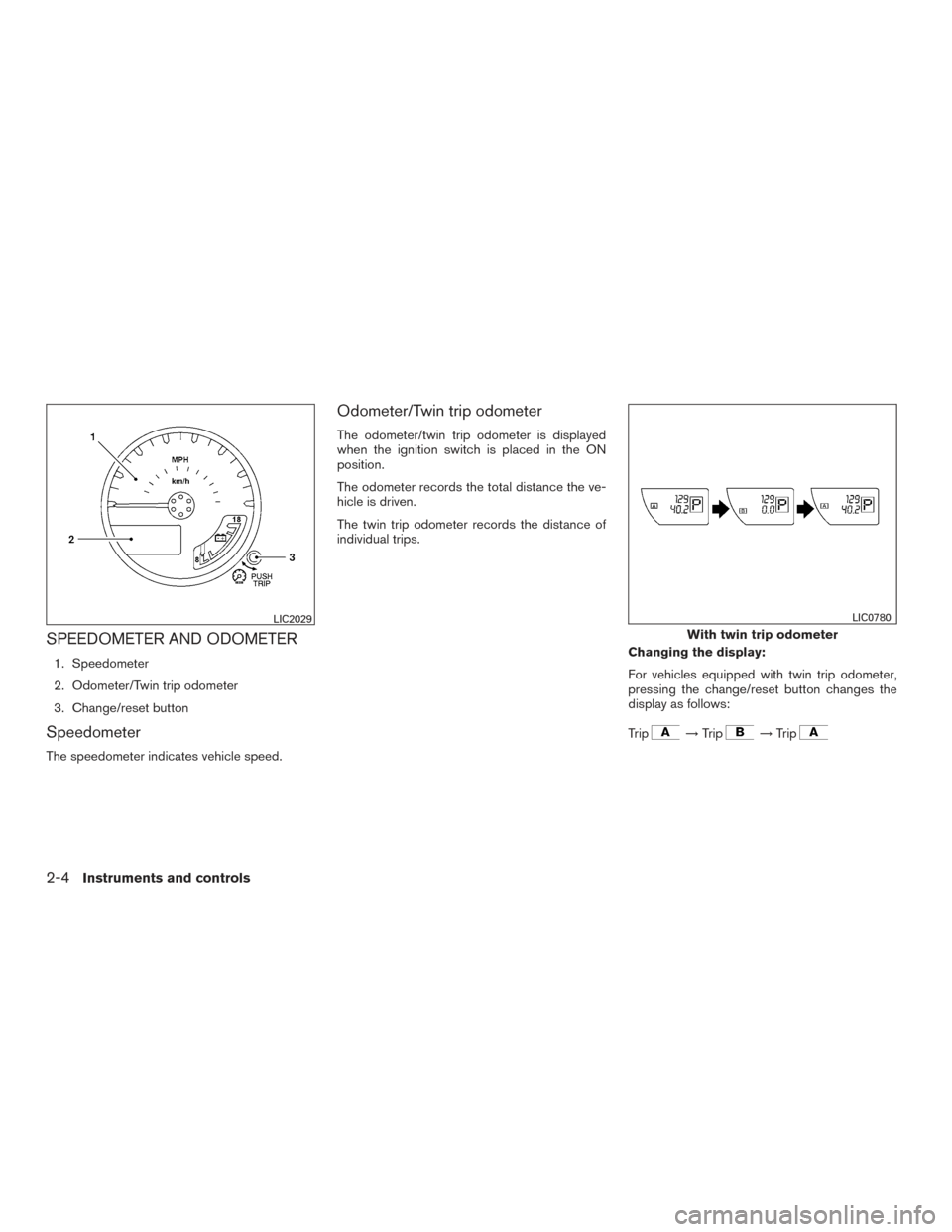

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual SPEEDOMETER AND ODOMETER
1. Speedometer
2. Odometer/Twin trip odometer
3. Change/reset button
Speedometer
The speedometer indicates vehicle speed.
Odometer/Twin trip odometer
The odometer/twin trip od

Page 114 of 466

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual For vehicles equipped with trip computer, press-
ing the change/reset button changes the display
as follows:
Trip
→Trip→Distance to Empty →
Average speed →Average fuel consumption →
Journey

Page 115 of 466

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual long as the low tire pressure warning light re-
mains illuminated. For additional information, re-
fer to “Low tire pressure warning light” in the
“Instruments and controls” section, “Tire P

Page 116 of 466

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual CAUTION
If the gauge indicates coolant tempera-
ture near the hot (H) end of the normal
range, reduce vehicle speed to decrease
temperature. If the gauge is over the nor-
mal range, stop the vehicle a

Page 117 of 466

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual ENGINE OIL PRESSURE GAUGE (if
so equipped)
The gauge indicates the engine lubrication sys-
tem oil pressure while the engine is running. The
needle should be in the middle of the gauge when
the engine

Page 118 of 466

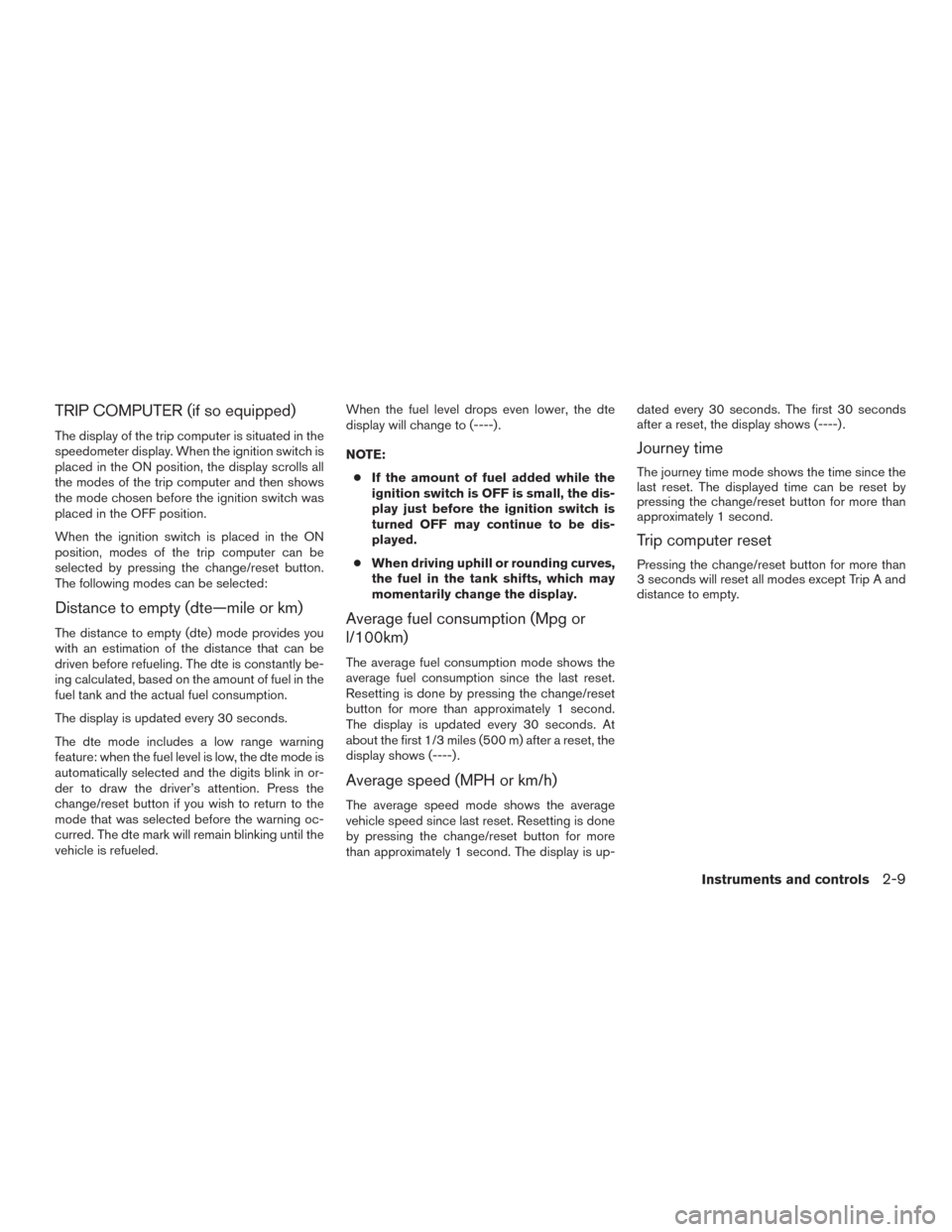

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual TRIP COMPUTER (if so equipped)
The display of the trip computer is situated in the
speedometer display. When the ignition switch is
placed in the ON position, the display scrolls all
the modes of the

Page 119 of 466

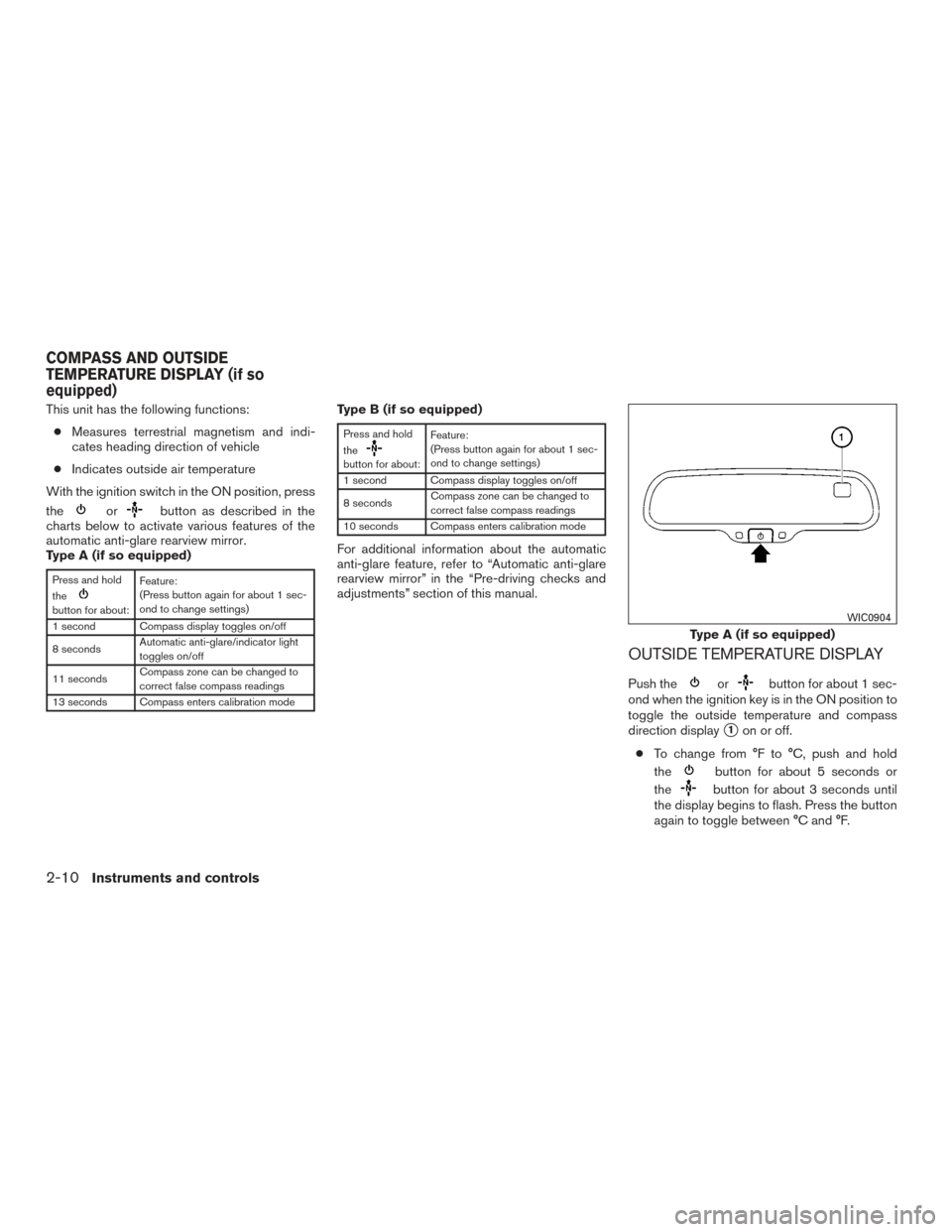

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual This unit has the following functions:● Measures terrestrial magnetism and indi-
cates heading direction of vehicle
● Indicates outside air temperature
With the ignition switch in the ON position,

Page 120 of 466

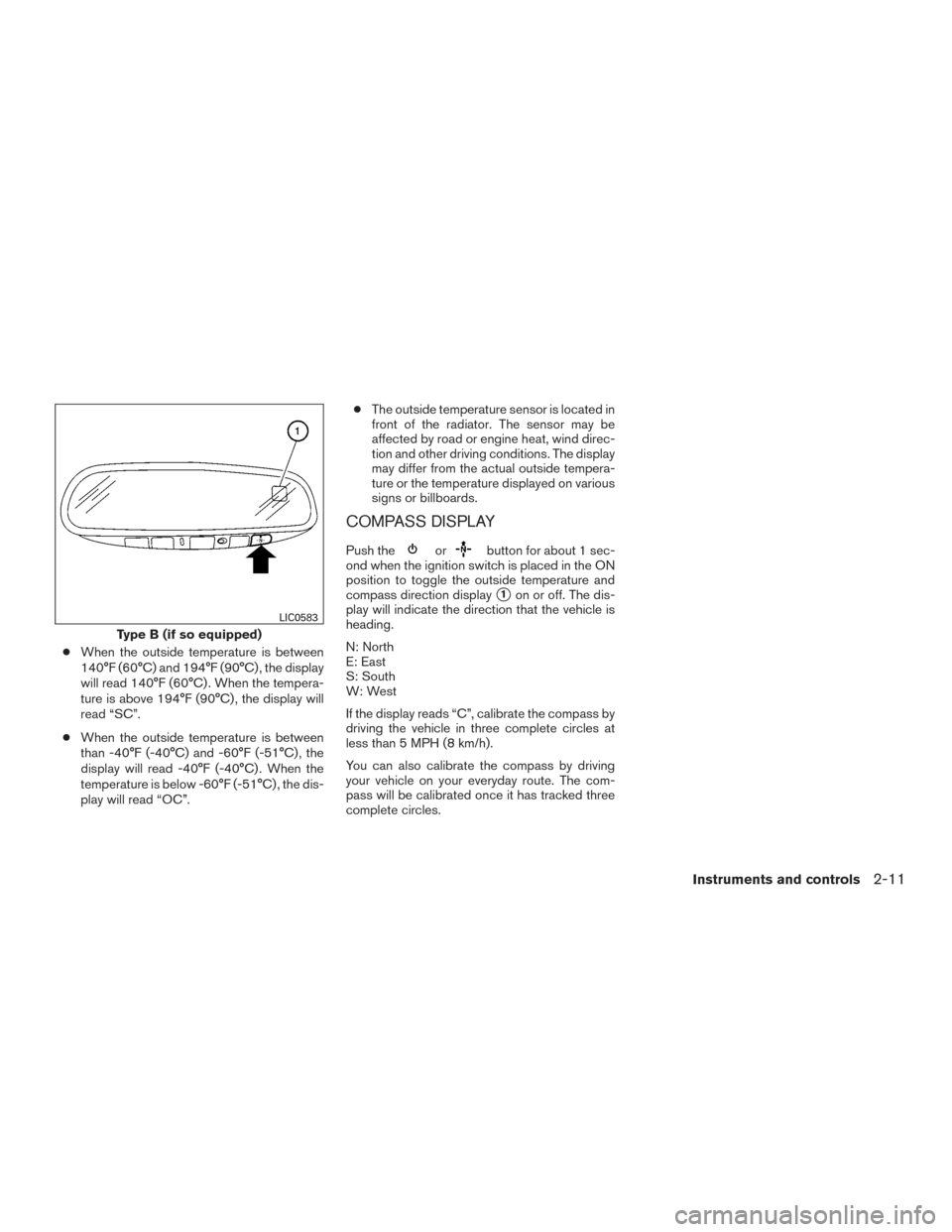

NISSAN FRONTIER 2015 D23 / 3.G Owners Manual ●When the outside temperature is between
140°F (60°C) and 194°F (90°C) , the display
will read 140°F (60°C) . When the tempera-
ture is above 194°F (90°C) , the display will
read “SC”.
