Page 431 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information Label. The label is located as
shown.
AIR CONDITIONER SPECIFICATION
LABEL (if so equipped)
The ai

Page 432 of 469

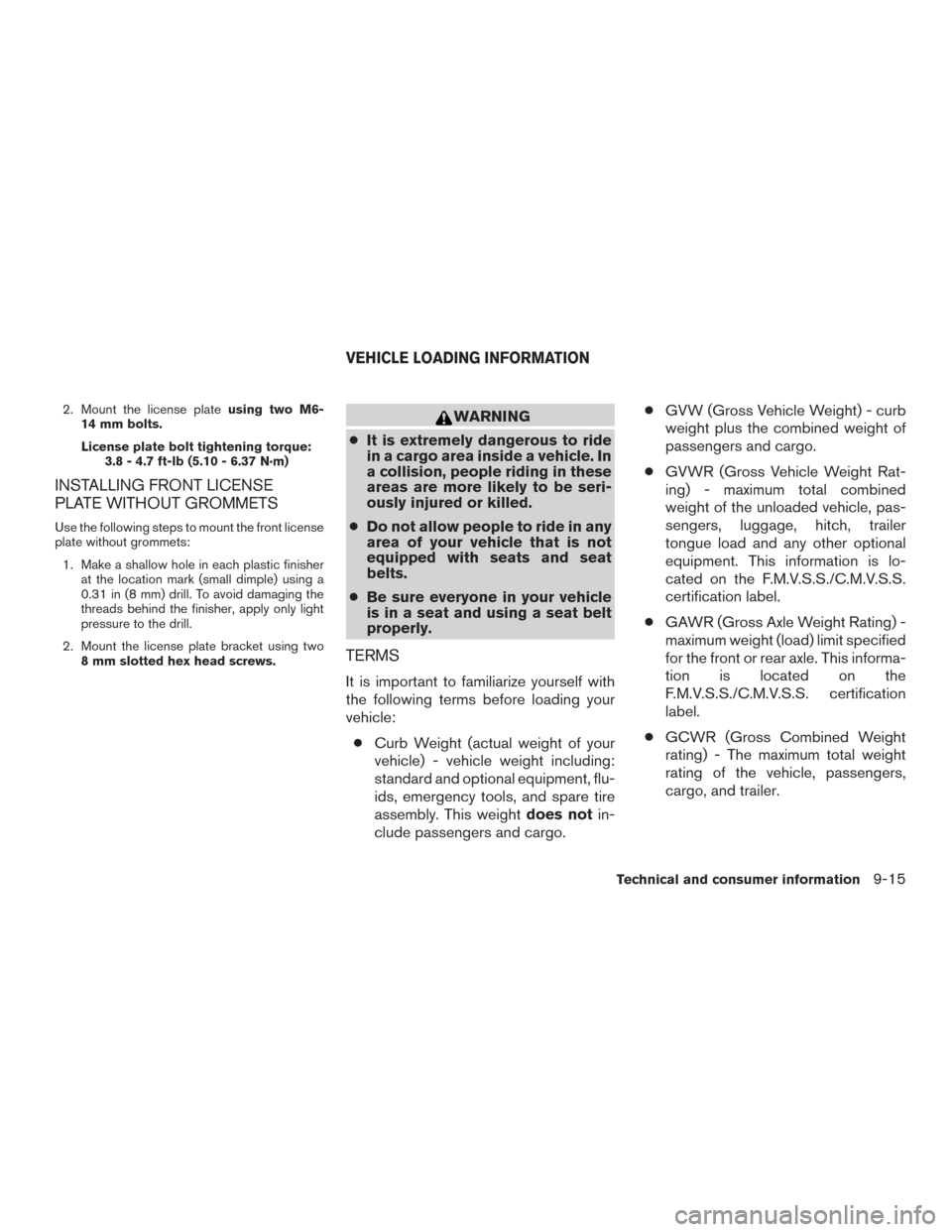

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual 2. Mount the license plateusing two M6-
14 mm bolts.
License plate bolt tightening torque: 3.8 - 4.7 ft-lb (5.10 - 6.37 N·m)
INSTALLING FRONT LICENSE
PLATE WITHOUT GROMMETS
Use the following steps to

Page 433 of 469

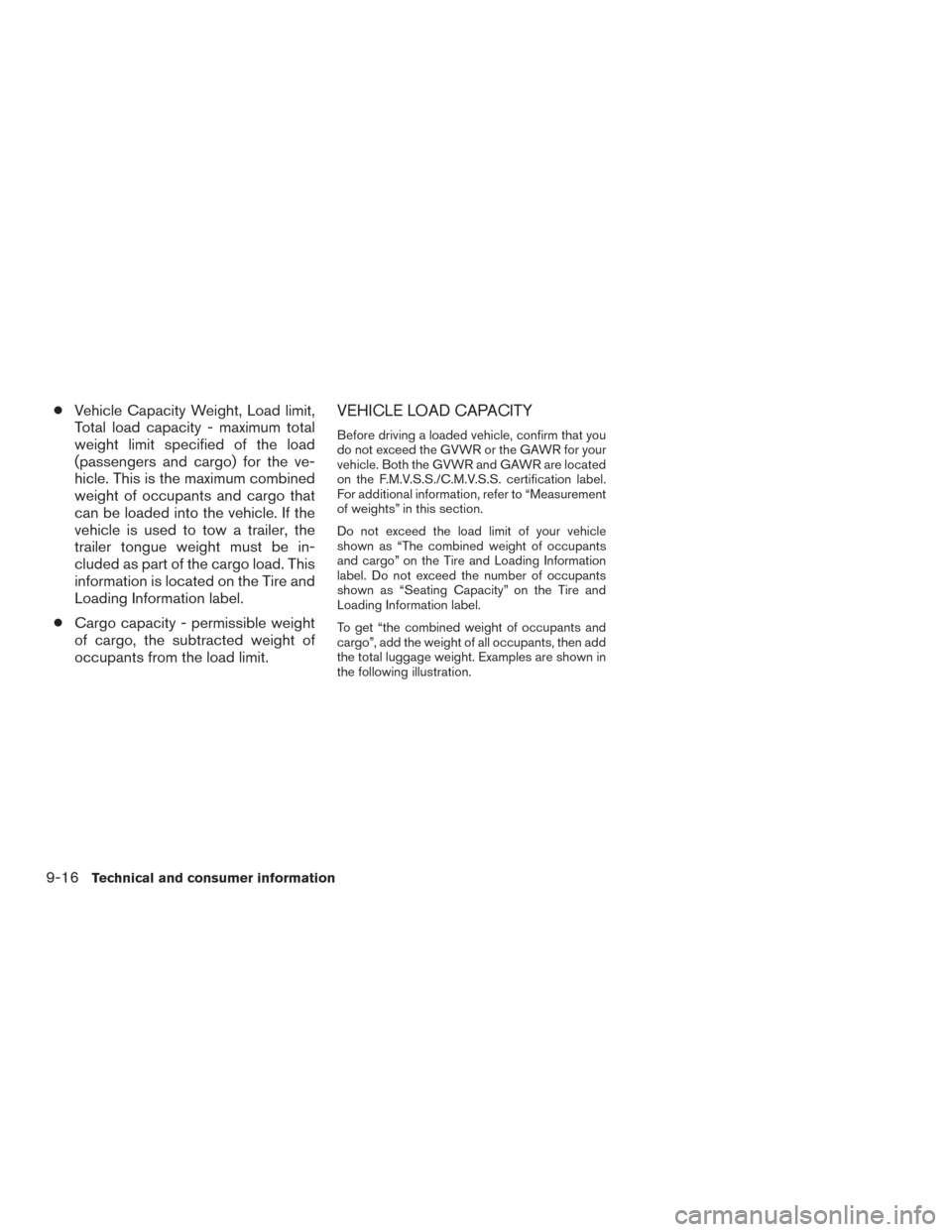

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual ●Vehicle Capacity Weight, Load limit,
Total load capacity - maximum total
weight limit specified of the load
(passengers and cargo) for the ve-
hicle. This is the maximum combined
weight of occupant

Page 434 of 469

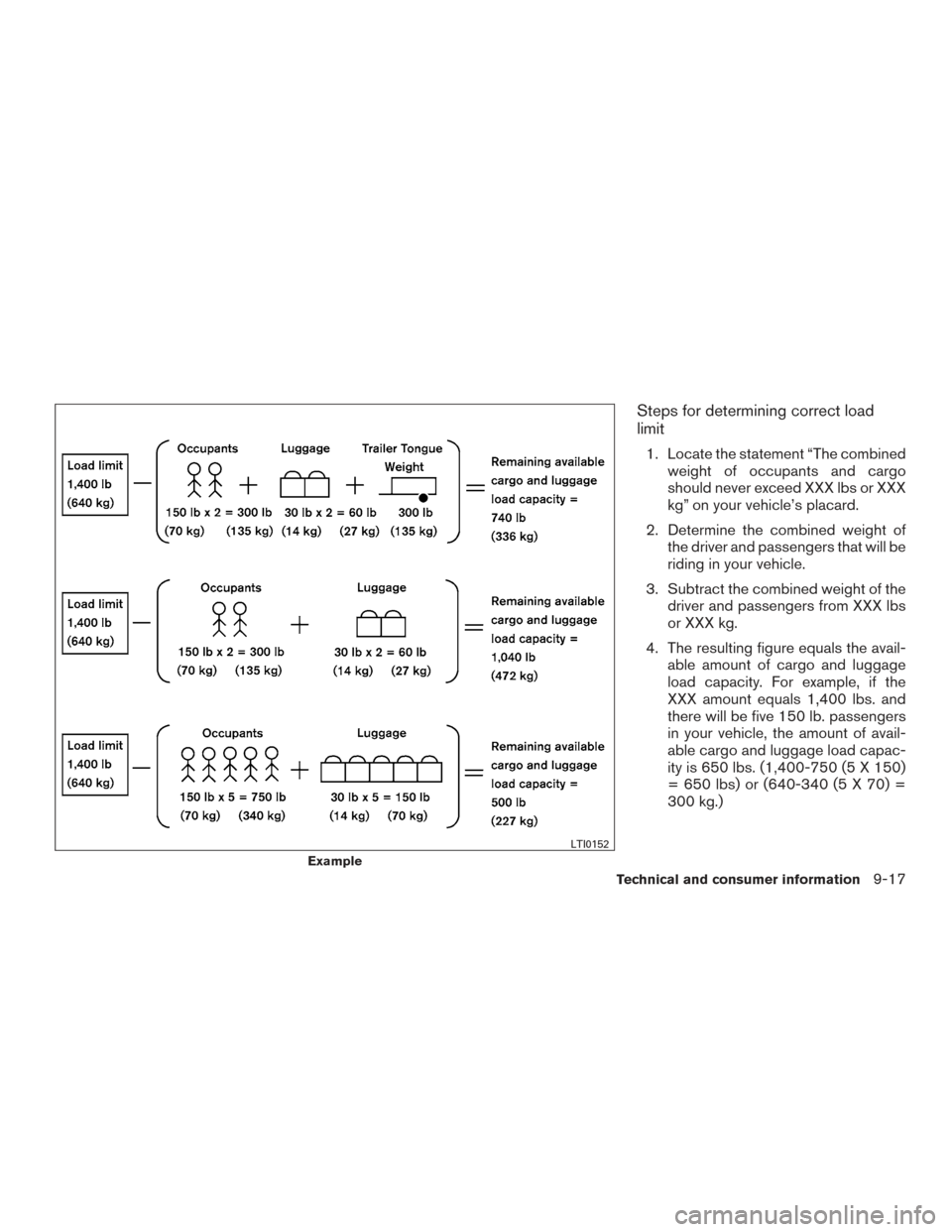

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual Steps for determining correct load
limit
1. Locate the statement “The combinedweight of occupants and cargo
should never exceed XXX lbs or XXX
kg” on your vehicle’s placard.
2. Determine the com

Page 435 of 469

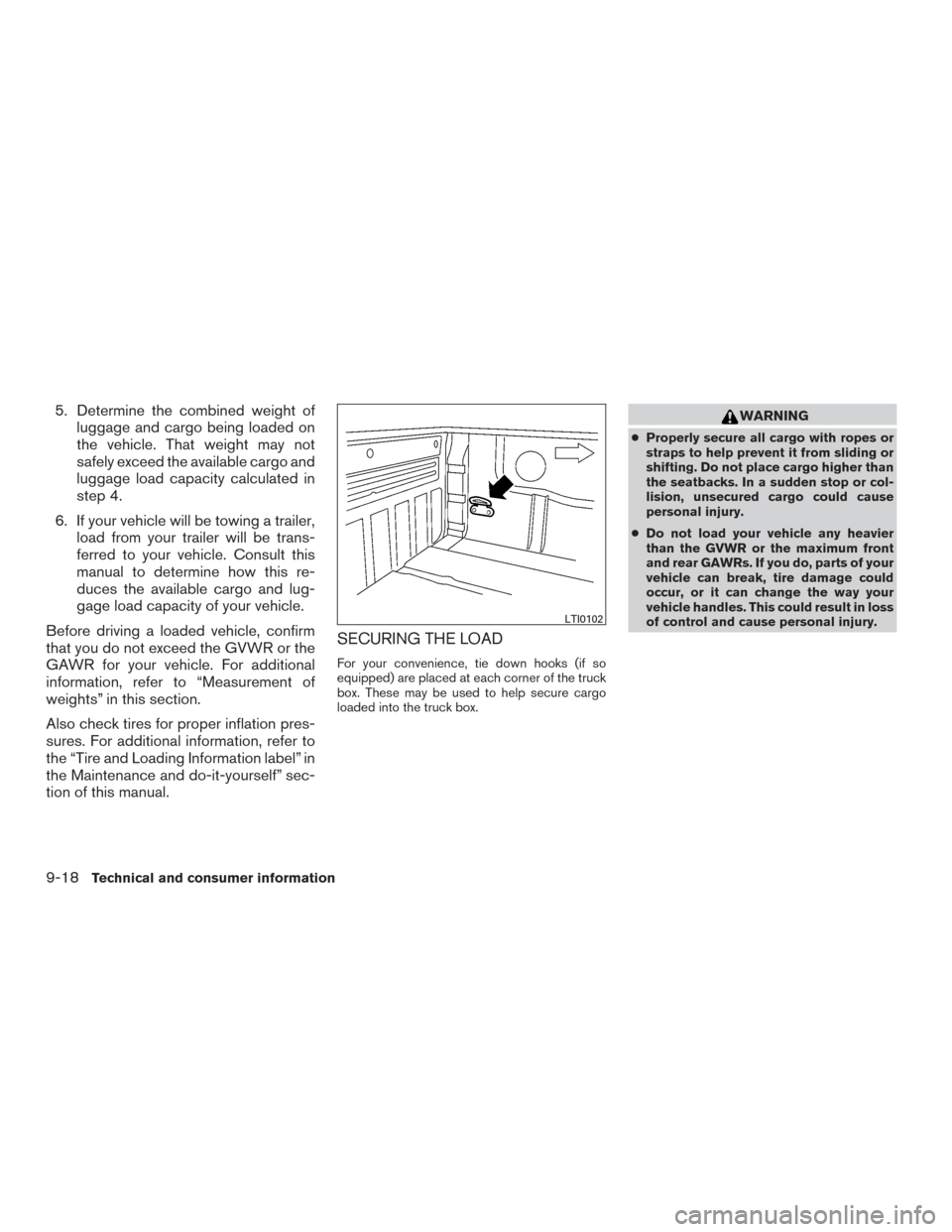

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual 5. Determine the combined weight ofluggage and cargo being loaded on
the vehicle. That weight may not
safely exceed the available cargo and
luggage load capacity calculated in
step 4.
6. If your vehic

Page 436 of 469

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual UTILI-TRACK™ CHANNEL SYSTEM
(if so equipped)
1. Side channels
2. Header channel
3. Header channel
WARNING
●Properly install and tighten the tie-
down cleats into the Utili-track™ chan-
nel syste

Page 437 of 469

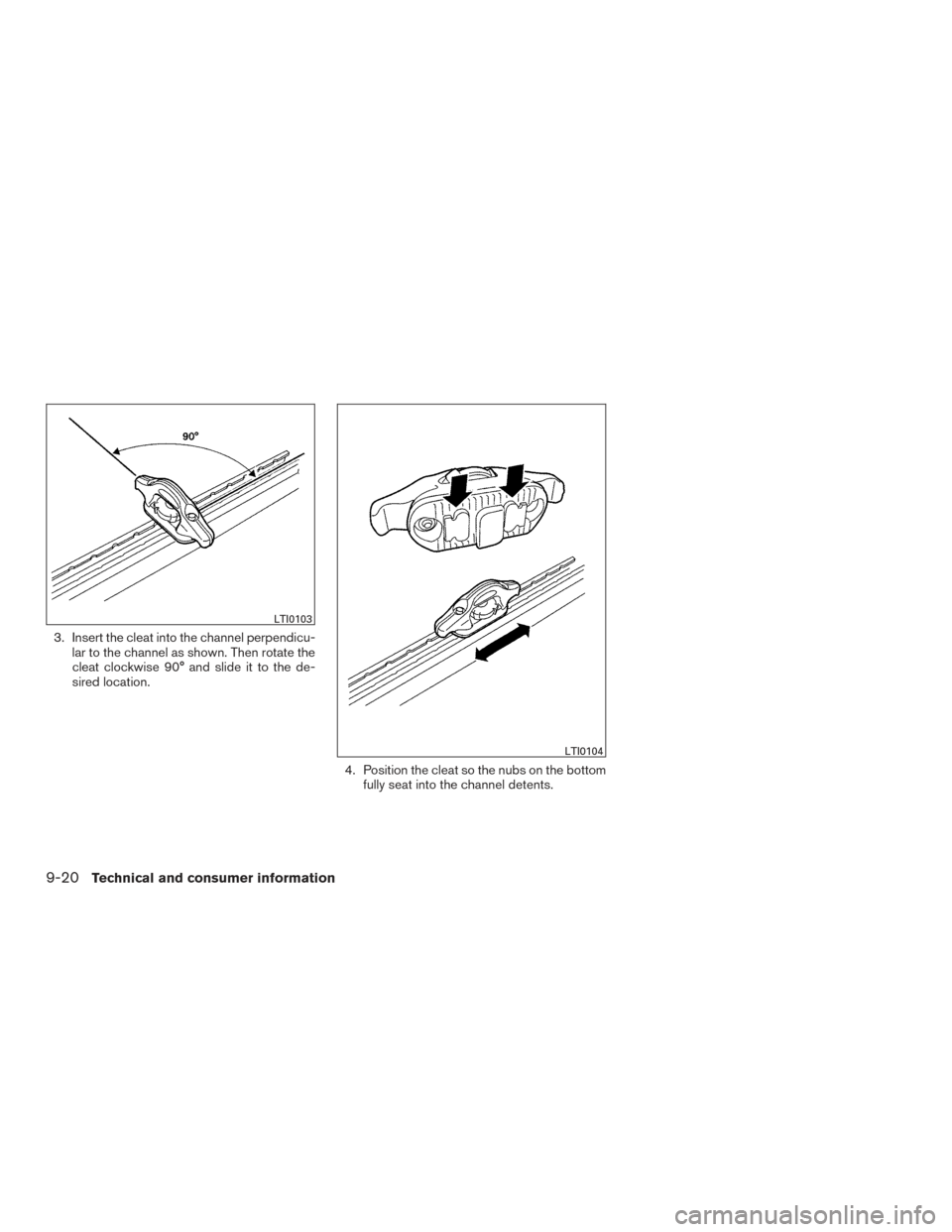

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual 3. Insert the cleat into the channel perpendicu-lar to the channel as shown. Then rotate the
cleat clockwise 90° and slide it to the de-
sired location.
4. Position the cleat so the nubs on the botto

Page 438 of 469

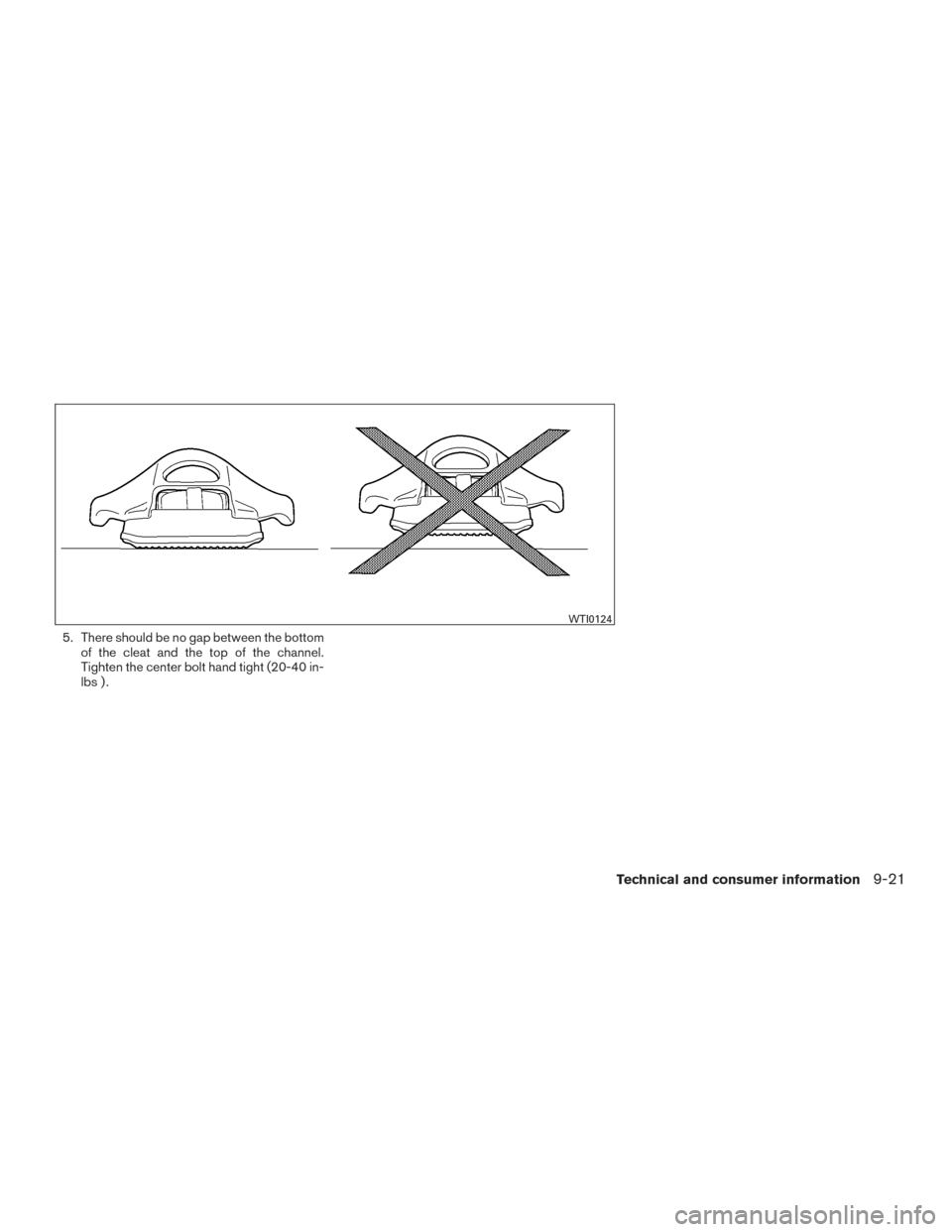

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual 5. There should be no gap between the bottomof the cleat and the top of the channel.
Tighten the center bolt hand tight (20-40 in-
lbs ) .
WTI0124
Technical and consumer information9-21

Page 439 of 469

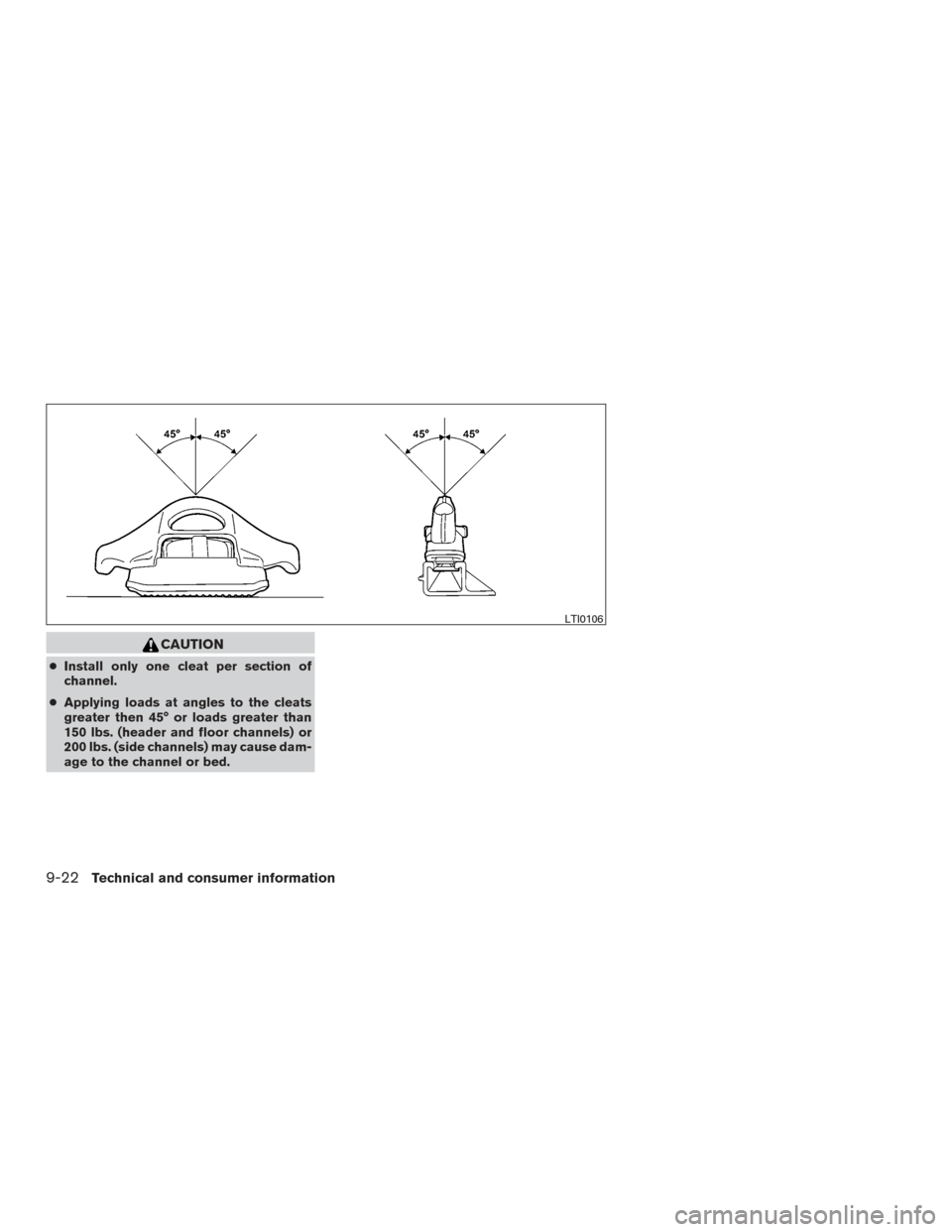

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual CAUTION
●Install only one cleat per section of
channel.
● Applying loads at angles to the cleats
greater then 45° or loads greater than
150 lbs. (header and floor channels) or
200 lbs. (side chan

Page 440 of 469

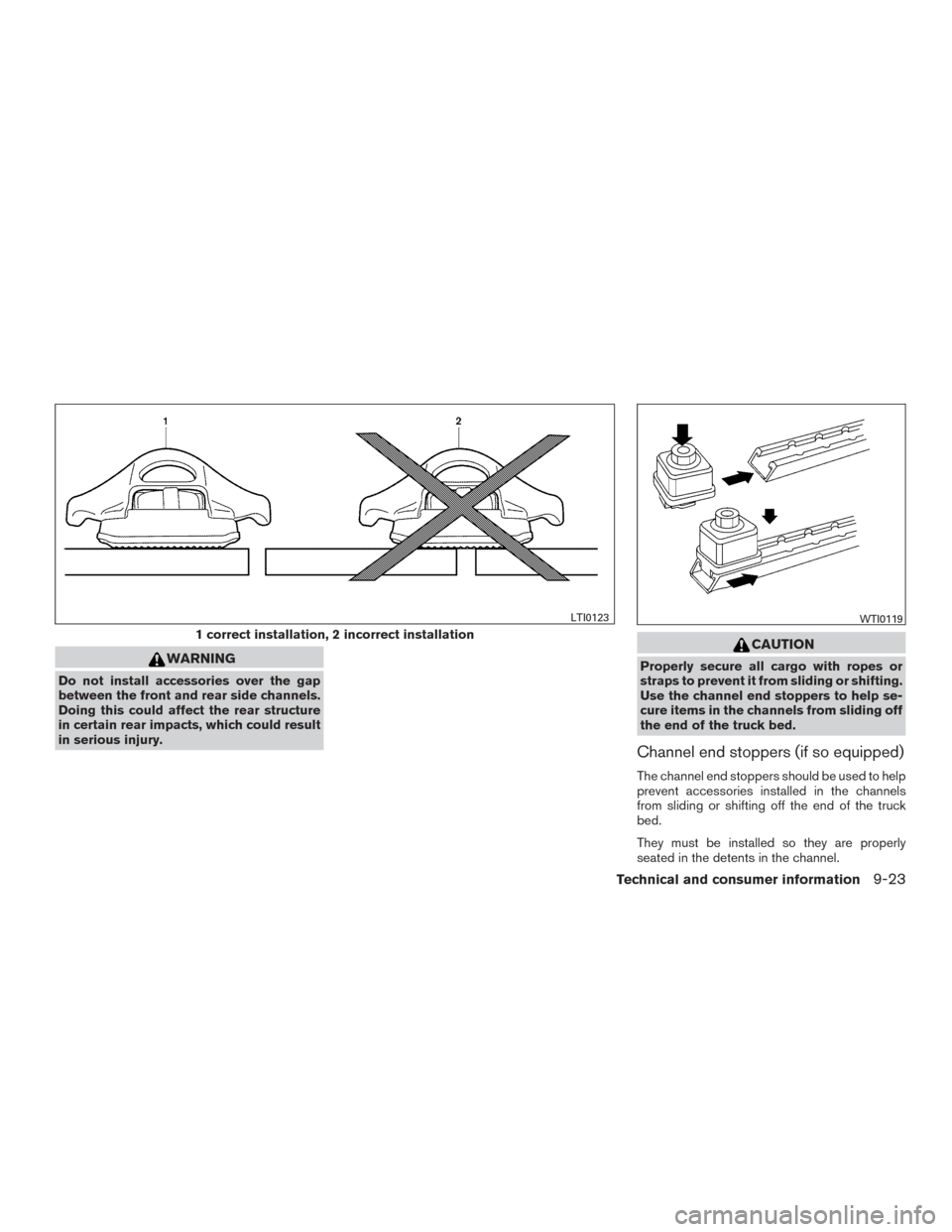

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual WARNING
Do not install accessories over the gap
between the front and rear side channels.
Doing this could affect the rear structure
in certain rear impacts, which could result
in serious injury.
CAUT
