Page 401 of 469

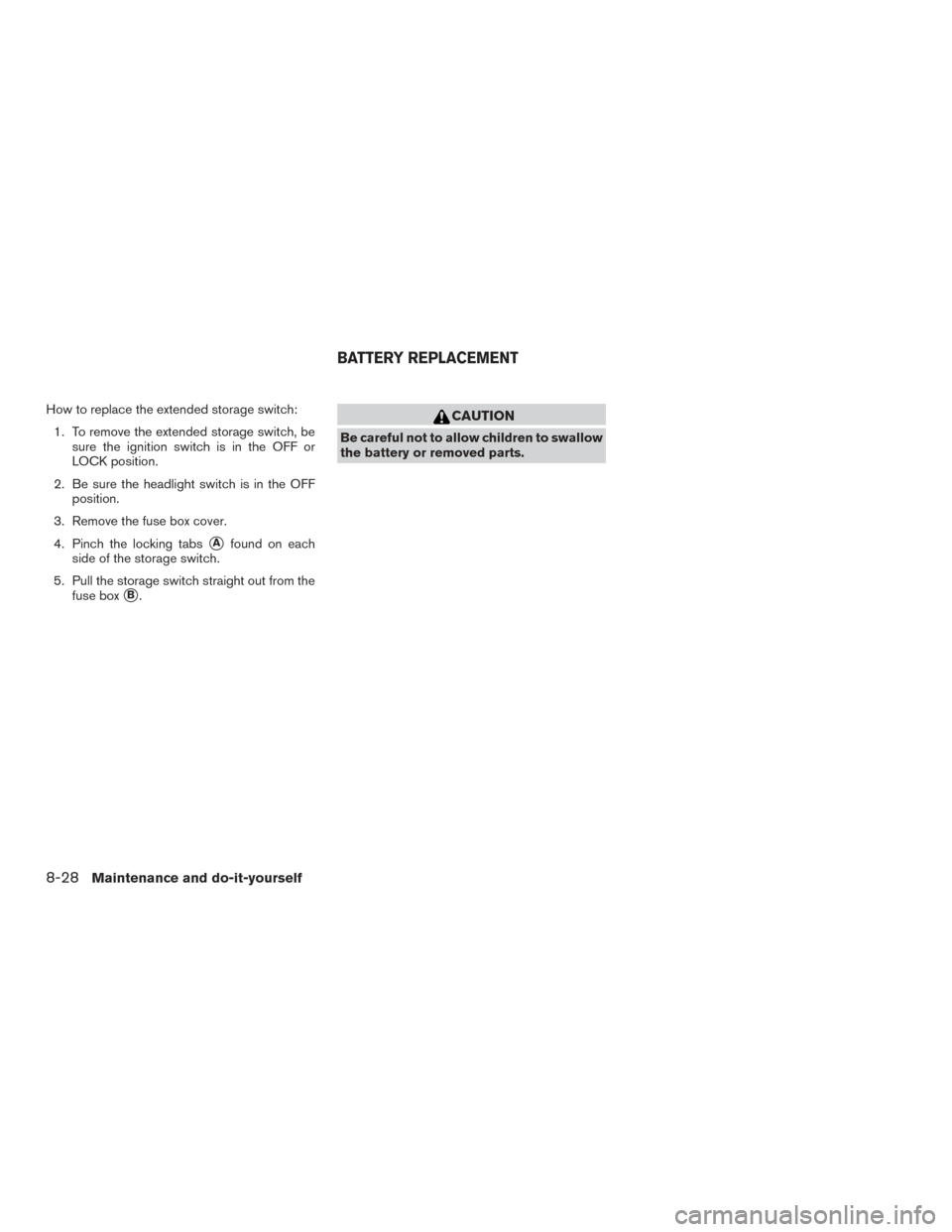

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual How to replace the extended storage switch:1. To remove the extended storage switch, be sure the ignition switch is in the OFF or
LOCK position.
2. Be sure the headlight switch is in the OFF position.

Page 402 of 469

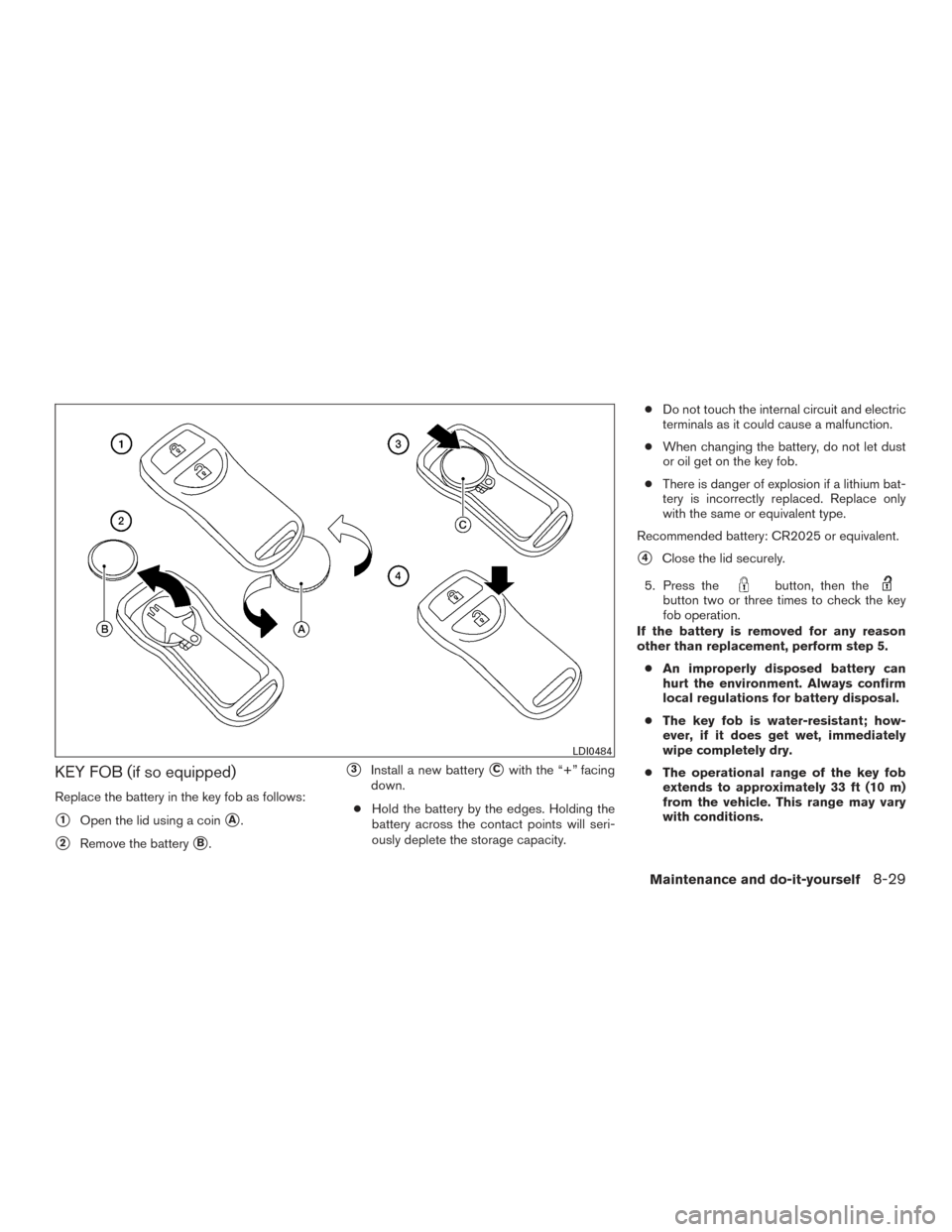

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual KEY FOB (if so equipped)
Replace the battery in the key fob as follows:
1Open the lid using a coinA.
2Remove the batteryB.
3Install a new batteryCwith the “+” facing
down.
● Hold the batte

Page 403 of 469

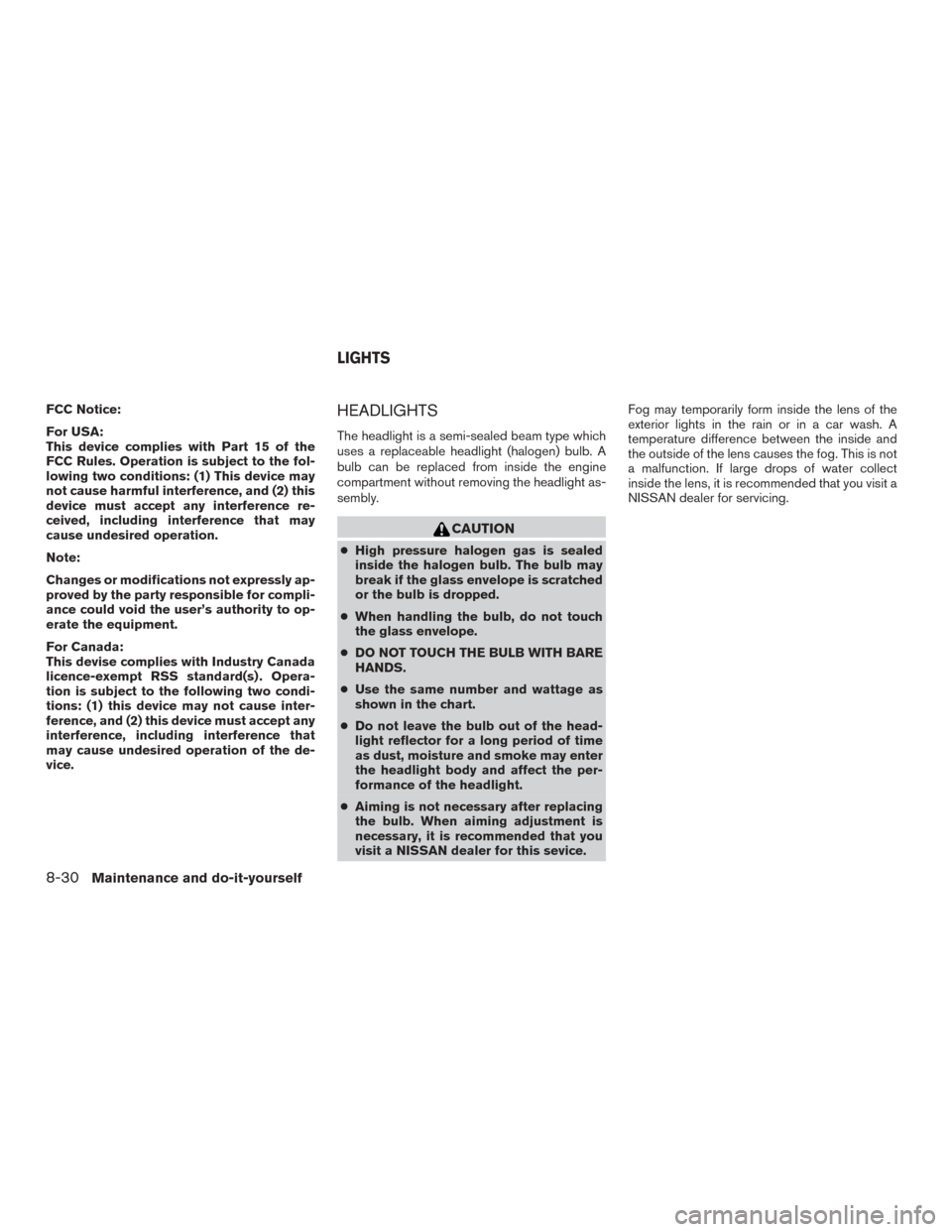

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device

Page 404 of 469

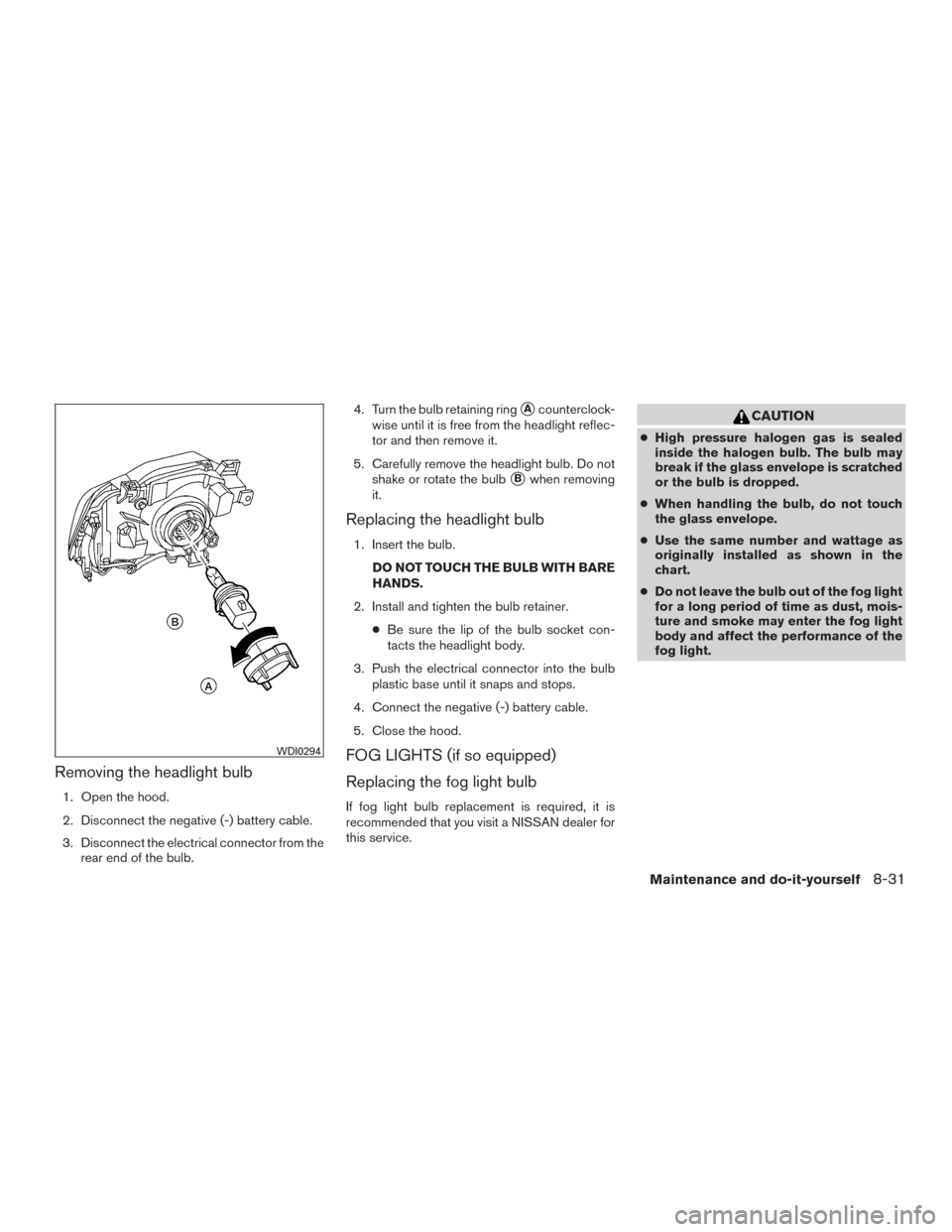

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual Removing the headlight bulb
1. Open the hood.
2. Disconnect the negative (-) battery cable.
3. Disconnect the electrical connector from therear end of the bulb. 4. Turn the bulb retaining ring
Acount

Page 405 of 469

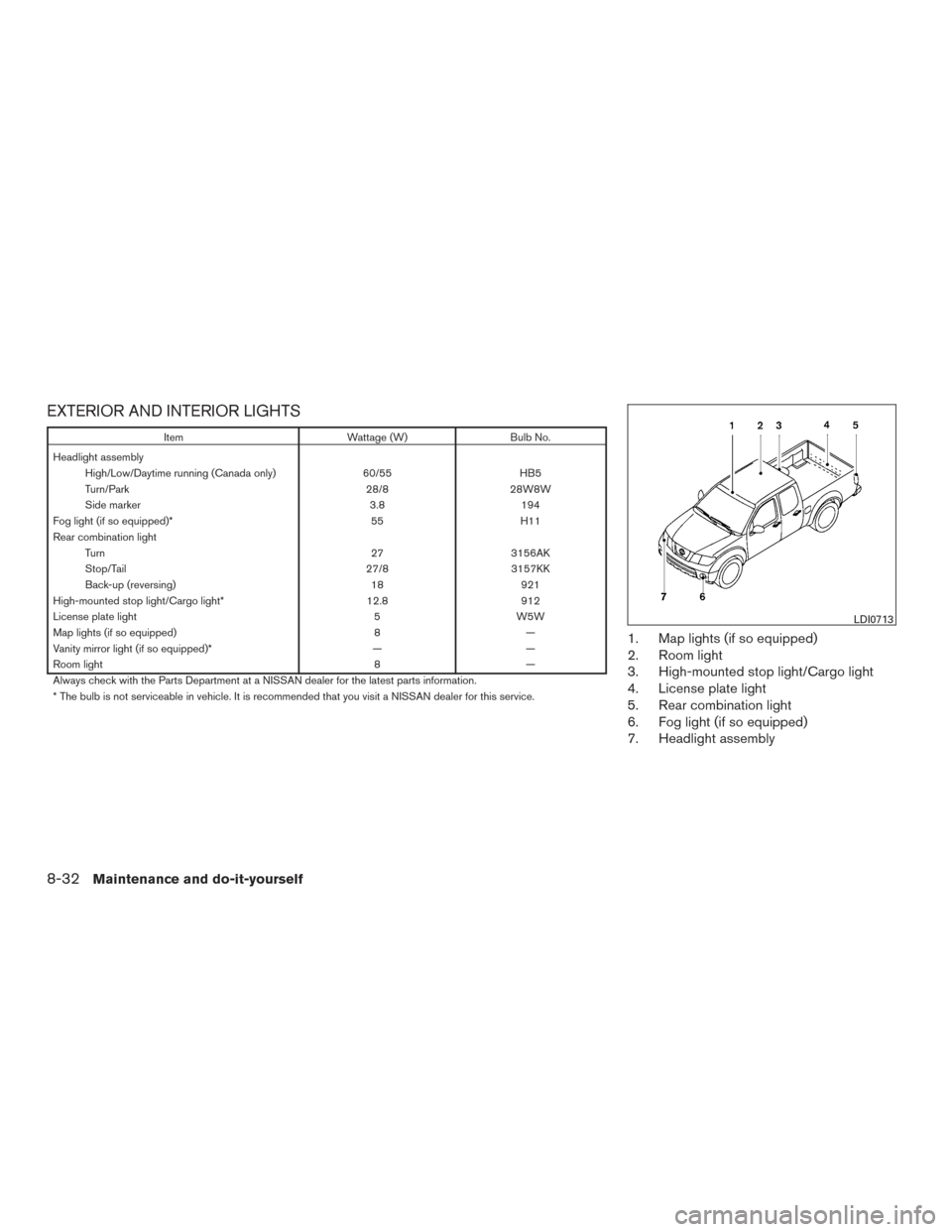

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual EXTERIOR AND INTERIOR LIGHTS
ItemWattage (W)Bulb No.
Headlight assembly High/Low/Daytime running (Canada only) 60/55HB5
Turn/Park 28/828W8W
Side marker 3.8194
Fog light (if so equipped)* 55H11
Rear co

Page 406 of 469

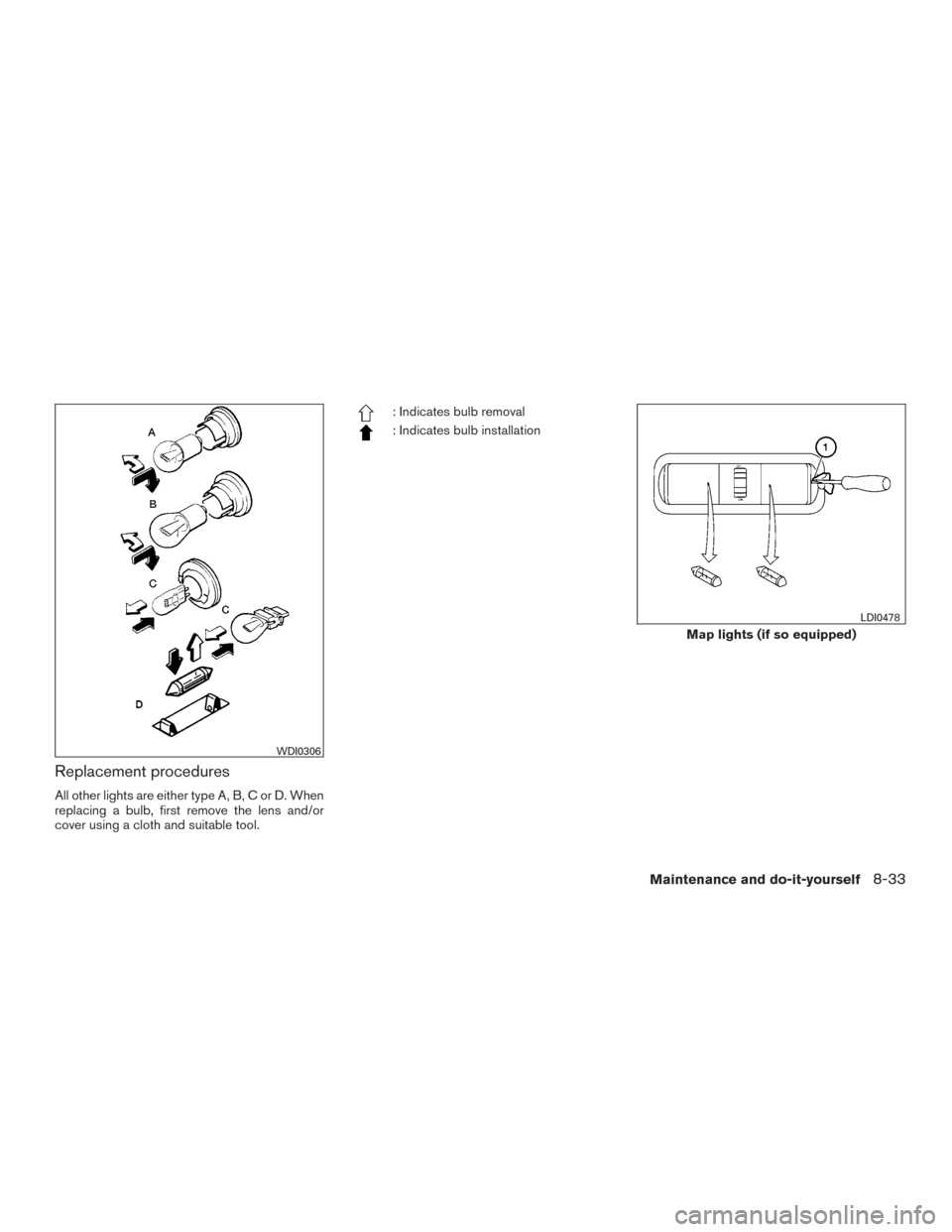

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual Replacement procedures
All other lights are either type A, B, C or D. When
replacing a bulb, first remove the lens and/or
cover using a cloth and suitable tool.
: Indicates bulb removal
: Indicates bu

Page 407 of 469

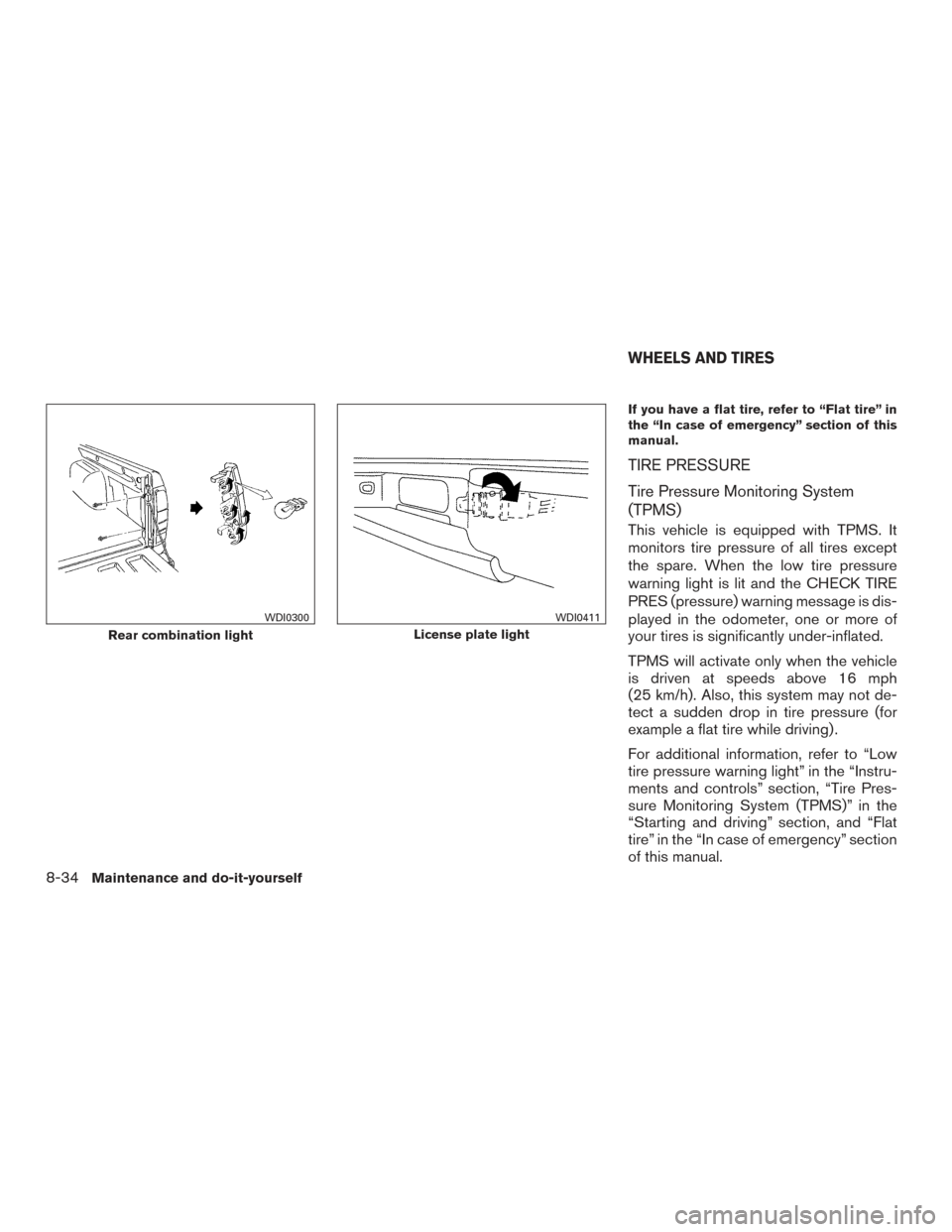

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual If you have a flat tire, refer to “Flat tire” in
the “In case of emergency” section of this
manual.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with TPMS. It

Page 408 of 469

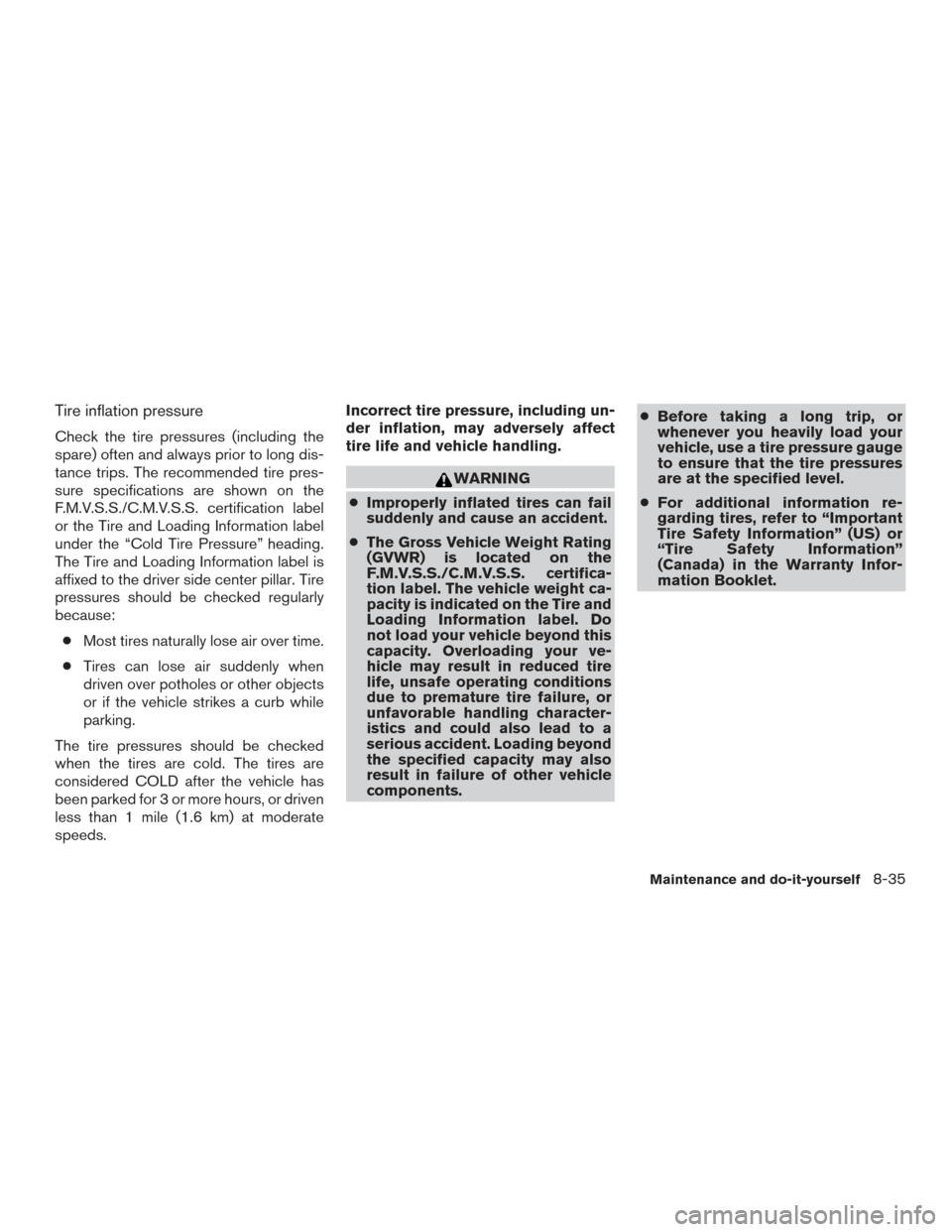

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual Tire inflation pressure
Check the tire pressures (including the
spare) often and always prior to long dis-
tance trips. The recommended tire pres-
sure specifications are shown on the
F.M.V.S.S./C.M.V

Page 409 of 469

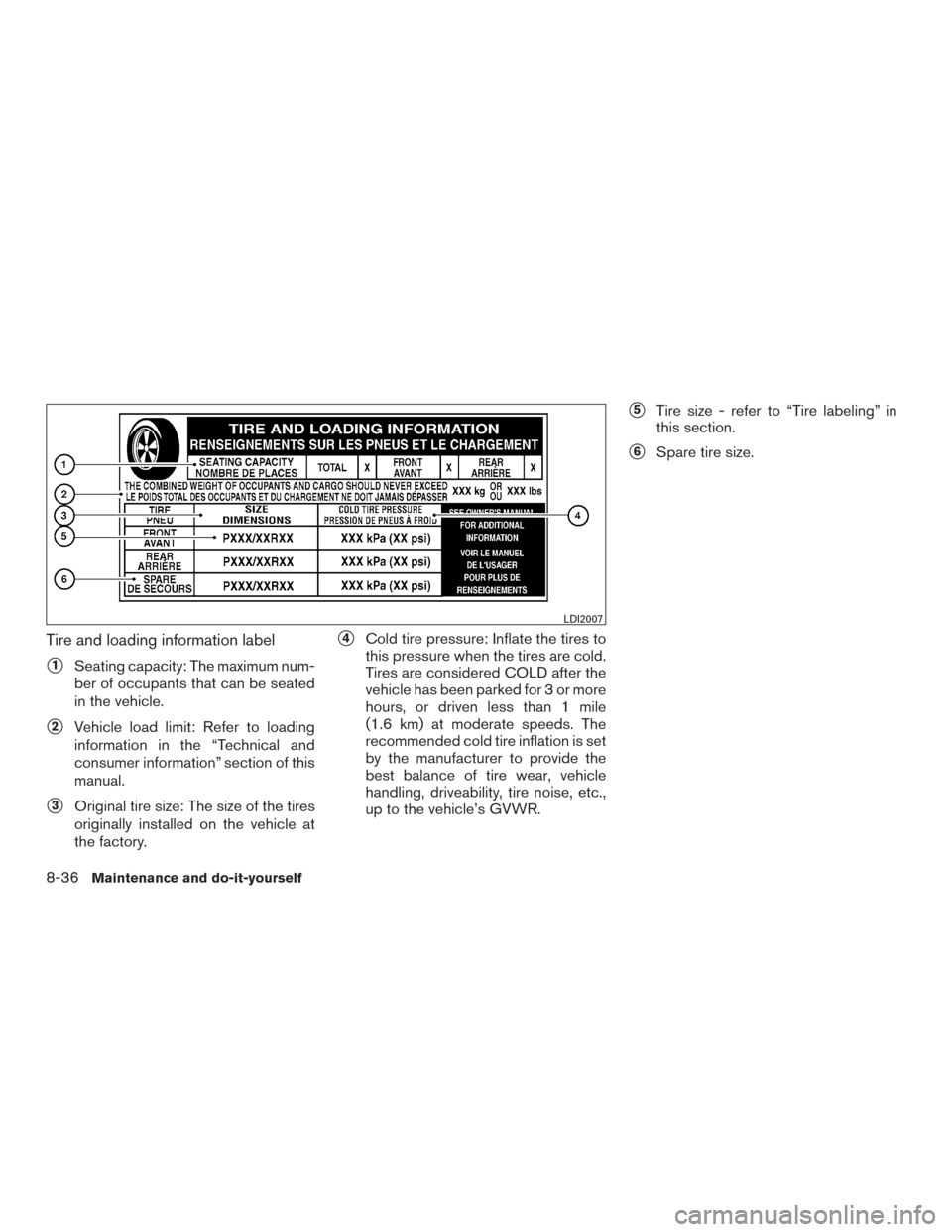

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual Tire and loading information label
1Seating capacity: The maximum num-
ber of occupants that can be seated
in the vehicle.
2Vehicle load limit: Refer to loading
information in the “Technical and
c

Page 410 of 469

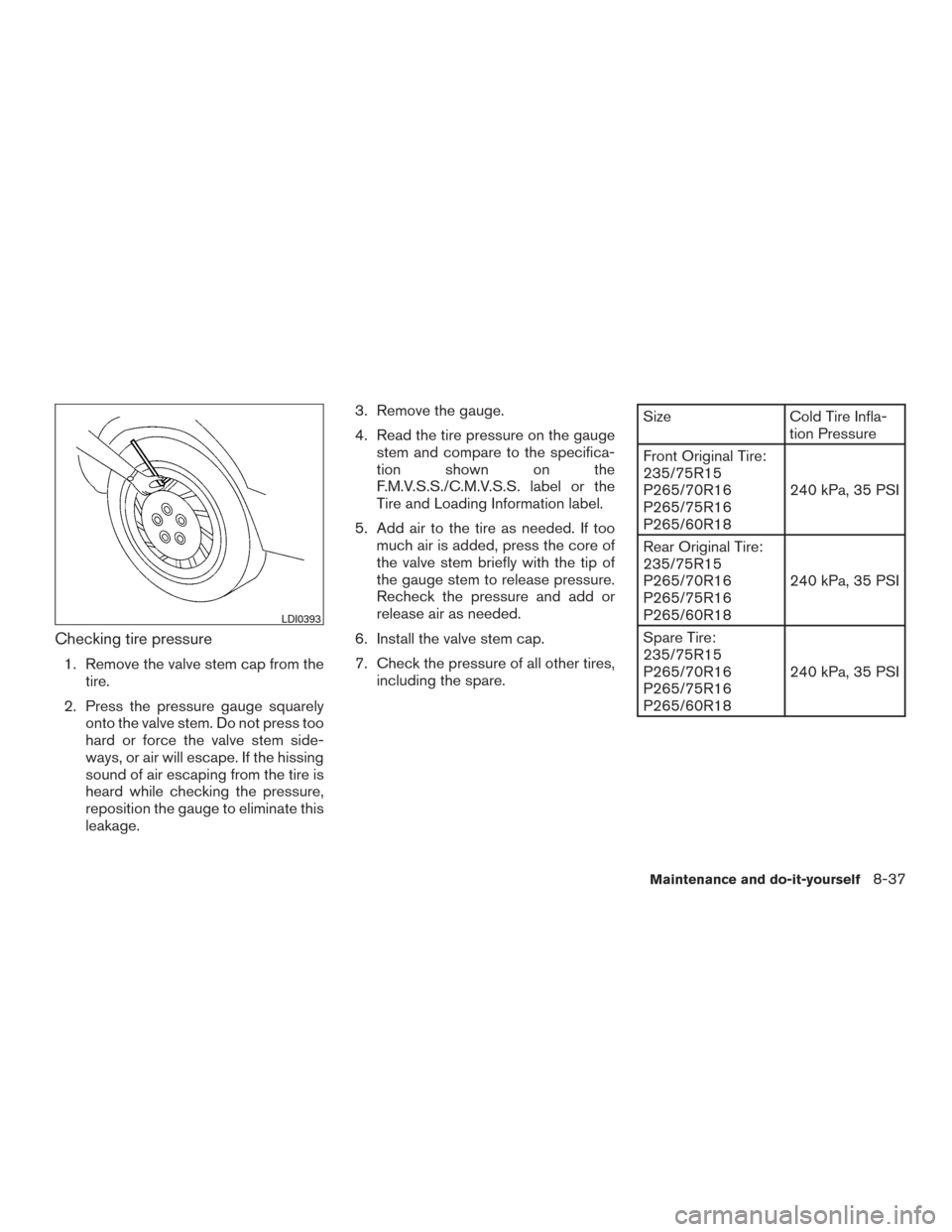

NISSAN FRONTIER 2016 D23 / 3.G Owners Manual Checking tire pressure
1. Remove the valve stem cap from thetire.
2. Press the pressure gauge squarely onto the valve stem. Do not press too
hard or force the valve stem side-
ways, or air will escape
