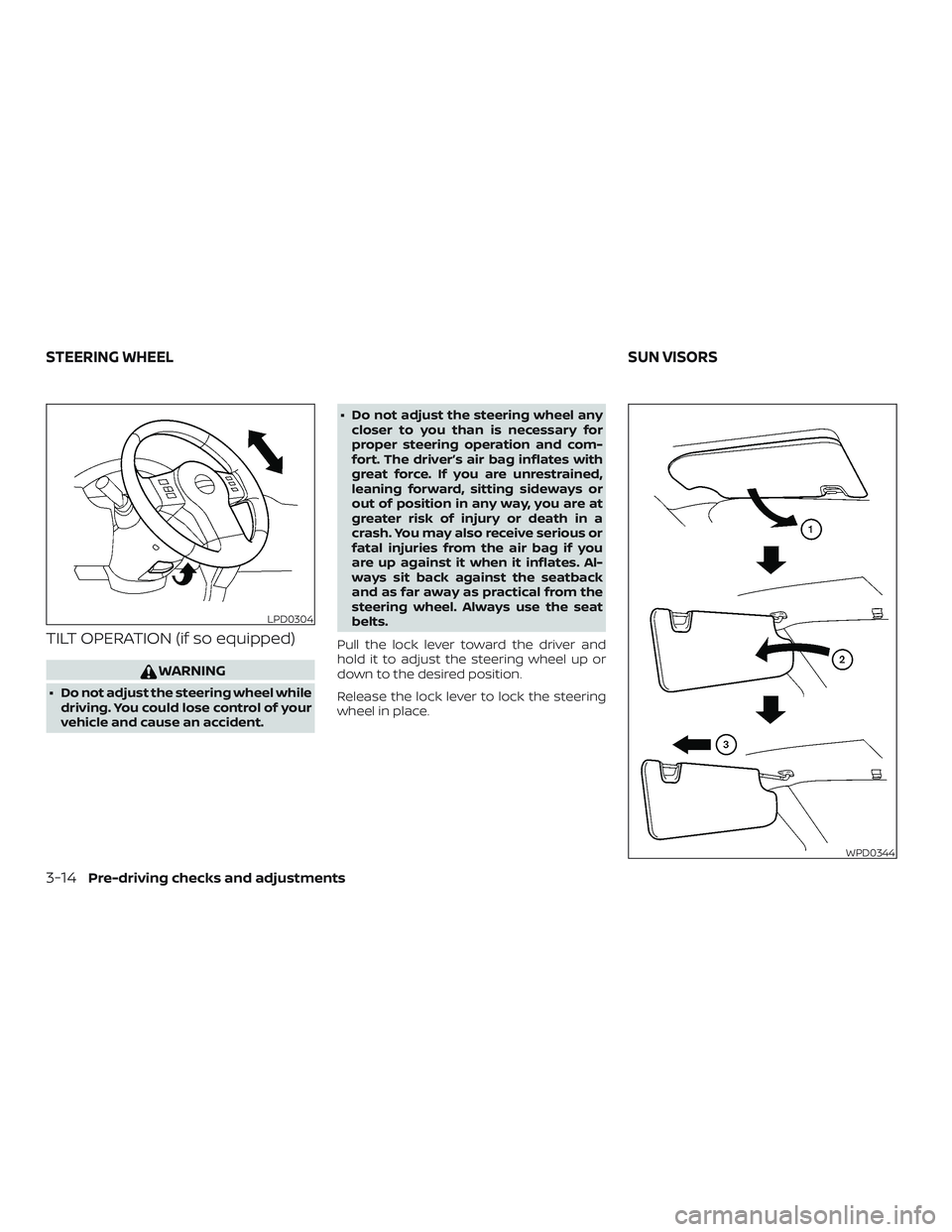

TILT OPERATION (if so equipped)
WARNING
∙ Do not adjust the steering wheel whiledriving. You could lose control of your
vehicle and cause an accident. ∙ Do not adjust the steering wheel any
closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates. Al-
ways sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.
Pull the lock lever toward the driver and
hold it to adjust the steering wheel up or
down to the desired position.
Release the lock lever to lock the steering
wheel in place.
LPD0304
WPD0344
STEERING WHEEL SUN VISORS
3-14Pre-driving checks and adjustments

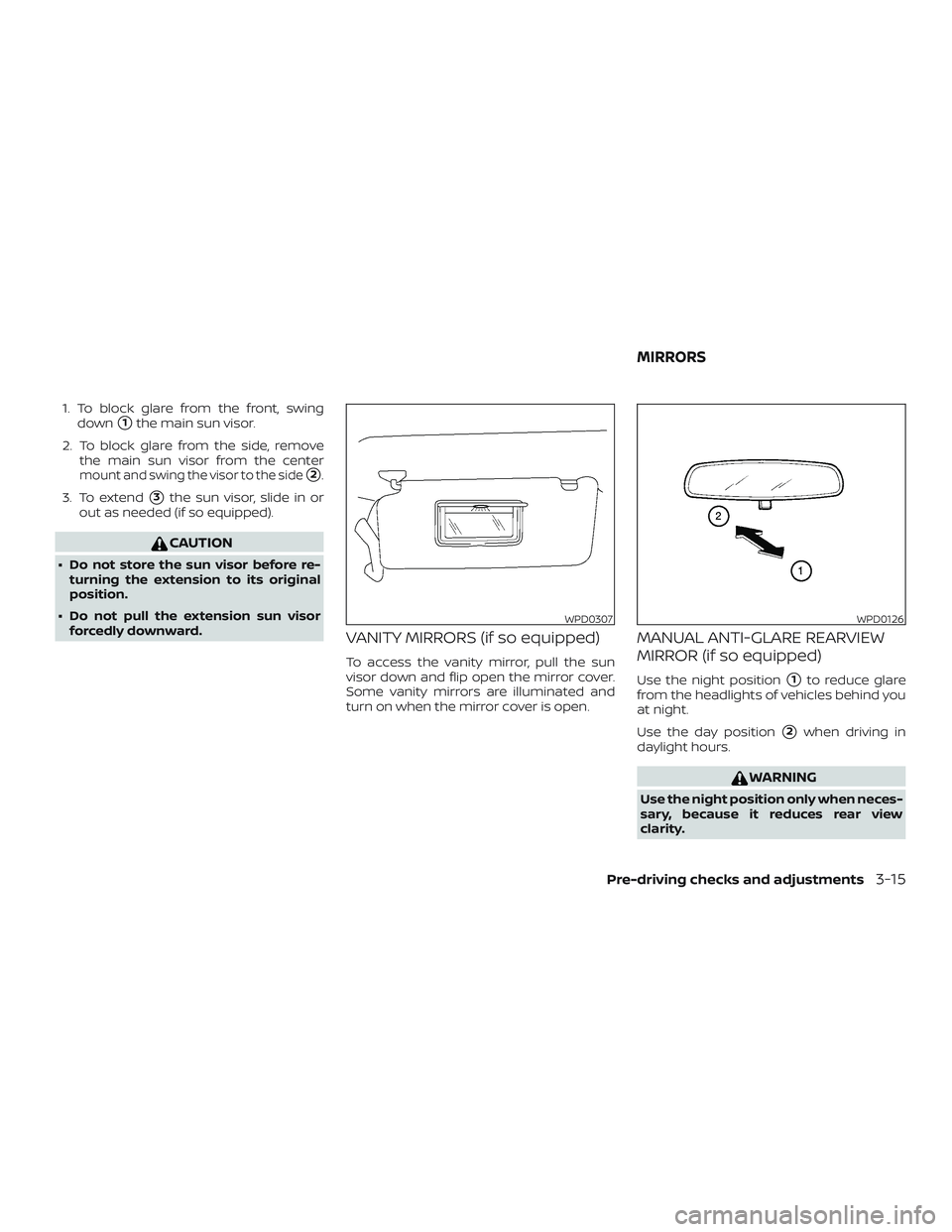

1. To block glare from the front, swingdown
1the main sun visor.
2. To block glare from the side, remove the main sun visor from the center
mount and swing the visor to the side2.
3. To extend3the sun visor, slide in or
out as needed (if so equipped).
CAUTION
∙ Do not store the sun visor before re- turning the extension to its original
position.
∙ Do not pull the extension sun visor forcedly downward.
VANITY MIRRORS (if so equipped)
To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
Some vanity mirrors are illuminated and
turn on when the mirror cover is open.
MANUAL ANTI-GLARE REARVIEW
MIRROR (if so equipped)
Use the night position1to reduce glare
from the headlights of vehicles behind you
at night.
Use the day position
2when driving in
daylight hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view
clarity.
WPD0307WPD0126
MIRRORS
Pre-driving checks and adjustments3-15

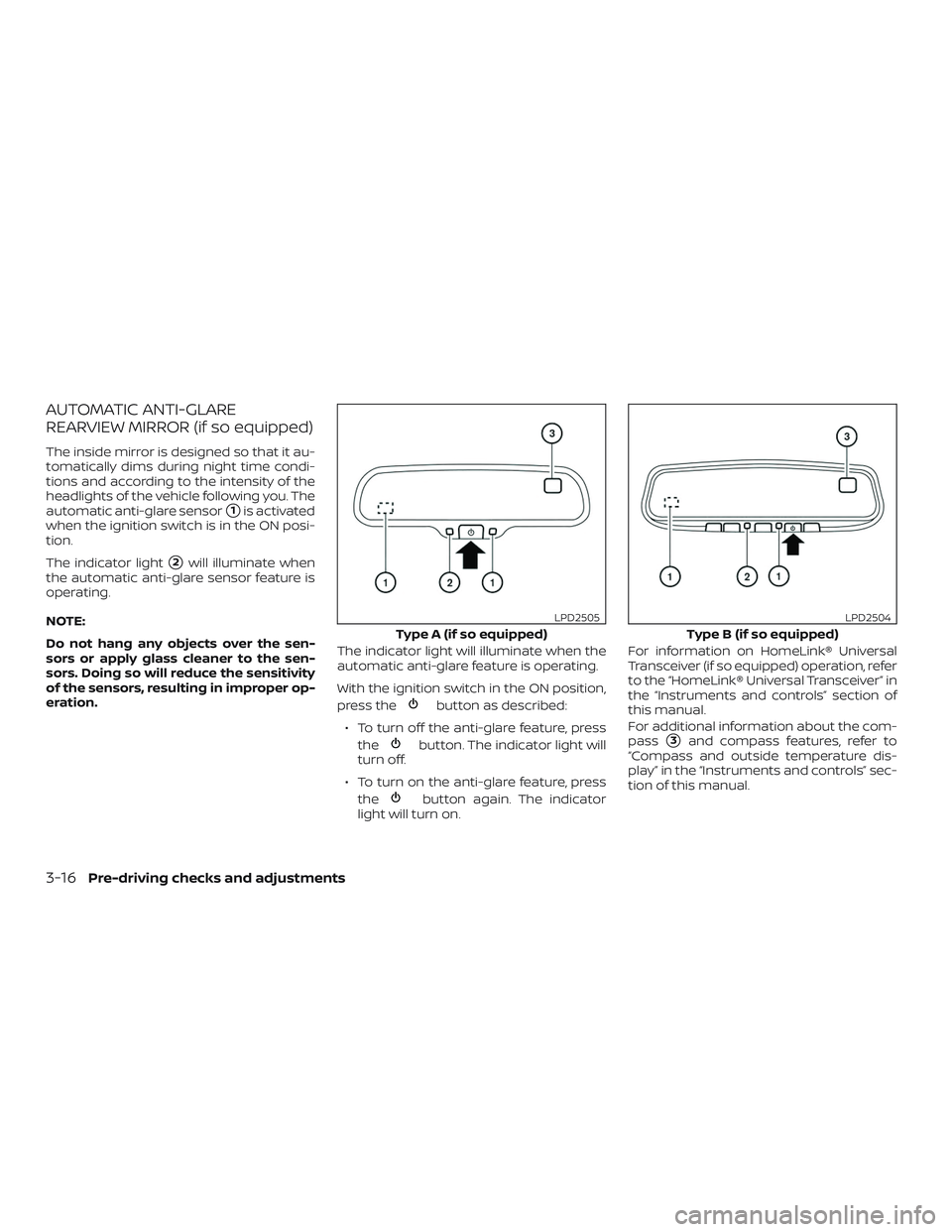

AUTOMATIC ANTI-GLARE
REARVIEW MIRROR (if so equipped)
The inside mirror is designed so that it au-
tomatically dims during night time condi-
tions and according to the intensity of the
headlights of the vehicle following you. The
automatic anti-glare sensor
1is activated
when the ignition switch is in the ON posi-
tion.
The indicator light
2will illuminate when
the automatic anti-glare sensor feature is
operating.
NOTE:
Do not hang any objects over the sen-
sors or apply glass cleaner to the sen-
sors. Doing so will reduce the sensitivity
of the sensors, resulting in improper op-
eration. The indicator light will illuminate when the
automatic anti-glare feature is operating.
With the ignition switch in the ON position,
press the
button as described:
∙ To turn off the anti-glare feature, press the
button. The indicator light will
turn off.
∙ To turn on the anti-glare feature, press the
button again. The indicator
light will turn on. For information on HomeLink® Universal
Transceiver (if so equipped) operation, refer
to the “HomeLink® Universal Transceiver” in
the “Instruments and controls” section of
this manual.
For additional information about the com-
pass
3and compass features, refer to
“Compass and outside temperature dis-
play” in the “Instruments and controls” sec-
tion of this manual.
Type A (if so equipped)
LPD2505
Type B (if so equipped)
LPD2504
3-16Pre-driving checks and adjustments

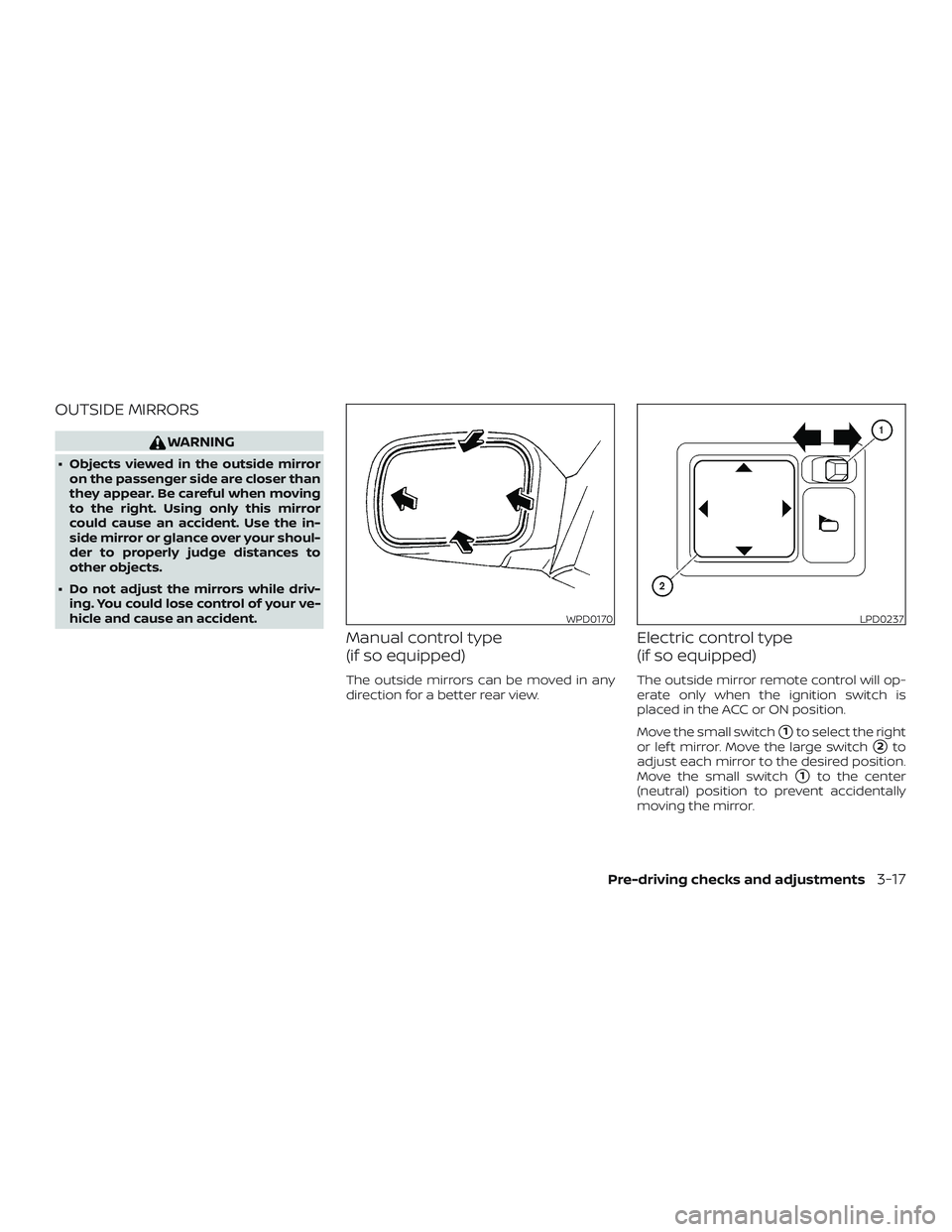

OUTSIDE MIRRORS
WARNING
∙ Objects viewed in the outside mirroron the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.
∙ Do not adjust the mirrors while driv- ing. You could lose control of your ve-
hicle and cause an accident.
Manual control type
(if so equipped)
The outside mirrors can be moved in any
direction for a better rear view.
Electric control type
(if so equipped)
The outside mirror remote control will op-
erate only when the ignition switch is
placed in the ACC or ON position.
Move the small switch
1to select the right
or lef t mirror. Move the large switch
2to
adjust each mirror to the desired position.
Move the small switch
1to the center
(neutral) position to prevent accidentally
moving the mirror.
WPD0170LPD0237
Pre-driving checks and adjustments3-17

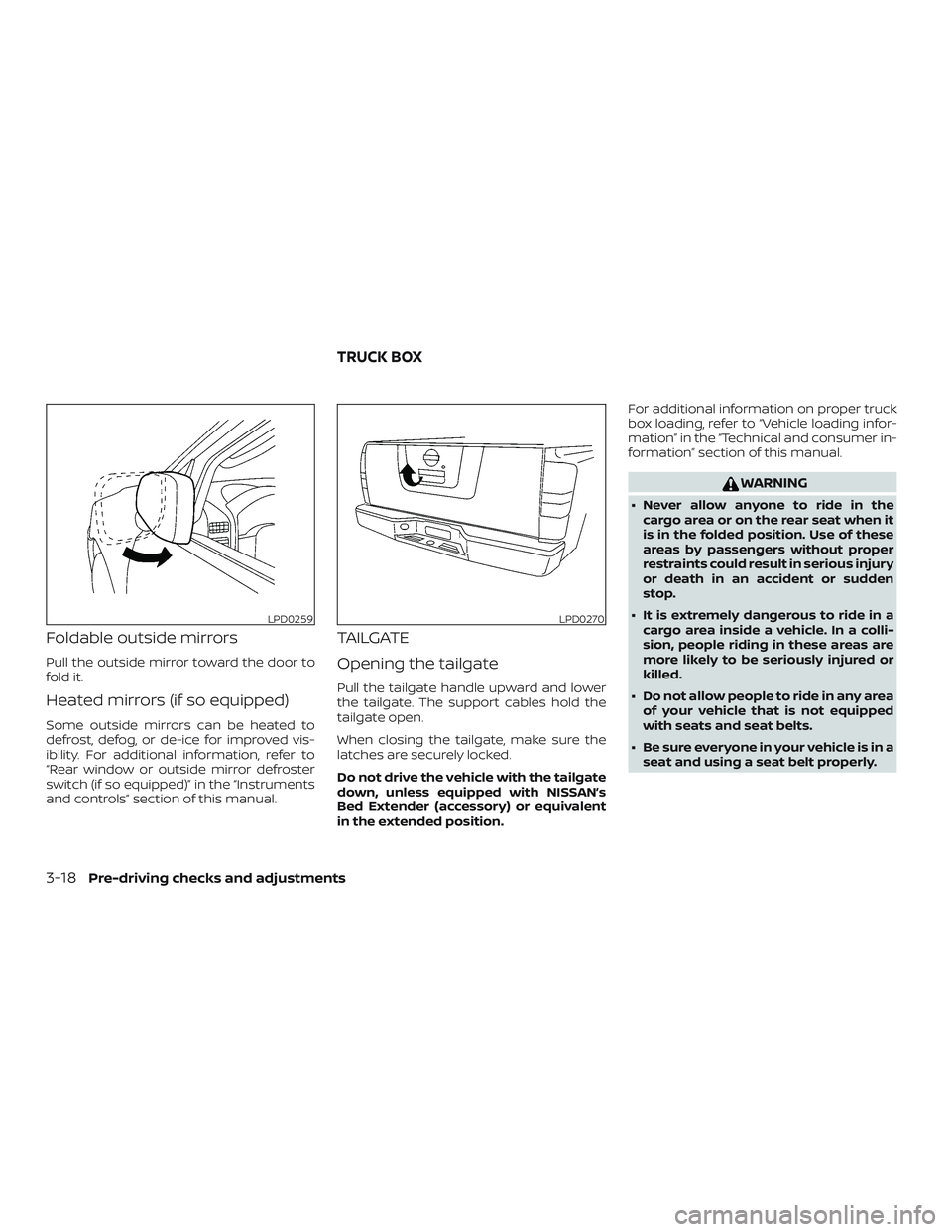

Foldable outside mirrors
Pull the outside mirror toward the door to
fold it.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to
defrost, defog, or de-ice for improved vis-
ibility. For additional information, refer to
“Rear window or outside mirror defroster
switch (if so equipped)” in the “Instruments
and controls” section of this manual.
TAILGATE
Opening the tailgate
Pull the tailgate handle upward and lower
the tailgate. The support cables hold the
tailgate open.
When closing the tailgate, make sure the
latches are securely locked.
Do not drive the vehicle with the tailgate
down, unless equipped with NISSAN’s
Bed Extender (accessory) or equivalent
in the extended position.For additional information on proper truck
box loading, refer to “Vehicle loading infor-
mation” in the “Technical and consumer in-
formation” section of this manual.
WARNING
∙ Never allow anyone to ride in the
cargo area or on the rear seat when it
is in the folded position. Use of these
areas by passengers without proper
restraints could result in serious injury
or death in an accident or sudden
stop.
∙ It is extremely dangerous to ride in a cargo area inside a vehicle. In a colli-
sion, people riding in these areas are
more likely to be seriously injured or
killed.
∙ Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts.
∙ Be sure everyone in your vehicle is in a seat and using a seat belt properly.
LPD0259LPD0270
TRUCK BOX
3-18Pre-driving checks and adjustments

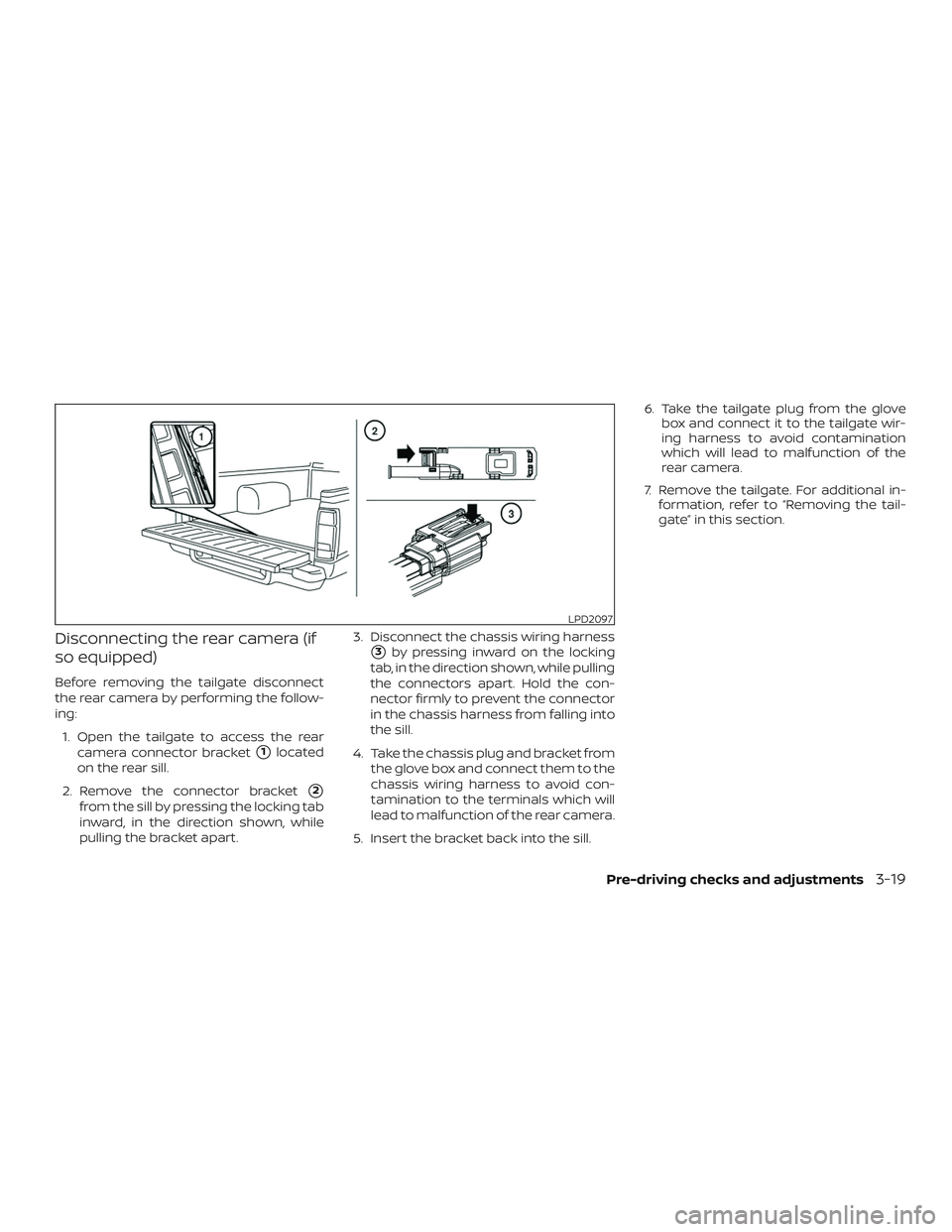

Disconnecting the rear camera (if
so equipped)
Before removing the tailgate disconnect
the rear camera by performing the follow-
ing:1. Open the tailgate to access the rear camera connector bracket
1located
on the rear sill.
2. Remove the connector bracket
2
from the sill by pressing the locking tab
inward, in the direction shown, while
pulling the bracket apart. 3. Disconnect the chassis wiring harness
3by pressing inward on the locking
tab, in the direction shown, while pulling
the connectors apart. Hold the con-
nector firmly to prevent the connector
in the chassis harness from falling into
the sill.
4. Take the chassis plug and bracket from the glove box and connect them to the
chassis wiring harness to avoid con-
tamination to the terminals which will
lead to malfunction of the rear camera.
5. Insert the bracket back into the sill. 6. Take the tailgate plug from the glove
box and connect it to the tailgate wir-
ing harness to avoid contamination
which will lead to malfunction of the
rear camera.
7. Remove the tailgate. For additional in- formation, refer to “Removing the tail-
gate” in this section.
LPD2097
Pre-driving checks and adjustments3-19

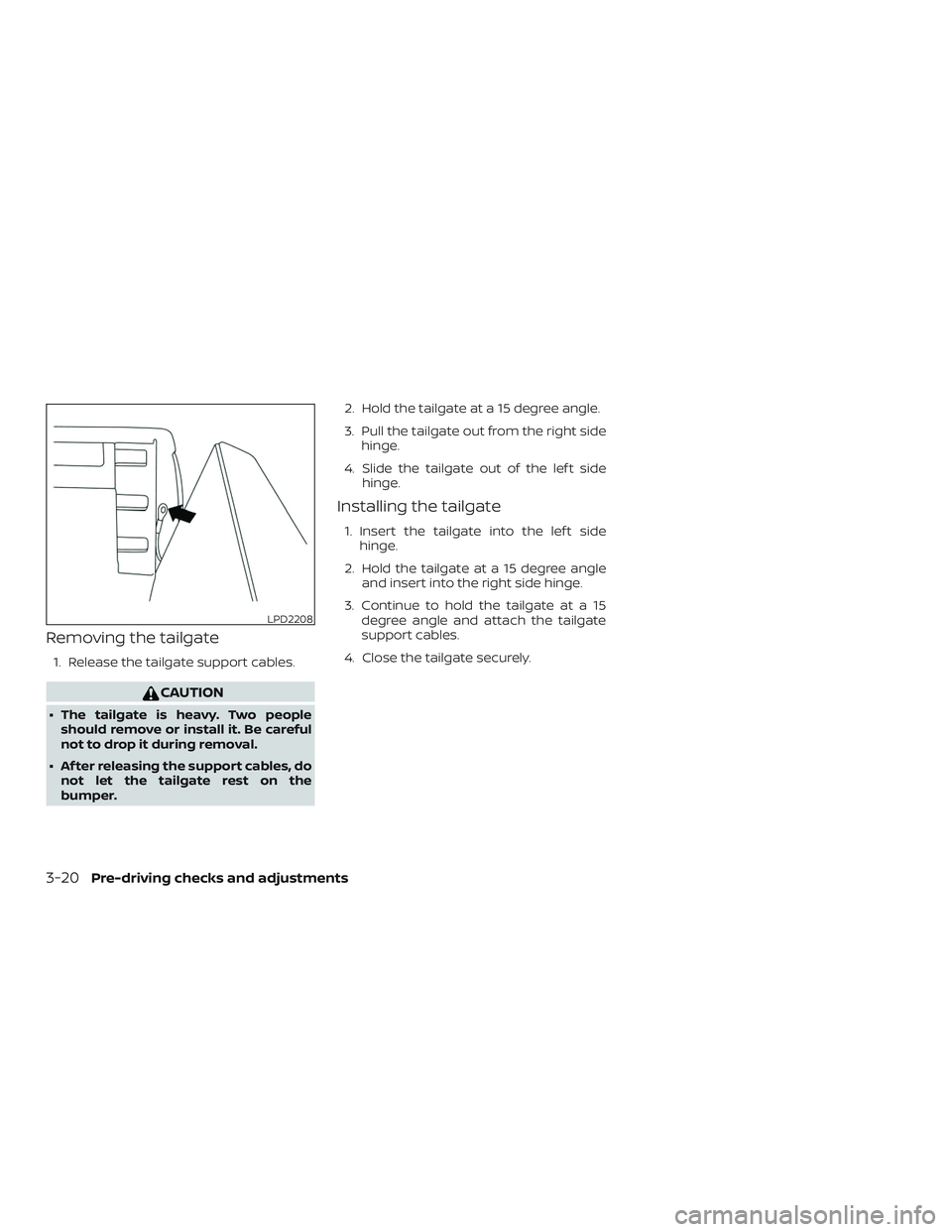

Removing the tailgate
1. Release the tailgate support cables.
CAUTION
∙ The tailgate is heavy. Two peopleshould remove or install it. Be careful
not to drop it during removal.
∙ Af ter releasing the support cables, do not let the tailgate rest on the
bumper. 2. Hold the tailgate at a 15 degree angle.
3. Pull the tailgate out from the right side
hinge.
4. Slide the tailgate out of the lef t side hinge.
Installing the tailgate
1. Insert the tailgate into the lef t sidehinge.
2. Hold the tailgate at a 15 degree angle and insert into the right side hinge.
3. Continue to hold the tailgate at a 15 degree angle and attach the tailgate
support cables.
4. Close the tailgate securely.
LPD2208
3-20Pre-driving checks and adjustments

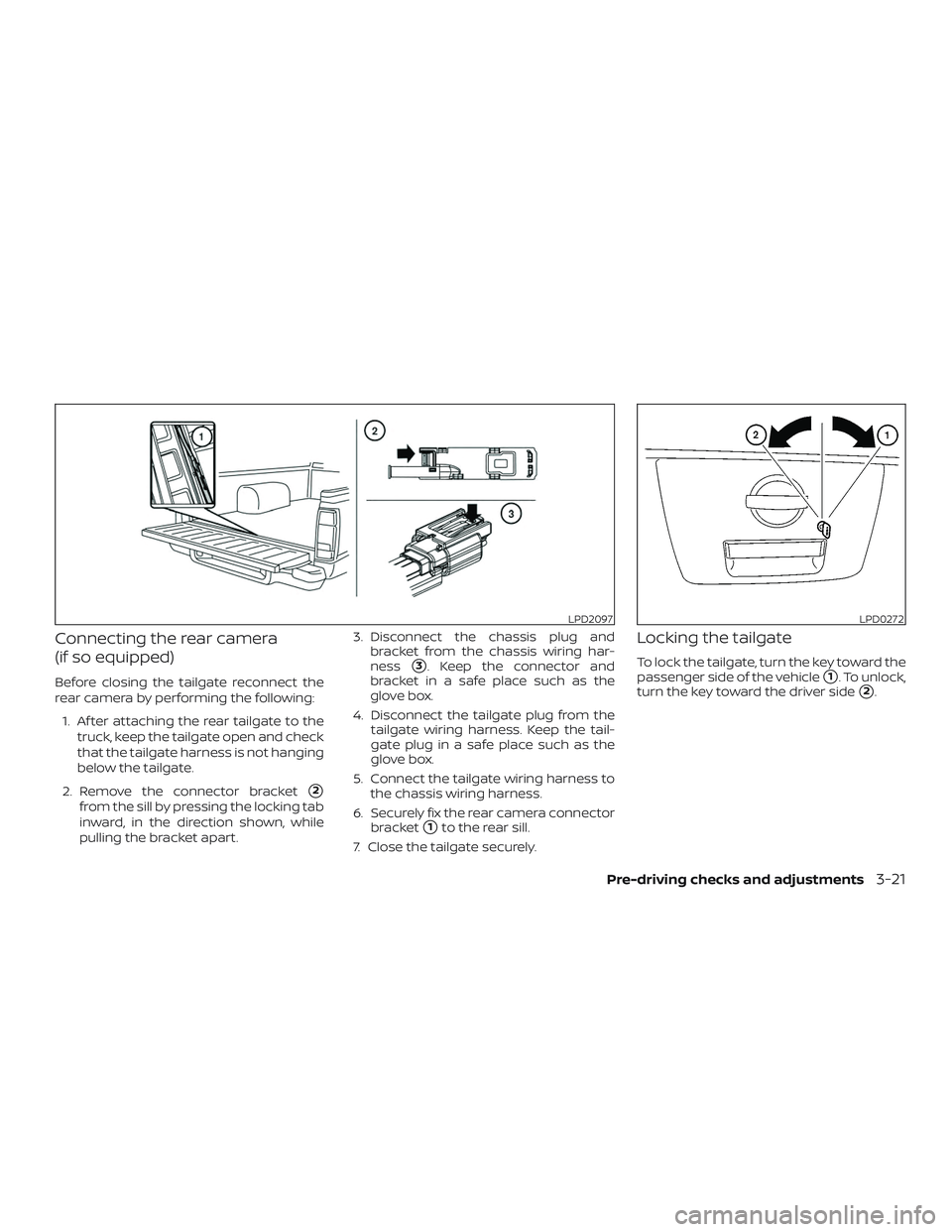

Connecting the rear camera
(if so equipped)
Before closing the tailgate reconnect the
rear camera by performing the following:1. Af ter attaching the rear tailgate to the truck, keep the tailgate open and check
that the tailgate harness is not hanging
below the tailgate.
2. Remove the connector bracket
2
from the sill by pressing the locking tab
inward, in the direction shown, while
pulling the bracket apart. 3. Disconnect the chassis plug and
bracket from the chassis wiring har-
ness
3. Keep the connector and
bracket in a safe place such as the
glove box.
4. Disconnect the tailgate plug from the tailgate wiring harness. Keep the tail-
gate plug in a safe place such as the
glove box.
5. Connect the tailgate wiring harness to the chassis wiring harness.
6. Securely fix the rear camera connector bracket
1to the rear sill.
7. Close the tailgate securely.
Locking the tailgate
To lock the tailgate, turn the key toward the
passenger side of the vehicle
1. To unlock,
turn the key toward the driver side
2.
LPD2097LPD0272
Pre-driving checks and adjustments3-21

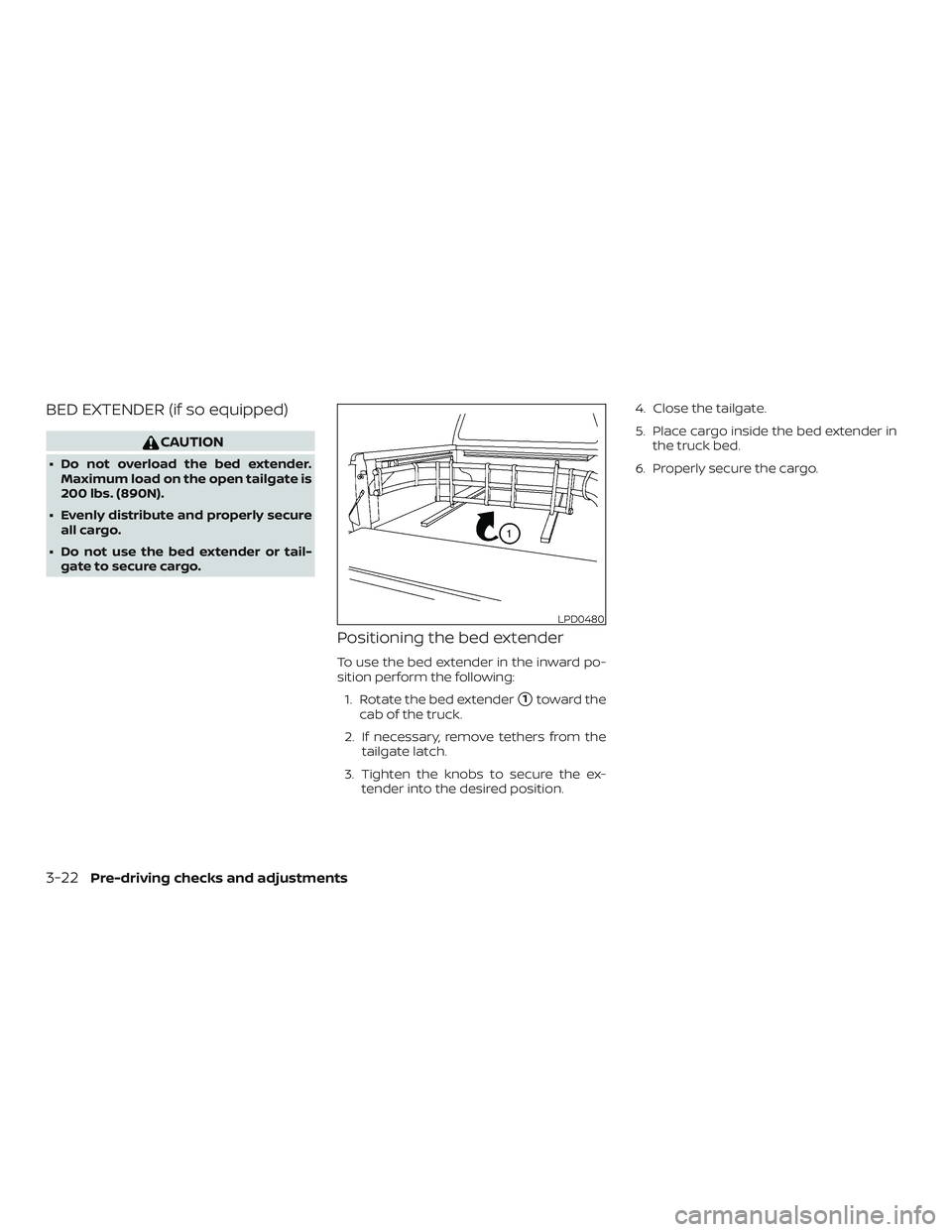

BED EXTENDER (if so equipped)
CAUTION
∙ Do not overload the bed extender.Maximum load on the open tailgate is
200 lbs. (890N).
∙ Evenly distribute and properly secure all cargo.
∙ Do not use the bed extender or tail- gate to secure cargo.
Positioning the bed extender
To use the bed extender in the inward po-
sition perform the following:
1. Rotate the bed extender
1toward the
cab of the truck.
2. If necessary, remove tethers from the tailgate latch.
3. Tighten the knobs to secure the ex- tender into the desired position. 4. Close the tailgate.
5. Place cargo inside the bed extender in
the truck bed.
6. Properly secure the cargo.
LPD0480
3-22Pre-driving checks and adjustments

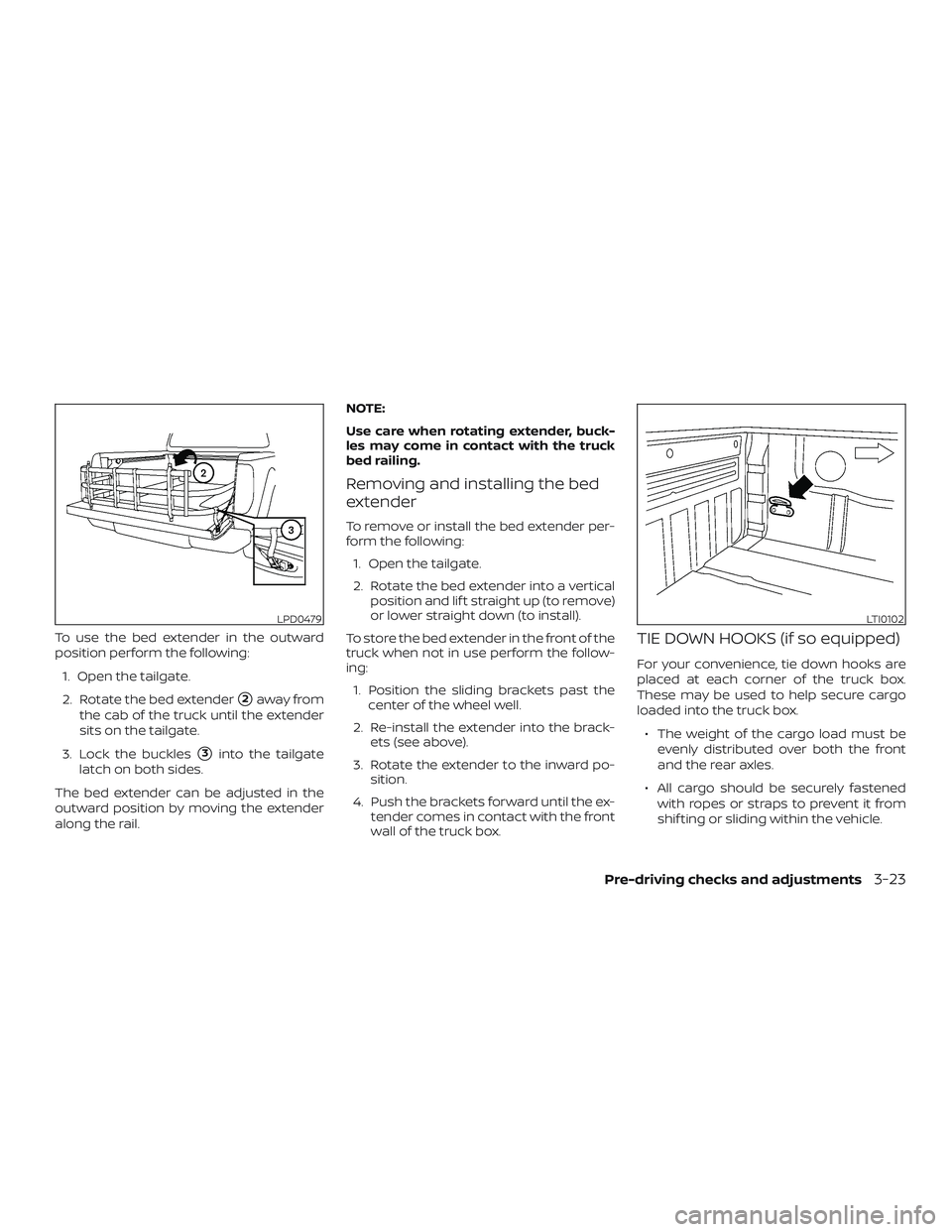

To use the bed extender in the outward
position perform the following:1. Open the tailgate.
2. Rotate the bed extender
2away from
the cab of the truck until the extender
sits on the tailgate.
3. Lock the buckles
3into the tailgate
latch on both sides.
The bed extender can be adjusted in the
outward position by moving the extender
along the rail. NOTE:
Use care when rotating extender, buck-
les may come in contact with the truck
bed railing.
Removing and installing the bed
extender
To remove or install the bed extender per-
form the following:
1. Open the tailgate.
2. Rotate the bed extender into a vertical position and lif t straight up (to remove)
or lower straight down (to install).
To store the bed extender in the front of the
truck when not in use perform the follow-
ing: 1. Position the sliding brackets past the center of the wheel well.
2. Re-install the extender into the brack- ets (see above).
3. Rotate the extender to the inward po- sition.
4. Push the brackets forward until the ex- tender comes in contact with the front
wall of the truck box.
TIE DOWN HOOKS (if so equipped)
For your convenience, tie down hooks are
placed at each corner of the truck box.
These may be used to help secure cargo
loaded into the truck box.
∙ The weight of the cargo load must be evenly distributed over both the front
and the rear axles.
∙ All cargo should be securely fastened with ropes or straps to prevent it from
shif ting or sliding within the vehicle.
LPD0479LTI0102
