NISSAN FRONTIER 2018 Owner´s Manual

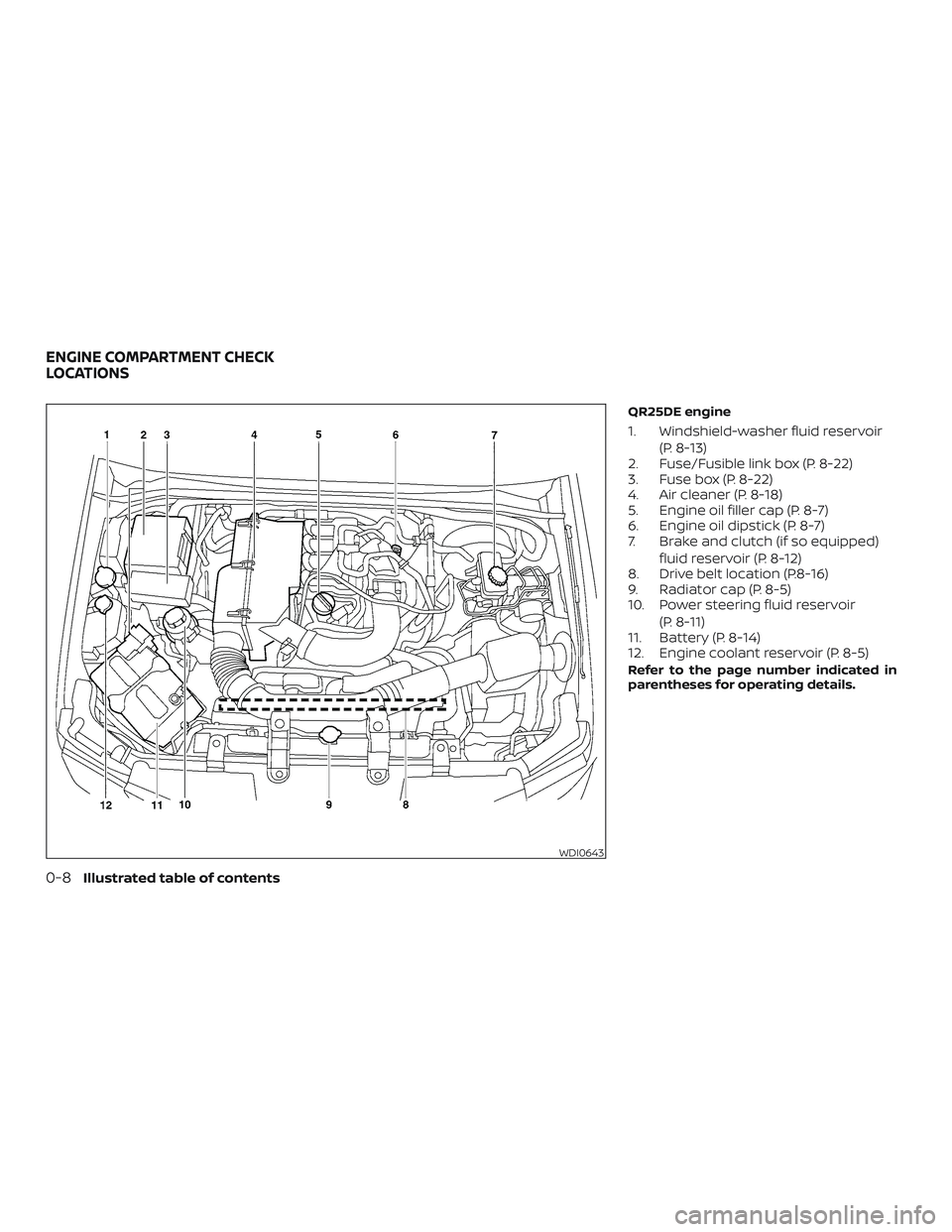

QR25DE engine
1. Windshield-washer fluid reservoir(P. 8-13)
2. Fuse/Fusible link box (P. 8-22)
3. Fuse box (P. 8-22)
4. Air cleaner (P. 8-18)
5. Engine oil filler cap (P. 8-7)
6. Engine oil dipstick (P. 8-7)
7. Brake and clutch (if so equipped)
fluid reservoir (P. 8-12)
8. Drive belt location (P.8-16)
9. Radiator cap (P. 8-5)
10. Power steering fluid reservoir
(P. 8-11)
11. Battery (P. 8-14)
12. Engine coolant reservoir (P. 8-5)
Refer to the page number indicated in
parentheses for operating details.
WDI0643
ENGINE COMPARTMENT CHECK
LOCATIONS
0-8Illustrated table of contents

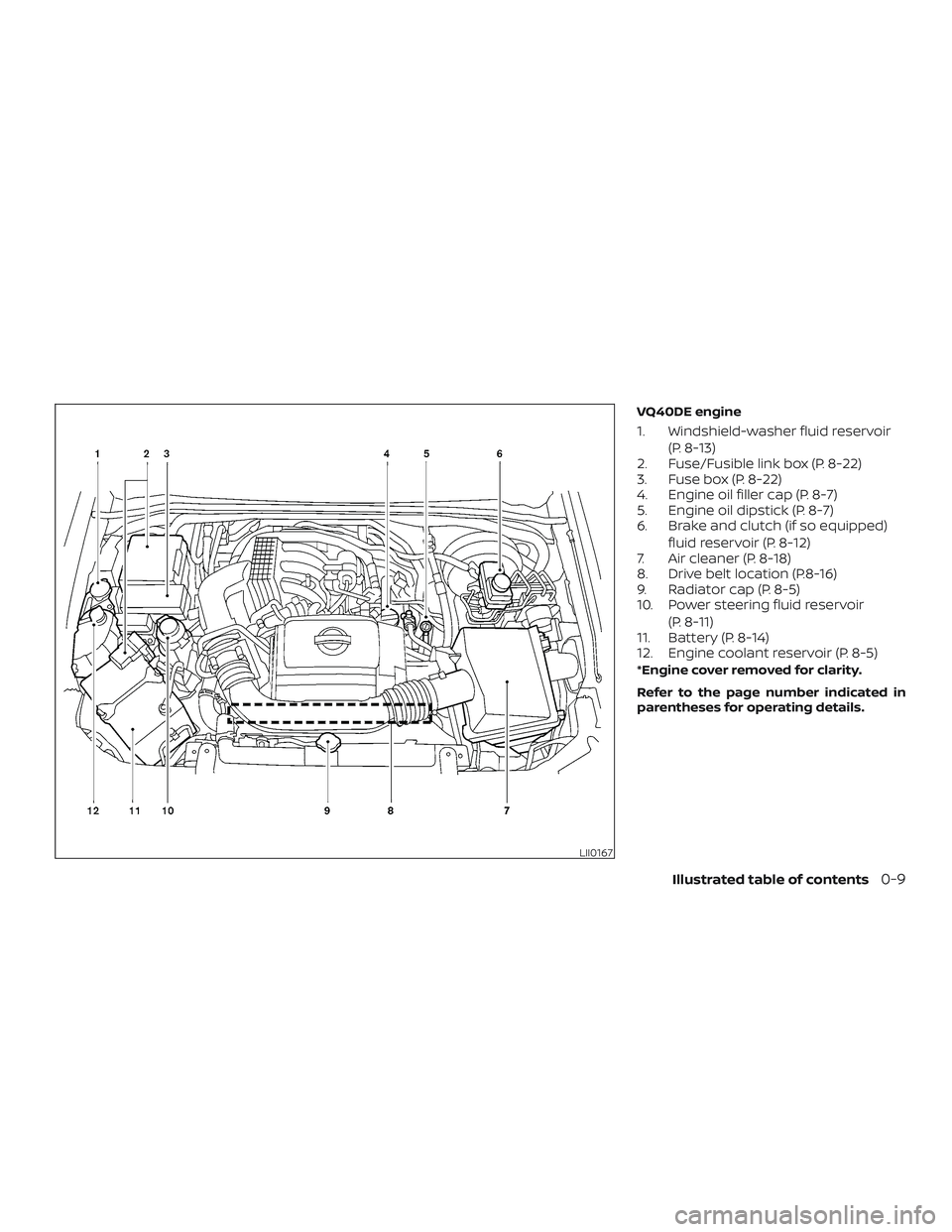

VQ40DE engine
1. Windshield-washer fluid reservoir(P. 8-13)
2. Fuse/Fusible link box (P. 8-22)
3. Fuse box (P. 8-22)
4. Engine oil filler cap (P. 8-7)
5. Engine oil dipstick (P. 8-7)
6. Brake and clutch (if so equipped)
fluid reservoir (P. 8-12)
7. Air cleaner (P. 8-18)
8. Drive belt location (P.8-16)
9. Radiator cap (P. 8-5)
10. Power steering fluid reservoir
(P. 8-11)
11. Battery (P. 8-14)
12. Engine coolant reservoir (P. 8-5)
*Engine cover removed for clarity.
Refer to the page number indicated in
parentheses for operating details.
LII0167
Illustrated table of contents0-9

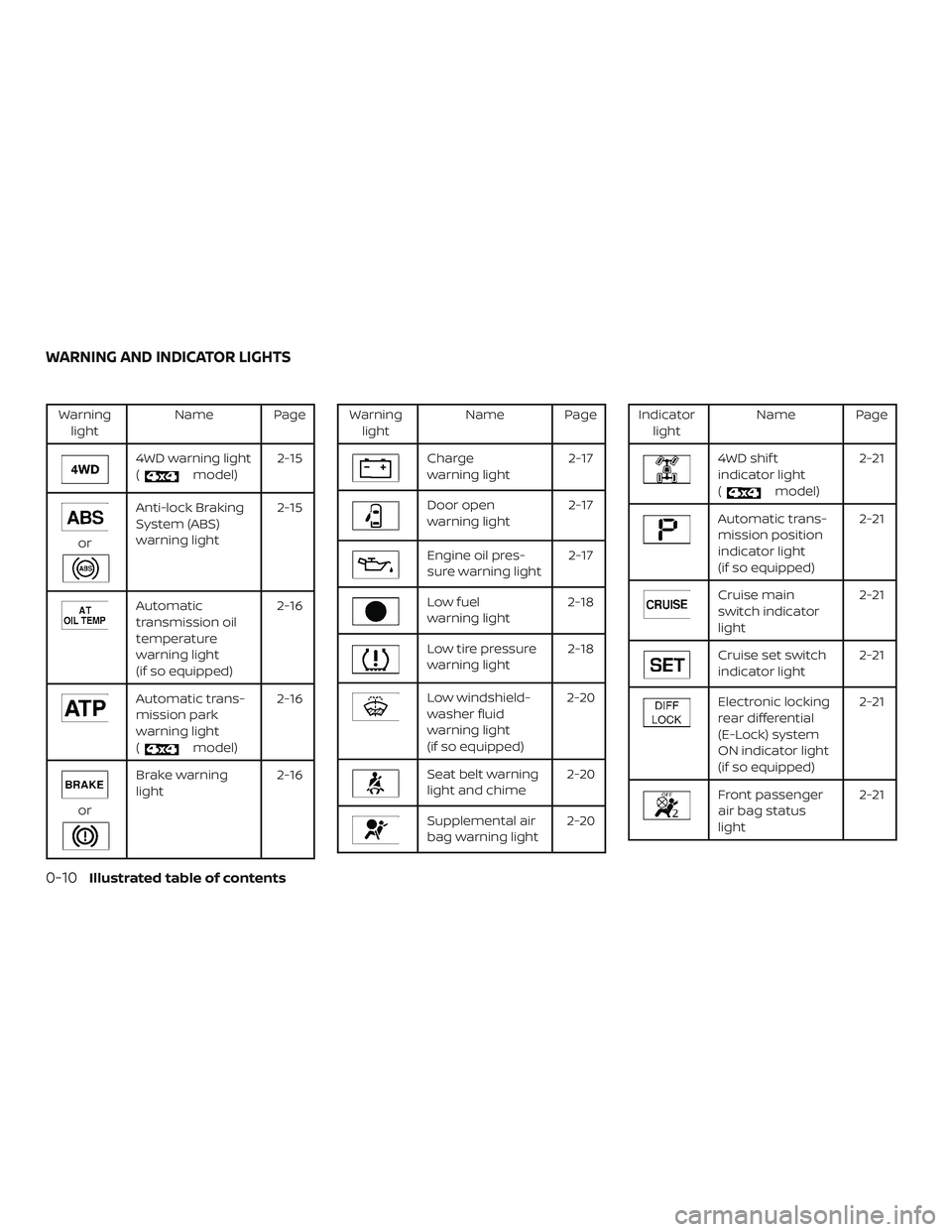

Warninglight Name Page
4WD warning light
(
model)2-15
or
Anti-lock Braking
System (ABS)
warning light 2-15
Automatic
transmission oil
temperature
warning light
(if so equipped)2-16
Automatic trans-
mission park
warning light
(
model)
2-16
or
Brake warning
light
2-16
Warning
light Name Page
Charge
warning light 2-17
Door open
warning light2-17
Engine oil pres-
sure warning light2-17
Low fuel
warning light2-18
Low tire pressure
warning light2-18
Low windshield-
washer fluid
warning light
(if so equipped)2-20
Seat belt warning
light and chime
2-20
Supplemental air
bag warning light2-20
Indicator
light Name Page
4WD shif t
indicator light
(
model)2-21
Automatic trans-
mission position
indicator light
(if so equipped) 2-21
Cruise main
switch indicator
light
2-21
Cruise set switch
indicator light
2-21
Electronic locking
rear differential
(E-Lock) system
ON indicator light
(if so equipped)2-21
Front passenger
air bag status
light
2-21
WARNING AND INDICATOR LIGHTS
0-10Illustrated table of contents

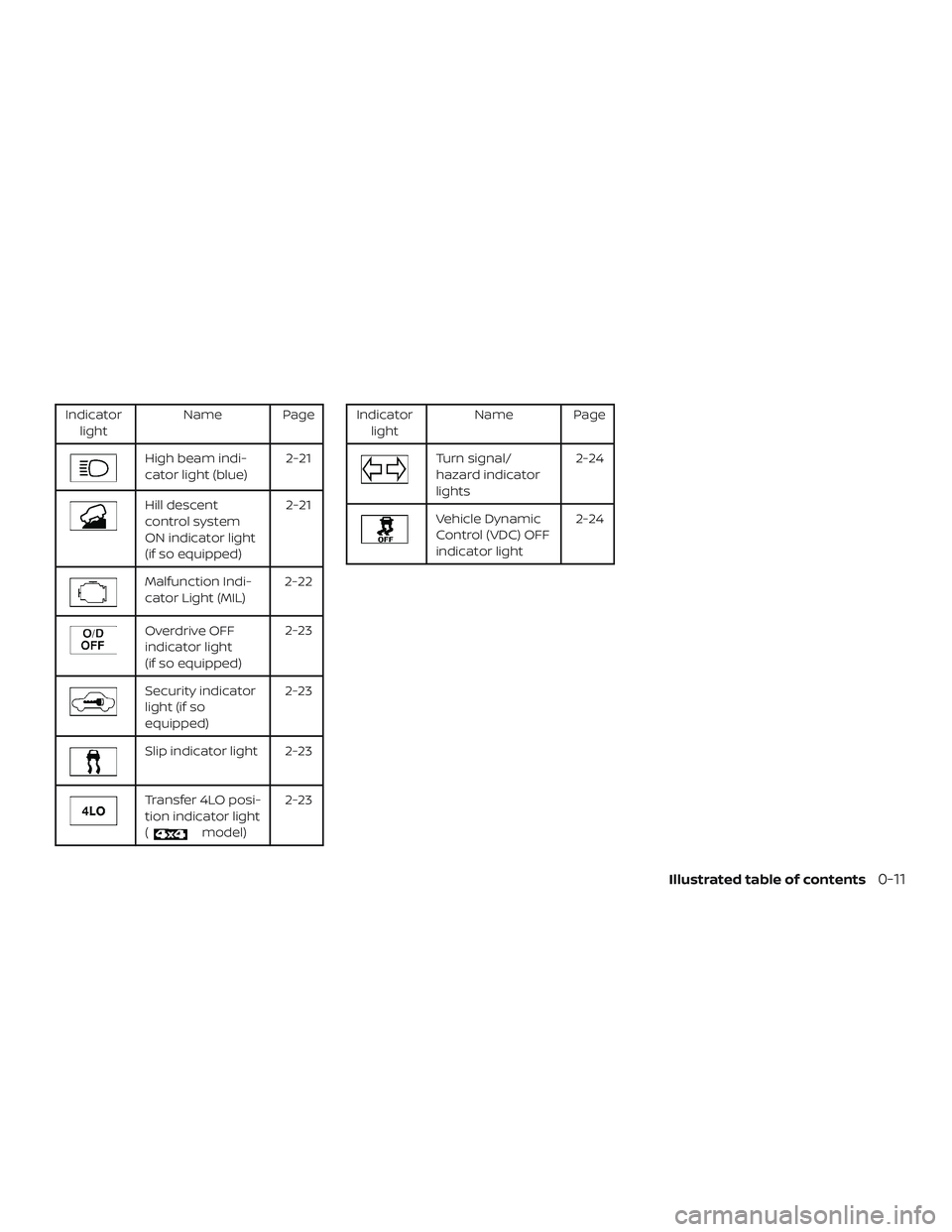

Indicatorlight Name Page
High beam indi-
cator light (blue) 2-21
Hill descent
control system
ON indicator light
(if so equipped)2-21
Malfunction Indi-
cator Light (MIL)
2-22
Overdrive OFF
indicator light
(if so equipped) 2-23
Security indicator
light (if so
equipped)2-23
Slip indicator light 2-23
Transfer 4LO posi-
tion indicator light
(
model)2-23
Indicator
light Name Page
Turn signal/
hazard indicator
lights 2-24
Vehicle Dynamic
Control (VDC) OFF
indicator light2-24
Illustrated table of contents0-11

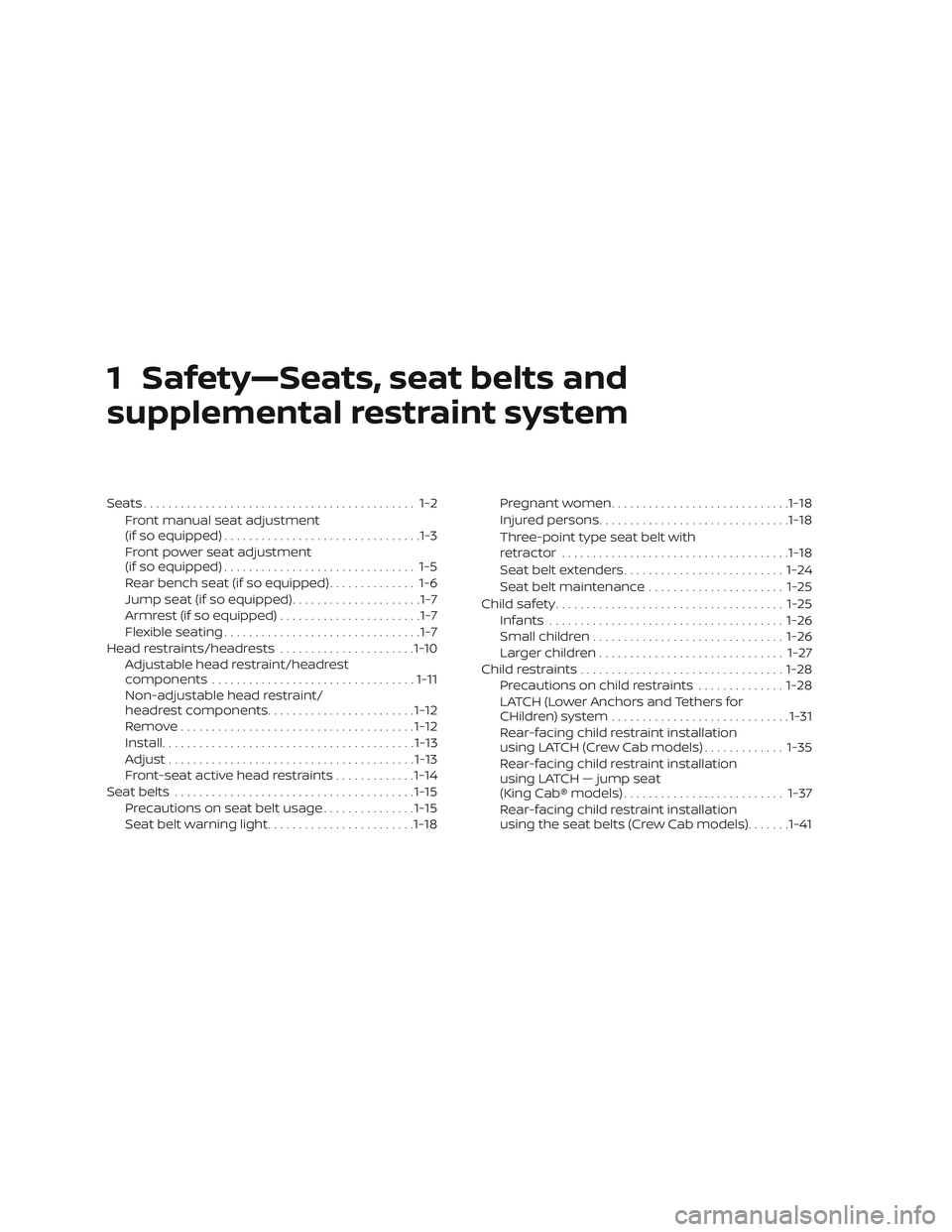

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment
(if so equipped) ................................1-3
Front power seat adjustment
(if so equipped) ............................... 1-5
Rear bench seat (if so equipped) .............. 1-6
Jump seat (if so equipped) .....................1-7
Armrest (if so equipped) .......................1-7
Flexible seating ................................1-7
Head restraints/headrests ......................1-10
Adjustable head restraint/headrest
components ................................. 1-11
Non-adjustable head restraint/
headrest components ........................ 1-12
Remove...................................... 1-12
Install ......................................... 1-13
Adjust ........................................ 1-13
Front-seat active head restraints .............1-14
Seatbelts ....................................... 1-15
Precautions on seat belt usage ...............1-15
Seat belt warning light ........................ 1-18Pregnant women
............................. 1-18
Injured persons ............................... 1-18
Three-point type seat belt with
retractor ..................................... 1-18
Seat belt extenders .......................... 1-24
Seat belt maintenance ......................1-25
Child safety ..................................... 1-25
Infants ...................................... 1-26
Small children ............................... 1-26
Larger children .............................. 1-27
Child restraints ................................. 1-28
Precautions on child restraints ..............1-28
LATCH (Lower Anchors and Tethers for
CHildren) system ............................. 1-31
Rear-facing child restraint installation
using LATCH (Crew Cab models) .............1-35
Rear-facing child restraint installation
using LATCH — jump seat
(King Cab® models) .......................... 1-37
Rear-facing child restraint installation
using the seat belts (Crew Cab models) .......1-41

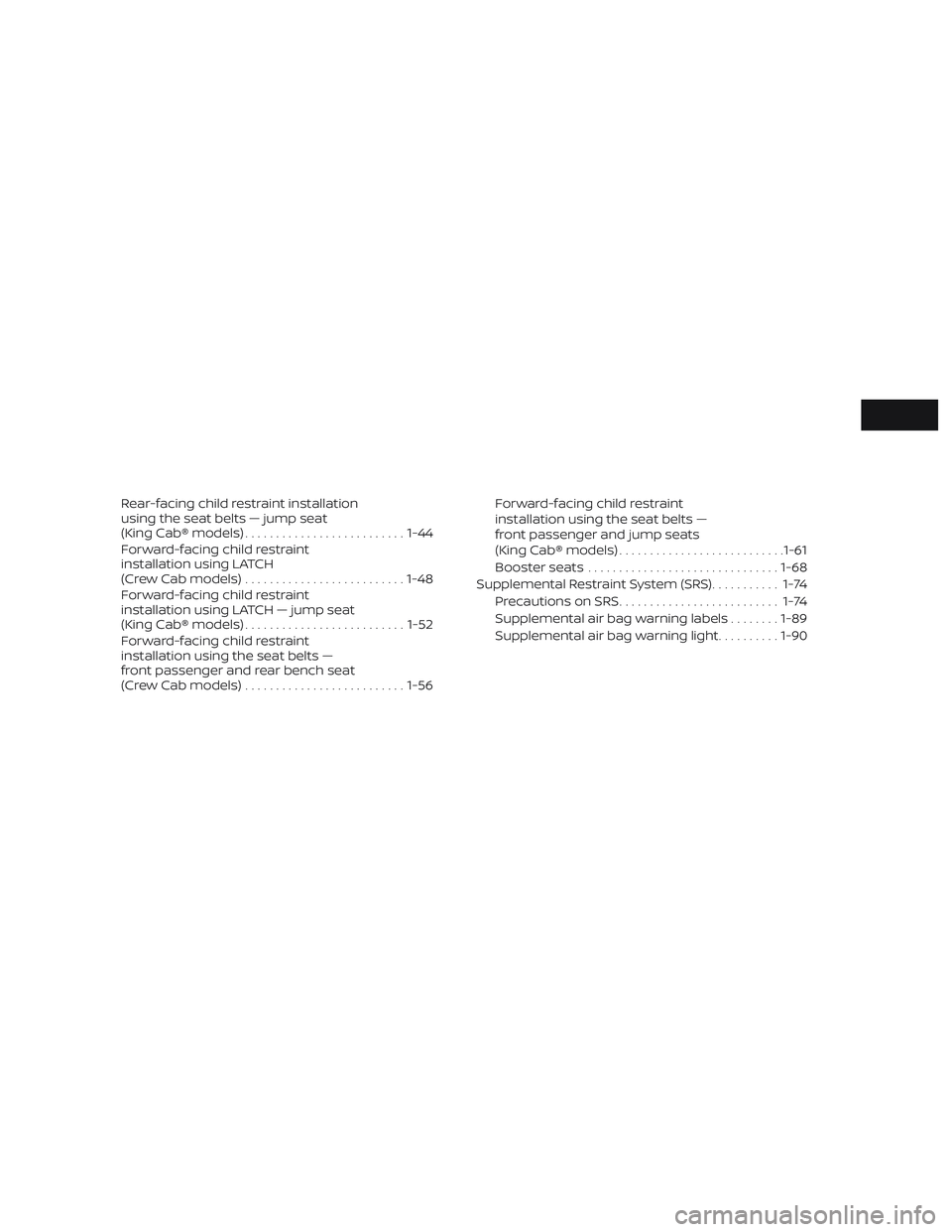

Rear-facing child restraint installation
using the seat belts — jump seat
(King Cab® models).......................... 1-44
Forward-facing child restraint
installation using LATCH
(Crew Cab models) .......................... 1-48
Forward-facing child restraint
installation using LATCH — jump seat
(King Cab® models) .......................... 1-52
Forward-facing child restraint
installation using the seat belts —
front passenger and rear bench seat
(Crew Cab models) .......................... 1-56Forward-facing child restraint
installation using the seat belts —
front passenger and jump seats
(King Cab® models)
........................... 1-61
Booster seats ............................... 1-68
Supplemental Restraint System (SRS) ........... 1-74
Precautions on SRS .......................... 1-74
Supplemental air bag warning labels ........1-89
Supplemental air bag warning light ..........1-90

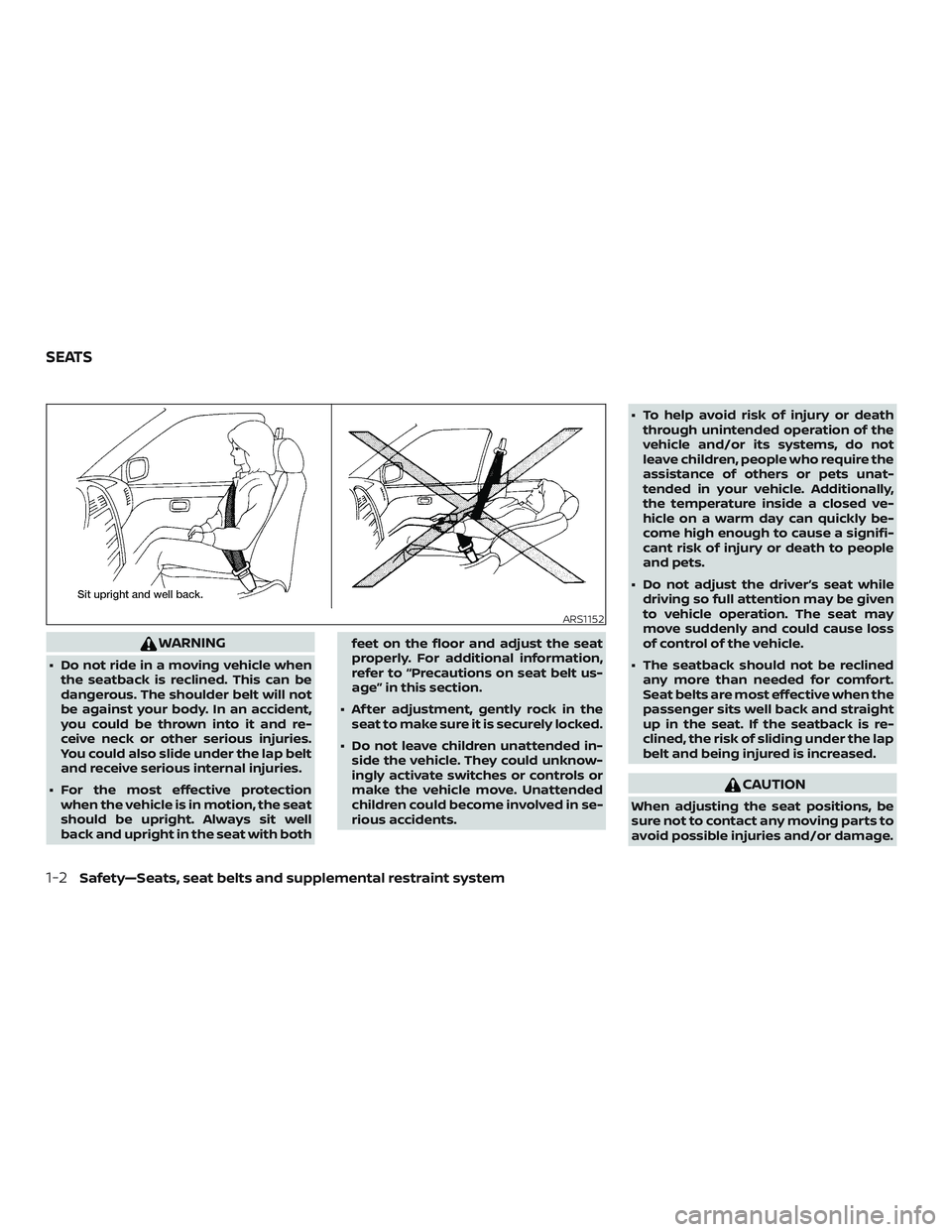

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries.
∙ For the most effective protection when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked.
∙ Do not leave children unattended in- side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents. ∙ To help avoid risk of injury or death
through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

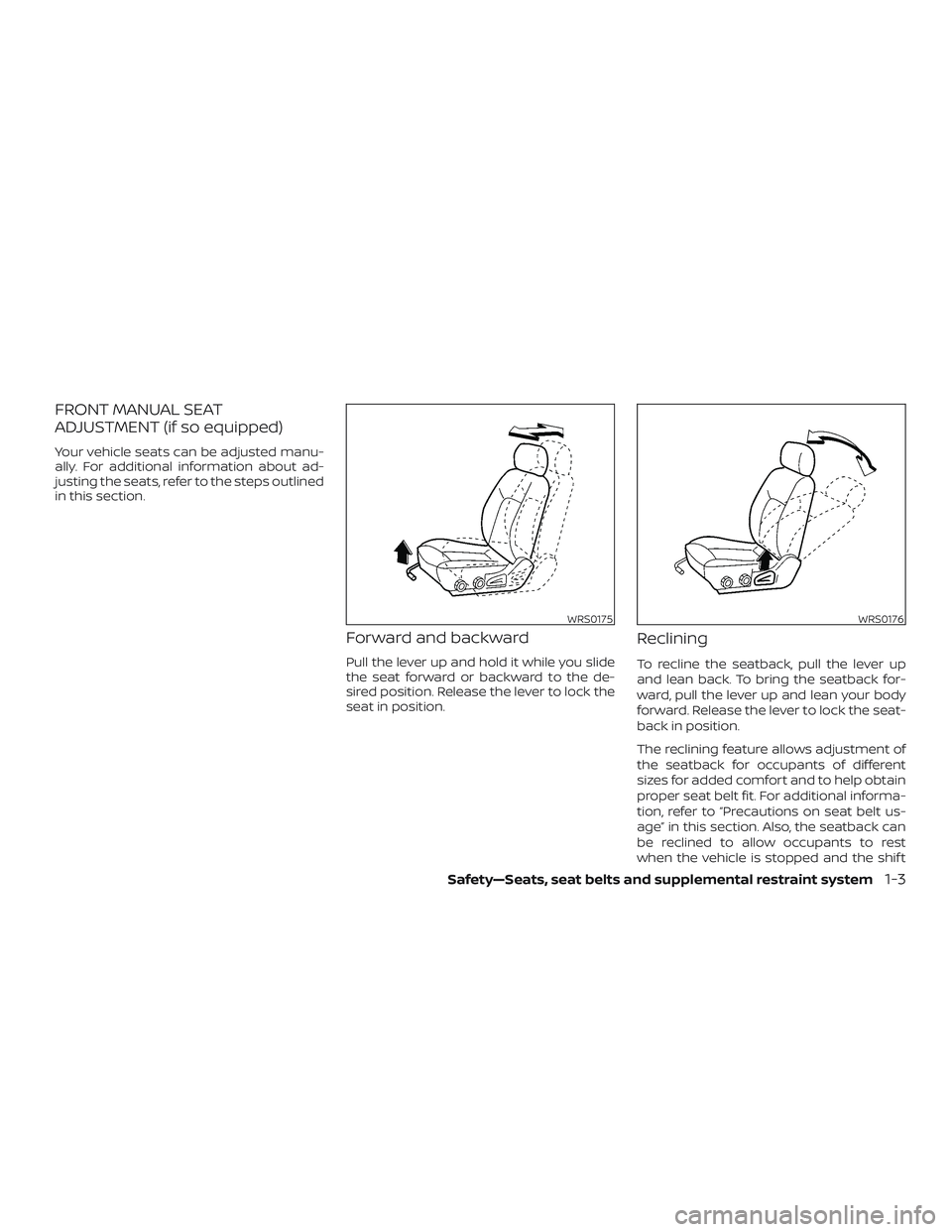

FRONT MANUAL SEAT
ADJUSTMENT (if so equipped)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the lever up and hold it while you slide
the seat forward or backward to the de-
sired position. Release the lever to lock the
seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
WRS0175WRS0176
Safety—Seats, seat belts and supplemental restraint system1-3

lever is in P (Park) or N (Neutral) position
with the parking brake fully applied.

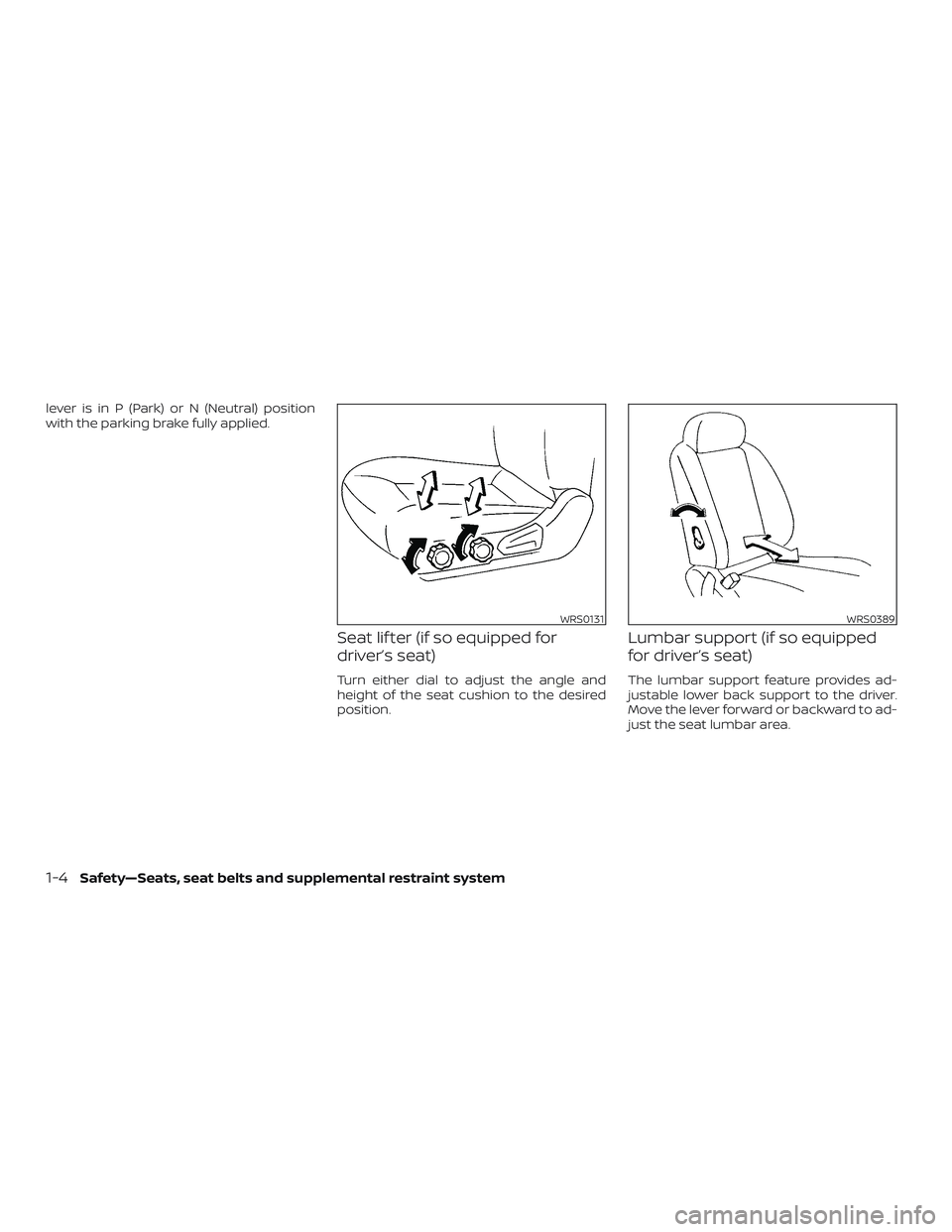

Seat lif ter (if so equipped for
driver’s seat)
Turn either dial to adjust the angle and
height of the seat cushion to the desired
position.
Lumbar support (if so equipped
for driver’s seat)
The lumbar support feature provides ad-
justable lower back support to the driver.
Move the lever forward or backward to ad-
just the seat lumbar area.
WRS0131WRS0389
1-4Safety—Seats, seat belts and supplemental restraint system

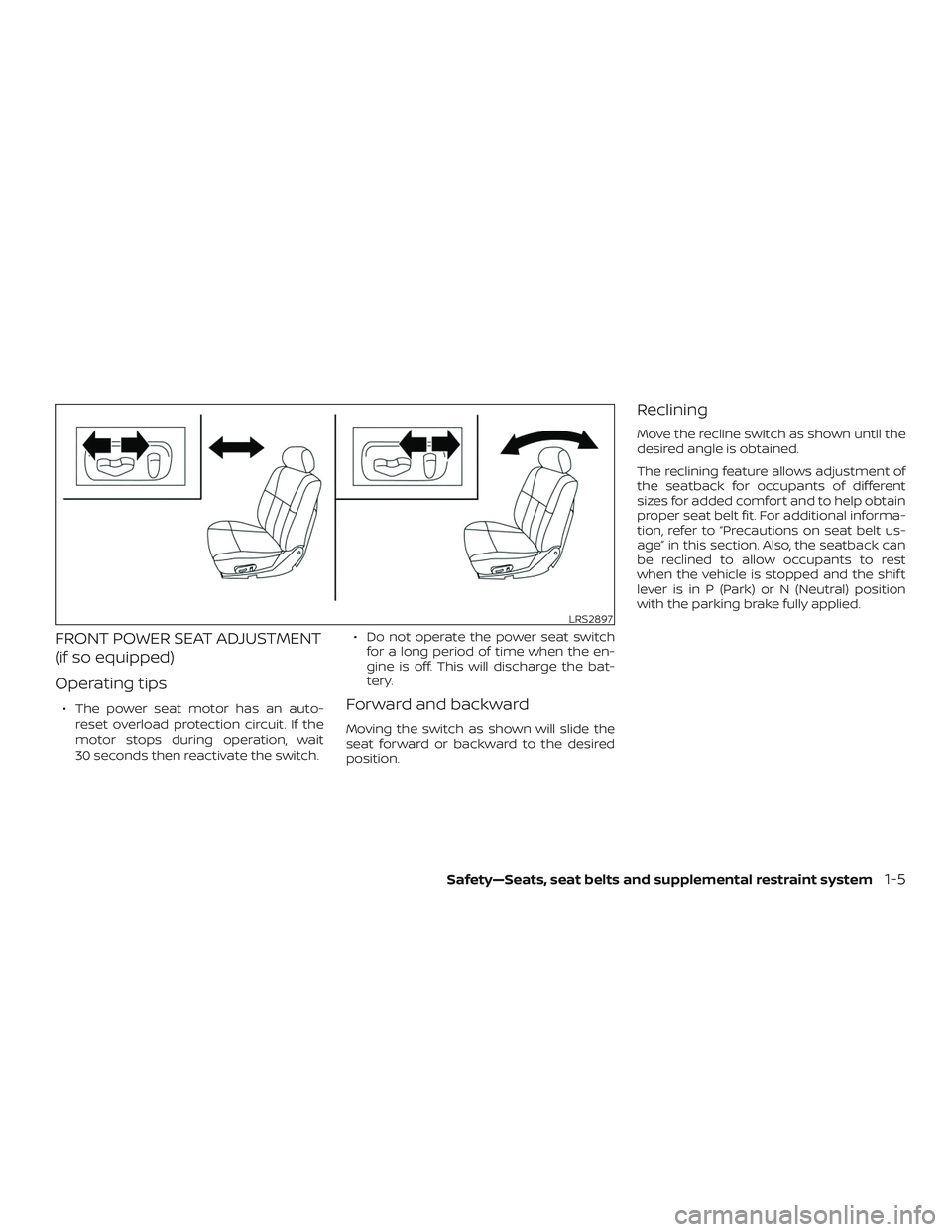

FRONT POWER SEAT ADJUSTMENT
(if so equipped)
Operating tips
∙ The power seat motor has an auto-reset overload protection circuit. If the
motor stops during operation, wait
30 seconds then reactivate the switch. ∙ Do not operate the power seat switch
for a long period of time when the en-
gine is off. This will discharge the bat-
tery.Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt us-
age” in this section. Also, the seatback can
be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in P (Park) or N (Neutral) position
with the parking brake fully applied.
LRS2897
Safety—Seats, seat belts and supplemental restraint system1-5
