TRUNK RELEASE POWER CANCEL
SWITCHWhen the switch located inside the glove box is
in the OFF position
*1, the power to the trunk
lid will be canceled and the trunk lid cannot be
opened by the trunk lid release switch, the trunk
open request switch or the TRUNK button on
the Intelligent Key.
When you have to leave the vehicle with a valet
and want to keep your belongings safe in the
glove box and the trunk, push this switch to OFF
and lock the glove box with the mechanical key.
Then leave the vehicle and the Intelligent Key
with the valet and keep the mechanical key with
you. (
“Valet hand-off” page 3-3) To connect the power to the trunk lid, push the
switch to the ON position
*2.
OPENING AND CLOSING THE
TRUNKWhen opening the trunk, first unlock it then lift
up the trunk lid so that it is fully open.
When closing the trunk, lower the trunk lid and
press it until it is securely locked in place.
NOTICE
.
Open and close the trunk without
grasping the rear wing. Grasping the
rear wing to open or close the trunk
may damage the wing.
. Do not leave the key inside the
trunk.
3-20
Pre-driving checks and adjustments
,QIRUPDWLRQ3URYLGHGE\

Black plate (157,1)
Model "R35-D" EDITED: 2008/ 5/ 20
NOTE:.To prevent the Intelligent Key from
being accidentally locked in the trunk,
lockout protection is equipped with the
Intelligent Key system. When the trunk
lid is closed with the Intelligent Key
inside the trunk, the outside buzzer will
sound and the trunk will open.
. The trunk of this vehicle is slightly
more difficult to close than an ordinary
vehicle (particularly when the vehicle is
new) . This is because the trunk rigidity
has been increased to handle the high
load on the rear wing during vehicle
operation. This does not indicate that
there is a malfunction. Check that the
trunk is securely locked.
EMERGENCY TRUNK LID RELEASE
WARNING
Closely supervise children when they
are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
trunk lid securely latched, when not in
use, and prevent children’s access to
Intelligent Keys.
The emergency trunk lid release mechanism
allows opening of the trunk lid in the event that
people become locked inside the trunk or in the event of the loss of electrical power such as a
discharged battery.
Inside the trunkTo open the trunk lid from the inside, pull the
release handle
*1
until the lock releases and
push up on the trunk lid. The release lever is
made of a material that glows in the dark after a
brief exposure to ambient light.
The handle is located on the back of the trunk lid
as illustrated.
Pre-driving checks and adjustments
3-21
,QIRUPDWLRQ3URYLGHGE\

Black plate (158,1)
Model "R35-D" EDITED: 2008/ 5/ 20

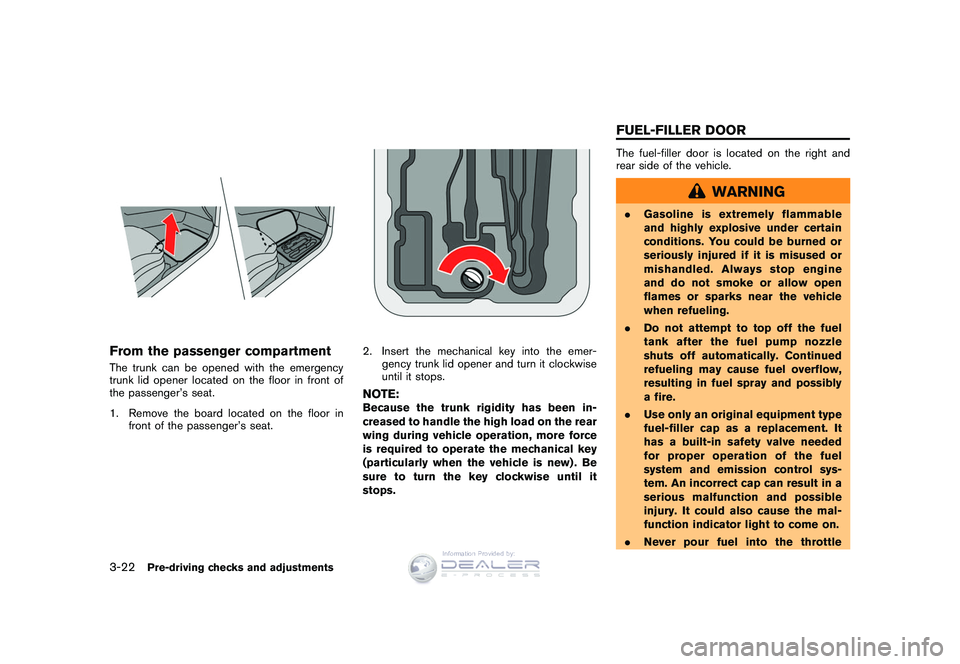

From the passenger compartmentThe trunk can be opened with the emergency
trunk lid opener located on the floor in front of
the passenger’s seat.
1. Remove the board located on the floor infront of the passenger’s seat.
2. Insert the mechanical key into the emer-gency trunk lid opener and turn it clockwise
until it stops.NOTE:Because the trunk rigidity has been in-
creased to handle the high load on the rear
wing during vehicle operation, more force
is required to operate the mechanical key
(particularly when the vehicle is new) . Be
sure to turn the key clockwise until it
stops.
The fuel-filler door is located on the right and
rear side of the vehicle.
WARNING
.Gasoline is extremely flammable
and highly explosive under certain
conditions. You could be burned or
seriously injured if it is misused or
mishandled. Always stop engine
and do not smoke or allow open
flames or sparks near the vehicle
when refueling.
. Do not attempt to top off the fuel
tank after the fuel pump nozzle
shuts off automatically. Continued
refueling may cause fuel overflow,
resulting in fuel spray and possibly
a fire.
. Use only an original equipment type
fuel-filler cap as a replacement. It
has a built-in safety valve needed
for proper operation of the fuel
system and emission control sys-
tem. An incorrect cap can result in a
serious malfunction and possible
injury. It could also cause the mal-
function indicator light to come on.
. Never pour fuel into the throttle
3-22
Pre-driving checks and adjustments
FUEL-FILLER DOOR
,QIRUPDWLRQ3URYLGHGE\

Black plate (159,1)
Model "R35-D" EDITED: 2008/ 5/ 20
body to attempt to start your vehi-
cle.
. Do not fill a portable fuel container
in the vehicle or trailer. Static elec-
tricity can cause an explosion of
flammable liquid, vapor or gas in
any vehicle or trailer. To reduce the
risk of serious injury or death when
filling portable fuel containers:
— Always place the container on
the ground when filling.
— Do not use electronic devices when filling.
— Keep the pump nozzle in contact with the container while you are
filling it.
— Use only approved portable fuel containers for flammable liquid.
NOTICE
If fuel is spilled on the vehicle body,
flush it away with water to avoid paint
damage.NOTE:. Insert the cap straight into the fuel-
filler tube, then tighten until the fuel-
filler cap clicks. Failure to tighten the fuel-filler cap properly may cause the
Malfunction Indicator Light (MIL)
to illuminate. If the
light illumi-
nates because the fuel-filler cap is
loose or missing, tighten or install the
cap and continue to drive the vehicle.
The
light should turn off after a
few driving trips. If the
light does
not turn off after a few driving trips,
have the vehicle inspected by a GT-R
certified NISSAN dealer.
(
“Malfunction Indicator Light
(MIL)” page 2-28)
. This vehicle includes a system that can
supply fuel even during high-G (gravity)
turns. The fuel tank pressure is higher
when the vehicle is hot. If the vehicle is
refueled when the vehicle is hot, the
fuel pump may automatically shut off
before the tank is full. This does not
indicate that there is a malfunction.
This will not happen after the vehicle
has cooled.
OPENING THE FUEL FILLER DOOR1. Unlock the fuel-filler door by using one of the
following operations.
.Push the door handle request switch
with the Intelligent Key carried with you.
. PushtheUNLOCKbuttononthe
Intelligent Key.
. Push the power door lock switch to the
UNLOCK position.Pre-driving checks and adjustments
3-23
,QIRUPDWLRQ3URYLGHGE\

Black plate (160,1)
Model "R35-D" EDITED: 2008/ 5/ 20
2. Press the rear side of the fuel-filler door torelease the door lock, and open the door.
3. Turn the cap
*1
slowly to the left to remove
it.
During refueling, place the cap on the inside
of the door
*2.
CLOSING THE FUEL-FILLER DOOR1. Turn the cap to the right to close it. Turn until at least two clicks are heard.
2. Close the door. Lock the fuel-filler door by using one of the following operations.
. Push the door handle request switch with
the Intelligent Key carried with you.
. Push the LOCK button on the Intelligent
Key. .
Push the power door lock switch to the
LOCK position.
3-24
Pre-driving checks and adjustments
,QIRUPDWLRQ3URYLGHGE\

Black plate (161,1)
Model "R35-D" EDITED: 2008/ 5/ 20
WARNING
.Do not adjust the steering wheel
while driving. You could lose control
of your vehicle and cause an acci-
dent.
. Do not adjust the steering wheel
any closer to you than is necessary
for proper steering operation and
comfort. The driver’s air bag inflates
with great force. If you are unrest-
rained, leaning forward, sitting side-
ways or out of position in any way,
you are at greater risk of injury or
death in a crash. You may also
receive serious or fatal injuries from
the air bag if you are up against it
when it inflates. Always sit back
against the seatback and as far
away as practical from the steering
wheel. Always use the seat belts.
TILT/TELESCOPIC STEERING COL-
UMN
Tilt adjustmentThis adjusts up/down the position of the
steering wheel.
1. Press lever
*A
down
*1.
2. Move the steering wheel up/down
*2
and
stop it in an appropriate position.
3. Lift up lever
*A
to lock the steering wheel in
position
*3.
Telescopic adjustmentThis adjusts the forward/backward position of
the steering wheel.
1. Press lever
*B
down
*1.
2. Move the steering wheel forward/backward
*2
and stop it in an appropriate position.
3. Lift up lever
*B
to lock the steering wheel in
position
*3.
Pre-driving checks and adjustments
3-25
STEERING WHEEL
,QIRUPDWLRQ3URYLGHGE\

Black plate (162,1)
Model "R35-D" EDITED: 2008/ 5/ 20
Lower the sun visor to block sunlight coming
from the forward direction.
To block sunlight coming from the side, lower
the sun visor, then unclip it from the hook and
move it to the side.
INSIDE MIRRORThe inside mirror is designed so that it
automatically changes reflection according to
the intensity of the headlights of the following
vehicle.
The anti-glare system will be automatically
turned on when the ignition switch is pushed
to the ON position.
When the anti-glare system is turned on, the
indicator light
*A
will illuminate and excessive
glare from the headlights of the vehicle behind
you will be reduced.
Push the “* ” switch
*C
to make the inside
rearview mirror operate normally. The indicator light will turn off. Push the “I” switch
*D
to turn
the system on.
NOTICE
Do not allow any object to cover the
sensors
*E
or apply glass cleaner on
them. Doing so will reduce the sensi-
tivity of the sensor, resulting in impro-
per operation.
3-26
Pre-driving checks and adjustments
SUN VISORS MIRRORS
,QIRUPDWLRQ3URYLGHGE\

Black plate (163,1)
Model "R35-D" EDITED: 2008/ 5/ 20
OUTSIDE MIRRORS
WARNING
Objects viewed in the outside mirror on
the passenger side are closer than they
appear. Be careful when moving to the
right. Using only this mirror could cause
an accident. Use the inside mirror or
glance over your shoulder to properly
judge distances to other objects.
The outside mirror will operate only when the
ignition switch is in the ACC or ON position.
Adjusting the outside mirrors1. Turn the switch right or left to select the right or left side mirror
*1.
2. Operate the control switch
*2
to adjust the
mirror angle.
WARNING
Adjust the mirrors before starting to
drive. Adjusting the mirrors during driv-
ing is dangerous as it reduces the
driver’s attention to the forward direc-
tion.
Folding the outside mirrorsPress the switch down
*2
to fold the outside
mirrors.
Press the switch up
*1
to unfold the mirrors
before driving.
CAUTION
. Do not touch the mirrors while they
are moving. Your hand may be
pinched, and the mirror may mal-
function.
. Do not drive with the mirrors stored.
You will be unable to see behind the
vehicle.Pre-driving checks and adjustments
3-27
,QIRUPDWLRQ3URYLGHGE\

Black plate (164,1)
Model "R35-D" EDITED: 2008/ 5/ 20
.If the mirrors were folded or un-
folded by hand, there is a chance
that the mirror will move forward or
backward during driving. If the mir-
rors were folded or unfolded by
hand, be sure to adjust them again
electrically before driving.NOTE:.If the switch is operated continuously,
the mirror may stop before movement
is completed. This does not indicate
that there is a malfunction. Wait a few
moments, then operate the switch
again.
. If the mirrors were folded or unfolded
by hand, the mirrors may start moving
when the ignition switch is set to the
Acc or ON position.
. When the ignition switch is in the ON
position, operating the rear window
defroster will also remove frost and
fog from the outside mirrors.
(
“REAR WINDOW DEFROSTER
SWITCH” page 2-46)
VANITY MIRRORTo use the front vanity mirror, pull down the sun
visor and pull up the cover.
3-28
Pre-driving checks and adjustments
,QIRUPDWLRQ3URYLGHGE\

Black plate (165,1)
Model "R35-D" EDITED: 2008/ 5/ 20
MEMO
Pre-driving checks and adjustments
3-29
,QIRUPDWLRQ3URYLGHGE\
