significantly more likely to be injured or
killed than a person properly wearing a
seat belt.OFF-ROAD RECOVERYWhile driving, the right side or left side wheels
may unintentionally leave the road surface. If this
occurs, maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.
1. Remain calm and do not overreact.
2. Do not apply the brakes.
3. Maintain a firm grip on the steering wheelwith both hands and try to hold a straight
course.
4. When appropriate, slowly release the accel- erator pedal to gradually slow the vehicle.
5. If there is nothing in the way, steer the vehicle to follow the road while the vehicle
speed is reduced. Do not attempt to drive
the vehicle back onto the road surface until
vehicle speed is reduced.
6. When it is safe to do so, gradually turn the steering wheel until both tires return to the
road surface. When all tires are on the road
surface, steer the vehicle to stay in the
appropriate driving lane. .
If you decide that it is not safe to return
the vehicle to the road surface based on
vehicle, road or traffic conditions, gra-
dually slow the vehicle to a stop in a safe
place off the road.
RAPID AIR PRESSURE LOSSRapid air pressure loss or a “blow-out” can
occur if the tire is punctured or is damaged due
to hitting a curb or pothole. Rapid air pressure
loss can also be caused by driving on under-
inflated tires.
Rapid air pressure loss can affect the handling
and stability of the vehicle, especially at highway
speeds.
Help prevent rapid air pressure loss by main-
taining the correct air pressure and visually
inspect the tires for wear and damage.
(
“WHEELS AND TIRES” page 8-29)
If a tire rapidly loses air pressure or “blows-out”
while driving maintain control of the vehicle by
following the procedure below. Please note that
this procedure is only a general guide. The
vehicle must be driven as appropriate based on
the conditions of the vehicle, road and traffic.
WARNING
The following actions can increase the
chance of losing control of the vehicle if there is a sudden loss of tire air
pressure. Losing control of the vehicle
may cause a collision and result in
personal injury.
.
The vehicle generally moves or pulls
in the direction of the flat tire.
. Do not rapidly apply the brakes.
. Do not rapidly release the accelera-
tor pedal.
. Do not rapidly turn the steering
wheel.
1. Remain calm and do not overreact.
2. Maintain a firm grip on the steering wheel with both hands and try to hold a straight
course.
3. When appropriate, slowly release the accel- erator pedal to gradually slow the vehicle.
4. Gradually steer the vehicle to a safe location off the road and away from traffic if possible.
5. Lightly apply the brake pedal to gradually stop the vehicle.
6. Turn on the hazard warning flashers and contact a roadside emergency service to
change the tire.
5-6
Starting and driving
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 182 of 311

Black plate (177,1)
Model "R35-D" EDITED: 2008/ 5/ 20
DRINKING ALCOHOL/DRUGS AND
DRIVING
WARNING
Never drive under the influence of
alcohol or drugs. Alcohol in the blood-
stream reduces coordination, delays
reaction time and impairs judgement.
Driving after drinking alcohol increases
the likelihood of being involved in an
accident injuring yourself and others.
Additionally, if you are injured in an
accident, alcohol can increase the se-
verity of the injury.
NISSAN is committed to safe driving. However,
you must choose not to drive under the influence
of alcohol. Every year thousands of people are
injured or killed in alcohol-related accidents.
Although the local laws vary on what is
considered to be legally intoxicated, the fact is
that alcohol affects all people differently and
most people underestimate the effects of
alcohol.
Remember, drinking and driving don’t mix! And
that is true for drugs, too (over-the-counter,
prescription, and illegal drugs) . Don’t drive if
your ability to operate your vehicle is impaired by
alcohol, drugs, or some other physical condition.
ALL-WHEEL DRIVE (AWD) DRIVING
SAFETY PRECAUTIONS
WARNING
. Do not drive beyond the perfor-
mance capability of the tires, even
with AWD engaged. Accelerating
quickly, sharp steering maneuvers
or sudden braking may cause loss
of control.
. Always use the specified tires on all
four wheels. Install tire chains on
the rear wheels when driving on
slippery roads and drive carefully.
. This vehicle is not designed for
offroad (rough road) use. Do not
drive on sandy or muddy roads that
tires may get stuck in.
. Do not attempt to raise two wheels
off the ground and shift the trans-
mission to any
&A↔&Mor
&Rposition
with the engine running. Doing so
may result in drivetrain damage or
unexpected vehicle movement
which could result in serious vehicle
damage or personal injury.
. Do not attempt to test an AWD
equipped vehicle on a 2-wheel dy- namometer, (such as the dynam-
ometers used by some states for
emissions testing) , or similar equip-
ment even if the other two wheels
are raised off the ground. Make sure
you inform test facility personnel
that your vehicle is equipped with
AWDbeforeitisplacedona
dynamometer. Using the wrong test
equipment may result in drivetrain
damage or unexpected vehicle
movement which could result in
serious vehicle damage or personal
injury.
. When a wheel is off the ground due
to an unlevel surface, do not spin
the wheel excessively.
Starting and driving
5-7
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 183 of 311

Black plate (178,1)
Model "R35-D" EDITED: 2008/ 5/ 20
WARNING
Do not operate the push-button ignition
switch while driving the vehicle except
in an emergency. (The engine will stop
when the ignition switch is pushed
three consecutive times or the ignition
switch is pushed and held for more than
2 seconds.) If the engine stops while
the vehicle is being driven, this could
lead to a crash and serious injury.
Before operating the push-button ignition
switch, be sure to move the shift lever to the&Pposition.
OPERATING RANGE FOR ENGINE
STARTThe operating range for starting the engine
inside the vehicle is shown in the illustration.
. If the Intelligent Key is on the instrument
panel, rear parcel shelf, inside the glove box
or door pocket, or the corner of interior
compartment, it may not be possible to start
the engine.
. If the Intelligent Key is near the door or door
glass outside the vehicle, it may be possible
to start the engine.
IGNITION SWITCH OPERATIONWhen the Intelligent Key is carried with you and
the ignition switch is pushed without depressing
the brake pedal, the ignition switch position will
change as follows:
.Push center once to change to ACC.
. Push center two times to change to ON.
. Push center three times to change to OFF.
(No position illuminates.)
. Push center four times to return to ACC.
. Open or close any door to return to LOCK
during the OFF position.
5-8
Starting and driving
PUSH-BUTTON IGNITION SWITCH
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 184 of 311

Black plate (179,1)
Model "R35-D" EDITED: 2008/ 5/ 20

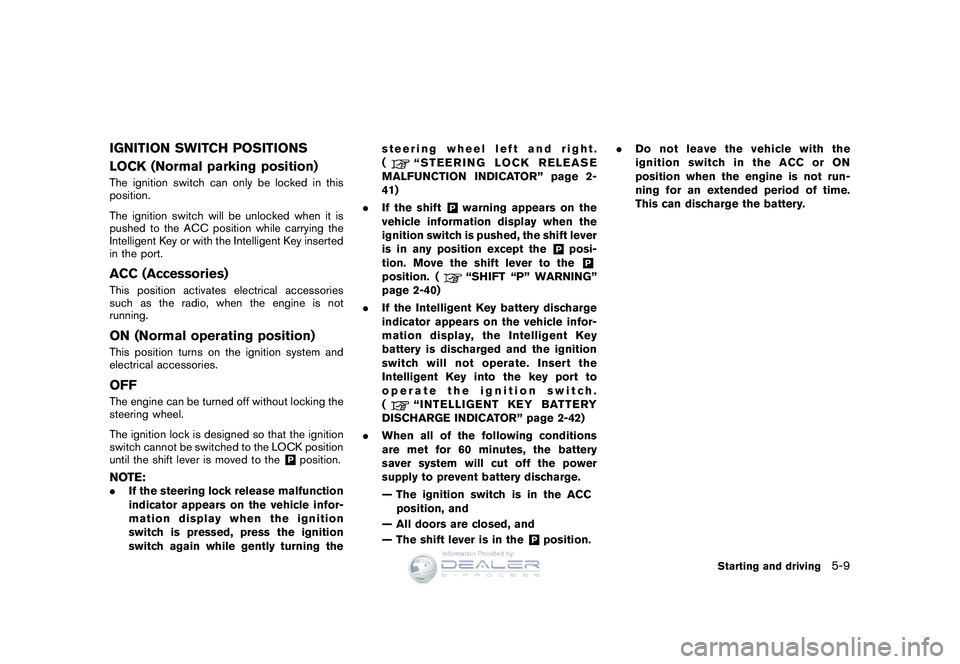

IGNITION SWITCH POSITIONS
LOCK (Normal parking position)The ignition switch can only be locked in this
position.
The ignition switch will be unlocked when it is
pushed to the ACC position while carrying the
Intelligent Key or with the Intelligent Key inserted
in the port.ACC (Accessories)This position activates electrical accessories
such as the radio, when the engine is not
running.ON (Normal operating position)This position turns on the ignition system and
electrical accessories.OFFThe engine can be turned off without locking the
steering wheel.
The ignition lock is designed so that the ignition
switch cannot be switched to the LOCK position
until the shift lever is moved to the
&Pposition.
NOTE:.If the steering lock release malfunction
indicator appears on the vehicle infor-
mation display when the ignition
switch is pressed, press the ignition
switch again while gently turning the steering wheel left and right.
(
“STEERING LOCK RELEASE
MALFUNCTION INDICATOR” page 2-
41)
. If the shift
&Pwarning appears on the
vehicle information display when the
ignition switch is pushed, the shift lever
is in any position except the
&P
posi-
tion. Move the shift lever to the&P
position. (
“SHIFT “P” WARNING”
page 2-40)
. If the Intelligent Key battery discharge
indicator appears on the vehicle infor-
mation display, the Intelligent Key
battery is discharged and the ignition
switch will not operate. Insert the
Intelligent Key into the key port to
operate the ignition switch.
(
“INTELLIGENT KEY BATTERY
DISCHARGE INDICATOR” page 2-42)
. When all of the following conditions
are met for 60 minutes, the battery
saver system will cut off the power
supply to prevent battery discharge.
— The ignition switch is in the ACC
position, and
— All doors are closed, and
— The shift lever is in the
&Pposition. .
Do not leave the vehicle with the
ignition switch in the ACC or ON
position when the engine is not run-
ning for an extended period of time.
This can discharge the battery.
Starting and driving
5-9
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 185 of 311

Black plate (180,1)
Model "R35-D" EDITED: 2008/ 5/ 20
INTELLIGENT KEY BATTERY DIS-
CHARGEIf the battery of the Intelligent Key is almost
discharged, the guide light
*1
of the Intelligent
Key port blinks and the indicator appears on the
vehicle information display.
(
“INTELLIGENT KEY INSERTION INDI-
CATOR” page 2-41)
In this case, inserting the Intelligent Key into the
port allows you to start the engine. Make sure
that the mechanical key side faces backward as
illustrated. Insert the Intelligent Key in the port
until it is latched and secured.
To remove the Intelligent Key from the port, push
the ignition switch to the OFF position and pull the Intelligent Key out of the port.
NOTICE
Never place anything except the Intelli-
gent Key in the Intelligent Key port.
Doing so may cause damage to the
equipment.
NOTE:.
Make sure the Intelligent Key is in the
correct direction when inserting it into
the Intelligent Key port. The engine
may not start if it is in the incorrect
direction.
. Remove the Intelligent Key from the
Intelligent Key port after the ignition
switch is pushed to the OFF position.
5-10
Starting and driving
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 186 of 311

Black plate (181,1)
Model "R35-D" EDITED: 2008/ 5/ 20
.The Intelligent Key port does not
charge the Intelligent Key battery. If
you see the low battery indicator in the
vehicle information display, replace the
battery as soon as possible.
(
“INTELLIGENT KEY BATTERY RE-
PLACEMENT” page 8-23)
. Make sure the area around the vehicle is
clear.
. Check fluid levels such as engine oil, cool-
ant, brake fluid and window washer fluid as
frequently as possible, or at least whenever
you refuel.
. Check that all windows and lights are clean.
. Visually inspect tires for their appearance
and condition. Also check tires for proper
inflation.
. Lock all doors.
. Position seat and adjust head restraints.
. Adjust inside and outside mirrors.
. Fasten seat belts and ask all passengers to
do likewise.
. Check the operation of warning lights when
the ignition switch is pushed to the ON
position. (
“WARNING/INDICATOR
LIGHTS AND AUDIBLE REMINDERS”
page 2-23)
NOTE:. This vehicle includes spark plugs that
are designed for maximum perfor-
mance. If the start time becomes long-
er, the plugs may be fouled, making the
engine difficult to start. If this occurs,
start the engine using the procedure
described in this section.
. A click sound may be heard when the
brake pedal is depressed and released.
This is normal.
. A low rattling operating sound may
occur when the engine is started or
stopped. This does not indicate that
there is a malfunction. This sound is
likely to occur in particular if the engine
is stopped when the temperature of the
transmission oil is high.
Starting and driving
5-11
BEFORE STARTING THE ENGINE STARTING THE ENGINE
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 187 of 311

Black plate (182,1)
Model "R35-D" EDITED: 2008/ 5/ 20
1. Check the positions of the accelerator pedal
*1
and brake pedal
*2. Adjust the steering
wheel and seat positions so that the correct
driving posture is achieved. (
“FRONT
SEATS” page 1-2)
2. Check that the parking brake is engaged.
3. Check that the shift lever is in the&Por&N
position. (
&Pis recommended.)
4. Firmly depress the brake pedal. Without depressing the accelerator pedal, press the
ignition switch once to start the engine.
5. To stop the engine, move the shift lever to the
&Pposition, and push the ignition switch
to the OFF position.
NOTE:. If the engine is difficult to start, de-
press the accelerator pedal all the way
to the floor and hold it. Push the
ignition switch with the brake pedal
depressed to start cranking the engine.
After 5 or 6 seconds, stop cranking by
pushing the ignition switch to the OFF
position, and then release the accel-
erator pedal. Then perform steps 1 to 4
to start the engine. If the engine starts,
but fails to run, repeat this procedure.
. Starting and stopping the engine over a
short period of time may make the
vehicle more difficult to start. If this
occurs, wait for more than 3 minutes,
and then press the ignition switch
again to start the engine.
. To maintain high performance over a
long period of time, the engine speed is
limited to 5,000 rpm when the engine is
revved with the shift lever in the
&Nor
&Pposition, and to 4,000 rpm when the
engine oil or coolant temperature is
low or higher than normal.
. If the ignition switch is pressed before
the shift lever is moved to the
&P
position, the ignition switch will not
change to the OFF position. If this occurs, the SHIFT
&P
warning display
appears on the vehicle information
display. When stopping the engine, be
sure to move the shift lever to the
&P
position and then press the ignition
switch. Failure to do so may result in
discharge of the battery. (
“SHIFT
“P” WARNING” page 2-40)
. If the shift lever was in the
&A↔&Mor
&R
position when the engine was stopped,
then be sure to move the shift lever to
the
&P
position before starting the
engine the next time. If the engine is
started with the shift lever in the
&N
position, then it may not be possible to
drive the vehicle even when the shift
lever is moved to the
&A↔&M
or
&R
position. If this occurs, the SHIFT
&P
warning appears on the vehicle infor-
mation display. (
“SHIFT “P”
WARNING” page 2-40)
CAUTION
If the engine was stopped soon when
the engine is hot, the cooling fan may
operate for approximately 2 minutes
after the engine was stopped to cool
the components in the engine compart-
5-12
Starting and driving
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 188 of 311

Black plate (183,1)
Model "R35-D" EDITED: 2008/ 5/ 20
ment. When the cooling fan is operat-
ing, be sure that hands or other items
do not get caught in it.
DUAL CLUTCH TRANSMISSIONThe GT-R dual clutch transmission is a newly-
developed system that uses an electronically
controlled multiple-disc wet clutch attached to
the highly efficient manual transmission. This
transmission has two driving modes.
.
&Aposition (Automatic gearshift):
allows automatic shifting of the manual
transmission.
.
&M
position (Manual gearshift):
allows quick shifting of the manual transmis-
sion.
NOTE:.
&M
position driving is recommended
when driving up hills or accelerating
from a stop on a cold morning.
.
&M
position driving is recommended if
you feel shift shocks or jerkiness in the
&Aposition in cold temperatures.
. When starting or driving on a steep
uphill grade, shift to the
&M
position
and operate the paddle shifter to shift
down to 1st gear similar to a manual
transmission vehicle.
The GT-R dual clutch transmission was devel-
oped specifically to maximize vehicle perfor-
mance and driving enjoyment. The GT-R transmission components were designed using
different engineering standards than typical
passenger car transmissions. Because of this,
the GT-R has different operating characteristics,
and various rattle noises may be heard during
some driving conditions because of the follow-
ing items:
.
Gear clearances
. Ultralight flywheel
. Dry sump lubrication
These noises do not indicate that there is a
malfunction.
WARNING
. Do not depress the accelerator
pedal while shifting from the
&Por
&N
position to the
&R
or
&A↔&M
position. Always depress the brake
pedal until shifting is completed.
Failure to do so could cause loss
of control and an accident.
. Cold engine idle speed is high, so
use caution when shifting into a
forward or reverse gear before the
engine has warmed up.
. Never shift to the
&Por
&Rposition
while the vehicle is moving forward.
Starting and driving
5-13
DRIVING THE VEHICLE
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 189 of 311

Black plate (184,1)
Model "R35-D" EDITED: 2008/ 5/ 20
Never shift to the
&P
or
&A↔&M
position while the vehicle is moving
rearward. Doing so could cause loss
of control and an accident.
. The shift lever contains a powerful
magnet. Do not place electronic
medical devices or other electronic
products that are susceptible to
magnetic force close to the shift
lever.
CAUTION
.Do not downshift abruptly on slip-
pery roads. This may cause a loss of
control.
. Because the vehicle includes a dual
clutch transmission that automati-
cally controls the clutch and shifting
operation of the manual transmis-
sion, whenever the shift lever is in a
position other then
&P
or
&N, the
vehicle will begin to move slowly, in
the same way as when the clutch in
a manual transmission vehicle is
partially engaged. Keep the brake
pedal firmly depressed when the
vehicle is stopped. In some circum-
stances the vehicle may not start moving on its own, however this
does not indicate that there is a
malfunction.
NOTICE
When the vehicle is stopped on a hill,
do not hold the vehicle in place by
depressing the accelerator pedal. Doing
so may cause the clutch to overheat and
result in transmission damage. Use the
brakes to prevent the vehicle from
moving.
Operating the shift leverAfter starting the engine, fully depress the brake
pedal and move the shift lever from the
&P
position to the
&R,&N,or
&A↔&M
position. Push
the button to shift into the
&Por&Rposition. All
other positions can be selected without pushing
the button.
5-14
Starting and driving
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 190 of 311

Black plate (185,1)
Model "R35-D" EDITED: 2008/ 5/ 20
Shift lever operation
Push the button while depressing the brake
pedal.Push the button.Just move the shift lever.Automatically returns.
&Pposition:
Use this position for parking and starting the
engine. The ignition switch will be changed to
the OFF or LOCK position.
CAUTION
Use the
&P
position only when the
vehicle is completely stopped.
&Rposition:
Use this position for driving in reverse.&Nposition:
Neither forward nor reverse gear is engaged.&A↔&M
position:
Use this position for all normal forward driving.
The shift lever can be moved between
&Aand
&M
to alternately change each other. The position indicator indicates the gear position
with the indication of “A” or “M”.
.
&A
position: Use this position for ordinary
driving, with the gears shifted automatically
from first gear to sixth gear according to the
speed and driving conditions.
.
&M
position: Operate the paddle shifter to
drive in first gear to sixth gear as desired.
CAUTION
Grip the shift lever correctly when
operating it. Failure to do so may cause
a finger or other items to be trapped
between the lever and gate, possibly
causing an accident.
NOTICE
. Be sure to observe the following
precautions. Failure to do so may
result in shift lever malfunction.
— Do not spill water, beverages or
other liquids on the shift lever.
Starting and driving
5-15
, Q I R U P D W L R Q 3 U R Y L G H G E \
