NISSAN GT-R 2009 Owners Manual

Black plate (256,1)
Model "R35-D" EDITED: 2008/ 5/ 20
ENGINE COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
switch is turned to OFF. 2. Open the engine hood and remove the
cover on the battery and the fuse/fusible link
holder.
3. Remove the fuse/fusible link holder cover.
4. Remove the fuse with the fuse puller that is located in the engine compartment fuse box.
5. If the fuse is open
*A
, replace it with a new
fuses
*B. Spare fuses are stored in the
passenger compartment fuse box.
6. If a new fuse also opens, have the electrical system checked and repaired by a GT-R
certified NISSAN dealer.
Fusible linksIf any electrical equipment does not operate and
fuses are in good condition, check the fusible
links. If any of these fusible links are melted,
replace only with genuine NISSAN parts.
8-22
Maintenance and do-it-yourself
FUSES
,QIRUPDWLRQ3URYLGHGE\

Black plate (257,1)
Model "R35-D" EDITED: 2008/ 5/ 20
PASSENGER COMPARTMENT
CAUTION
Never use a fuse of a higher or lower
amperage rating than that specified on
the fuse box cover. This could damage
the electrical system or cause a fire.
If any electrical equipment does not operate,
check for an open fuse.
1. Be sure the ignition switch is pushed to the OFF or LOCK position and the headlight
switch is turned to OFF.
2. Open the fuse box lid.
3. Remove the fuse with the fuse puller
*A
.
4. If the fuse is open, replace it with a new fuse.
5. If a new fuse also opens, have the electrical system checked and repaired by a GT-R
certified NISSAN dealer.
WARNING
Be careful that batteries and other
removed components are not swal-
lowed by children.
NOTICE
There is the possibility that the key may
be damaged when the battery is re-
placed. It is recommended that you
have the battery replaced by a GT-R
certified NISSAN dealer.
Maintenance and do-it-yourself
8-23
INTELLIGENT KEY BATTERY
REPLACEMENT
,QIRUPDWLRQ3URYLGHGE\

Black plate (258,1)
Model "R35-D" EDITED: 2008/ 5/ 20

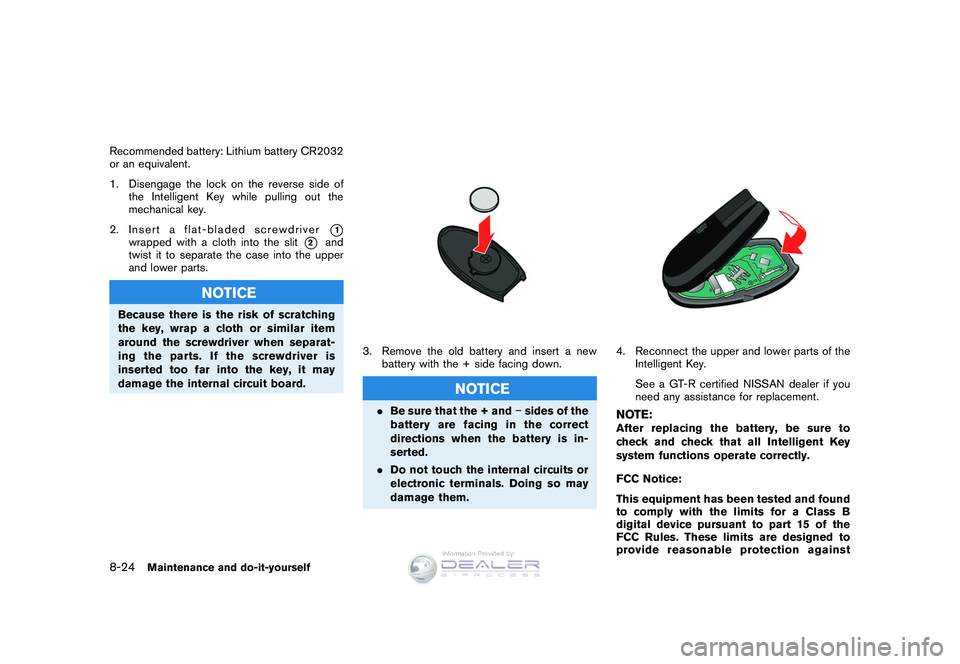

Recommended battery: Lithium battery CR2032
or an equivalent.
1. Disengage the lock on the reverse side ofthe Intelligent Key while pulling out the
mechanical key.
2. Insert a flat-bladed screwdriver
*1
wrapped with a cloth into the slit
*2
and
twist it to separate the case into the upper
and lower parts.
NOTICE
Because there is the risk of scratching
the key, wrap a cloth or similar item
around the screwdriver when separat-
ing the parts. If the screwdriver is
inserted too far into the key, it may
damage the internal circuit board.
3. Remove the old battery and insert a new battery with the + side facing down.
NOTICE
.Be sure that the + and sides of the
battery are facing in the correct
directions when the battery is in-
serted.
. Do not touch the internal circuits or
electronic terminals. Doing so may
damage them.
4. Reconnect the upper and lower parts of the Intelligent Key.
See a GT-R certified NISSAN dealer if you
need any assistance for replacement.NOTE:After replacing the battery, be sure to
check and check that all Intelligent Key
system functions operate correctly.
FCC Notice:
This equipment has been tested and found
to comply with the limits for a Class B
digital device pursuant to part 15 of the
FCC Rules. These limits are designed to
provide reasonable protection against
8-24
Maintenance and do-it-yourself
,QIRUPDWLRQ3URYLGHGE\

Black plate (259,1)
Model "R35-D" EDITED: 2008/ 5/ 20

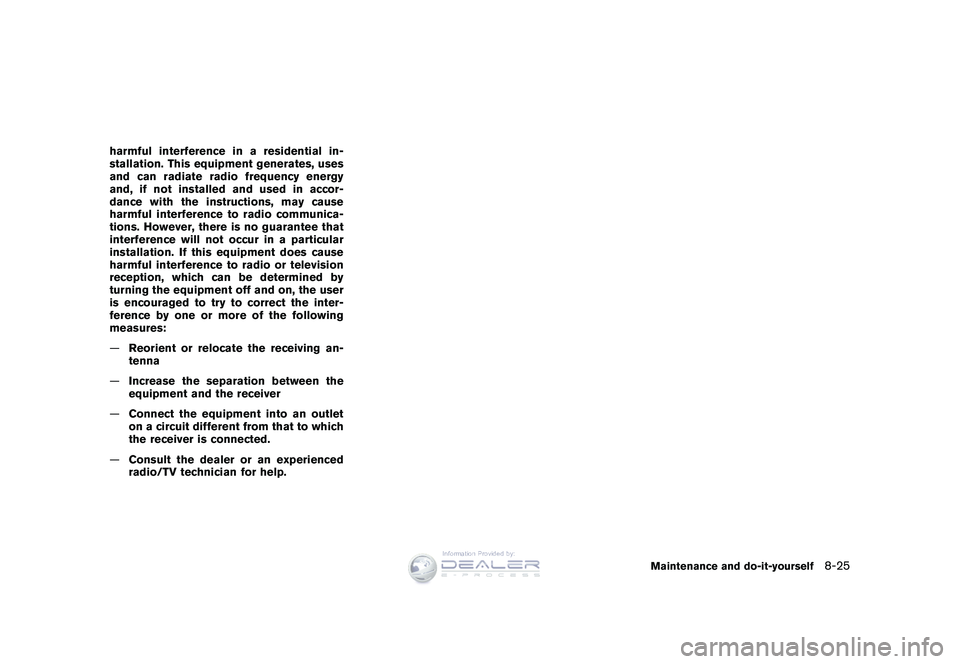

harmful interference in a residential in-
stallation. This equipment generates, uses
and can radiate radio frequency energy
and, if not installed and used in accor-
dance with the instructions, may cause
harmful interference to radio communica-
tions. However, there is no guarantee that
interference will not occur in a particular
installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by
turning the equipment off and on, the user
is encouraged to try to correct the inter-
ference by one or more of the following
measures:
—Reorient or relocate the receiving an-
tenna
— Increase the separation between the
equipment and the receiver
— Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
Maintenance and do-it-yourself
8-25
,QIRUPDWLRQ3URYLGHGE\

Black plate (260,1)
Model "R35-D" EDITED: 2008/ 5/ 20
1. Clearance light
2. Front turn signal light
3. Headlight (High beam)
4. Headlight (Low beam)
5. Front side marker light
6. High-mounted stop light7. License plate light
8. Rear combination light (rear turn signal/tail/stop/
back-up)
9. Rear side marker light side marker
HEADLIGHTS
ReplacingXenon headlight bulb:
WARNINGHIGH VOLTAGE
When xenon headlights are on, they
produce a high voltage. To prevent an
electric shock, never attempt to modify
or disassemble. Always have your xe-
non headlights replaced at a GT-R
certified NISSAN dealer.
(
“HEADLIGHT AND TURN SIGNAL
SWITCH” page 2-47)
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This does
not indicate that there is a malfunction. If large
drops of water collect inside the lens, contact a
GT-R certified NISSAN dealer.
8-26
Maintenance and do-it-yourself
LIGHTS
,QIRUPDWLRQ3URYLGHGE\

Black plate (261,1)
Model "R35-D" EDITED: 2008/ 5/ 20
EXTERIOR AND INTERIOR LIGHTSItemWattage (W)Bulb No.
Headlight assembly** low-beam (Xenon) 35D2S
high-beam (Halogen) 65H9
Front turn signal light* 287444NA
Clearance light* 5W5W
Front side marker light* 5W5W
Rear combination light* back-up 16W16W
turn signal 21WY21W
stop/tail LED—
Rear side marker light* LED—
License plate light* 5W5W
Map light 8—
Vanity mirror light 2—
Step light* 8—
Trunk light* 3.4—
High-mounted stop light* LED
—
*: See a GT-R certified NISSAN dealer for replacement.
**: Always check with the Parts Department at a GT-R certified NISSAN dealer for the latest parts information.
Maintenance and do-it-yourself
8-27
,QIRUPDWLRQ3URYLGHGE\

Black plate (262,1)
Model "R35-D" EDITED: 2008/ 5/ 20

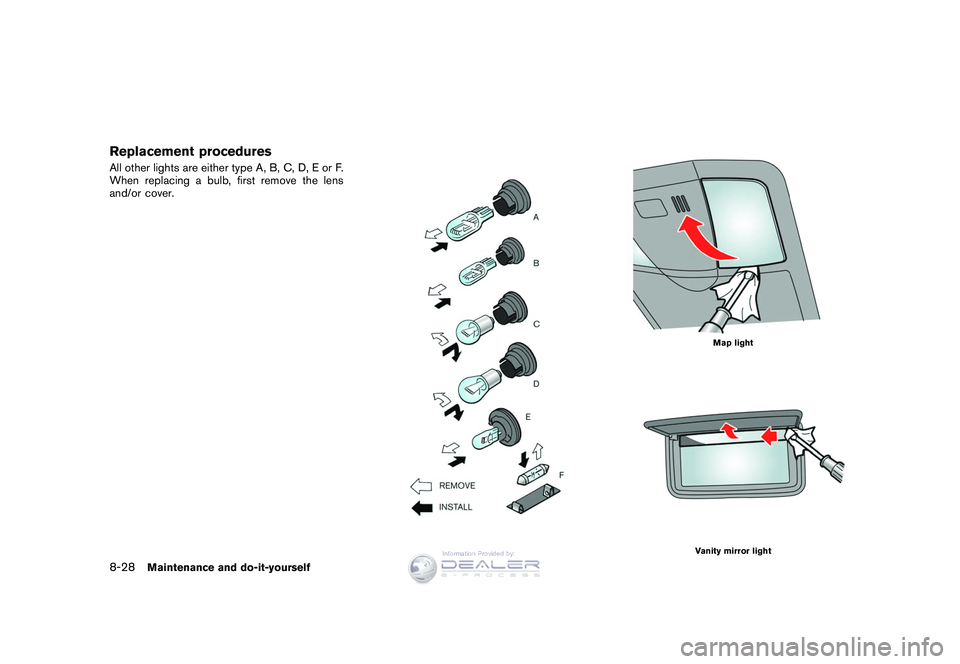

Replacement proceduresAll other lights are either type A, B, C, D, E or F.
When replacing a bulb, first remove the lens
and/or cover.
Map light
Vanity mirror light
8-28
Maintenance and do-it-yourself
,QIRUPDWLRQ3URYLGHGE\

Black plate (263,1)
Model "R35-D" EDITED: 2008/ 5/ 20
If you have a flat tire, see the following
section. (
“FLAT TIRE” page 6-2)
CAUTION
A GT-R certified NISSAN dealer should
perform a tire change. It will be neces-
sary to reset the tire pressure sensors.
To change the tires, contact a GT-R
certified NISSAN dealer.
Be sure to use the tires and wheels together as
a set that are designated for use with this
vehicle.
When tire replacement is required, replacing the
tires as a set of four with new tires is
recommended. However, if a tire is punctured
or damaged, it may be possible to replace only
the damaged tire. Determining whether one tire
or a complete set of tires should be replaced is
based on a number of factors including tire wear
and condition. Contact your GT-R certified
NISSAN dealer. They can recommend if an
individual tire or a complete set should be
replaced.TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire pressure of all tires. When the low tire pressure
warning light is lit, one or more of your tires is
significantly under-inflated. The system also
displays pressure of all tires on the multi function
display by sending a signal from a sensor that is
installed in each wheel.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) .
Also, this system may not detect a sudden drop
in tire pressure. (
“Low tire pressure warn-
ing light” page 2-25) (
“TIRE PRESSURE
MONITORING SYSTEM (TPMS)” page 5-3)
(
“Flat tire” page 8-35)
Tire inflation pressureCheck the tire pressure often and always
prior to long distance trips. The recom-
mended tire pressure specifications are
shown on the F.M.V.S.S./C.M.V.S.S. label
or the Tire and Loading Information label (if
so equipped) under the “Cold Tire Pres-
sure” heading. The Tire and Loading
Information label is affixed to the driver
side door end. Tire pressures should be
checked regularly because:.
Most tires naturally lose air over time.
.
Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
NOTE:. You can check the pressure of all four
tires on the multi function display. See
the separate Multi Function Display
Owner’s Manual.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen. Contact
a GT-R certified NISSAN dealer for
information on filling the tires with
nitrogen.
. If nitrogen is not available, compressed
air may be safely used under normal
driving conditions. However, NISSAN
recommends refilling with nitrogen for
maximum tire performance.The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
Incorrect tire pressure, including un-
derinflation, may adversely affect tire
life and vehicle handling.
Maintenance and do-it-yourself
8-29
WHEELS AND TIRES
,QIRUPDWLRQ3URYLGHGE\

Black plate (264,1)
Model "R35-D" EDITED: 2008/ 5/ 20
WARNING
.
Improperly inflated tires can fail
suddenly and cause an accident.
.
The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.
S.S./C.M.V.S.S. certification la-
bel. The vehicle weight capacity
is indicated on the Tire and
Loading Information label (if so
equipped) . Do not load your
vehicle beyond this capacity.
Overloading your vehicle may
result in reduced tire life, unsafe
operating conditions due to pre-
mature tire failure, or unfavor-
able handling characteristics
and could also lead to a serious
accident. Loading beyond the
specified capacity may also re-
sult in failure of other vehicle
components.
.
Before taking a long trip, or
when ever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
.
For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
NOTE:.Use only genuine GT-R tires and road
wheels or an equivalent. Proper use of
NISSAN recommended tires provides
the greatest potential for maximum
performance.
— Genuine GT-R tires and road
wheels or an equivalent help
achieve maximum cornering perfor-
mance.
— Genuine GT-R tires and road wheels or an equivalent help pro-
vide road holding in the event of
decreased tire pressure and punc-
tures.
— Genuine GT-R tires and road wheels or an equivalent help pre-
vent the decrease of straight-run-
ning stability caused by uneven tire
wear due to highly rigid wheels and
wide tires.
. Do not reuse the tires that were once removed from the road wheels. Be-
cause the tires used with this vehicle
are more rigid than ordinary tires, they
may be damaged when they are re-
moved. Even if there is no visible
damage, reusing these tires is not safe
and may cause an accident. In addition,
the tires may be cut when they are
removed from the road wheels in order
to prevent scratches to the road
wheels.
8-30
Maintenance and do-it-yourself
,QIRUPDWLRQ3URYLGHGE\

Black plate (265,1)
Model "R35-D" EDITED: 2008/ 5/ 20
TIRE AND LOADING INFORMATION
LABEL*1
Seating capacity: The maximum num-
ber of occupants that can be seated
in the vehicle.
*2
Vehicle load limit: See the following
section. (
“VEHICLE LOADING IN-
FORMATION” page 9-11)
*3
Original size: The size of the tires
originally installed on the vehicle at
the factory.
*4
Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or
more hours, or driven less than 1 mile
(1.6 km) at moderate speeds. The
recommended cold tire inflation is set
by the manufacturer to provide the
best balance of tire wear, vehicle
handling, driveability, tire noise, etc.,
up to the vehicle’s GVWR.
*5
Tire size — see the following section.
(
“TIRE LABELING” page 8-33)
*6
Spare tire size or compact spare tire
size (if so equipped)Maintenance and do-it-yourself
8-31
,QIRUPDWLRQ3URYLGHGE\
