NISSAN GT-R 2009 Owner's Guide
Manufacturer: NISSAN, Model Year: 2009, Model line: GT-R, Model: NISSAN GT-R 2009Pages: 311, PDF Size: 6.68 MB
Page 31 of 311
![NISSAN GT-R 2009 Owners Guide Black plate (26,1)
Model "R35-D" EDITED: 2008/ 5/ 20
MEMO0-12
Illustrated table of contents
, Q I R U P D W L R Q 3 U R Y L G H G E \](/img/5/58176/w960_58176-30.png "NISSAN GT-R 2009 Owners Guide Black plate (26,1)
Model \"R35-D\" EDITED: 2008/ 5/ 20
MEMO0-12
Illustrated table of contents
, Q I R U P D W L R Q 3 U R Y L G H G E \")
Black plate (26,1)
Model "R35-D" EDITED: 2008/ 5/ 20
MEMO0-12
Illustrated table of contents
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 32 of 311
Black plate (7,1)
1 Safety — Seats, seat belts and supple-mental restraint system
Model "R35-D" EDITED: 2008/ 5/ 20
Seats .............................................................. 1-2
Front seats ................................................... 1-2
Seat belts ........................................................ 1-5
Precautions on seat belt usage ......................... 1-5
Child safety .................................................. 1-7
Pregnant women ............................................ 1-9
Injured persons .............................................. 1-9
Three-point type seat belt with retractor .............. 1-9
Seat belt extenders ....................................... 1-12
Seat belt maintenance ................................... 1-12
Child restraints ................................................ 1-13
Precautions on child restraints ......................... 1-13
Lower Anchors and Tethers for CHildren system
(LATCH) .................................................... 1-15
Top tether strap child restraint ......................... 1-16
Child restraint installation using LATCH ............. 1-17
Child restraint installation using the seat belts ..... 1-21Booster seats
.................................................. 1-27
Precautions on booster seats .......................... 1-27
Booster seat installation ................................. 1-29
Supplemental restraint system ............................. 1-31
Precautions on supplemental restraint system . .... 1-31
NISSAN Advanced Air Bag System
(front seats) ................................................ 1-36
Front seat-mounted side-impact supplemental air
bag and roof-mounted curtain side-impact
supplemental air bag system (if so equipped) . .... 1-40
Seat belts with pretensioners (front seats) ......... 1-42
Supplemental air bag warning labels ................. 1-43
Supplemental air bag warning light ................... 1-43
Repair and replacement procedure ................... 1-44
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 33 of 311
Black plate (28,1)
Model "R35-D" EDITED: 2008/ 5/ 20
WARNING
.Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious
internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit well back in the seat with both feet
on the floor and adjust the seat
properly. (
“PRECAUTIONS ON
SEAT BELT USAGE” page 1-5)
. After adjustment, gently rock in the
seat to make sure it is securely
locked.
. Do not leave children unattended
inside the vehicle. They could un-
knowingly activate switches or con-
trols. Unattended children could
become involved in serious acci-
dents.
FRONT SEATS
Front power seat adjustmentOperating tips
.The power seat motor has an auto-reset
overload protection circuit. If the motor
stops during operation, wait 30 seconds,
then reactivate the switch.
. Do not operate the power seat switch for a
long period of time when the engine is off.
This will discharge the battery.
1-2
Safety — Seats, seat belts and supplemental restraint system
SEATS
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 34 of 311
Black plate (29,1)
Model "R35-D" EDITED: 2008/ 5/ 20
Seat AdjustmentSwitch OperationLocation
Forward and backward
Move the switch
*A
forward or backward until the desired seat position is obtained.
Driver’s and front
passenger’s seats
Reclining
Turn the switch
*A
forward and backward until the desired seatback angle is
obtained.
The reclining feature allows adjustment of the seatback for occupants of different sizes
for added comfort and to help obtain proper seat belt fit. (
“PRECAUTIONS ON
SEAT BELT USAGE” page 1-5)
Also, the seatback can be reclined to allow occupants to rest when the vehicle is
stopped and the transmission is in the
&Pposition with the parking brake fully applied.
Seat lifter (front)
Push the switch up or down
*B
to raise or lower the front portion of the seat.
Driver’s seats
Seat lifter (rear)
Move the switch
*A
up or down to raise or lower the rear portion of the seat.
Safety — Seats, seat belts and supplemental restraint system
1-3
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 35 of 311
Black plate (30,1)
Model "R35-D" EDITED: 2008/ 5/ 20
Passenger’s seat slide:Pushing the passenger’s seat slide switch will
slide the passenger’s seat forward or backward
to the desired position.
Rear seat walk-inThis feature makes it easier to get in and out of
the rear seat. Use the following procedure when
getting in and out of the rear seat.
1. Lift up the lever and tilt the seatbackforward.
2. Use the seat adjustment switch
*A
or the
passenger’s seat slide switch
*C
to slide
the seat forward to a position where it will be
easier to enter or exit the rear seats. Fold the
shoulder belt guide for easier access to the
rear seat.
3. To return the seat to its original position, lift up the seatback and use the seat adjust- ment switch to return the seat to its original
position.
CAUTION
.
When returning the seat to its
original position, confirm that the
seat and seatback are locked prop-
erly.
. Be careful not to pinch your hand or
foot or bump your head when oper-
ating the walk-in seat.
NOTICE
Do not place any objects near the
seatback of the front seats. They may
be pinched and damaged.
1-4
Safety — Seats, seat belts and supplemental restraint system
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 36 of 311
Black plate (31,1)
Model "R35-D" EDITED: 2008/ 5/ 20
PRECAUTIONS ON SEAT BELT
USAGEIf you are wearing your seat belt properly
adjusted, and you are sitting upright and well
back in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly
reduced. NISSAN strongly encourages you and
all of your passengers to buckle up every time
you drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be
worn at all times when a vehicle is being
driven.
Safety — Seats, seat belts and supplemental restraint system
1-5
SEAT BELTS
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 37 of 311
Black plate (32,1)
Model "R35-D" EDITED: 2008/ 5/ 20
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times. Children should be prop-
erly restrained in the rear seat and,
if appropriate, in a child restraint.
. The seat belt should be properly
adjusted to a snug fit. Failure to do
so may reduce the effectiveness of
the entire restraint system and in-
crease the chance or severity of
injury in an accident. Serious injury
or death can occur if the seat belt is
not worn properly.
. Always route the shoulder belt over
your shoulder and across your
chest. Never put the belt behind
your back, under your arm or across
your neck. The belt should be away
from your face and neck, but not
falling off your shoulder.
. Position the lap belt as low and
snug as possible AROUND THE
HIPS, NOT THE WAIST. A lap belt
worn too high could increase the
risk of internal injuries in an acci-
dent. .
Be sure the seat belt tongue is
securely fastened to the proper
buckle.
. Do not wear the seat belt inside out
or twisted. Doing so may reduce its
effectiveness.
. Do not allow more than one person
to use the same seat belt.
. Never carry more people in the
vehicle than there are seat belts.
. If the seat belt warning light glows
continuously while the ignition is
turned ON with all doors closed and
all seat belts fastened, it may in-
dicate a malfunction in the system.
Have the system checked by a GT-R
certified NISSAN dealer.
. No changes should be made to the
seat belt system. For example, do
not modify the seat belt, add mate-
rial, or install devices that may
change the seat belt routing or
tension. Doing so may affect the
operation of the seat belt system.
Modifying or tampering with the
seat belt system may result in
serious personal injury.
. Once a seat belt pretensioner has activated, it cannot be reused and
must be replaced together with the
retractor. See a GT-R certified
NISSAN dealer.
. Removal and installation of the
pretensioner system components
should be done by a GT-R certified
NISSAN dealer.
. All seat belt assemblies, including
retractors and attaching hardware,
should be inspected after any colli-
sion by a GT-R certified NISSAN
dealer. NISSAN recommends that
all seat belt assemblies in use
during a collision be replaced un-
less the collision was minor and the
belts show no damage and continue
to operate properly.
Seat belt assemblies not in use
during a collision should also be
inspected and replaced if either
damage or improper operation is
noted.
. All child restraints and attaching
hardware should be inspected after
any collision. Always follow the
restraint manufacturer’s inspection
instructions and replacement re-1-6
Safety — Seats, seat belts and supplemental restraint system
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 38 of 311
Black plate (33,1)
Model "R35-D" EDITED: 2008/ 5/ 20
commendations. The child restraints
should be replaced if they are
damaged.
CHILD SAFETYChildren need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child.
There are three basic types of child restraint
systems:
.Rear facing child restraint
. Front facing child restraint
. Booster seat
The proper restraint depends on the child’s size.
Generally, infants (up to about 1 year and less
than 20 lb (9 kg)) should be placed in rear
facing child restraints. Front facing child re-
straints are available for children who outgrow
rear facing child restraints and are at least 1 year
old. Booster seats are used to help position a
vehicle lap/shoulder belt on a child who can no
longer use a front facing child restraint.
WARNING
Infants and children need special pro-
tection. The vehicle’s seat belts may not
Safety — Seats, seat belts and supplemental restraint system
1-7
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 39 of 311
Black plate (34,1)
Model "R35-D" EDITED: 2008/ 5/ 20
fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly
fitting seat belt could cause serious or
fatal injury. Always use appropriate
child restraints.
All U.S. states and Canadian provinces or
territories require the use of approved child
restraints for infants and small children.
(
“CHILD RESTRAINTS” page 1-13)
Also, there are other types of child restraints
available for larger children for additional pro-
tection.
NISSAN recommends that all pre-teens
and children be restrained in the rear seat.
According to accident statistics, children
are safer when properly restrained in the
rear seat than in the front seat.
This is especially important because your
vehicle has a supplemental restraint sys-
tem (air bag system) for the front passen-
ger. (
“SUPPLEMENTAL RESTRAINT
SYSTEM” page 1-31)
InfantsInfants up to at least one year old should be
placed in a rear facing child restraint. NISSAN
recommends that infants be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose a
child restraint which fits your vehicle and always
follow the manufacturer’s instructions for instal-
lation and use.Small childrenChildren that are over one year old and weigh at
least 20 lb (9 kg) can be placed in a forward
facing child restraint. Refer to the manufacturer’s
instructions for minimum and maximum weight
and height recommendations. NISSAN recom-
mends that small children be placed in child
restraints that comply with Federal Motor
Vehicle Safety Standards or Canadian Motor
Vehicle Safety Standards. You should choose a
child restraint that fits your vehicle and always
follow the manufacturer’s instructions for instal-
lation and use.Larger childrenChildren who are too large for child restraints
should be seated and restrained by the seat
belts which are provided. The seat belt may not
fit properly if the child is less than 4 ft 9 in (142.5
cm) tall and weighs between 40 lb (18 kg) and
80 lb (36 kg) . A booster seat should be used to obtain proper seat belt fit.
NISSAN recommends that a child be placed in a
commercially availabl
eboosterseatifthe
shoulder belt in the child’s seating position fits
close to the face or neck or if the lap portion of
the seat belt goes across the abdomen. The
booster seat should raise the child so that the
shoulder belt is properly positioned across the
top, middle portion of the shoulder and the lap
belt is low on the hips. A booster seat can only
be used in seating positions that have a three-
point type seat belt. The booster seat should fit
the vehicle seat and have a label certifying that it
complies with Federal Motor Vehicle Safety
Standards or Canadian Motor Vehicle Safety
Standards. Once the child has grown so the
shoulder belt is no longer on or near the face
and neck, use the shoulder belt without the
booster seat.
WARNING
Never let a child stand or kneel on any
seat and do not allow a child in the
cargo areas while the vehicle is moving.
The child could be seriously injured or
killed in an accident or sudden stop.
1-8
Safety — Seats, seat belts and supplemental restraint system
, Q I R U P D W L R Q 3 U R Y L G H G E \
Page 40 of 311
Black plate (35,1)
Model "R35-D" EDITED: 2008/ 5/ 20

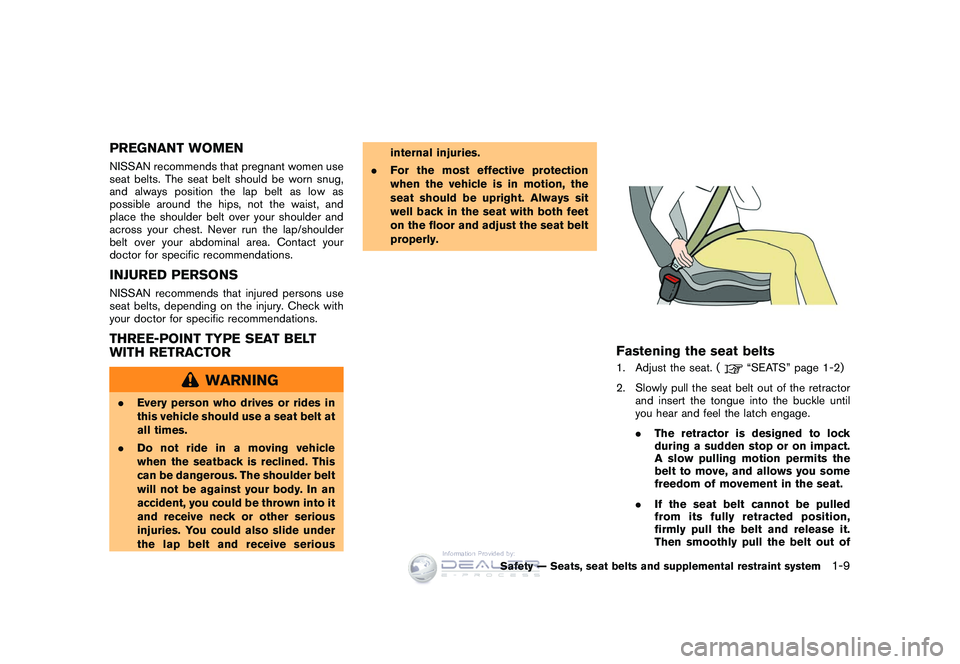

PREGNANT WOMENNISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as
possible around the hips, not the waist, and
place the shoulder belt over your shoulder and
across your chest. Never run the lap/shoulder
belt over your abdominal area. Contact your
doctor for specific recommendations.INJURED PERSONSNISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.THREE-POINT TYPE SEAT BELT
WITH RETRACTOR
WARNING
.Every person who drives or rides in
this vehicle should use a seat belt at
all times.
. Do not ride in a moving vehicle
when the seatback is reclined. This
can be dangerous. The shoulder belt
will not be against your body. In an
accident, you could be thrown into it
and receive neck or other serious
injuries. You could also slide under
the lap belt and receive serious internal injuries.
. For the most effective protection
when the vehicle is in motion, the
seat should be upright. Always sit
well back in the seat with both feet
on the floor and adjust the seat belt
properly.
Fastening the seat belts1. Adjust the seat. (
“SEATS” page 1-2)
2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until
you hear and feel the latch engage.
.The retractor is designed to lock
during a sudden stop or on impact.
A slow pulling motion permits the
belt to move, and allows you some
freedom of movement in the seat.
. If the seat belt cannot be pulled
from its fully retracted position,
firmly pull the belt and release it.
Then smoothly pull the belt out of
Safety — Seats, seat belts and supplemental restraint system
1-9
, Q I R U P D W L R Q 3 U R Y L G H G E \
