Black plate (212,1)
Model "R35-D" EDITED: 2008/ 5/ 20
FREEING A FROZEN DOOR LOCKTo prevent a door lock from freezing, apply
deicer through the key hole. If the lock becomes
frozen, heat the key before inserting it into the
key hole or use the Intelligent Key system.ANTI-FREEZEIn the winter when it is anticipated that the
outside temperature will drop below 328F(0 8C) ,
check antifreeze to assure proper winter protec-
tion. (
“ENGINE COOLING SYSTEM”
page 8-9)
BATTERYIf the battery is not fully charged during
extremely cold weather conditions, the battery
fluid may freeze and damage the battery. To
maintain maximum efficiency, the battery should
be checked regularly. (
“BATTERY” page 8-
15)
DRAINING OF COOLANT WATERIf the vehicle is to be left outside without
antifreeze, drain the cooling system, including
the engine block. Refill before operating the
vehicle. For details, contact a GT-R certified
NISSAN dealer.TIRE EQUIPMENTThe GT-R summer tires are made from a
specially formulated rubber to maximize the
vehicle’s performance capabilities. Performance of summer tires is substantially reduced when
temperatures are less than 32
8F(0 8C) so you
must drive carefully. NISSAN recommends the
use of winter or all-season tires on all four
wheels if you plan to operate your vehicle in
snowy or icy conditions when temperatures are
less than 32 8F(0 8C) .
WARNING
Never use summer tires when the
temperature is below 48 F( 20 8C) to
prevent permanent tread deformation
which may cause tire damage or tire
failure. This may cause a loss of vehicle
control which can result in serious
personal injury or death.
Tire chains may be used. (
“TIRE CHAINS”
page 8-36)
If you install tires, they must also be the specified
size, brand, construction and tread pattern on all
four wheels.
SPECIAL WINTER EQUIPMENTIt is recommended that the following items be
carried in the vehicle during winter:
. A scraper and stiff-bristled brush to remove
ice and snow from the windows and wiper
blades. .
A sturdy, flat board to be placed under the
jack to give it firm support.
. A shovel to dig the vehicle out of snowdrifts.
. Extra window washer fluid to refill the
reservoir tank.
DRIVING ON SNOW OR ICE
WARNING
.Wet ice (32 8F, 0 8C and freezing rain) ,
very cold snow or ice can be slick
and very hard to drive on. The
vehicle will have much less traction
or “grip” under these conditions. Try
to avoid driving on wet ice until the
road is salted or sanded.
. Whatever the condition, drive with
caution. Accelerate and slow down
with care. If accelerating or down-
shifting too fast, the drive wheels
will lose even more traction.
. Allow more stopping distance under
these conditions. Braking should be
started sooner than on dry pave-
ment.
. Allow greater following distances
on slippery roads.
. Watch for slippery spots (glare ice) .
5-42
Starting and driving
COLD WEATHER DRIVING
,QIRUPDWLRQ3URYLGHGE\

Black plate (237,1)
Model "R35-D" EDITED: 2008/ 5/ 20

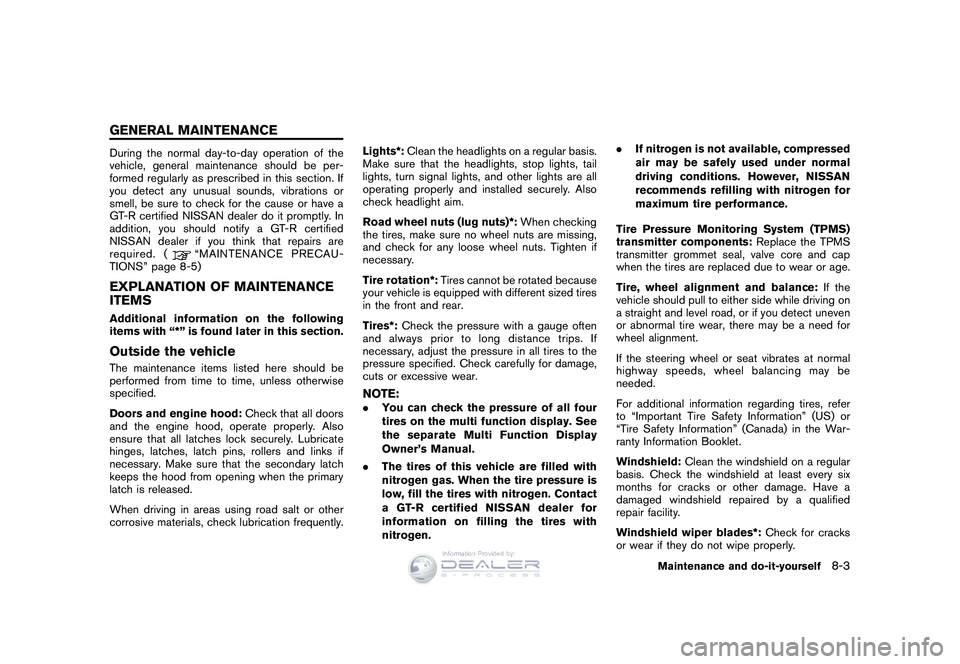

During the normal day-to-day operation of the
vehicle, general maintenance should be per-
formed regularly as prescribed in this section. If
you detect any unusual sounds, vibrations or
smell, be sure to check for the cause or have a
GT-R certified NISSAN dealer do it promptly. In
addition, you should notify a GT-R certified
NISSAN dealer if you think that repairs are
required. (
“MAINTENANCE PRECAU-
TIONS” page 8-5)
EXPLANATION OF MAINTENANCE
ITEMSAdditional information on the following
items with “*” is found later in this section.Outside the vehicleThe maintenance items listed here should be
performed from time to time, unless otherwise
specified.
Doors and engine hood: Check that all doors
and the engine hood, operate properly. Also
ensure that all latches lock securely. Lubricate
hinges, latches, latch pins, rollers and links if
necessary. Make sure that the secondary latch
keeps the hood from opening when the primary
latch is released.
When driving in areas using road salt or other
corrosive materials, check lubrication frequently. Lights*:
Clean the headlights on a regular basis.
Make sure that the headlights, stop lights, tail
lights, turn signal lights, and other lights are all
operating properly and installed securely. Also
check headlight aim.
Road wheel nuts (lug nuts)*: When checking
the tires, make sure no wheel nuts are missing,
and check for any loose wheel nuts. Tighten if
necessary.
Tire rotation*: Tires cannot be rotated because
your vehicle is equipped with different sized tires
in the front and rear.
Tires*: Check the pressure with a gauge often
and always prior to long distance trips. If
necessary, adjust the pressure in all tires to the
pressure specified. Check carefully for damage,
cuts or excessive wear.
NOTE:. You can check the pressure of all four
tires on the multi function display. See
the separate Multi Function Display
Owner’s Manual.
. The tires of this vehicle are filled with
nitrogen gas. When the tire pressure is
low, fill the tires with nitrogen. Contact
a GT-R certified NISSAN dealer for
information on filling the tires with
nitrogen. .
If nitrogen is not available, compressed
air may be safely used under normal
driving conditions. However, NISSAN
recommends refilling with nitrogen for
maximum tire performance.
Tire Pressure Monitoring System (TPMS)
transmitter components: Replace the TPMS
transmitter grommet seal, valve core and cap
when the tires are replaced due to wear or age.
Tire, wheel alignment and balance: If the
vehicle should pull to either side while driving on
a straight and level road, or if you detect uneven
or abnormal tire wear, there may be a need for
wheel alignment.
If the steering wheel or seat vibrates at normal
highway speeds, wheel balancing may be
needed.
For additional information regarding tires, refer
to “Important Tire Safety Information” (US) or
“Tire Safety Information” (Canada) in the War-
ranty Information Booklet.
Windshield: Clean the windshield on a regular
basis. Check the windshield at least every six
months for cracks or other damage. Have a
damaged windshield repaired by a qualified
repair facility.
Windshield wiper blades*: Check for cracks
or wear if they do not wipe properly.
Maintenance and do-it-yourself
8-3
GENERAL MAINTENANCE
,QIRUPDWLRQ3URYLGHGE\

Black plate (6,1)

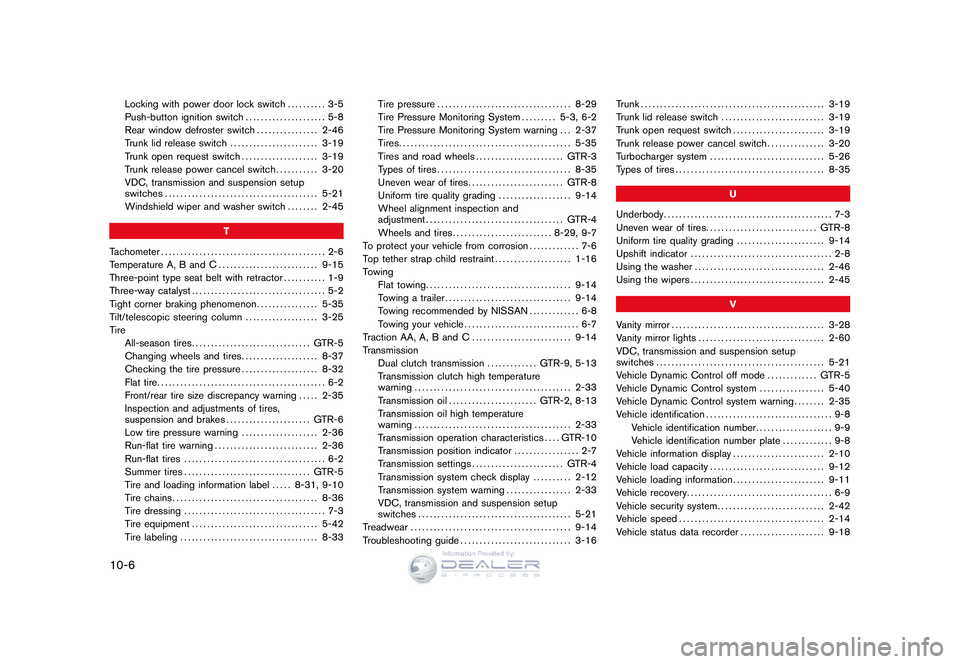

10-6
Locking with power door lock switch.......... 3-5
Push-button ignition switch ..................... 5-8
Rear window defroster switch ................ 2-46
Trunk lid release switch ....................... 3-19
Trunk open request switch .................... 3-19
Trunk release power cancel switch ........... 3-20
VDC, transmission and suspension setup
switches ........................................ 5-21
Windshield wiper and washer switch ........ 2-45
T
Tachometer ........................................... 2-6
Temperature A, B and C .......................... 9-15
Three-point type seat belt with retractor ........... 1-9
Three-way catalyst ................................... 5-2
Tight corner braking phenomenon ................ 5-35
Tilt/telescopic steering column ................... 3-25
Tire All-season tires ............................... GTR-5
Changing wheels and tires .................... 8-37
Checking the tire pressure .................... 8-32
Flat tire ............................................ 6-2
Front/rear tire size discrepancy warning ..... 2-35
Inspection and adjustments of tires,
suspension and brakes ...................... GTR-6
Low tire pressure warning .................... 2-36
Run-flat tire warning ........................... 2-36
Run-flat tires ..................................... 6-2
Summer tires ................................. GTR-5
Tire and loading information label ..... 8-31, 9-10
Tire chains ...................................... 8-36
Tire dressing ..................................... 7-3
Tire equipment ................................. 5-42
Tire labeling .................................... 8-33 Tire pressure
................................... 8-29
Tire Pressure Monitoring System ......... 5-3, 6-2
Tire Pressure Monitoring System warning . . . 2-37
Tires ............................................. 5-35
Tires and road wheels ....................... GTR-3
Types of tires ................................... 8-35
Uneven wear of tires ......................... GTR-8
Uniform tire quality grading ................... 9-14
Wheel alignment inspection and
adjustment .................................... GTR-4
Wheels and tires .......................... 8-29, 9-7
To protect your vehicle from corrosion ............. 7-6
Top tether strap child restraint .................... 1-16
Towing Flat towing ...................................... 9-14
Towing a trailer ................................. 9-14
Towing recommended by NISSAN ............. 6-8
Towing your vehicle .............................. 6-7
Traction AA, A, B and C .......................... 9-14
Transmission Dual clutch transmission ............. GTR-9, 5-13
Transmission clutch high temperature
warning ......................................... 2-33
Transmission oil ....................... GTR-2, 8-13
Transmission oil high temperature
warning ......................................... 2-33
Transmission operation characteristics .... GTR-10
Transmission position indicator ................. 2-7
Transmission settings ........................ GTR-4
Transmission system check display .......... 2-12
Transmission system warning ................. 2-33
VDC, transmission and suspension setup
switches ........................................ 5-21
Treadwear .......................................... 9-14
Troubleshooting guide ............................. 3-16 Trunk
................................................ 3-19
Trunk lid release switch ........................... 3-19
Trunk open request switch ........................ 3-19
Trunk release power cancel switch ............... 3-20
Turbocharger system .............................. 5-26
Types of tires ....................................... 8-35
U
Underbody ............................................ 7-3
Uneven wear of tires ............................. GTR-8
Uniform tire quality grading ....................... 9-14
Upshift indicator ..................................... 2-8
Using the washer .................................. 2-46
Using the wipers ................................... 2-45
V
Vanity mirror ........................................ 3-28
Vanity mirror lights ................................. 2-60
VDC, transmission and suspension setup
switches ............................................ 5-21
Vehicle Dynamic Control off mode ............. GTR-5
Vehicle Dynamic Control system ................. 5-40
Vehicle Dynamic Control system warning ........ 2-35
Vehicle identification ................................. 9-8
Vehicle identification number .................... 9-9
Vehicle identification number plate ............. 9-8
Vehicle information display ........................ 2-10
Vehicle load capacity .............................. 9-12
Vehicle loading information ........................ 9-11
Vehicle recovery ...................................... 6-9
Vehicle security system ............................ 2-42
Vehicle speed ...................................... 2-14
Vehicle status data recorder ...................... 9-18
Model "R35-D" EDITED: 2008/ 5/ 20
,QIRUPDWLRQ3URYLGHGE\

Black plate (7,1)
W
Warning “PUSH” warning ............................... 2-40
Anti-lock Braking System warning ............ 2-34
AWD clutch high temperature warning ...... 2-35
AWD system warning ......................... 2-36
AWD warning light ............................ 5-34
Cruise control system warning ................ 2-37
Door/trunk open warning ...................... 2-38
Engine oil low pressure warning .............. 2-32
Engine system warning ........................ 2-32
Front/rear tire size discrepancy warning ..... 2-35
Hazard warning flasher switch ................ 2-50
Low brake fluid warning ....................... 2-34
Low fuel warning ............................... 2-37
Low tire pressure warning .................... 2-36
Low washer fluid warning ..................... 2-38
No key warning ................................ 2-39
Parking brake release warning ................ 2-34
Run-flat tire warning ........................... 2-36
Shift “P” warning ............................... 2-40
Shift lever position warning ................... 2-32
Supplemental air bag warning labels ......... 1-43
Supplemental air bag warning light .......... 1-43
Tire Pressure Monitoring System warning . . . 2-37
Transmission clutch high temperature
warning ......................................... 2-33
Transmission oil high temperature warning . . 2-33
Transmission system warning ................. 2-33
Vehicle Dynamic Control system warning .... 2-35
Warning (drive computer) ..................... 2-21
Warning display ................................ 2-31
Warning lights .................................. 2-23 Warning signals
................................ 3-15
Warning/indicator lights and audible
reminders ....................................... 2-23
Warranty information ............................. GTR-2
Washing .............................................. 7-2
Waxing ................................................ 7-2
Wheel alignment inspection and
adjustment ........................................ GTR-4
Wheels and tires .............................. 8-29, 9-7
When traveling or registering your vehicle in
another country ...................................... 9-8
Where to go for service ............................. 8-2
Window washer fluid .............................. 8-15
Windows ........................................... 2-56
Windshield wiper and washer switch ............ 2-45
Windshield wiper blades .......................... 8-19
Wiper Replacing the wiper blades ................... 8-20
Using the wipers ............................... 2-45
Windshield wiper and washer switch ........ 2-45
Windshield wiper blades ...................... 8-19
X
Xenon headlights .................................. 2-47
10-7
Model "R35-D" EDITED: 2008/ 5/ 20
,QIRUPDWLRQ3URYLGHGE\
