NAVIGATION SYSTEMContained within NISSAN’s authentic navigation
system, the navigation and audio systems are all
available for use.
Navigation screenAudio screen
Information screen
Available items:
.Navigation function
“Navigation” page 2-1
. Audio“Audio system” page 3-1
. Bluetooth
®Hands-Free Phone
“Bluetooth
®Hands-Free Phone Sys-
tem” page 4-1
. Heater/air conditioner
“Heater and air conditioner” page 5-1
. Vehicle information/Traffic information“Viewing technical information” page
6-1
. System setting“Other settings” page 7-1
. Voice recognition“Voice recognition” page 8-1
MULTI FUNCTION METER
WARNING
.Use the information from the multi
function meter strictly as a refer-
ence to make your driving more
comfortable. The readings are not
meant to prevent accidents caused
by reckless driving or poor driving
conditions (due to weather, road
condition, etc.) . Always obey all
traffic regulations and posted speed
limits.
. Operating the multi function meter
while driving can lead to a crash
resulting in serious injuries or
death. Always park the vehicle in a
safe place before operating the dis-
play screen.
. Look at the display screen only
briefly while driving. Keep your eyes
on the road. Inattentive driving may
lead to a crash resulting in serious
injuries or death.
1-2
About Multi function display system
FEATURES OF MULTI FUNCTION
DISPLAY SYSTEM

Black plate (14,1)
Model "R35-N" EDITED: 2009/ 10/ 30
CONTROL PANEL
Navigation, Multi function meter&1
Monitor:
Multi function screens appear here.
&2
:
Push to access the phone settings.
&3
:
Push to access the system settings.
&4
:
Push to display the vehicle information and the navigation information, such as GPS
and version information, etc.
&5

:
Push to enter a destination. Various meth-
ods for entering a destination are available.
&6
:
Push to access guidance control functions
(guidance cancellation, route priority, way-
point settings on the route, etc.) .
&7

Black plate (16,1)
Model "R35-N" EDITED: 2009/ 10/ 30
Heater and air conditioner&1
:
Push this to set the air conditioner to the
automatic mode. Turn the dial to adjust the
cabin temperature. When in dual mode, this
switch adjusts the driver-side temperature.
&2
<
>:
Push this to recirculate the air in the cabin.
&3
:
When the fan is ON, pushing this button
turns the air conditioner ON/OFF.
&4
<
> :
Push to turn the front defroster ON/OFF.
&5
:
Turning this dial turns the fan ON. This dial
also controls the fan speed. Push the dial to
turn the fan OFF.
&6
<
> :
Push to ventilate fresh air into the cabin.
&7
:
Push to select between dashboard or feet
air ventilators.
&8
<
REAR> :
Push to turn the rear defroster ON/OFF.
&9
:
Push this to turn the dual temperature mode
ON/OFF. Turn the switch to the left or right
to adjust the passenger-side temperature.
1-8
About Multi function display system

Black plate (163,1)
Model "R35-N" EDITED: 2009/ 10/ 30
.Some cellular phones or other devices may
cause interference or a buzzing noise to
come from the audio system speakers.
Storing the device in a different location
may reduce or eliminate the noise.
. Refer to the cellular phone Owner’s Manual
regarding the telephone pairing procedure
specific to your phone, battery charging,
cellular phone antenna, etc.
. The antenna display on the monitor will not
coincide with the antenna display of some
cellular phones.
. Keep the interior of the vehicle as quiet as
possible to hear the caller’s voice clearly as
well as to minimize its echoes.
. If reception between callers is unclear,
adjusting the incoming or outgoing call
volume may improve the clarity.
REGULATORY INFORMATION
FCC Regulatory information— CAUTION: To maintain compliance with
FCC’s RF exposure guidelines, use only
the supplied antenna. Unauthorized antenna,
modification, or attachments could damage
the transmitter and may violate FCC regula-
tions.
— Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause un-
desired operation of the deviceIC Regulatory information— Operation is subject to the following twoconditions: (1) this device may not cause
interference, and (2) this device must accept
any interference, including interference that
may cause undesired operation of the
device.
— This Class B digital apparatus meets all requirements of the Canadian Interference-
Causing Equipment Regulations. Bluetooth trademark:
BLUETOOTH
®
is a trademark
owned by Bluetooth SIG, Inc.,
U.S.A.
VOICE COMMANDSYou can use voice commands to operate various
Bluetooth
®Hands-Free Phone System features
using the NISSAN Voice Recognition system.
“Voice recognition” page 8-1
Bluetooth
®Hands-Free Phone System
4-3

Black plate (16,1)

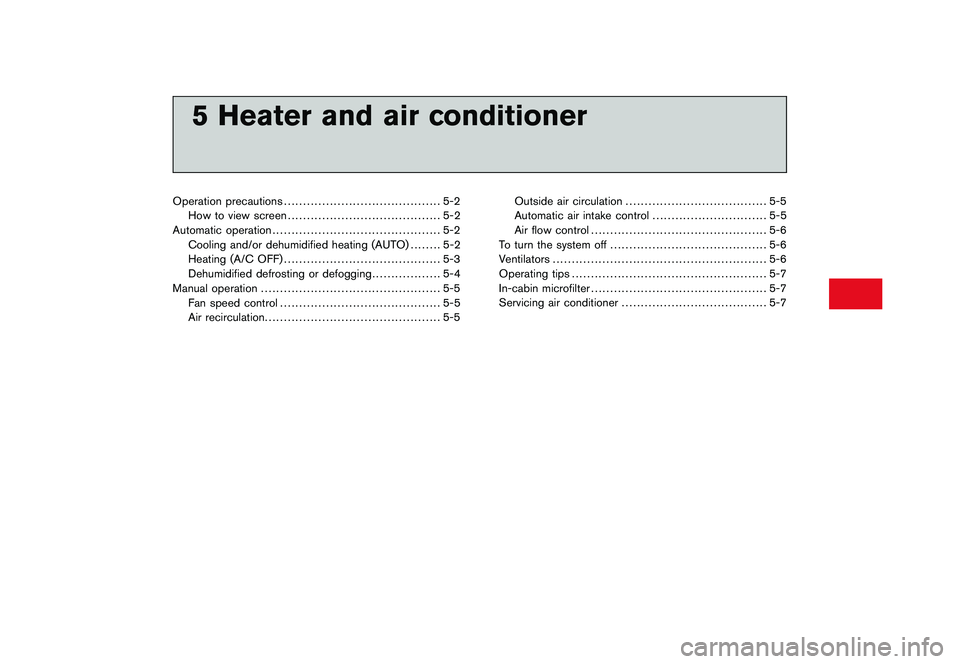

5 Heater and air conditioner
Model "R35-N" EDITED: 2009/ 10/ 30
Operation precautions......................................... 5-2
How to view screen ........................................ 5-2
Automatic operation ............................................ 5-2
Cooling and/or dehumidified heating (AUTO) ........ 5-2
Heating (A/C OFF) ......................................... 5-3
Dehumidified defrosting or defogging .................. 5-4
Manual operation ............................................... 5-5
Fan speed control .......................................... 5-5
Air recirculation .............................................. 5-5 Outside air circulation
..................................... 5-5
Automatic air intake control .............................. 5-5
Air flow control .............................................. 5-6
To turn the system off ......................................... 5-6
Ventilators ........................................................ 5-6
Operating tips ................................................... 5-7
In-cabin microfilter .............................................. 5-7
Servicing air conditioner ...................................... 5-7

Black plate (172,1)
Model "R35-N" EDITED: 2009/ 10/ 30
WARNING
.The air conditioner cooling function
operates only when the engine is
running.
. Do not leave children or adults who
would normally require the support
of others alone in your vehicle. Pets
should not be left alone either. On
hot, sunny days, temperatures in a
closed vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to people or
animals.
. Do not use the recirculation mode
for long periods as it may cause the
interior air to become stale and the
windows to fog up.
Start the engine and operate the heater and air
conditioner system.
You can individually set the driver and front
passenger side temperature using each tem-
perature control button.

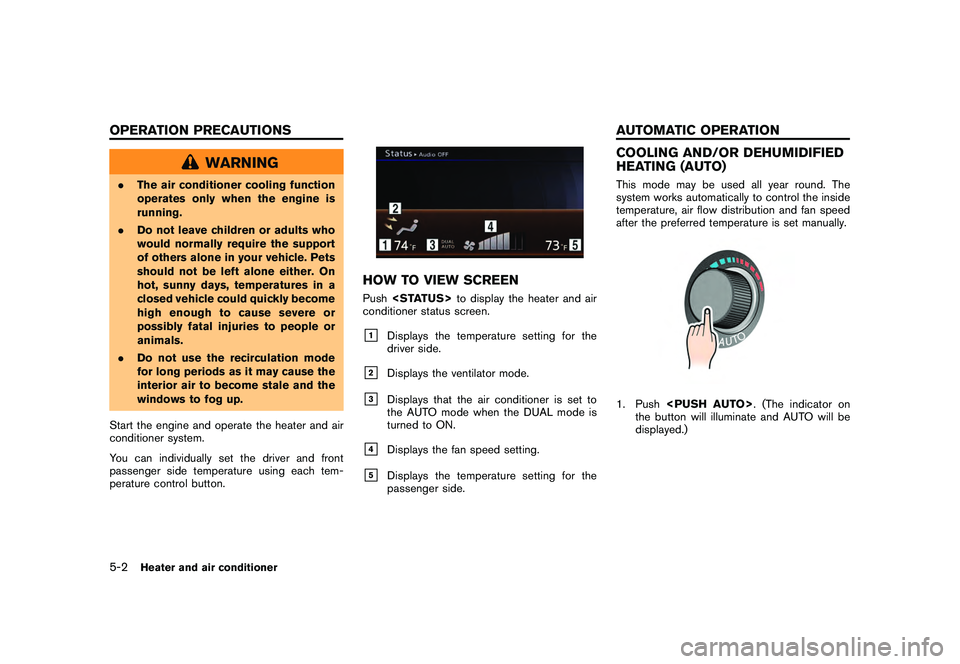

HOW TO VIEW SCREENPush to display the heater and air
conditioner status screen.&1
Displays the temperature setting for the
driver side.
&2
Displays the ventilator mode.
&3
Displays that the air conditioner is set to
the AUTO mode when the DUAL mode is
turned to ON.
&4
Displays the fan speed setting.
&5
Displays the temperature setting for the
passenger side.
COOLING AND/OR DEHUMIDIFIED
HEATING (AUTO)This mode may be used all year round. The
system works automatically to control the inside
temperature, air flow distribution and fan speed
after the preferred temperature is set manually.1. Push . (The indicator on
the button will illuminate and AUTO will be
displayed.)
5-2
Heater and air conditioner
OPERATION PRECAUTIONS AUTOMATIC OPERATION

Black plate (173,1)
Model "R35-N" EDITED: 2009/ 10/ 30

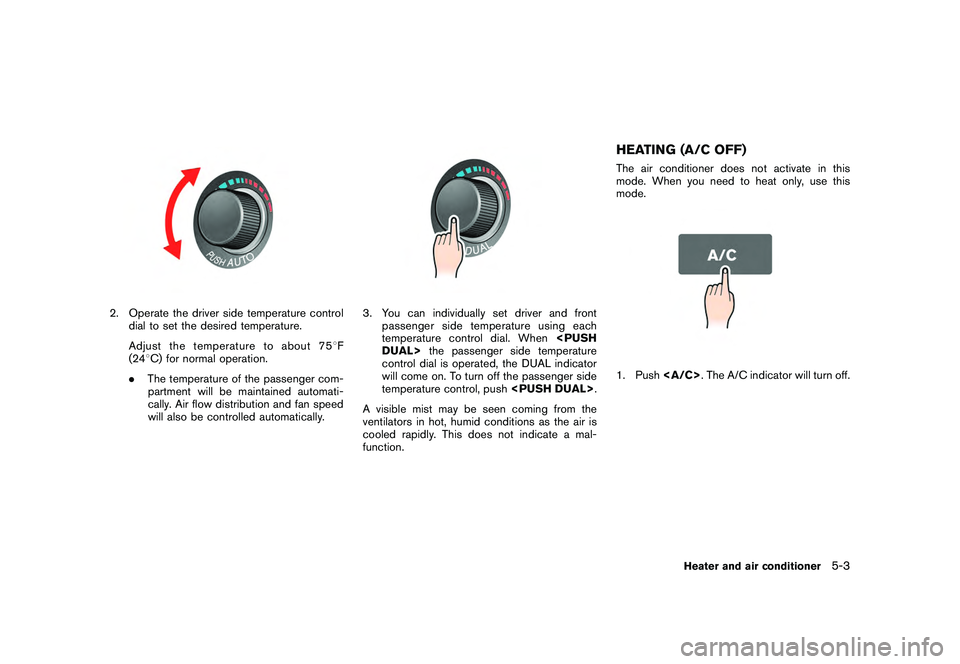

2. Operate the driver side temperature controldial to set the desired temperature.
Adjust the temperature to about 75 8F
(24 8C) for normal operation.
. The temperature of the passenger com-
partment will be maintained automati-
cally. Air flow distribution and fan speed
will also be controlled automatically.
3. You can individually set driver and front passenger side temperature using each
temperature control dial. When DUAL> the passenger side temperature
control dial is operated, the DUAL indicator
will come on. To turn off the passenger side
temperature control, push .
A visible mist may be seen coming from the
ventilators in hot, humid conditions as the air is
cooled rapidly. This does not indicate a mal-
function.
HEATING (A/C OFF)The air conditioner does not activate in this
mode. When you need to heat only, use this
mode.1. Push . The A/C indicator will turn off.
Heater and air conditioner
5-3

Black plate (174,1)
Model "R35-N" EDITED: 2009/ 10/ 30

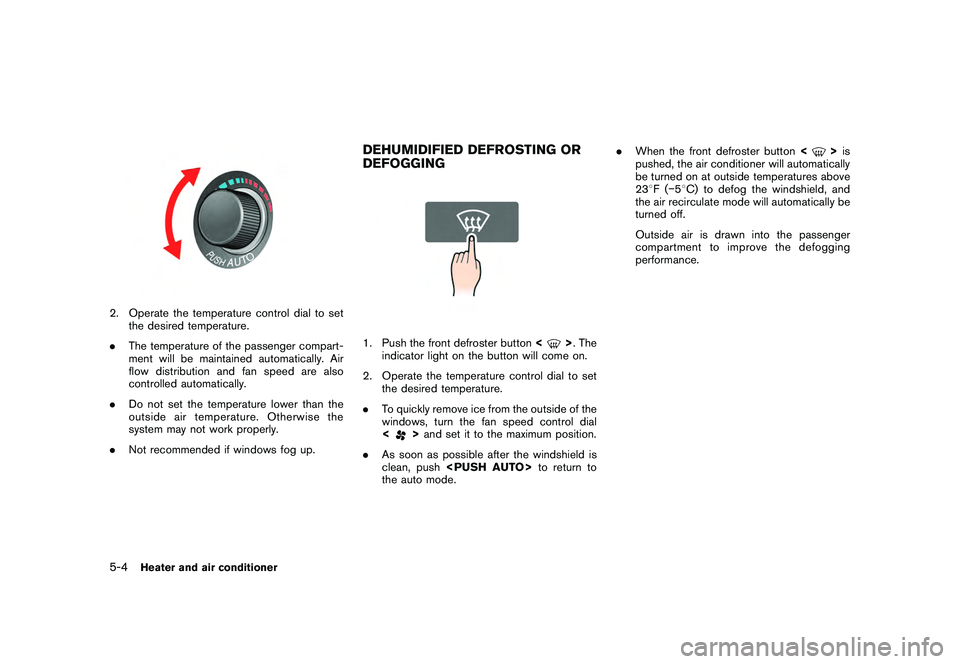

2. Operate the temperature control dial to setthe desired temperature.
. The temperature of the passenger compart-
ment will be maintained automatically. Air
flow distribution and fan speed are also
controlled automatically.
. Do not set the temperature lower than the
outside air temperature. Otherwise the
system may not work properly.
. Not recommended if windows fog up.
DEHUMIDIFIED DEFROSTING OR
DEFOGGING1. Push the front defroster button <
>. The
indicator light on the button will come on.
2. Operate the temperature control dial to set the desired temperature.
. To quickly remove ice from the outside of the
windows, turn the fan speed control dial
<
>and set it to the maximum position.
. As soon as possible after the windshield is
clean, push to return to
the auto mode. .
When the front defroster button <
>is
pushed, the air conditioner will automatically
be turned on at outside temperatures above
23 8F( 58C) to defog the windshield, and
the air recirculate mode will automatically be
turned off.
Outside air is drawn into the passenger
compartment to improve the defogging
performance.
5-4
Heater and air conditioner

Black plate (175,1)
Model "R35-N" EDITED: 2009/ 10/ 30

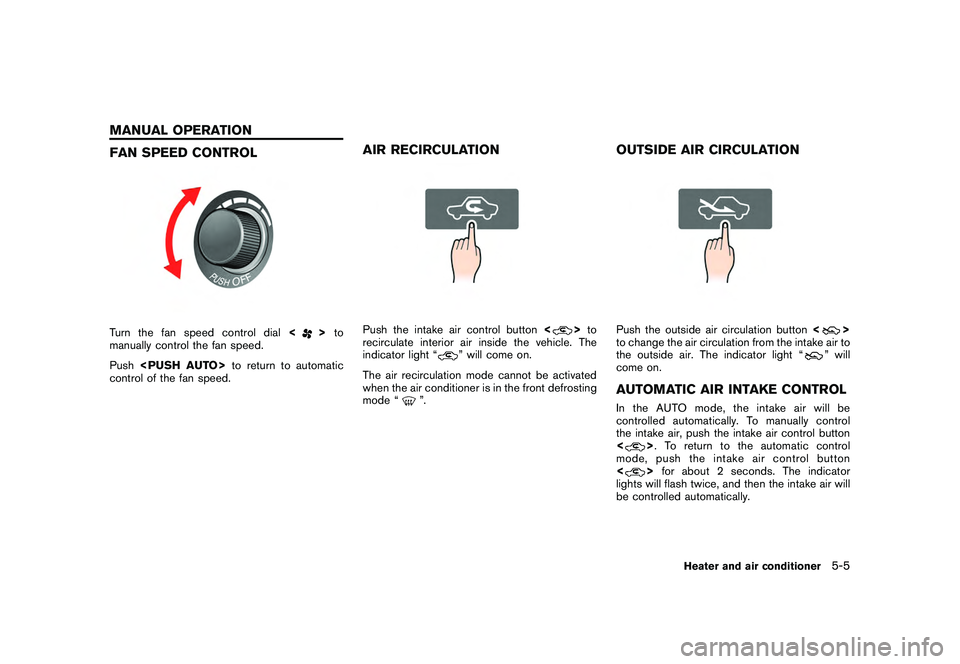

FAN SPEED CONTROLTurn the fan speed control dial<
>to
manually control the fan speed.
Push to return to automatic
control of the fan speed.
AIR RECIRCULATIONPush the intake air control button <
>to
recirculate interior air inside the vehicle. The
indicator light “
” will come on.
The air recirculation mode cannot be activated
when the air conditioner is in the front defrosting
mode “
”.
OUTSIDE AIR CIRCULATIONPush the outside air circulation button <
>
to change the air circulation from the intake air to
the outside air. The indicator light “
” will
come on.
AUTOMATIC AIR INTAKE CONTROLIn the AUTO mode, the intake air will be
controlled automatically. To manually control
the intake air, push the intake air control button
<
> . To return to the automatic control
mode, push the intake air control button
<> for about 2 seconds. The indicator
lights will flash twice, and then the intake air will
be controlled automatically.
Heater and air conditioner
5-5
MANUAL OPERATION
