NISSAN GT-R 2013 R35 Owners Manual
Manufacturer: NISSAN, Model Year: 2013, Model line: GT-R, Model: NISSAN GT-R 2013 R35Pages: 346, PDF Size: 4.19 MB
Page 331 of 346

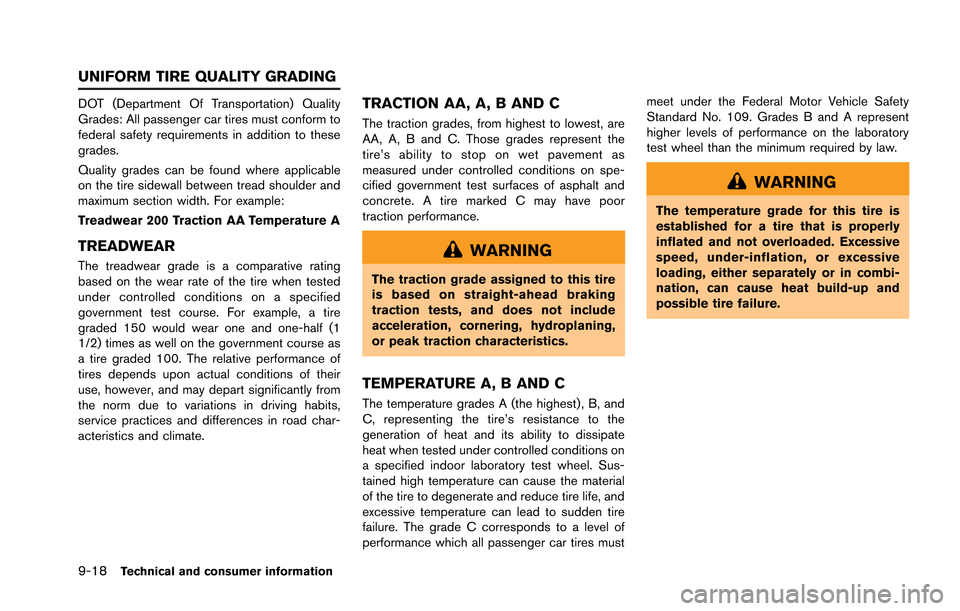

9-18Technical and consumer information
DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified
government test course. For example, a tire
graded 150 would wear one and one-half (1
1/2) times as well on the government course as
a tire graded 100. The relative performance of
tires depends upon actual conditions of their
use, however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road char-
acteristics and climate.
TRACTION AA, A, B AND C
The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire’s ability to stop on wet pavement as
measured under controlled conditions on spe-
cified government test surfaces of asphalt and
concrete. A tire marked C may have poor
traction performance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
TEMPERATURE A, B AND C
The temperature grades A (the highest), B, and
C, representing the tire’s resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires mustmeet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory
test wheel than the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.
UNIFORM TIRE QUALITY GRADING
Page 332 of 346

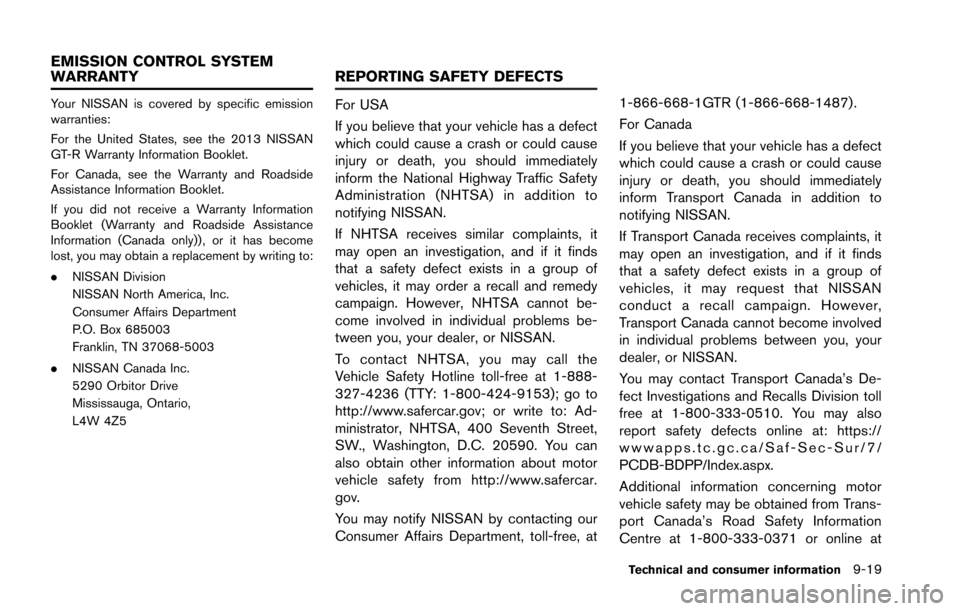

Your NISSAN is covered by specific emission
warranties:
For the United States, see the 2013 NISSAN
GT-R Warranty Information Booklet.
For Canada, see the Warranty and Roadside
Assistance Information Booklet.
If you did not receive a Warranty Information
Booklet (Warranty and Roadside Assistance
Information (Canada only)) , or it has become
lost, you may obtain a replacement by writing to:
.NISSAN Division
NISSAN North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
. NISSAN Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5For USA
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Ad-
ministrator, NHTSA, 400 Seventh Street,
SW., Washington, D.C. 20590. You can
also obtain other information about motor
vehicle safety from http://www.safercar.
gov.
You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at 1-866-668-1GTR (1-866-668-1487).
For Canada
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada in addition to
notifying NISSAN.
If Transport Canada receives complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that NISSAN
conduct a recall campaign. However,
Transport Canada cannot become involved
in individual problems between you, your
dealer, or NISSAN.
You may contact Transport Canada’s De-
fect Investigations and Recalls Division toll
free at 1-800-333-0510. You may also
report safety defects online at: https://
wwwapps.tc.gc.ca/Saf-Sec-Sur/7/
PCDB-BDPP/Index.aspx.
Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
Technical and consumer information9-19
EMISSION CONTROL SYSTEM
WARRANTY
REPORTING SAFETY DEFECTS
Page 333 of 346

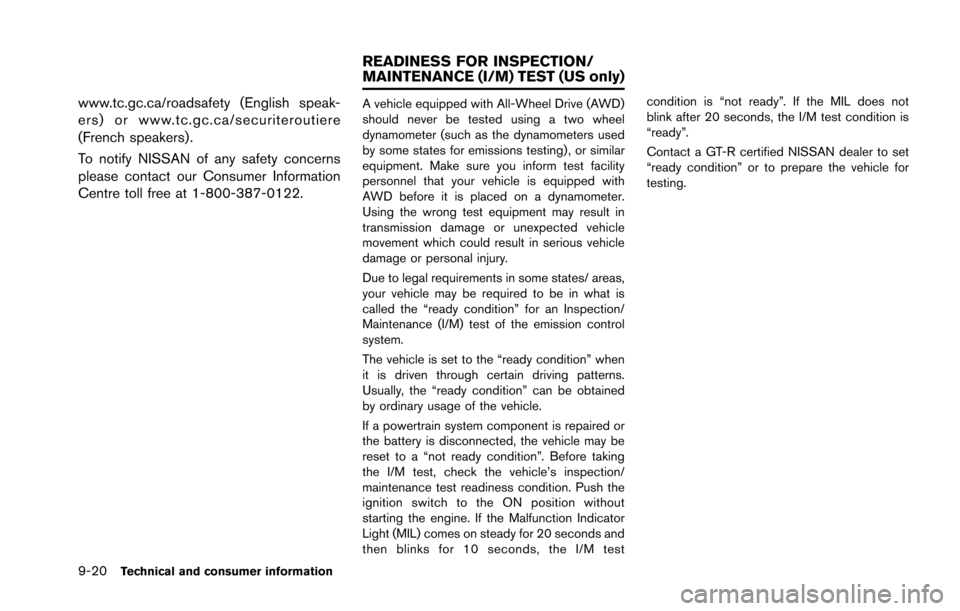

9-20Technical and consumer information
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
(French speakers).
To notify NISSAN of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122.A vehicle equipped with All-Wheel Drive (AWD)
should never be tested using a two wheel
dynamometer (such as the dynamometers used
by some states for emissions testing), or similar
equipment. Make sure you inform test facility
personnel that your vehicle is equipped with
AWD before it is placed on a dynamometer.
Using the wrong test equipment may result in
transmission damage or unexpected vehicle
movement which could result in serious vehicle
damage or personal injury.
Due to legal requirements in some states/ areas,
your vehicle may be required to be in what is
called the “ready condition” for an Inspection/
Maintenance (I/M) test of the emission control
system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking
the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Push the
ignition switch to the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M testcondition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact a GT-R certified NISSAN dealer to set
“ready condition” or to prepare the vehicle for
testing.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST (US only)
Page 334 of 346
This vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle’s systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur. NOTE: EDR data are
recorded by your vehicle only if a nontrivial
crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no
personal data (e.g. name, gender, age and crash
location) are recorded. However, other parties,
such as law enforcement, could combine the EDR data with the type of personally identifying
data routinely acquired during a crash investiga-
tion.
To read data recorded by an EDR, special
equipment is required and access to the vehicle
or the EDR is needed. In addition to the vehicle
manufacturer and NISSAN dealer, other parties,
such as law enforcement, that have the special
equipment, can read the information if they have
access to the vehicle or the EDR. EDR data will
only be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.The Vehicle Status Data Recorder (VSDR) is
different from the Event Data Recorder de-
scribed in “Event Data Recorder” in this section.
The VSDR is not a crash-activated device, but it
records and accumulates vehicle data while
driving.
Examples are:
.
Vehicle operating information such as the
wheel speeds of the front and rear wheels
. Engine control information such as the
engine speed and boost pressure
The VSDR always records and stores vehicle
operating data between periodic inspections,
which can assist and be used for servicing,
diagnosing and performing warranty repairs.
The VSDR does not record sounds, conversa-
tions or images.
To read data recorded by the VSDR, special
equipment is required and access to the vehicle
or the VSDR is needed.
HANDLING OF DATA
NISSAN and third parties affiliated with NISSAN
can acquire and use the data recorded by the
VSDR in order to confirm the part replacement
history to improve the quality of NISSAN
vehicles.
With the exception of the following cases,
Technical and consumer information9-21
EVENT DATA RECORDERS (EDR) VEHICLE STATUS DATA RECORDER
(VSDR)
Page 335 of 346
9-22Technical and consumer information
neither NISSAN nor third parties affiliated with
NISSAN, shall disclose or offer the acquired
data to other non-affiliated third parties.
.With the agreement of the vehicle owner
. When legally required to, such as when
ordered by a court of law, etc.
. When offering processed data so that
neither the vehicle owner nor the vehicle is
identified, to research centers for statistical
analysis, etc.Genuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. This manual is the same one used by the
factory-trained technicians working at NISSAN
dealerships. Genuine NISSAN Owner’s Man-
uals can also be purchased.
For USA:
For current pricing and availability of genuine
NISSAN Service Manuals,
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner’s Manuals, contact:
1-800-247-5321
For Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual for this
model year and prior, please contact a GT-R
certified NISSAN dealer. For the phone number
and location of a GT-R certified NISSAN dealer
in your area call the NISSAN Information Center
at 1-800-387-0122 and a bilingual NISSAN
representative will assist you.
OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Page 336 of 346
10 Index
A
Additional maintenance items............................ GTR-12
Air cleaner..................................................................... 8-20
Air conditionerAir conditioner specification label.................... 9-13
Air conditioning system refrigerant and
lubricant recommendations......................................... 9-7
Air fresheners................................................................. 7-5
All-season tires...................................................... GTR-11
All-Wheel Drive............................................................ 5-41
All-Wheel Drive driving safety precautions ............ 5-9
Anti-freeze..................................................................... 5-51
Anti-lock Braking System.......................................... 5-48
Anti-lock Braking System warning.......................... 2-36
Audible reminders....................................................... 2-31
Automatic Automatic door lock system................................. 3-5
Average fuel consumption and speed................... 2-16
Avoiding body damage........................................ GTR-11
Avoiding collision and rollover ................................... 5-7
AWD clutch high temperature warning................. 2-36
AWD system characteristics.................................... 5-43
AWD system warning ................................................ 2-37
AWD warning light ..................................................... 5-41
B
Battery................................................................ 5-51, 8-17 Intelligent Key battery discharge...................... 5-11
Intelligent Key battery discharge indicator..... 2-43
Intelligent Key battery replacement ................. 8-26 Before starting the engine........................................ 5-13
Body repair ............................................................. GTR-12
Booster seats............................................................... 1-28
Brake
Brake assist........................................................... 5-48
Brake fluid............................................... GTR-4, 8-15
Brake pad wear warning.................................... 8-22
Brake system......................................................... 5-47
Brakes..................................................................... 8-22
High performance brake system ...................... 8-22
Low brake fluid warning ..................................... 2-35
Parking brake ........................................................ 5-33
Parking brake break-in........................................ 5-47
Parking brake release warning ......................... 2-35
Replacing the brake pads.................................. 8-23
Self-adjusting brakes .......................................... 8-22
Brake dust............................................................... GTR-27
Brake pad................................................................ GTR-15
Brake pad and disc rotor...................................... GTR-5
Brake pad break-in procedure........................... GTR-15
Brake system information.................................... GTR-27
Brakes.................................................... GTR-19, GTR-23
Braking precautions.................................................... 5-47
Break-in schedule ........................................ GTR-9, 5-39
C
Capacities and recommended fuel/lubricants ....... 9-2
Changing Changing engine coolant................................... 8-12
Changing engine oil and filter........................... 8-13 Changing wheels and tires................................ 8-39
Checking Checking bulbs..................................................... 2-24
Checking engine coolant level.......................... 8-11
Checking engine oil level................................... 8-12
Checking the tire pressure................................ 8-34
Checking the exhaust finisher and rear
bumper clearance ................................................... GTR-9
Child restraints............................................................. 1-14
Child safety................................................................... 1-12
Chrome parts ................................................................. 7-4
Cleaning ........................................................................ 8-21
Cleaning exterior ........................................................... 7-2
Cleaning interior ............................................................ 7-5
Clearing the programmed information................... 2-66
Closing the fuel-filler door ........................................ 3-25
Closing the hood......................................................... 3-19
Coat hooks ................................................................... 2-58
Cockpit ............................................................................ 2-3
Cold weather driving.................................................. 5-51
Console box ................................................................. 2-58
Cool down .............................................................. GTR-13
Coolant Changing engine coolant................................... 8-12
Checking engine coolant level.......................... 8-11
Draining of coolant water................................... 5-51
Engine coolant temperature gauge .................... 2-7
Coolant level and mixture ratio.......................... GTR-15
Corrosion protection .................................................... 7-8
Cracks on brake pad ........................................... GTR-27
Cracks on the disc rotors................................... GTR-27

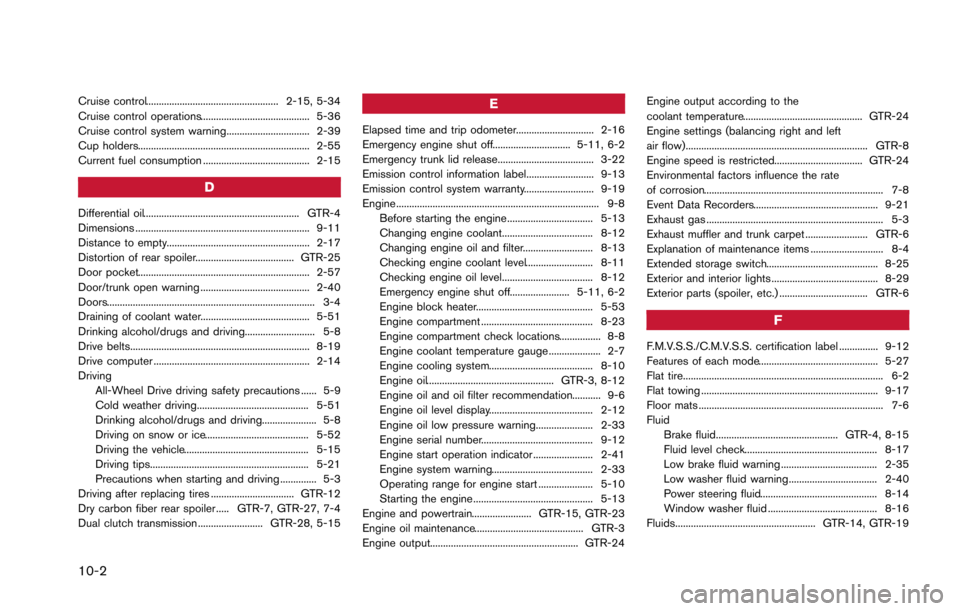

Page 337 of 346
10-2
Cruise control................................................... 2-15, 5-34
Cruise control operations.......................................... 5-36
Cruise control system warning................................ 2-39
Cup holders.................................................................. 2-55
Current fuel consumption ......................................... 2-15
D
Differential oil............................................................ GTR-4
Dimensions ................................................................... 9-11
Distance to empty....................................................... 2-17
Distortion of rear spoiler...................................... GTR-25
Door pocket.................................................................. 2-57
Door/trunk open warning .......................................... 2-40
Doors................................................................................ 3-4
Draining of coolant water.......................................... 5-51
Drinking alcohol/drugs and driving........................... 5-8
Drive belts..................................................................... 8-19
Drive computer ............................................................ 2-14
DrivingAll-Wheel Drive driving safety precautions ...... 5-9
Cold weather driving........................................... 5-51
Drinking alcohol/drugs and driving..................... 5-8
Driving on snow or ice........................................ 5-52
Driving the vehicle................................................ 5-15
Driving tips............................................................. 5-21
Precautions when starting and driving .............. 5-3
Driving after replacing tires ................................ GTR-12
Dry carbon fiber rear spoiler ..... GTR-7, GTR-27, 7-4
Dual clutch transmission ......................... GTR-28, 5-15
E
Elapsed time and trip odometer.............................. 2-16
Emergency engine shut off.............................. 5-11, 6-2
Emergency trunk lid release..................................... 3-22
Emission control information label.......................... 9-13
Emission control system warranty........................... 9-19
Engine.............................................................................. 9-8 Before starting the engine................................. 5-13
Changing engine coolant................................... 8-12
Changing engine oil and filter........................... 8-13
Checking engine coolant level.......................... 8-11
Checking engine oil level................................... 8-12
Emergency engine shut off....................... 5-11, 6-2
Engine block heater............................................. 5-53
Engine compartment ........................................... 8-23
Engine compartment check locations................ 8-8
Engine coolant temperature gauge .................... 2-7
Engine cooling system........................................ 8-10
Engine oil................................................. GTR-3, 8-12
Engine oil and oil filter recommendation........... 9-6
Engine oil level display........................................ 2-12
Engine oil low pressure warning...................... 2-33
Engine serial number........................................... 9-12
Engine start operation indicator ....................... 2-41
Engine system warning....................................... 2-33
Operating range for engine start ..................... 5-10
Starting the engine .............................................. 5-13
Engine and powertrain....................... GTR-15, GTR-23
Engine oil maintenance.......................................... GTR-3
Engine output......................................................... GTR-24 Engine output according to the
coolant temperature.............................................. GTR-24
Engine settings (balancing right and left
air flow)...................................................................... GTR-8
Engine speed is restricted.................................. GTR-24
Environmental factors influence the rate
of corrosion..................................................................... 7-8
Event Data Recorders................................................ 9-21
Exhaust gas .................................................................... 5-3
Exhaust muffler and trunk carpet ........................ GTR-6
Explanation of maintenance items ............................ 8-4
Extended storage switch........................................... 8-25
Exterior and interior lights ......................................... 8-29
Exterior parts (spoiler, etc.) .................................. GTR-6
F
F.M.V.S.S./C.M.V.S.S. certification label ............... 9-12
Features of each mode.............................................. 5-27
Flat tire............................................................................. 6-2
Flat towing .................................................................... 9-17
Floor mats ....................................................................... 7-6
Fluid
Brake fluid............................................... GTR-4, 8-15
Fluid level check................................................... 8-17
Low brake fluid warning ..................................... 2-35
Low washer fluid warning.................................. 2-40
Power steering fluid............................................. 8-14
Window washer fluid .......................................... 8-16
Fluids...................................................... GTR-14, GTR-19
Page 338 of 346
Forward-facing child restraint installation
using LATCH................................................................ 1-22
Forward-facing child restraint installation using
the seat belts ............................................................... 1-24
Freeing a frozen door lock........................................ 5-51
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ................................. 1-41
Front seats...................................................................... 1-3
Front/rear tire size discrepancy warning............... 2-37
Fuel........................................................................... GTR-12Average fuel consumption and speed............ 2-16
Capacities and
recommended fuel/lubricants............................... 9-2
Closing the fuel-filler door ................................. 3-25
Current fuel consumption .................................. 2-15
Fuel gauge................................................................ 2-8
Fuel recommendation............................................. 9-4
Fuel-filler door....................................................... 3-23
Increasing fuel economy..................................... 5-40
Low fuel warning.................................................. 2-39
Opening the fuel filler door ............................... 3-24
Fuses.............................................................................. 8-23
G
Gasoline smell ....................................................... GTR-24
Gauge Engine coolant temperature gauge .................... 2-7
Fuel gauge................................................................ 2-8
Meters and gauges................................................. 2-5 General maintenance .......................................... 8-3, 8-4
Glass................................................................................ 7-3
Glove box...................................................................... 2-57
GT-R performance optimization services.......... GTR-7
GT-R special specification parts......................... GTR-3
GT-R specific information ..................................... GTR-3
GT-R specific vehicle characteristics .............. GTR-24
H
Handling of data.......................................................... 9-21
Hazard warning flasher switch................................. 2-52
Head restraints .............................................................. 1-5
Headlight
Headlight and turn signal switch ..................... 2-49
Headlight switch................................................... 2-49
Headlights.............................................................. 8-29
Xenon headlights.................................................. 2-49
Heated seats................................................................ 2-53
High altitude ........................................................... GTR-24
High performance brake system ............................. 8-22
Hill Start Assist............................................................ 5-38
HomeLink
®Universal Transceiver ........................... 2-63
Hood............................................................................... 3-18
Horn................................................................................ 2-53
How to switch the modes ........................................ 5-25
How to use R mode start function......................... 5-33
I
Idle speed is not steady...................................... GTR-24
If your vehicle is stolen.............................................. 2-66 If your vehicle overheats.............................................. 6-7
Ignition switch operation ........................................... 5-10
Ignition switch positions............................................ 5-10
Increase tightening of the drive shaft and
center nut on hub ................................................... GTR-8
Increase tightening of the strut support bar
attachment section with the shock absorber.... GTR-9
Increasing fuel economy............................................ 5-40
Indicator lights.............................................................. 2-61
Indicators and display................................................ 5-36
Infants............................................................................. 1-13
Injured persons.............................................................. 1-8
Inside mirror.................................................................. 3-27
Inspection and adjustments after driving........ GTR-19
Inspection and adjustments before driving .... GTR-14
Installing front license plate...................................... 9-14
Installing top tether strap .......................................... 1-27
Instrument brightness control .................................. 2-11
Instrument panel............................................................ 2-4
Intelligent Key................................................................. 3-2
Intelligent Key battery discharge............................. 5-11
Intelligent Key battery discharge indicator............ 2-43
Intelligent Key battery replacement ........................ 8-26
Intelligent Key functions............................................... 3-9
Intelligent Key insertion indicator ............................ 2-43
Intelligent Key removal indicator.............................. 2-43
Intelligent Key system .................................................. 3-8
Interior light control switch ....................................... 2-62
Interior lights................................................................. 2-61
10-3
Page 339 of 346

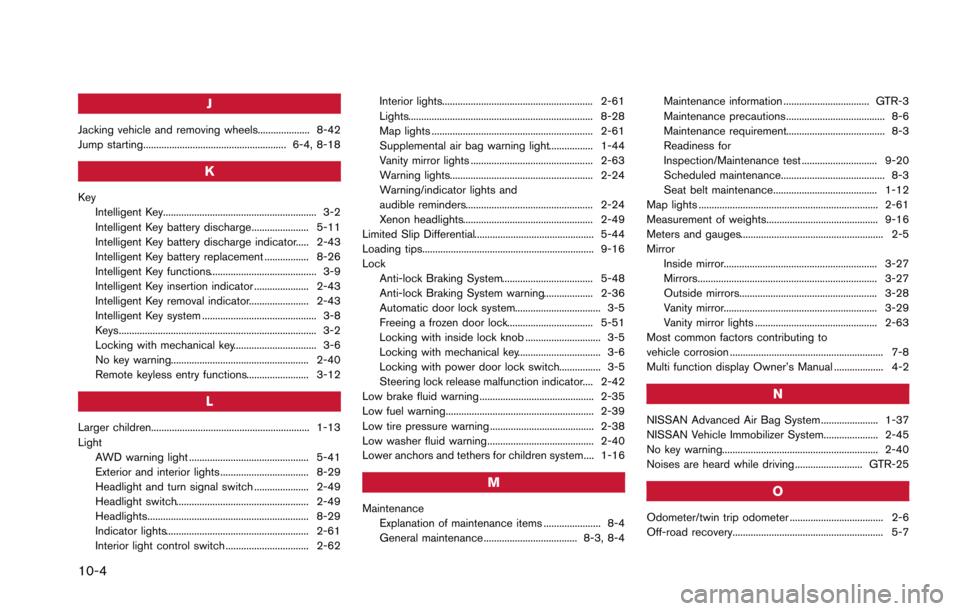

10-4
J
Jacking vehicle and removing wheels.................... 8-42
Jump starting....................................................... 6-4, 8-18
K
KeyIntelligent Key........................................................... 3-2
Intelligent Key battery discharge...................... 5-11
Intelligent Key battery discharge indicator..... 2-43
Intelligent Key battery replacement ................. 8-26
Intelligent Key functions......................................... 3-9
Intelligent Key insertion indicator ..................... 2-43
Intelligent Key removal indicator....................... 2-43
Intelligent Key system ............................................ 3-8
Keys............................................................................ 3-2
Locking with mechanical key................................ 3-6
No key warning..................................................... 2-40
Remote keyless entry functions........................ 3-12
L
Larger children............................................................. 1-13
LightAWD warning light .............................................. 5-41
Exterior and interior lights .................................. 8-29
Headlight and turn signal switch ..................... 2-49
Headlight switch................................................... 2-49
Headlights.............................................................. 8-29
Indicator lights....................................................... 2-61
Interior light control switch ................................ 2-62 Interior lights.......................................................... 2-61
Lights....................................................................... 8-28
Map lights .............................................................. 2-61
Supplemental air bag warning light................. 1-44
Vanity mirror lights ............................................... 2-63
Warning lights....................................................... 2-24
Warning/indicator lights and
audible reminders................................................. 2-24
Xenon headlights.................................................. 2-49
Limited Slip Differential.............................................. 5-44
Loading tips.................................................................. 9-16
Lock Anti-lock Braking System................................... 5-48
Anti-lock Braking System warning................... 2-36
Automatic door lock system................................. 3-5
Freeing a frozen door lock................................. 5-51
Locking with inside lock knob ............................. 3-5
Locking with mechanical key................................ 3-6
Locking with power door lock switch................ 3-5
Steering lock release malfunction indicator.... 2-42
Low brake fluid warning ............................................ 2-35
Low fuel warning......................................................... 2-39
Low tire pressure warning ........................................ 2-38
Low washer fluid warning......................................... 2-40
Lower anchors and tethers for children system.... 1-16
M
Maintenance Explanation of maintenance items ...................... 8-4
General maintenance .................................... 8-3, 8-4 Maintenance information ................................. GTR-3
Maintenance precautions...................................... 8-6
Maintenance requirement...................................... 8-3
Readiness for
Inspection/Maintenance test ............................. 9-20
Scheduled maintenance........................................ 8-3
Seat belt maintenance........................................ 1-12
Map lights ..................................................................... 2-61
Measurement of weights........................................... 9-16
Meters and gauges....................................................... 2-5
Mirror Inside mirror........................................................... 3-27
Mirrors..................................................................... 3-27
Outside mirrors..................................................... 3-28
Vanity mirror........................................................... 3-29
Vanity mirror lights ............................................... 2-63
Most common factors contributing to
vehicle corrosion ........................................................... 7-8
Multi function display Owner’s Manual ................... 4-2
N
NISSAN Advanced Air Bag System ...................... 1-37
NISSAN Vehicle Immobilizer System..................... 2-45
No key warning............................................................ 2-40
Noises are heard while driving .......................... GTR-25
O
Odometer/twin trip odometer .................................... 2-6
Off-road recovery.......................................................... 5-7
Page 340 of 346
OilChanging engine oil and filter........................... 8-13
Checking engine oil level................................... 8-12
Differential oil...................................................... GTR-4
Engine oil................................................. GTR-3, 8-12
Engine oil and oil filter recommendation........... 9-6
Engine oil level display........................................ 2-12
Engine oil low pressure warning...................... 2-33
Transmission oil ..................................... GTR-4, 8-14
Transmission oil high temperature warning.... 2-34
Opening and closing the trunk................................ 3-21
Opening the doors ....................................................... 3-7
Opening the fuel filler door ...................................... 3-24
Opening the hood....................................................... 3-18
Operating range for engine start ............................ 5-10
Operating the HomeLink
®
universal transceiver ................................................... 2-65
Operation displays...................................................... 2-41
Outside air temperature ............................................ 2-17
Outside door handles .................................................. 7-4
Outside mirrors............................................................ 3-28
Outside temperature display indicates
higher temperature................................................ GTR-24
Overheat If your vehicle overheats........................................ 6-7
Owner’s Manual/Service Manual
order information ......................................................... 9-22
P
Parking Parking brake ........................................................ 5-33
Parking brake break-in........................................ 5-47
Parking brake release warning ......................... 2-35
Parking/parking on hills ...................................... 5-45
Passenger compartment ........................................... 8-24
Power
Locking with power door lock switch................ 3-5
Power outlets ........................................................ 2-54
Power steering...................................................... 5-46
Power steering fluid............................................. 8-14
Power windows .................................................... 2-59
Trunk release power cancel switch................. 3-21
Precautions................................................................... 8-17 All-Wheel Drive driving safety precautions ...... 5-9
Braking precautions............................................. 5-47
Maintenance precautions...................................... 8-6
Precautions on child restraints......................... 1-14
Precautions on cruise control........................... 5-35
Precautions on seat belt usage........................... 1-6
Precautions on supplemental
restraint system..................................................... 1-31
Precautions when starting and driving .............. 5-3
Precautions before driving.................................. GTR-10
Precautions on performance driving ................ GTR-13
Pregnant women ........................................................... 1-8
Programming HomeLink
®.......................................... 2-64
Programming HomeLink®for
Canadian customers .................................................. 2-65 Programming trouble-diagnosis .............................. 2-65
Push starting .................................................................. 6-7
“PUSH” warning.......................................................... 2-42
Push-button ignition switch........................................ 5-9
R
R mode start function ................................................ 5-32
Rapid air pressure loss................................................ 5-8
Readiness for Inspection/Maintenance test......... 9-20
Rear window defroster switch................................. 2-48
Rear-facing child restraint installation
using LATCH................................................................ 1-18
Rear-facing child restraint installation using the
seat belts....................................................................... 1-20
Recommended fluids and
maintenance interval............................................. GTR-20
Reducing tight corner braking phenomenon ....... 5-42
Refueling precautions .......................................... GTR-24
Remote keyless entry functions............................... 3-12
Removing spots............................................................. 7-3
Removing the cowl top cover.................................... 8-9
Repair and replacement procedure........................ 1-44
Replacement of brake pads and disc rotors.... GTR-5
Replacing spark plugs ............................................... 8-20
Replacing the brake pads......................................... 8-23
Replacing the wiper blades...................................... 8-21
Reporting safety defects .......................................... 9-19
Reprogramming a single HomeLink
®button ....... 2-66
Roadside assistance program ................................... 6-2
Run-flat tire warning................................................... 2-38
10-5
