Page 131 of 354

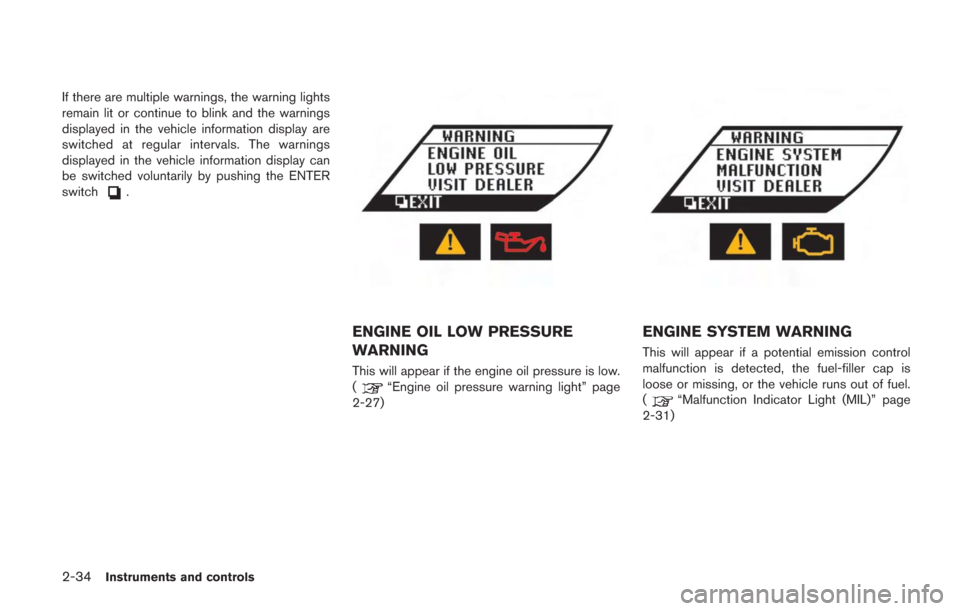

NISSAN GT-R 2014 R35 Owners Manual 2-34Instruments and controls
If there are multiple warnings, the warning lights
remain lit or continue to blink and the warnings
displayed in the vehicle information display are
switched at regular in

Page 132 of 354

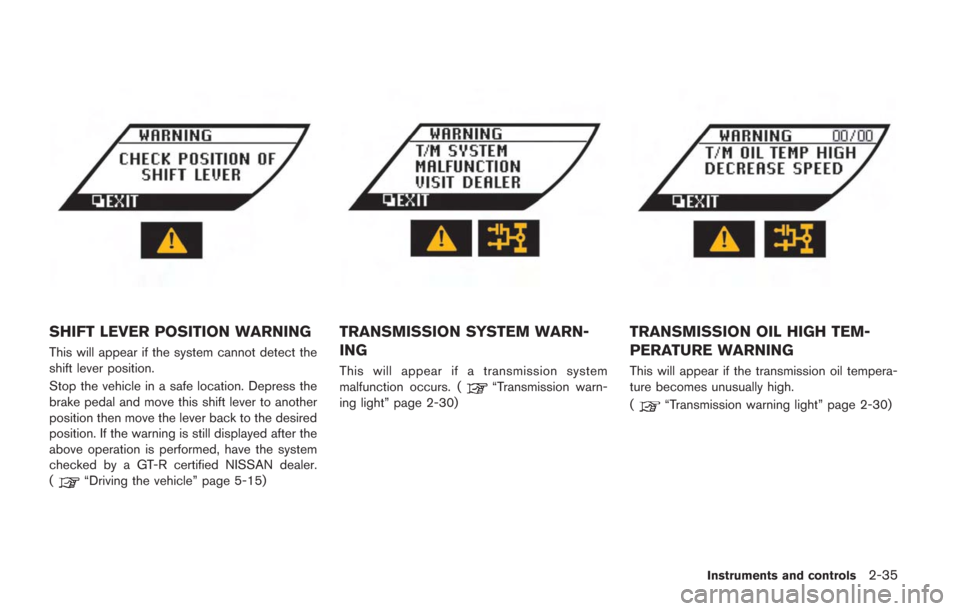

NISSAN GT-R 2014 R35 Owners Manual SHIFT LEVER POSITION WARNING
This will appear if the system cannot detect the
shift lever position.
Stop the vehicle in a safe location. Depress the
brake pedal and move this shift lever to another
po

Page 133 of 354

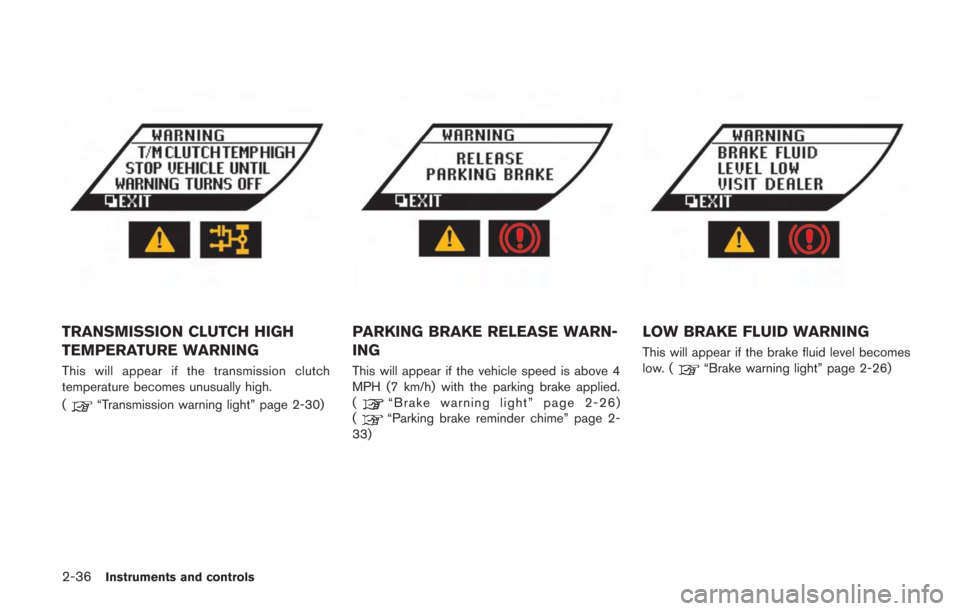

NISSAN GT-R 2014 R35 Owners Manual 2-36Instruments and controls
TRANSMISSION CLUTCH HIGH
TEMPERATURE WARNING
This will appear if the transmission clutch
temperature becomes unusually high.
(
“Transmission warning light” page 2-30)

Page 134 of 354

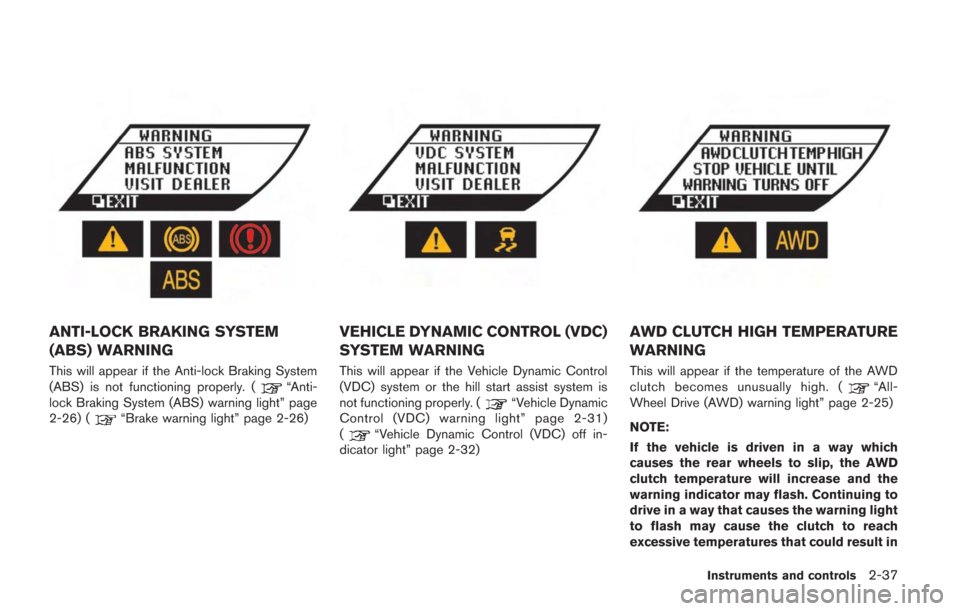

NISSAN GT-R 2014 R35 Owners Manual ANTI-LOCK BRAKING SYSTEM
(ABS) WARNING
This will appear if the Anti-lock Braking System
(ABS) is not functioning properly. (“Anti-
lock Braking System (ABS) warning light” page
2-26) (
“Brake wa

Page 135 of 354

NISSAN GT-R 2014 R35 Owners Manual 2-38Instruments and controls
damage to the AWD system.
FRONT/REAR TIRE SIZE DISCRE-
PANCY WARNING
This will appear if the diameter of the front and
the rear wheels are different. (“All-Wheel
Drive (

Page 136 of 354

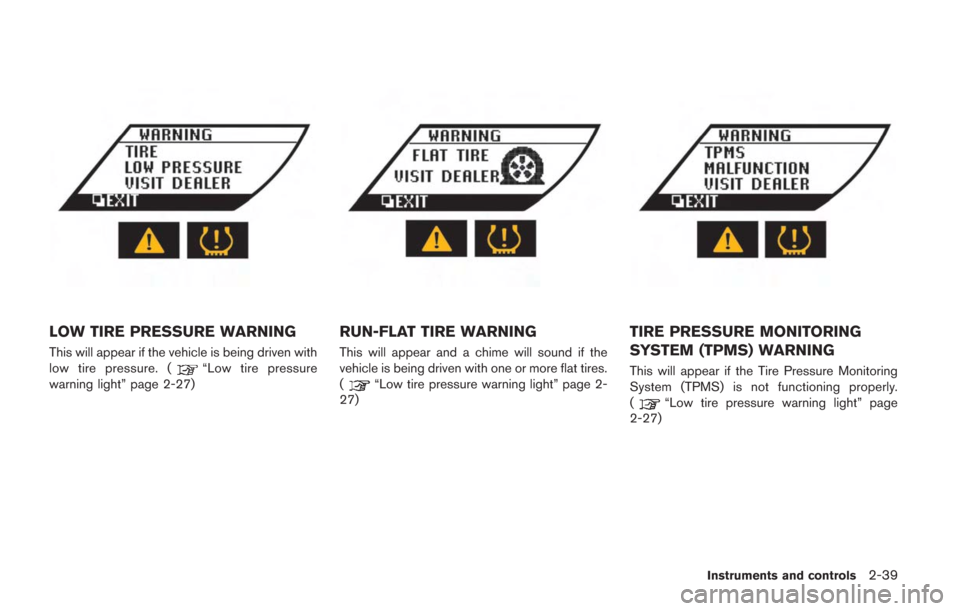

NISSAN GT-R 2014 R35 Owners Manual LOW TIRE PRESSURE WARNING
This will appear if the vehicle is being driven with
low tire pressure. (“Low tire pressure
warning light” page 2-27)
RUN-FLAT TIRE WARNING
This will appear and a chime w

Page 137 of 354

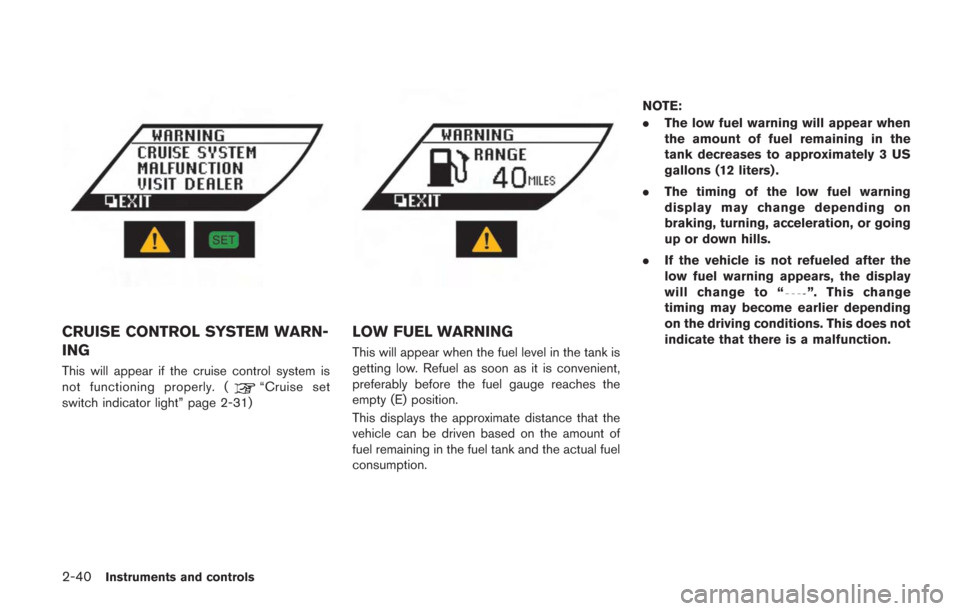

NISSAN GT-R 2014 R35 Owners Manual 2-40Instruments and controls
CRUISE CONTROL SYSTEM WARN-
ING
This will appear if the cruise control system is
not functioning properly. (“Cruise set
switch indicator light” page 2-31)
LOW FUEL WAR

Page 138 of 354

NISSAN GT-R 2014 R35 Owners Manual DOOR/TRUNK OPEN WARNING
This will appear if any of the doors and/or trunk
lid are open or not closed securely. The vehicle
icon indicates which door or the trunk lid is
open.
LOW WASHER FLUID WARNING

Page 139 of 354

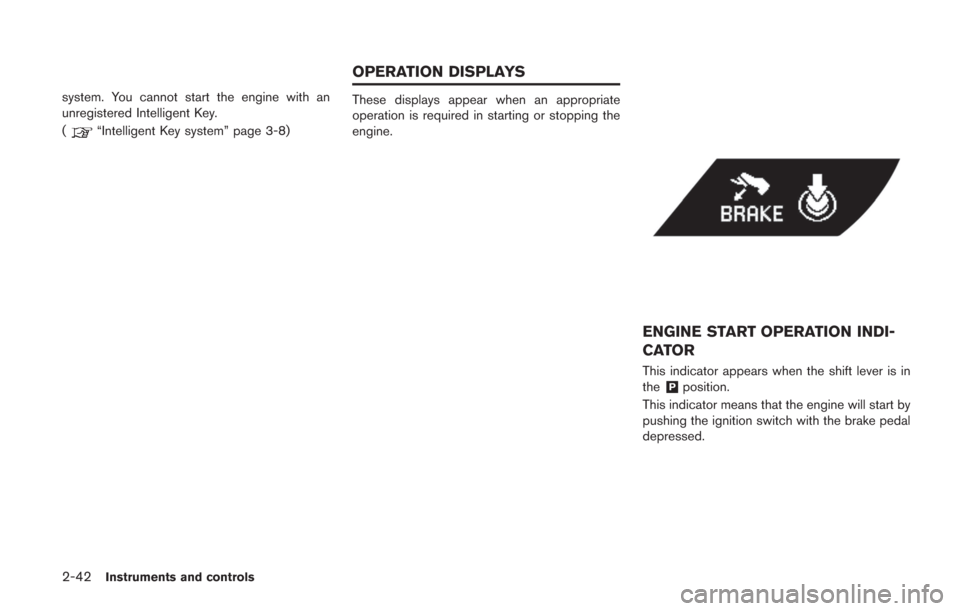

NISSAN GT-R 2014 R35 Owners Manual 2-42Instruments and controls
system. You cannot start the engine with an
unregistered Intelligent Key.
(
“Intelligent Key system” page 3-8)
These displays appear when an appropriate
operation is r

Page 140 of 354

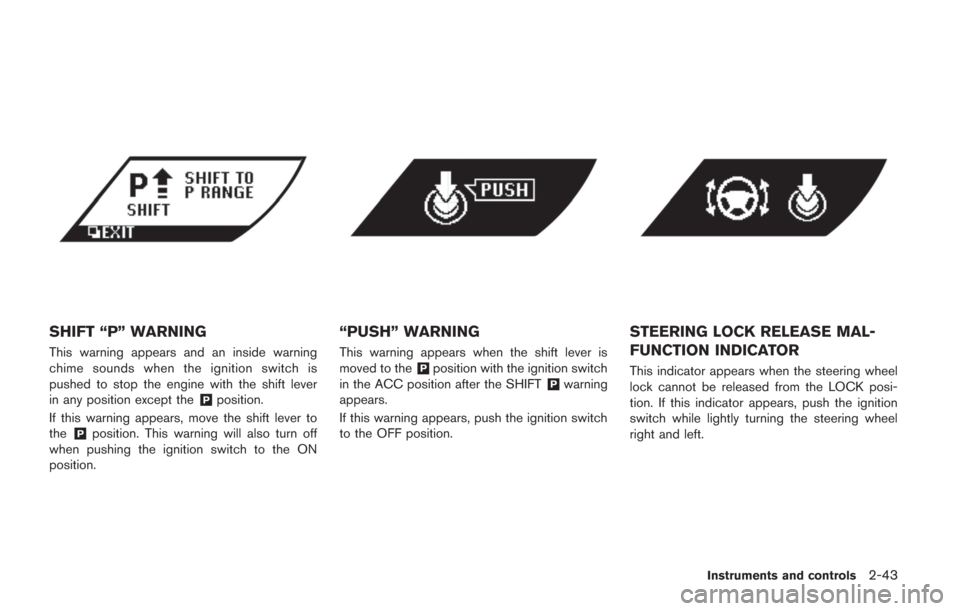

NISSAN GT-R 2014 R35 Owners Manual SHIFT “P” WARNING
This warning appears and an inside warning
chime sounds when the ignition switch is
pushed to stop the engine with the shift lever
in any position except the
&Pposition.
If this
