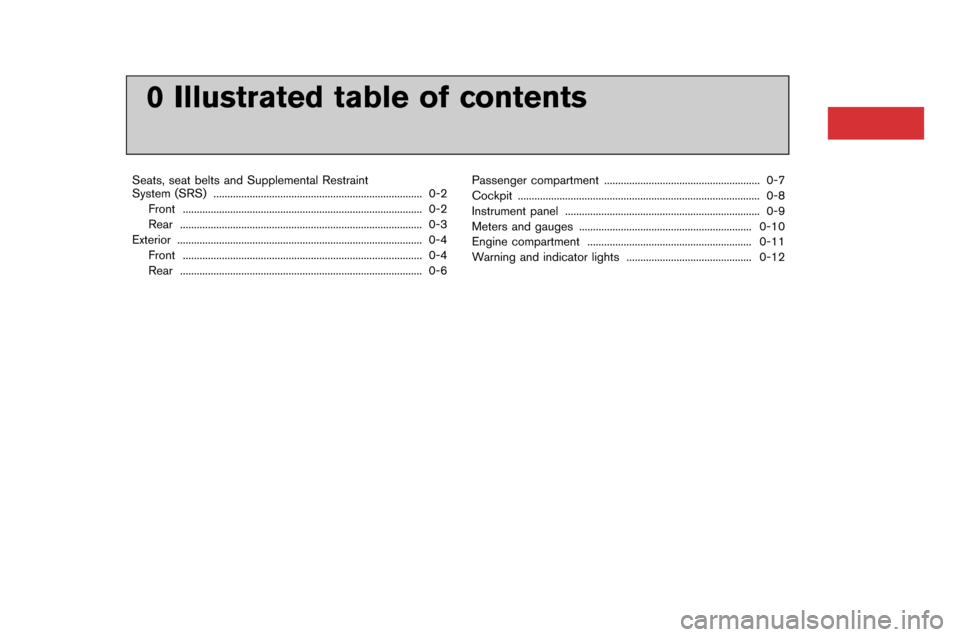

0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f 0-2
�bront �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-2
Rear �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-3
Exterior �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-4 �bront �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-4
Rear �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-6 Passenger compartment �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-7
Cockpit �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-8
Instrument panel �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-9
Meters and gauges �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-10
Engine compartment �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-11
Warning and indicator lights �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f 0-12
0 Illustrated table of contents
Seats, seat belts and Supplemental Restraint
System (SRS)
�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f 0-2
�bront �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-2
Rear �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-3
Exterior �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-4 �bront �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-4
Rear �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-6 Passenger compartment �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-7
Cockpit �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-8
Instrument panel �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-9
Meters and gauges �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-10
Engine compartment �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f 0-11
Warning and indicator lights �f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�f�)�f�f�f�f�f�f�f�f�f 0-12
Page 39 of 358
0-2Illustrated table of contents
FRONT
1. Seat belt (Page 1-6)
2. Rear seat \falk-in le\ber (P.1-5)
3. Roof-mounted curtain side-impact supplementalair bag system (P.1-34)
4. Supplemental front-impact air bags (P.1-34)
5. Seat belt pretensioner (P.1-46)
6. Front seat-mounted side-impact supplemental air bag system (P.1-34)
7. Occupant classification sensor (pattern sensor) (P.1-40)
8. Front seats (P.1-3)
SEATS, SEAT BELTS AND
SUPPLEMENTAL RESTRAINT
SYSTEM (SRS)
Page 83 of 358

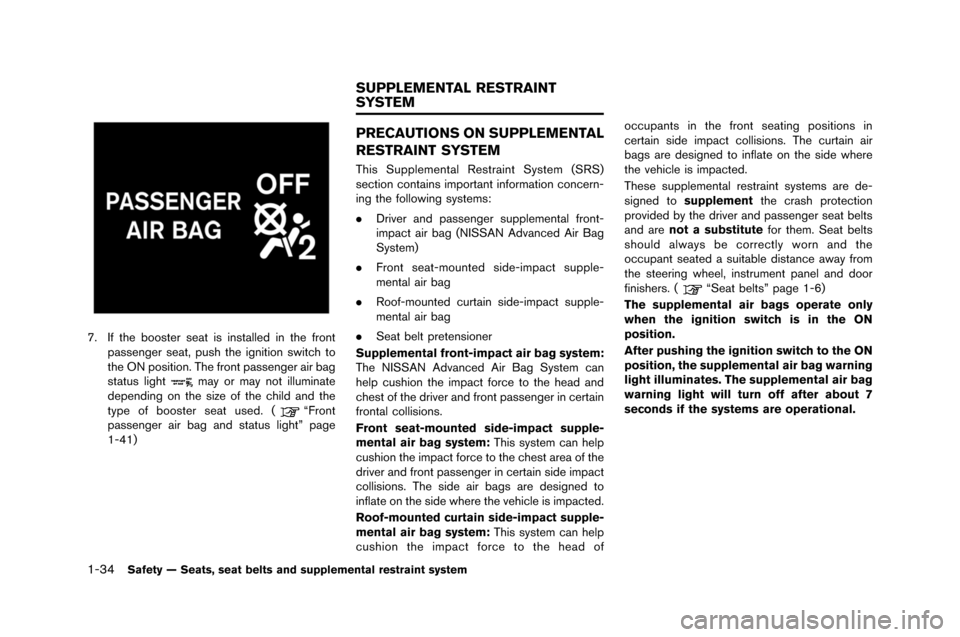

1-34Safety — Seats, seat belts and supplemental restraint system
7. If the booster seat is installe�f in the frontpassenger seat, p�bsh the ignition switch to
the ON position. The front passenger air bag
stat�bs light
may or may not ill�bminate
�fepen�fing on the size of the chil�f an�f the
type of booster seat �bse�f. (
“Front
passenger air bag an�f stat�bs light” page
1-41)
PRECAUTIONS ON SUPPLEMENTAL
RESTRAINT SYSTEM
This S�bpplemental Restraint System (SRS)
section contains important information concern-
ing the following systems:
. Driver an�f passenger s�bpplemental front-
impact air bag (NISSAN A�fvance�f Air Bag
System)
. Front seat-mo�bnte�f si�fe-impact s�bpple-
mental air bag
. Roof-mo�bnte�f c�brtain si�fe-impact s�bpple-
mental air bag
. Seat belt pretensioner
Supplemental front-impact air bag system:
The NISSAN A�fvance�f Air Bag System can
help c�bshion the impact force to the hea�f an�f
chest of the �friver an�f front passenger in certain
frontal collisions.
Front seat-mounted side-impact supple-
mental air bag system: This system can help
c�bshion the impact force to the chest area of the
�friver an�f front passenger in certain si�fe impact
collisions. The si�fe air bags are �fesigne�f to
inflate on the si�fe where the vehicle is impacte�f.
Roof-mounted curtain side-impact supple-
mental air bag system: This system can help
c�bshion the impact force to the hea�f of occ�bpants in the front seating positions in
certain si�fe impact collisions. The c�brtain air
bags are �fesigne�f to inflate on the si�fe where
the vehicle is impacte�f.
These s�bpplemental restraint systems are �fe-
signe�f to
supplement the crash protection
provi�fe�f by the �friver an�f passenger seat belts
an�f are not a substitute for them. Seat belts
sho�bl�f always be correctly worn an�f the
occ�bpant seate�f a s�bitable �fistance away from
the steering wheel, instr�bment panel an�f �foor
finishers. (
“Seat belts” page 1-6)
The supplemental air bags operate only
when the ignition switch is in the ON
position.
After pushing the ignition switch to the ON
position, the supplemental air bag warning
light illuminates. The supplemental air bag
warning light will turn off after about 7
seconds if the systems are operational.
SUPPLEMENTAL RESTRAINT
SYSTEM
Page 93 of 358
1-44Safety — Seats, seat belts and supplemental restraint system
bag system and result in serious
personal injury.
. Immediately after inflation, several
front air bag system components
will be hot. Do not touch them; you
may severely burn yourself.
. No unauthorized changes should be
made to any components or wiring
of the supplemental air bag system.
This is to prevent accidental infla-
tion of the supplemental air bag or
damage to the supplemental air bag
system.
. Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or front end
structure. This could affect proper
operation of the front air bag sys-
tem.
. Tampering with the supplemental
air bag system may result in serious
personal injury. Tampering includes
changes to the steering wheel and
the instrument panel assembly by
placing material over the steering
wheel pad and above the instrument
panel or by installing additional trim
material around the air bag system. .
Modifying or tampering with the
front passenger seat may result in
serious personal injury. For exam-
ple, do not change the front seats by
placing material on the seat cushion
or by installing additional trim ma-
terial, such as seat covers, on the
seat that is not specifically designed
to assure proper air bag operation.
Additionally, do not stow any ob-
jects under the front passenger seat
or the seat cushion and seatback.
Such objects may interfere with the
proper operation of the occupant
classification sensor.
. No unauthorized changes should be
made to any components or wiring
of the seat belt system. This may
affect the front air bag system.
Tampering with the seat belt system
may result in serious personal in-
jury.
. Work on and around the front air
bag system should be done by a
GT-R certified NISSAN dealer. In-
stallation of electrical equipment
should also be done by a GT-R
certified NISSAN dealer. The Sup-
plemental Restraint System (SRS) wiring harnesses* should not be
modified or disconnected. Un-
authorized electrical test equipment
and probing devices should not be
used on the air bag system.
. A cracked windshield should be
replaced immediately by a qualified
repair facility. A cracked windshield
could affect the function of the
supplemental air bag system.
* The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, we re\fuest that you
infor\b the buyer about the front air bag syste\b
and guide the buyer to the appropriate sections
in this Owner’s Manual.
Page 95 of 358

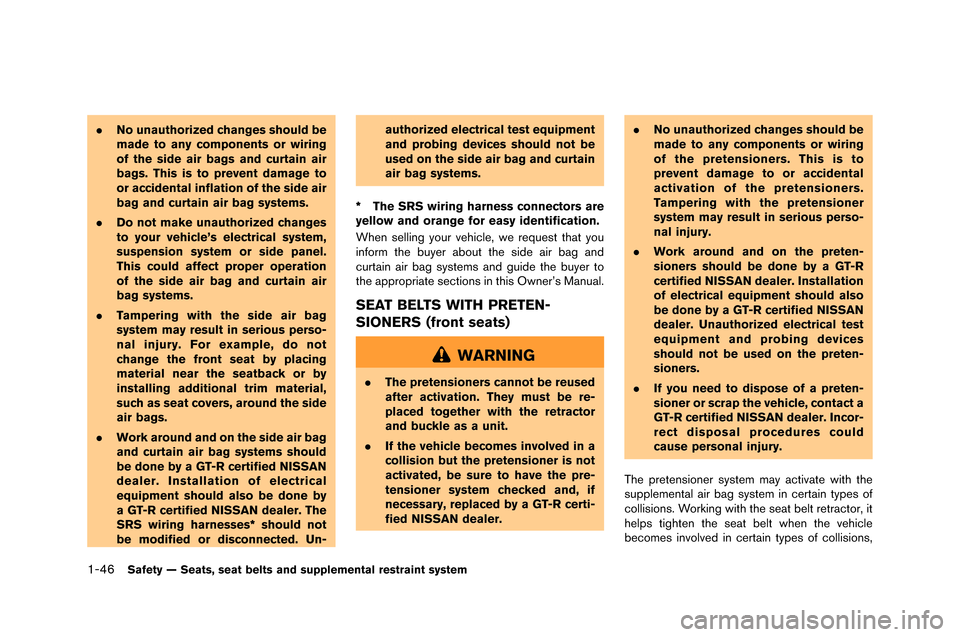

1-46Safety — Seats, seat belts and supplemental restraint system
.No unauthorized changes should be
made to any components or wiring
of the side air bags and curtain air
bags. This is to prevent damage to
or accidental inflation of the side air
bag and curtain air bag systems.
. Do not make unauthorized changes
to your vehicle’s electrical system,
suspension system or side panel.
This could affect proper operation
of the side air bag and curtain air
bag systems.
. Tampering with the side air bag
system may result in serious perso-
nal injury. For example, do not
change the front seat by placing
material near the seatback or by
installing additional trim material,
such as seat covers, around the side
air bags.
. Work around and on the side air bag
and curtain air bag systems should
be done by a GT-R certified NISSAN
dealer. Installation of electrical
equipment should also be done by
a GT-R certified NISSAN dealer. The
SRS wiring harnesses* should not
be modified or disconnected. Un- authorized electrical test equipment
and probing devices should not be
used on the side air bag and curtain
air bag systems.
* The SRS wiring harness connectors are
yellow and orange for easy identification.
When selling your vehicle, \fe request that you
in\borm the buyer about the side air bag and
curtain air bag systems and guide the buyer to
the appropriate sections in this O\fner’s Manual.
SEAT BELTS WITH PRETEN-
SIONERS (front seats)
WARNING
. The pretensioners cannot be reused
after activation. They must be re-
placed together with the retractor
and buckle as a unit.
. If the vehicle becomes involved in a
collision but the pretensioner is not
activated, be sure to have the pre-
tensioner system checked and, if
necessary, replaced by a GT-R certi-
fied NISSAN dealer. .
No unauthorized changes should be
made to any components or wiring
of the pretensioners. This is to
prevent damage to or accidental
activation of the pretensioners.
Tampering with the pretensioner
system may result in serious perso-
nal injury.
. Work around and on the preten-
sioners should be done by a GT-R
certified NISSAN dealer. Installation
of electrical equipment should also
be done by a GT-R certified NISSAN
dealer. Unauthorized electrical test
equipment and probing devices
should not be used on the preten-
sioners.
. If you need to dispose of a preten-
sioner or scrap the vehicle, contact a
GT-R certified NISSAN dealer. Incor-
rect disposal procedures could
cause personal injury.
The pretensioner system may activate \fith the
supplemental air bag system in certain types o\b
collisions. Working \fith the seat belt retractor, it
helps tighten the seat belt \fhen the vehicle
becomes involved in certain types o\b collisions,
Page 96 of 358

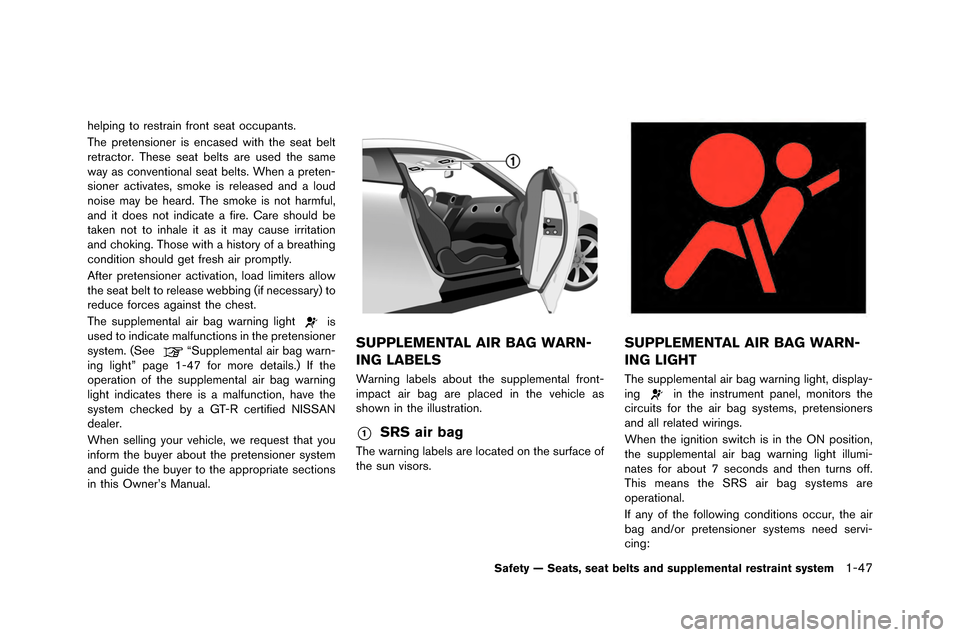

helping to restrain front seat occupants.
The pretensioner is encased with the seat �felt
retractor. These seat �felts are used the same
way as conventional seat �felts. �bhen a preten-
sioner activates, smoke is released and a loud
noise may �fe heard. The smoke is not harmful,
and it does not indicate a fire. Care should �fe
taken not to inhale it as it may cause irritation
and choking. Those with a history of a �freathing
condition should get fresh air promptly.
After pretensioner activation, load limiters allow
the seat �felt to release we�f�fing (if necessary) to
reduce forces against the chest.
The supplemental air �fag warning light
is
used to indicate malfunctions in the pretensioner
system. (See
“Supplemental air �fag warn-
ing light” page 1-47 for more details.) If the
operation of the supplemental air �fag warning
light indicates there is a malfunction, have the
system checked �fy a GT-R certified NISSAN
dealer.
�bhen selling your vehicle, we request that you
inform the �fuyer a�fout the pretensioner system
and guide the �fuyer to the appropriate sections
in this Owner’s Manual.SUPPLEMENTAL AIR BAG WARN-
ING LABELS
�barning la�fels a�fout the supplemental front-
impact air �fag are placed in the vehicle as
shown in the illustration.
*1SRS air bag
The warning la�fels are located on the surface of
the sun visors.
SUPPLEMENTAL AIR BAG WARN-
ING LIGHT
The supplemental air �fag warning light, display-
ingin the instrument panel, monitors the
circuits for the air �fag systems, pretensioners
and all related wirings.
�bhen the ignition switch is in the ON position,
the supplemental air �fag warning light illumi-
nates for a�fout 7 seconds and then turns off.
This means the SRS air �fag systems are
operational.
If any of the following conditions occur, the air
�fag and/or pretensioner systems need servi-
cing:
Safety — Seats, seat belts and supplemental restraint system1-47
Page 156 of 358

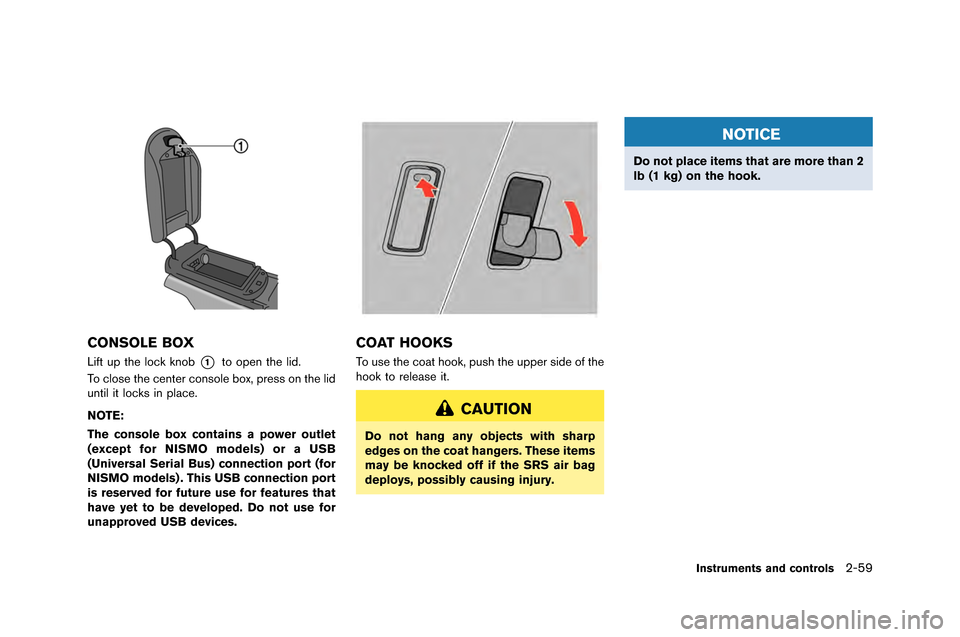

CONSOLE BOX
Lift up the lock knob*1to open the lid.
To close the center console bo\f, press on the lid
until it locks in place.
NOTE:
The console box contains a power outlet
(except for NISMO models) or a USB
(Universal Serial Bus) connection port (for
NISMO models) . This USB connection port
is reserved for future use for features that
have yet to be developed. Do not use for
unapproved USB devices.
COAT HOOKS
To use the coat hook, push the upper side of the
hook to release it.
CAUTION
Do not hang any objects with sharp
edges on the coat hangers. These items
may be knocked off if the SRS air bag
deploys, possibly causing injury.
NOTICE
Do not place items that are more than 2
lb (1 kg) on the hook.
Instruments and controls2\b59
