NISSAN GT-R 2016 R35 Multi Function Display Owners Manual


> (GLW    0RGHO 51 @
7 Other settings
Settings screen........................................................................\
.. 7-2
Basic operation .................................................................... 7-2
Audio settings ........................................................................\
..... 7-3
Display settings ........................................................................\
.. 7-4 Basic operation .................................................................... 7-4
Display adjustment .............................................................. 7-4
Setting color theme ............................................................. 7-5
Volume adjustment .................................................................... 7-6 Basic operation .................................................................... 7-6 Clock settings ........................................................................\
.... 7-7
Basic operation .................................................................. 7-7
Comfort settings........................................................................\
7-8
Language and unit settings .................................................... 7-8 Language settings ............................................................. 7-8
Unit settings ........................................................................\
7-9
Unit settings (Tire Pressure) ........................................ 7-10
Image viewer ........................................................................\
... 7-10 Full screen display .......................................................... 7-11
Setting the image viewer .............................................. 7-11
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
7-2Other settings
The navigation system can be customized to
make it easier for you to use.
BASIC OPERATION
1. Push.
2. Highlight the preferred setting item and
push .
Available setting items
. [Navigation]:
Adjust various settings of the navigation
system.
ªNavigation settingº (page 2-91)
. [Audio]:
Adjusts the audio settings.
ªAudio settingsº (page 7-3)
. [Phone]:
Adjusts various settings of the Bluetooth


> (GLW    0RGHO 51 @
This allows to you adjust the speaker tone
quality and sound balance.
1. Push.
2. Highlight [Audio] and push .
3. Highlight the preferred adjustment item and push .
4. Use the center dial to adjust the tone quality or sound balance.
5. After settings, push or
to apply the setting.
6. Push to return to the previous
screen.
Push


> (GLW    0RGHO 51 @
7-4Other settings
This menu turns on and off the display, adjust
the image quality of the navigation screen and
change the color of the menu screen.
BASIC OPERATION
1. Push.
2. Highlight [Display] and push .
3. Highlight the preferred adjustment item and push .
Available setting items
. [Display Adjustment]
Turn on and off the display and adjust the
image quality of the navigation screen.
. [Color Theme]
Set the color of the menu screen.
DISPLAY ADJUSTMENT
This menu turns on and off the display and
adjusts the image quality of the navigation
screen.
Basic operation
1.Highlight [Display Adjustment] and push
.
2. Highlight the preferred adjustment item and push .
3. Use the center dial to adjust to the preferred setting.
4. After setting, push or
to apply the setting.
5. Push to return to the previous
screen. Push


> (GLW    0RGHO 51 @

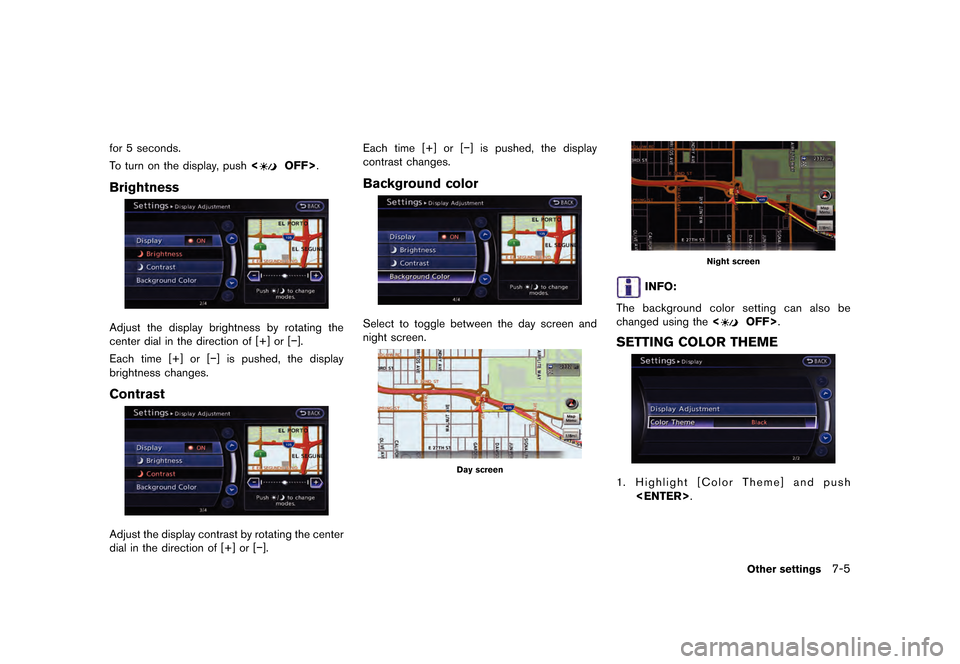

for 5 seconds.
To turn on the display, push<
OFF>.
Brightness
Adjust the display brightness by rotating the
center dial in the direction of [+] or [


> (GLW    0RGHO 51 @

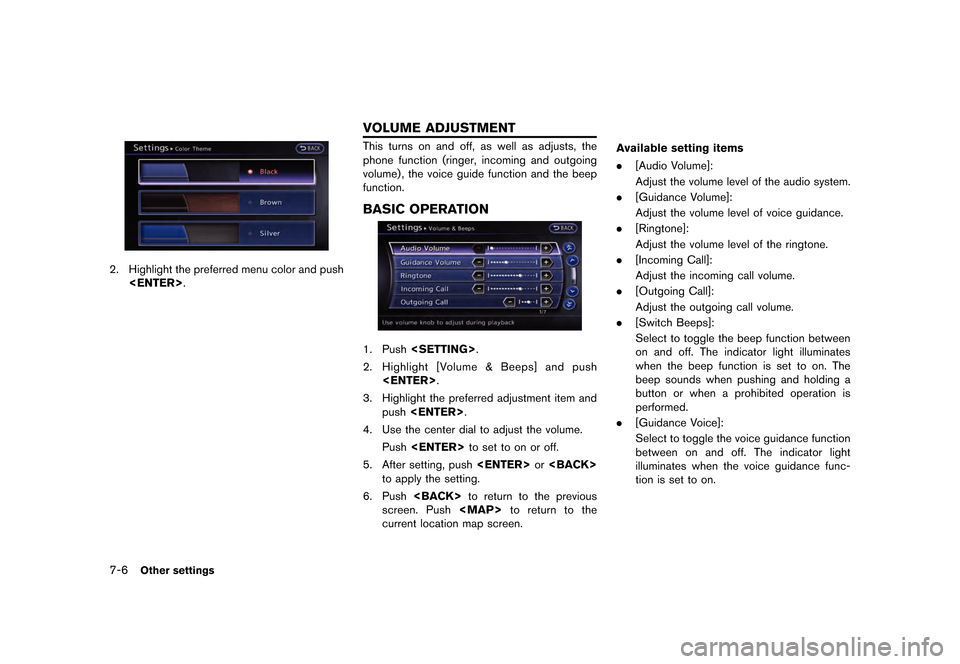

7-6Other settings
2. Highlight the preferred menu color and push.
This turns on and off, as well as adjusts, the
phone function (ringer, incoming and outgoing
volume) , the voice guide function and the beep
function.
BASIC OPERATION
1. Push .
2. Highlight [Volume & Beeps] and push
.
3. Highlight the preferred adjustment item and push .
4. Use the center dial to adjust the volume. Push to set to on or off.
5. After setting, push or
to apply the setting.
6. Push to return to the previous
screen. Push


> (GLW    0RGHO 51 @
This changes the clock settings.
BASIC OPERATION
1. Push.
2. Highlight [Clock] and push .
3. Highlight the preferred adjustment item and push .
4. Use the center dial to adjust to the preferred setting. Push to set on or off.
5. After setting, push or
to apply the setting.
6. Push to return to the previous
screen. Push


> (GLW    0RGHO 51 @
7-8Other settings
This key does not appear on the display until the
ignition switch is pushed to the ON position.
1. Push.
2. Highlight [Comfort] and push .
3. Highlight the preferred setting item and
push . The indicator light of the
selected item illuminates.
4. After setting, push or
to apply the setting.
5. Push to return to the previous
screen. Push


> (GLW    0RGHO 51 @
5.Highlight the preferred setting item and
push . The indicator light of the
selected item illuminates.
Available languages
.[English]
.[FrancË ais]
.[Espan Ä
ol]
NOTICE
Do not change the ignition switch
position while changing the language.
Doing so may cause a system malfunc-
tion.
UNIT SETTINGS
1. Push .
2. Highlight [Others] and push .
3. Highlight [Language & Units] and push
.
4.Highlight [Select Units] and push
.
5.Highlight the preferred unit and push
. The indicator of the selected
unit illuminates.
Available units
.US:
mile, MPH, 8F, MPG
.Metric:
km, km/h, 8C, L/100 km
6. Push to return to the previous
screen. Push


> (GLW    0RGHO 51 @
7-10Other settings
UNIT SETTINGS (Tire Pressure)
1. Push.
2. Highlight [Others] and push .
3. Highlight [Language/Units] and push
.
4. Highlight [Select Units (Tire Pressure)] and
push .
5.Highlight the preferred unit and push
. The indicator of the selected
unit illuminates.
Available units
.psi
.kPa
6. Push to return to the previous
screen.
The image files in the USB device will be
displayed.
1. Press .
2. Select [Others] and press .
3. Select [Image Viewer] and press
.
The image of the selected file is displayed on the
right side of the screen.
When a number of folders are included in the
USB device, select a folder from the list and
push to display the file list.
IMAGE VIEWER
