2-72Navigation
INFO:
.When the location is stored in theAddress Book, [Address Book] can be
used to search for the location.
.A location can be adjusted by selecting [Move Location] using the same method
as the one for a destination.
ªMoving location of destinationº
(page 2-46)
Other settings:
An address can also be stored using the
following procedure.
1. Push .
2. Highlight [Address Book] and push
.
3. Highlight [Store/Edit] and push .4. Highlight [Add New] and push
.
5. Highlight the appropriate method to search for a location and push . The
address of the searched location is stored.
ªSetting destinationº (page 2-23)
Storing current vehicle location
1. Push


> (GLW    0RGHO 51 @
Storing location by moving map
1. Move to the preferred location on the mapand push .
2.Highlight [Store Location] and push
. A message is displayed, and
the address of the location is stored in the
Address Book.
3. The icon representing the stored location is
displayed on the map.
Push


> (GLW    0RGHO 51 @
2-74Navigation
3.Highlight [Store Route] and push
.
4. A confirmation message is displayed. Con-
firm the contents of the message, highlight
[Yes] and push .
The current route is stored.
Other settings
A route can also be stored using the following
procedure.
1. Push .
2. Highlight [Navigation] and push .
3. Highlight [Address Book] and push
.
4. Highlight [Stored Routes] and push
.
5. Highlight [Store Current Route] and push .
6. A confirmation message is displayed. Con- firm the contents of the message, highlight
[Yes] and push . The current
route is stored.
INFO:
. The route is stored in the first available
position number in the store current route
list.
. A maximum of 5 routes can be stored. When
5 routes are stored in the Address Book, a
new route cannot be stored until a route is
deleted.
ªDeleting stored itemº (page 2-86)
. If any waypoints are not set on the route, the
route cannot be stored.
STORING TRACKED ROUTE
A travelled route up to the current location can
be stored. A maximum of 5 tracked routes can
be stored.
1. Push


> (GLW    0RGHO 51 @
4. A confirmation message is displayed.Confirm the contents of the message, high-
light [Yes] and push .
The tracked route you have traveled is
stored.
5. Push


> (GLW    0RGHO 51 @

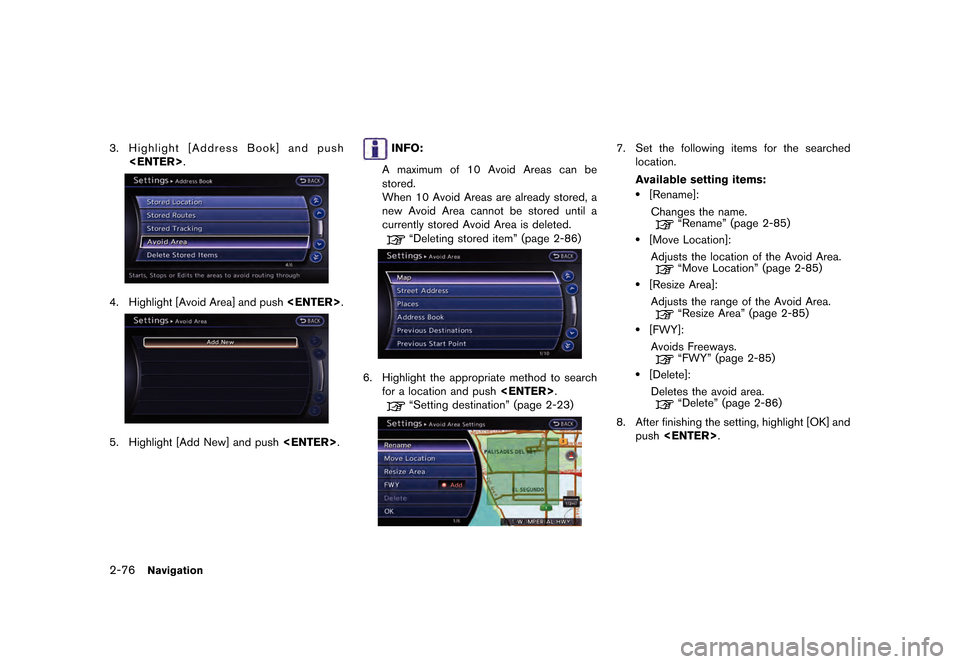

2-76Navigation
3.Highlight [Address Book] and push
.
4. Highlight [Avoid Area] and push .
5. Highlight [Add New] and push.
INFO:
A maximum of 10 Avoid Areas can be
stored.
When 10 Avoid Areas are already stored, a
new Avoid Area cannot be stored until a
currently stored Avoid Area is deleted.
ªDeleting stored itemº (page 2-86)
6. Highlight the appropriate method to search for a location and push .
ªSetting destinationº (page 2-23)
7. Set the following items for the searched
location.
Available setting items:
.[Rename]:
Changes the name.
ªRenameº (page 2-85)
.[Move Location]:Adjusts the location of the Avoid Area.
ªMove Locationº (page 2-85)
.[Resize Area]:Adjusts the range of the Avoid Area.
ªResize Areaº (page 2-85)
.[FWY]:Avoids Freeways.
ªFWYº (page 2-85)
.[Delete]:Deletes the avoid area.
ªDeleteº (page 2-86)
8. After finishing the setting, highlight [OK] and push .
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
EDITING ADDRESS BOOK
Items stored in the Address Book can be
modified. These settings can be edited to make
the navigation system more useful.
Basic operation
1. Push.
2. Highlight [Navigation] and push .
3. Highlight [Address Book] and push
.
4. Highlight the preferred item and push
.
Available setting items
. [Stored Location]:
Edits the information of a stored home and
Address.
ªEditing stored home and addressº
(page 2-77) .
[Stored Routes]:
Edits the information of a stored route.
ªEditing stored routeº (page 2-82)
. [Stored Tracking]:
Edits the information of a stored tracked
route.
ªEditing stored trackingº (page 2-83)
. [Avoid Area]:
Edits the information of a stored Avoid Area.
ªEditing avoid areaº (page 2-84)
. [Delete Stored Items]:
Deletes a stored location or route.
ªDeleting all stored itemsº (page 2-88)
. [Transfer Address Book]:
Imports or exports the data of the stored
items using a USB device.
Editing stored home and address
1.Highlight [Stored Location] and push
.
2. Highlight the stored home location or pre- ferred stored address and push .
INFO:
Highlighting [Sort] displays a list of various
sort functions.
Navigation2-77
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2-78Navigation
3.Highlight the preferred item and push
.
Available setting items
. [Edit]:
Edits the stored address information.
. [Move Location]:
Adjusts the location of the stored address.
. [Delete]:
Deletes the stored address.
. [OK]:
Applies the settings.
Other settings:
A stored address can also be edited using the
following procedure.
1. Push .
2. Highlight [Address Book] and push
. 3. Highlight [Store/Edit] and push
.
Minor adjustment of home or stored
address
When [Edit] is selected, you can edit the
following items of the home or stored location
can be edited.
.[Show Icon on Map]:
. [Name] (only for stored locations):
. [Voicetag] (only for stored locations):
. [Icon]:
. [Sound]:
. [Direction]:
. [Distance]:
. [Phone No.]:
. [Group] (only for stored locations):
. [Entry Numbers] (only for stored locations):
Show Icon on Map:
Displays the home icon or the stored address
icon on the map.
1. Highlight [Show Icon on Map] and push .
2. The indicator illuminates when the item is set. Then the system displays the icon on
the map.
Name (only for stored locations):
Changes the name of a stored location.
1. Highlight [Name] and push .
A character input screen is displayed.
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2. Enter the preferred name for the storedlocation.
ªHow to input letters and numbersº
(page 1-14)
3. Highlight [OK] and push .
The name is stored.
Voicetag (only for stored locations):
1. Highlight [Voicetag] and push .
2. Highlight [Store] and push.
3. A beep sounds, and the system enters the
voice command reception mode.
4. Speak the name/word to be used as
Voicetag.
5. The Voicetag is stored, provided the system recognizes it.
INFO:
. A Voicetag cannot be stored, overwritten or
played while driving.
. The Address Book can store up to 100
Voicetags.
. Highlight [Play] to confirm the stored Voice-
tag.
. Highlight [Delete] to delete a stored Voice-
tag.
. If a Voicetag is already stored, select
[Restore] to re-record the Voicetag.
Icon:
Changes the icon of the home or stored address
to the preferred one. By changing the icons, the
usage of the [By Icon] option of the sort function
can be optimized more effectively ([Sort] menu
situation) .
Navigation2-79
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2-80Navigation
1. Highlight [Icon] and push.
A list of icons is displayed.
2. Highlight the preferred icon and push
.
3. The icon is changed.
Sound:
Sets the tone of the alarm that sounds when the
vehicle approaches the home or a stored
address.
1. Highlight [Sound] and push .
A sound list is displayed.
2. Select the preferred alarm tone and push .
The indicator of the selected alarm tone
illuminates.
Direction:
Sets the alarm to sound when approaching from
a specific direction.
1. Highlight [Direction] and push .
A map screen with the home or stored
location located on the map center is
displayed.
2. Set the direction that sounds the alarm and push .
The selected direction is set.
INFO:
After the direction is set and [Direction] is
selected and set again, a confirmation message
is displayed. Confirm the contents of the
message, highlight [Yes] and push .
The set direction is overwritten.
Distance:
Sets the alarm to sound when reaching a
specific distance to the home or stored address.
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
1. Highlight [Distance] and push.
2. Highlight the preferred distance option and
push . The indicator of the
selected distance illuminates.
Available distance options:
. 150 feet (50 m)
. 300 feet (100 m)
. 1000 feet (300 m) .
1500 feet (500 m)
INFO:
Once the direction and the distance to sound an
alarm are set, the system will sound the alarm
when the vehicle enters the triggering zone.
Phone number:
Stores the telephone number of the home or a
stored location.
1. Highlight [Phone No.] and push .
The telephone number entry screen is
displayed.
2. Enter the telephone number of the home or stored location.
ªNumber input screenº (page 1-15)
3. Highlight [OK] and push .
The telephone number is stored.
INFO:
If the phone number of the home or a location is
stored, the phone number can be used to search
for the destination even if it is not included in the
map data.
Group (only for stored locations):
This groups the stored locations.
By grouping the stored locations, the [By Group]
option of the sort function can be used more
effectively in the [Sort Entries] mode.
Navigation2-81
