2-10Navigation
Operating with touch panel opera-
tion
1. Touch [].
The scale is displayed.
2. Touch [ZOOM IN] or [ZOOM OUT] to
change the scale.
INFO:
Free zoom:
Once the [Small Step Zoom by Dial] is set to ON
in the setting screen, the scale can be changed
in smaller steps when [ZOOM IN] or [ZOOM
OUT] is pushed and held than when either
button is briefly pushed.
If briefly pushed, the operation returns to normal.
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To change the map scale:
ªZoom In <1 to 14>º (Alternate Command
Mode)
ªZoom Out <1 to 14>º (Alternate Command
Mode)
Map scale
Any required map scale (map coverage) be-
tween 320 miles (640 km) and 1/64 of a mile
(25 m) can be selected.
Scale level for 2D map and Birdview
TMmap
(3D) display:
Normal Map US Units Metric Units
320 miles 640 km 80 miles 160 km
32 miles 64 km8 miles 16 km
5 miles 10 km
2 miles 4 km
1 mile 2 km
1/2 mile 1 km
1/4 mile 500 m
1/8 mile 200 m
1/16 mile 100 m
1/32 mile 50 m
Shows build- ing footprint graphics 1/32 mile
50 m
1/64 mile 25 m
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
5.Highlight the preferred item and push
.
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
. To display the 2D map:
ªPlan View mapº (Alternate Command
Mode)
. To display the Birdview
TMmap:
ªBirdview mapº (Alternate Command Mode)
MAP VIEW SETTINGS
Other settings are also available for the map
screen, such as changing the map direction,
map color, Birdview
TMangle, etc.
Basic operation
1. Push while the current location
map screen is displayed.
2. Highlight [Map View] and push .
3.Highlight [Map Settings] and push
.
4.Highlight the preferred item and push
.
Available setting items
. [Map Orientation]:
Sets the map direction to North Up or
Heading Up.
ªSetting map orientationº (page 2-14)
Navigation2-13
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
INFO:
If the map orientation is switched, the icon
displayed in the lower left corner is also
switched.
: North Up
: Heading Up
North Up
Heading Up
INFO:
The direction of the map can also be changed by
touching the icon on the map screen.
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To charge the map direction:
ªNorth Upº (Alternate Command Mode)
ªHeading Upº (Alternate Command Mode)
Settings long range map view
The position of the vehicle icon can be changed
to view a wider area in the traveling direction. If
this function is activated, the vehicle icon is
located slightly lower than the center of the
screen.
1.Highlight [Long Range] and push
. The indicator illuminates.
2. Push


> (GLW    0RGHO 51 @
INFO:
Even after setting a destination, the location
of the destination can be adjusted, the route
can be stored, etc.
ªProcedures after setting destinationº
(page 2-44)
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To set the destination from a street address:
ªNavigationº ªAddressº (Standard Mode)
ªAddressº (Alternate Command Mode)
INFO:
When using a voice command to set a street
name, it is recommended that the complete
street name is stated.
Examples: Correct input - North Elm Street East Jefferson Boulevard
Incorrect input - Elm Street East Jefferson
FINDING PLACE
There are several methods that can be used to
set the destination to places of interest: typing
the name, choosing a category or selecting a
location reviewed by ZAGAT (if so equipped) .
To help improve searching, different start points
can be chosen to search from such as near
current location, near the destination or city
center.
Finding nearby place
1. Push.
2. Highlight [Places] and push .
3. Highlight the preferred nearby category from
the list and push .
A list screen is displayed.
INFO:
Highlight [Customize Nearby Places] to
customize the nearby places list to show
categories that are frequently used.
4. Highlight the preferred destination from the list, and push . The position of
the selected location is displayed in the
Navigation2-27
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2-28Navigation
preview on the right side of the screen.
INFO:
.A maximum of 100 facilities can bedisplayed on the list screen.
.If the suggested route is already set, the system displays the facilities located
along the route. To display all the icons,
deactivate [Show Along Route].
5. The entire route is shown on the map.
Highlight [Start] after confirming the location
of the displayed destination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
If there is a route already set, the newly selected
location can substitute a previously set destina-
tion or can be added to a route already set.
Other settings:
The destination can also be set by pushing
in the current or scrolled location
map screen and selecting [Nearby Places].
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To display the nearby category list and select the
destination from it:
ªNavigationº ªPlacesº (Standard Mode)
ªPlacesº (Alternate Command Mode)
Searching by other methods
1. Push .
2. Highlight [Places] and push .
3. Highlight [All Categories or Name] and push
.
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
3. The home location is displayed, and thesystem sets the home location as the
destination.
INFO:
If the home location is not stored yet, the
system will automatically display a screen for
storing it.
ªStoring locationº (page 2-70)
4. The entire route to the home location is shown on the map. Highlight [Start] after
confirming the location of the displayed
destination, and push . The
system sets the destination to the selected
location and starts calculating a route.
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To set the home location as the destination:
ªNavigationº ªHomeº (Standard Mode)
ªHomeº (Alternate Command Mode)
SEARCHING FROM ADDRESS
BOOK
Storing frequently used destinations in the
Address Book makes it easy for the system to
set and calculate a route. To utilize this function
more effectively, destinations that are often
traveled to should be stored in advance.
1. Push .
2. Highlight [Address Book] and push
. A list screen is displayed.
3. Highlight the preferred location from the list
and push .
Navigation2-33
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2-34Navigation
INFO:
Selecting [Sort] displays a list of various sort
functions. To use the sort functions, stored
locations must be set in advance.
ªStoring locationº (page 2-70)
INFO:
.Sorted By Number: The Address Book entries are displayed
in ascending numerical order.
.Sorted By Name:The Address Book entries are displayed
in alphabetic order.
.Sorted By Icon:By selecting a particular icon, a list that
contains only the Address Book entries
associated with that icon is displayed.
.Sorted By Group:By selecting a particular group (family,
friends, leisure, etc.) , the selected group
is displayed at the top of the list.
4. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed destination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.
ªProcedures after setting destinationº
(page 2-44)
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To set the destination from the Address Book:
ªNavigationº ªAddress Bookº (Standard Mode)
ªAddress bookº (Alternate Command Mode)
SETTING PREVIOUS DESTINATION
It is possible to set the destination to a location
that has been previously set as a destination and
have the system calculate a route. Up to 300
previous destinations will be automatically
stored.
If the number of previous destinations exceeds
300, the oldest one will be replaced by the
newest one.
1. Push .
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2. Highlight [Previous Destinations] and push. A list screen is displayed.
3. Highlight the preferred destination from thelist and push .
INFO:
The list can be sorted by selecting [By Date]
or [By Name]. Highlight [By Date] to sort the
list in chronological order. Highlight [By
Name] to sort the list in alphabetical order.
4. The entire route is shown on the map. Highlight [Start] after confirming the location
of the displayed destination, and push
. The system sets the destination
to the selected location and starts calculat-
ing a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.
ªProcedures after setting destinationº
(page 2-44)
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To display the previous destinations list:
ªNavigationº ªPrevious Destinationsº (Standard
Mode)
ªPrevious Destinationsº (Alternate Command
Mode)
SETTING PREVIOUS START POINT
It is possible to set the destination to the start
point of a previous route guidance and have the
system calculate a route.
1. Push .
2. Highlight [Next Page] and push .
3. Highlight [Previous Start Point] and push
.
Navigation2-35
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @
2-36Navigation
4. The previous start point is set as a destina-tion, and the entire route is shown on the
map. Highlight [Start] after confirming the
location of the displayed destination, and
push . The system sets the
destination to the selected location and
starts calculating a route.
INFO:
Even after setting a destination, the location of
the destination can be adjusted, the route can
be stored, etc.
ªProcedures after setting destinationº
(page 2-44)
Setting by voice command
1. Push <
>located on the steering wheel.
2. After the tone sounds, speak a command.
To set a previous start point as the destination:
ªPrevious Start Pointº (Alternate Command
Mode)
SETTING FROM STORED ROUTES
It is possible to select a preferred route from the
stored routes.
1. Push .
2. Highlight [Next Page] and push .
3.Highlight [Stored Routes] and push
. A list screen is displayed.
4. Highlight the preferred route from the list
and push . The route to the
destination is set.
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK


> (GLW    0RGHO 51 @

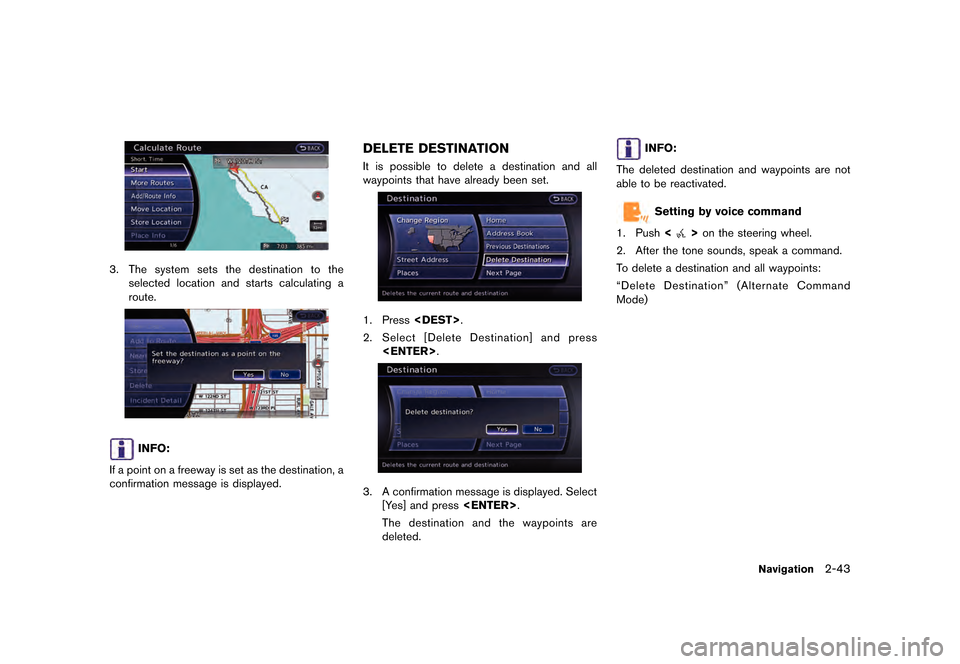

3.The system sets the destination to the
selected location and starts calculating a
route.
INFO:
If a point on a freeway is set as the destination, a
confirmation message is displayed.
DELETE DESTINATION
It is possible to delete a destination and all
waypoints that have already been set.
1. Press .
2. Select [Delete Destination] and press
.
3. A confirmation message is displayed. Select
[Yes] and press .
The destination and the waypoints are
deleted.
INFO:
The deleted destination and waypoints are not
able to be reactivated.
Setting by voice command
1. Push <
>on the steering wheel.
2. After the tone sounds, speak a command.
To delete a destination and all waypoints:
ªDelete Destinationº (Alternate Command
Mode)
Navigation2-43
&RQGLWLRQ /DQJXDJH 1$0B(QJOLVK
