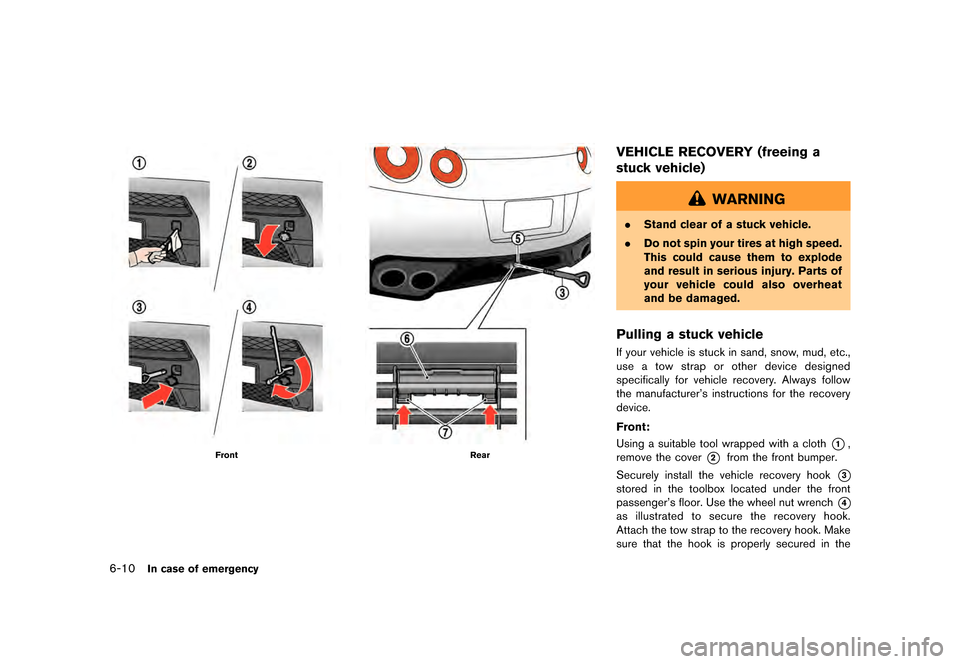

6-10In case of emergency
FrontRear
VEHICLE RECOVERY (freeing a
stuck vehicle)
WARNING
.Stand clear of a stuck vehicle.
. Do not spin your tires at high speed.
This could cause them to explode
and result in serious injury. Parts of
your vehicle could also overheat
and be damaged.
Pulling a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use a tow strap or other device designed
specifically for vehicle recovery. Always follow
the manufacturer's instructions for the recovery
device.
Front:
Using a suitable tool wrapped with a cloth*1,
remove the cover
*2from the front bumper.
Securely install the vehicle recovery hook
*3
stored in the toolbox located under the front
passenger's floor. Use the wheel nut wrench
*4
as illustrated to secure the recovery hook.
Attach the tow strap to the recovery hook. Make
sure that the hook is properly secured in the


> (GLW    0RGHO 5' @

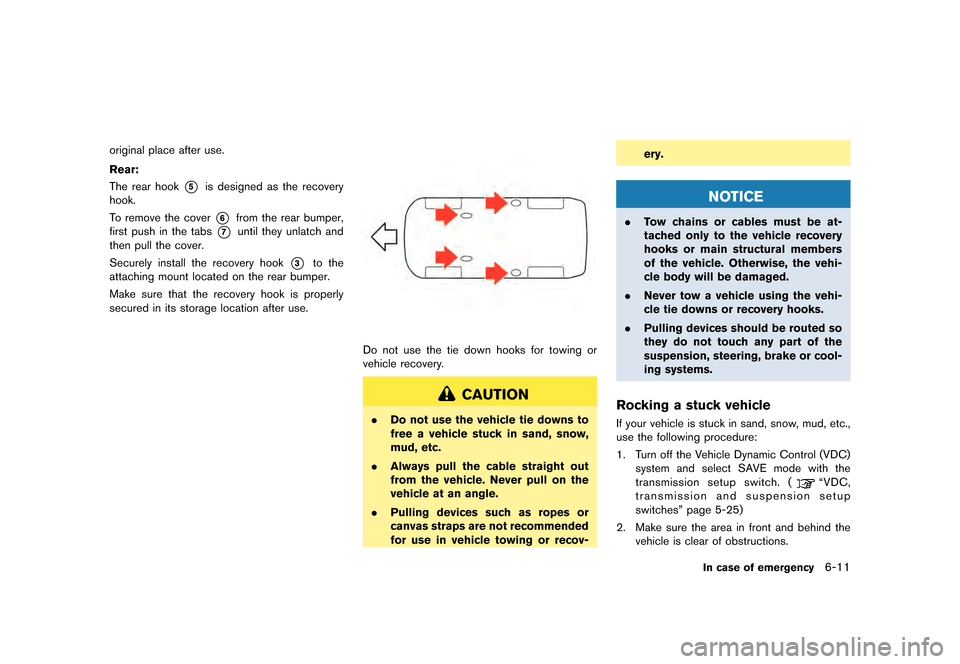

original place after use.
Rear:
The rear hook*5is designed as the recovery
hook.
To remove the cover
*6from the rear bumper,
first push in the tabs
*7until they unlatch and
then pull the cover.
Securely install the recovery hook
*3to the
attaching mount located on the rear bumper.
Make sure that the recovery hook is properly
secured in its storage location after use.
Do not use the tie down hooks for towing or
vehicle recovery.
CAUTION
. Do not use the vehicle tie downs to
free a vehicle stuck in sand, snow,
mud, etc.
. Always pull the cable straight out
from the vehicle. Never pull on the
vehicle at an angle.
. Pulling devices such as ropes or
canvas straps are not recommended
for use in vehicle towing or recov- ery.
NOTICE
.
Tow chains or cables must be at-
tached only to the vehicle recovery
hooks or main structural members
of the vehicle. Otherwise, the vehi-
cle body will be damaged.
. Never tow a vehicle using the vehi-
cle tie downs or recovery hooks.
. Pulling devices should be routed so
they do not touch any part of the
suspension, steering, brake or cool-
ing systems.
Rocking a stuck vehicle
If your vehicle is stuck in sand, snow, mud, etc.,
use the following procedure:
1. Turn off the Vehicle Dynamic Control (VDC)
system and select SAVE mode with the
transmission setup switch. (
ªVDC,
transmission and suspension setup
switchesº page 5-25)
2. Make sure the area in front and behind the vehicle is clear of obstructions.
In case of emergency6-11


> (GLW    0RGHO 5' @
6-12In case of emergency

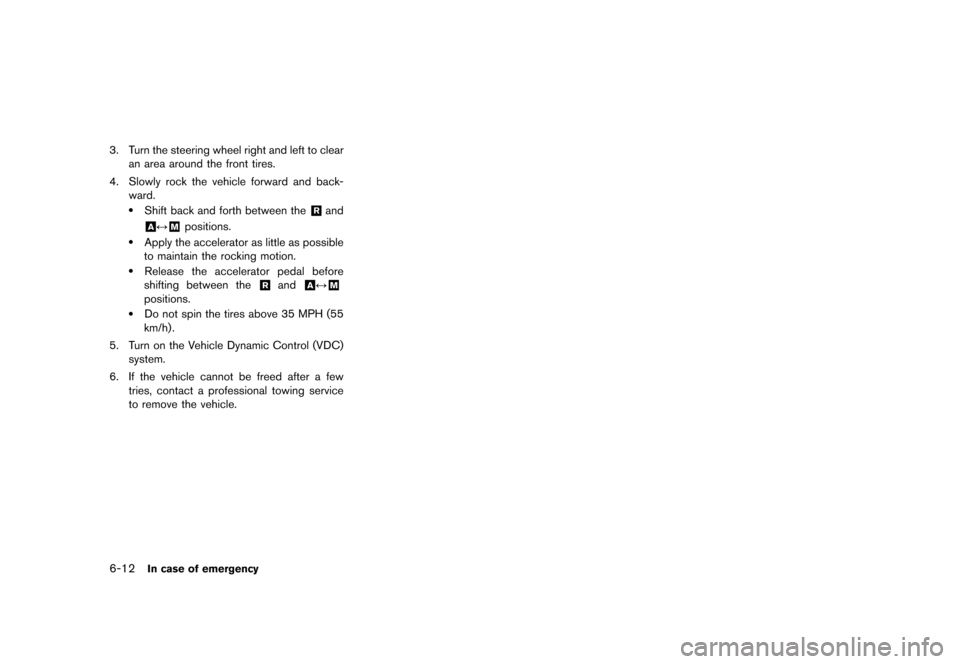

3. Turn the steering wheel right and left to clearan area around the front tires.
4. Slowly rock the vehicle forward and back- ward.
.Shift back and forth between the&Rand
&A
F&Mpositions.
.Apply the accelerator as little as possible
to maintain the rocking motion.
.Release the accelerator pedal before
shifting between the
&Rand&A
F&M
positions..Do not spin the tires above 35 MPH (55
km/h) .
5. Turn on the Vehicle Dynamic Control (VDC) system.
6. If the vehicle cannot be freed after a few tries, contact a professional towing service
to remove the vehicle.


> (GLW    0RGHO 5' @

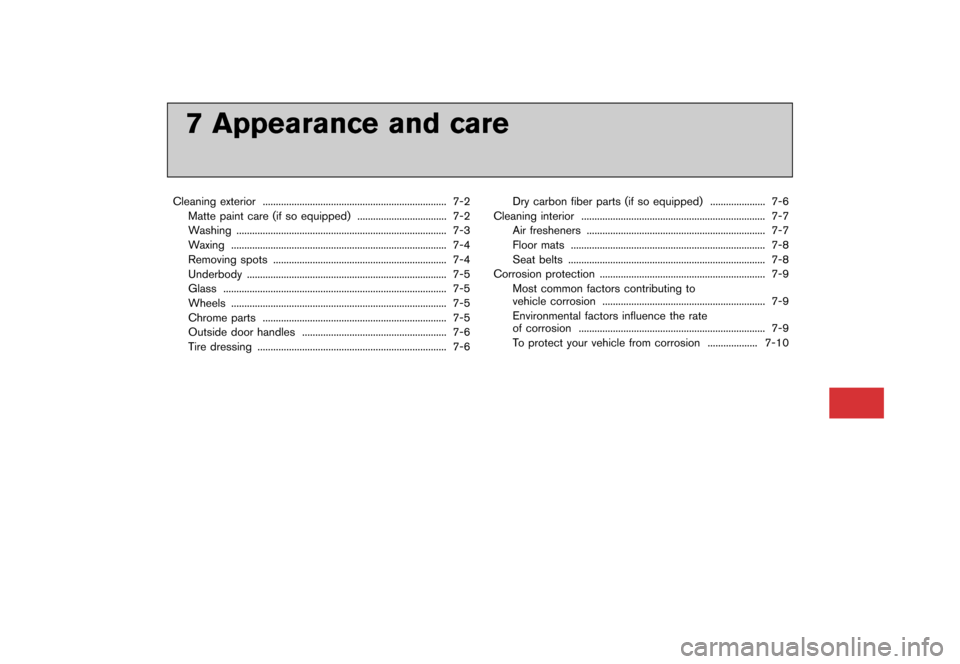

7 Appearance and care
Cleaning exterior...................................................................... 7-2
Matte paint care (if so equipped) .................................. 7-2
Washing ........................................................................\
........ 7-3
Waxing ........................................................................\
.......... 7-4
Removing spots .................................................................. 7-4
Underbody ........................................................................\
.... 7-5
Glass ........................................................................\
............. 7-5
Wheels ........................................................................\
.......... 7-5
Chrome parts ...................................................................... 7-5

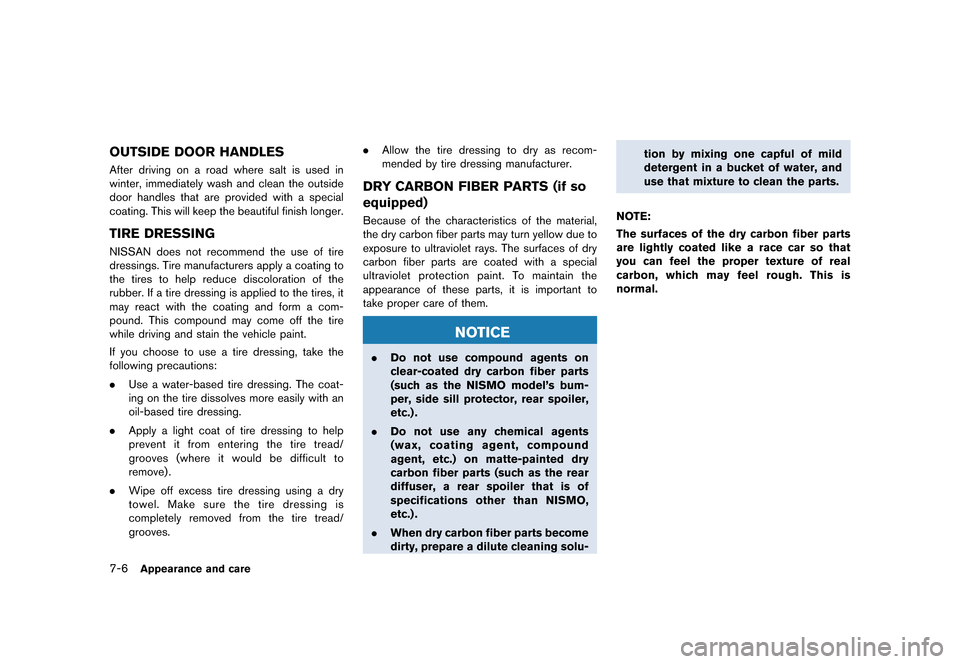

Outside door handles ....................................................... 7-6
Tire dressing ........................................................................\
7-6 Dry carbon fiber parts (if so equipped) ..................... 7-6

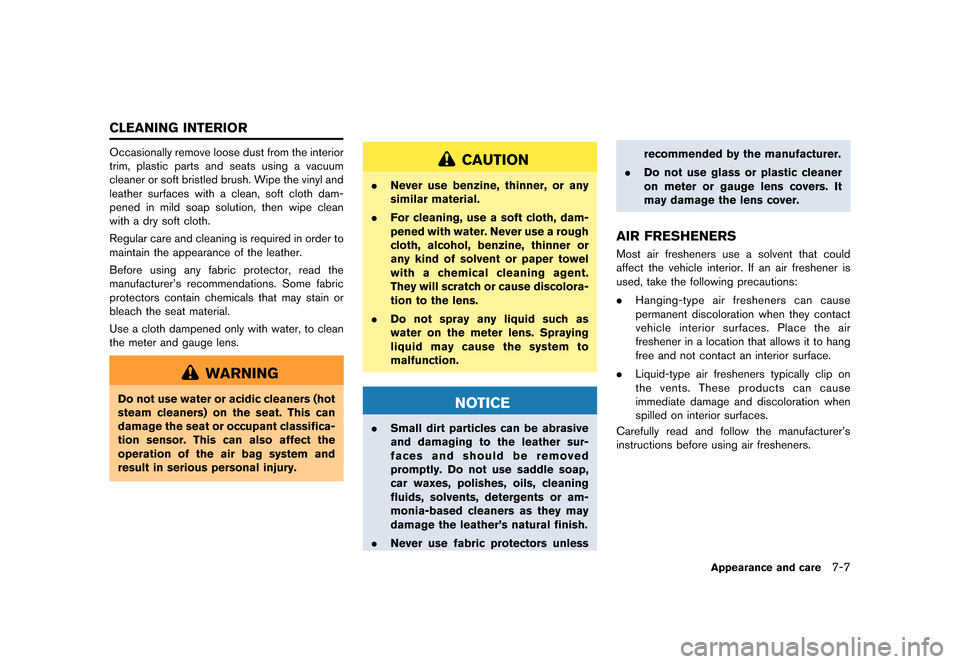

Cleaning interior ...................................................................... 7-7 Air fresheners .................................................................... 7-7
Floor mats ........................................................................\
.. 7-8
Seat belts ........................................................................\
... 7-8
Corrosion protection ............................................................... 7-9
Most common factors contributing to
vehicle corrosion .............................................................. 7-9
Environmental factors influence the rate
of corrosion ....................................................................... 7-9
To protect your vehicle from corrosion ................... 7-10


> (GLW    0RGHO 5' @

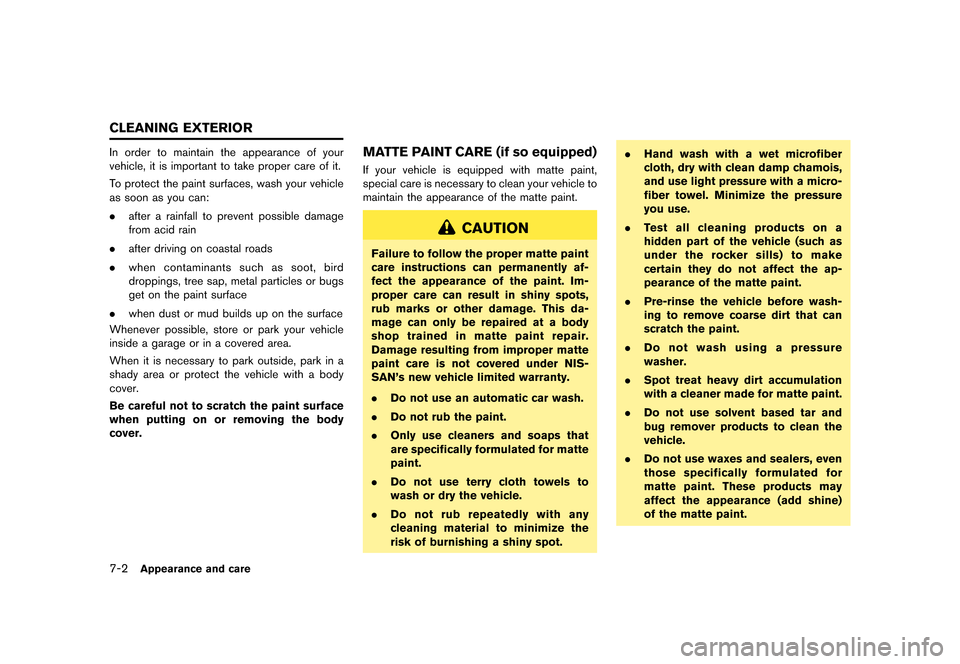

7-2Appearance and care
In order to maintain the appearance of your
vehicle, it is important to take proper care of it.
To protect the paint surfaces, wash your vehicle
as soon as you can:
.after a rainfall to prevent possible damage
from acid rain
. after driving on coastal roads
. when contaminants such as soot, bird
droppings, tree sap, metal particles or bugs
get on the paint surface
. when dust or mud builds up on the surface
Whenever possible, store or park your vehicle
inside a garage or in a covered area.
When it is necessary to park outside, park in a
shady area or protect the vehicle with a body
cover.
Be careful not to scratch the paint surface
when putting on or removing the body
cover.MATTE PAINT CARE (if so equipped)
If your vehicle is equipped with matte paint,
special care is necessary to clean your vehicle to
maintain the appearance of the matte paint.
CAUTION
Failure to follow the proper matte paint
care instructions can permanently af-
fect the appearance of the paint. Im-
proper care can result in shiny spots,
rub marks or other damage. This da-
mage can only be repaired at a body
shop trained in matte paint repair.
Damage resulting from improper matte
paint care is not covered under NIS-
SAN's new vehicle limited warranty.
. Do not use an automatic car wash.
. Do not rub the paint.
. Only use cleaners and soaps that
are specifically formulated for matte
paint.
. Do not use terry cloth towels to
wash or dry the vehicle.
. Do not rub repeatedly with any
cleaning material to minimize the
risk of burnishing a shiny spot. .
Hand wash with a wet microfiber
cloth, dry with clean damp chamois,
and use light pressure with a micro-
fiber towel. Minimize the pressure
you use.
. Test all cleaning products on a
hidden part of the vehicle (such as
under the rocker sills) to make
certain they do not affect the ap-
pearance of the matte paint.
. Pre-rinse the vehicle before wash-
ing to remove coarse dirt that can
scratch the paint.
. Do not wash using a pressure
washer.
. Spot treat heavy dirt accumulation
with a cleaner made for matte paint.
. Do not use solvent based tar and
bug remover products to clean the
vehicle.
. Do not use waxes and sealers, even
those specifically formulated for
matte paint. These products may
affect the appearance (add shine)
of the matte paint.
CLEANING EXTERIOR


> (GLW    0RGHO 5' @

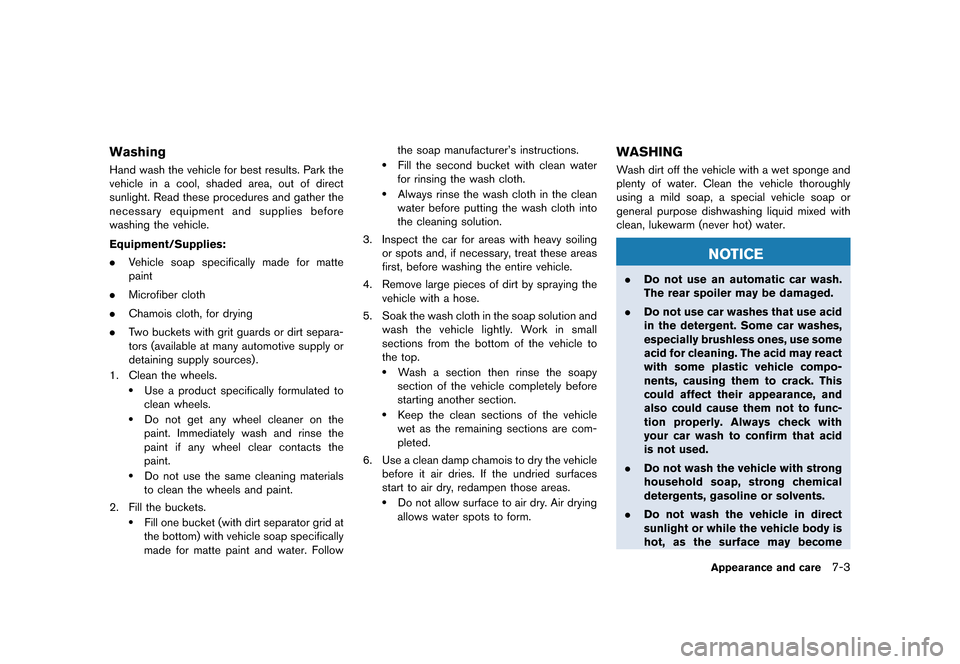

Washing
Hand wash the vehicle for best results. Park the
vehicle in a cool, shaded area, out of direct
sunlight. Read these procedures and gather the
necessary equipment and supplies before
washing the vehicle.
Equipment/Supplies:
.Vehicle soap specifically made for matte
paint
. Microfiber cloth
. Chamois cloth, for drying
. Two buckets with grit guards or dirt separa-
tors (available at many automotive supply or
detaining supply sources) .
1. Clean the wheels.
.Use a product specifically formulated to
clean wheels.
.Do not get any wheel cleaner on the
paint. Immediately wash and rinse the
paint if any wheel clear contacts the
paint.
.Do not use the same cleaning materials
to clean the wheels and paint.
2. Fill the buckets.
.Fill one bucket (with dirt separator grid at
the bottom) with vehicle soap specifically
made for matte paint and water. Follow the soap manufacturer's instructions.
.Fill the second bucket with clean water
for rinsing the wash cloth.
.Always rinse the wash cloth in the clean
water before putting the wash cloth into
the cleaning solution.
3. Inspect the car for areas with heavy soiling or spots and, if necessary, treat these areas
first, before washing the entire vehicle.
4. Remove large pieces of dirt by spraying the vehicle with a hose.
5. Soak the wash cloth in the soap solution and wash the vehicle lightly. Work in small
sections from the bottom of the vehicle to
the top.
.Wash a section then rinse the soapy
section of the vehicle completely before
starting another section.
.Keep the clean sections of the vehicle
wet as the remaining sections are com-
pleted.
6. Use a clean damp chamois to dry the vehicle before it air dries. If the undried surfaces
start to air dry, redampen those areas.
.Do not allow surface to air dry. Air drying
allows water spots to form.
WASHING
Wash dirt off the vehicle with a wet sponge and
plenty of water. Clean the vehicle thoroughly
using a mild soap, a special vehicle soap or
general purpose dishwashing liquid mixed with
clean, lukewarm (never hot) water.
NOTICE
. Do not use an automatic car wash.
The rear spoiler may be damaged.
. Do not use car washes that use acid
in the detergent. Some car washes,
especially brushless ones, use some
acid for cleaning. The acid may react
with some plastic vehicle compo-
nents, causing them to crack. This
could affect their appearance, and
also could cause them not to func-
tion properly. Always check with
your car wash to confirm that acid
is not used.
. Do not wash the vehicle with strong
household soap, strong chemical
detergents, gasoline or solvents.
. Do not wash the vehicle in direct
sunlight or while the vehicle body is
hot, as the surface may become
Appearance and care7-3


> (GLW    0RGHO 5' @

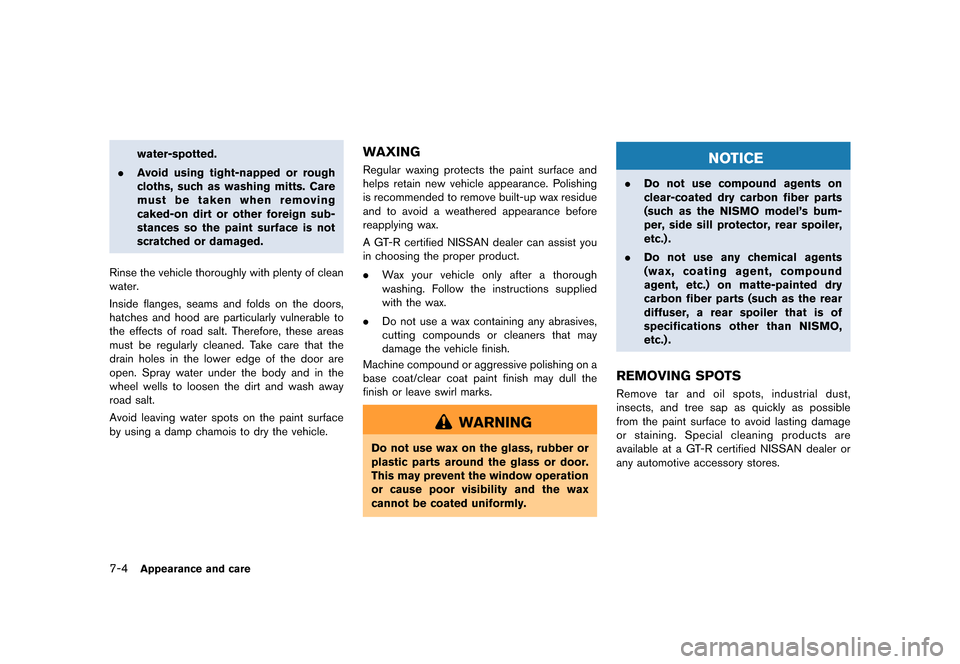

7-4Appearance and care
water-spotted.
. Avoid using tight-napped or rough
cloths, such as washing mitts. Care
must be taken when removing
caked-on dirt or other foreign sub-
stances so the paint surface is not
scratched or damaged.
Rinse the vehicle thoroughly with plenty of clean
water.
Inside flanges, seams and folds on the doors,
hatches and hood are particularly vulnerable to
the effects of road salt. Therefore, these areas
must be regularly cleaned. Take care that the
drain holes in the lower edge of the door are
open. Spray water under the body and in the
wheel wells to loosen the dirt and wash away
road salt.
Avoid leaving water spots on the paint surface
by using a damp chamois to dry the vehicle.WAXING
Regular waxing protects the paint surface and
helps retain new vehicle appearance. Polishing
is recommended to remove built-up wax residue
and to avoid a weathered appearance before
reapplying wax.
A GT-R certified NISSAN dealer can assist you
in choosing the proper product.
. Wax your vehicle only after a thorough
washing. Follow the instructions supplied
with the wax.
. Do not use a wax containing any abrasives,
cutting compounds or cleaners that may
damage the vehicle finish.
Machine compound or aggressive polishing on a
base coat/clear coat paint finish may dull the
finish or leave swirl marks.
WARNING
Do not use wax on the glass, rubber or
plastic parts around the glass or door.
This may prevent the window operation
or cause poor visibility and the wax
cannot be coated uniformly.
NOTICE
. Do not use compound agents on
clear-coated dry carbon fiber parts
(such as the NISMO model's bum-
per, side sill protector, rear spoiler,
etc.) .
. Do not use any chemical agents
(wax, coating agent, compound
agent, etc.) on matte-painted dry
carbon fiber parts (such as the rear
diffuser, a rear spoiler that is of
specifications other than NISMO,
etc.) .
REMOVING SPOTS
Remove tar and oil spots, industrial dust,
insects, and tree sap as quickly as possible
from the paint surface to avoid lasting damage
or staining. Special cleaning products are
available at a GT-R certified NISSAN dealer or
any automotive accessory stores.


> (GLW    0RGHO 5' @

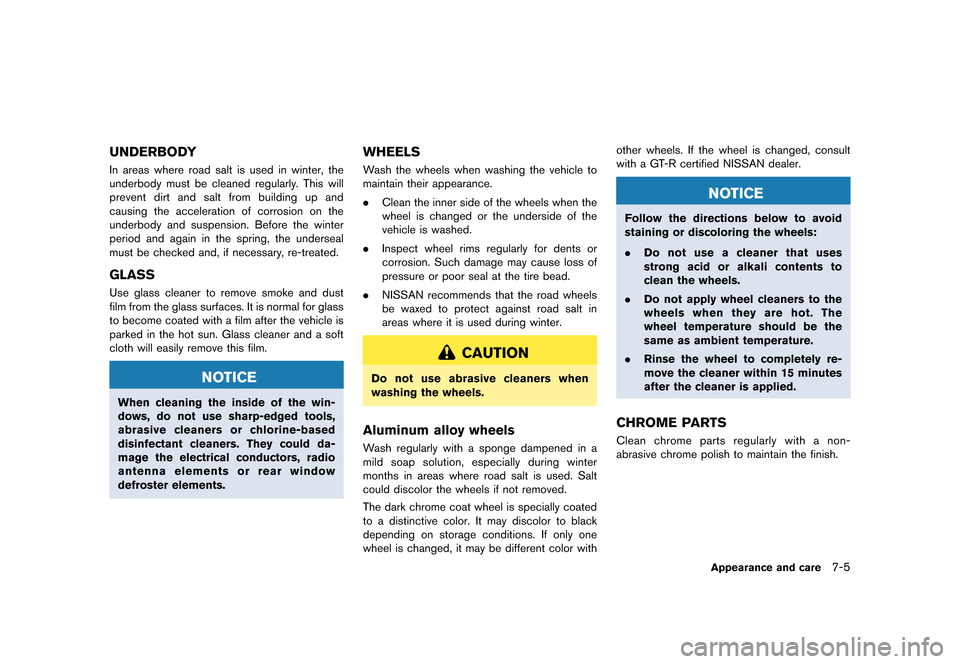

UNDERBODY
In areas where road salt is used in winter, the
underbody must be cleaned regularly. This will
prevent dirt and salt from building up and
causing the acceleration of corrosion on the
underbody and suspension. Before the winter
period and again in the spring, the underseal
must be checked and, if necessary, re-treated.
GLASS
Use glass cleaner to remove smoke and dust
film from the glass surfaces. It is normal for glass
to become coated with a film after the vehicle is
parked in the hot sun. Glass cleaner and a soft
cloth will easily remove this film.
NOTICE
When cleaning the inside of the win-
dows, do not use sharp-edged tools,
abrasive cleaners or chlorine-based
disinfectant cleaners. They could da-
mage the electrical conductors, radio
antenna elements or rear window
defroster elements.
WHEELS
Wash the wheels when washing the vehicle to
maintain their appearance.
.Clean the inner side of the wheels when the
wheel is changed or the underside of the
vehicle is washed.
. Inspect wheel rims regularly for dents or
corrosion. Such damage may cause loss of
pressure or poor seal at the tire bead.
. NISSAN recommends that the road wheels
be waxed to protect against road salt in
areas where it is used during winter.
CAUTION
Do not use abrasive cleaners when
washing the wheels.
Aluminum alloy wheels
Wash regularly with a sponge dampened in a
mild soap solution, especially during winter
months in areas where road salt is used. Salt
could discolor the wheels if not removed.
The dark chrome coat wheel is specially coated
to a distinctive color. It may discolor to black
depending on storage conditions. If only one
wheel is changed, it may be different color with other wheels. If the wheel is changed, consult
with a GT-R certified NISSAN dealer.
NOTICE
Follow the directions below to avoid
staining or discoloring the wheels:
.
Do not use a cleaner that uses
strong acid or alkali contents to
clean the wheels.
. Do not apply wheel cleaners to the
wheels when they are hot. The
wheel temperature should be the
same as ambient temperature.
. Rinse the wheel to completely re-
move the cleaner within 15 minutes
after the cleaner is applied.
CHROME PARTS
Clean chrome parts regularly with a non-
abrasive chrome polish to maintain the finish.
Appearance and care7-5


> (GLW    0RGHO 5' @
7-6Appearance and care
OUTSIDE DOOR HANDLES
After driving on a road where salt is used in
winter, immediately wash and clean the outside
door handles that are provided with a special
coating. This will keep the beautiful finish longer.
TIRE DRESSING
NISSAN does not recommend the use of tire
dressings. Tire manufacturers apply a coating to
the tires to help reduce discoloration of the
rubber. If a tire dressing is applied to the tires, it
may react with the coating and form a com-
pound. This compound may come off the tire
while driving and stain the vehicle paint.
If you choose to use a tire dressing, take the
following precautions:
.Use a water-based tire dressing. The coat-
ing on the tire dissolves more easily with an
oil-based tire dressing.
. Apply a light coat of tire dressing to help
prevent it from entering the tire tread/
grooves (where it would be difficult to
remove) .
. Wipe off excess tire dressing using a dry
towel. Make sure the tire dressing is
completely removed from the tire tread/
grooves. .
Allow the tire dressing to dry as recom-
mended by tire dressing manufacturer.
DRY CARBON FIBER PARTS (if so
equipped)
Because of the characteristics of the material,
the dry carbon fiber parts may turn yellow due to
exposure to ultraviolet rays. The surfaces of dry
carbon fiber parts are coated with a special
ultraviolet protection paint. To maintain the
appearance of these parts, it is important to
take proper care of them.
NOTICE
.Do not use compound agents on
clear-coated dry carbon fiber parts
(such as the NISMO model's bum-
per, side sill protector, rear spoiler,
etc.) .
. Do not use any chemical agents
(wax, coating agent, compound
agent, etc.) on matte-painted dry
carbon fiber parts (such as the rear
diffuser, a rear spoiler that is of
specifications other than NISMO,
etc.) .
. When dry carbon fiber parts become
dirty, prepare a dilute cleaning solu- tion by mixing one capful of mild
detergent in a bucket of water, and
use that mixture to clean the parts.
NOTE:
The surfaces of the dry carbon fiber parts
are lightly coated like a race car so that
you can feel the proper texture of real
carbon, which may feel rough. This is
normal.


> (GLW    0RGHO 5' @
Occasionally remove loose dust from the interior
trim, plastic parts and seats using a vacuum
cleaner or soft bristled brush. Wipe the vinyl and
leather surfaces with a clean, soft cloth dam-
pened in mild soap solution, then wipe clean
with a dry soft cloth.
Regular care and cleaning is required in order to
maintain the appearance of the leather.
Before using any fabric protector, read the
manufacturer's recommendations. Some fabric
protectors contain chemicals that may stain or
bleach the seat material.
Use a cloth dampened only with water, to clean
the meter and gauge lens.
WARNING
Do not use water or acidic cleaners (hot
steam cleaners) on the seat. This can
damage the seat or occupant classifica-
tion sensor. This can also affect the
operation of the air bag system and
result in serious personal injury.
CAUTION
.Never use benzine, thinner, or any
similar material.
. For cleaning, use a soft cloth, dam-
pened with water. Never use a rough
cloth, alcohol, benzine, thinner or
any kind of solvent or paper towel
with a chemical cleaning agent.
They will scratch or cause discolora-
tion to the lens.
. Do not spray any liquid such as
water on the meter lens. Spraying
liquid may cause the system to
malfunction.
NOTICE
.Small dirt particles can be abrasive
and damaging to the leather sur-
faces and should be removed
promptly. Do not use saddle soap,
car waxes, polishes, oils, cleaning
fluids, solvents, detergents or am-
monia-based cleaners as they may
damage the leather's natural finish.
. Never use fabric protectors unless recommended by the manufacturer.
. Do not use glass or plastic cleaner
on meter or gauge lens covers. It
may damage the lens cover.
AIR FRESHENERS
Most air fresheners use a solvent that could
affect the vehicle interior. If an air freshener is
used, take the following precautions:
.Hanging-type air fresheners can cause
permanent discoloration when they contact
vehicle interior surfaces. Place the air
freshener in a location that allows it to hang
free and not contact an interior surface.
. Liquid-type air fresheners typically clip on
the vents. These products can cause
immediate damage and discoloration when
spilled on interior surfaces.
Carefully read and follow the manufacturer's
instructions before using air fresheners.
Appearance and care7-7
CLEANING INTERIOR
