TIRES AND ROAD WHEELSGUID-AE89B207-0183-4108-BA70-ACA595E17E48
TiresGUID-833C4A52-FAA4-4966-9FF7-1AFCA79765BAThe GT-R uses specially designed run-flat tires
and matching road wheels. Use of these
specially developed tires and wheels provides
the greatest potential for maximum performance.
.Using non-genuine GT-R tires may cause
powertrain system damage if the vehicle is
driven in a flat tire situation, even if run-flat
tires are used. This may also prevent the
vehicle from being stopped safely.
. Using non-genuine GT-R tires may also
cause tire failure due to excessive heat
buildup caused by tire distortion while
driving.
. Using non-genuine GT-R tires may affect the
operation of the VDC system.
Tire replacement:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9. When tire replacement is required, replacing
tires as a set of four with new tires is
recommended. However, if a tire is punctu-
red or damaged, it may be possible to
replace only the damaged tire. Determining
whether one tire or a complete set of tires
should be replaced is based on a number of
factors including tire wear and condition. Contact your GT-R certified NISSAN dealer.
They can recommend if an individual tire or a
complete set should be replaced.
. The GT-R uses specially designed run-flat
tires which have a rigid side wall. Special
equipment and procedures are required
when replacing these tires. NISSAN recom-
mends that tire replacement be performed at
a GT-R certified NISSAN dealer.
. Specific tire changing equipment must be
used to remove the GT-R tires from the
wheel and to install the GT-R tires onto the
wheel. It is only possible to reuse the tires
when they have no cracks and/or deforma-
tions on the bead portion of the tire. If the
incorrect equipment is used to remove the
GT-R tires from the wheel and to install the
GT-R tires onto the wheel, cracks and
deformation may occur on the bead portion
of the tires meaning that the tires cannot be
reused. Contact a GT-R certified NISSAN
dealer if the tires need to be removed from
the wheels.
. When reusing tires, it is recommended you
contact a GT-R certified NISSAN dealer.
Road wheelsGUID-26621B4F-F1B4-4D33-B4DA-52FC5AF70F6BUsing non-genuine GT-R wheels may cause the
following:
.vehicle vibration
. the tire coming loose from the wheel during
a flat tire
. reduced wheel lug nut tightness
BRAKE PAD AND DISC ROTORGUID-A43FA529-3EE0-40C1-8C7E-F6364A4F99E9This vehicle is equipped with cross-drilled
floating rotors and radial-mounted six-piston
monoblock calipers. This helps to achieve
excellent stopping performance and fade-resis-
tance.
Using non-genuine GT-R brake pads or rotors
can affect vehicle braking performance and the
operation of the ABS and VDC system.
Replacement of brake pads and disc
rotors
GUID-FD4E789E-E241-441D-844F-0CD7945717EBNISSAN generally recommends to replace all
four sets of brake pads and disc rotors at the
same time to maintain maximum brake perfor-
mance.
However, replacing only the brake pads may be
allowed in some cases (four wheels or only front
wheels depending on the conditions) . A GT-R
GT-R OverviewGTR-5
GT-R SPECIAL PRECAUTIONS
Page 23 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GTR-16GT-R Overview
Wheels and tiresGUID-4DFCB043-2E7B-4A61-BEEF-3F105B41DC54The information and specifications in this
section apply only when engaging in
performance driving.
.Check tire wear and cracking.
. Inspect the tire side wall for damage.
. Check the tire pressure and adjust the
pressure as necessary when the tires are
cold. (
ªWheels and tiresº page 8-32)
The tire pressure changes depending on the
outside temperature or altitude. Check the tire
pressure regularly and when the climate condi-
tions change.
* The following chart indicates how the tire
pressure will decrease as outside air tempera-
ture decreases.
SSI0696
WARNING
Keep your tires inflated to the correct
tire pressure. Driving with low tire
pressure can damage some powertrain
systems and affect the operation of the
ABS and VDC systems. Low Tire pres-
sure may also cause tire failure and
result in serious personal injury or
death.
. Make sure the tire valve stem cap is installed
and that the valve stem is tight. When
installing the cap, make sure to tighten the cap by hand. If a tool is used to tighten the
cap, the cap may be damaged.
. Make sure the wheel nuts are tight.
(
ªWheels and tiresº page 8-32)
. Make sure the drive shaft nuts are tight.
. Make sure to replace the grommet seal, the
valve core and the valve cap of the Tire
Pressure Monitoring System (TPMS) sensor
attached to the wheel every 3 years for
performance driving use. Replace them
every 5 years even when not engaging in
performance driving. A dirty grommet seal
will cause the air leak from the tire.
. Make sure that the nuts and valves that are
attached to the TPMS sensor are tight and
there is no nitrogen leak.
. Use only a NISSAN genuine valve cap or
equivalent.
. Check wheel hub run out and that the wheel
rotates smoothly without any friction. Check
these with the tires removed whenever an
inspection is performed with the vehicle
jacked up.
. Secure road wheel balance weights with
aluminum tape.
. Check that the wheel nuts are not stripped.
Page 31 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GTR-24GT-R Overview
1588F (708C) , drive the vehicle until it reaches
normal operating temperature. If the temperature
is higher than 2308F (1108C), perform cool-
down driving procedure. (
ªCool downº
page GTR-12) When the temperature of the
engine coolant is between 1588F (708C) and
2308F (1108C) , the engine output returns to
normal.
UNEVEN WEAR OF TIRESGUID-59A07A50-5E03-47E7-8FC7-CEFC9932C699The GT-R is equipped with high performance,
low profile, run-flat tires that are optimized for
performance and handling. The life of these tires
will be less than those of tires installed on a
typical vehicle, and you are likely to experience
uneven tire wear and tire noise regardless of the
type of tire used.
NOISES ARE HEARD WHILE DRIV-
ING
GUID-0FCF3045-9BA4-4C8F-B6C6-7E56184A22F9. The GT-R brake pads use material that
provides a high amount of braking power
even in high temperatures. This material can
cause an intermittent screeching noise just
before the vehicle comes to a stop when the
brakes are gently applied. The noise de-
creases as the brake pads wear. However,
the additional brake pad break-in or repla-
cing the cross spring may decrease the noise. It is recommended you contact a
GT-R certified NISSAN dealer.
. A screeching noise may be heard when the
brake pedal is depressed:
Ð When driving the vehicle for the first time
in the morning,
Ð After leaving the vehicle parked for extended periods of time, or
Ð When the vehicle is damp following rain showers or washing the vehicle.
These sounds are normal. The noise is
caused when the brake pads absorb moist-
ure, and the noise stops after the brake is
applied several times.
. A screeching noise may also be heard when
the brake pedal is depressed:
Ð When repeatedly applying gentle brak-
ing, especially on a curve at a low speed,
or
Ð When the brake rotors have circular scores with the brake temperature high.
WARNING
Follow the instructions below when
parking the vehicle to help prevent the
brake rotor and brake pads from rust-
ing together. Failure to follow the instructions could cause the rotor and
pads to rust together. If the rotor and
pads rust together, there may be a
popping noise and some vibration
when the vehicle is driven, a wheel
may not roll correctly, or the brake pads
could be damaged. If the pads are
damaged, this may reduce the effec-
tiveness of the brake system which
could cause a collision, serious perso-
nal injury or death.
. The GT-R uses brake pad materials that
have high metallic content. The brake pad
material helps maintain braking performance
in a wide range of weather and driving
conditions.
For the first 3,000-6,000 miles (5,000-
10,000 km) of the vehicle's service life,
and for the first 3,000-6,000 miles (5,000-
10,000 km) after a brake replacement, the
brake pad to brake rotor clearance is very
small. When parking, apply the parking
brake and move the shift lever to the
&P
position. Idle the engine for more than 20
seconds without depressing the brake
pedal. This allows the brake pads to move
away from the rotor so the pad does not
contact the rotor.
Page 50 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-51B7C3A8-BBEA-4142-A313-89A7B5E77D7E
Warninglight Name
Page
All-Wheel Drive (AWD) warning
light 2-25
Anti-lock Braking System
(ABS) warning light2-26
Brake warning light
2-26
Charge warning light2-27
Engine oil pressure warning
light2-27
Intelligent Key warning light
2-27
Low tire pressure warning light2-27
Master warning light2-29
Seat belt warning light2-29
Supplemental air bag warning
light2-30
Transmission warning light
2-30Warning
light Name
Page
Vehicle Dynamic Control (VDC)
warning light 2-31Indicator
light Name
PageCruise main switch indicator
light 2-31
Cruise set switch indicator light
2-31
Exterior light indicator2-31
Front passenger air bag status
light2-31
High beam indicator light
2-31
Malfunction Indicator Light
(MIL)2-32
Turn signal/hazard indicator
lights
2-32
Vehicle Dynamic Control (VDC)
off indicator light2-32

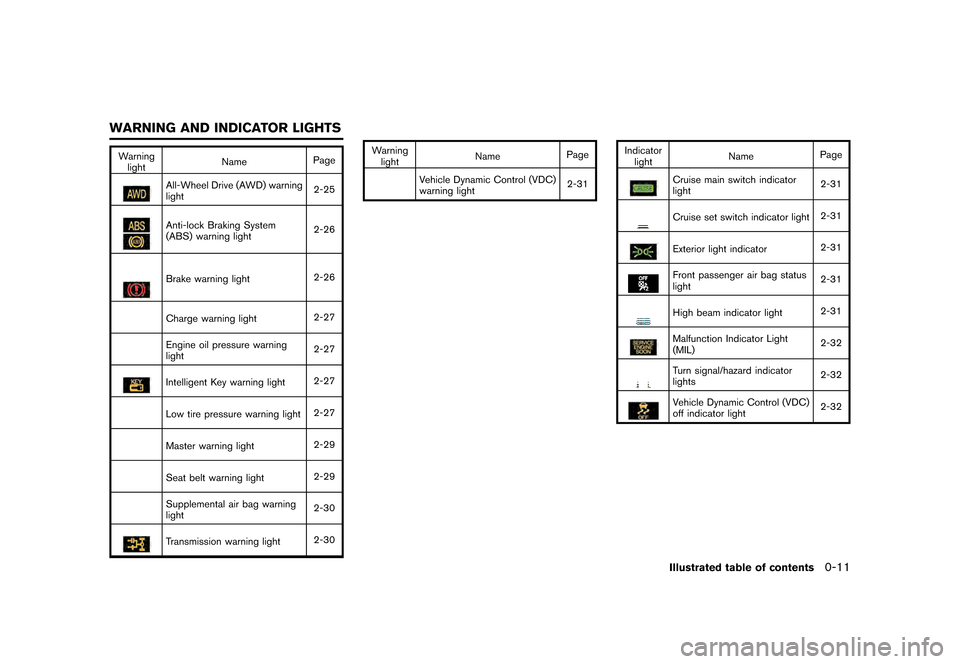

Illustrated table of contents0-11
WARNING AND INDICATOR LIGHTS
Page 104 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2 Instruments and controls
Cockpit............................................................................\
............... 2-3
Instrument panel ....
....................................................................... 2-4
Meters and gauges ....
.................................................................. 2-5
Speedometer ....
....................................................................... 2-6
Odometer/twin trip odometer ............................................. 2-6
Tachometer ............................................................................\
.. 2-7
Engine coolant temperature gauge ................................... 2-7
Fuel gauge ............................................................................\
... 2-8
Transmission position indicator .......................................... 2-9
Upshift indicator ..................................................................... 2-9
Instrument brightness control .......................................... 2-11
Vehicle information display ..................................................... 2-12
Engine oil level display ....
................................................... 2-12
Transmission system check display ....
............................ 2-14
Drive computer .......................................................................... 2-15
Current fuel consumption ................................................. 2-15
Vehicle speed ....
................................................................... 2-16
Cruise control ....
................................................................... 2-16
Average fuel consumption and speed ........................... 2-16
Elapsed time and trip odometer ....
.................................. 2-17
Distance to empty ............................................................... 2-17
Outside air temperature .................................................... 2-18
Setting (drive computer) ................................................... 2-19
Warning (drive computer) ....
............................................. 2-23 Warning lights, indicator lights and
audible reminders
.... ................................................................. 2-25
Checking lights ....
.............................................................. 2-25
Warning lights ....
................................................................ 2-25
Indicator lights ................................................................... 2-31
Audible reminders ............................................................. 2-33
Warning display ........................................................................ 2-34
Engine oil low pressure warning ....
............................... 2-35
Engine system warning ................................................... 2-35
Shift lever position warning ............................................ 2-35
Reverse warning ....
............................................................ 2-36
Transmission system warning ........................................ 2-36
Transmission oil high temperature warning ................ 2-36
Transmission clutch high temperature warning ....
..... 2-37
Parking brake release warning ...................................... 2-37
Low brake fluid warning .................................................. 2-37
Anti-lock Braking System (ABS) warning .................. 2-38
Vehicle Dynamic Control (VDC)
system warning ....
.............................................................. 2-38
AWD clutch high temperature warning ....
................... 2-38
Front/rear tire size discrepancy warning ....
................. 2-39
AWD system warning ...................................................... 2-39
Low tire pressure warning .............................................. 2-40
Run-flat tire warning ....
..................................................... 2-40
Page 128 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
GUID-0FC3F259-24D6-477D-9CD2-147340B1F652
All-Wheel Drive (AWD) warning lightLow tire pressure warning lightCruise set switch indicator light
Anti-lock Braking System (ABS) warning
lightMaster warning lightExterior light indicator
Seat belt warning lightFront passenger air bag status light
Brake warning lightSupplemental air bag warning lightHigh beam indicator light
Transmission warning lightMalfunction Indicator Light (MIL)
Charge warning lightVehicle Dynamic Control (VDC) warning
lightTurn signal/hazard indicator lights
Engine oil pressure warning lightCruise main switch indicator lightVehicle Dynamic Control (VDC) off indicator
light
Intelligent Key warning light
CHECKING LIGHTSGUID-0690CE37-25FD-4D73-A7AF-AFE1D852C699With all doors closed, apply the parking brake,
fasten the seat belts and place the ignition
switch in the ON position without starting the
engine. The following lights (if so equipped) will
come on:
,or,,,
The following lights (if so equipped) will come
on briefly and then go off:
,or,,,,,
If any light does not come on or operates in a
way other than described, it may indicate aburned-out bulb and/or a system malfunction. It
is recommended you have the system checked
by a GT-R certified NISSAN dealer.
WARNING LIGHTSGUID-C643F323-574D-4369-917C-E9A71BC3B75B
All-Wheel Drive (AWD) warn-
ing light
GUID-1B607105-7534-4297-BBBA-7F608F3BEDDCThewarning light comes on when the
ignition switch is pushed to ON. It turns off soon
after the engine is started.
If the AWD system malfunctions, the warning
light will either remain illuminated or blink. (
ªAll-Wheel Drive (AWD)º page 5-41)
CAUTION
.
If the warning light comes on while
driving there may be a malfunction
in the AWD system. Reduce the
vehicle speed and have your vehicle
checked by a GT-R certified NISSAN
dealer as soon as possible.
. If the AWD warning light blinks on
when you are driving:
Instruments and controls2-25
WARNING LIGHTS, INDICATOR
LIGHTS AND AUDIBLE REMINDERS
Page 129 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-26Instruments and controls
Ð blinks rapidly (about twice asecond):
Pull off the road in a safe area,
and idle the engine. The driving
mode will change to RWD to
prevent the AWD system from
malfunctioning. If the warning
light turns off, you can drive
again. This does not indicate
that there is a malfunction.
Ð blinks slowly (about once every 2 seconds):
Pull off the road in a safe area,
and idle the engine. Check that
all tire sizes are the same as
that specified on the Tire and
Loading Information label lo-
cated in the driver's door open-
ing, tire pressure is correct and
tires are not worn. (
ªTire
and loading information labelº
page 9-13)
If the tire pressure is insuffi-
cient, fill with nitrogen gas. It is
recommended you contact a
GT-R certified NISSAN dealer
about filling with nitrogen gas.
If nitrogen gas is not available,
compressed air may be safely used under normal driving con-
ditions. However, NISSAN re-
commends refilling with
nitrogen gas for maximum tire
performance.
. If the warning light is still on after
the above operations, have your
vehicle checked by a GT-R certified
NISSAN dealer as soon as possible.
orAnti-lock Braking
System (ABS) warning light
GUID-88C3D3A9-3B60-439B-B8E8-138D779FCFB7When the ignition switch is in the ON position,
the Anti-lock Braking System (ABS) warning
light illuminates and then turns off. This indicates
the ABS is operational.
If the ABS warning light illuminates while the
engine is running, or while driving, it may
indicate the ABS is not functioning properly. It
is recommended you have the system checked
by a GT-R certified NISSAN dealer.
If an ABS malfunction occurs, the anti-lock
function is turned off. The brake system then
operates normally, but without anti-lock assis-
tance. (
ªBrake systemº page 5-51)
orBrake warning lightGUID-014B7403-EB53-433D-8D6C-5FFB9841E63AThis light functions for both the parking brake
and the foot brake systems.
Parking brake indicator:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9When the ignition switch is in the ON position,
the light comes on when the parking brake is
applied.
Low brake fluid warning light:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9When the ignition switch is in the ON position,
the light warns of a low brake fluid level. If the
light comes on while the engine is running with
the parking brake not applied, stop the vehicle
and perform the following:
1. Check the brake fluid level. Add brake fluid
as necessary. (
ªBrake fluidº page 8-
15)
2. If the brake fluid level is correct, it is
recommended you have the warning system
checked by a GT-R certified NISSAN dealer.
Anti-lock Braking System (ABS) warning
indicator:
GUID-E22DEED8-E349-45C2-B1F1-0C9BCF3B8FB9When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the Anti-lock Braking System
(ABS) warning light illuminate, it may indicate
the ABS is not functioning properly. It is
recommended you have the brake system
Page 130 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
checked, and if necessary repaired, by a GT-R
certified NISSAN dealer promptly. (
ªAnti-
lock Braking System (ABS) warning lightº page
2-26)
WARNING
. Your brake system may not be
working properly if the warning light
is on. Driving could be dangerous. If
you judge it to be safe, drive care-
fully to the nearest service station
for repairs. Otherwise, have your
vehicle towed because driving it
could be dangerous.
. Pressing the brake pedal with the
engine stopped and/or low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.
. If the brake fluid level is below the
minimum or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
GT-R certified NISSAN dealer.
Charge warning lightGUID-133A62B2-7E8B-4EF3-9103-A37320F99DAEIf the light comes on while the engine is running,
it may indicate the charging system is not
functioning properly. Turn the engine off and
check the alternator belt. If the belt is loose,
broken, missing or if the light remains on, it is
recommended you see a GT-R certified NISSAN
dealer immediately.
NOTICE
Do not continue driving if the alternator
belt is loose, broken or missing.
Engine oil pressure warning
light
GUID-D66D6512-DD02-407A-B4CC-E2B0D6F8CFBBThis light warns of low engine oil pressure. If the
light flickers or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediately and call a GT-R certified NISSAN
dealer.
The engine oil pressure warning light is
not designed to indicate a low oil level.
Check the vehicle information display or
use the dipstick to check the oil level.
(
ªEngine oil level displayº page 2-12)
(
ªChecking engine oil levelº page 8-13)
NOTICE
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning lightGUID-25C0AA6B-82C8-42D5-8984-4E4E27CAAB43After the ignition switch is pushed to the ON
position, this light comes on for about 2 seconds
and then turns off.
This light warns of a malfunction with the
electrical steering lock system or the Intelligent
Key system.
If the light comes on while the engine is
stopped, it may be impossible to free the
steering lock or to start the engine. If the light
comes on while the engine is running, you can
drive the vehicle. However in these cases, it is
recommended you contact a GT-R certified
NISSAN dealer for repair as soon as possible.
Low tire pressure warning lightGUID-BB3B0771-5818-4948-9BC3-7EB1194EB378Your vehicle is equipped with a Tire Pressure
Monitoring System (TPMS) that monitors the tire
pressure of all tires.
The low tire pressure warning light warns of low
Instruments and controls2-27
Page 141 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
2-38Instruments and controls
JVI0059X
ANTI-LOCK BRAKING SYSTEM
(ABS) WARNING
GUID-8CCDA845-FDDC-4648-8DF6-79AFF98E1C97This will appear if the Anti-lock Braking System
(ABS) is not functioning properly. (
ªAnti-
lock Braking System (ABS) warning lightº page
2-26) (
ªBrake warning lightº page 2-26)
JVI0060X
VEHICLE DYNAMIC CONTROL (VDC)
SYSTEM WARNING
GUID-53CD1130-485D-41F1-A5E7-CA1A9528FA15This will appear if the Vehicle Dynamic Control
(VDC) system or the hill start assist system is
not functioning properly. (
ªVehicle Dynamic
Control (VDC) warning lightº page 2-31)
(
ªVehicle Dynamic Control (VDC) off in-
dicator lightº page 2-32)
JVI0148X
AWD CLUTCH HIGH TEMPERATURE
WARNING
GUID-B3D3A241-F717-4CD9-84D5-2622F89245C9This will appear if the temperature of the AWD
clutch becomes unusually high. (
ªAll-
Wheel Drive (AWD) warning lightº page 2-25)
Page 221 of 386
> ( G L W 0 R G H O 0 < 1 , 6 6 $ 1 * 7 5 5 2 0 ( 5 8 @
Power steering....
....................................................................... 5-50
Brake system ....
........................................................................\
.. 5-51
Braking precautions ....
........................................................ 5-51
Parking brake break-in ....................................................... 5-51
Brake assist ............................................................................\
.... 5-52
Anti-lock Braking System (ABS) .................................... 5-52
Vehicle Dynamic Control (VDC) system ............................. 5-53
Cold weather driving ....
............................................................ 5-56
Freeing a frozen door lock ....
............................................ 5-56
Anti-freeze ............................................................................\
. 5-56
Battery ............................................................................\
........ 5-56 Draining of coolant water
....
............................................ 5-56
Tire equipment ................................................................... 5-56
Special winter equipment ............................................... 5-56
Driving on snow or ice .................................................... 5-56
Engine block heater (if so equipped) .......................... 5-57
Exhaust sound control system (if so equipped) ....
........... 5-58
Active noise cancellation (if so equipped)/Active
sound enhancement (if so equipped) ....
............................. 5-59
Active noise cancellation ................................................ 5-59
Active sound enhancement ............................................ 5-59
