SDI2134

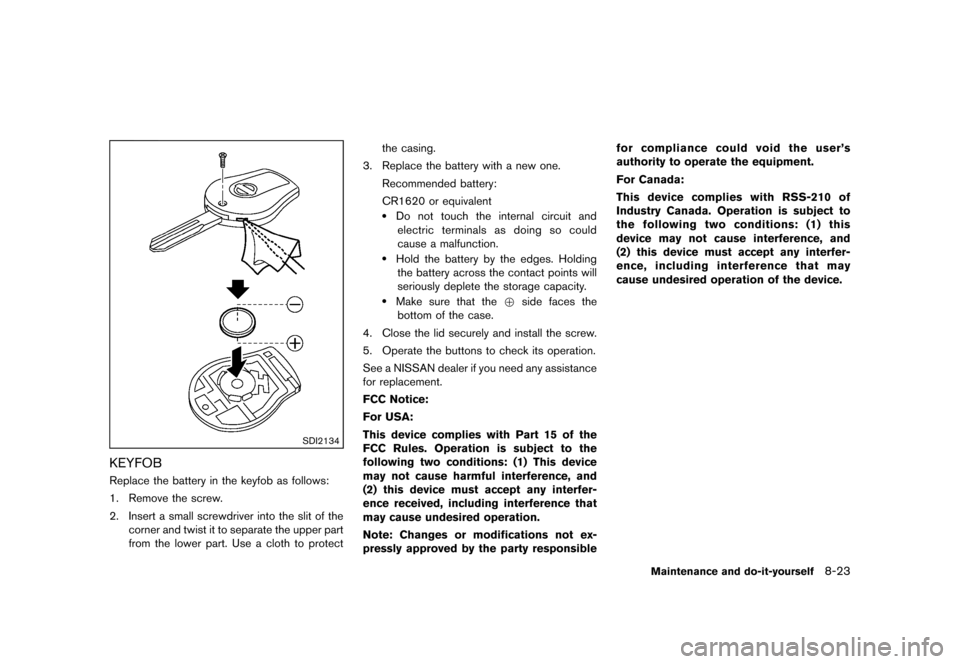

KEYFOBGUID-E55B4110-E79F-4489-B029-F93761BCDF4CReplace the battery in the keyfob as follows:
1. Remove the screw.
2. Insert a small screwdriver into the slit of thecorner and twist it to separate the upper part
from the lower part. Use a cloth to protect the casing.
3. Replace the battery with a new one.
Recommended battery:
CR1620 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom of the case.
4. Close the lid securely and install the screw.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
Maintenance and do-it-yourself8-23
Condition:
Page 302 of 347
Black plate (300,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
8-24Maintenance and do-it-yourself
SDI2451

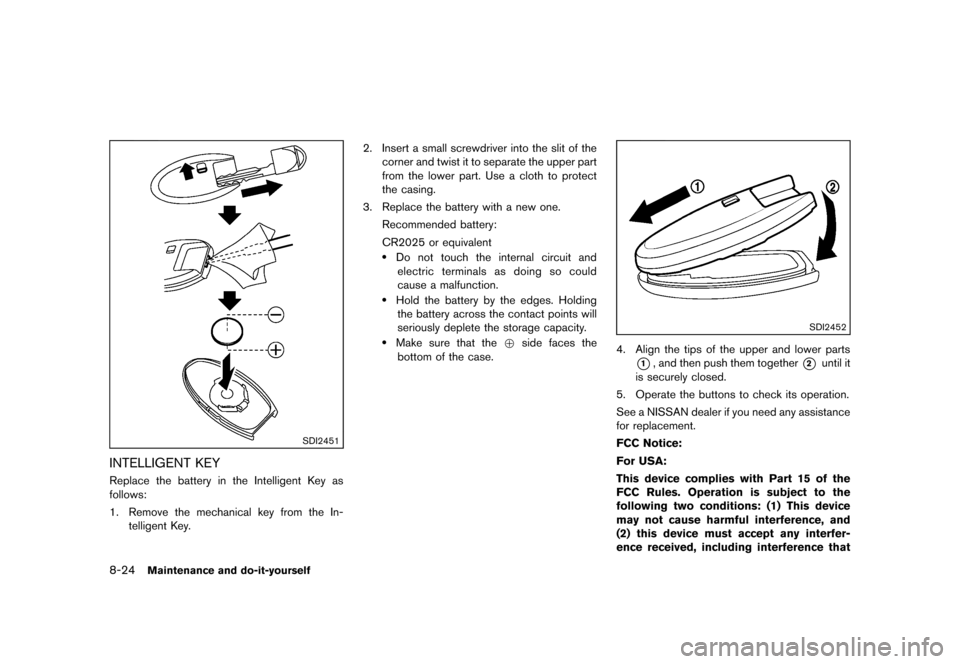

INTELLIGENT KEYGUID-FCDFA8DD-05FA-4AD2-9E13-9978F19EED8DReplace the battery in the Intelligent Key as
follows:
1. Remove the mechanical key from the In-telligent Key. 2. Insert a small screwdriver into the slit of the
corner and twist it to separate the upper part
from the lower part. Use a cloth to protect
the casing.
3. Replace the battery with a new one. Recommended battery:
CR2025 or equivalent
.Do not touch the internal circuit andelectric terminals as doing so could
cause a malfunction.
.Hold the battery by the edges. Holdingthe battery across the contact points will
seriously deplete the storage capacity.
.Make sure that the +side faces the
bottom of the case.
SDI2452
4. Align the tips of the upper and lower parts
*1, and then push them together*2until it
is securely closed.
5. Operate the buttons to check its operation.
See a NISSAN dealer if you need any assistance
for replacement.
FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any interfer-
ence received, including interference that
Condition:
Page 303 of 347
Black plate (301,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

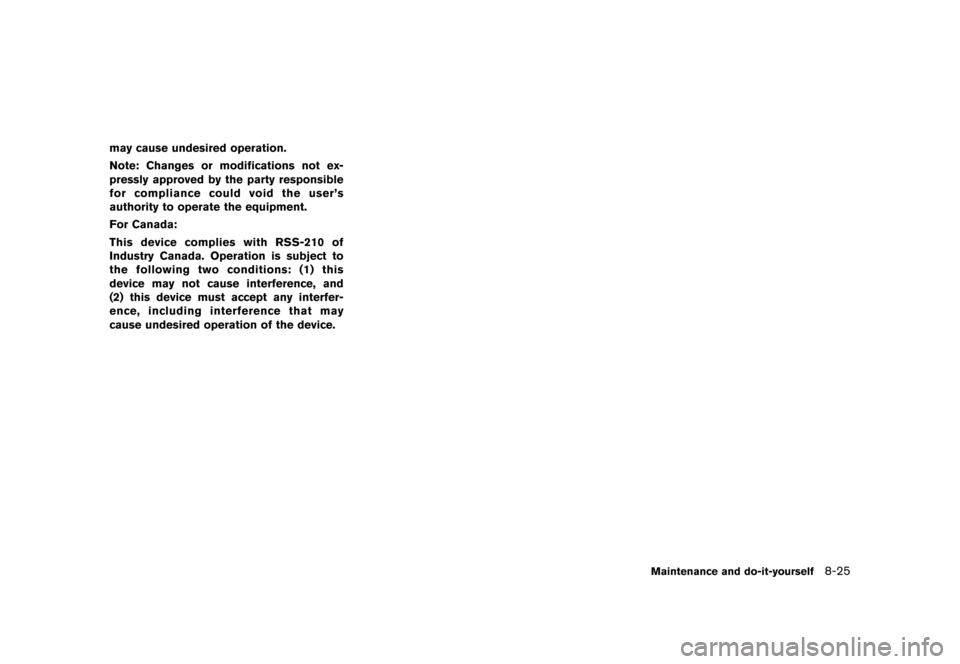

may cause undesired operation.
Note: Changes or modifications not ex-
pressly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
For Canada:
This device complies with RSS-210 of
Industry Canada. Operation is subject to
the following two conditions: (1) this
device may not cause interference, and
(2) this device must accept any interfer-
ence, including interference that may
cause undesired operation of the device.
Maintenance and do-it-yourself8-25
Condition:
Page 304 of 347
Black plate (302,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
8-26Maintenance and do-it-yourself
GUID-23FC80BC-9A5D-4CDF-AF41-4375212E36BD
SDI2640

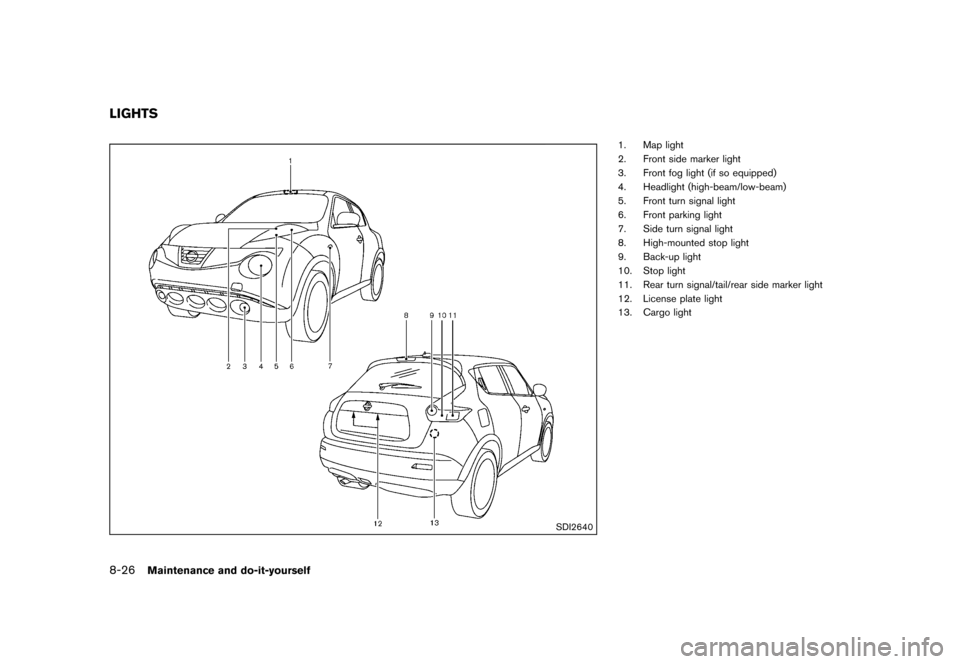

1. Map light
2. Front side marker light
3. Front fog light (if so equipped)
4. Headlight (high-beam/low-beam)
5. Front turn signal light
6. Front parking light
7. Side turn signal light
8. High-mounted stop light
9. Back-up light
10. Stop light
11. Rear turn signal/tail/rear side marker light
12. License plate light
13. Cargo light
LIGHTS
Condition:
Page 305 of 347
Black plate (303,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

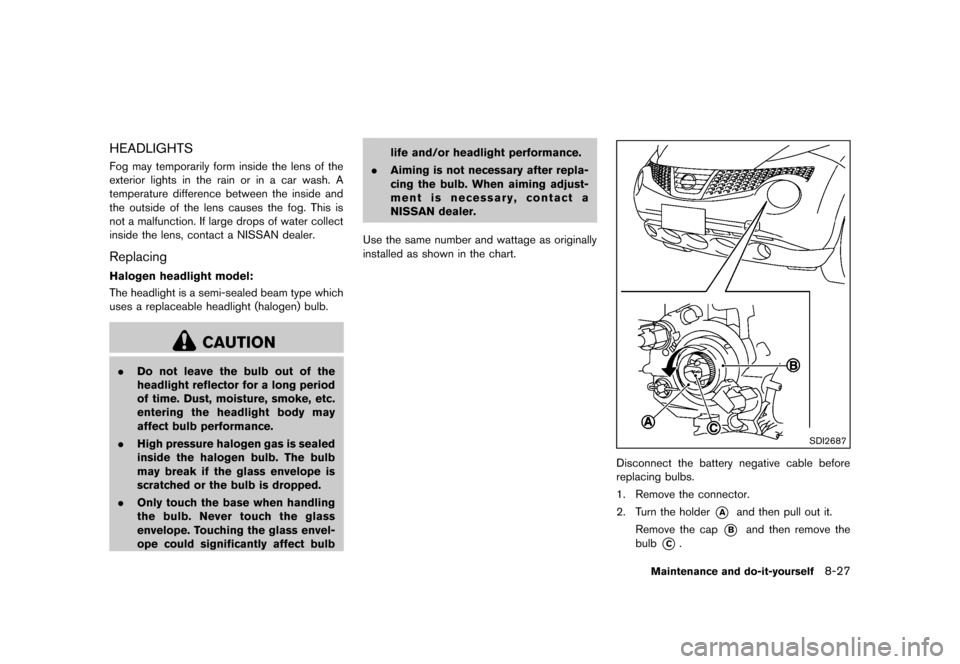

HEADLIGHTSGUID-2315F15B-21C2-48E3-B4D6-114A3540E8D5Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is
not a malfunction. If large drops of water collect
inside the lens, contact a NISSAN dealer.
ReplacingGUID-E802D82D-AE31-4C67-BD7D-36FB0F025F80
Halogen headlight model:GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53The headlight is a semi-sealed beam type which
uses a replaceable headlight (halogen) bulb.
CAUTION
.Do not leave the bulb out of the
headlight reflector for a long period
of time. Dust, moisture, smoke, etc.
entering the headlight body may
affect bulb performance.
. High pressure halogen gas is sealed
inside the halogen bulb. The bulb
may break if the glass envelope is
scratched or the bulb is dropped.
. Only touch the base when handling
the bulb. Never touch the glass
envelope. Touching the glass envel-
ope could significantly affect bulb life and/or headlight performance.
. Aiming is not necessary after repla-
cing the bulb. When aiming adjust-
ment is necessary, contact a
NISSAN dealer.
Use the same number and wattage as originally
installed as shown in the chart.
SDI2687
Disconnect the battery negative cable before
replacing bulbs.
1. Remove the connector.
2. Turn the holder
*Aand then pull out it.
Remove the cap
*Band then remove the
bulb
*C.
Maintenance and do-it-yourself8-27
Condition:
Page 306 of 347
Black plate (304,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
8-28Maintenance and do-it-yourself

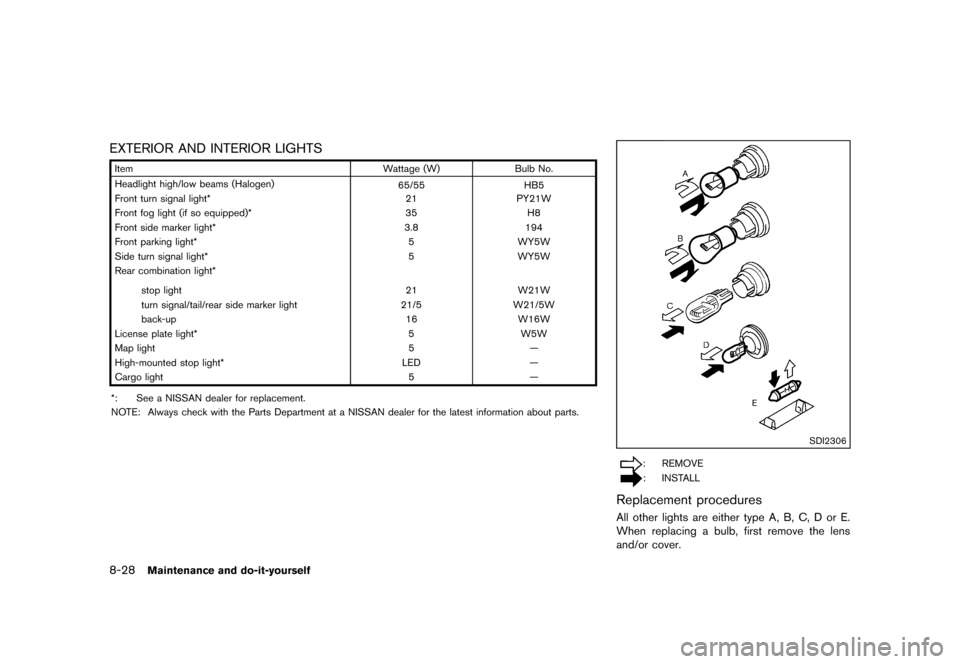

EXTERIOR AND INTERIOR LIGHTSGUID-61BBD601-FAE2-461C-81CD-A4009E8538F6
ItemWattage (W)Bulb No.
Headlight high/low beams (Halogen) 65/55HB5
Front turn signal light* 21PY21W
Front fog light (if so equipped)* 35H8
Front side marker light* 3.8194
Front parking light* 5WY5W
Side turn signal light* 5WY5W
Rear combination light*
stop light 21W21W
turn signal/tail/rear side marker light 21/5W21/5W
back-up 16W16W
License plate light* 5W5W
Map light 5—
High-mounted stop light* LED—
Cargo light 5—
*: See a NISSAN dealer for replacement.
NOTE: Always check with the Parts Department at a NISSAN dealer for the latest information about parts.
SDI2306
: REMOVE
: INSTALL
Replacement proceduresGUID-FD1940F8-D0CC-49B0-9D9B-69150AD59693All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
Condition:
Page 307 of 347
Black plate (305,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

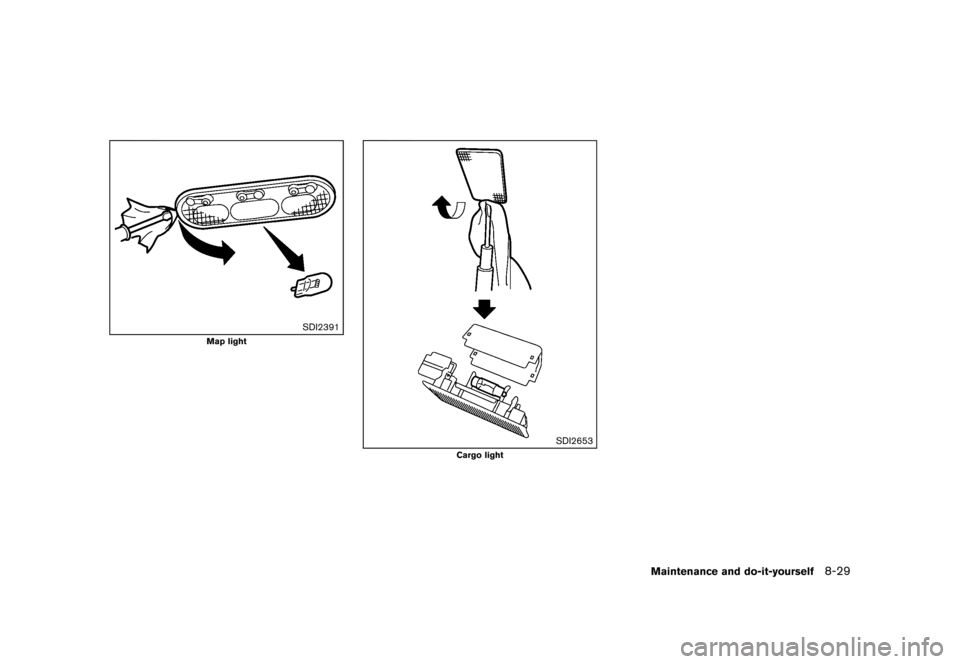

SDI2391
Map light
SDI2653
Cargo light
Maintenance and do-it-yourself8-29
Condition:
Page 308 of 347
Black plate (306,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
8-30Maintenance and do-it-yourself

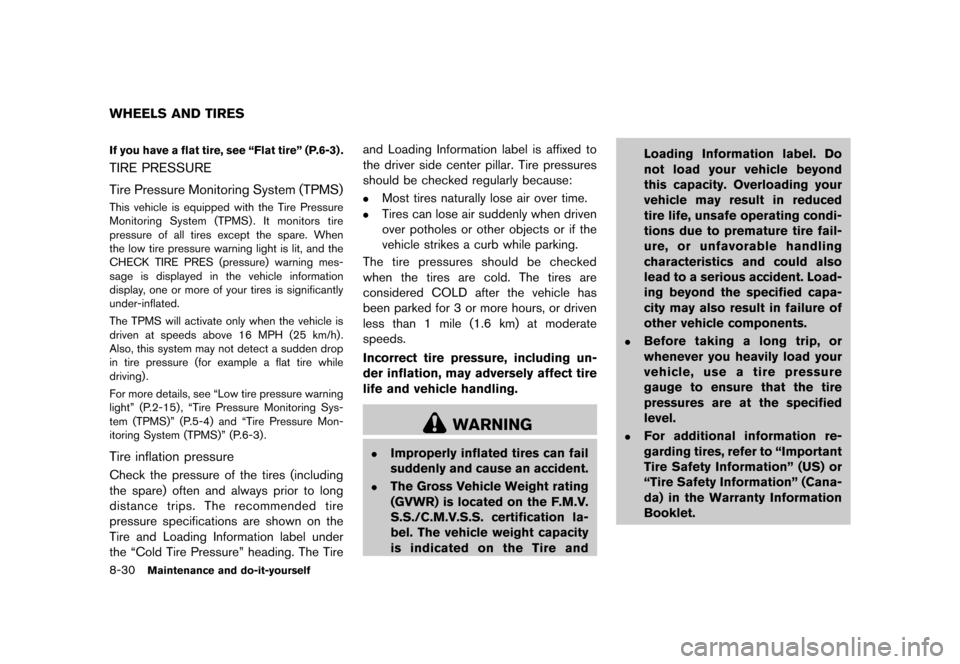

GUID-F6BA5101-9D22-47BE-BE64-1C192428380DIf you have a flat tire, see “Flat tire” (P.6-3) .
TIRE PRESSUREGUID-98529D2F-C4E4-455A-AAA8-EA803AC65B24
Tire Pressure Monitoring System (TPMS)GUID-D6EF18B1-2442-473D-A573-60D459B74FC7This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire
pressure of all tires except the spare. When
the low tire pressure warning light is lit, and the
CHECK TIRE PRES (pressure) warning mes-
sage is displayed in the vehicle information
display, one or more of your tires is significantly
under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h).
Also, this system may not detect a sudden drop
in tire pressure (for example a flat tire while
driving) .
For more details, see “Low tire pressure warning
light” (P.2-15) , “Tire Pressure Monitoring Sys-
tem (TPMS)” (P.5-4) and “Tire Pressure Mon-
itoring System (TPMS)” (P.6-3) .
Tire inflation pressureGUID-C57645B5-E413-4FCA-B110-F118428A3D6FCheck the pressure of the tires (including
the spare) often and always prior to long
distance trips. The recommended tire
pressure specifications are shown on the
Tire and Loading Information label under
the “Cold Tire Pressure” heading. The Tireand Loading Information label is affixed to
the driver side center pillar. Tire pressures
should be checked regularly because:
.Most tires naturally lose air over time.
.Tires can lose air suddenly when driven
over potholes or other objects or if the
vehicle strikes a curb while parking.
The tire pressures should be checked
when the tires are cold. The tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds.
Incorrect tire pressure, including un-
der inflation, may adversely affect tire
life and vehicle handling.
WARNING
.Improperly inflated tires can fail
suddenly and cause an accident.
.The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.
S.S./C.M.V.S.S. certification la-
bel. The vehicle weight capacity
is indicated on the Tire and Loading Information label. Do
not load your vehicle beyond
this capacity. Overloading your
vehicle may result in reduced
tire life, unsafe operating condi-
tions due to premature tire fail-
ure, or unfavorable handling
characteristics and could also
lead to a serious accident. Load-
ing beyond the specified capa-
city may also result in failure of
other vehicle components.
.Before taking a long trip, or
whenever you heavily load your
vehicle, use a tire pressure
gauge to ensure that the tire
pressures are at the specified
level.
.For additional information re-
garding tires, refer to “Important
Tire Safety Information” (US) or
“Tire Safety Information” (Cana-
da) in the Warranty Information
Booklet.
WHEELS AND TIRES
Condition:
Page 309 of 347
Black plate (307,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
SDI2503

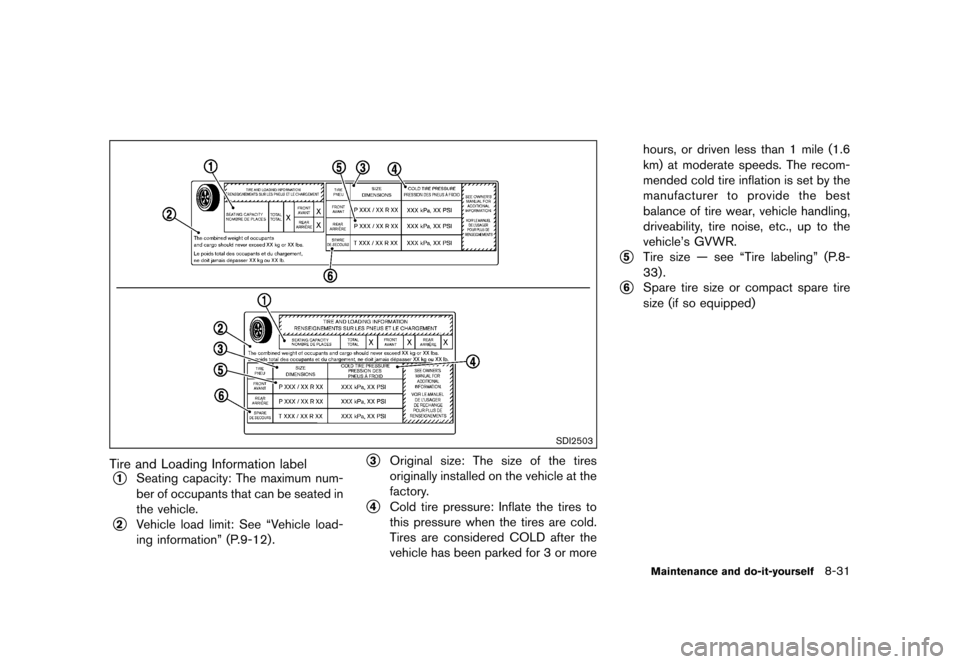

Tire and Loading Information labelGUID-FEE83069-6E19-432C-A83E-475D9C859728*1Seating capacity: The maximum num-
ber of occupants that can be seated in
the vehicle.
*2Vehicle load limit: See “Vehicle load-
ing information” (P.9-12).
*3Original size: The size of the tires
originally installed on the vehicle at the
factory.
*4Cold tire pressure: Inflate the tires to
this pressure when the tires are cold.
Tires are considered COLD after the
vehicle has been parked for 3 or morehours, or driven less than 1 mile (1.6
km) at moderate speeds. The recom-
mended cold tire inflation is set by the
manufacturer to provide the best
balance of tire wear, vehicle handling,
driveability, tire noise, etc., up to the
vehicle’s GVWR.
*5Tire size — see “Tire labeling” (P.8-
33).
*6Spare tire size or compact spare tire
size (if so equipped)
Maintenance and do-it-yourself8-31
Condition:
Page 310 of 347
Black plate (308,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
8-32Maintenance and do-it-yourself
SDI1949

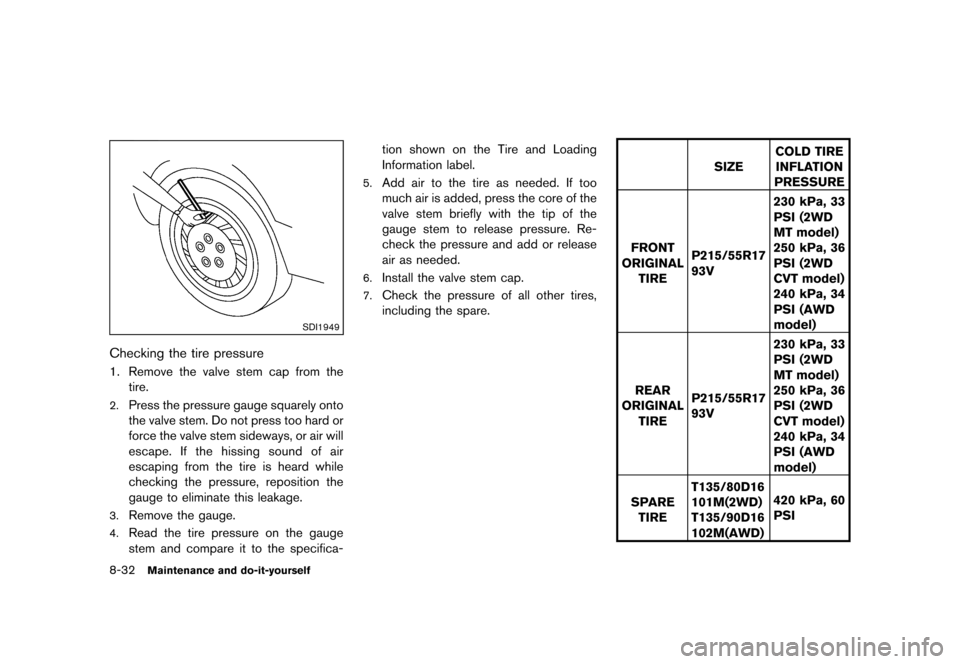

Checking the tire pressureGUID-EAF74098-BED3-48BE-BFDE-9B3D9F2414411. Remove the valve stem cap from thetire.
2.Press the pressure gauge squarely onto
the valve stem. Do not press too hard or
force the valve stem sideways, or air will
escape. If the hissing sound of air
escaping from the tire is heard while
checking the pressure, reposition the
gauge to eliminate this leakage.
3.Remove the gauge.
4.Read the tire pressure on the gauge
stem and compare it to the specifica- tion shown on the Tire and Loading
Information label.
5.Add air to the tire as needed. If too
much air is added, press the core of the
valve stem briefly with the tip of the
gauge stem to release pressure. Re-
check the pressure and add or release
air as needed.
6.Install the valve stem cap.
7.Check the pressure of all other tires,
including the spare.
SIZE
COLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL TIRE P215/55R17
93V 230 kPa, 33
PSI (2WD
MT model)
250 kPa, 36
PSI (2WD
CVT model)
240 kPa, 34
PSI (AWD
model)
REAR
ORIGINAL TIRE P215/55R17
93V 230 kPa, 33
PSI (2WD
MT model)
250 kPa, 36
PSI (2WD
CVT model)
240 kPa, 34
PSI (AWD
model)
SPARE TIRE T135/80D16
101M(2WD)
T135/90D16
102M(AWD) 420 kPa, 60
PSI
Condition:
