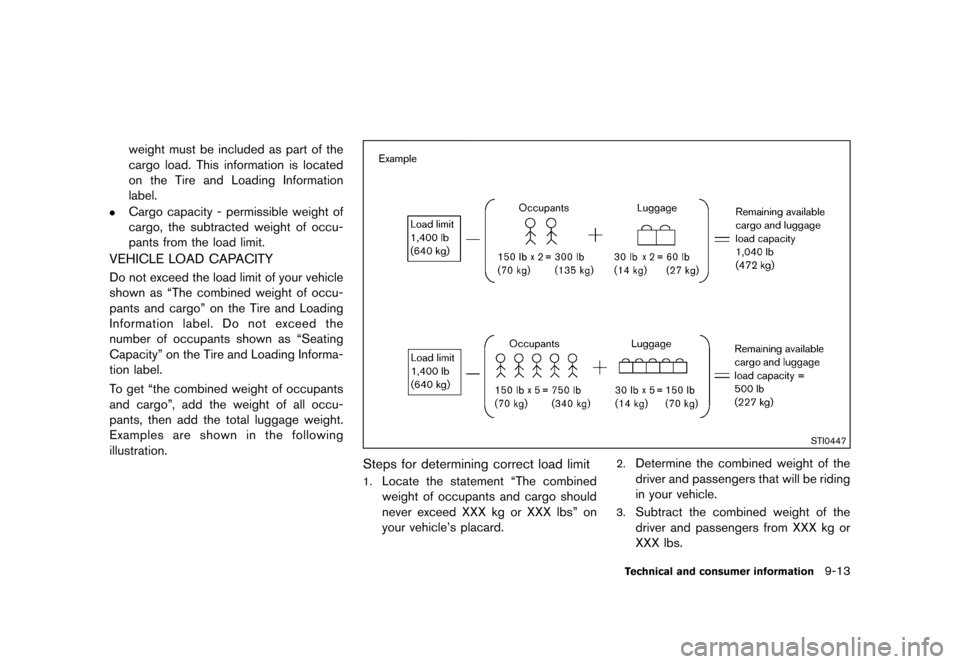

weight must be included as part of the
cargo load. This information is located
on the Tire and Loading Information
label.
.Cargo capacity - permissible weight of
cargo, the subtracted weight of occu-
pants from the load limit.
VEHICLE LOAD CAPACITYGUID-5CF827C1-AFAB-440C-932A-9F3339533FE7Do not exceed the load limit of your vehicle
shown as “The combined weight of occu-
pants and cargo” on the Tire and Loading
Information label. Do not exceed the
number of occupants shown as “Seating
Capacity” on the Tire and Loading Informa-
tion label.
To get “the combined weight of occupants
and cargo”, add the weight of all occu-
pants, then add the total luggage weight.
Examples are shown in the following
illustration.
STI0447
Steps for determining correct load limitGUID-CBC5F349-AD34-47D6-B03F-C50FF1F7A8EE1.Locate the statement “The combined
weight of occupants and cargo should
never exceed XXX kg or XXX lbs” on
your vehicle’s placard.
2.Determine the combined weight of the
driver and passengers that will be riding
in your vehicle.
3.Subtract the combined weight of the
driver and passengers from XXX kg or
XXX lbs.
Technical and consumer information9-13
Condition:

Black plate (330,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
9-14Technical and consumer information
4.The resulting figure equals the available
amount of cargo and luggage load
capacity. For example, if the XXX
amount equals 1400 lbs. and there will
be five 150 lb. passengers in your
vehicle, the amount of available cargo
and luggage load capacity is 650 lbs.
(1400−750 (5 x 150) = 650 lbs) or
(640 −340 (5 x 70) = 300 kg.)
5.Determine the combined weight of
luggage and cargo being loaded on
the vehicle. That weight may not safely
exceed the available cargo and luggage
load capacity calculated in Step 4.
Before driving a loaded vehicle, confirm
that you do not exceed the Gross Vehicle
Weight Rating (GVWR) or the Gross Axle
Weight Rating (GAWR) for your vehicle.
(See “Measurement of weights” (P.9-14) .)
Also check tires for proper inflation pres-
sures. See the Tire and Loading Information
label.
LOADING TIPSGUID-0C3321D2-32AA-4960-950B-FBA08FDC8785.The GVW must not exceed GVWR or
GAWR as specified on the F.M.V.S.S./
C.M.V.S.S. certification label.
.Do not load the front and rear axle to
the GAWR. Doing so will exceed the
GVWR.
WARNING
.Properly secure all cargo with
ropes or straps to help prevent it
from sliding or shifting. Do not
place cargo higher than the
seatbacks. In a sudden stop or
collision, unsecured cargo could
cause personal injury.
.Do not load your vehicle any
heavier than the GVWR or the
maximum front and rear
GAWRs. If you do, parts of your
vehicle can break, tire damage
could occur, or it can change the
way your vehicle handles. This
could result in loss of control
and cause personal injury.
.Overloading not only can short-
en the life of your vehicle and
the tire, but can cause unsafe
vehicle handling and longer
braking distances. This may
cause a premature tire failure,
which could result in a serious
accident and personal injury.
Failures caused by overloading
are not covered by the vehicle’s
warranty.
MEASUREMENT OF WEIGHTSGUID-7EDA2A5E-8A82-445D-A361-29089B8E0EA8Secure loose items to prevent weight shifts
that could affect the balance of your
vehicle. When the vehicle is loaded, drive
to a scale and weigh the front and the rear
wheels separately to determine axle loads.
Individual axle loads should not exceed
either of the Gross Axle Weight Ratings
(GAWR). The total of the axle loads should
not exceed the Gross Vehicle Weight
Rating (GVWR) . These ratings are given
on the vehicle certification label. If weight
ratings are exceeded, move or remove
items to bring all weights below the ratings.
Condition:

Black plate (331,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

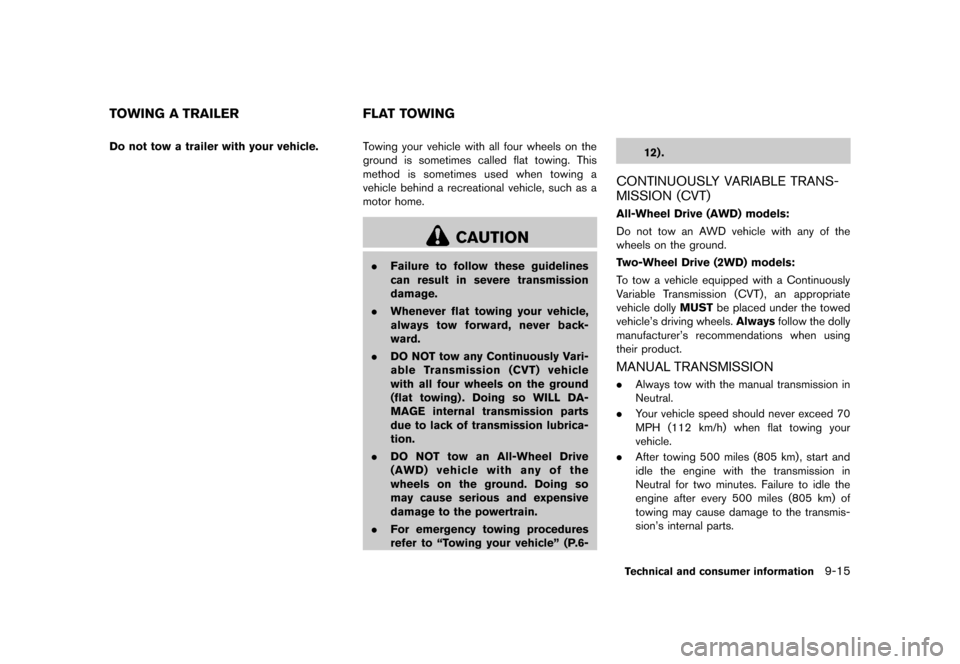

GUID-F20F5531-4E6B-4F82-BAD2-1E941D903DB6Do not tow a trailer with your vehicle.GUID-FC66003B-B76C-42AB-9FCA-588DF863F95ATowing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is sometimes used when towing a
vehicle behind a recreational vehicle, such as a
motor home.
CAUTION
.Failure to follow these guidelines
can result in severe transmission
damage.
. Whenever flat towing your vehicle,
always tow forward, never back-
ward.
. DO NOT tow any Continuously Vari-
able Transmission (CVT) vehicle
with all four wheels on the ground
(flat towing) . Doing so WILL DA-
MAGE internal transmission parts
due to lack of transmission lubrica-
tion.
. DO NOT tow an All-Wheel Drive
(AWD) vehicle with any of the
wheels on the ground. Doing so
may cause serious and expensive
damage to the powertrain.
. For emergency towing procedures
refer to “Towing your vehicle” (P.6- 12) .
CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT)
GUID-A9F17C32-174D-4848-8C9E-543DA151F46EAll-Wheel Drive (AWD) models:
Do not tow an AWD vehicle with any of the
wheels on the ground.
Two-Wheel Drive (2WD) models:
To tow a vehicle equipped with a Continuously
Variable Transmission (CVT) , an appropriate
vehicle dolly
MUSTbe placed under the towed
vehicle’s driving wheels. Alwaysfollow the dolly
manufacturer’s recommendations when using
their product.
MANUAL TRANSMISSIONGUID-B117614A-9FD0-4D51-A6E3-47024288B9E1. Always tow with the manual transmission in
Neutral.
. Your vehicle speed should never exceed 70
MPH (112 km/h) when flat towing your
vehicle.
. After towing 500 miles (805 km) , start and
idle the engine with the transmission in
Neutral for two minutes. Failure to idle the
engine after every 500 miles (805 km) of
towing may cause damage to the transmis-
sion’s internal parts.
Technical and consumer information9-15
TOWING A TRAILER FLAT TOWING
Condition:

Black plate (332,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
9-16Technical and consumer information

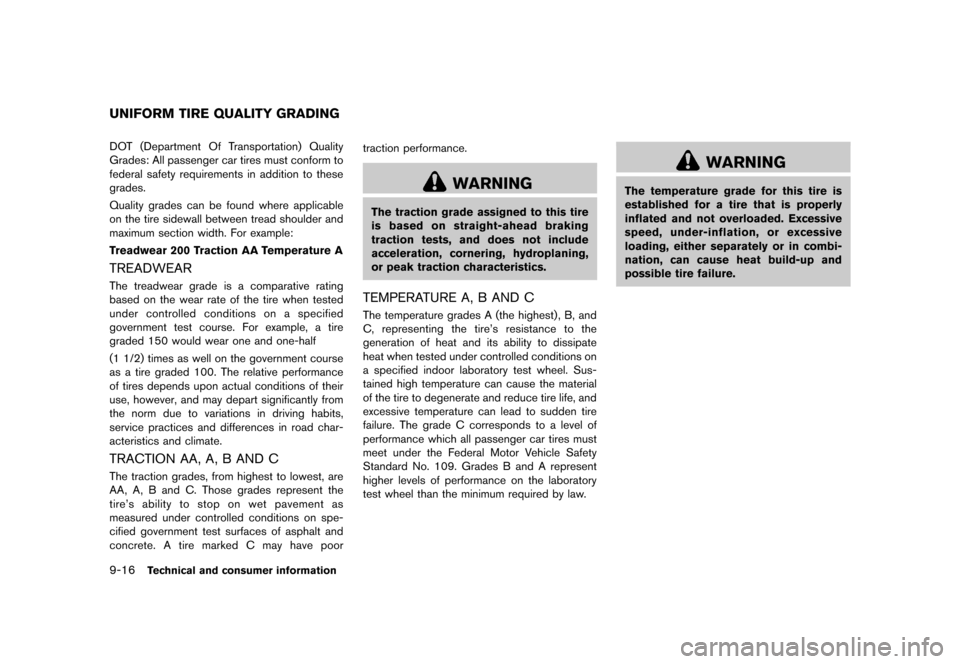

GUID-1396CB90-1E3C-46B4-BEC8-929DFCC03D6DDOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable
on the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEARGUID-EB4741A4-2815-4C19-A415-EBDC993E715AThe treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified
government test course. For example, a tire
graded 150 would wear one and one-half
(1 1/2) times as well on the government course
as a tire graded 100. The relative performance
of tires depends upon actual conditions of their
use, however, and may depart significantly from
the norm due to variations in driving habits,
service practices and differences in road char-
acteristics and climate.
TRACTION AA, A, B AND CGUID-7C9D157D-A605-4BF0-A47B-8EA060F09ABEThe traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the
tire’s ability to stop on wet pavement as
measured under controlled conditions on spe-
cified government test surfaces of asphalt and
concrete. A tire marked C may have poortraction performance.
WARNING
The traction grade assigned to this tire
is based on straight-ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
TEMPERATURE A, B AND CGUID-24E5DF40-27FD-4446-A793-787756774B53The temperature grades A (the highest), B, and
C, representing the tire’s resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions on
a specified indoor laboratory test wheel. Sus-
tained high temperature can cause the material
of the tire to degenerate and reduce tire life, and
excessive temperature can lead to sudden tire
failure. The grade C corresponds to a level of
performance which all passenger car tires must
meet under the Federal Motor Vehicle Safety
Standard No. 109. Grades B and A represent
higher levels of performance on the laboratory
test wheel than the minimum required by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, or excessive
loading, either separately or in combi-
nation, can cause heat build-up and
possible tire failure.
UNIFORM TIRE QUALITY GRADING
Condition:

Black plate (333,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

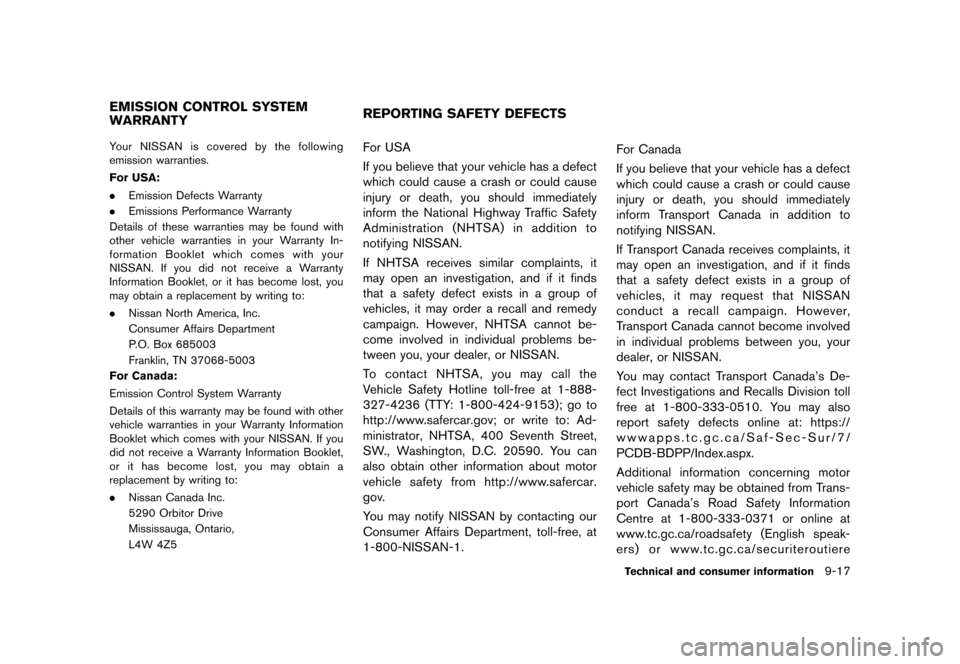

GUID-F1F885DB-59DB-40E8-ABB0-EAB3E168A070Your NISSAN is covered by the following
emission warranties.
For USA:
.Emission Defects Warranty
. Emissions Performance Warranty
Details of these warranties may be found with
other vehicle warranties in your Warranty In-
formation Booklet which comes with your
NISSAN. If you did not receive a Warranty
Information Booklet, or it has become lost, you
may obtain a replacement by writing to:
. Nissan North America, Inc.
Consumer Affairs Department
P.O. Box 685003
Franklin, TN 37068-5003
For Canada:
Emission Control System Warranty
Details of this warranty may be found with other
vehicle warranties in your Warranty Information
Booklet which comes with your NISSAN. If you
did not receive a Warranty Information Booklet,
or it has become lost, you may obtain a
replacement by writing to:
. Nissan Canada Inc.
5290 Orbitor Drive
Mississauga, Ontario,
L4W 4Z5GUID-11CE756C-1B81-4A4A-A277-F3FE680543BDFor USA
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform the National Highway Traffic Safety
Administration (NHTSA) in addition to
notifying NISSAN.
If NHTSA receives similar complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot be-
come involved in individual problems be-
tween you, your dealer, or NISSAN.
To contact NHTSA, you may call the
Vehicle Safety Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov; or write to: Ad-
ministrator, NHTSA, 400 Seventh Street,
SW., Washington, D.C. 20590. You can
also obtain other information about motor
vehicle safety from http://www.safercar.
gov.
You may notify NISSAN by contacting our
Consumer Affairs Department, toll-free, at
1-800-NISSAN-1. For Canada
If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada in addition to
notifying NISSAN.
If Transport Canada receives complaints, it
may open an investigation, and if it finds
that a safety defect exists in a group of
vehicles, it may request that NISSAN
conduct a recall campaign. However,
Transport Canada cannot become involved
in individual problems between you, your
dealer, or NISSAN.
You may contact Transport Canada’s De-
fect Investigations and Recalls Division toll
free at 1-800-333-0510. You may also
report safety defects online at: https://
wwwapps.tc.gc.ca/Saf-Sec-Sur/7/
PCDB-BDPP/Index.aspx.
Additional information concerning motor
vehicle safety may be obtained from Trans-
port Canada’s Road Safety Information
Centre at 1-800-333-0371 or online at
www.tc.gc.ca/roadsafety (English speak-
ers) or www.tc.gc.ca/securiteroutiere
Technical and consumer information9-17
EMISSION CONTROL SYSTEM
WARRANTY
REPORTING SAFETY DEFECTS
Condition:

Black plate (334,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

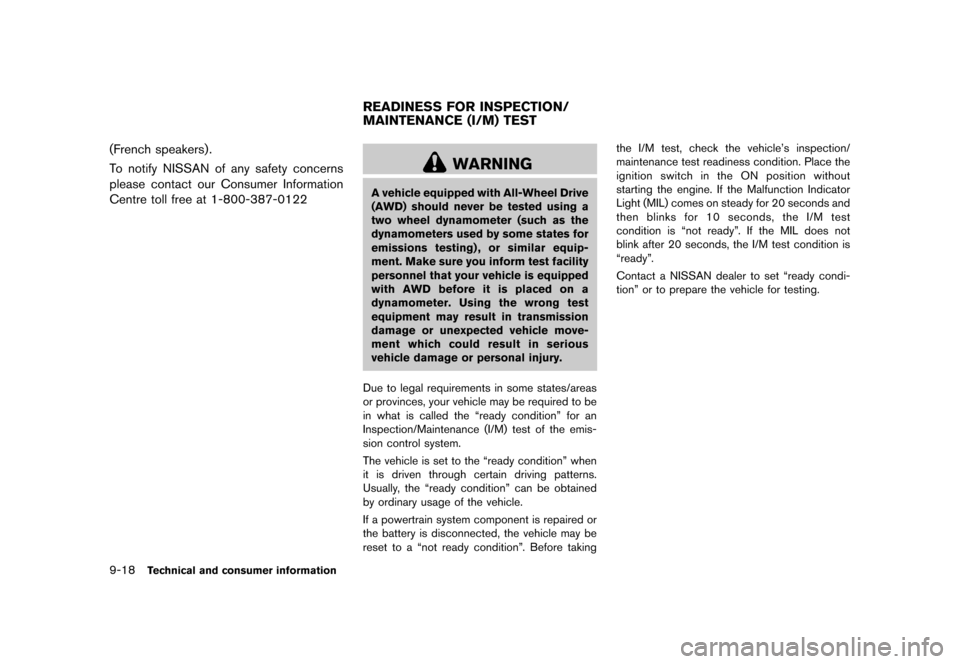

9-18Technical and consumer information
(French speakers).
To notify NISSAN of any safety concerns
please contact our Consumer Information
Centre toll free at 1-800-387-0122
GUID-5504BD8C-31D4-41C9-B8D7-9AC3DC61F6CA
WARNING
A vehicle equipped with All-Wheel Drive
(AWD) should never be tested using a
two wheel dynamometer (such as the
dynamometers used by some states for
emissions testing) , or similar equip-
ment. Make sure you inform test facility
personnel that your vehicle is equipped
with AWD before it is placed on a
dynamometer. Using the wrong test
equipment may result in transmission
damage or unexpected vehicle move-
ment which could result in serious
vehicle damage or personal injury.
Due to legal requirements in some states/areas
or provinces, your vehicle may be required to be
in what is called the “ready condition” for an
Inspection/Maintenance (I/M) test of the emis-
sion control system.
The vehicle is set to the “ready condition” when
it is driven through certain driving patterns.
Usually, the “ready condition” can be obtained
by ordinary usage of the vehicle.
If a powertrain system component is repaired or
the battery is disconnected, the vehicle may be
reset to a “not ready condition”. Before taking the I/M test, check the vehicle’s inspection/
maintenance test readiness condition. Place the
ignition switch in the ON position without
starting the engine. If the Malfunction Indicator
Light (MIL) comes on steady for 20 seconds and
then blinks for 10 seconds, the I/M test
condition is “not ready”. If the MIL does not
blink after 20 seconds, the I/M test condition is
“ready”.
Contact a NISSAN dealer to set “ready condi-
tion” or to prepare the vehicle for testing.
READINESS FOR INSPECTION/
MAINTENANCE (I/M) TEST
Condition:

Black plate (335,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

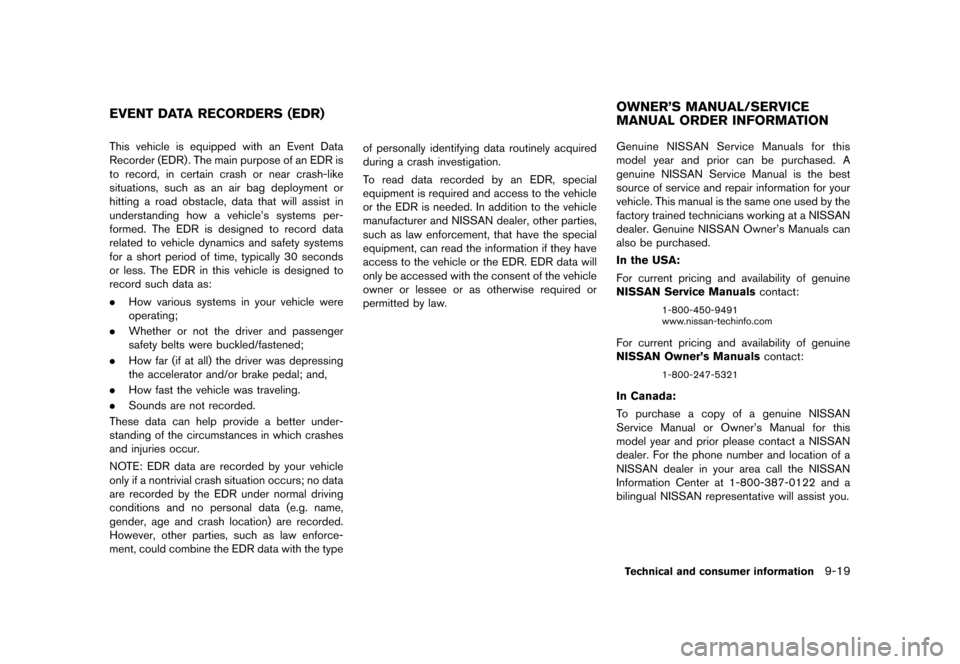

GUID-5BFB31D7-859E-4BAD-B44E-8F5626C3B174This vehicle is equipped with an Event Data
Recorder (EDR) . The main purpose of an EDR is
to record, in certain crash or near crash-like
situations, such as an air bag deployment or
hitting a road obstacle, data that will assist in
understanding how a vehicle’s systems per-
formed. The EDR is designed to record data
related to vehicle dynamics and safety systems
for a short period of time, typically 30 seconds
or less. The EDR in this vehicle is designed to
record such data as:
.How various systems in your vehicle were
operating;
. Whether or not the driver and passenger
safety belts were buckled/fastened;
. How far (if at all) the driver was depressing
the accelerator and/or brake pedal; and,
. How fast the vehicle was traveling.
. Sounds are not recorded.
These data can help provide a better under-
standing of the circumstances in which crashes
and injuries occur.
NOTE: EDR data are recorded by your vehicle
only if a nontrivial crash situation occurs; no data
are recorded by the EDR under normal driving
conditions and no personal data (e.g. name,
gender, age and crash location) are recorded.
However, other parties, such as law enforce-
ment, could combine the EDR data with the type of personally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the vehicle
or the EDR is needed. In addition to the vehicle
manufacturer and NISSAN dealer, other parties,
such as law enforcement, that have the special
equipment, can read the information if they have
access to the vehicle or the EDR. EDR data will
only be accessed with the consent of the vehicle
owner or lessee or as otherwise required or
permitted by law.GUID-0B026CC9-40EB-40CB-93E0-793F552E62C1Genuine NISSAN Service Manuals for this
model year and prior can be purchased. A
genuine NISSAN Service Manual is the best
source of service and repair information for your
vehicle. This manual is the same one used by the
factory trained technicians working at a NISSAN
dealer. Genuine NISSAN Owner’s Manuals can
also be purchased.
In the USA:
For current pricing and availability of genuine
NISSAN Service Manuals
contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner’s Manuals contact:
1-800-247-5321
In Canada:
To purchase a copy of a genuine NISSAN
Service Manual or Owner’s Manual for this
model year and prior please contact a NISSAN
dealer. For the phone number and location of a
NISSAN dealer in your area call the NISSAN
Information Center at 1-800-387-0122 and a
bilingual NISSAN representative will assist you.
Technical and consumer information9-19
EVENT DATA RECORDERS (EDR) OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
Condition:

Black plate (336,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
9-20Technical and consumer information

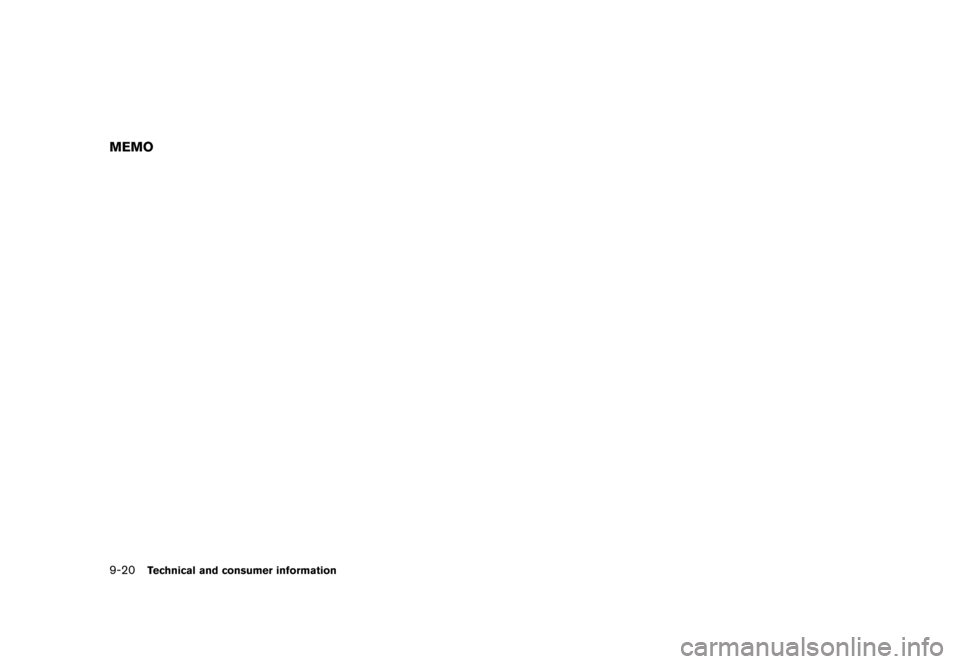

MEMO
Condition:

Black plate (337,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

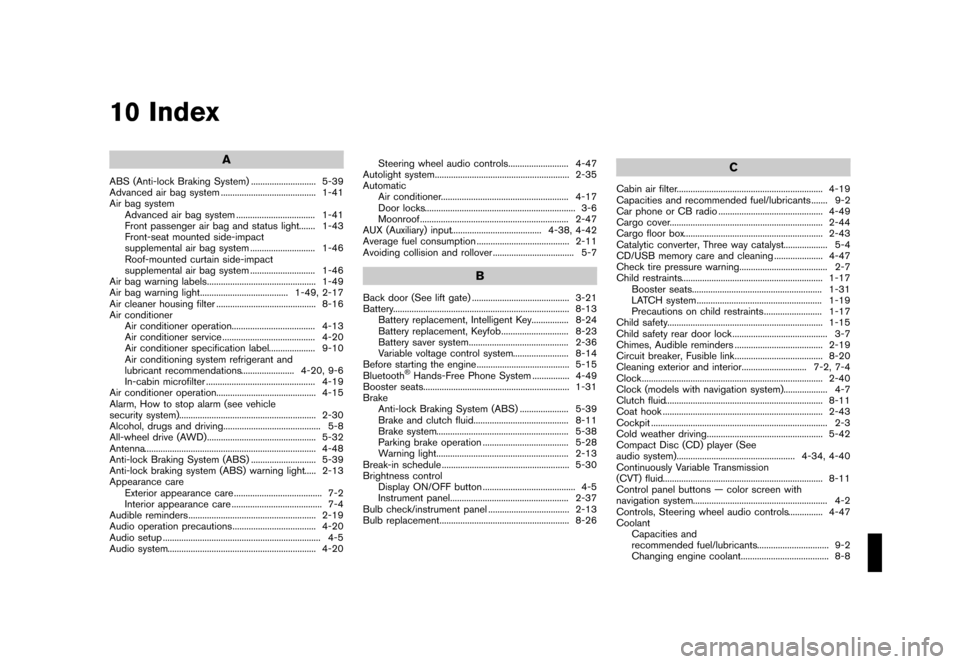

10 Index
A
ABS (Anti-lock Braking System)...
............................ 5-39
Advanced air bag system ...
......................................... 1-41
Air bag system Advanced air bag system ...
.................................. 1-41
Front passenger air bag and status light ...
....... 1-43
Front-seat mounted side-impact
supplemental air bag system ...
............................ 1-46
Roof-mounted curtain side-impact
supplemental air bag system ...
............................ 1-46
Air bag warning labels ...
............................................... 1-49
Air bag warning light ...
...................................... 1-49, 2-17
Air cleaner housing filter ...
........................................... 8-16
Air conditioner Air conditioner operation ...
.................................... 4-13
Air conditioner service ...
........................................ 4-20
Air conditioner specification label ...
.................... 9-10
Air conditioning system refrigerant and
lubricant recommendations ...
....................... 4-20, 9-6
In-cabin microfilter ...
............................................... 4-19
Air conditioner operation ...
........................................... 4-15
Alarm, How to stop alarm (see vehicle
security system) ...
........................................................... 2-30
Alcohol, drugs and driving ...
.......................................... 5-8
All-wheel drive (AWD) ...
............................................... 5-32
Antenna ...
.......................................................................... 4-48
Anti-lock Braking System (ABS) ...
............................ 5-39
Anti-lock braking system (ABS) warning light ...
..... 2-13
Appearance care Exterior appearance care ...
...................................... 7-2
Interior appearance care ...
....................................... 7-4
Audible reminders ...
....................................................... 2-19
Audio operation precautions ...
.................................... 4-20
Audio setup ...
.................................................................... 4-5
Audio system ...
................................................................ 4-20 Steering wheel audio controls
...
.......................... 4-47
Autolight system ...
.......................................................... 2-35
Automatic Air conditioner ...
....................................................... 4-17
Door locks ...
................................................................. 3-6
Moonroof ...
................................................................ 2-47
AUX (Auxiliary) input ...
....................................... 4-38, 4-42
Average fuel consumption ...
........................................ 2-11
Avoiding collision and rollover ...
................................... 5-7
B
Back door (See lift gate) ...
.......................................... 3-21
Battery ...
............................................................................ 8-13
Battery replacement, Intelligent Key ...
................ 8-24
Battery replacement, Keyfob ...
............................. 8-23
Battery saver system ...
........................................... 2-36
Variable voltage control system ...
........................ 8-14
Before starting the engine ...
........................................ 5-15
Bluetooth
®Hands-Free Phone System ...
................ 4-49
Booster seats ...
............................................................... 1-31
Brake Anti-lock Braking System (ABS) ...
..................... 5-39
Brake and clutch fluid ...
......................................... 8-11
Brake system ...
......................................................... 5-38
Parking brake operation ...
..................................... 5-28
Warning light ...
......................................................... 2-13
Break-in schedule ...
....................................................... 5-30
Brightness control Display ON/OFF button ...
........................................ 4-5
Instrument panel ...
................................................... 2-37
Bulb check/instrument panel ...
................................... 2-13
Bulb replacement ...
........................................................ 8-26
C
Cabin air filter ...
............................................................... 4-19
Capacities and recommended fuel/lubricants ...
....... 9-2
Car phone or CB radio ...
............................................. 4-49
Cargo cover ...
.................................................................. 2-44
Cargo floor box ...
............................................................ 2-43
Catalytic converter, Three way catalyst ...
................... 5-4
CD/USB memory care and cleaning ...
..................... 4-47
Check tire pressure warning ...
...................................... 2-7
Child restraints ...
............................................................. 1-17
Booster seats ...
........................................................ 1-31
LATCH system ...
...................................................... 1-19
Precautions on child restraints ...
......................... 1-17
Child safety ...
................................................................... 1-15
Child safety rear door lock ...
......................................... 3-7
Chimes, Audible reminders ...
...................................... 2-19
Circuit breaker, Fusible link ...
...................................... 8-20
Cleaning exterior and interior ...
............................ 7-2, 7-4
Clock ...
.............................................................................. 2-40
Clock (models with navigation system) ...
................... 4-7
Clutch fluid ...
.................................................................... 8-11
Coat hook ...
..................................................................... 2-43
Cockpit ...
............................................................................ 2-3
Cold weather driving ...
.................................................. 5-42
Compact Disc (CD) player (See
audio system) ...
................................................... 4-34, 4-40
Continuously Variable Transmission
(CVT) fluid ...
..................................................................... 8-11
Control panel buttons — color screen with
navigation system ...
.......................................................... 4-2
Controls, Steering wheel audio controls ...
............... 4-47
Coolant Capacities and
recommended fuel/lubricants ...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Condition:

Black plate (338,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

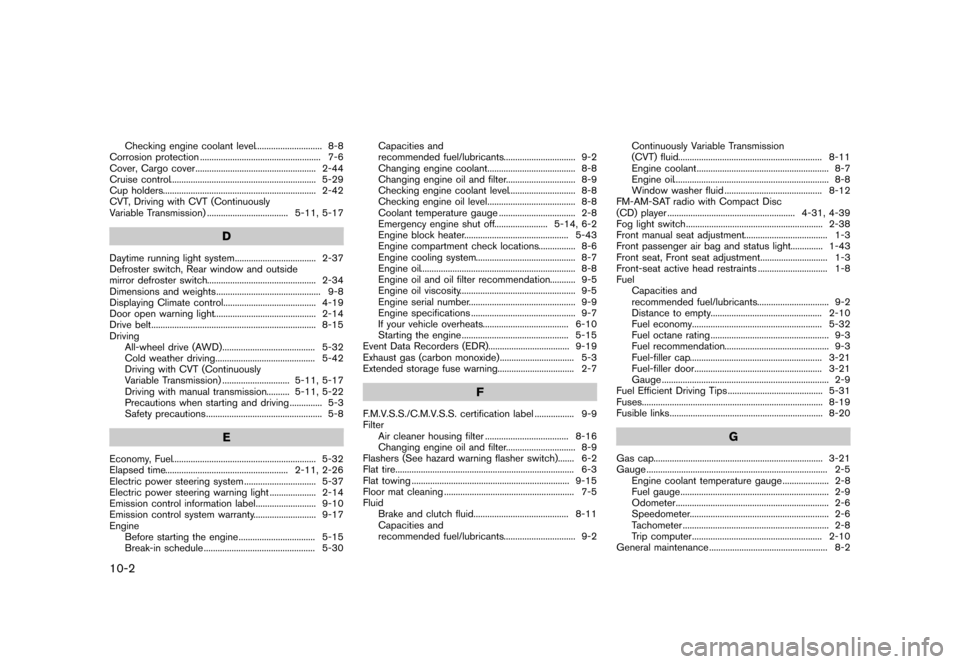

10-2
Checking engine coolant level...
............................. 8-8
Corrosion protection ...
.................................................... 7-6
Cover, Cargo cover ...
.................................................... 2-44
Cruise control ...
............................................................... 5-29
Cup holders ...
.................................................................. 2-42
CVT, Driving with CVT (Continuously
Variable Transmission) ...
................................... 5-11, 5-17
D
Daytime running light system ...
................................... 2-37
Defroster switch, Rear window and outside
mirror defroster switch ...
............................................... 2-34
Dimensions and weights ...
............................................. 9-8
Displaying Climate control ...
........................................ 4-19
Door open warning light ...
............................................ 2-14
Drive belt ...
....................................................................... 8-15
Driving All-wheel drive (AWD) ...
........................................ 5-32
Cold weather driving ...
........................................... 5-42
Driving with CVT (Continuously
Variable Transmission) ...
............................. 5-11, 5-17
Driving with manual transmission ...
.......... 5-11, 5-22
Precautions when starting and driving ...
.............. 5-3
Safety precautions ...
.................................................. 5-8
E
Economy, Fuel ...
.............................................................. 5-32
Elapsed time ...
..................................................... 2-11, 2-26
Electric power steering system ...
............................... 5-37
Electric power steering warning light ...
.................... 2-14
Emission control information label ...
.......................... 9-10
Emission control system warranty ...
........................... 9-17
Engine Before starting the engine ...
................................. 5-15
Break-in schedule ...
................................................ 5-30 Capacities and
recommended fuel/lubricants
...
............................... 9-2
Changing engine coolant ...
...................................... 8-8
Changing engine oil and filter ...
.............................. 8-9
Checking engine coolant level ...
............................. 8-8
Checking engine oil level ...
...................................... 8-8
Coolant temperature gauge ...
................................. 2-8
Emergency engine shut off ...
....................... 5-14, 6-2
Engine block heater ...
............................................. 5-43
Engine compartment check locations ...
................ 8-6
Engine cooling system ...
........................................... 8-7
Engine oil ...
................................................................... 8-8
Engine oil and oil filter recommendation ...
........... 9-5
Engine oil viscosity ...
.................................................. 9-5
Engine serial number ...
.............................................. 9-9
Engine specifications ...
............................................. 9-7
If your vehicle overheats ...
..................................... 6-10
Starting the engine ...
.............................................. 5-15
Event Data Recorders (EDR) ...
................................... 9-19
Exhaust gas (carbon monoxide) ...
................................ 5-3
Extended storage fuse warning ...
................................. 2-7
F
F.M.V.S.S./C.M.V.S.S. certification label ...
................. 9-9
Filter Air cleaner housing filter ...
.................................... 8-16
Changing engine oil and filter ...
.............................. 8-9
Flashers (See hazard warning flasher switch) ...
....... 6-2
Flat tire ...
............................................................................. 6-3
Flat towing ...
.................................................................... 9-15
Floor mat cleaning ...
........................................................ 7-5
Fluid Brake and clutch fluid ...
......................................... 8-11
Capacities and
recommended fuel/lubricants ...
............................... 9-2 Continuously Variable Transmission
(CVT) fluid
...
.............................................................. 8-11
Engine coolant ...
......................................................... 8-7
Engine oil ...
................................................................... 8-8
Window washer fluid ...
.......................................... 8-12
FM-AM-SAT radio with Compact Disc
(CD) player ...
....................................................... 4-31, 4-39
Fog light switch ...
........................................................... 2-38
Front manual seat adjustment ...
.................................... 1-3
Front passenger air bag and status light ...
.............. 1-43
Front seat, Front seat adjustment ...
............................. 1-3
Front-seat active head restraints ...
.............................. 1-8
Fuel Capacities and
recommended fuel/lubricants ...
............................... 9-2
Distance to empty ...
................................................ 2-10
Fuel economy ...
........................................................ 5-32
Fuel octane rating ...
................................................... 9-3
Fuel recommendation ...
............................................. 9-3
Fuel-filler cap ...
......................................................... 3-21
Fuel-filler door ...
....................................................... 3-21
Gauge ...
........................................................................ 2-9
Fuel Efficient Driving Tips ...
......................................... 5-31
Fuses ...
.............................................................................. 8-19
Fusible links ...
.................................................................. 8-20
G
Gas cap ...
......................................................................... 3-21
Gauge ...
.............................................................................. 2-5
Engine coolant temperature gauge ...
.................... 2-8
Fuel gauge ...
................................................................ 2-9
Odometer ...
.................................................................. 2-6
Speedometer ...
............................................................ 2-6
Tachometer ...
............................................................... 2-8
Trip computer ...
........................................................ 2-10
General maintenance ...
................................................... 8-2
Condition:
