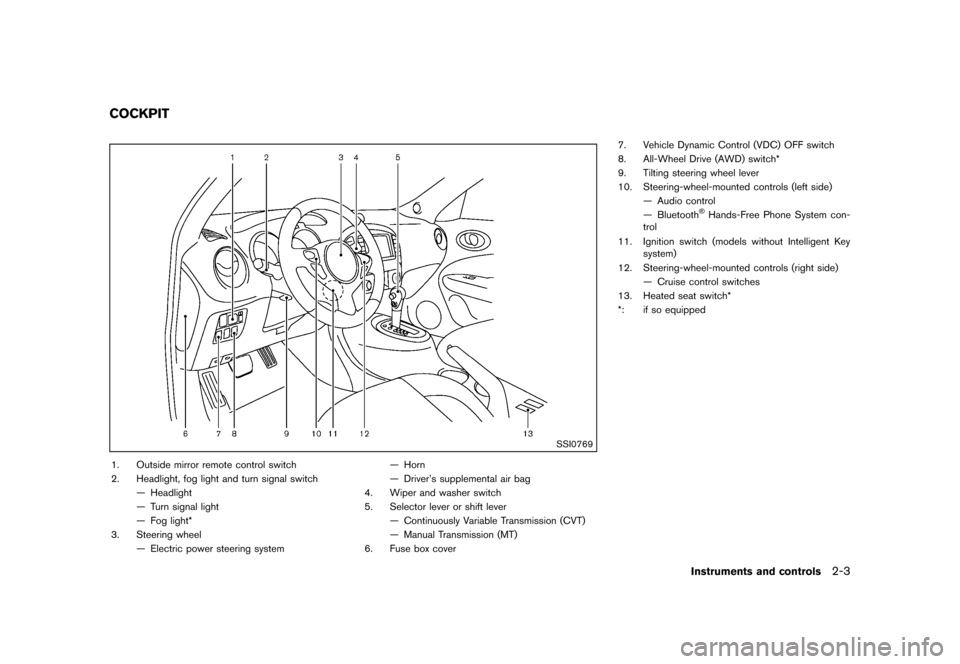

1. Outside mirror remote control switch
2. Headlight, fog light and turn signal switch— Headlight
— Turn signal light
— Fog light*
3. Steering wheel — Electric power steering system — Horn
— Driver’s supplemental air bag
4. Wiper and washer switch
5. Selector lever or shift lever — Continuously Variable Transmission (CVT)
— Manual Transmission (MT)
6. Fuse box cover 7. Vehicle Dynamic Control (VDC) OFF switch
8. All-Wheel Drive (AWD) switch*
9. Tilting steering wheel lever
10. Steering-wheel-mounted controls (left side)
— Audio control
— Bluetooth
®Hands-Free Phone System con-
trol
11. Ignition switch (models without Intelligent Key system)
12. Steering-wheel-mounted controls (right side) — Cruise control switches
13. Heated seat switch*
*: if so equipped
Instruments and controls2-3
COCKPIT
Condition:
Page 72 of 347
Black plate (70,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-4Instruments and controls
GUID-FB213085-0645-47E7-A4BE-9D16E00CA9C4
SSI0770
1. Meters and gauges
2. Center ventilator
3. Audio system* or Navigation system**— Clock*
4. Hazard warning flasher switch
5. Integrated Control System* — Clock — Drive mode
— Heater and air conditioner control
— Defroster switch
5. Heater and air conditioner control (models
without Integrated Control System)
— Defroster switch
6. Front passenger supplemental air bag 7. Side ventilator
8. Fuel-filler door release handle
9. Hood release handle
10. Push-button ignition switch (models with Intel-
ligent Key system)
11. AUX/USB connector*
12. Parking brake
13. Cup holder
14. Power outlet
15. Glove box
*: if so equipped
**: Refer to the separate Navigation System Own- er’s Manual.
INSTRUMENT PANEL
Condition:
Page 73 of 347
Black plate (71,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-DF36AE97-4508-4B81-8D84-DB4C25F6792E

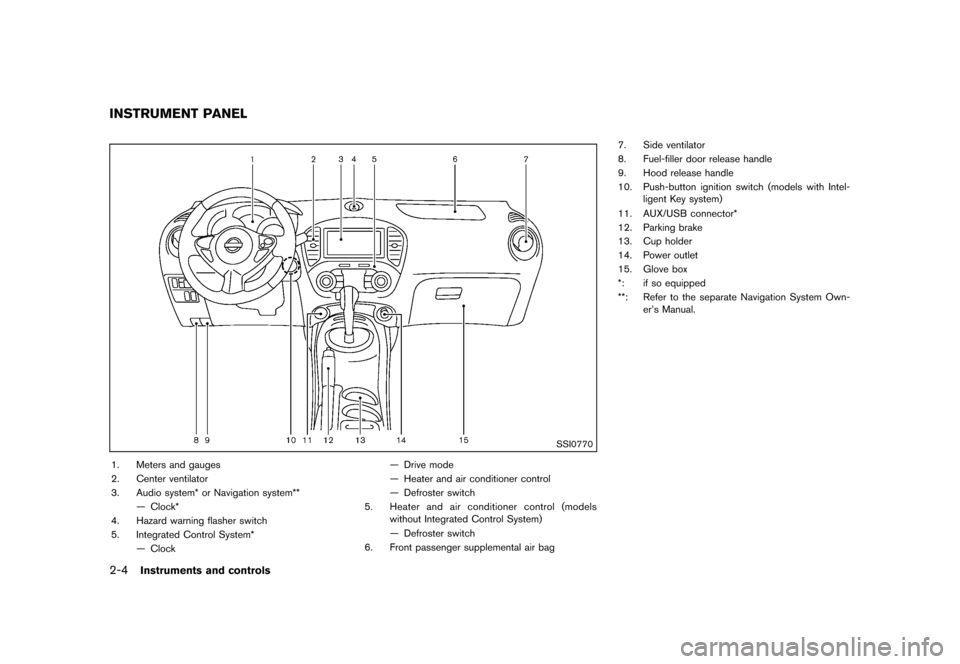

SIC4601

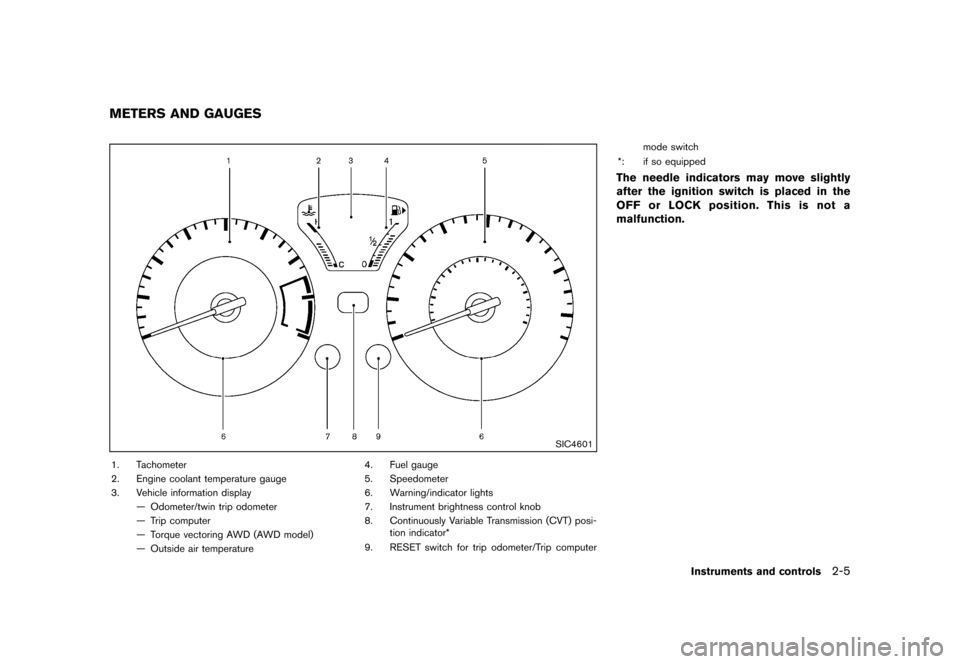

1. Tachometer
2. Engine coolant temperature gauge
3. Vehicle information display— Odometer/twin trip odometer
— Trip computer
— Torque vectoring AWD (AWD model)
— Outside air temperature 4. Fuel gauge
5. Speedometer
6. Warning/indicator lights
7. Instrument brightness control knob
8. Continuously Variable Transmission (CVT) posi-
tion indicator*
9. RESET switch for trip odometer/Trip computer mode switch
*: if so equipped
The needle indicators may move slightly
after the ignition switch is placed in the
OFF or LOCK position. This is not a
malfunction.
Instruments and controls2-5
METERS AND GAUGES
Condition:
Page 74 of 347
Black plate (72,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-6Instruments and controls
SIC4504

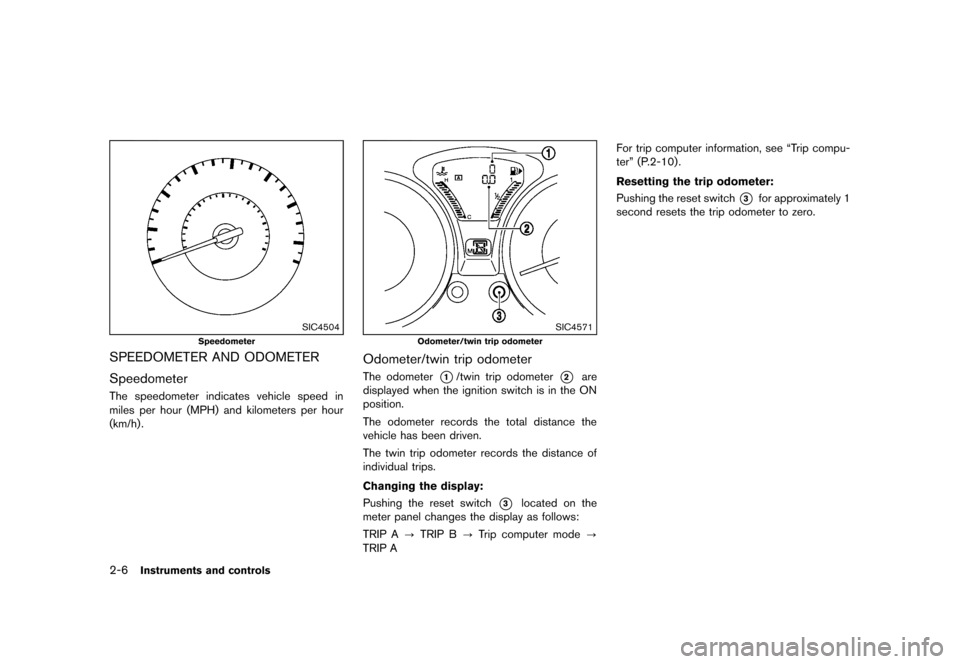

Speedometer
SPEEDOMETER AND ODOMETERGUID-51A241D7-04C6-4D12-AE1B-0180C370F35E
SpeedometerGUID-C27FC7F5-4696-4462-8629-B031ED3004EEThe speedometer indicates vehicle speed in
miles per hour (MPH) and kilometers per hour
(km/h) .
SIC4571
Odometer/twin trip odometer
Odometer/twin trip odometerGUID-A41D0989-DB08-4D3A-BE30-03AEC3FEFFE0The odometer*1/twin trip odometer*2are
displayed when the ignition switch is in the ON
position.
The odometer records the total distance the
vehicle has been driven.
The twin trip odometer records the distance of
individual trips.
Changing the display:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Pushing the reset switch*3located on the
meter panel changes the display as follows:
TRIP A ?TRIP B ?Trip computer mode ?
TRIP A For trip computer information, see “Trip compu-
ter” (P.2-10) .
Resetting the trip odometer:
GUID-3448E018-0BC4-4D17-AD0E-3BB850F23C53Pushing the reset switch*3for approximately 1
second resets the trip odometer to zero.
Condition:
Page 75 of 347
Black plate (73,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
SPA2809

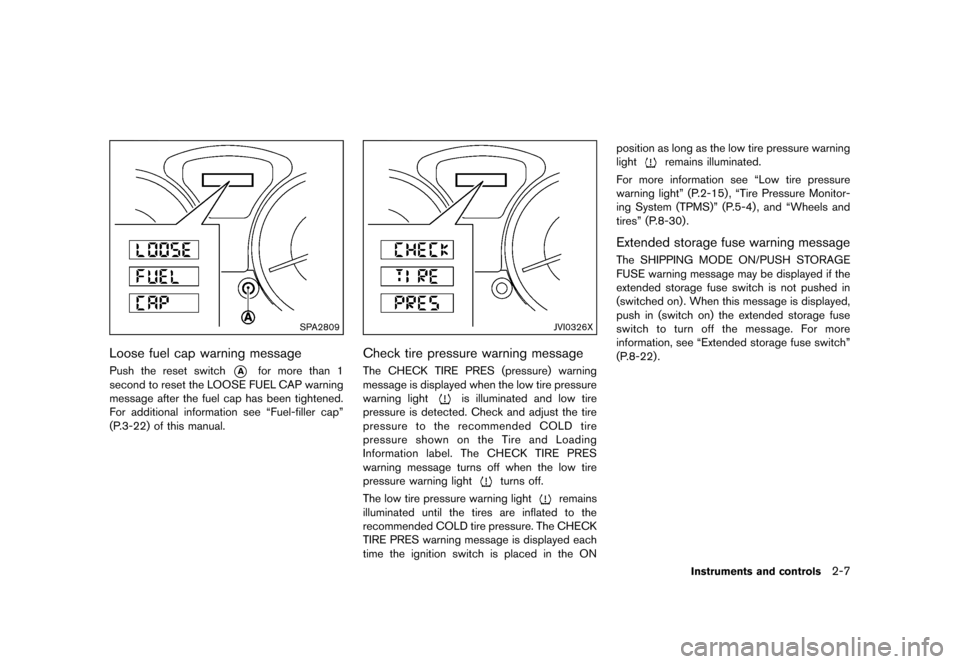

Loose fuel cap warning messageGUID-1B265639-6ADC-4A76-95BA-C77D72122232Push the reset switch*Afor more than 1
second to reset the LOOSE FUEL CAP warning
message after the fuel cap has been tightened.
For additional information see “Fuel-filler cap”
(P.3-22) of this manual.
JVI0326X
Check tire pressure warning messageGUID-1EFE659B-2B0B-4654-8D74-A2F2486D0ED9The CHECK TIRE PRES (pressure) warning
message is displayed when the low tire pressure
warning light
is illuminated and low tire
pressure is detected. Check and adjust the tire
pressure to the recommended COLD tire
pressure shown on the Tire and Loading
Information label. The CHECK TIRE PRES
warning message turns off when the low tire
pressure warning light
turns off.
The low tire pressure warning light
remains
illuminated until the tires are inflated to the
recommended COLD tire pressure. The CHECK
TIRE PRES warning message is displayed each
time the ignition switch is placed in the ON position as long as the low tire pressure warning
light
remains illuminated.
For more information see “Low tire pressure
warning light” (P.2-15) , “Tire Pressure Monitor-
ing System (TPMS)” (P.5-4) , and “Wheels and
tires” (P.8-30).
Extended storage fuse warning messageGUID-9D5F7996-2B45-477F-8A6C-7904F0D81301The SHIPPING MODE ON/PUSH STORAGE
FUSE warning message may be displayed if the
extended storage fuse switch is not pushed in
(switched on) . When this message is displayed,
push in (switch on) the extended storage fuse
switch to turn off the message. For more
information, see “Extended storage fuse switch”
(P.8-22) .
Instruments and controls2-7
Condition:
Page 76 of 347
Black plate (74,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-8Instruments and controls
SIC4506

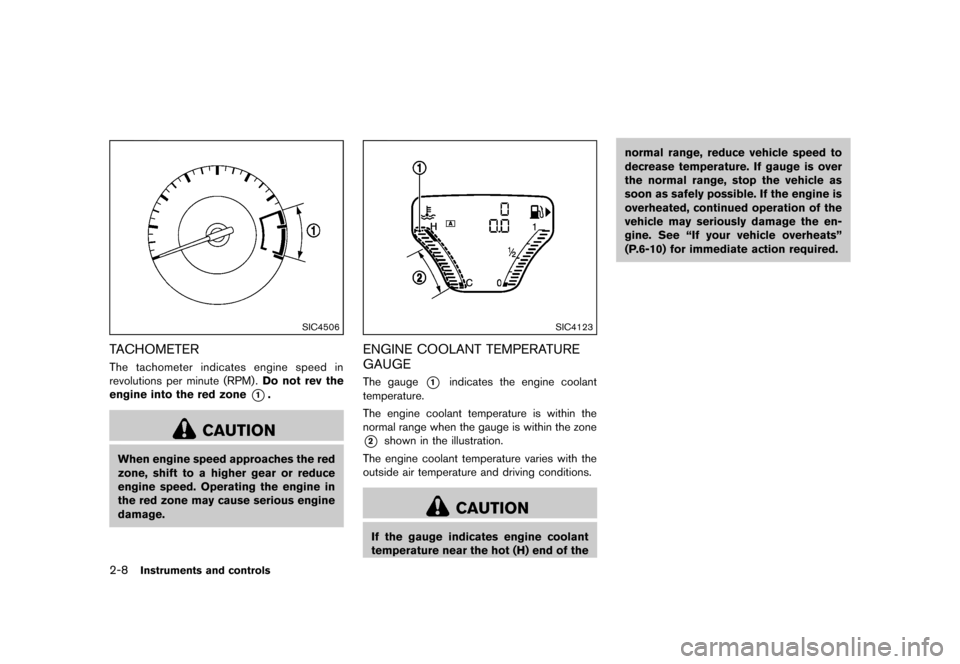

TACHOMETERGUID-215DFAC7-AA25-4799-B76A-5C7F24514E30The tachometer indicates engine speed in
revolutions per minute (RPM) .Do not rev the
engine into the red zone
*1.
CAUTION
When engine speed approaches the red
zone, shift to a higher gear or reduce
engine speed. Operating the engine in
the red zone may cause serious engine
damage.
SIC4123
ENGINE COOLANT TEMPERATURE
GAUGE
GUID-34DD45D3-B4F2-44CD-AAC9-21491CEBB243The gauge*1indicates the engine coolant
temperature.
The engine coolant temperature is within the
normal range when the gauge is within the zone
*2shown in the illustration.
The engine coolant temperature varies with the
outside air temperature and driving conditions.
CAUTION
If the gauge indicates engine coolant
temperature near the hot (H) end of the normal range, reduce vehicle speed to
decrease temperature. If gauge is over
the normal range, stop the vehicle as
soon as safely possible. If the engine is
overheated, continued operation of the
vehicle may seriously damage the en-
gine. See “If your vehicle overheats”
(P.6-10) for immediate action required.
Condition:
Page 77 of 347
Black plate (75,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
SIC4124

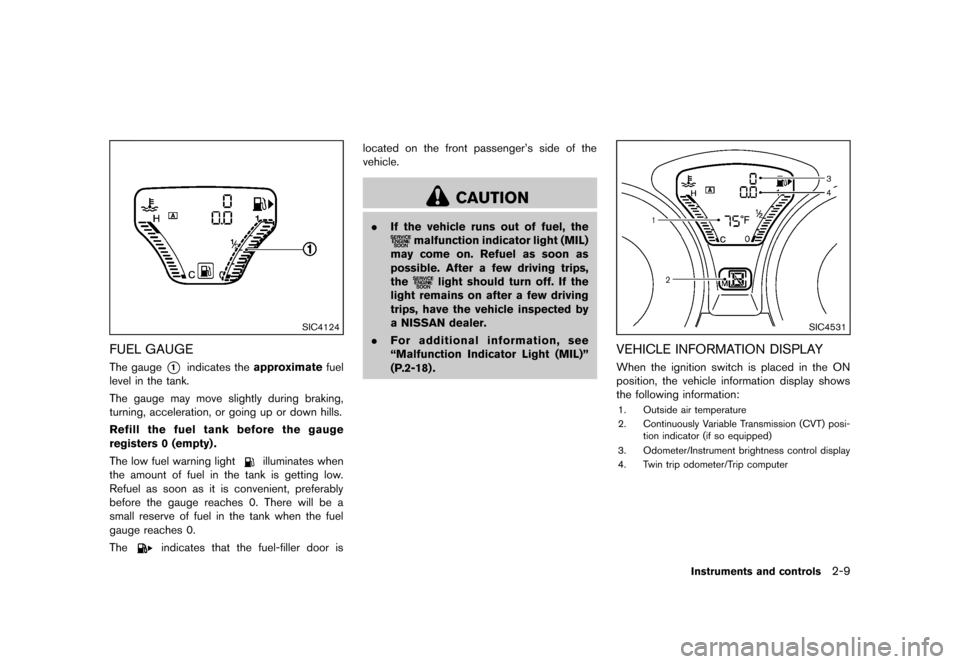

FUEL GAUGEGUID-353F5508-A471-4C58-AF18-C779D3376019The gauge*1indicates theapproximate fuel
level in the tank.
The gauge may move slightly during braking,
turning, acceleration, or going up or down hills.
Refill the fuel tank before the gauge
registers 0 (empty) .
The low fuel warning light
illuminates when
the amount of fuel in the tank is getting low.
Refuel as soon as it is convenient, preferably
before the gauge reaches 0. There will be a
small reserve of fuel in the tank when the fuel
gauge reaches 0.
The
indicates that the fuel-filler door is located on the front passenger’s side of the
vehicle.
CAUTION
.
If the vehicle runs out of fuel, the
malfunction indicator light (MIL)
may come on. Refuel as soon as
possible. After a few driving trips,
the
light should turn off. If the
light remains on after a few driving
trips, have the vehicle inspected by
a NISSAN dealer.
. For additional information, see
“Malfunction Indicator Light (MIL)”
(P.2-18) .
SIC4531
VEHICLE INFORMATION DISPLAYGUID-EC2230F2-740F-4EDF-A5DE-7642ED3AEC53When the ignition switch is placed in the ON
position, the vehicle information display shows
the following information:
1. Outside air temperature
2. Continuously Variable Transmission (CVT) posi-
tion indicator (if so equipped)
3. Odometer/Instrument brightness control display
4. Twin trip odometer/Trip computer
Instruments and controls2-9
Condition:
Page 78 of 347
Black plate (76,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-10Instruments and controls
OUTSIDE AIR TEMPERATUREGUID-1A157006-4054-4973-9724-C2D210223480The outside air temperature is displayed in8F or
8C.
When the outside air temperature becomes
378F (38C) or lower, the outside air temperature
display blinks to give a warning. The display will
stop blinking after 1 minute or when the outside
air temperature becomes 398F (48C) or above.
The display may differ from the actual outside
temperature displayed on various signs or bill-
boards.
CONTINUOUSLY VARIABLE TRANS-
MISSION (CVT) POSITION INDICATOR
(if so equipped)
GUID-AEF6AFF6-79C9-4BA4-B0D3-EC97DBF7DA83The Continuously Variable Transmission (CVT)
position indicator indicates the selector lever
position when the ignition switch is in the ON
position.
SIC4532

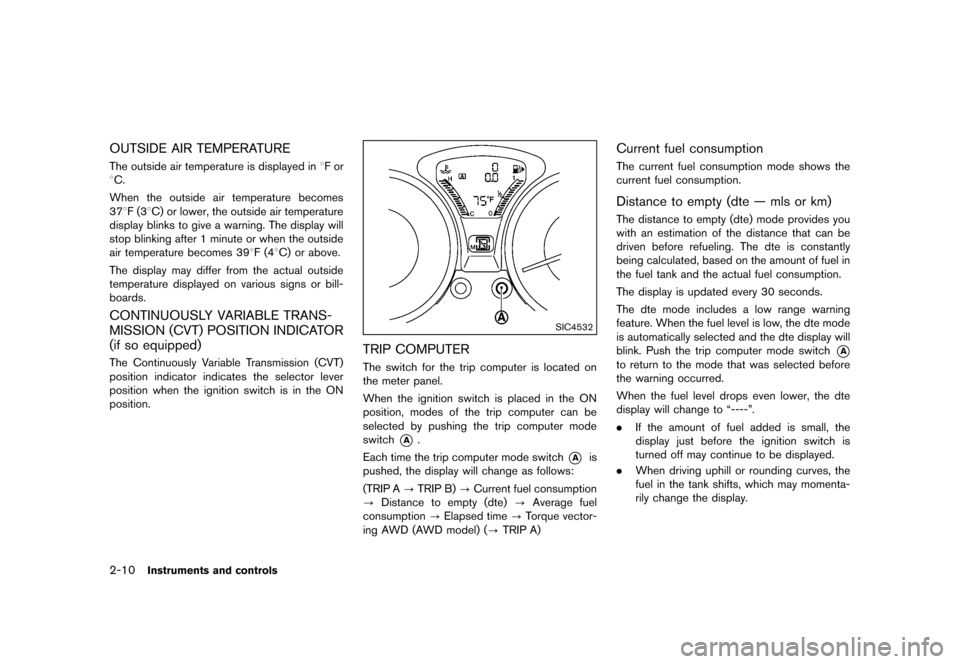

TRIP COMPUTERGUID-761D7DC4-8A71-4FAE-9686-B06903798D36The switch for the trip computer is located on
the meter panel.
When the ignition switch is placed in the ON
position, modes of the trip computer can be
selected by pushing the trip computer mode
switch
*A.
Each time the trip computer mode switch
*Ais
pushed, the display will change as follows:
(TRIP A ?TRIP B) ?Current fuel consumption
? Distance to empty (dte) ?Average fuel
consumption ?Elapsed time ?Torque vector-
ing AWD (AWD model) (? TRIP A)
Current fuel consumptionGUID-0A5E70EC-4694-4D89-8DA2-A160792B4EB3The current fuel consumption mode shows the
current fuel consumption.
Distance to empty (dte — mls or km)GUID-4238E3D0-30E9-4AEC-8B23-BEE5EE4E1E0BThe distance to empty (dte) mode provides you
with an estimation of the distance that can be
driven before refueling. The dte is constantly
being calculated, based on the amount of fuel in
the fuel tank and the actual fuel consumption.
The display is updated every 30 seconds.
The dte mode includes a low range warning
feature. When the fuel level is low, the dte mode
is automatically selected and the dte display will
blink. Push the trip computer mode switch
*A
to return to the mode that was selected before
the warning occurred.
When the fuel level drops even lower, the dte
display will change to “----”.
.If the amount of fuel added is small, the
display just before the ignition switch is
turned off may continue to be displayed.
. When driving uphill or rounding curves, the
fuel in the tank shifts, which may momenta-
rily change the display.
Condition:
Page 79 of 347
Black plate (77,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

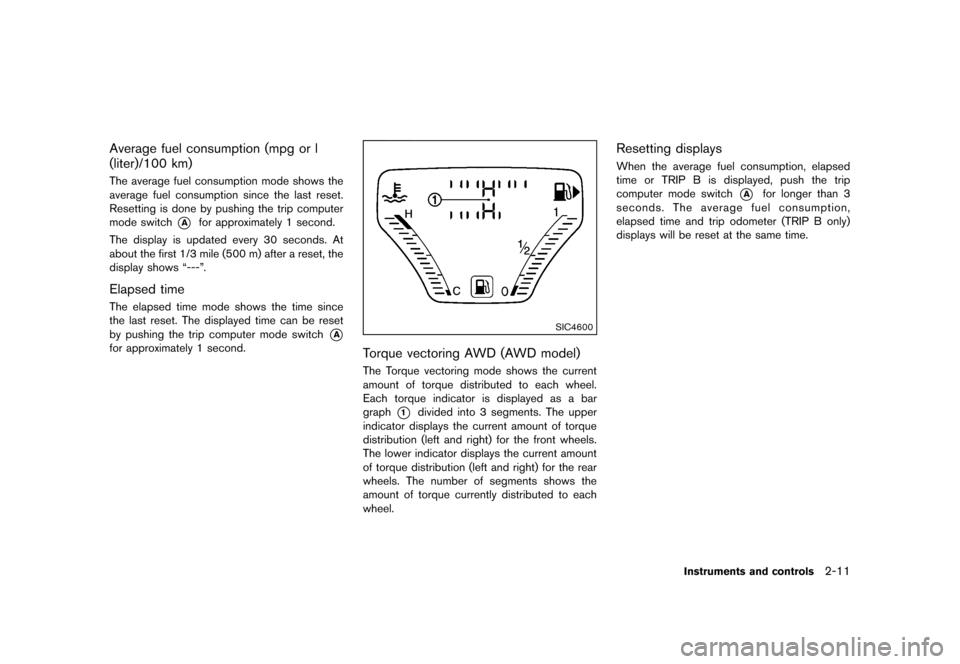

Average fuel consumption (mpg or l
(liter)/100 km)
GUID-E7885AB9-2063-4E90-897B-7200C49E7707The average fuel consumption mode shows the
average fuel consumption since the last reset.
Resetting is done by pushing the trip computer
mode switch
*Afor approximately 1 second.
The display is updated every 30 seconds. At
about the first 1/3 mile (500 m) after a reset, the
display shows “---”.
Elapsed timeGUID-A16D6909-E777-4207-BB06-A5B7201C9049The elapsed time mode shows the time since
the last reset. The displayed time can be reset
by pushing the trip computer mode switch
*A
for approximately 1 second.
SIC4600
Torque vectoring AWD (AWD model)GUID-5D8074C6-FF7E-4BFD-9621-AE02515CD69AThe Torque vectoring mode shows the current
amount of torque distributed to each wheel.
Each torque indicator is displayed as a bar
graph
*1divided into 3 segments. The upper
indicator displays the current amount of torque
distribution (left and right) for the front wheels.
The lower indicator displays the current amount
of torque distribution (left and right) for the rear
wheels. The number of segments shows the
amount of torque currently distributed to each
wheel.
Resetting displaysGUID-C3B30EF4-F9E7-424B-B539-122D78C3AE9FWhen the average fuel consumption, elapsed
time or TRIP B is displayed, push the trip
computer mode switch
*Afor longer than 3
seconds. The average fuel consumption,
elapsed time and trip odometer (TRIP B only)
displays will be reset at the same time.
Instruments and controls2-11
Condition:
Page 80 of 347
Black plate (78,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-12Instruments and controls
GUID-0AD04023-03AE-4553-915A-04F0D33BD0B8

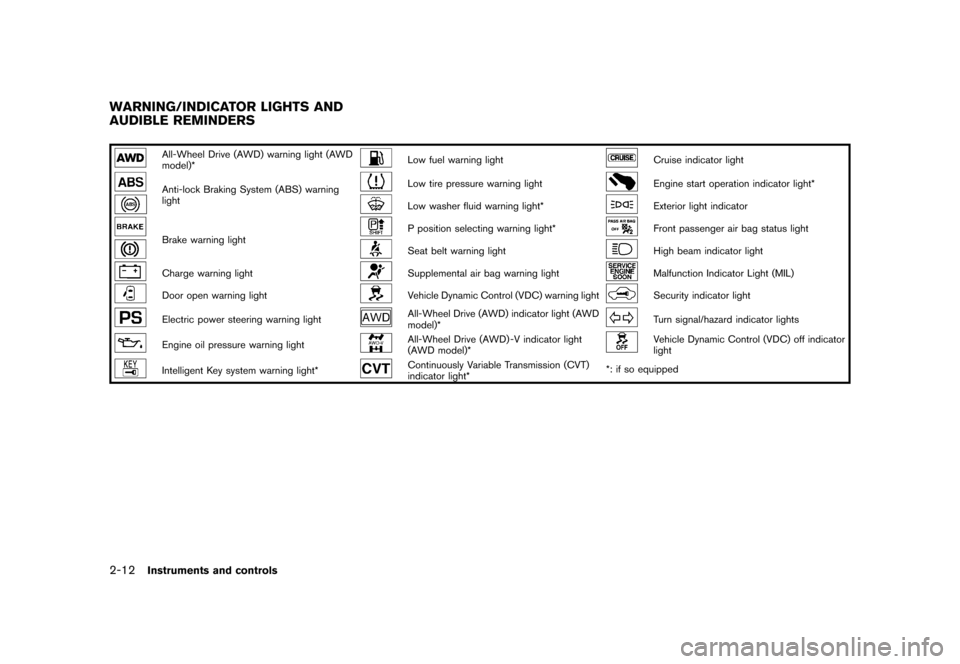

All-Wheel Drive (AWD) warning light (AWD
model)*Low fuel warning lightCruise indicator light
Anti-lock Braking System (ABS) warning
lightLow tire pressure warning lightEngine start operation indicator light*
Low washer fluid warning light*Exterior light indicator
Brake warning lightP position selecting warning light*Front passenger air bag status light
Seat belt warning lightHigh beam indicator light
Charge warning lightSupplemental air bag warning lightMalfunction Indicator Light (MIL)
Door open warning lightVehicle Dynamic Control (VDC) warning lightSecurity indicator light
Electric power steering warning lightAll-Wheel Drive (AWD) indicator light (AWD
model)*Turn signal/hazard indicator lights
Engine oil pressure warning lightAll-Wheel Drive (AWD) -V indicator light
(AWD model)*Vehicle Dynamic Control (VDC) off indicator
light
Intelligent Key system warning light*Continuously Variable Transmission (CVT)
indicator light**: if so equipped
WARNING/INDICATOR LIGHTS AND
AUDIBLE REMINDERS
Condition:
