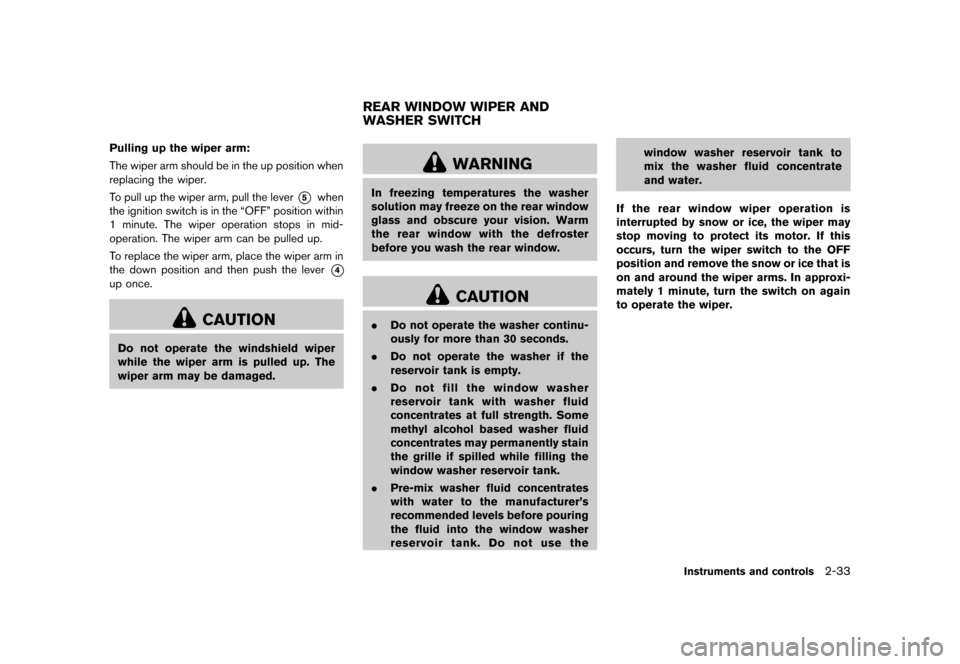

Pulling up the wiper arm:
The wiper arm should be in the up position when
replacing the wiper.
To pull up the wiper arm, pull the lever
*5when
the ignition switch is in the “OFF” position within
1 minute. The wiper operation stops in mid-
operation. The wiper arm can be pulled up.
To replace the wiper arm, place the wiper arm in
the down position and then push the lever
*4
up once.
CAUTION
Do not operate the windshield wiper
while the wiper arm is pulled up. The
wiper arm may be damaged.
GUID-0013655D-0D88-4D9F-87AB-B359910F5671
WARNING
In freezing temperatures the washer
solution may freeze on the rear window
glass and obscure your vision. Warm
the rear window with the defroster
before you wash the rear window.
CAUTION
. Do not operate the washer continu-
ously for more than 30 seconds.
. Do not operate the washer if the
reservoir tank is empty.
. Do not fill the window washer
reservoir tank with washer fluid
concentrates at full strength. Some
methyl alcohol based washer fluid
concentrates may permanently stain
the grille if spilled while filling the
window washer reservoir tank.
. Pre-mix washer fluid concentrates
with water to the manufacturer’s
recommended levels before pouring
the fluid into the window washer
reservoir tank. Do not use the window washer reservoir tank to
mix the washer fluid concentrate
and water.
If the rear window wiper operation is
interrupted by snow or ice, the wiper may
stop moving to protect its motor. If this
occurs, turn the wiper switch to the OFF
position and remove the snow or ice that is
on and around the wiper arms. In approxi-
mately 1 minute, turn the switch on again
to operate the wiper.
Instruments and controls2-33
REAR WINDOW WIPER AND
WASHER SWITCH
Condition:
Page 102 of 347
Black plate (100,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

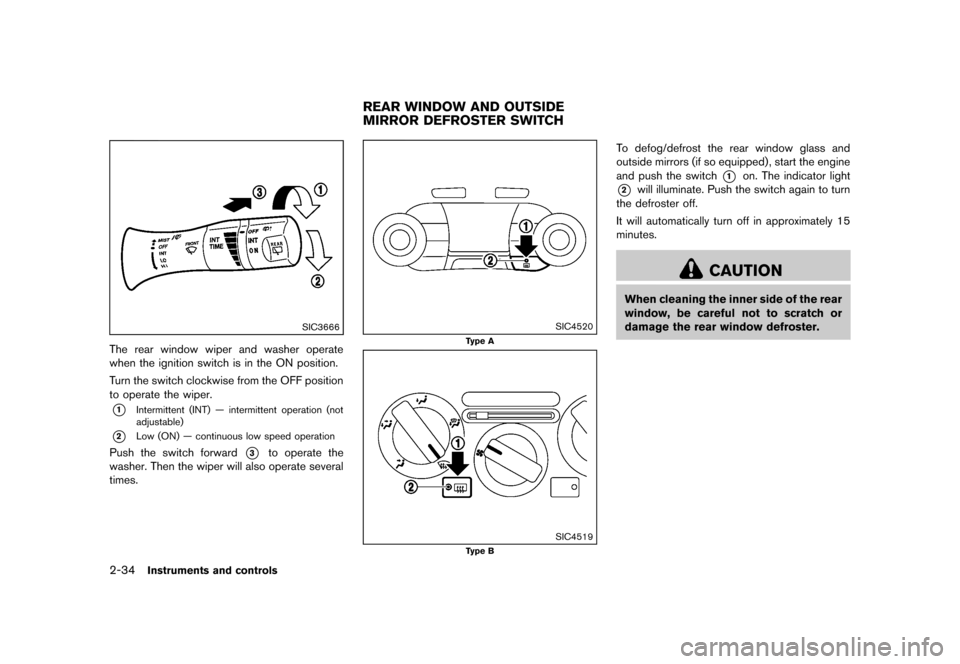

2-34Instruments and controls
SIC3666
The rear window wiper and washer operate
when the ignition switch is in the ON position.
Turn the switch clockwise from the OFF position
to operate the wiper.
*1Intermittent (INT) — intermittent operation (not
adjustable)
*2Low (ON) — continuous low speed operation
Push the switch forward*3to operate the
washer. Then the wiper will also operate several
times.
GUID-A6ACEC3D-569F-4102-A2B6-4DE76F74F79B
SIC4520
Type A
SIC4519
Type B
To defog/defrost the rear window glass and
outside mirrors (if so equipped), start the engine
and push the switch
*1on. The indicator light
*2will illuminate. Push the switch again to turn
the defroster off.
It will automatically turn off in approximately 15
minutes.
CAUTION
When cleaning the inner side of the rear
window, be careful not to scratch or
damage the rear window defroster.
REAR WINDOW AND OUTSIDE
MIRROR DEFROSTER SWITCH
Condition:
Page 103 of 347
Black plate (101,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-2608E54F-A0CB-4CE9-8864-9C61F01ED6F7

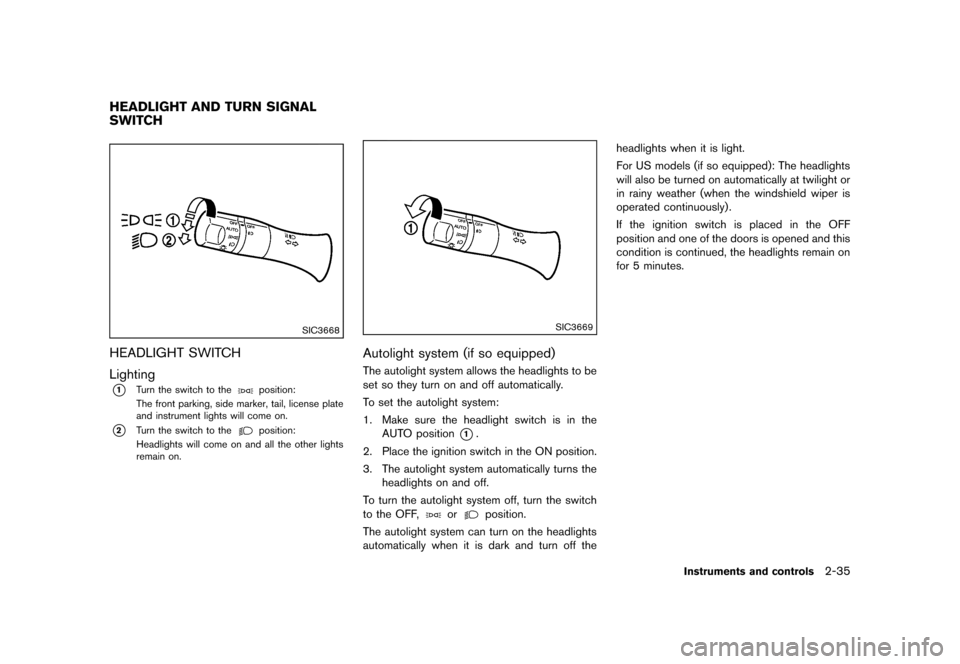

SIC3668
HEADLIGHT SWITCHGUID-78F7386F-88AF-48CA-8EC4-39D87DBFEDF9
LightingGUID-C7E4F4F1-DC4D-4024-8FF6-AC24A3D2B1F5*1Turn the switch to theposition:
The front parking, side marker, tail, license plate
and instrument lights will come on.
*2Turn the switch to theposition:
Headlights will come on and all the other lights
remain on.
SIC3669
Autolight system (if so equipped)GUID-2F769165-6329-45F4-95DB-2F94DB2FE66CThe autolight system allows the headlights to be
set so they turn on and off automatically.
To set the autolight system:
1. Make sure the headlight switch is in the AUTO position
*1.
2. Place the ignition switch in the ON position.
3. The autolight system automatically turns the headlights on and off.
To turn the autolight system off, turn the switch
to the OFF,
orposition.
The autolight system can turn on the headlights
automatically when it is dark and turn off the headlights when it is light.
For US models (if so equipped): The headlights
will also be turned on automatically at twilight or
in rainy weather (when the windshield wiper is
operated continuously) .
If the ignition switch is placed in the OFF
position and one of the doors is opened and this
condition is continued, the headlights remain on
for 5 minutes.
Instruments and controls2-35
HEADLIGHT AND TURN SIGNAL
SWITCH
Condition:
Page 104 of 347
Black plate (102,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

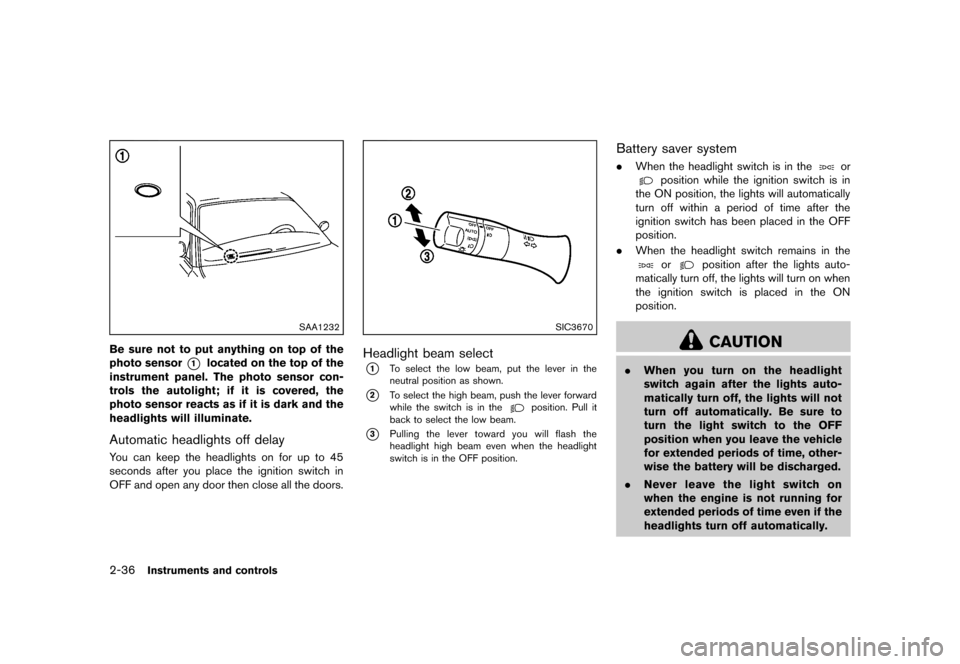

2-36Instruments and controls
SAA1232
Be sure not to put anything on top of the
photo sensor
*1located on the top of the
instrument panel. The photo sensor con-
trols the autolight; if it is covered, the
photo sensor reacts as if it is dark and the
headlights will illuminate.
Automatic headlights off delayGUID-CFAAEF09-71A1-4057-9F7B-96D46980C786You can keep the headlights on for up to 45
seconds after you place the ignition switch in
OFF and open any door then close all the doors.
SIC3670
Headlight beam selectGUID-65D36B20-DAE3-4840-AD10-0068CB054884*1To select the low beam, put the lever in the
neutral position as shown.
*2To select the high beam, push the lever forward
while the switch is in theposition. Pull it
back to select the low beam.
*3Pulling the lever toward you will flash the
headlight high beam even when the headlight
switch is in the OFF position.
Battery saver systemGUID-E8409034-D45E-48DE-A071-E3A41898289B. When the headlight switch is in theor
position while the ignition switch is in
the ON position, the lights will automatically
turn off within a period of time after the
ignition switch has been placed in the OFF
position.
. When the headlight switch remains in the
orposition after the lights auto-
matically turn off, the lights will turn on when
the ignition switch is placed in the ON
position.
CAUTION
. When you turn on the headlight
switch again after the lights auto-
matically turn off, the lights will not
turn off automatically. Be sure to
turn the light switch to the OFF
position when you leave the vehicle
for extended periods of time, other-
wise the battery will be discharged.
. Never leave the light switch on
when the engine is not running for
extended periods of time even if the
headlights turn off automatically.
Condition:
Page 105 of 347
Black plate (103,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

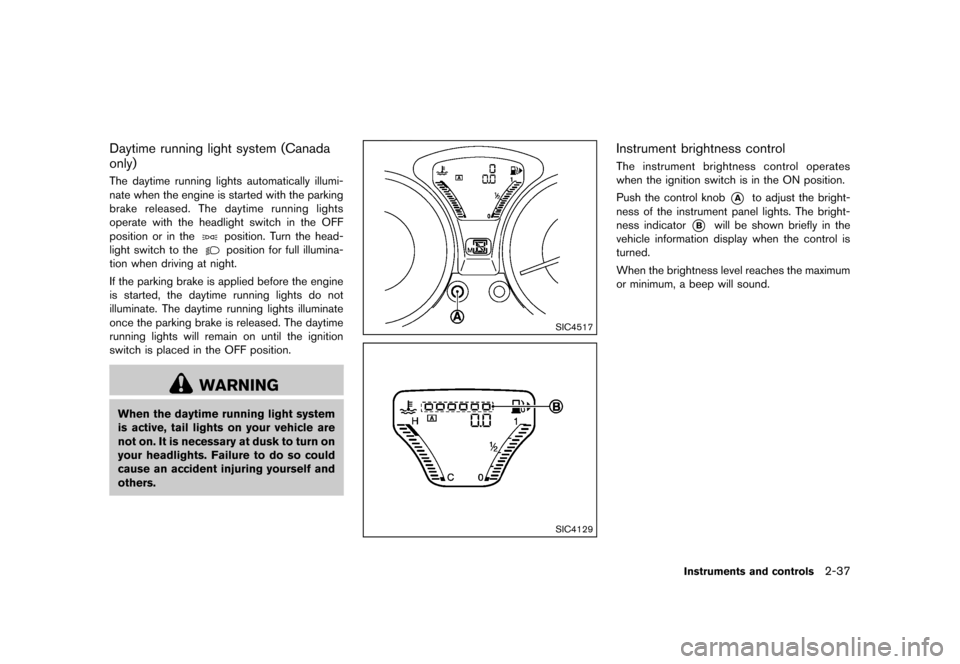

Daytime running light system (Canada
only)
GUID-62FCD516-90BE-43E6-ACAB-5CD8364D8567The daytime running lights automatically illumi-
nate when the engine is started with the parking
brake released. The daytime running lights
operate with the headlight switch in the OFF
position or in the
position. Turn the head-
light switch to the
position for full illumina-
tion when driving at night.
If the parking brake is applied before the engine
is started, the daytime running lights do not
illuminate. The daytime running lights illuminate
once the parking brake is released. The daytime
running lights will remain on until the ignition
switch is placed in the OFF position.
WARNING
When the daytime running light system
is active, tail lights on your vehicle are
not on. It is necessary at dusk to turn on
your headlights. Failure to do so could
cause an accident injuring yourself and
others.
SIC4517
SIC4129
Instrument brightness controlGUID-955DB8AF-41FD-4C7B-B17D-A344031AD5BBThe instrument brightness control operates
when the ignition switch is in the ON position.
Push the control knob
*Ato adjust the bright-
ness of the instrument panel lights. The bright-
ness indicator
*Bwill be shown briefly in the
vehicle information display when the control is
turned.
When the brightness level reaches the maximum
or minimum, a beep will sound.
Instruments and controls2-37
Condition:
Page 106 of 347
Black plate (104,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]

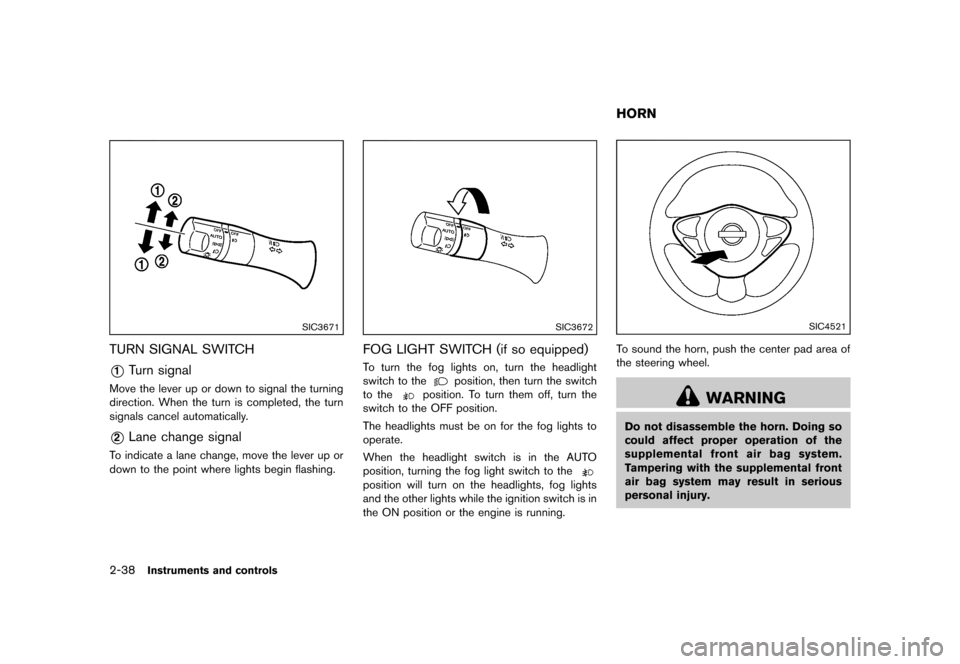

2-38Instruments and controls
SIC3671
TURN SIGNAL SWITCHGUID-DF12F6F8-A1D7-4024-A4DF-46D972E49E9C
*1Turn signalGUID-3CF2F736-4960-4B96-B5CF-1271A559F90AMove the lever up or down to signal the turning
direction. When the turn is completed, the turn
signals cancel automatically.
*2Lane change signalGUID-BCAE5264-DA08-4A37-B0F2-FDE7D90FCC8FTo indicate a lane change, move the lever up or
down to the point where lights begin flashing.
SIC3672
FOG LIGHT SWITCH (if so equipped)GUID-8A44D476-039A-440B-9B7F-71C22E22C8D1To turn the fog lights on, turn the headlight
switch to the
position, then turn the switch
to the
position. To turn them off, turn the
switch to the OFF position.
The headlights must be on for the fog lights to
operate.
When the headlight switch is in the AUTO
position, turning the fog light switch to the
position will turn on the headlights, fog lights
and the other lights while the ignition switch is in
the ON position or the engine is running.
GUID-BCFDC961-0310-45F1-A715-1044C3AF17A3
SIC4521
To sound the horn, push the center pad area of
the steering wheel.
WARNING
Do not disassemble the horn. Doing so
could affect proper operation of the
supplemental front air bag system.
Tampering with the supplemental front
air bag system may result in serious
personal injury.
HORN
Condition:
Page 107 of 347
Black plate (105,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
GUID-214BC187-5FC2-47C2-A34A-24AAF5D08E52

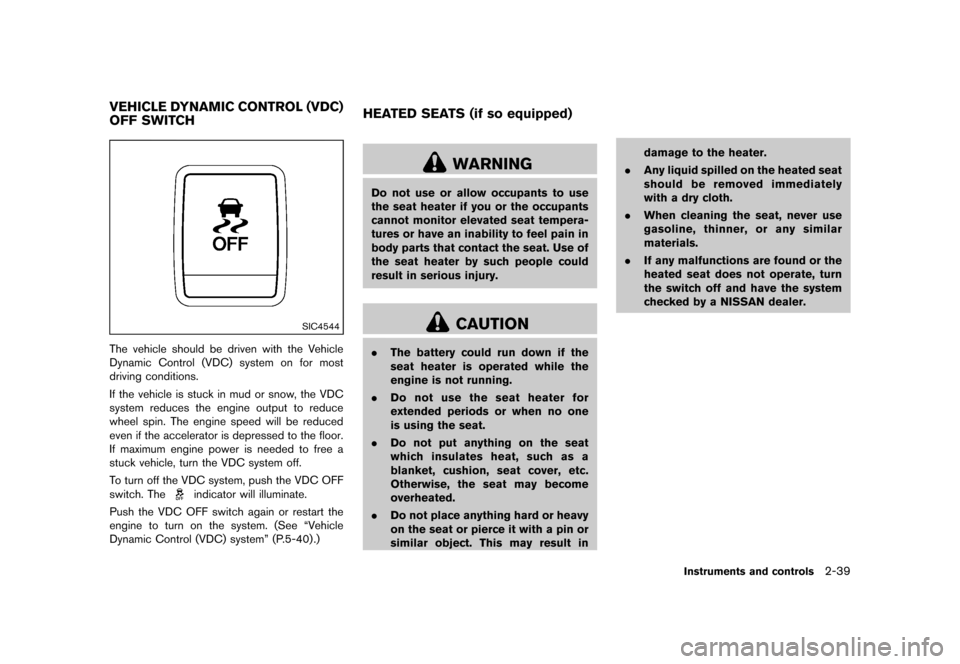

SIC4544
The vehicle should be driven with the Vehicle
Dynamic Control (VDC) system on for most
driving conditions.
If the vehicle is stuck in mud or snow, the VDC
system reduces the engine output to reduce
wheel spin. The engine speed will be reduced
even if the accelerator is depressed to the floor.
If maximum engine power is needed to free a
stuck vehicle, turn the VDC system off.
To turn off the VDC system, push the VDC OFF
switch. The
indicator will illuminate.
Push the VDC OFF switch again or restart the
engine to turn on the system. (See “Vehicle
Dynamic Control (VDC) system” (P.5-40) .)
GUID-AF2D0C38-8F40-4385-9E9C-0A71DCA2931A
WARNING
Do not use or allow occupants to use
the seat heater if you or the occupants
cannot monitor elevated seat tempera-
tures or have an inability to feel pain in
body parts that contact the seat. Use of
the seat heater by such people could
result in serious injury.
CAUTION
. The battery could run down if the
seat heater is operated while the
engine is not running.
. Do not use the seat heater for
extended periods or when no one
is using the seat.
. Do not put anything on the seat
which insulates heat, such as a
blanket, cushion, seat cover, etc.
Otherwise, the seat may become
overheated.
. Do not place anything hard or heavy
on the seat or pierce it with a pin or
similar object. This may result in damage to the heater.
. Any liquid spilled on the heated seat
should be removed immediately
with a dry cloth.
. When cleaning the seat, never use
gasoline, thinner, or any similar
materials.
. If any malfunctions are found or the
heated seat does not operate, turn
the switch off and have the system
checked by a NISSAN dealer.
Instruments and controls2-39
VEHICLE DYNAMIC CONTROL (VDC)
OFF SWITCH HEATED SEATS (if so equipped)
Condition:
Page 108 of 347
Black plate (106,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-40Instruments and controls

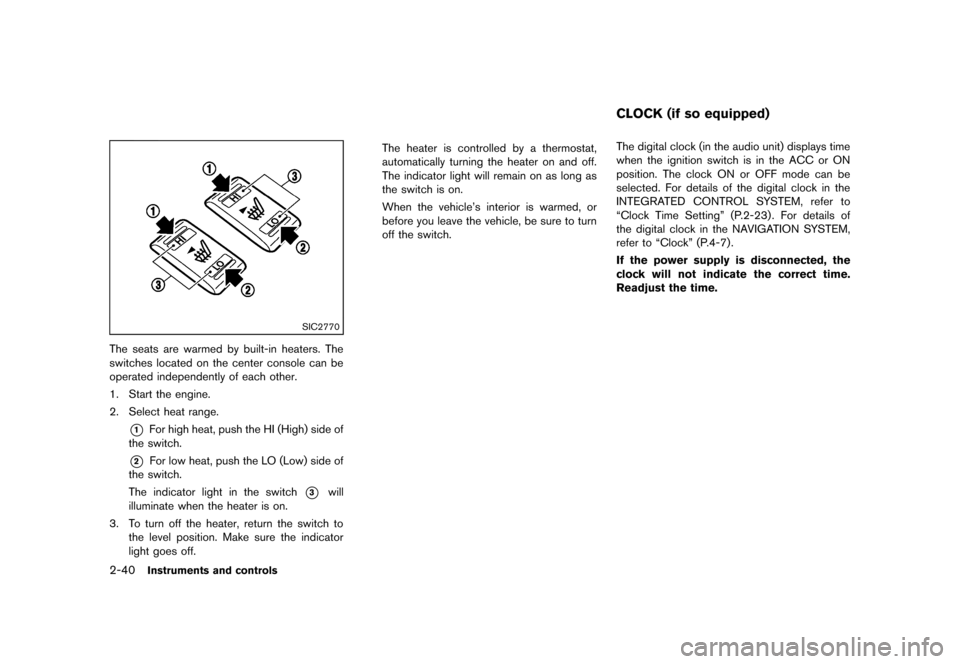

SIC2770
The seats are warmed by built-in heaters. The
switches located on the center console can be
operated independently of each other.
1. Start the engine.
2. Select heat range.
*1For high heat, push the HI (High) side of
the switch.
*2For low heat, push the LO (Low) side of
the switch.
The indicator light in the switch
*3will
illuminate when the heater is on.
3. To turn off the heater, return the switch to the level position. Make sure the indicator
light goes off. The heater is controlled by a thermostat,
automatically turning the heater on and off.
The indicator light will remain on as long as
the switch is on.
When the vehicle’s interior is warmed, or
before you leave the vehicle, be sure to turn
off the switch.
GUID-8EF3F7B9-ECF4-4984-877D-7948CE13B956The digital clock (in the audio unit) displays time
when the ignition switch is in the ACC or ON
position. The clock ON or OFF mode can be
selected. For details of the digital clock in the
INTEGRATED CONTROL SYSTEM, refer to
“Clock Time Setting” (P.2-23) . For details of
the digital clock in the NAVIGATION SYSTEM,
refer to “Clock” (P.4-7).
If the power supply is disconnected, the
clock will not indicate the correct time.
Readjust the time.
CLOCK (if so equipped)
Condition:
Page 109 of 347
Black plate (107,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
SIC4131

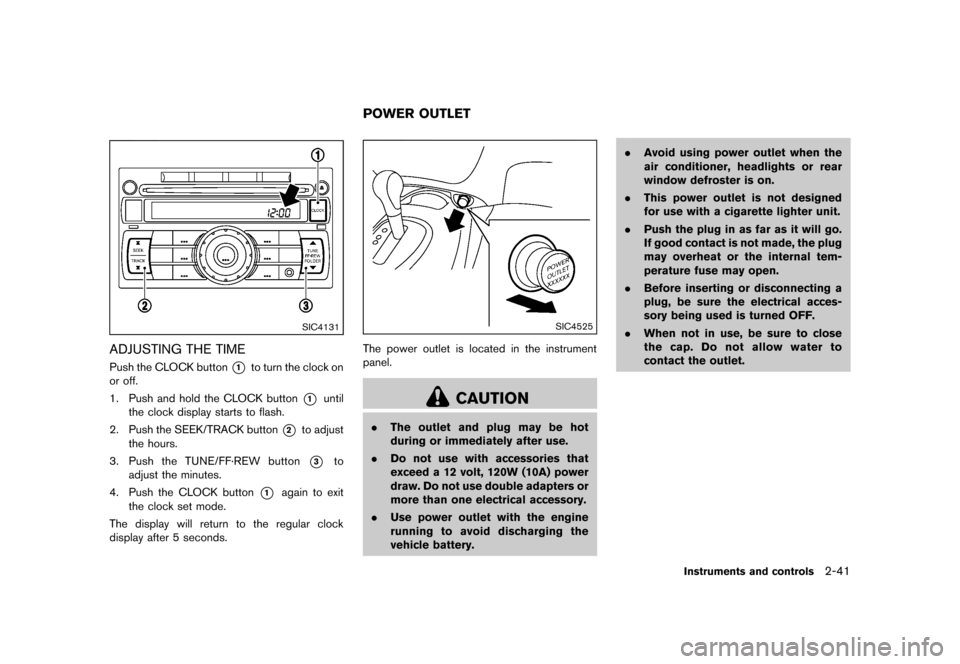

ADJUSTING THE TIMEGUID-4EA21DCA-A547-4E75-A7F5-CCE270C99194Push the CLOCK button*1to turn the clock on
or off.
1. Push and hold the CLOCK button
*1until
the clock display starts to flash.
2. Push the SEEK/TRACK button
*2to adjust
the hours.
3. Push the TUNE/FF·REW button
*3to
adjust the minutes.
4. Push the CLOCK button
*1again to exit
the clock set mode.
The display will return to the regular clock
display after 5 seconds.
GUID-850FEE13-D4FF-4D25-97B5-E92230D21302
SIC4525
The power outlet is located in the instrument
panel.
CAUTION
. The outlet and plug may be hot
during or immediately after use.
. Do not use with accessories that
exceed a 12 volt, 120W (10A) power
draw. Do not use double adapters or
more than one electrical accessory.
. Use power outlet with the engine
running to avoid discharging the
vehicle battery. .
Avoid using power outlet when the
air conditioner, headlights or rear
window defroster is on.
. This power outlet is not designed
for use with a cigarette lighter unit.
. Push the plug in as far as it will go.
If good contact is not made, the plug
may overheat or the internal tem-
perature fuse may open.
. Before inserting or disconnecting a
plug, be sure the electrical acces-
sory being used is turned OFF.
. When not in use, be sure to close
the cap. Do not allow water to
contact the outlet.
Instruments and controls2-41
POWER OUTLET
Condition:
Page 110 of 347
Black plate (108,1)
[ Edit: 2012/ 6/ 29 Model: F15-D ]
2-42Instruments and controls

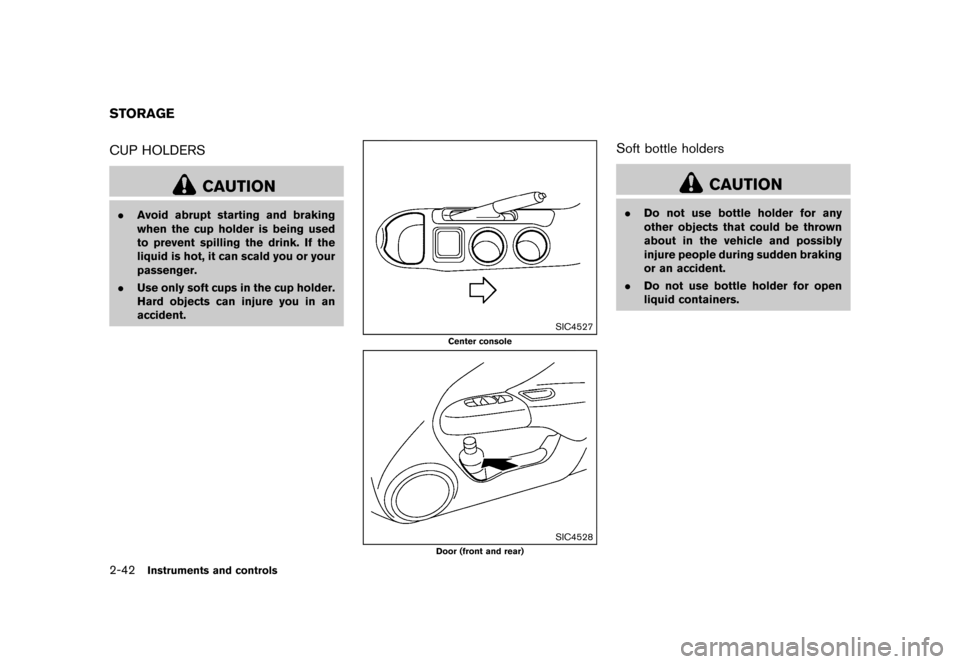

GUID-11FFEB74-6D4E-4717-B00A-F5FBAB2E5908CUP HOLDERSGUID-FC8FAFBC-BCD6-43B2-98A8-26203EF5F9DB
CAUTION
.Avoid abrupt starting and braking
when the cup holder is being used
to prevent spilling the drink. If the
liquid is hot, it can scald you or your
passenger.
. Use only soft cups in the cup holder.
Hard objects can injure you in an
accident.
SIC4527
Center console
SIC4528
Door (front and rear)
Soft bottle holdersGUID-1A4FBEC5-2F7E-4330-AFDC-3E00F421B6AB
CAUTION
.Do not use bottle holder for any
other objects that could be thrown
about in the vehicle and possibly
injure people during sudden braking
or an accident.
. Do not use bottle holder for open
liquid containers.
STORAGE
Condition:
