GUID-8BD8A3A8-B294-458F-BC7B-E5197FB6203CWelcome to the growing family of new NISSAN
owners. This vehicle is delivered to you with
confidence. It was produced using the latest
techniques and strict quality control.
This manual was prepared to help you under-
stand the operation and maintenance of your
vehicle so that you may enjoy many miles of
driving pleasure. Please read through this
manual before operating your vehicle.
A separate Warranty Information Booklet
explains details about the warranties cov-
ering your vehicle. The NISSAN Service
and Maintenance Guide explains details
about maintaining and servicing your ve-
hicle. Additionally, a separate Customer
Care/Lemon Law Booklet (U.S. only) will
explain how to resolve any concerns you
may have with your vehicle, as well as
clarify your rights under your state's lemon
law.
In addition to factory installed options, your
vehicle may also be equipped with additional
accessories installed by NISSAN or by your
NISSAN dealer prior to delivery. It is important
that you familiarize yourself with all disclosures,
warnings, cautions and instructions concerning
proper use of such accessories prior to operat-
ing the vehicle and/or accessory. See a NISSAN
dealer for details concerning the particularaccessories with which your vehicle is
equipped.
Your NISSAN dealer knows your vehicle best.
When you require any service or have any
questions, we will be glad to assist you with the
extensive resources available to us.
READ FIRST Ð THEN DRIVE SAFELYGUID-593C27AD-1D70-42A2-A596-16F117E6B870Before driving your vehicle, read your Owner's
Manual carefully. This will ensure familiarity with
controls and maintenance requirements, assist-
ing you in the safe operation of your vehicle.
WARNING
IMPORTANT SAFETY INFORMATION
REMINDERS!
Follow these important driving rules to
help ensure a safe and comfortable trip
for you and your passengers!
.
NEVER drive under the influence of
alcohol or drugs.
. ALWAYS observe posted speed lim-
its and never drive too fast for
conditions.
. ALWAYS give your full attention to
driving and avoid using vehicle
features or taking other actions that could distract you.
. ALWAYS use your seat belts and
appropriate child restraint systems.
Pre-teen children should be seated
in the rear seat.
. ALWAYS provide information about
the proper use of vehicle safety
features to all occupants of the
vehicle.
. ALWAYS review this Owner's Man-
ual for important safety information.
On-pavement and off-road driv-
ing
This vehicle will handle and maneuver
differently from an ordinary passenger
car because it has a higher center of
gravity. As with other vehicles with fea-
tures of this type, failure to operate this
vehicle correctly may result in loss of
control or an accident. Be sure to read
ªAvoiding collision and rolloverº and
ªDriving safety precautionsº in the ª5.
Starting and drivingº section of this
manual.
Foreword
& R Q G L W L R Q
Page 7 of 399
Illustrated table of contents0
Safety Ð Seats, seat belts and supplemental
restraint system1
Instruments and controls
Pre-driving checks and adjustments
Heater, air conditioner, audio and phone systems
Starting and driving
In case of emergency
Appearance and care
Maintenance and do-it-yourself
Technical and consumer information
Index
2
3
4
5
6
7
8
9
10
Table of
Contents
> ( G L W 0 R G H O ) ' @ & R Q G L W L R Q
Page 21 of 399
> ( G L W 0 R G H O ) ' @

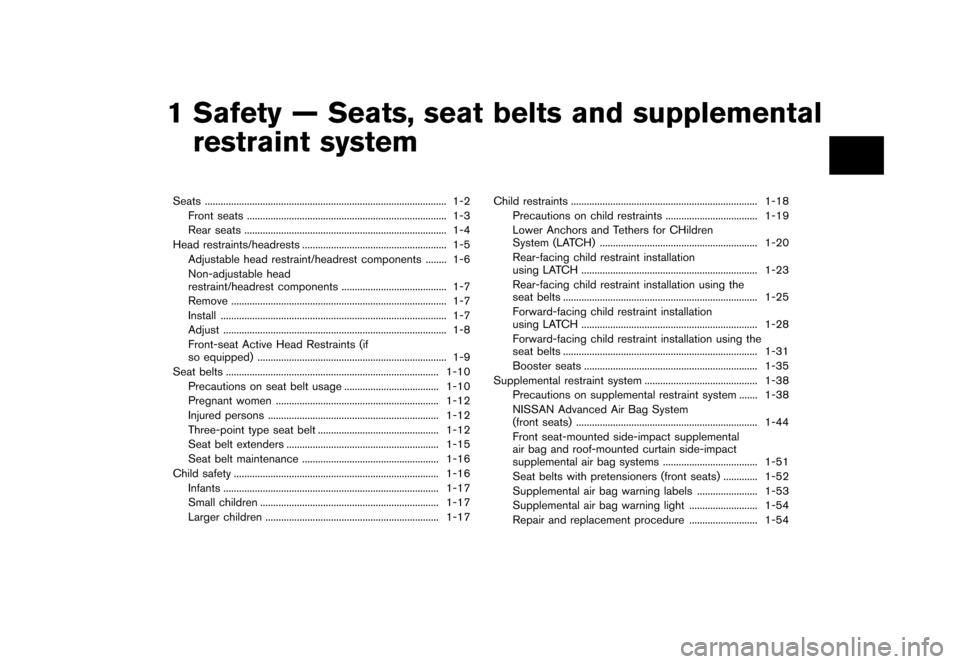

1 Safety Ð Seats, seat belts and supplementalrestraint system
Seats ...
........................................................................\
.................... 1-2
Front seats ...
........................................................................\
.... 1-3
Rear seats ...
........................................................................\
..... 1-4
Head restraints/headrests ...
....................................................... 1-5
Adjustable head restraint/headrest components ...
........ 1-6
Non-adjustable head
restraint/headrest components ...
........................................ 1-7
Remove ...
........................................................................\
.......... 1-7
Install ...
........................................................................\
.............. 1-7
Adjust ...
........................................................................\
............. 1-8
Front-seat Active Head Restraints (if
so equipped) ...
........................................................................\
1-9
Seat belts ...
........................................................................\
......... 1-10
Precautions on seat belt usage ...
.................................... 1-10
Pregnant women ...
.............................................................. 1-12
Injured persons ...
................................................................. 1-12
Three-point type seat belt ...
.............................................. 1-12
Seat belt extenders ...
.......................................................... 1-15
Seat belt maintenance ...
.................................................... 1-16
Child safety ...
........................................................................\
...... 1-16
Infants ...
........................................................................\
.......... 1-17
Small children ...
.................................................................... 1-17
Larger children ...
.................................................................. 1-17 Child restraints
...
....................................................................... 1-18
Precautions on child restraints ...
................................... 1-19
Lower Anchors and Tethers for CHildren
System (LATCH) ...
............................................................ 1-20
Rear-facing child restraint installation
using LATCH ...
................................................................... 1-23
Rear-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-25
Forward-facing child restraint installation
using LATCH ...
................................................................... 1-28
Forward-facing child restraint installation using the
seat belts ...
........................................................................\
.. 1-31
Booster seats ...
.................................................................. 1-35
Supplemental restraint system ...
........................................... 1-38
Precautions on supplemental restraint system ...
....... 1-38
NISSAN Advanced Air Bag System
(front seats) ...
..................................................................... 1-44
Front seat-mounted side-impact supplemental
air bag and roof-mounted curtain side-impact
supplemental air bag systems ...
.................................... 1-51
Seat belts with pretensioners (front seats) ...
............. 1-52
Supplemental air bag warning labels ...
....................... 1-53
Supplemental air bag warning light ...
.......................... 1-54
Repair and replacement procedure ...
.......................... 1-54
& R Q G L W L R Q
Page 36 of 399
> ( G L W 0 R G H O ) ' @
1-16Safety Ð Seats, seat belts and supplemental restraint system
collision or a sudden stop.
SEAT BELT MAINTENANCEGUID-23302E97-1D07-46E8-ABD5-3B61EAC1F2CD.To clean the seat belt webbing, apply a
mild soap solution or any solution recom-
mended for cleaning upholstery or carpets.
Then wipe with a cloth and allow the seat
belts to dry in the shade. Do not allow the
seat belts to retract until they are completely
dry.
. If dirt builds up in the shoulder belt
guide of the seat belt anchors, the seat
belts may retract slowly. Wipe the shoulder
belt guide with a clean, dry cloth.
. Periodically check to see that the seat
belt and the metal components, such as
buckles, tongues, retractors, flexible wires
and anchors, work properly. If loose parts,
deterioration, cuts or other damage on the
webbing is found, the entire seat belt
assembly should be replaced.
GUID-A4C6877D-9DF5-415A-A5C7-07A9C54DD3ED
WARNING
Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the
seat belt becomes wrapped around a
child's neck with the ALR mode acti-
vated, the child can be seriously injured
or killed if the seat belt retracts and
becomes tight. This can occur even if
the vehicle is parked. Unbuckle the seat
belt to release the child. If the seat belt
can not be unbuckled or is already
unbuckled, release the child by cutting
the seat belt with a suitable tool (such
as a knife or scissors) to release the
seat belt.
Children need adults to help protect them.
They need to be properly restrained.
In addition to the general information in this
manual, child safety information is available from
many other sources, including doctors, teachers,
government traffic safety offices, and community
organizations. Every child is different, so be sure
to learn the best way to transport your child. There are three basic types of child restraint
systems:
.
Rear-facing child restraint
. Forward-facing child restraint
. Booster seat
The proper restraint depends on the child's size.
Generally, infants up to about 1 year and less
than 20 lbs (9 kg) should be placed in rear-
facing child restraints. Forward-facing child
restraints are available for children who outgrow
rear-facing child restraints and are at least 1
year old. Booster seats are used to help position
a vehicle lap/shoulder belt on a child who can no
longer use a forward-facing child restraint.
WARNING
Infants and children need special pro-
tection. The vehicle's seat belts may not
fit them properly. The shoulder belt may
come too close to the face or neck. The
lap belt may not fit over their small hip
bones. In an accident, an improperly
fitting seat belt could cause serious or
fatal injury. Always use appropriate
child restraints.
All U.S. states and Canadian provinces or
territories require the use of approved child
CHILD SAFETY
& R Q G L W L R Q
Page 74 of 399
> ( G L W 0 R G H O ) ' @
1-54Safety Ð Seats, seat belts and supplemental restraint system
SPA1097
SUPPLEMENTAL AIR BAG WARNING
LIGHT
GUID-69289B9F-E343-42A6-B8EA-704F9439322FThe supplemental air bag warning light, display-
ing
in the instrument panel, monitors the
circuits for the air bag systems, pretensioners
and all related wiring.
When the ignition switch is in the ON position,
the supplemental air bag warning light illumi-
nates for about 7 seconds and then turns off.
This means the system is operational. If any of the following conditions occur, the air
bag and/or pretensioner systems need servi-
cing:
.
The supplemental air bag warning light
remains on after approximately 7 seconds.
. The supplemental air bag warning light
flashes intermittently.
. The supplemental air bag warning light does
not come on at all.
Under these conditions, the air bag and/or
pretensioner systems may not operate properly.
They must be checked and repaired. Take your
vehicle to the nearest NISSAN dealer.
WARNING
If the supplemental air bag warning
light is on, it could mean that the front
air bag, side air bag, curtain air bag
and/or pretensioner systems will not
operate in an accident. To help avoid
injury to yourself or others, have your
vehicle checked by a NISSAN dealer as
soon as possible.
REPAIR AND REPLACEMENT PRO-
CEDURE
GUID-F6741CCA-2FCA-4CB8-ABDF-9276497D620CThe front air bags, side air bags, curtain air bags
and pretensioners are designed to activate on a
one-time-only basis. As a reminder, unless it is
damaged, the supplemental air bag warning light
will remain illuminated after inflation has oc-
curred. Repair and replacement of these sys-
tems should be done only by a NISSAN dealer.
When maintenance work is required on the
vehicle, the front air bags, side air bags, curtain
air bags and pretensioners and related parts
should be pointed out to the person performing
the maintenance. The ignition switch should
always be in the LOCK position when working
under the hood or inside the vehicle.
WARNING
. Once a front air bag, side air bag or
curtain air bag has inflated, the air
bag module will not function again
and must be replaced. Additionally,
the activated pretensioners must
also be replaced. The air bag mod-
ule and pretensioner should be
replaced by a NISSAN dealer. The
air bag modules and pretensioner
system cannot be repaired.
& R Q G L W L R Q
Page 98 of 399
> ( G L W 0 R G H O ) ' @
2-22Instruments and controls
High beam indicator lightGUID-849B231E-AF14-45BE-A788-A0C55B5A4C93This light illuminates when the headlight high
beam is on and goes out when the low beam is
selected.
Malfunction Indicator Light (MIL)GUID-105F7DF5-6121-4EF4-AFAC-8D8C431A8A2EIf the malfunction indicator light comes on
steady or blinks while the engine is running, it
may indicate a potential emission control and/or
Continuously Variable Transmission (CVT) mal-
function.
The malfunction indicator light may also illumi-
nate steady if the fuel-filler cap is loose or
missing, or if the vehicle runs out of fuel. Check
to make sure the fuel-filler cap is installed and
closed tightly, and that the vehicle has at least 3
US gallons (11.4 liters) of fuel in the fuel tank.
After a few driving trips, the
light should
turn off if no other potential emission control
system malfunction exists.
If this indicator light remains on for 20 seconds
and then blinks for 10 seconds when the engine
is not running, it indicates that the vehicle is not
ready for an emission control system inspection/
maintenance test. (See ªReadiness for Inspec-
tion/Maintenance (I/M) testº (P.9-21) .) Operation:
GUID-F83C168B-173D-4313-B631-F712588C0463The malfunction indicator light will come on in
one of two ways:
.
Malfunction indicator light illuminated steady
Ð An emission control system and/or CVT
malfunction has been detected. Check the
fuel-filler cap if the LOOSE FUEL CAP
warning message is displayed on the twin
trip odometer. If the fuel-filler cap is loose or
missing, tighten or install the cap and
continue to drive the vehicle. The
light
should turn off after a few driving trips. If the
light does not turn off after a few driving
trips, have the vehicle inspected by a
NISSAN dealer. You do not need to have
your vehicle towed to the dealer.
. Malfunction indicator light blinking Ð An
engine misfire has been detected which may
damage the emission control system.
To reduce or avoid emission control system
damage:
1) Do not drive at speeds above 45 MPH
(72 km/h) .
2) Avoid hard acceleration or deceleration.
3) Avoid steep uphill grades.
4) If possible, reduce the amount of cargo being hauled or towed.
The malfunction indicator light may stop
blinking and remain on. Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
and/or CVT system checked and re-
paired as necessary could lead to poor
driveability, reduced fuel economy, and
possible damage to the emission con-
trol system.
Security indicator lightGUID-5BBF01E2-3135-4B2A-BA68-00E15944E42AThe light blinks when the ignition switch is in the
ACC, OFF or LOCK position. This function
indicates the security system equipped on the
vehicle is operational.
If the security system is malfunctioning, this light
will remain on while the ignition switch is in the
ON position. For additional information, see
ªSecurity systemsº (P.2-32) .
& R Q G L W L R Q
Page 155 of 399
> ( G L W 0 R G H O ) ' @
4 Heater, air conditioner, audio and phone sys-tems
Safety note ...
........................................................................\
.......... 4-3
Control buttons and functions (models with
navigation system) ...
.................................................................... 4-3
How to use touch screen ...
................................................. 4-4
How to use the BACK button ...
......................................... 4-5
How to use the APPS´i button ...
........................................ 4-5
How to use brightness control button ...
........................... 4-8
How to use the ON´OFF button/Volume
control knob ...
........................................................................\
.. 4-8
How to use the CAMERA button ...
................................... 4-8
RearView Monitor (models without
navigation system) ...
.................................................................... 4-8
RearView Monitor system operation ...
.............................. 4-9
How to read the displayed lines ...
..................................... 4-9
Adjusting the screen ...
....................................................... 4-11
RearView Monitor system limitations ...
.......................... 4-11
System maintenance ...
....................................................... 4-12
Around View
Page 159 of 399
> ( G L W 0 R G H O ) ' @
.123/ABC:
Changes the keyboard between numbers
and alphabets.
. Space:
Inserts a space.
. Delete:
Deletes the last inputted character with one
touch. Touch and hold the ªDeleteº key to
delete all of the characters.
. OK:
Completes the character input.
Touch screen maintenanceGUID-77C3133A-9596-4196-B911-A0948F0FFCA3If you clean the display screen, use a dry, soft
cloth. If additional cleaning is necessary, use a
small amount of neutral detergent with a soft
cloth. Never spray the screen with water or
detergent. Dampen the cloth first and then wipe
the screen.
HOW TO USE THE BACK BUTTONGUID-A5D1F746-2A2E-4A3C-BC32-793B3C61BD05Push the BACK button to return to the previous
screen.
JVH0735X
HOW TO USE THE APPS´I BUTTONGUID-EE87C90E-709A-44F4-A0A2-03BFBA7B5D5EFor information about the ªSiriusXM Travel Linkº,
and ªSiriusXM Trafficº features, see the separate
Navigation System Owner's Manual.
For information about the ªMy Appsº key, see
ªNissanConnect
SMApp smartphone integrationº
(P.4-75) .
For information about the ªVoice Commandsº
key, see ªNISSAN Voice Recognition System
(models with navigation system)º (P.4-96).
JVH1249X
To select and/or adjust several functions,
features and modes that are available for your
vehicle:
1. Push the
button.
2. Touch the ªSettingsº key.
3. Touch the desired item.
Heater, air conditioner, audio and phone systems4-5
& R Q G L W L R Q
Page 166 of 399
> ( G L W 0 R G H O ) ' @
4-12Heater, air conditioner, audio and phone systems
.When washing the vehicle with
high-pressure water, be sure not to
spray it around the camera. Other-
wise, water may enter the camera
unit causing water condensation on
the lens, a malfunction, fire or an
electric shock.
. Do not strike the camera. It is a
precision instrument. Otherwise, it
may malfunction or cause damage
resulting in a fire or an electric
shock.
The following are operating limitations and do
not represent a system malfunction:
. When the temperature is extremely high or
low, the screen may not clearly display
objects.
. When strong light is directly coming on the
camera, objects may not be displayed
clearly.
. Vertical lines may be seen in objects on the
screen. This is due to strong reflected light
from the bumper.
. The screen may flicker under fluorescent
light.
. The colors of objects on the RearView
Monitor may differ somewhat from the actual
color of objects. .
Objects on the monitor may not be clear in a
dark environment.
. If dirt, rain or snow accumulates on the
camera, the RearView Monitor may not
display objects clearly. Clean the camera.
. Do not use wax on the camera window.
Wipe off any wax with a clean cloth
dampened with mild detergent diluted with
water.
JVH1219X
SYSTEM MAINTENANCEGUID-A02CC587-5E86-43E2-BA3D-983BBBDAD052
CAUTION
.Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected.
& R Q G L W L R Q
Page 177 of 399
> ( G L W 0 R G H O ) ' @
JVH1224X
SYSTEM MAINTENANCEGUID-2F1405BC-38E9-44B8-B2D2-800FC0E566C8
CAUTION
.Do not use alcohol, benzine or
thinner to clean the camera. This
will cause discoloration. To clean
the camera, wipe with a cloth dam-
pened with diluted mild cleaning
agent and then wipe with a dry
cloth.
. Do not damage the camera as the
monitor screen may be adversely
affected. If dirt, rain or snow accumulates on any of the
cameras
*1, the Around View
