NISSAN LATIO 2007 Service Repair Manual

EC-102Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa

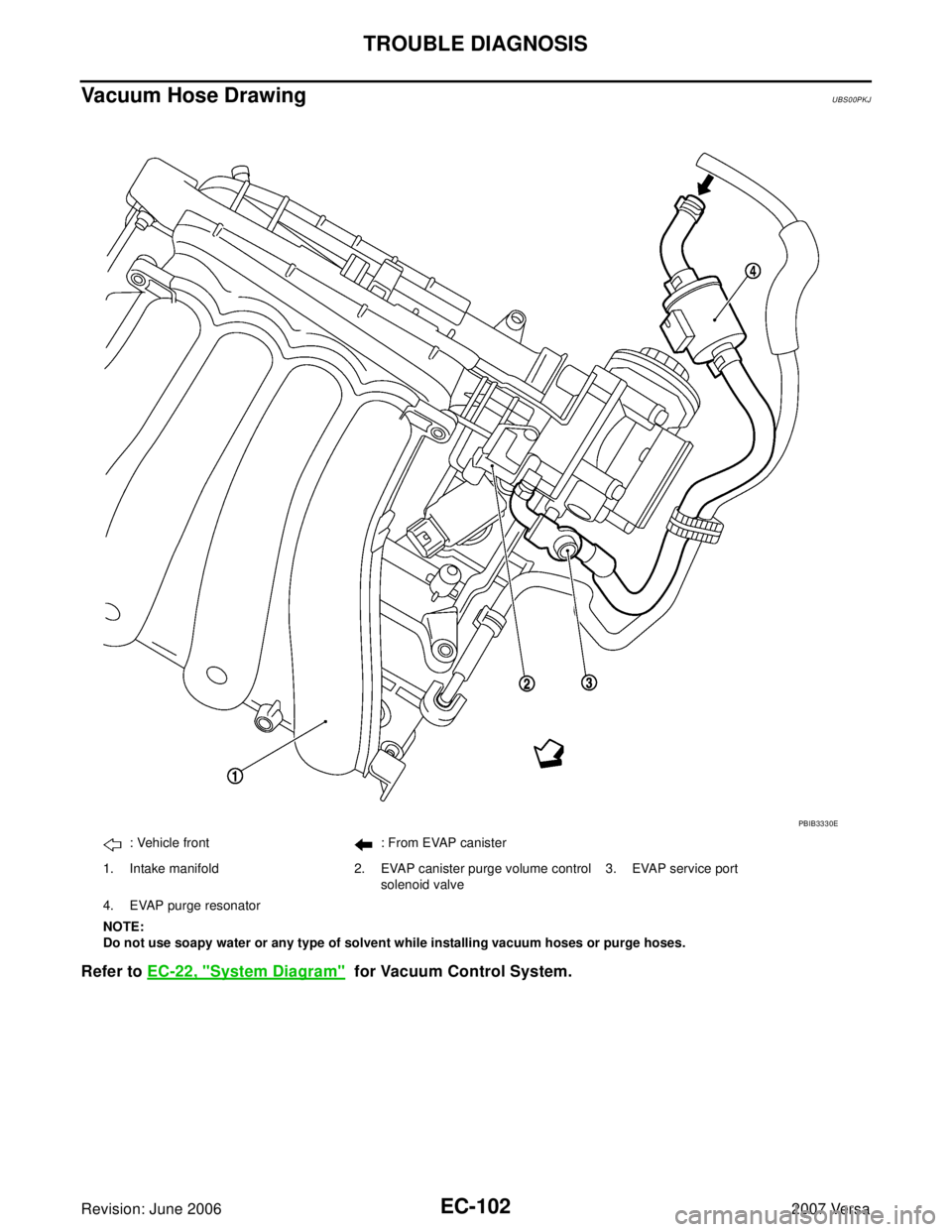

Vacuum Hose DrawingUBS00PKJ
Refer to EC-22, "System Diagram" for Vacuum Control System.
: Vehicle front : From EVAP canister
1. Intake manifold 2. EVAP canister purge volume control
solenoid valve3. EVAP service port
4. EVAP purge resonator
NOTE:
Do not use soapy water or any type of solvent while installing vacuum hoses or purge hoses.
PBIB3330E

TROUBLE DIAGNOSIS
EC-103
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa

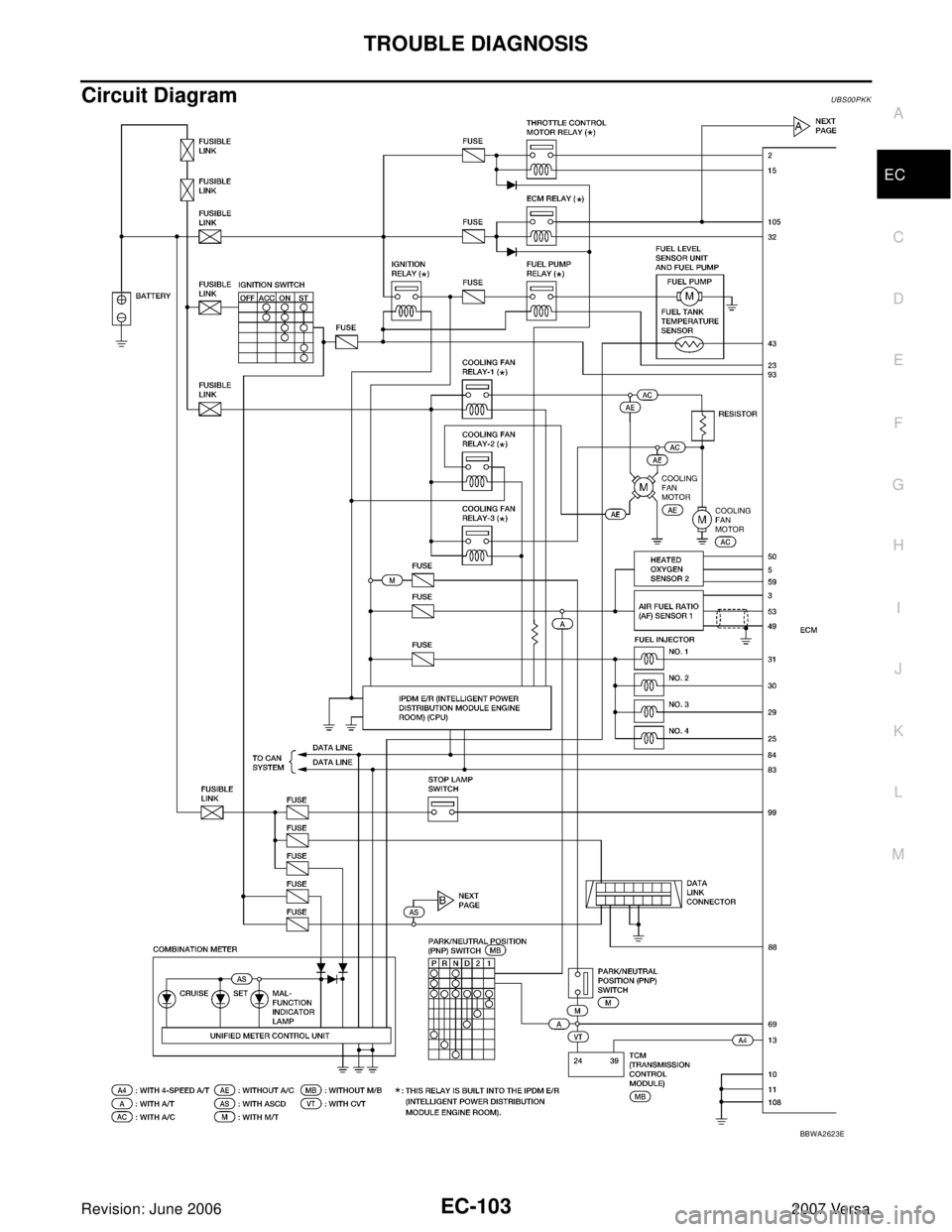

Circuit DiagramUBS00PKK
BBWA2623E

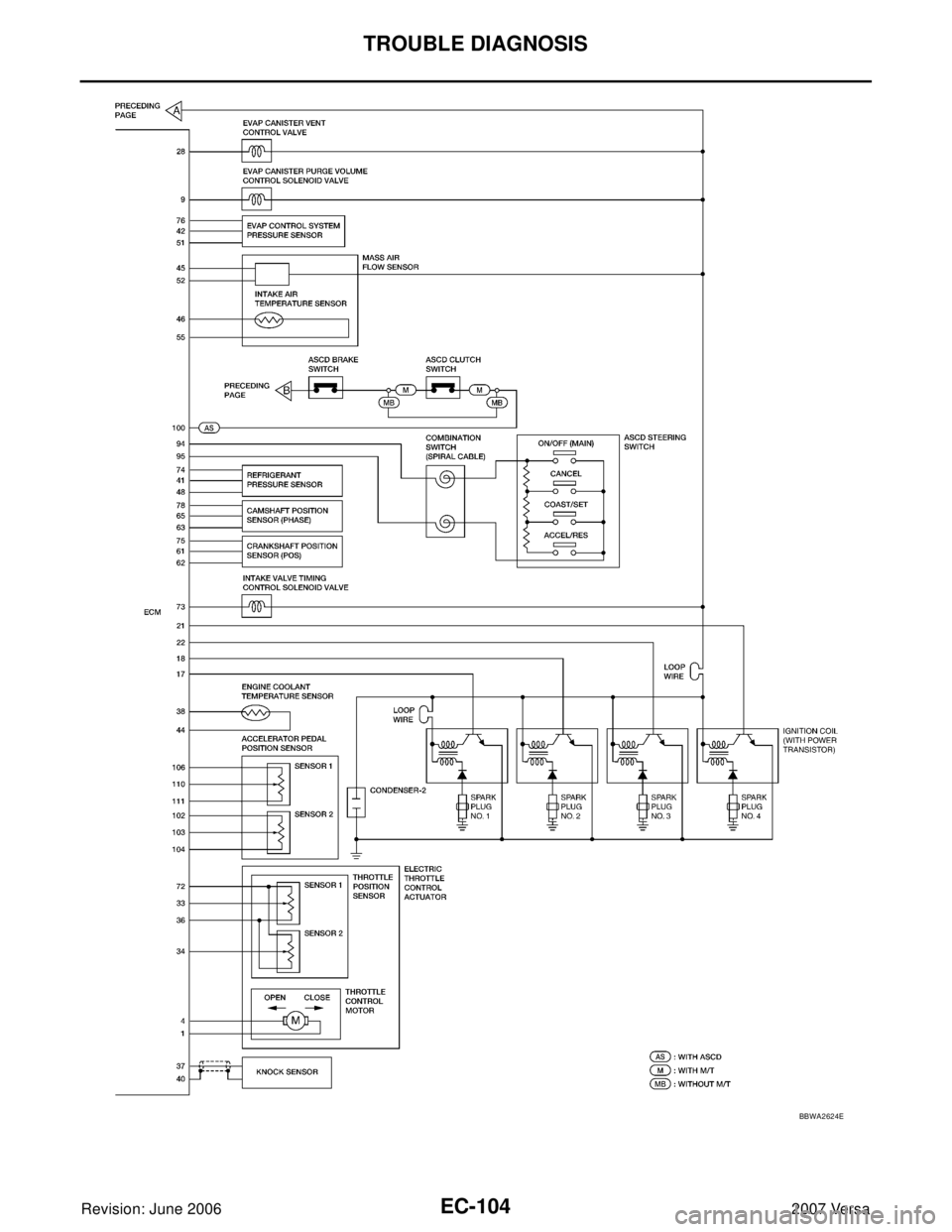

EC-104Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
BBWA2624E

TROUBLE DIAGNOSIS
EC-105
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
ECM Harness Connector Terminal LayoutUBS00PKL
ECM Terminals and Reference ValueUBS00PKM
PREPARATION
1. ECM (1) is located in the engine room left side near battery.

: Vehicle front
2. Disconnect ECM harness connector.

When disconnecting ECM harness connector, loosen (A) it
with levers (1) as far as they will go as shown in the figure.
–ECM (2)
–Fasten (B)
3. Connect a break-out box (SST) and Y-cable adapter (SST)
between the ECM and ECM harness connector.

Use extreme care not to touch 2 pins at one time.

Data is for comparison and may not be exact.
ECM INSPECTION TABLE
Specification data are reference values and are measured between each terminal and ground.
Pulse signal is measured by CONSULT-II.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
PBIA9221J
PBIB2959E
PBIB2947E
TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
1LThrottle control motor
(Open)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T, CVT), 1st (M/T)

Accelerator pedal: Fully depressedApproximately 3.2V
2SBThrottle control motor power
supply[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
PBIA8150J

EC-106Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
3 G A/F sensor 1 heater[Engine is running]

Warm-up condition

Idle speed
(More than 140 seconds after starting
engine)Approximately 2.9 - 8.8V
4PThrottle control motor
(Close)[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T, CVT), 1st (M/T)

Accelerator pedal: Fully releasedApproximately 1.8V
5GHeated oxygen sensor 2
heater[Engine is running]

Engine speed: Below 3,600 rpm after the
following conditions are met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load.Approximately 10V
[Ignition switch: ON]

Engine stopped
[Engine is running]

Engine speed: Above 3,600 rpm.BATTERY VOLTAGE
(11 - 14V)
9PEVAP canister purge vol-
ume control solenoid valve[Engine is running]

Idle speed

Accelerator pedal: Not depressed even
slightly, after engine starting.BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Engine speed: About 2,000 rpm (More than
100 seconds after starting engine)Approximately 10V
10
11B
BECM ground[Engine is running]

Idle speedBody ground TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIA8148J
PBIA8149J
PBIA8148J
PBIB0050E
PBIB0520E

TROUBLE DIAGNOSIS
EC-107
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
13 L Tachometer signal[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle.3 - 5V
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpm.3 - 5V
15 Y Throttle control motor relay[Ignition switch: OFF]BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]0 - 1.0V
17
18
21
22R
LG
G
SBIgnition signal No. 1
Ignition signal No. 2
Ignition signal No. 4
Ignition signal No. 3[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle.0 - 0.3V
[Engine is running]

Warm-up condition

Engine speed: 2,500 rpm.0.2 - 0.5V
23 GR Fuel pump relay[Ignition switch: ON]

For 1 second after turning ignition switch
ON
[Engine is running]0 - 1.0V
[Ignition switch: ON]

More than 1 second after turning ignition
switch ONBATTERY VOLTAGE
(11 - 14V) TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIA8164J
PBIA8165J
PBIA9265J
PBIA9266J

EC-108Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
25
29
30
31V
Y
O
LFuel injector No. 4
Fuel injector No. 3
Fuel injector No. 2
Fuel injector No. 1[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle.BATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

Engine speed: 2,000 rpmBATTERY VOLTAGE
(11 - 14V)
28 WEVAP canister vent control
valve[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
32 PECM relay
(Self shut-off)[Engine is running]
[Ignition switch: OFF]

For a few seconds after turning ignition
switch OFF0 - 1.0V
[Ignition switch: OFF]

More than a few seconds after turning igni-
tion switch OFFBATTERY VOLTAGE
(11 - 14V)
33 LG Throttle position sensor 1[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T, CVT), 1st (M/T)

Accelerator pedal: Fully releasedMore than 0.36V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T, CVT), 1st (M/T)

Accelerator pedal: Fully depressedLess than 4.75V
34 O Throttle position sensor 2[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T, CVT), 1st (M/T)

Accelerator pedal: Fully releasedLess than 4.75V
[Ignition switch: ON]

Engine stopped

Shift lever: D (A/T, CVT), 1st (M/T)

Accelerator pedal: Fully depressedMore than 0.36V
36 YSensor ground
(Throttle position sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
37 W Knock sensor[Engine is running]

Idle speedApproximately 2.5V
38 PEngine coolant temperature
sensor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with
engine coolant temperature. TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB0529E
PBIA4943J

TROUBLE DIAGNOSIS
EC-109
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa40 —Sensor ground
(Knock sensor)[Engine is running]
Warm-up condition

Idle speedApproximately 0V
41 GR Refrigerant pressure sensor[Engine is running]

Warm-up condition

Both A/C switch and blower fan switch: ON
(Compressor operates.)1.0 - 4.0V
42 VEVAP control system pres-
sure sensor[Ignition switch: ON]Approximately 1.8 - 4.8V
43 PFuel tank temperature sen-
sor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with fuel
tank temperature
44 BSensor ground
(Engine coolant temperature
sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
45 G Mass air flow sensor[Engine is running]

Warm-up condition

Idle speed0.8 - 1.1V
[Engine is running]

Warm-up condition

Engine speed: 2,500 rpm1.4 - 1.7V
46 VIntake air temperature
sensor[Engine is running]Approximately 0 - 4.8V
Output voltage varies with intake
air temperature.
48 BRSensor ground
(Refrigerant pressure sen-
sor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
49 W A/F sensor 1[Engine is running]

Warm-up condition

Engine speed: 2,000 rpmApproximately 1.8V
Output voltage varies with air
fuel ratio.
50 W Heated oxygen sensor 2[Engine is running]

Revving engine from idle to 3,000 rpm
quickly after the following conditions are
met.
–Engine: After warming up
–Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load.0 - Approximately 1.0V
51 OSensor ground
(EVAP control system pres-
sure sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
52 LGSensor ground
(Mass air flow sensor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
53 B A/F sensor 1[Ignition switch: ON]Approximately 2.2V
55 OSensor ground
(Intake air temperature sen-
sor)[Engine is running]

Warm-up condition

Idle speedApproximately 0V TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)

EC-110Revision: June 2006
TROUBLE DIAGNOSIS
2007 Versa
59 OSensor ground
(Heated oxygen sensor 2)[Engine is running]
Warm-up condition

Idle speedApproximately 0V
61 WCrankshaft position sensor
(POS)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle.Approximately 4.0V
[Engine is running]

Engine speed: 2,000 rpmApproximately 4.0V
62 RSensor ground
[Crankshaft position sensor
(POS)][Engine is running]

Warm-up condition

Idle speedApproximately 0V
63 BRSensor ground
[Camshaft position sensor
(PHASE)][Engine is running]

Warm-up condition

Idle speedApproximately 0V
65 GCamshaft position sensor
(PHASE)[Engine is running]

Warm-up condition

Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle.1.0 - 2.0V
[Engine is running]

Engine speed: 2,000 rpm.1.0 - 2.0V
69 LPark/neutral position (PNP)
switch[Ignition switch: ON]

Shift lever: P or N (A/T, CVT), Neutral (M/T)BATTERY VOLTAGE
(11 - 14V)
[Ignition switch: ON]

Except aboveApproximately 0V
72 VSensor power supply
(Throttle position sensor)[Ignition switch: ON]Approximately 5V TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIB2998E
PBIB2999E
PBIB2986E
PBIB2987E

TROUBLE DIAGNOSIS
EC-111
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
73 PIntake valve timing control
solenoid valve[Engine is running]

Warm-up condition

Idle speedBATTERY VOLTAGE
(11 - 14V)
[Engine is running]

Warm-up condition

When revving engine up to 2,000 rpm
quickly7 - 10V
74 WSensor power supply
(Refrigerant pressure
sensor)[Ignition switch: ON]Approximately 5V
75 BRSensor power supply
[Crankshaft position sensor
(POS)][Ignition switch: ON]Approximately 5V
76 WEVAP control system pres-
sure sensor power supply[Ignition switch: ON]Approximately 5V
78 OSensor power supply
[Camshaft position sensor
(PHASE)][Ignition switch: ON]Approximately 5V
83 P CAN communication line[Ignition switch: ON]Approximately 1.7 - 2.3V
Output voltage varies with the
communication status.
84 L CAN communication line[Ignition switch: ON]Approximately 2.6 - 3.2V
Output voltage varies with the
communication status.
88 LG DATA link connector[Ignition switch: ON]

CONSULT-II or GST: Disconnected.Approximately 10.5V
93 O Ignition switch[Ignition switch: OFF]0V
[Ignition switch: ON]BATTERY VOLTAGE
(11 - 14V)
94 R ASCD steering switch[Ignition switch: ON]

ASCD steering switch: OFFApproximately 4V
[Ignition switch: ON]

MAIN switch: PressedApproximately 0V
[Ignition switch: ON]

CANCEL switch: PressedApproximately 1V
[Ignition switch: ON]

RESUME/ACCELERATE switch: PressedApproximately 3V
[Ignition switch: ON]

SET/COAST switch: PressedApproximately 2V
95 BSensor ground
(ASCD steering switch)[Engine is running]

Warm-up condition

Idle speedApproximately 0V
99 R Stop lamp switch[Ignition switch: OFF]

Brake pedal: Fully releasedApproximately 0V
[Ignition switch: OFF]

Brake pedal: Slightly depressedBATTERY VOLTAGE
(11 - 14V) TERMI-
NAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
PBIA4937J
