EC-442Revision: June 2006
DTC P1148 CLOSED LOOP CONTROL
2007 Versa
DTC P1148 CLOSED LOOP CONTROLPFP:22690
On Board Diagnosis LogicUBS00QKS
This self-diagnosis has the one trip detection logic.
NOTE:
DTC P1148 is displayed with another DTC for air fuel ratio (A/F) sensor 1.
Perform the trouble diagnosis for the corresponding DTC.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1148
11 4 8Closed loop control
functionThe closed loop control function does not oper-
ate even when vehicle is driving in the speci-
fied condition.

Harness or connectors
[Air fuel ratio (A/F) sensor 1 circuit is
open or shorted.]

Air fuel ratio (A/F) sensor 1

Air fuel ratio (A/F) sensor 1 heater

DTC P1217 ENGINE OVER TEMPERATURE
EC-443
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
DTC P1217 ENGINE OVER TEMPERATUREPFP:00000
System DescriptionUBS00QKT
SYSTEM DESCRIPTION
NOTE:

If DTC P1217 is displayed with DTC U1000 or U1001, first perform the trouble diagnosis for DTC
U1000, U1001. Refer to EC-151, "
DTC U1000, U1001 CAN COMMUNICATION LINE" .

If DTC P1217 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010.
Refer to EC-154, "
DTC U1010 CAN COMMUNICATION" .
Cooling Fan Control
*1: The ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to ECM through CAN communication line.
*3: Models with A/C.
The ECM controls the cooling fan corresponding to the vehicle speed, engine coolant temperature, refrigerant
pressure, and air conditioner ON signal. The control system has 3-step control [HIGH/LOW/OFF].

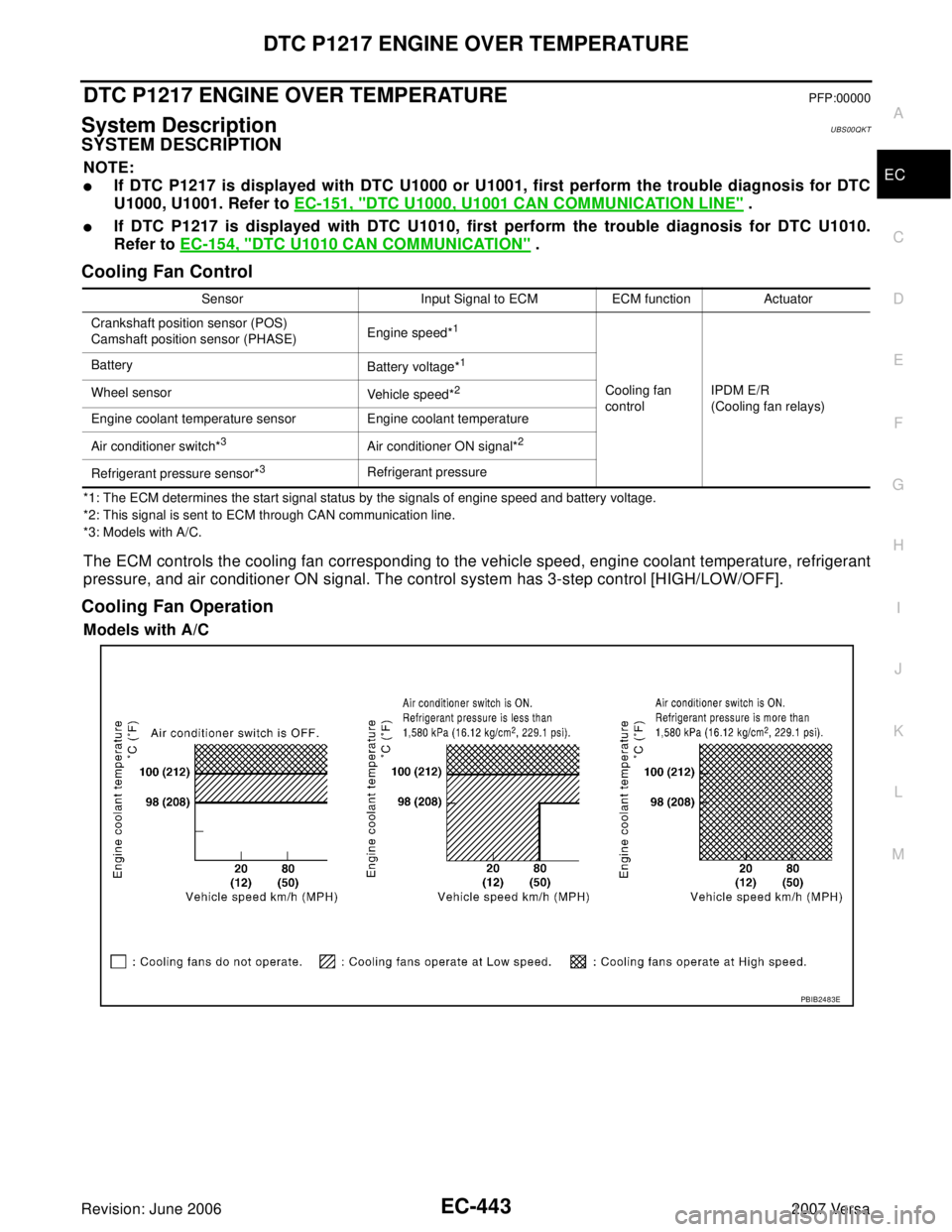

Cooling Fan Operation
Models with A/C
Sensor Input Signal to ECM ECM function Actuator
Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)Engine speed*
1
Cooling fan
controlIPDM E/R
(Cooling fan relays) Battery
Battery voltage*
1
Wheel sensor
Vehicle speed*2
Engine coolant temperature sensor Engine coolant temperature
Air conditioner switch*
3Air conditioner ON signal*2
Refrigerant pressure sensor*3Refrigerant pressure
PBIB2483E

EC-444Revision: June 2006
DTC P1217 ENGINE OVER TEMPERATURE
2007 Versa

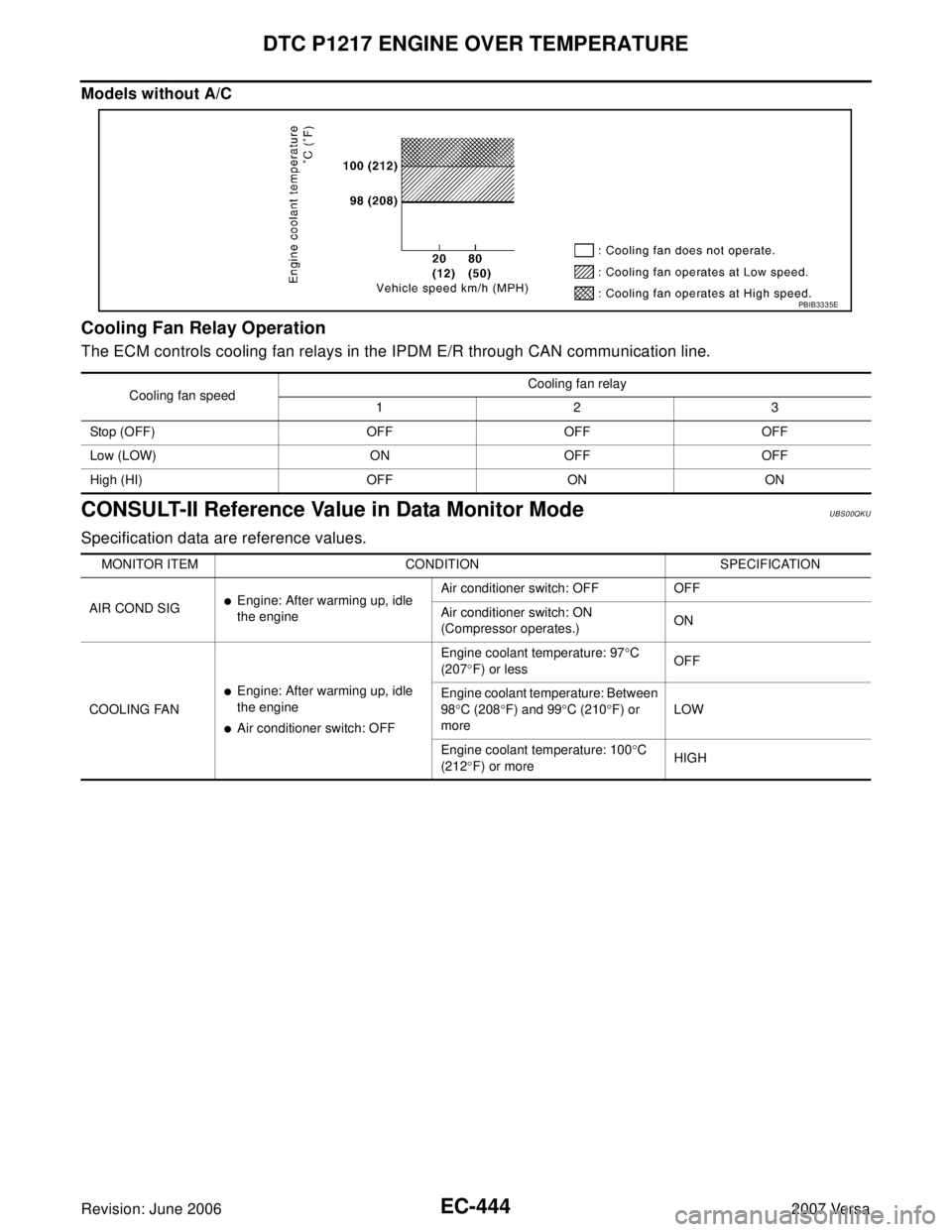

Models without A/C
Cooling Fan Relay Operation
The ECM controls cooling fan relays in the IPDM E/R through CAN communication line.
CONSULT-II Reference Value in Data Monitor ModeUBS00QKU
Specification data are reference values.
PBIB3335E
Cooling fan speedCooling fan relay
123
Stop (OFF) OFF OFF OFF
Low (LOW) ON OFF OFF
High (HI) OFF ON ON
MONITOR ITEM CONDITION SPECIFICATION
AIR COND SIG

Engine: After warming up, idle
the engineAir conditioner switch: OFF OFF
Air conditioner switch: ON
(Compressor operates.)ON
COOLING FAN

Engine: After warming up, idle
the engine

Air conditioner switch: OFFEngine coolant temperature: 97°C
(207°F) or lessOFF
Engine coolant temperature: Between
98°C (208°F) and 99°C (210°F) or
moreLOW
Engine coolant temperature: 100°C
(212°F) or moreHIGH

DTC P1217 ENGINE OVER TEMPERATURE
EC-445
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa

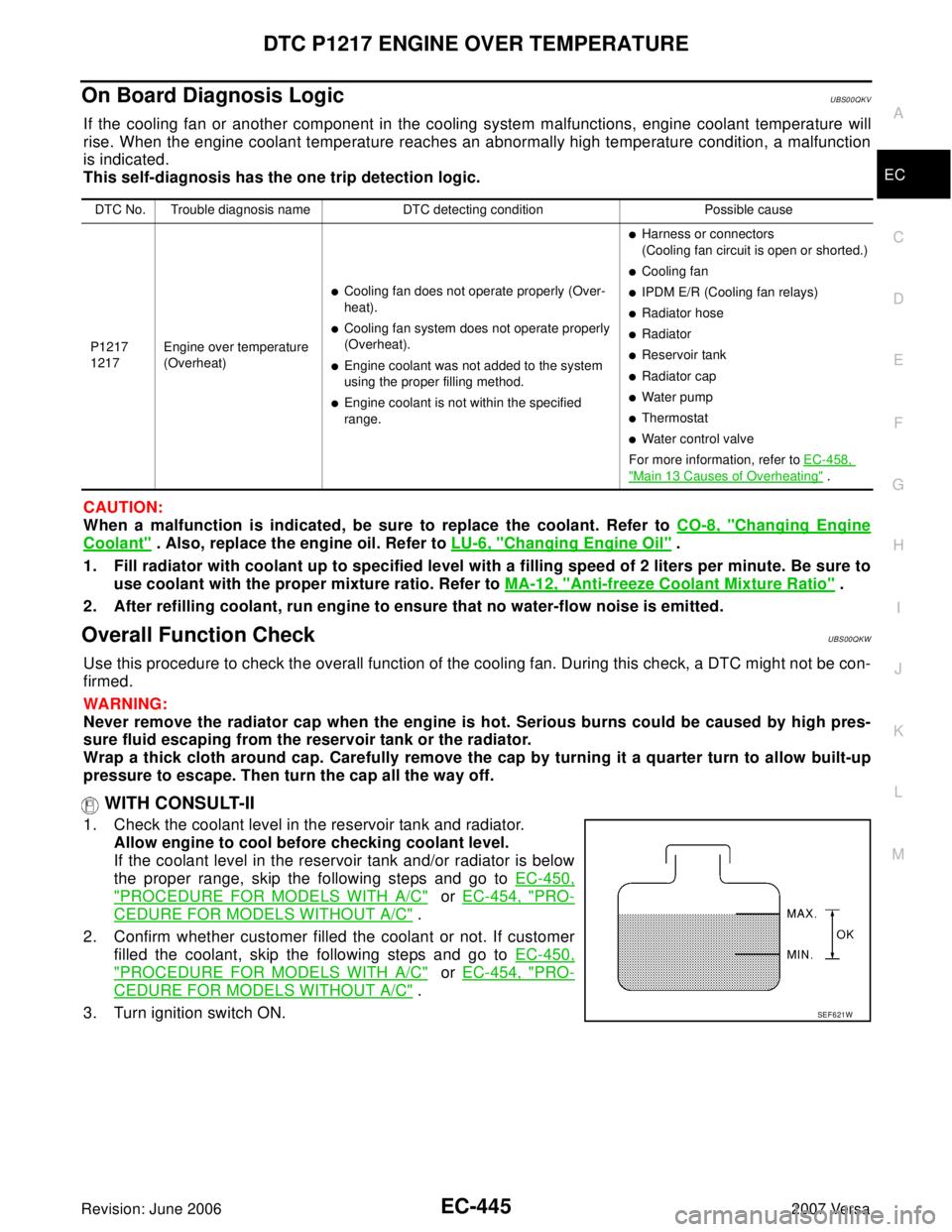

On Board Diagnosis LogicUBS00QKV
If the cooling fan or another component in the cooling system malfunctions, engine coolant temperature will
rise. When the engine coolant temperature reaches an abnormally high temperature condition, a malfunction
is indicated.
This self-diagnosis has the one trip detection logic.
CAUTION:
When a malfunction is indicated, be sure to replace the coolant. Refer to CO-8, "
Changing Engine
Coolant" . Also, replace the engine oil. Refer to LU-6, "Changing Engine Oil" .
1. Fill radiator with coolant up to specified level with a filling speed of 2 liters per minute. Be sure to
use coolant with the proper mixture ratio. Refer to MA-12, "
Anti-freeze Coolant Mixture Ratio" .
2. After refilling coolant, run engine to ensure that no water-flow noise is emitted.
Overall Function CheckUBS00QKW
Use this procedure to check the overall function of the cooling fan. During this check, a DTC might not be con-
firmed.
WA RN ING:
Never remove the radiator cap when the engine is hot. Serious burns could be caused by high pres-
sure fluid escaping from the reservoir tank or the radiator.
Wrap a thick cloth around cap. Carefully remove the cap by turning it a quarter turn to allow built-up
pressure to escape. Then turn the cap all the way off.
WITH CONSULT-II
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-450,
"PROCEDURE FOR MODELS WITH A/C" or EC-454, "PRO-
CEDURE FOR MODELS WITHOUT A/C" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-450,
"PROCEDURE FOR MODELS WITH A/C" or EC-454, "PRO-
CEDURE FOR MODELS WITHOUT A/C" .
3. Turn ignition switch ON.
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1217
1217Engine over temperature
(Overheat)

Cooling fan does not operate properly (Over-
heat).

Cooling fan system does not operate properly
(Overheat).

Engine coolant was not added to the system
using the proper filling method.

Engine coolant is not within the specified
range.

Harness or connectors
(Cooling fan circuit is open or shorted.)

Cooling fan

IPDM E/R (Cooling fan relays)

Radiator hose

Radiator

Reservoir tank

Radiator cap

Water pump

Thermostat

Water control valve
For more information, refer to EC-458,
"Main 13 Causes of Overheating" .
SEF 6 21 W

EC-446Revision: June 2006
DTC P1217 ENGINE OVER TEMPERATURE
2007 Versa

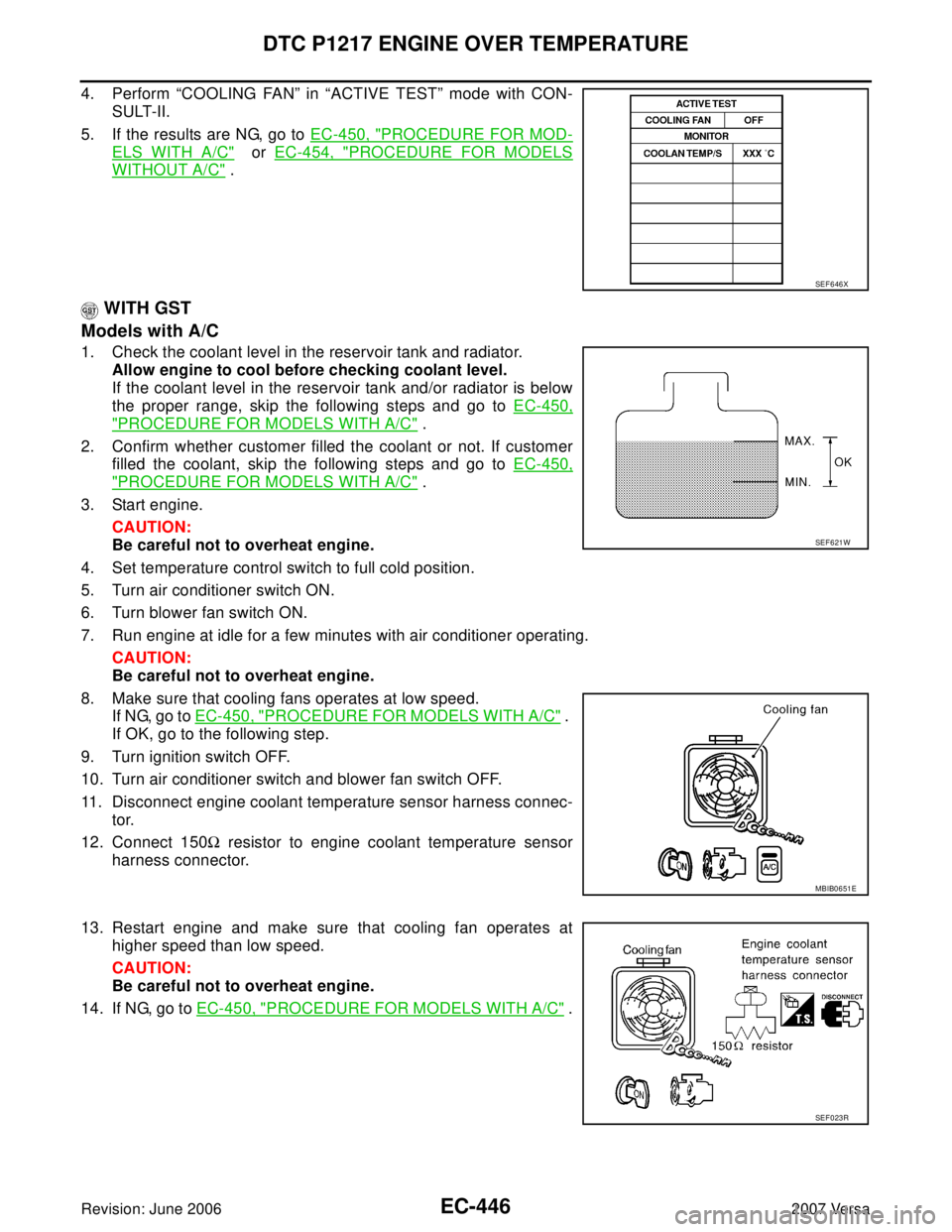

4. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II.
5. If the results are NG, go to EC-450, "
PROCEDURE FOR MOD-
ELS WITH A/C" or EC-454, "PROCEDURE FOR MODELS
WITHOUT A/C" .
WITH GST
Models with A/C
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-450,
"PROCEDURE FOR MODELS WITH A/C" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-450,
"PROCEDURE FOR MODELS WITH A/C" .
3. Start engine.
CAUTION:
Be careful not to overheat engine.
4. Set temperature control switch to full cold position.
5. Turn air conditioner switch ON.
6. Turn blower fan switch ON.
7. Run engine at idle for a few minutes with air conditioner operating.
CAUTION:
Be careful not to overheat engine.
8. Make sure that cooling fans operates at low speed.
If NG, go to EC-450, "
PROCEDURE FOR MODELS WITH A/C" .
If OK, go to the following step.
9. Turn ignition switch OFF.
10. Turn air conditioner switch and blower fan switch OFF.
11. Disconnect engine coolant temperature sensor harness connec-
tor.
12. Connect 150Ω resistor to engine coolant temperature sensor
harness connector.
13. Restart engine and make sure that cooling fan operates at
higher speed than low speed.
CAUTION:
Be careful not to overheat engine.
14. If NG, go to EC-450, "
PROCEDURE FOR MODELS WITH A/C" .
SEF 6 46 X
SEF 6 21 W
MBIB0651E
SEF 0 23 R

DTC P1217 ENGINE OVER TEMPERATURE
EC-447
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa

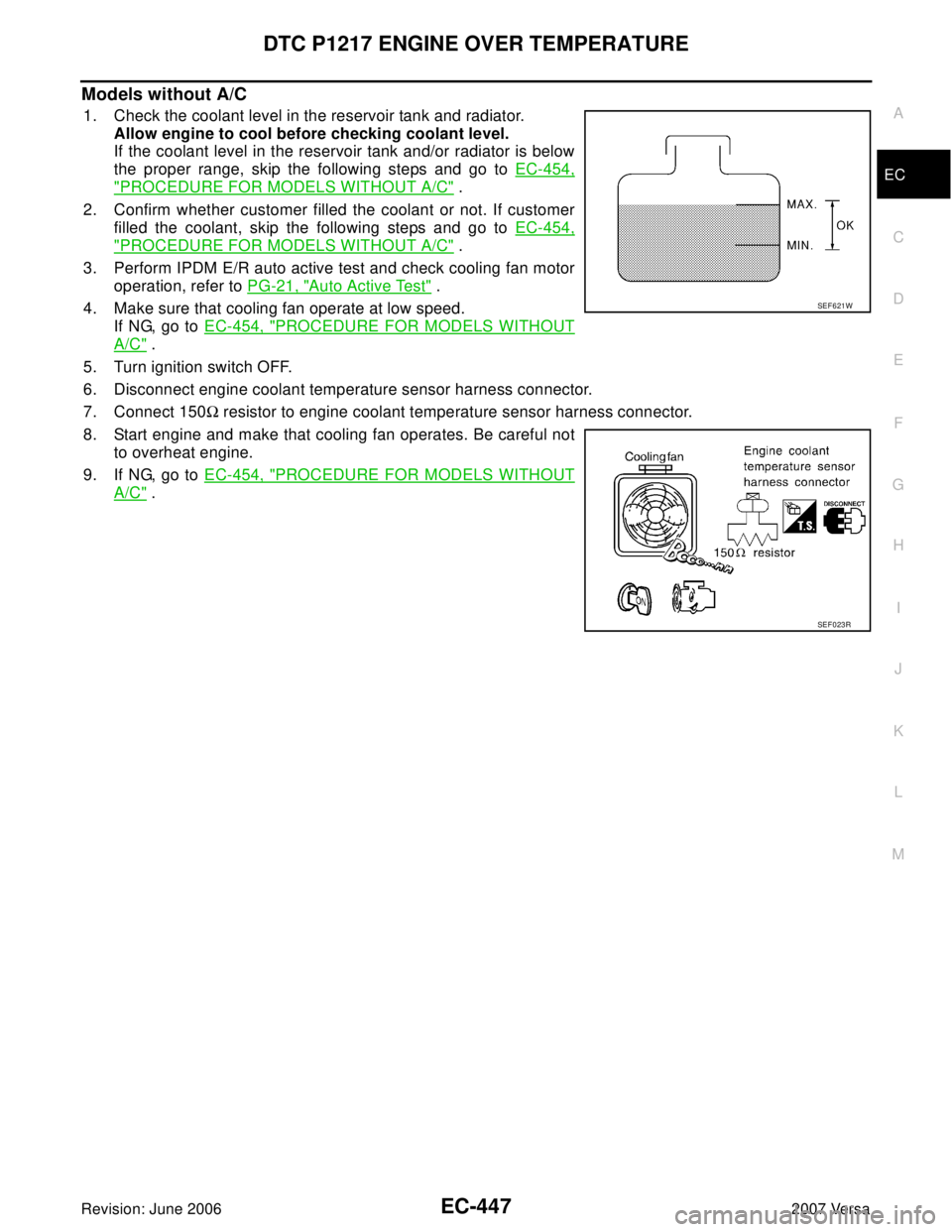

Models without A/C
1. Check the coolant level in the reservoir tank and radiator.
Allow engine to cool before checking coolant level.
If the coolant level in the reservoir tank and/or radiator is below
the proper range, skip the following steps and go to EC-454,
"PROCEDURE FOR MODELS WITHOUT A/C" .
2. Confirm whether customer filled the coolant or not. If customer
filled the coolant, skip the following steps and go to EC-454,
"PROCEDURE FOR MODELS WITHOUT A/C" .
3. Perform IPDM E/R auto active test and check cooling fan motor
operation, refer to PG-21, "
Auto Active Test" .
4. Make sure that cooling fan operate at low speed.
If NG, go to EC-454, "
PROCEDURE FOR MODELS WITHOUT
A/C" .
5. Turn ignition switch OFF.
6. Disconnect engine coolant temperature sensor harness connector.
7. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
8. Start engine and make that cooling fan operates. Be careful not
to overheat engine.
9. If NG, go to EC-454, "
PROCEDURE FOR MODELS WITHOUT
A/C" .
SEF 6 21 W
SEF 0 23 R

EC-448Revision: June 2006
DTC P1217 ENGINE OVER TEMPERATURE
2007 Versa

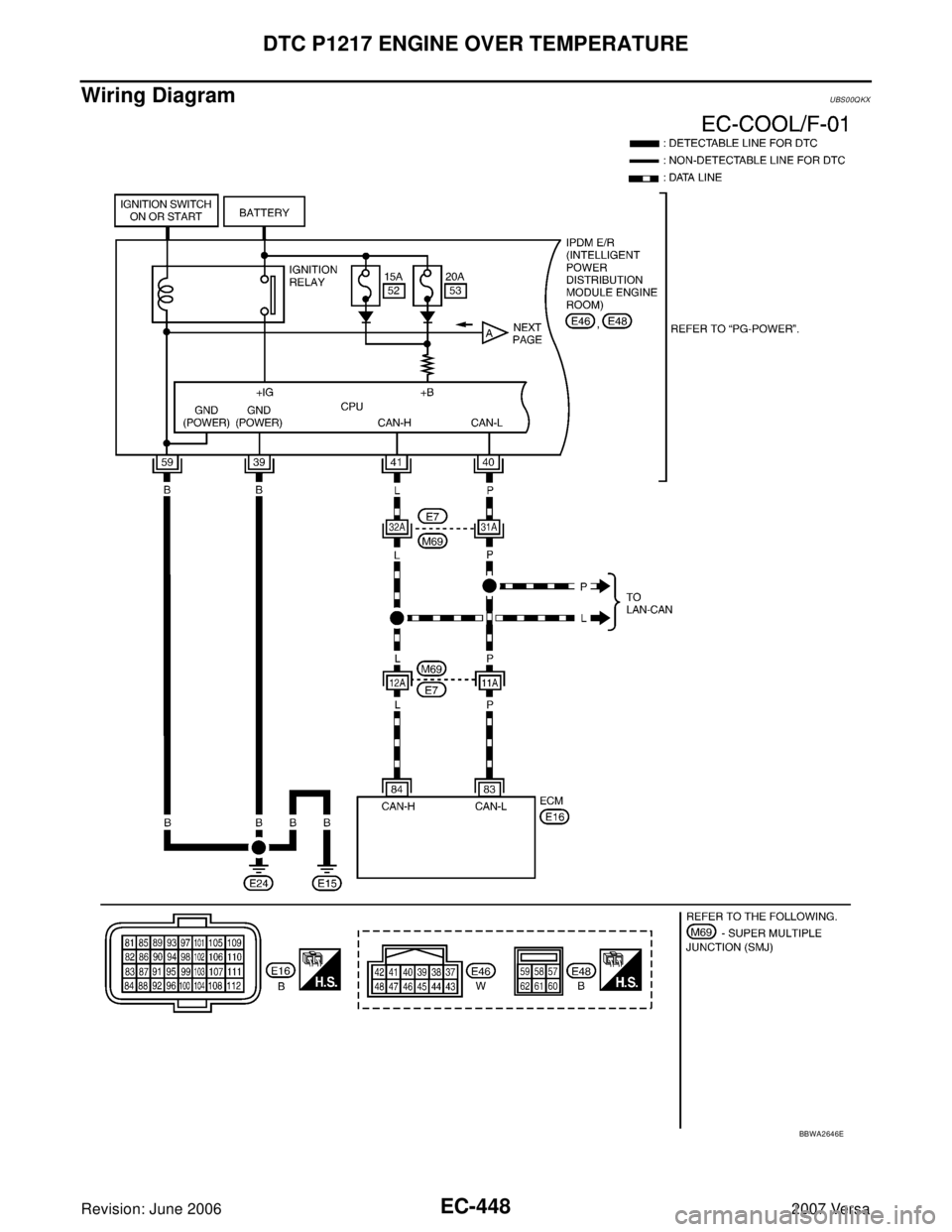

Wiring DiagramUBS00QKX
BBWA2646E

DTC P1217 ENGINE OVER TEMPERATURE
EC-449
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa

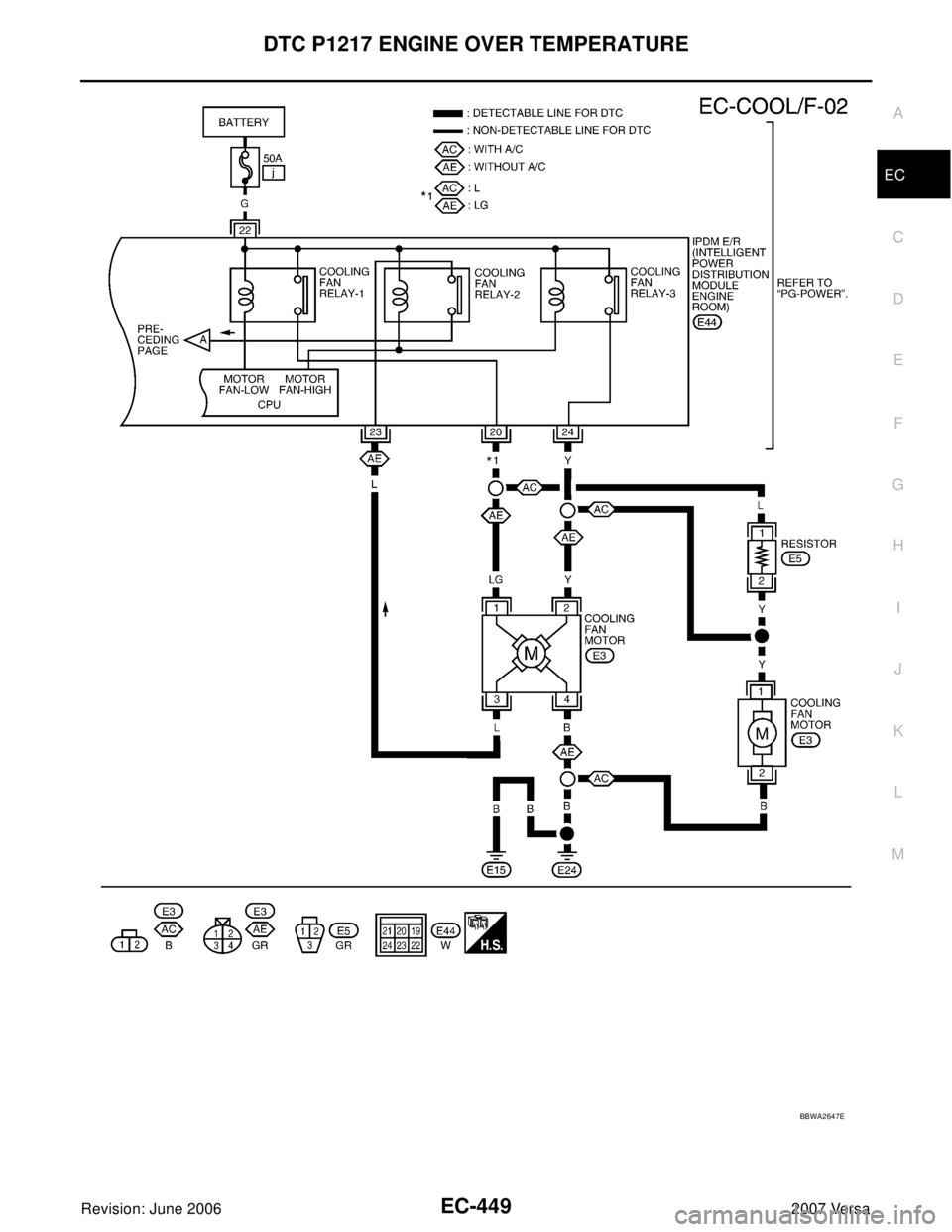

BBWA2647E

EC-450Revision: June 2006
DTC P1217 ENGINE OVER TEMPERATURE
2007 Versa

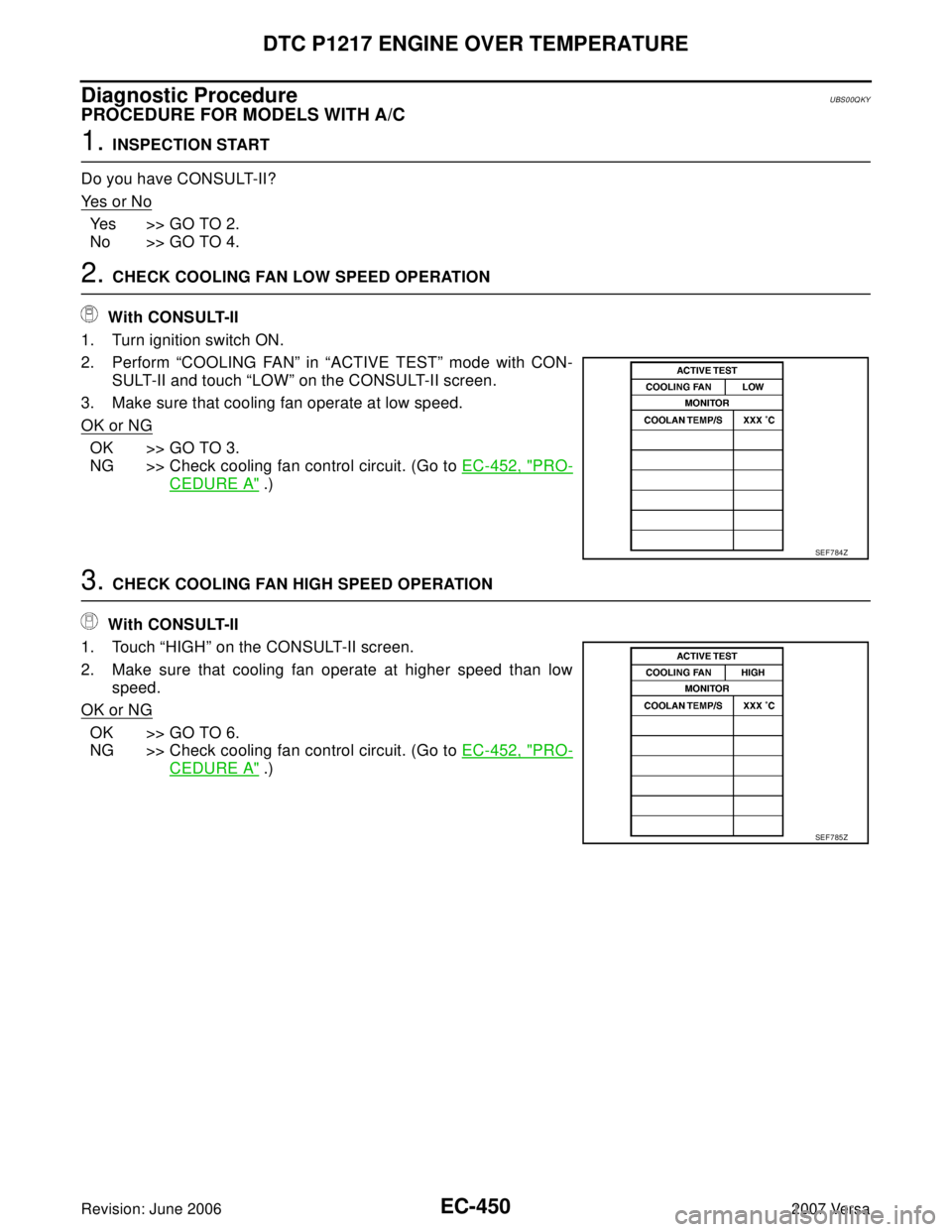

Diagnostic ProcedureUBS00QKY
PROCEDURE FOR MODELS WITH A/C
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 4.
2. CHECK COOLING FAN LOW SPEED OPERATION
With CONSULT-II
1. Turn ignition switch ON.
2. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II and touch “LOW” on the CONSULT-II screen.
3. Make sure that cooling fan operate at low speed.
OK or NG
OK >> GO TO 3.
NG >> Check cooling fan control circuit. (Go to EC-452, "
PRO-
CEDURE A" .)
3. CHECK COOLING FAN HIGH SPEED OPERATION
With CONSULT-II
1. Touch “HIGH” on the CONSULT-II screen.
2. Make sure that cooling fan operate at higher speed than low
speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan control circuit. (Go to EC-452, "
PRO-
CEDURE A" .)
SEF 7 84 Z
SEF 7 85 Z

DTC P1217 ENGINE OVER TEMPERATURE
EC-451
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa

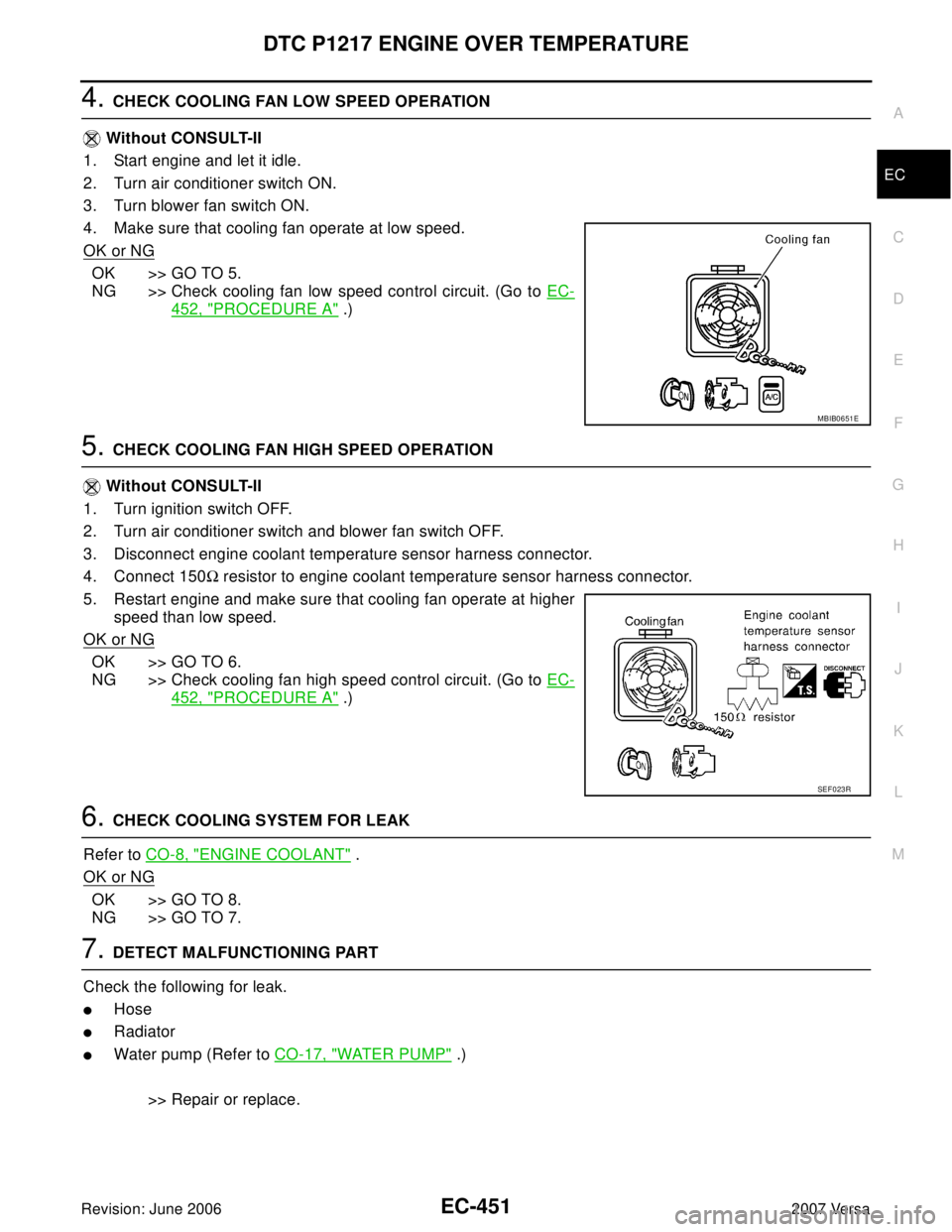

4. CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-II
1. Start engine and let it idle.
2. Turn air conditioner switch ON.
3. Turn blower fan switch ON.
4. Make sure that cooling fan operate at low speed.
OK or NG
OK >> GO TO 5.
NG >> Check cooling fan low speed control circuit. (Go to EC-
452, "PROCEDURE A" .)
5. CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch OFF.
2. Turn air conditioner switch and blower fan switch OFF.
3. Disconnect engine coolant temperature sensor harness connector.
4. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
5. Restart engine and make sure that cooling fan operate at higher
speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
452, "PROCEDURE A" .)
6. CHECK COOLING SYSTEM FOR LEAK
Refer to CO-8, "
ENGINE COOLANT" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following for leak.

Hose

Radiator

Water pump (Refer to CO-17, "WATER PUMP" .)
>> Repair or replace.
MBIB0651E
