EC-452Revision: June 2006
DTC P1217 ENGINE OVER TEMPERATURE
2007 Versa
8. CHECK RADIATOR CAP
Refer to CO-11, "
RADIATOR" .
OK or NG
OK >> GO TO 9.
NG >> Replace radiator cap.
9. CHECK COMPONENT PARTS
Check the following;.
Thermostat. (Refer to CO-17, "WATER PUMP" .)
Water control valve. (Refer to CO-20, "WATER OUTLET AND WATER CONTROL VALVE" .)
Engine coolant temperature sensor. (Refer to EC-205, "Component Inspection" .)
OK or NG
OK >> GO TO 10.
NG >> Replace malfunctioning component.
10. CHECK MAIN 13 CAUSES
If the cause cannot be isolated, go to EC-458, "
Main 13 Causes of Overheating" .
>>INSPECTION END
PROCEDURE A
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E44.

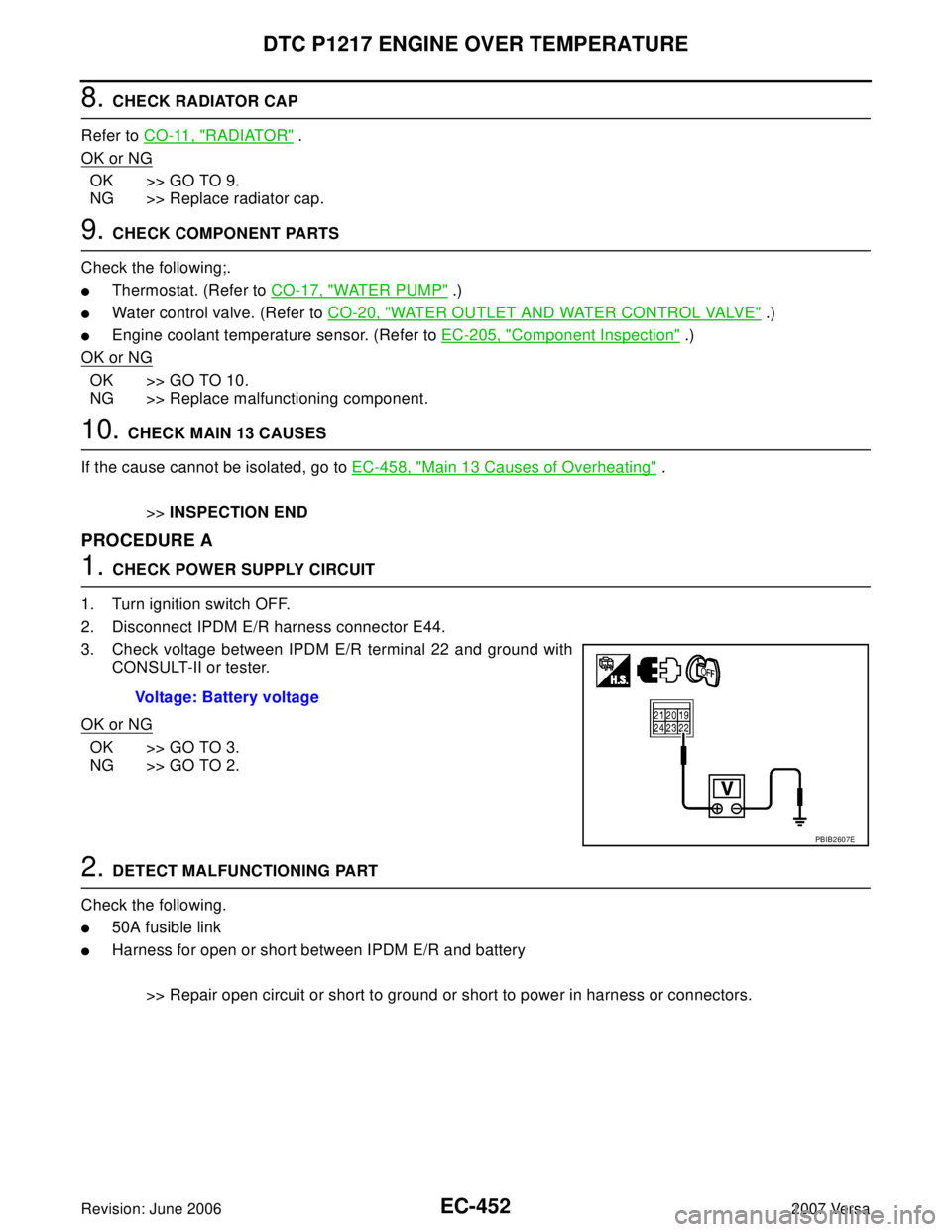

3. Check voltage between IPDM E/R terminal 22 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
50A fusible link
Harness for open or short between IPDM E/R and battery
>> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage
PBIB2607E
Page 1622 of 2896
DTC P1217 ENGINE OVER TEMPERATURE
EC-453
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
3. CHECK COOLING FAN MOTOR CIRCUIT

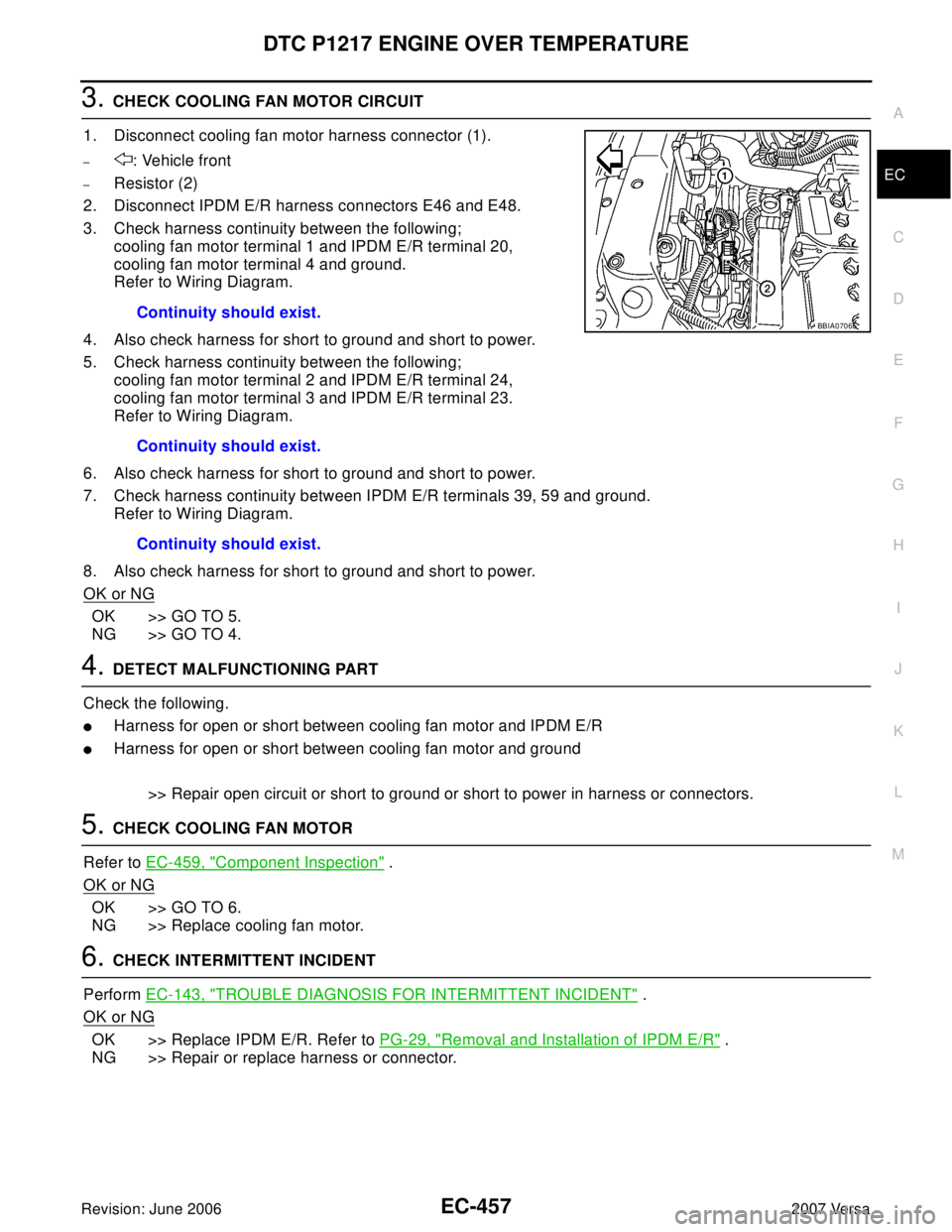

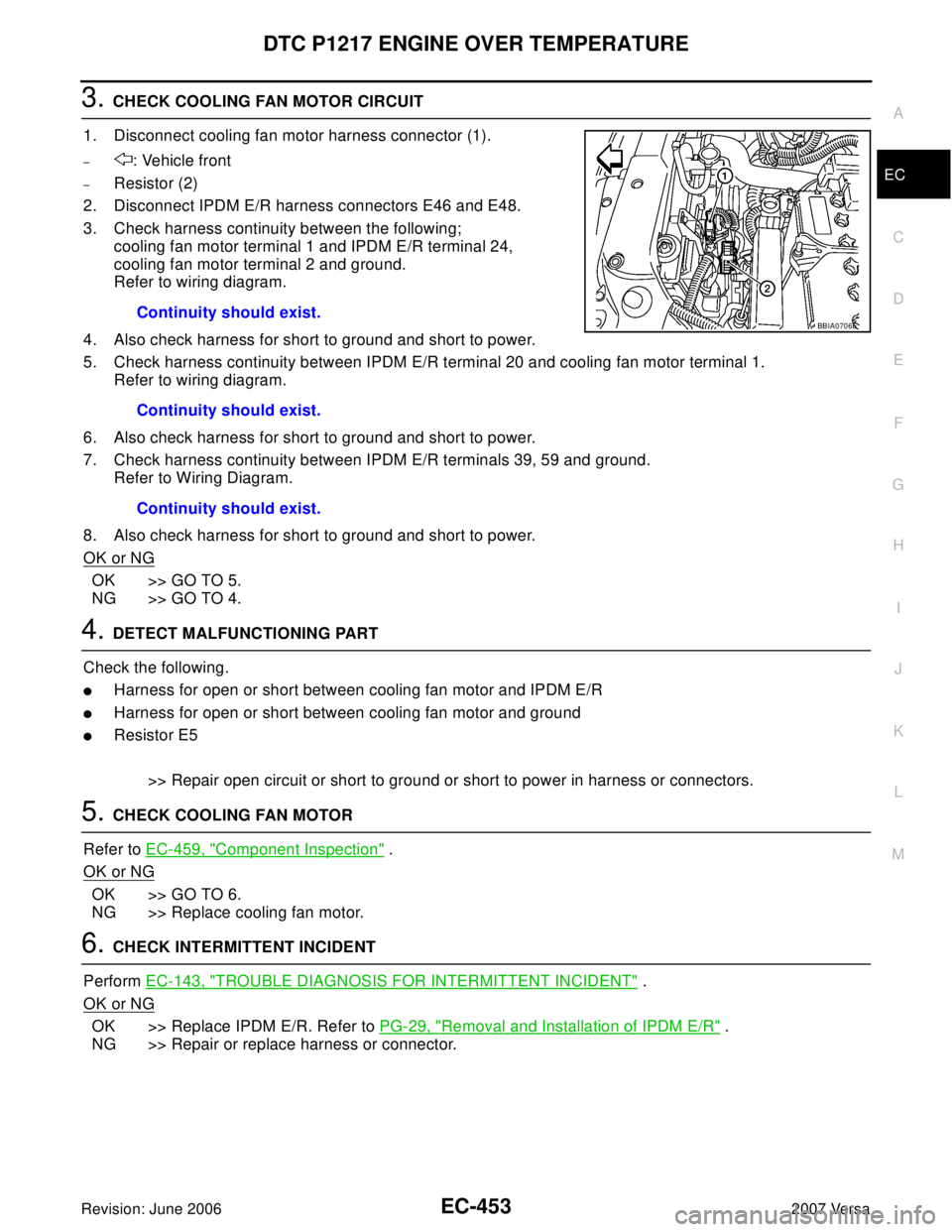

1. Disconnect cooling fan motor harness connector (1).
–: Vehicle front
–Resistor (2)
2. Disconnect IPDM E/R harness connectors E46 and E48.
3. Check harness continuity between the following;
cooling fan motor terminal 1 and IPDM E/R terminal 24,
cooling fan motor terminal 2 and ground.
Refer to wiring diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between IPDM E/R terminal 20 and cooling fan motor terminal 1.
Refer to wiring diagram.
6. Also check harness for short to ground and short to power.
7. Check harness continuity between IPDM E/R terminals 39, 59 and ground.
Refer to Wiring Diagram.
8. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness for open or short between cooling fan motor and IPDM E/R
Harness for open or short between cooling fan motor and ground
Resistor E5
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK COOLING FAN MOTOR
Refer to EC-459, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace cooling fan motor.
6. CHECK INTERMITTENT INCIDENT
Perform EC-143, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-29, "Removal and Installation of IPDM E/R" .
NG >> Repair or replace harness or connector. Continuity should exist.
Continuity should exist.
Continuity should exist.
BBIA0706E
Page 1623 of 2896
EC-454Revision: June 2006
DTC P1217 ENGINE OVER TEMPERATURE
2007 Versa
PROCEDURE FOR MODELS WITHOUT A/C
1. INSPECTION START
Do you have CONSULT-II?
Ye s o r N o
Yes >> GO TO 2.
No >> GO TO 4.

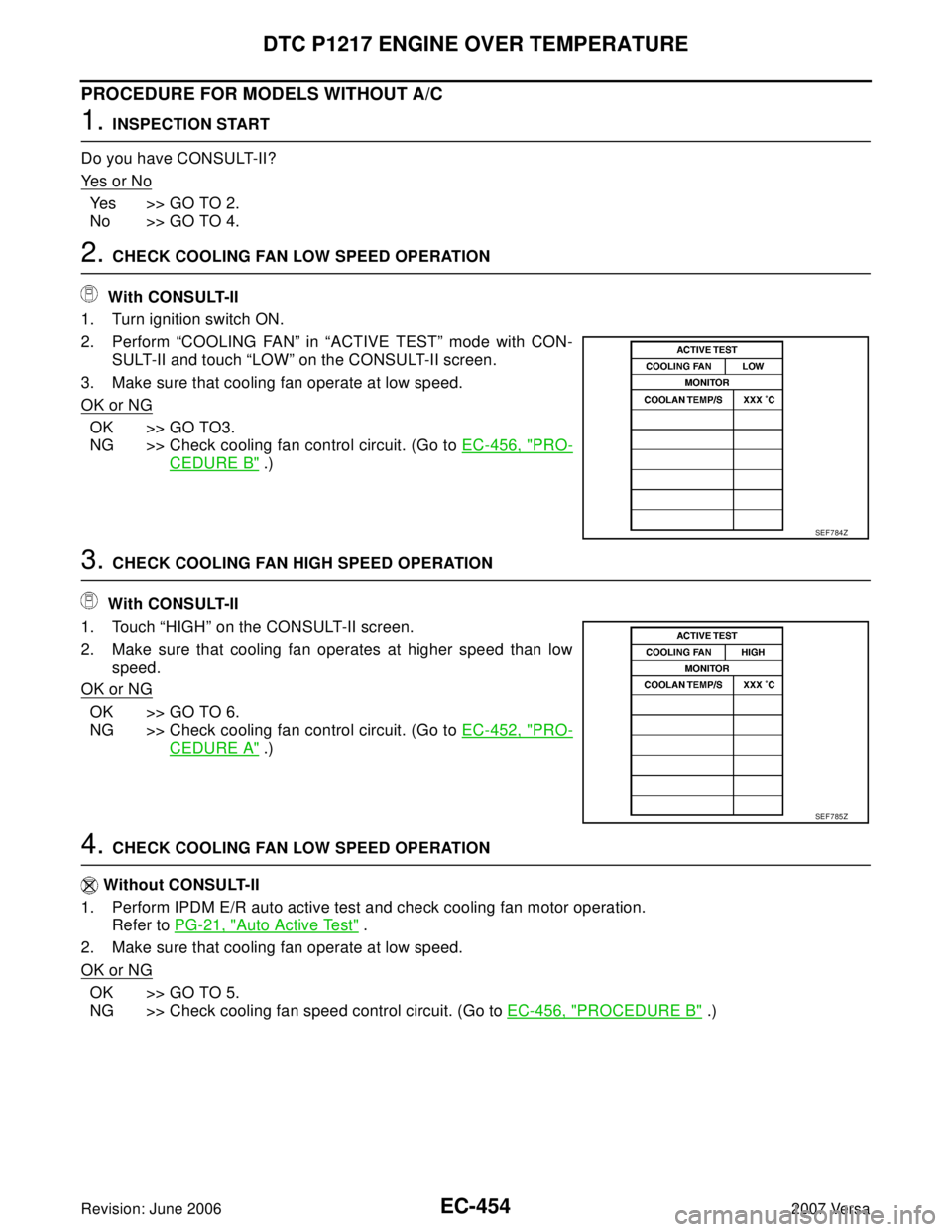

2. CHECK COOLING FAN LOW SPEED OPERATION
With CONSULT-II
1. Turn ignition switch ON.
2. Perform “COOLING FAN” in “ACTIVE TEST” mode with CON-
SULT-II and touch “LOW” on the CONSULT-II screen.
3. Make sure that cooling fan operate at low speed.
OK or NG
OK >> GO TO3.
NG >> Check cooling fan control circuit. (Go to EC-456, "
PRO-
CEDURE B" .)
3. CHECK COOLING FAN HIGH SPEED OPERATION
With CONSULT-II
1. Touch “HIGH” on the CONSULT-II screen.
2. Make sure that cooling fan operates at higher speed than low
speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan control circuit. (Go to EC-452, "
PRO-
CEDURE A" .)
4. CHECK COOLING FAN LOW SPEED OPERATION
Without CONSULT-II
1. Perform IPDM E/R auto active test and check cooling fan motor operation.
Refer to PG-21, "
Auto Active Test" .
2. Make sure that cooling fan operate at low speed.
OK or NG
OK >> GO TO 5.
NG >> Check cooling fan speed control circuit. (Go to EC-456, "
PROCEDURE B" .)
SEF 7 84 Z
SEF 7 85 Z
Page 1624 of 2896
DTC P1217 ENGINE OVER TEMPERATURE
EC-455
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
5. CHECK COOLING FAN HIGH SPEED OPERATION
Without CONSULT-II
1. Turn ignition switch OFF.
2. Disconnect engine coolant temperature sensor harness connector.

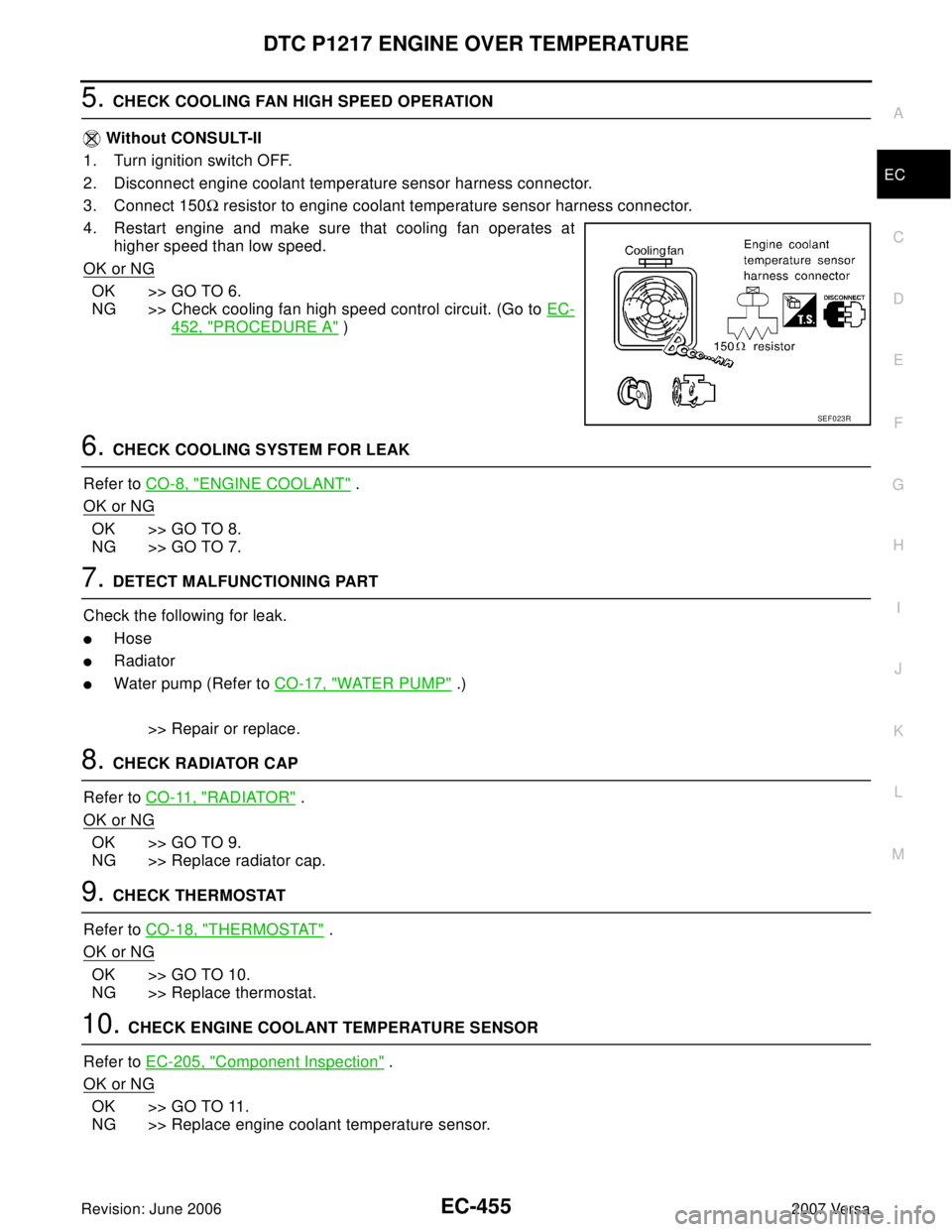

3. Connect 150Ω resistor to engine coolant temperature sensor harness connector.
4. Restart engine and make sure that cooling fan operates at
higher speed than low speed.
OK or NG
OK >> GO TO 6.
NG >> Check cooling fan high speed control circuit. (Go to EC-
452, "PROCEDURE A" )
6. CHECK COOLING SYSTEM FOR LEAK
Refer to CO-8, "
ENGINE COOLANT" .
OK or NG
OK >> GO TO 8.
NG >> GO TO 7.
7. DETECT MALFUNCTIONING PART
Check the following for leak.
Hose
Radiator
Water pump (Refer to CO-17, "WATER PUMP" .)
>> Repair or replace.
8. CHECK RADIATOR CAP
Refer to CO-11, "
RADIATOR" .
OK or NG
OK >> GO TO 9.
NG >> Replace radiator cap.
9. CHECK THERMOSTAT
Refer to CO-18, "
THERMOSTAT" .
OK or NG
OK >> GO TO 10.
NG >> Replace thermostat.
10. CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-205, "
Component Inspection" .
OK or NG
OK >> GO TO 11.
NG >> Replace engine coolant temperature sensor.
SEF 0 23 R
Page 1625 of 2896
EC-456Revision: June 2006
DTC P1217 ENGINE OVER TEMPERATURE
2007 Versa
11 . CHECK MAIN 13 CAUSES
If the cause cannot be isolated, go to EC-458, "
Main 13 Causes of Overheating" .
>>INSPECTION END
PROCEDURE B
1. CHECK POWER SUPPLY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R harness connector E44.
3. Check voltage between IPDM E/R terminal 22 and ground with
CONSULT-II or tester.
OK or NG
OK >> GO TO 3.
NG >> GO TO 2.
2. DETECT MALFUNCTIONING PART
Check the following.
50A fusible link
Harness for open or short between IPDM E/R and battery
>> Repair open circuit or short to ground or short to power in harness or connectors. Voltage: Battery voltage
PBIB2607E
Page 1626 of 2896
DTC P1217 ENGINE OVER TEMPERATURE
EC-457
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
3. CHECK COOLING FAN MOTOR CIRCUIT
1. Disconnect cooling fan motor harness connector (1).
–: Vehicle front
–Resistor (2)
2. Disconnect IPDM E/R harness connectors E46 and E48.
3. Check harness continuity between the following;
cooling fan motor terminal 1 and IPDM E/R terminal 20,
cooling fan motor terminal 4 and ground.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
5. Check harness continuity between the following;
cooling fan motor terminal 2 and IPDM E/R terminal 24,
cooling fan motor terminal 3 and IPDM E/R terminal 23.
Refer to Wiring Diagram.
6. Also check harness for short to ground and short to power.
7. Check harness continuity between IPDM E/R terminals 39, 59 and ground.
Refer to Wiring Diagram.
8. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness for open or short between cooling fan motor and IPDM E/R
Harness for open or short between cooling fan motor and ground
>> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK COOLING FAN MOTOR
Refer to EC-459, "
Component Inspection" .
OK or NG
OK >> GO TO 6.
NG >> Replace cooling fan motor.
6. CHECK INTERMITTENT INCIDENT
Perform EC-143, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-29, "Removal and Installation of IPDM E/R" .
NG >> Repair or replace harness or connector. Continuity should exist.
Continuity should exist.
Continuity should exist.
BBIA0706E
Page 1627 of 2896
EC-458Revision: June 2006
DTC P1217 ENGINE OVER TEMPERATURE
2007 Versa
Main 13 Causes of OverheatingUBS00QKZ
*1: Turn the ignition switch ON.
*2: Engine running at 3,000 rpm for 10 minutes.
*3: Drive at 90 km/h (55 MPH) for 30 minutes and then let idle for 10 minutes.
*4: After 60 minutes of cool down time.
For more information, refer to CO-5, "
OVERHEATING CAUSE ANALYSIS" . Engine Step Inspection item Equipment Standard Reference page
OFF 1
Blocked radiator
Blocked condenser
Blocked radiator grille
Blocked bumper
Visual No blocking —
2
Coolant mixtureCoolant tester 50 - 50% coolant mixture See MA-12, "Anti-freeze
Coolant Mixture Ratio" .
3
Coolant levelVisual Coolant up to MAX level
in reservoir tank and radi-
ator filler neckSee CO-8, "LEVEL
CHECK" .
4
Radiator capPressure tester 59 - 98 kPa
(0.6 - 1.0 kg/cm2 , 9 - 14
psi) (Limit)See CO-13, "
Checking
Radiator Cap" .
ON*
25Coolant leaksVisual No leaks See CO-8, "CHECKING
COOLING SYSTEM FOR
LEAKS" .
ON*
26ThermostatTouch the upper and
lower radiator hosesBoth hoses should be hot See CO-18, "THERMO-
STAT" , and CO-11,
"RADIATOR"
ON*17Cooling fanCONSULT-II Operating See trouble diagnosis for
DTC P1217 (EC-450,
"Diagnostic Procedure" ).
OFF 8
Combustion gas leakColor checker chemical
tester 4 Gas analyzerNegative —
ON*
39Coolant temperature
gaugeVisual Gauge less than 3/4
when driving—
Coolant overflow to
reservoir tankVisual No overflow during driving
and idlingSee CO-8, "Changing
Engine Coolant" .
OFF*
410Coolant return from
reservoir tank to radia-
torVisual Should be initial level in
reservoir tankSee CO-8, "LEVEL
CHECK" .
OFF 11
Water control valveRemove and inspect
the valveWithin the specified valueSee CO-21, "Water Con-
trol Valve"
OFF 12Cylinder headStraight gauge feeler
gauge0.1 mm (0.004 in) Maxi-
mum distortion (warping)See EM-62, "CYLINDER
HEAD" .
13
Cylinder block and pis-
tonsVisual No scuffing on cylinder
walls or pistonSee EM-77, "CYLINDER
BLOCK" .
Page 1628 of 2896
DTC P1217 ENGINE OVER TEMPERATURE
EC-459
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
Component InspectionUBS00QL0
COOLING FAN MOTOR
Model with A/C

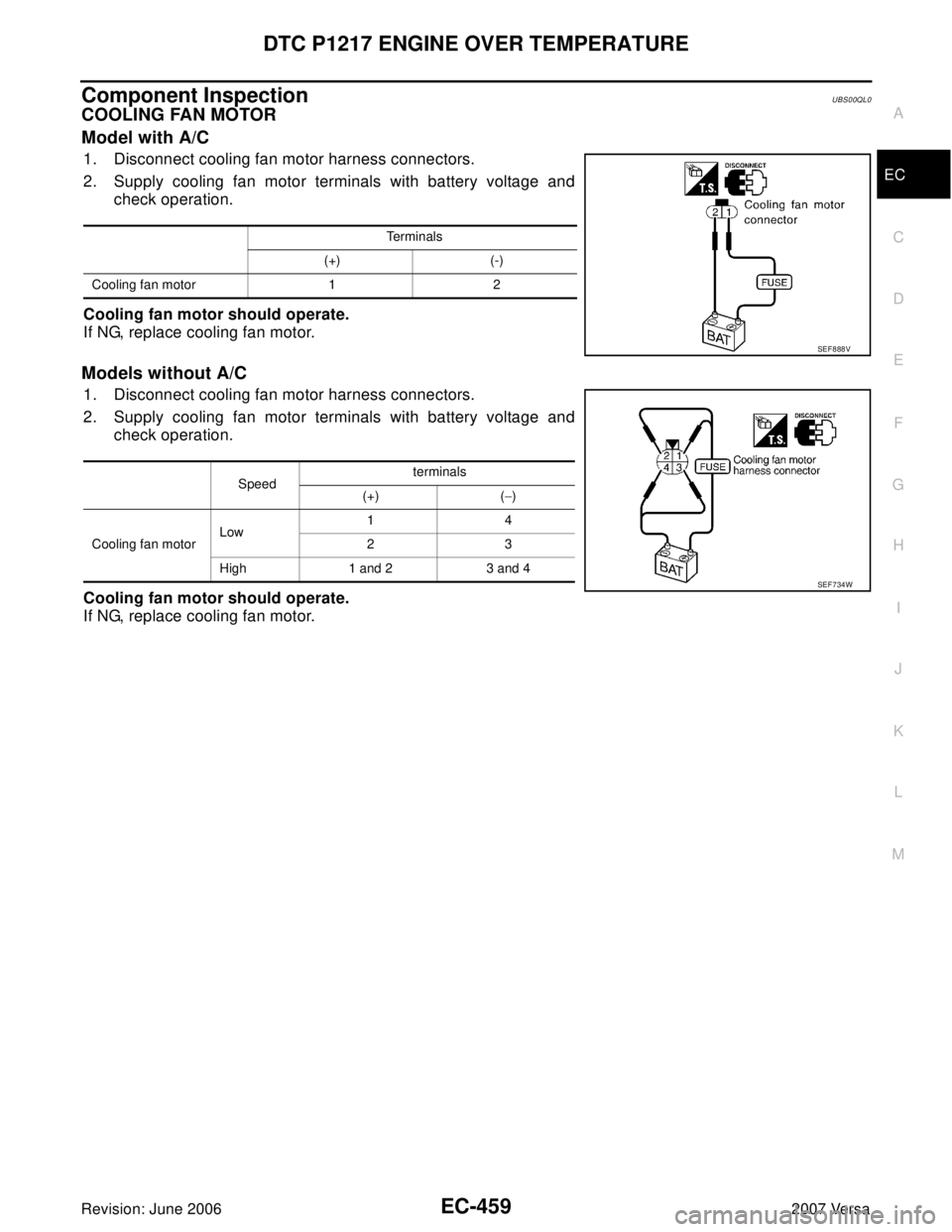

1. Disconnect cooling fan motor harness connectors.
2. Supply cooling fan motor terminals with battery voltage and
check operation.
Cooling fan motor should operate.
If NG, replace cooling fan motor.
Models without A/C
1. Disconnect cooling fan motor harness connectors.
2. Supply cooling fan motor terminals with battery voltage and
check operation.
Cooling fan motor should operate.
If NG, replace cooling fan motor.
Te r m i n a l s
(+) (-)
Cooling fan motor 1 2
SEF 8 88 V
Speedterminals
(+) (−)
Cooling fan motorLow 14
23
High 1 and 2 3 and 4
SEF 7 34 W
Page 1629 of 2896
EC-460Revision: June 2006
DTC P1225 TP SENSOR
2007 Versa
DTC P1225 TP SENSORPFP:16119
Component DescriptionUBS00QL1

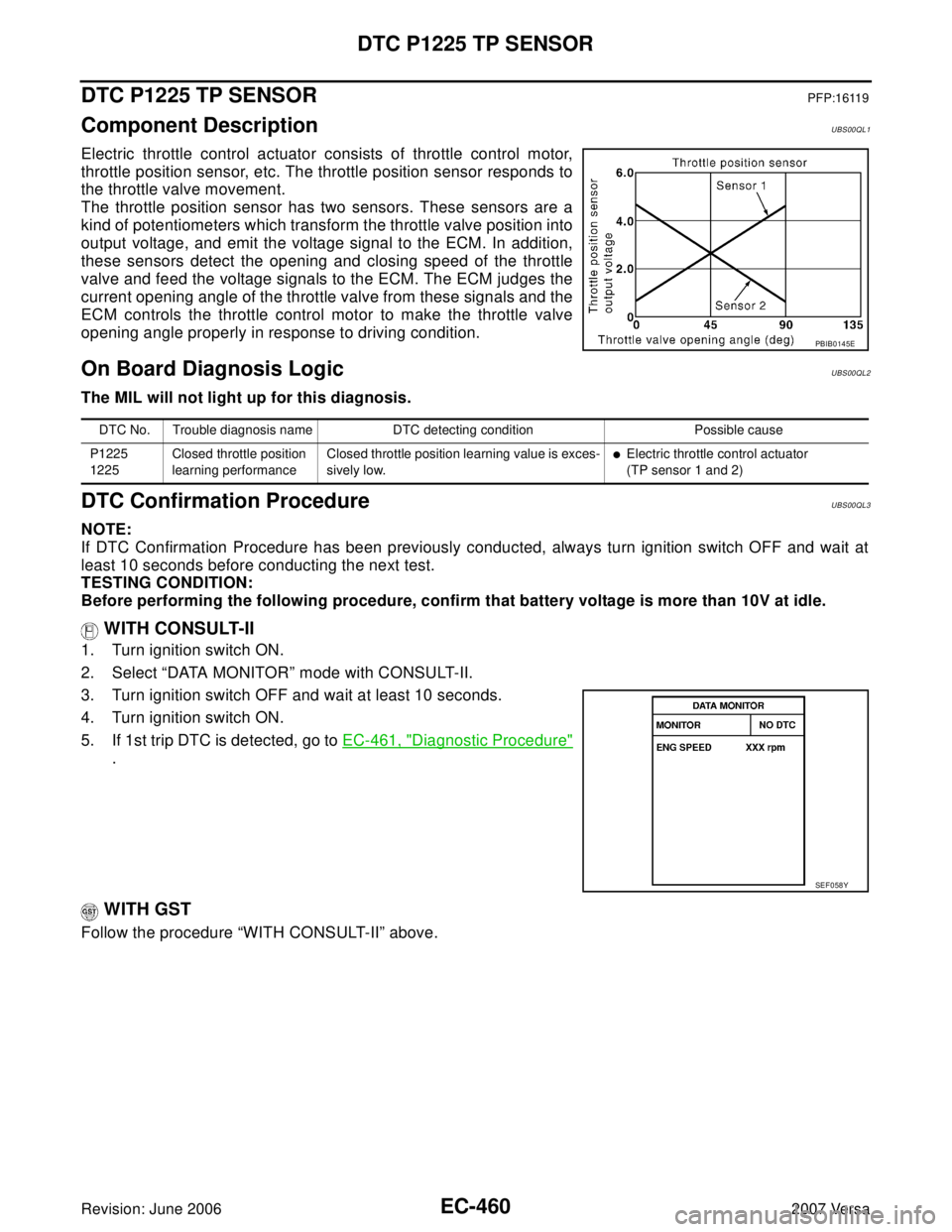

Electric throttle control actuator consists of throttle control motor,
throttle position sensor, etc. The throttle position sensor responds to
the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
On Board Diagnosis LogicUBS00QL2
The MIL will not light up for this diagnosis.
DTC Confirmation ProcedureUBS00QL3
NOTE:
If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
WITH CONSULT-II
1. Turn ignition switch ON.
2. Select “DATA MONITOR” mode with CONSULT-II.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. If 1st trip DTC is detected, go to EC-461, "
Diagnostic Procedure"
.
WITH GST
Follow the procedure “WITH CONSULT-II” above.
PBIB0145E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P1225
1225Closed throttle position
learning performanceClosed throttle position learning value is exces-
sively low.
Electric throttle control actuator
(TP sensor 1 and 2)
SEF 0 58 Y
Page 1630 of 2896
DTC P1225 TP SENSOR
EC-461
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: June 20062007 Versa
Diagnostic ProcedureUBS00QL4
1. CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY
1. Turn ignition switch OFF.
2. Remove the intake air duct.
3. Check if foreign matter is caught between the throttle valve (1)
and the housing.
–: Vehicle front
–Illustration shows the view with intake air duct removed.
OK or NG
OK >> GO TO 2.
NG >> Remove the foreign matter and clean the electric throttle
control actuator inside.
2. REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR
1. Replace the electric throttle control actuator.
2. Perform EC-78, "
Throttle Valve Closed Position Learning" .
3. Perform EC-78, "
Idle Air Volume Learning" .
>>INSPECTION END
Removal and InstallationUBS00QL5
ELECTRIC THROTTLE CONTROL ACTUATOR
Refer to EM-18, "INTAKE MANIFOLD" .
BBIA0 711 E
