NISSAN LATIO 2007 Service Repair Manual

INTERIOR ROOM LAMP
LT-103
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
NOTE:
Vehicles without Intelligent Key system display this item, but cannot be monitored.

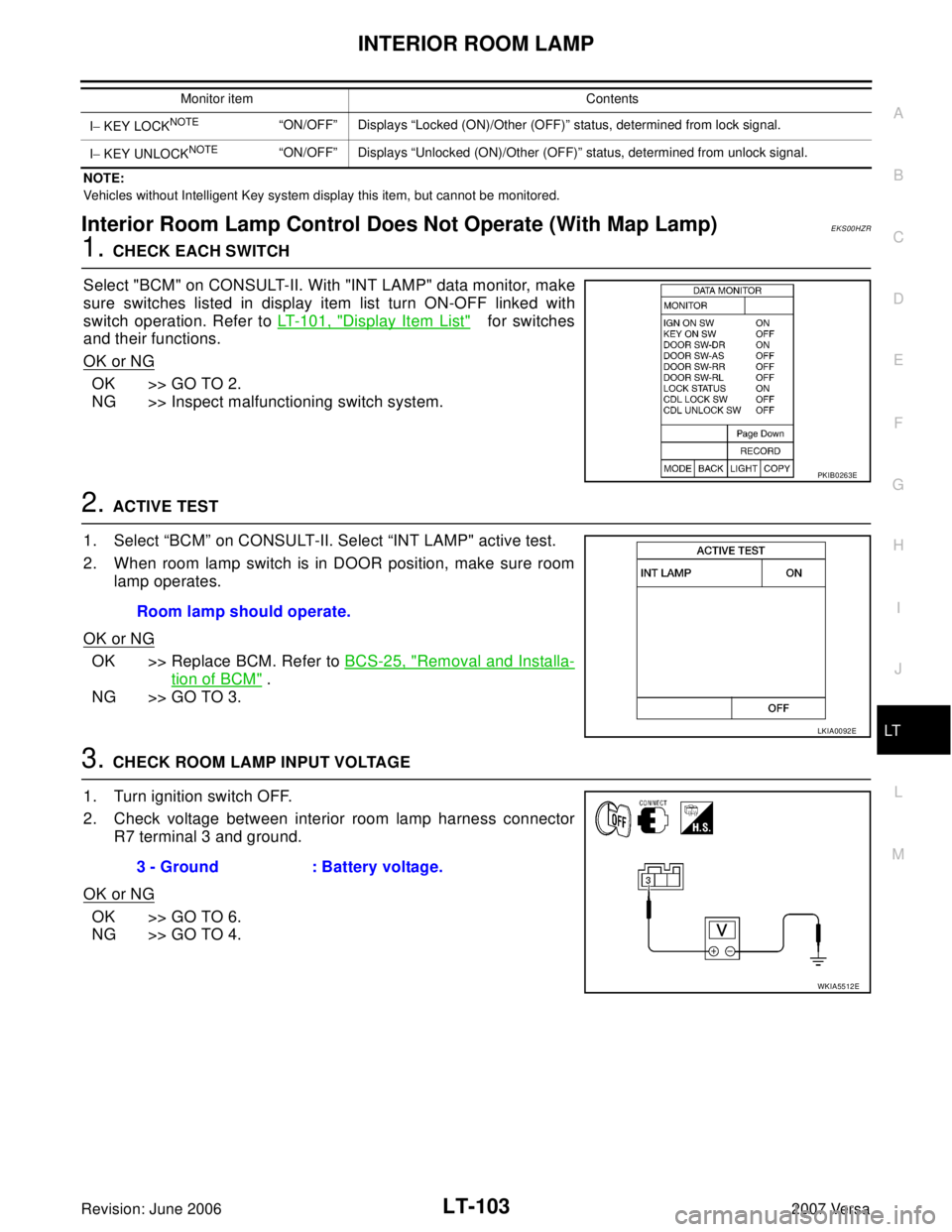

Interior Room Lamp Control Does Not Operate (With Map Lamp)EKS00HZR
1. CHECK EACH SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to LT- 1 0 1 , "
Display Item List" for switches
and their functions.
OK or NG
OK >> GO TO 2.
NG >> Inspect malfunctioning switch system.
2. ACTIVE TEST
1. Select “BCM” on CONSULT-II. Select “INT LAMP" active test.
2. When room lamp switch is in DOOR position, make sure room
lamp operates.
OK or NG
OK >> Replace BCM. Refer to BCS-25, "Removal and Installa-
tion of BCM" .
NG >> GO TO 3.

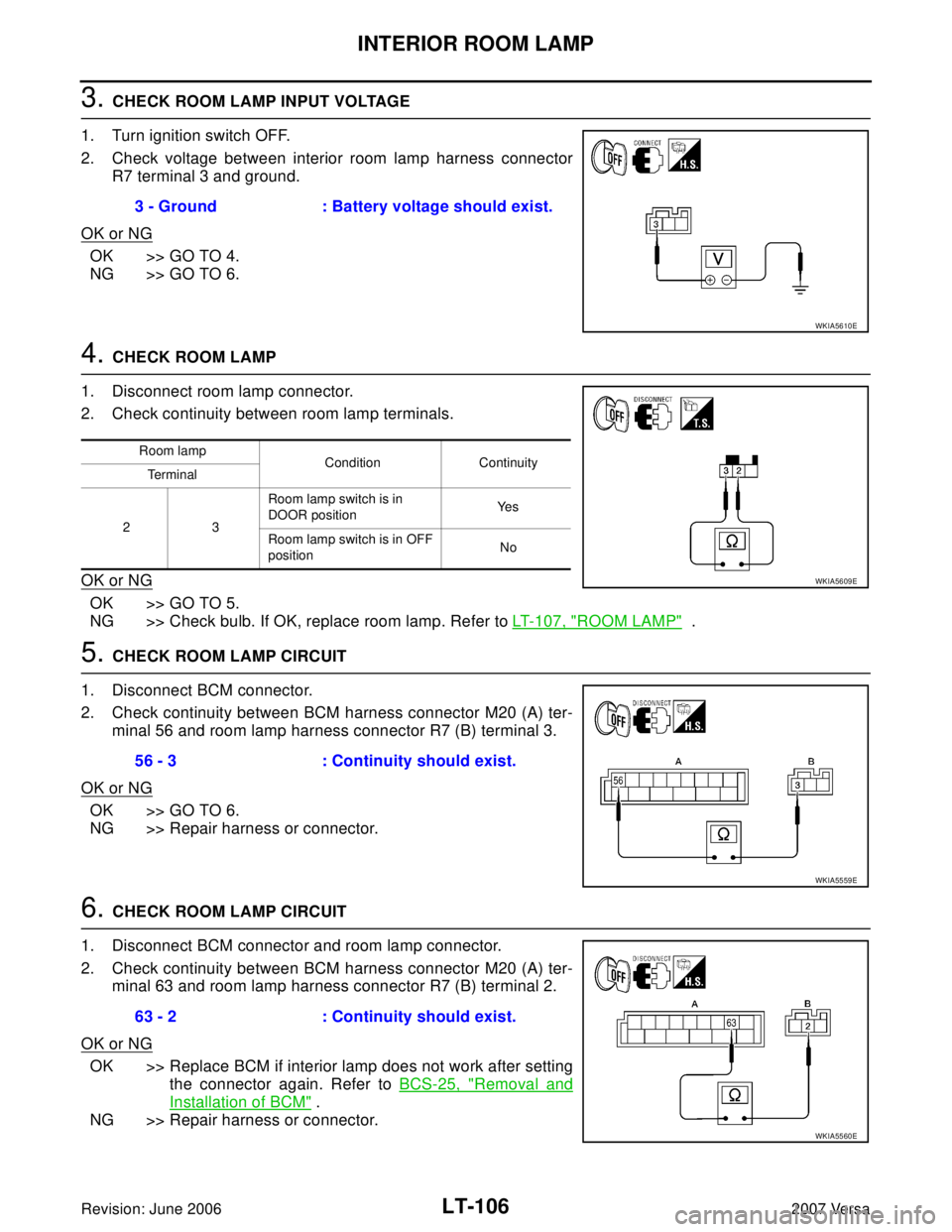

3. CHECK ROOM LAMP INPUT VOLTAGE
1. Turn ignition switch OFF.
2. Check voltage between interior room lamp harness connector
R7 terminal 3 and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 4.
I− KEY LOCKNOTE“ON/OFF” Displays “Locked (ON)/Other (OFF)” status, determined from lock signal.
I− KEY UNLOCK
NOTE“ON/OFF” Displays “Unlocked (ON)/Other (OFF)” status, determined from unlock signal. Monitor item Contents
PKIB0263E
Room lamp should operate.
LKIA0092E
3 - Ground : Battery voltage.
WKIA5512E

LT-104
INTERIOR ROOM LAMP
Revision: June 20062007 Versa

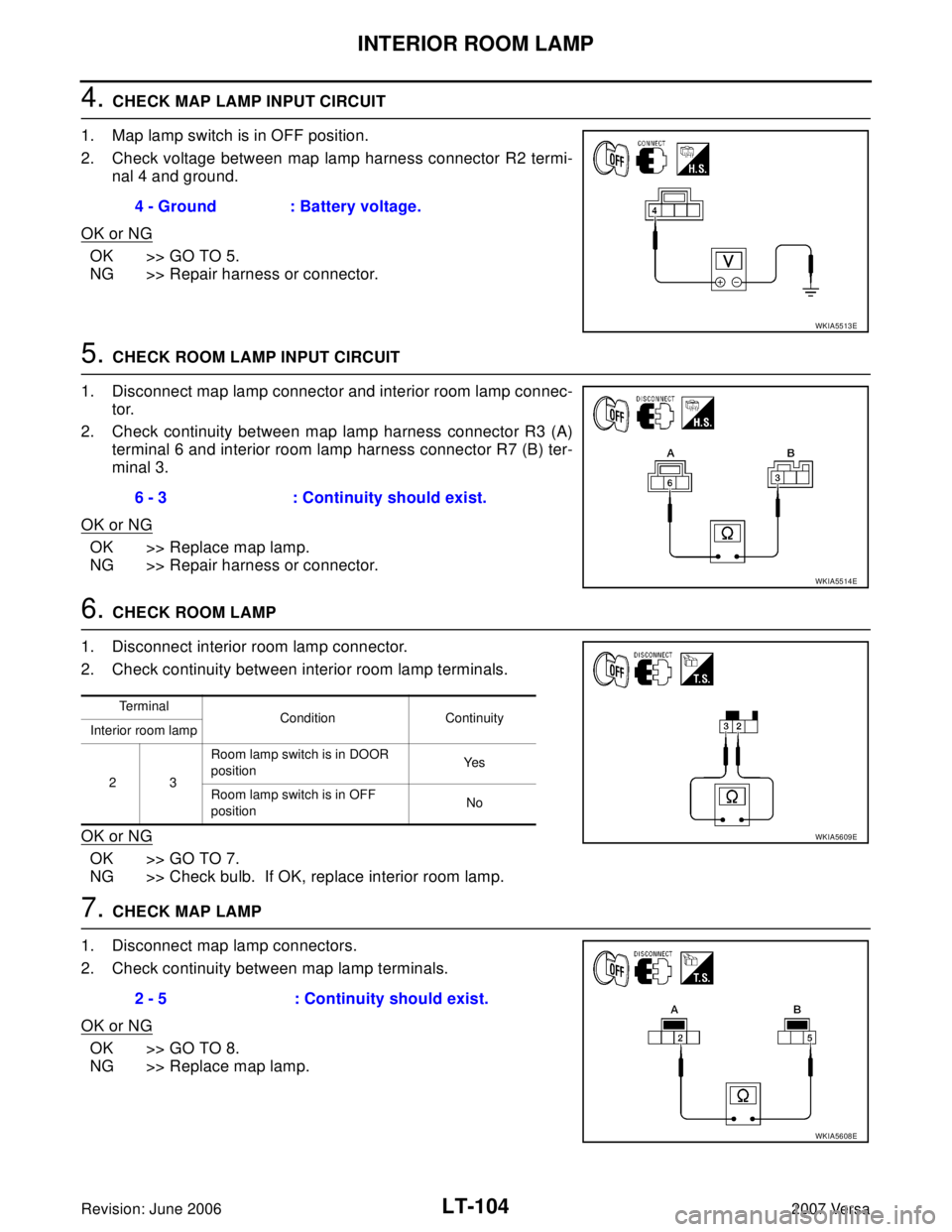

4. CHECK MAP LAMP INPUT CIRCUIT
1. Map lamp switch is in OFF position.
2. Check voltage between map lamp harness connector R2 termi-
nal 4 and ground.
OK or NG
OK >> GO TO 5.
NG >> Repair harness or connector.
5. CHECK ROOM LAMP INPUT CIRCUIT
1. Disconnect map lamp connector and interior room lamp connec-
tor.
2. Check continuity between map lamp harness connector R3 (A)
terminal 6 and interior room lamp harness connector R7 (B) ter-
minal 3.
OK or NG
OK >> Replace map lamp.
NG >> Repair harness or connector.
6. CHECK ROOM LAMP
1. Disconnect interior room lamp connector.
2. Check continuity between interior room lamp terminals.
OK or NG
OK >> GO TO 7.
NG >> Check bulb. If OK, replace interior room lamp.
7. CHECK MAP LAMP
1. Disconnect map lamp connectors.
2. Check continuity between map lamp terminals.
OK or NG
OK >> GO TO 8.
NG >> Replace map lamp.4 - Ground : Battery voltage.
WKIA5513E
6 - 3 : Continuity should exist.
WKIA5514E
Te r m i n a l
Condition Continuity
Interior room lamp
23Room lamp switch is in DOOR
positionYe s
Room lamp switch is in OFF
positionNo
WKIA5609E
2 - 5 : Continuity should exist.
WKIA5608E

INTERIOR ROOM LAMP
LT-105
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

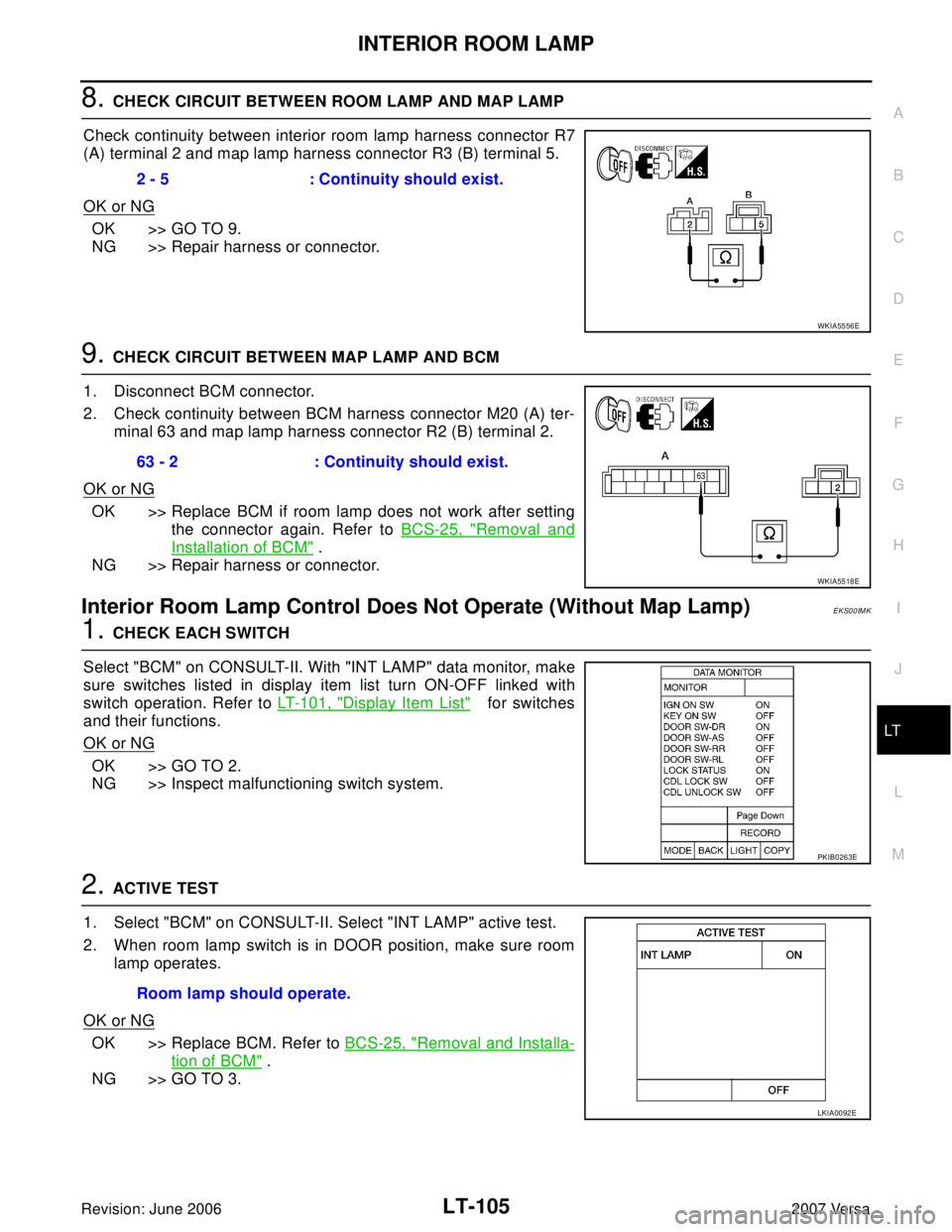

8. CHECK CIRCUIT BETWEEN ROOM LAMP AND MAP LAMP
Check continuity between interior room lamp harness connector R7
(A) terminal 2 and map lamp harness connector R3 (B) terminal 5.
OK or NG
OK >> GO TO 9.
NG >> Repair harness or connector.
9. CHECK CIRCUIT BETWEEN MAP LAMP AND BCM
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M20 (A) ter-
minal 63 and map lamp harness connector R2 (B) terminal 2.
OK or NG
OK >> Replace BCM if room lamp does not work after setting
the connector again. Refer to BCS-25, "
Removal and
Installation of BCM" .
NG >> Repair harness or connector.
Interior Room Lamp Control Does Not Operate (Without Map Lamp)EKS00IMK
1. CHECK EACH SWITCH
Select "BCM" on CONSULT-II. With "INT LAMP" data monitor, make
sure switches listed in display item list turn ON-OFF linked with
switch operation. Refer to LT- 1 0 1 , "
Display Item List" for switches
and their functions.
OK or NG
OK >> GO TO 2.
NG >> Inspect malfunctioning switch system.
2. ACTIVE TEST
1. Select "BCM" on CONSULT-II. Select "INT LAMP" active test.
2. When room lamp switch is in DOOR position, make sure room
lamp operates.
OK or NG
OK >> Replace BCM. Refer to BCS-25, "Removal and Installa-
tion of BCM" .
NG >> GO TO 3.2 - 5 : Continuity should exist.
WKIA5556E
63 - 2 : Continuity should exist.
WKIA5518E
PKIB0263E
Room lamp should operate.
LKIA0092E

LT-106
INTERIOR ROOM LAMP
Revision: June 20062007 Versa
3. CHECK ROOM LAMP INPUT VOLTAGE
1. Turn ignition switch OFF.
2. Check voltage between interior room lamp harness connector
R7 terminal 3 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 6.
4. CHECK ROOM LAMP
1. Disconnect room lamp connector.
2. Check continuity between room lamp terminals.
OK or NG
OK >> GO TO 5.
NG >> Check bulb. If OK, replace room lamp. Refer to LT-107, "
ROOM LAMP" .
5. CHECK ROOM LAMP CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM harness connector M20 (A) ter-
minal 56 and room lamp harness connector R7 (B) terminal 3.
OK or NG
OK >> GO TO 6.
NG >> Repair harness or connector.
6. CHECK ROOM LAMP CIRCUIT
1. Disconnect BCM connector and room lamp connector.
2. Check continuity between BCM harness connector M20 (A) ter-
minal 63 and room lamp harness connector R7 (B) terminal 2.
OK or NG
OK >> Replace BCM if interior lamp does not work after setting
the connector again. Refer to BCS-25, "
Removal and
Installation of BCM" .
NG >> Repair harness or connector.3 - Ground : Battery voltage should exist.
WKIA5610E
Room lamp
Condition Continuity
Te r m i n a l
23 Room lamp switch is in
DOOR positionYe s
Room lamp switch is in OFF
positionNo
WKIA5609E
56 - 3 : Continuity should exist.
WKIA5559E
63 - 2 : Continuity should exist.
WKIA5560E

INTERIOR ROOM LAMP
LT-107
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

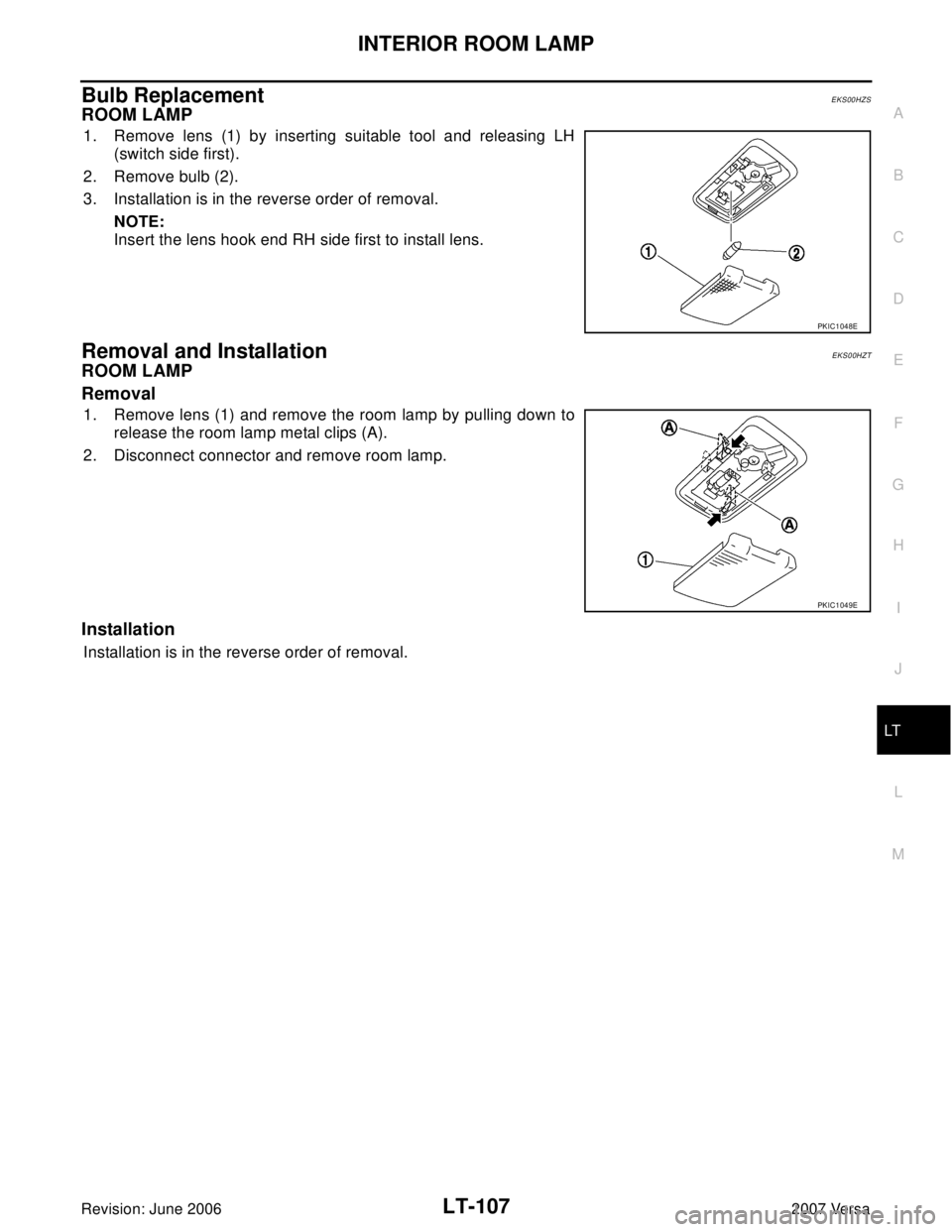

Bulb ReplacementEKS00HZS
ROOM LAMP
1. Remove lens (1) by inserting suitable tool and releasing LH
(switch side first).
2. Remove bulb (2).
3. Installation is in the reverse order of removal.
NOTE:
Insert the lens hook end RH side first to install lens.
Removal and InstallationEKS00HZT
ROOM LAMP
Removal
1. Remove lens (1) and remove the room lamp by pulling down to
release the room lamp metal clips (A).
2. Disconnect connector and remove room lamp.
Installation
Installation is in the reverse order of removal.
PKIC1048E
PKIC1049E

LT-108
ILLUMINATION
Revision: June 20062007 Versa
ILLUMINATIONPFP:27545
System DescriptionEKS00HZU
The control of the illumination lamps operation is dependent upon the position of the lighting switch. When the
lighting switch is placed in the 1ST or 2ND position, the BCM (body control module) receives input signal
requesting the illumination lamps to illuminate. This input signal is communicated to IPDM E/R (intelligent
power distribution module engine room) across CAN communication lines. CPU (central processing unit)
located in the IPDM E/R controls the tail lamp relay coil. This relay, when energized, directs power to the illu-
mination lamps, which then illuminate.
Power is supplied at all times

to ignition relay, located in IPDM E/R,

to tail lamp relay, located in IPDM E/R,

through 15A fuse (No. 52, located in IPDM E/R) and

through 20A fuse (No. 53, located in IPDM E/R)

to CPU located in IPDM E/R,

through 40A fusible link (letter g , located in fuse and fusible link box)

to BCM terminal 70, and

through 10A fuse [No. 8, located in fuse block (J/B)]

to BCM terminal 57.
With the ignition switch in the ON or START position, power is supplied

to ignition relay, located in IPDM E/R, and

through 10A fuse [No. 6, located in fuse block (J/B)]

to BCM terminal 38.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 20, located in fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 67

through grounds M57 and M61, and

to IPDM E/R terminals 39 and 59

through grounds E15 and E24.
ILLUMINATION OPERATION BY LIGHTING SWITCH
With the lighting switch in the 1ST or 2ND position, BCM receives input signal requesting the illumination
lamps to illuminate. This input signal is communicated to IPDM E/R across CAN communication lines. CPU
located in the IPDM E/R controls the tail lamp relay coil, which, when energized, directs power

through 10A fuse (No. 37, located in IPDM E/R)

through IPDM E/R terminal 29

to microphone terminal 3 (with Bluetooth)

to illumination control switch terminal 1

to glove box lamp terminal 1 (with glovebox lamp)

to audio unit terminal 9

to front air control terminal 5

to A/T device terminal 3 (without M/T)

to hazard switch terminal 3

to combination meter terminal 12

to door mirror remote control switch terminal 16, and

to main power window and door lock/unlock switch terminal 4.
Ground is supplied

to microphone terminal 2 (with Bluetooth)

to glove box lamp terminal 2 (with glove box lamp), and

ILLUMINATION
LT-109
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

to illumination control switch terminal 3

through grounds M57 and M61.
The illumination control switch controls illumination intensity by varying the ground to the following

through illumination control switch terminal 2

to audio unit terminal 8

to front air control terminal 6

to A/T device terminal 4 (without M/T)

to hazard switch terminal 4

to combination meter terminal 15,

to door mirror remote control switch,

to main power window and door lock/unlock switch terminal 10.
With power and ground supplied, illumination lamps illuminate.
EXTERIOR LAMP BATTERY SAVER CONTROL
Refer to LT- 7 6 , "EXTERIOR LAMP BATTERY SAVER CONTROL" .
CAN Communication System DescriptionEKS00HZV
Refer to LAN-4, "CAN Communication System" .

LT-110
ILLUMINATION
Revision: June 20062007 Versa

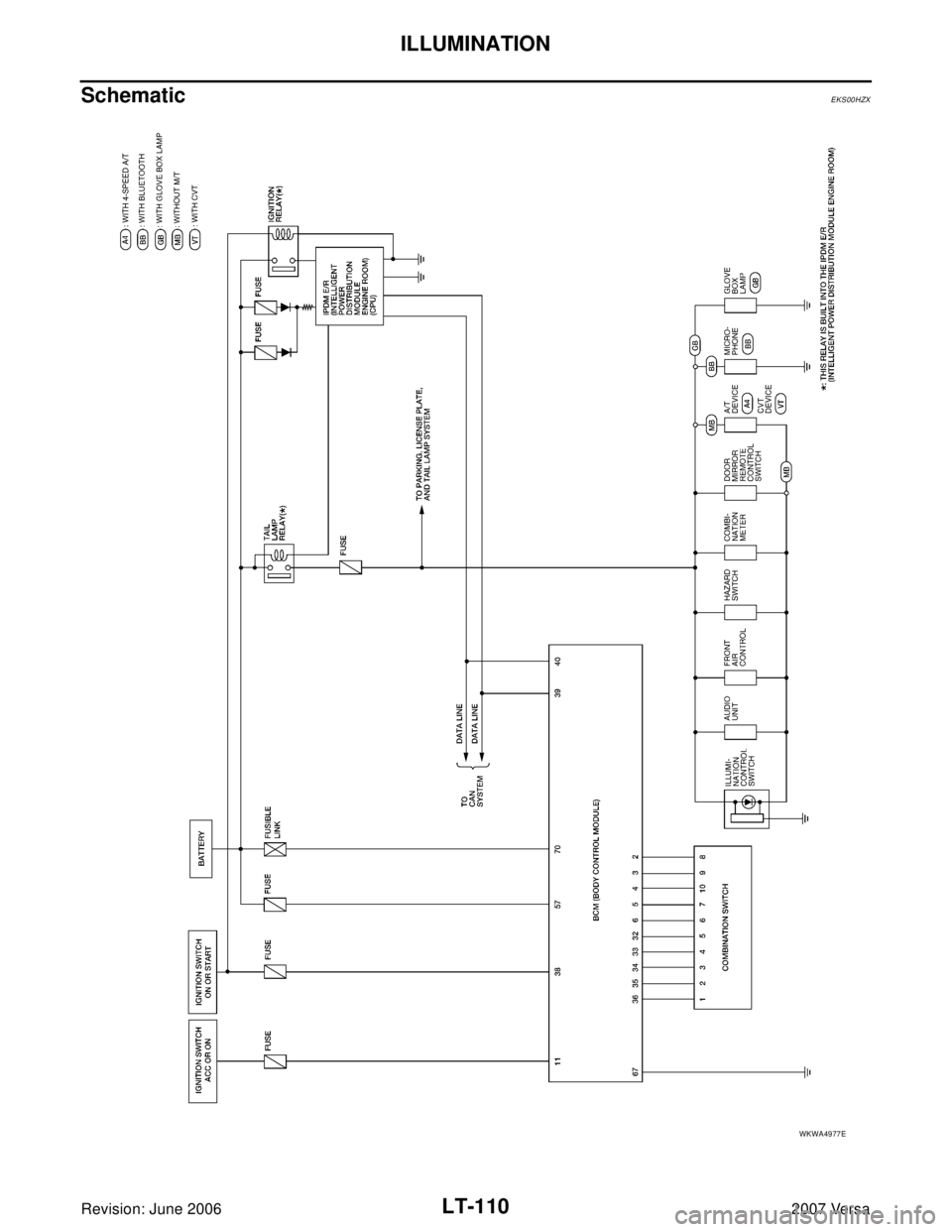

SchematicEKS00HZX
WKWA4977E

ILLUMINATION
LT-111
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa

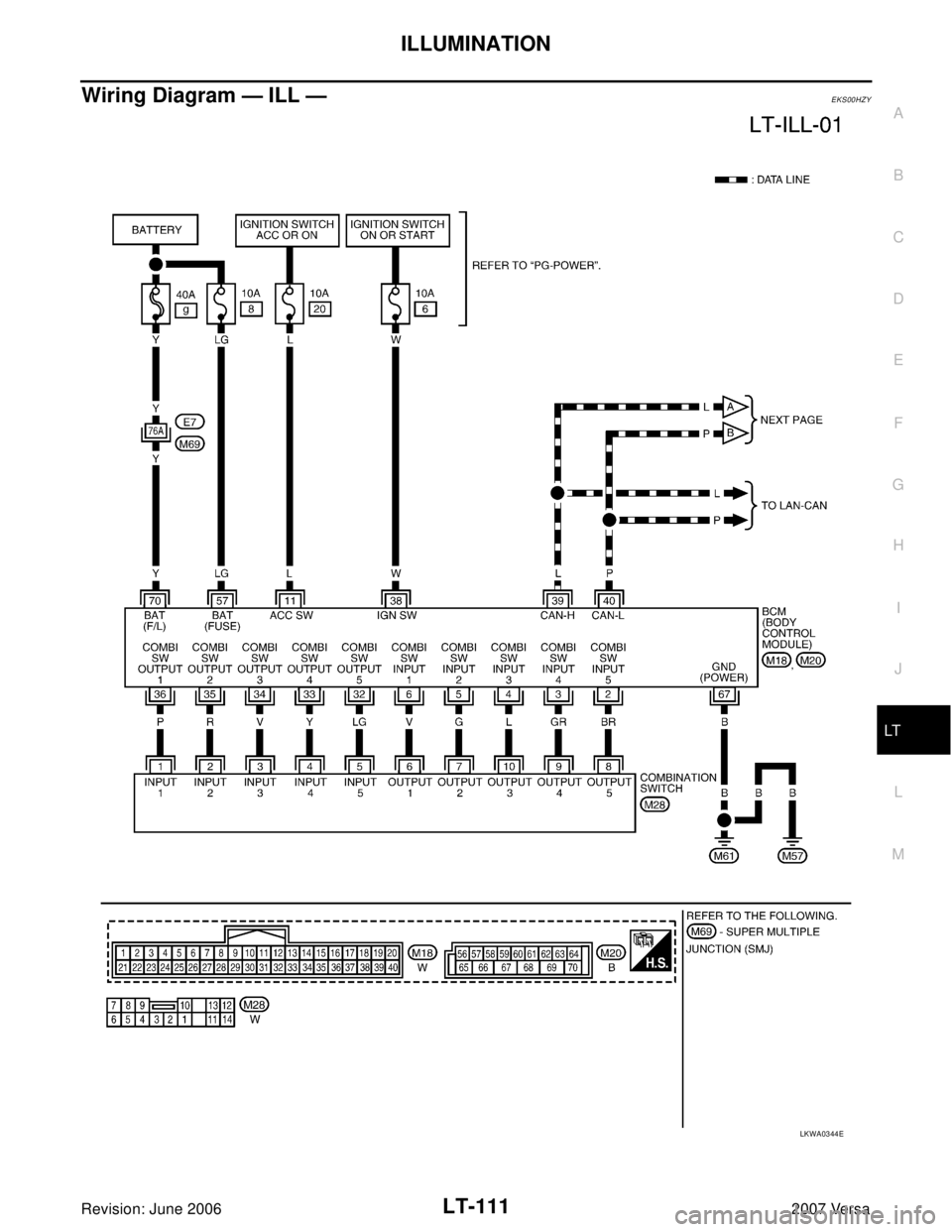

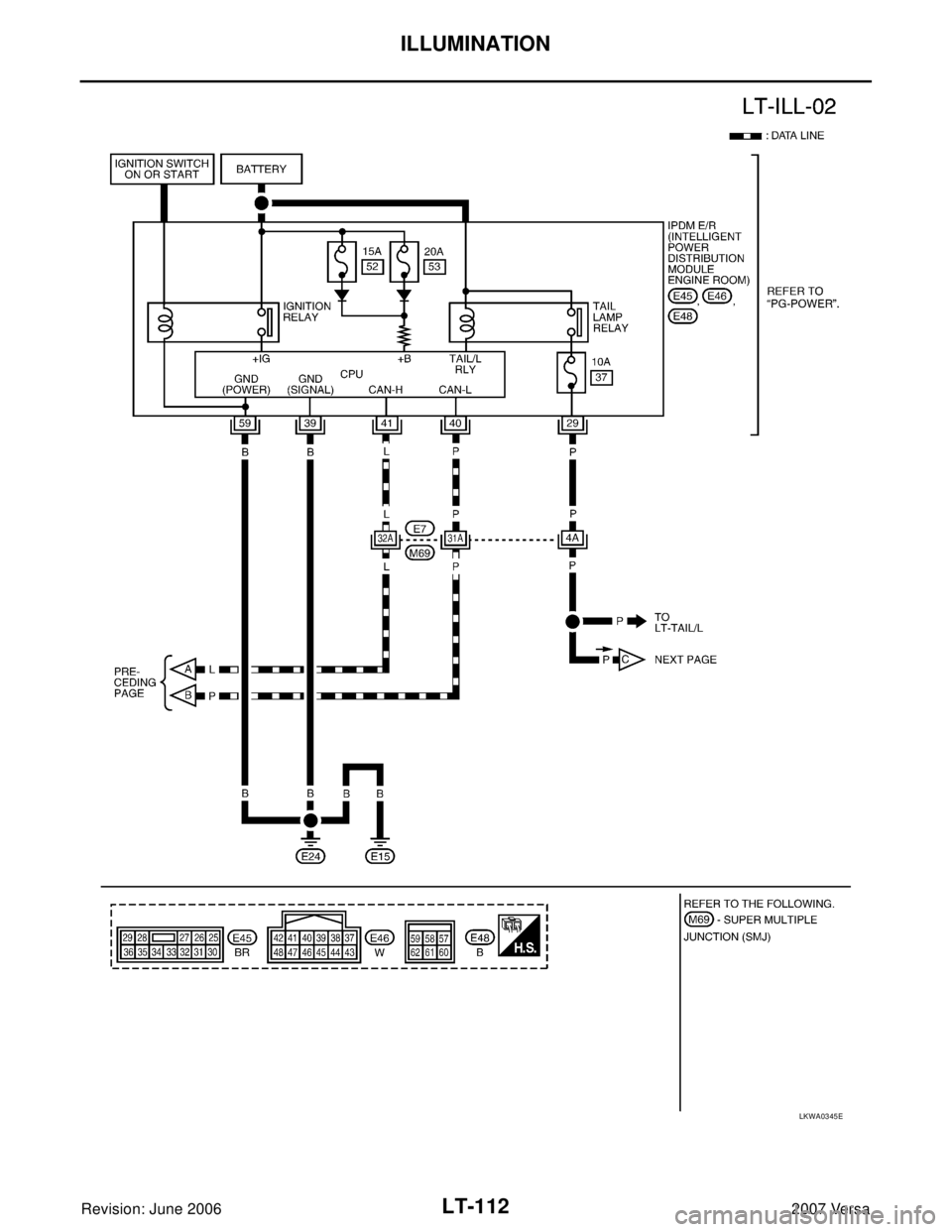

Wiring Diagram — ILL —EKS00HZY
LKWA0344E

LT-112
ILLUMINATION
Revision: June 20062007 Versa
LKWA0345E
