NISSAN LATIO 2007 Service Repair Manual
Manufacturer: NISSAN, Model Year: 2007, Model line: LATIO, Model: NISSAN LATIO 2007Pages: 2896, PDF Size: 64.73 MB
Page 2321 of 2896

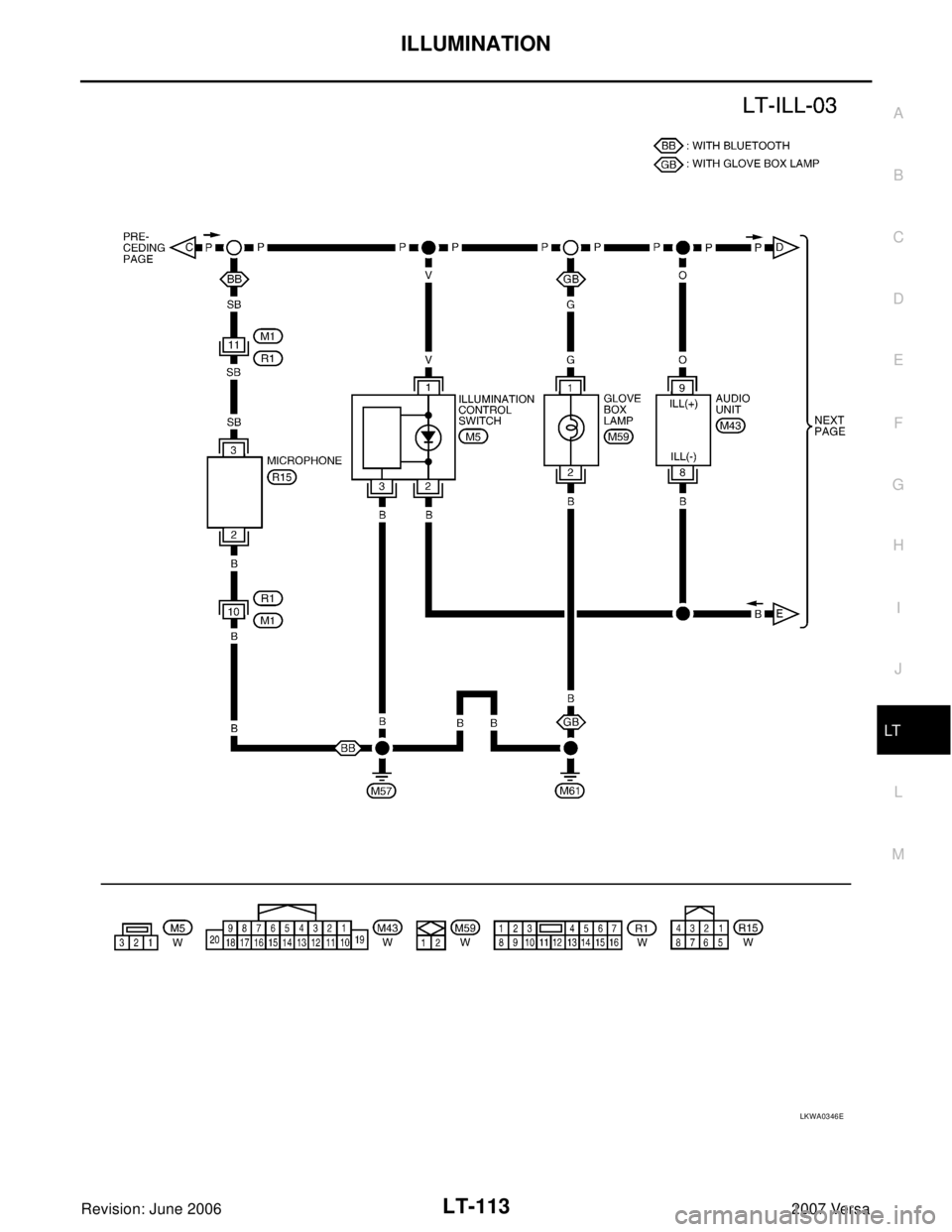

ILLUMINATION
LT-113
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
LKWA0346E
Page 2322 of 2896

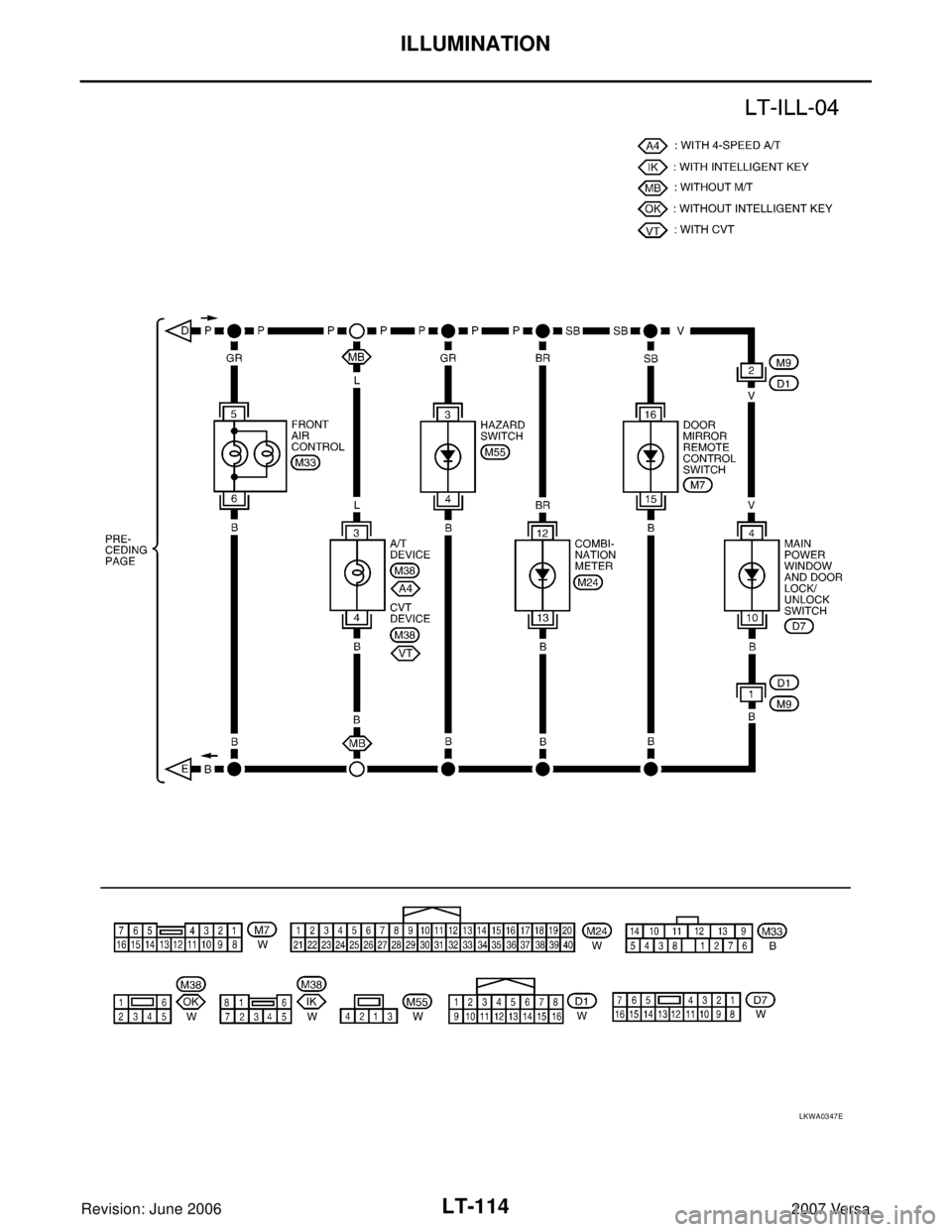

LT-114
ILLUMINATION
Revision: June 20062007 Versa
LKWA0347E
Page 2323 of 2896

ILLUMINATION
LT-115
C
D
E
F
G
H
I
J
L
MA
B
LT
Revision: June 20062007 Versa
Bulb ReplacementEKS00HZZ
GLOVE BOX LAMP
1. Remove glove box assembly. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Turn bulb socket (1) counterclockwise and remove it.
3. Remove bulb (2).
PKIC1053E
Page 2324 of 2896

LT-116
BULB SPECIFICATIONS
Revision: June 20062007 Versa
BULB SPECIFICATIONSPFP:26297
HeadlampEKS00I00
Exterior LampEKS00I01
Interior Lamp/IlluminationEKS00I02
Item Wattage (W)
High/Low (Halogen type)60/55 (H4)
Item Wattage (W)
Front combination lampTurn signal lamp 21 (amber)
Parking (clearance) lamp 5
Rear combination lampStop/Tail lamp 21/5
Turn signal lamp 21 (amber)
Back-up lamp 21
Front fog lamp35 (H8)
License plate lamp5
High-mounted stop lamp 18
Item Wattage (W)
Glove box lamp1.4
Map lamp8
Room lamp8
Luggage compartment lamp5
Page 2325 of 2896

LU-1
ENGINE LUBRICATION SYSTEM
B ENGINE
CONTENTS
C
D
E
F
G
H
I
J
K
L
M
SECTION LU
A
LU
Revision: June 20062007 Versa PRECAUTIONS .......................................................... 2
Precautions for Liquid Gasket .................................. 2
LIQUID GASKET APPLICATION PROCEDURE ..... 2
PREPARATION ........................................................... 3
Special Service Tools ............................................... 3
Commercial Service Tools ........................................ 3
LUBRICATION SYSTEM ............................................ 4
Lubrication Circuit .................................................... 4
ENGINE OIL ............................................................... 5
Inspection ................................................................. 5
ENGINE OIL LEVEL ............................................. 5
ENGINE OIL APPEARANCE ................................ 5ENGINE OIL LEAKAGE ........................................ 5
OIL PRESSURE CHECK ...................................... 5
Changing Engine Oil ................................................. 6
OIL FILTER ................................................................. 8
Removal and Installation .......................................... 8
REMOVAL ............................................................. 8
INSTALLATION ..................................................... 8
INSPECTION AFTER INSTALLATION .................. 8
SERVICE DATA AND SPECIFICATIONS (SDS) ........ 9
Standard and Limit .................................................... 9
OIL PRESSURE .................................................... 9
OIL CAPACITY ...................................................... 9
Page 2326 of 2896

LU-2Revision: June 2006
PRECAUTIONS
2007 Versa
PRECAUTIONSPFP:00001
Precautions for Liquid GasketEBS00T6X
LIQUID GASKET APPLICATION PROCEDURE
1. Remove old liquid gasket adhering to the liquid gasket application surface and the mating surface.
Remove liquid gasket completely from the liquid gasket application surface, bolts, and bolt holes.
2. Wipe the liquid gasket application surface and the mating surface with white gasoline (lighting and heating
use) to remove adhering moisture, grease and foreign materials.
3. Attach liquid gasket tube to the Tool.
Use Genuine Silicone RTV Sealant or equivalent. Refer to
GI-46, "
RECOMMENDED CHEMICAL PRODUCTS AND SEAL-
ANTS" .
Within 5 minutes of liquid gasket application, install the mating
component.
If liquid gasket protrudes, wipe it off immediately.
Do not retighten bolts or nuts after the installation.
Wait 30 minutes or more after installation before refilling
engine oil and engine coolant.Tool number :WS39930000 ( — )PBIC2160E
Page 2327 of 2896

PREPARATION
LU-3
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: June 20062007 Versa
PREPARATIONPFP:00002
Special Service ToolsEBS00UHN
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolsEBS00UHO
Tool number
(Kent-Moore No.)
Tool nameDescription
ST25051001
(J-25695-1)
Oil pressure gaugeMeasuring oil pressure
Maximum measuring range: 2,452 kPa (25
kg/cm
2 , 356 psi)
ST25052000
(J-25695-2)
HoseAdapting oil pressure gauge to oil pan (upper)
KV10115801
(J-38956)
Oil filter wrenchRemoving oil filter
a: 64.3 mm (2.531 in)
WS39930000
(—)
Tube presserPressing the tube of liquid gasket
NT050
S-NT559
S-NT375
NT052
Tool nameDescription
Power toolLoosening nuts and bolts
Deep socketRemoving and installing oil pressure sensor
a: 26 mm (1.02 in)
PBIC0190E
PBIC2072E
Page 2328 of 2896

LU-4Revision: June 2006
LUBRICATION SYSTEM
2007 Versa
LUBRICATION SYSTEMPFP:15010

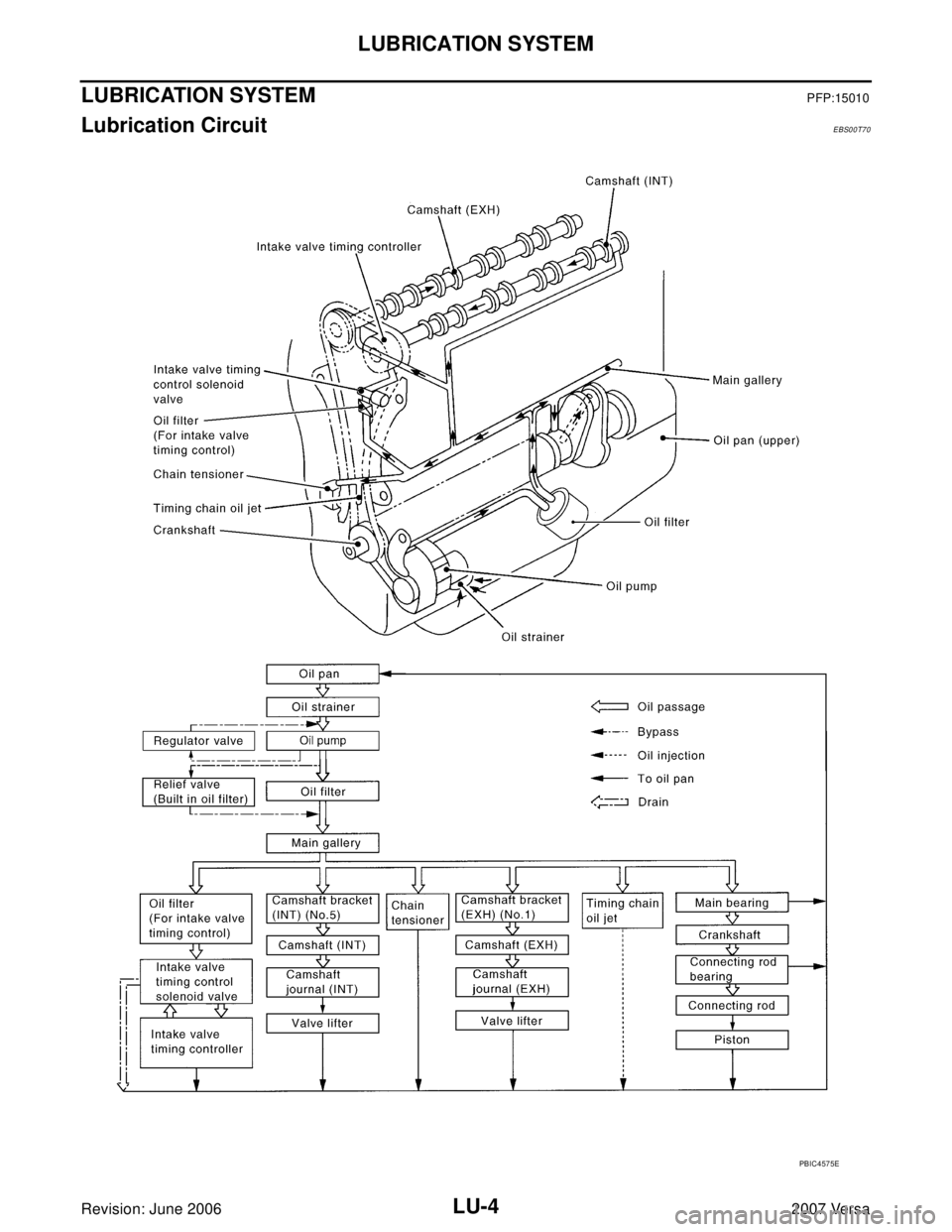

Lubrication CircuitEBS00T70
PBIC4575E
Page 2329 of 2896

ENGINE OIL
LU-5
C
D
E
F
G
H
I
J
K
L
MA
LU
Revision: June 20062007 Versa
ENGINE OILPFP:KLA92
InspectionEBS00T71
ENGINE OIL LEVEL
NOTE:
Before starting engine, park vehicle on a level surface and check the engine oil level. If engine is already
started, stop it and allow 10 minutes before checking.
1. Pull out oil level gauge and wipe it clean.
2. Insert oil level gauge and make sure the engine oil level is within
the range (A) as shown.
3. If it is out of range, adjust it.
ENGINE OIL APPEARANCE
Check engine oil for white turbidity or heavy contamination.
If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.
Repair or replace damaged parts.
ENGINE OIL LEAKAGE
Check for engine oil leakage around the following areas:
Oil pan (upper and lower)
Oil pan drain plug
Oil pressure switch
Oil filter
Intake valve timing control solenoid valve
Front cover
Mating surface between cylinder block and cylinder head
Mating surface between cylinder head and rocker cover
Crankshaft oil seals (front and rear)
Oil filter (for intake valve timing control)
OIL PRESSURE CHECK
WA RN ING:
Be careful not to burn yourself, as engine oil may be hot.
For engine oil pressure check the transaxle should be in “ Park position” (A/T models) and (CVT
models) or “Neutral position” (M/T models), and apply the parking brake securely.
1. Disconnect harness connector at oil pressure switch (1), and
remove oil pressure switch using a suitable tool.
Oil pan (lower) (2)
⇐ Front
WBIA0776E
PBIC3310E
Page 2330 of 2896

LU-6Revision: June 2006
ENGINE OIL
2007 Versa
2. Install oil pressure gauge and hose.
3. Check engine oil level. Refer to LU-5, "
ENGINE OIL LEVEL" .
4. Start engine and warm it up to normal operating temperature.
5. Check oil pressure with engine running under no-load.
NOTE:
When engine oil temperature is low, engine oil pressure becomes high.
Engine oil pressure [Engine oil temperature at 80°C (176°F)]
If difference is extreme, check oil passage and oil pump for oil leaks.
6. After the inspections, install oil pressure switch as follows:
a. Remove old liquid gasket adhering to oil pressure switch and engine.
b. Apply liquid gasket and tighten oil pressure switch to specification.
Use Genuine Silicone RTV Sealant or equivalent. Refer to GI-46, "
RECOMMENDED CHEMICAL
PRODUCTS AND SEALANTS" .
c. Check engine oil level. Refer to LU-5, "
ENGINE OIL LEVEL" .
d. After warming up engine, make sure there are no engine leaks of oil with running engine.
Changing Engine OilEBS00T72
WAR NIN G:
Be careful not to burn yourself, as engine oil may be hot.
Prolonged and repeated contact with used engine oil may cause skin cancer; try to avoid direct
skin contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand
cleaner as soon as possible.
1. Warm up engine, park vehicle on a level surface and check for engine oil leakage from engine compo-
nents. Refer to LU-5, "
ENGINE OIL LEAKAGE" .
2. Stop engine and wait for 10 minutes.Tool number : ST25051001 (J-25695-1)
: ST25052000 (J-25695-2)
WBIA0571E
Engine speed
rpm Approximate discharge pressure
kPa (bar, kg/cm2 , psi)
Idle speed More than 60 (0.60, 0.61, 9)
2,000 More than 200 (2.0, 2.0, 29)
Oil pressure switch : 14.7 N·m (1.5 kg-m, 11 ft-lb)
