NISSAN LATIO 2007 Service Repair Manual

TRANSAXLE ASSEMBLY
MT-19
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: June 20062007 Versa

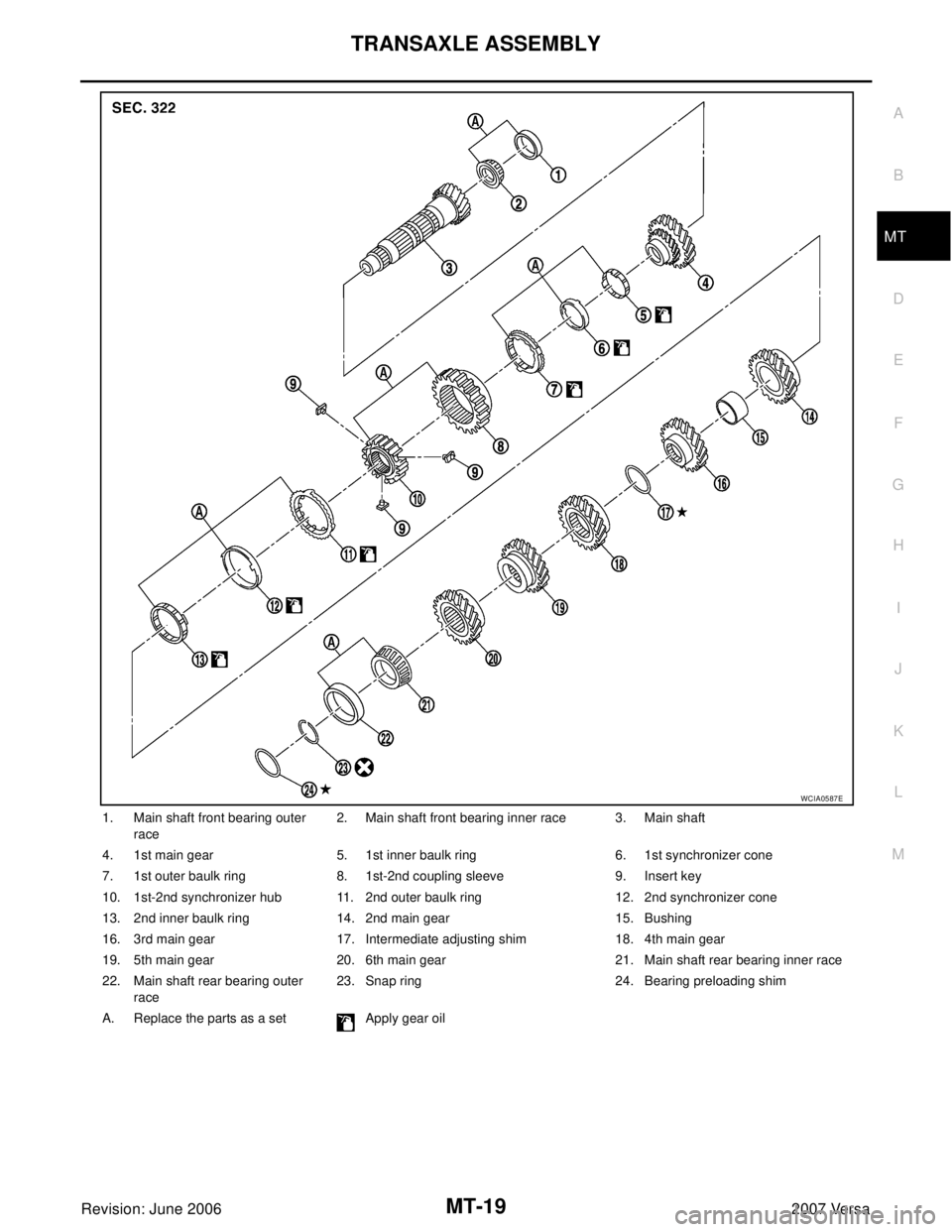

1. Main shaft front bearing outer
race2. Main shaft front bearing inner race 3. Main shaft
4. 1st main gear 5. 1st inner baulk ring 6. 1st synchronizer cone
7. 1st outer baulk ring 8. 1st-2nd coupling sleeve 9. Insert key
10. 1st-2nd synchronizer hub 11. 2nd outer baulk ring 12. 2nd synchronizer cone
13. 2nd inner baulk ring 14. 2nd main gear 15. Bushing
16. 3rd main gear 17. Intermediate adjusting shim 18. 4th main gear
19. 5th main gear 20. 6th main gear 21. Main shaft rear bearing inner race
22. Main shaft rear bearing outer
race23. Snap ring 24. Bearing preloading shim
A. Replace the parts as a set Apply gear oil
WCIA0587E

MT-20
TRANSAXLE ASSEMBLY
Revision: June 20062007 Versa

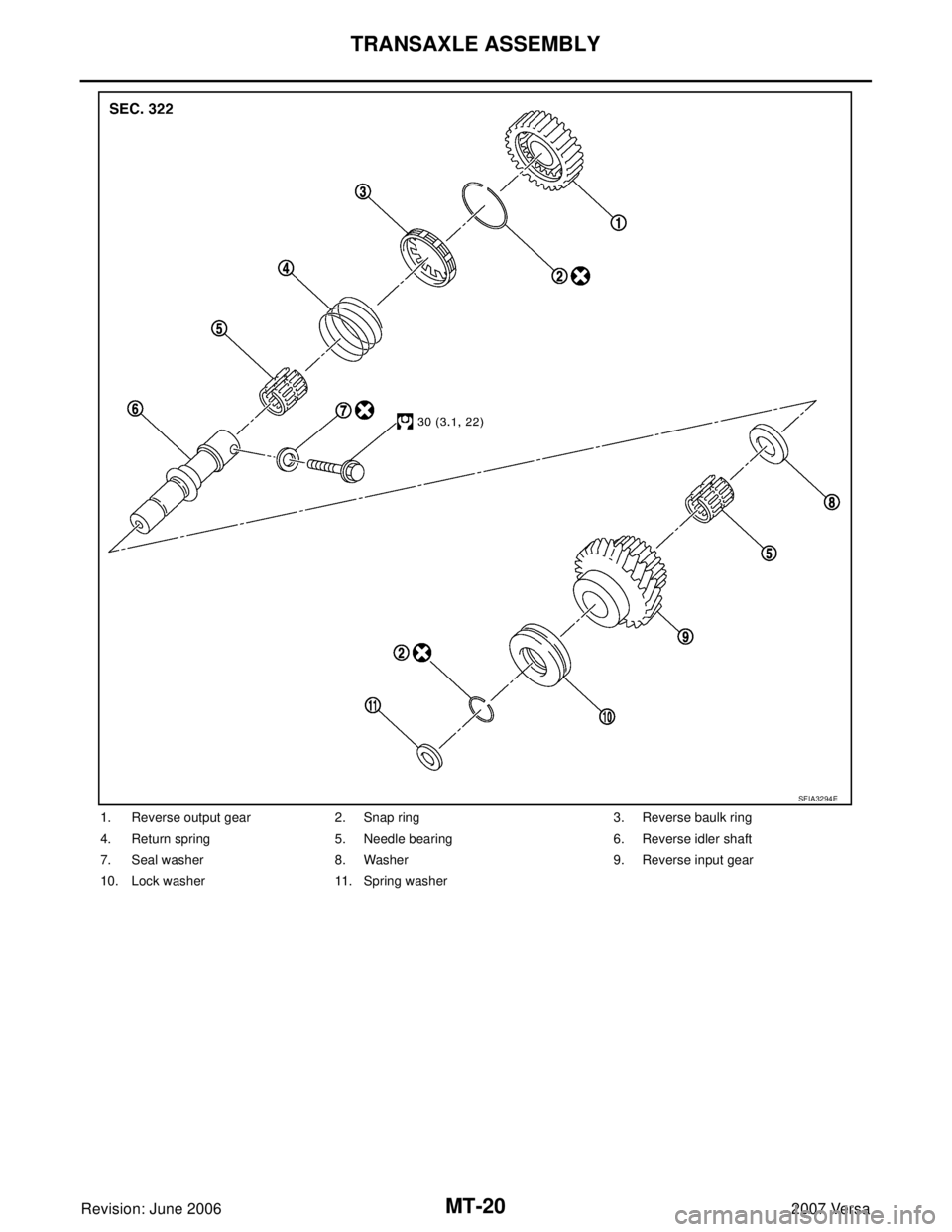

1. Reverse output gear 2. Snap ring 3. Reverse baulk ring
4. Return spring 5. Needle bearing 6. Reverse idler shaft
7. Seal washer 8. Washer 9. Reverse input gear
10. Lock washer 11. Spring washer
SFIA3294E

TRANSAXLE ASSEMBLY
MT-21
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: June 20062007 Versa

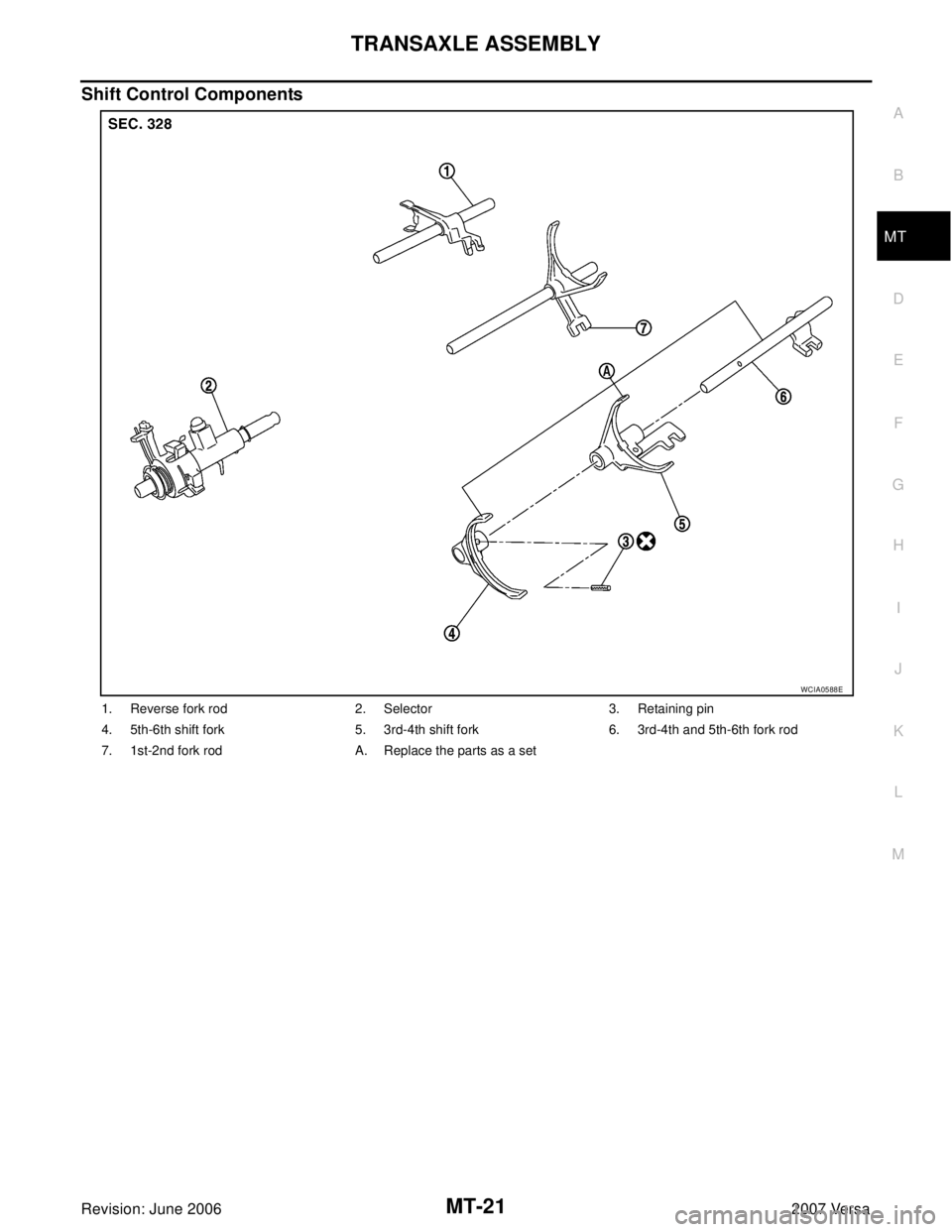

Shift Control Components
1. Reverse fork rod 2. Selector 3. Retaining pin
4. 5th-6th shift fork 5. 3rd-4th shift fork 6. 3rd-4th and 5th-6th fork rod
7. 1st-2nd fork rod A. Replace the parts as a set
WCIA0588E

MT-22
TRANSAXLE ASSEMBLY
Revision: June 20062007 Versa

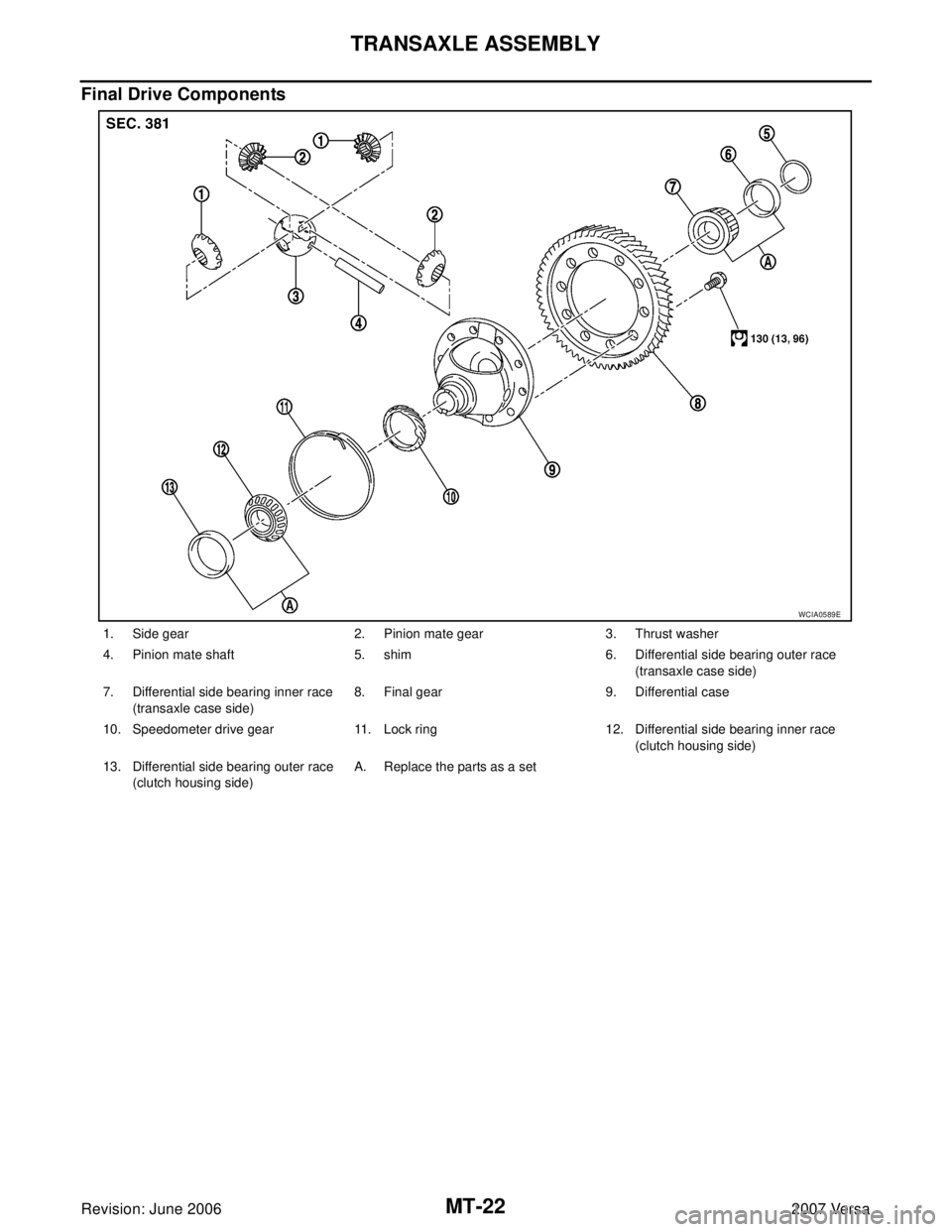

Final Drive Components
1. Side gear 2. Pinion mate gear 3. Thrust washer
4. Pinion mate shaft 5. shim 6. Differential side bearing outer race
(transaxle case side)
7. Differential side bearing inner race
(transaxle case side)8. Final gear 9. Differential case
10. Speedometer drive gear 11. Lock ring 12. Differential side bearing inner race
(clutch housing side)
13. Differential side bearing outer race
(clutch housing side)A. Replace the parts as a set
WCIA0589E

TRANSAXLE ASSEMBLY
MT-23
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: June 20062007 Versa

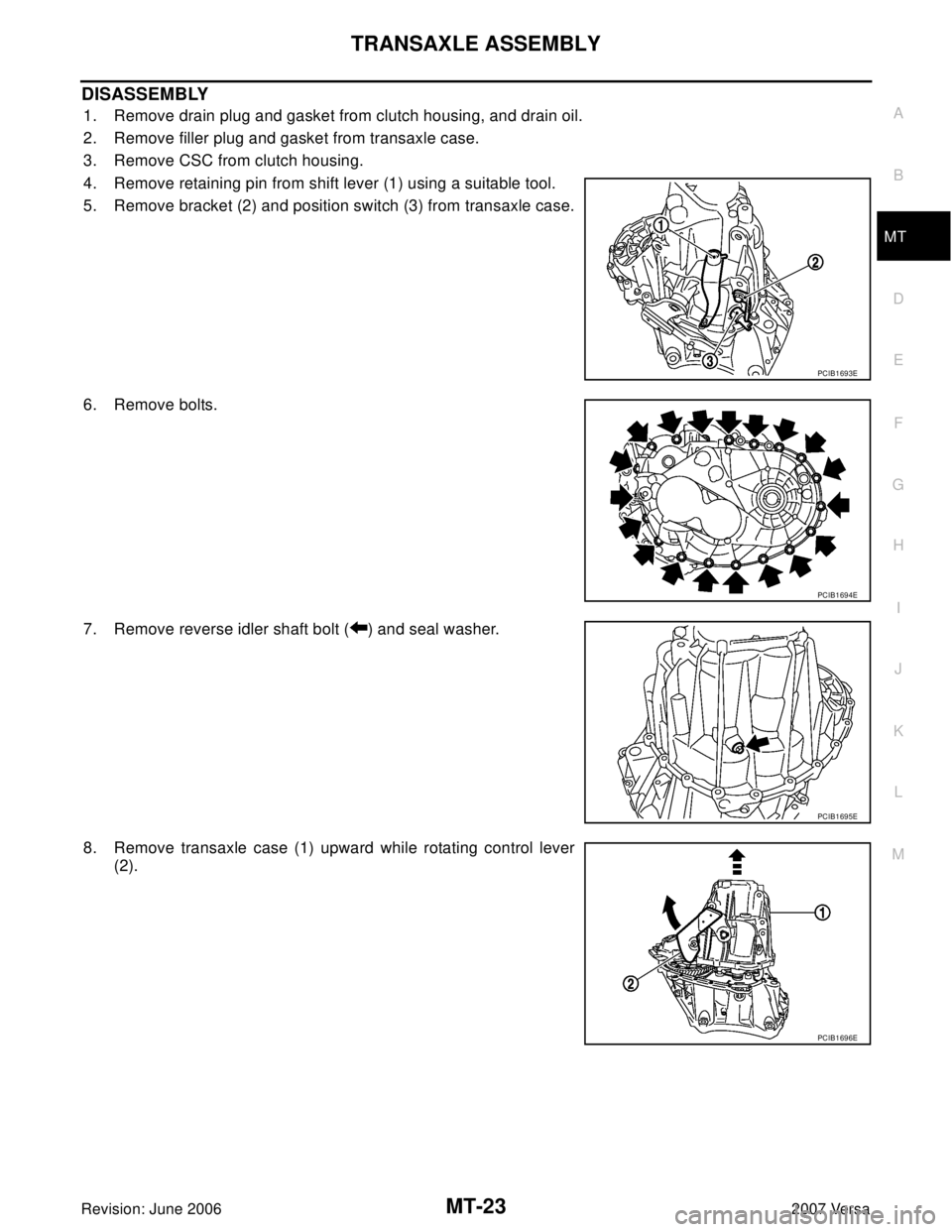

DISASSEMBLY
1. Remove drain plug and gasket from clutch housing, and drain oil.
2. Remove filler plug and gasket from transaxle case.
3. Remove CSC from clutch housing.
4. Remove retaining pin from shift lever (1) using a suitable tool.
5. Remove bracket (2) and position switch (3) from transaxle case.
6. Remove bolts.
7. Remove reverse idler shaft bolt ( ) and seal washer.
8. Remove transaxle case (1) upward while rotating control lever
(2).
PCIB1693E
PCIB1694E
PCIB1695E
PCIB1696E

MT-24
TRANSAXLE ASSEMBLY
Revision: June 20062007 Versa

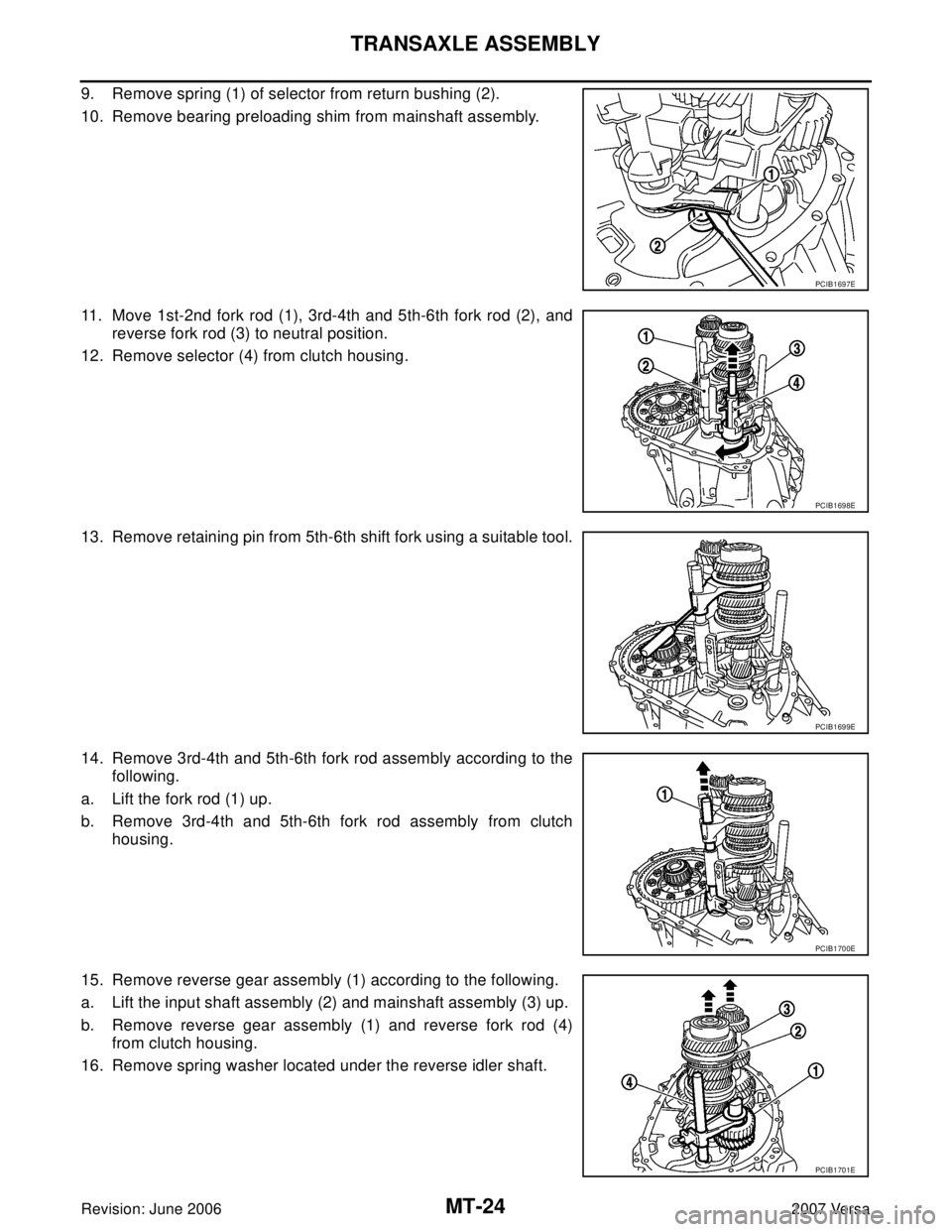

9. Remove spring (1) of selector from return bushing (2).
10. Remove bearing preloading shim from mainshaft assembly.
11. Move 1st-2nd fork rod (1), 3rd-4th and 5th-6th fork rod (2), and
reverse fork rod (3) to neutral position.
12. Remove selector (4) from clutch housing.
13. Remove retaining pin from 5th-6th shift fork using a suitable tool.
14. Remove 3rd-4th and 5th-6th fork rod assembly according to the
following.
a. Lift the fork rod (1) up.
b. Remove 3rd-4th and 5th-6th fork rod assembly from clutch
housing.
15. Remove reverse gear assembly (1) according to the following.
a. Lift the input shaft assembly (2) and mainshaft assembly (3) up.
b. Remove reverse gear assembly (1) and reverse fork rod (4)
from clutch housing.
16. Remove spring washer located under the reverse idler shaft.
PCIB1697E
PCIB1698E
PCIB1699E
PCIB1700E
PCIB1701E

TRANSAXLE ASSEMBLY
MT-25
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: June 20062007 Versa

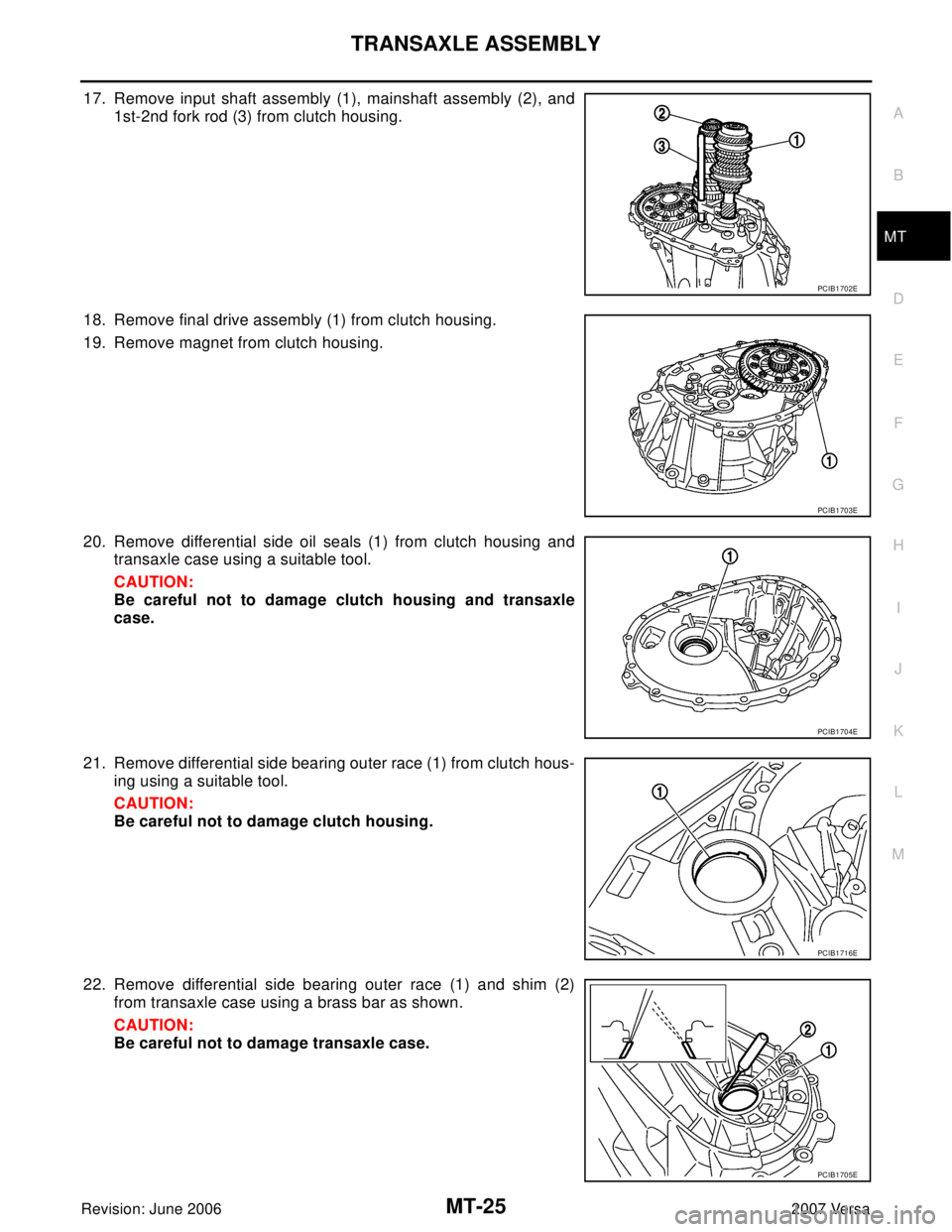

17. Remove input shaft assembly (1), mainshaft assembly (2), and
1st-2nd fork rod (3) from clutch housing.
18. Remove final drive assembly (1) from clutch housing.
19. Remove magnet from clutch housing.
20. Remove differential side oil seals (1) from clutch housing and
transaxle case using a suitable tool.
CAUTION:
Be careful not to damage clutch housing and transaxle
case.
21. Remove differential side bearing outer race (1) from clutch hous-
ing using a suitable tool.
CAUTION:
Be careful not to damage clutch housing.
22. Remove differential side bearing outer race (1) and shim (2)
from transaxle case using a brass bar as shown.
CAUTION:
Be careful not to damage transaxle case.
PCIB1702E
PCIB1703E
PCIB1704E
PCIB1716E
PCIB1705E

MT-26
TRANSAXLE ASSEMBLY
Revision: June 20062007 Versa

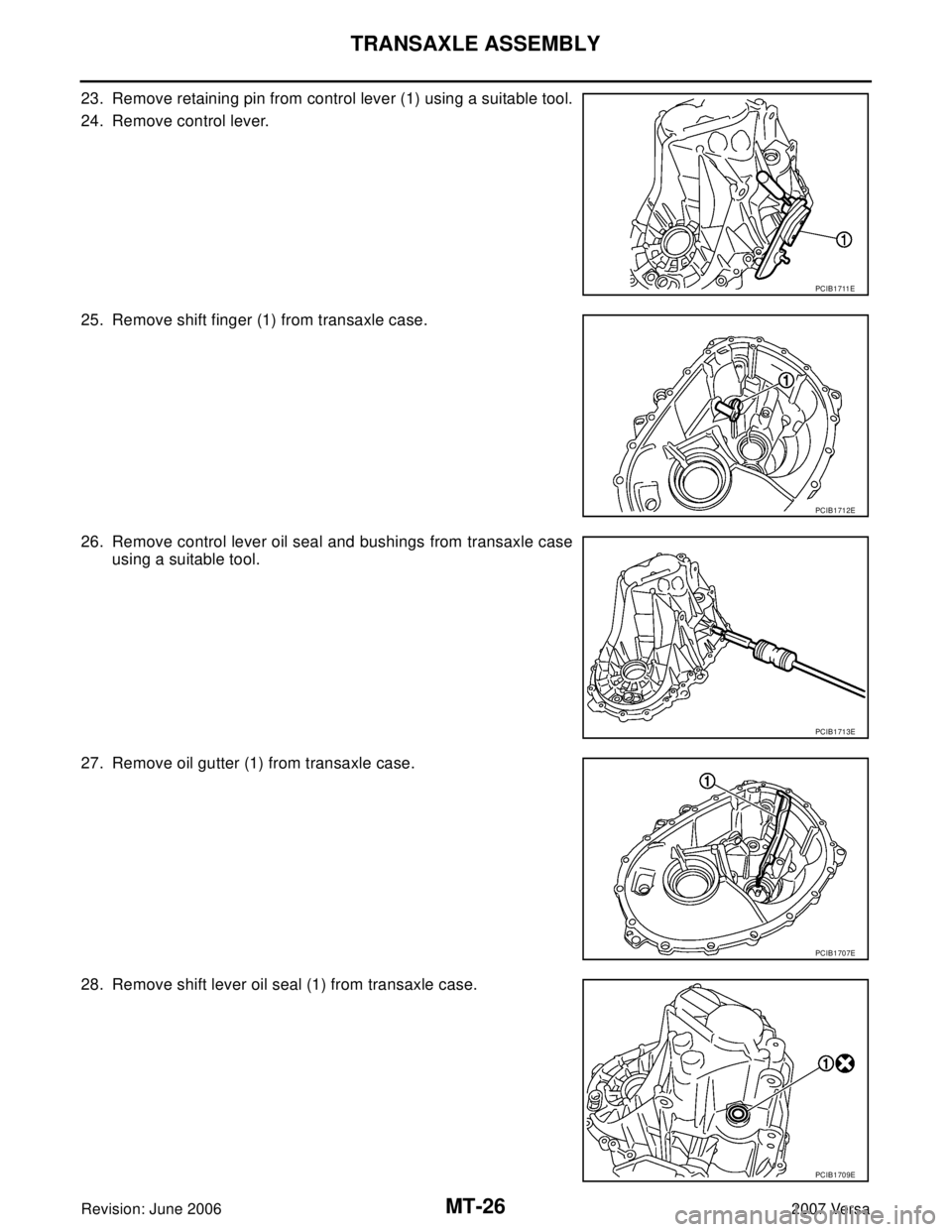

23. Remove retaining pin from control lever (1) using a suitable tool.
24. Remove control lever.
25. Remove shift finger (1) from transaxle case.
26. Remove control lever oil seal and bushings from transaxle case
using a suitable tool.
27. Remove oil gutter (1) from transaxle case.
28. Remove shift lever oil seal (1) from transaxle case.
PCIB1 711 E
PCIB1712E
PCIB1713E
PCIB1707E
PCIB1709E

TRANSAXLE ASSEMBLY
MT-27
D
E
F
G
H
I
J
K
L
MA
B
MT
Revision: June 20062007 Versa
29. Remove bushings (1) from transaxle case using a suitable tool.
30. Remove mainshaft rear bearing outer race and shim from tran-
saxle case using a suitable tool.
CAUTION:
Be careful not to damage transaxle case.
31. Remove snap ring (1) and oil channel (2) from transaxle case.
32. Remove input shaft oil seal (1) from clutch housing using a suit-
able tool.
33. Remove mainshaft front bearing outer race (1) and oil channel
(2) from clutch housing using Tool (A) and suitable tool (B).
PCIB1710E
PCIB1706E
PCIB1708E
PCIB1714E
Tool number A: KV381054S0 (J-34286)
PCIB1718E

MT-28
TRANSAXLE ASSEMBLY
Revision: June 20062007 Versa
34. Remove busings (1) from clutch housing using a suitable tool.
35. Remove two way connector (1) from clutch housing.
36. Remove pinion gear (1) and pinion shaft (2) from clutch housing.
ASSEMBLY
1. Install pinion gear (1) and pinion shaft (2) into clutch housing.
PCIB1717E
PCIB1720E
PCIB1719E
