Front Wiper Does Not StopEKS00I21
1. CHECK CIRCUIT BETWEEN COMBINATION SWITCH AND BCM
With CONSULT-ll
1. Select “BCM” on CONSULT-II, and select “WIPER” on “SELECT
TEST ITEM” screen.
2. Select “DATA MONITOR” on “SELECT DIAG MODE” screen.
Make sure that “FR WIPER INT”, “FR WIPER LOW”, “FR
WIPER HI”, and “FR WASHER SW” turn ON-OFF according to
front wiper switch operation.
Without CONSULT-ll
Refer to LT- 6 8 , "
Combination Switch Inspection" .
OK or NG
OK >> Replace IPDM E/R. Refer to PG-28, "IPDM E/R Power/
Ground Circuit Inspection" .
NG >> Check combination switch (wiper switch). Refer to LT-68, "
Combination Switch Inspection" .
PKIB0 110 E

WW-24
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
Removal and Installation of Front Wiper ArmsEKS00I22
REMOVAL
1. Turn wiper switch on to operate wiper motor, and then turn wiper switch off (auto stop).
2. Open hood, remove wiper arm caps, and remove wiper arm nuts.
3. Raise wiper arm, and remove wiper arm from the vehicle.
INSTALLATION
1. Clean up the pivot area as shown. This will reduce possibility of
wiper arm looseness.
2. Prior to wiper arm installation, turn on wiper switch to operate
wiper motor and then turn it off (auto stop).
3. Push wiper arm onto pivot shaft, paying attention to blind spline.
4. Lift the blade up and then set it down onto glass surface to set
the blade center to clearance “L1” and “L2” immediately before
temporarily tightening the wiper arm nuts.
5. Spray washer fluid. Turn on wiper switch to operate wiper motor
and then turn it off.
6. Make sure that wiper blades stop within clearance “L1” and “L2”
and reposition as necessary.
7. Tighten wiper arm nuts to specification.
8. Attach wiper arm caps.
Adjustment of Wiper Arm Stop Location EKS00IJR
ADJUSTMENT
To adjust the wiper arm stop location, the wiper arm must be removed and installed. Refer to WW-24, "Adjust-
ment of Wiper Arm Stop Location" .
SEL024J
Clearance “L1” : 38.7 ± 7.5 mm (1.524 ± 0.295 in)
Clearance “L2” : 38.4 ± 7.5 mm (1.512 ± 0.295 in)
PKIA9951E

FRONT WIPER AND WASHER SYSTEM
WW-25
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
Removal and Installation of Front Wiper Drive AssemblyEKS00I23
REMOVAL
1. Operate the front wiper motor, and stop at the auto stop position.
2. Remove wiper arms. Refer to WW-24, "
REMOVAL" .
3. Remove cowl top cover. Refer to EI-20, "
COWL TOP" .
4. Disconnect wiper motor connector.
5. Remove front wiper drive assembly bolts, and remove front wiper drive assembly.
INSTALLATION
1. Install front wiper drive assembly.
2. Connect wiper motor connector. Turn wiper switch on to operate wiper motor, then turn wiper switch off
(auto stop).
3. Install cowl top cover. Refer to EI-20, "
COWL TOP" .
4. Install the wiper arms. Refer to WW-24, "
INSTALLATION" .
Removal and Installation of Front Washer NozzleEKS00I27
REMOVAL
1. Remove cowl top cover. Refer to EI-20, "Removal and Installation" .
2. Remove washer tube.

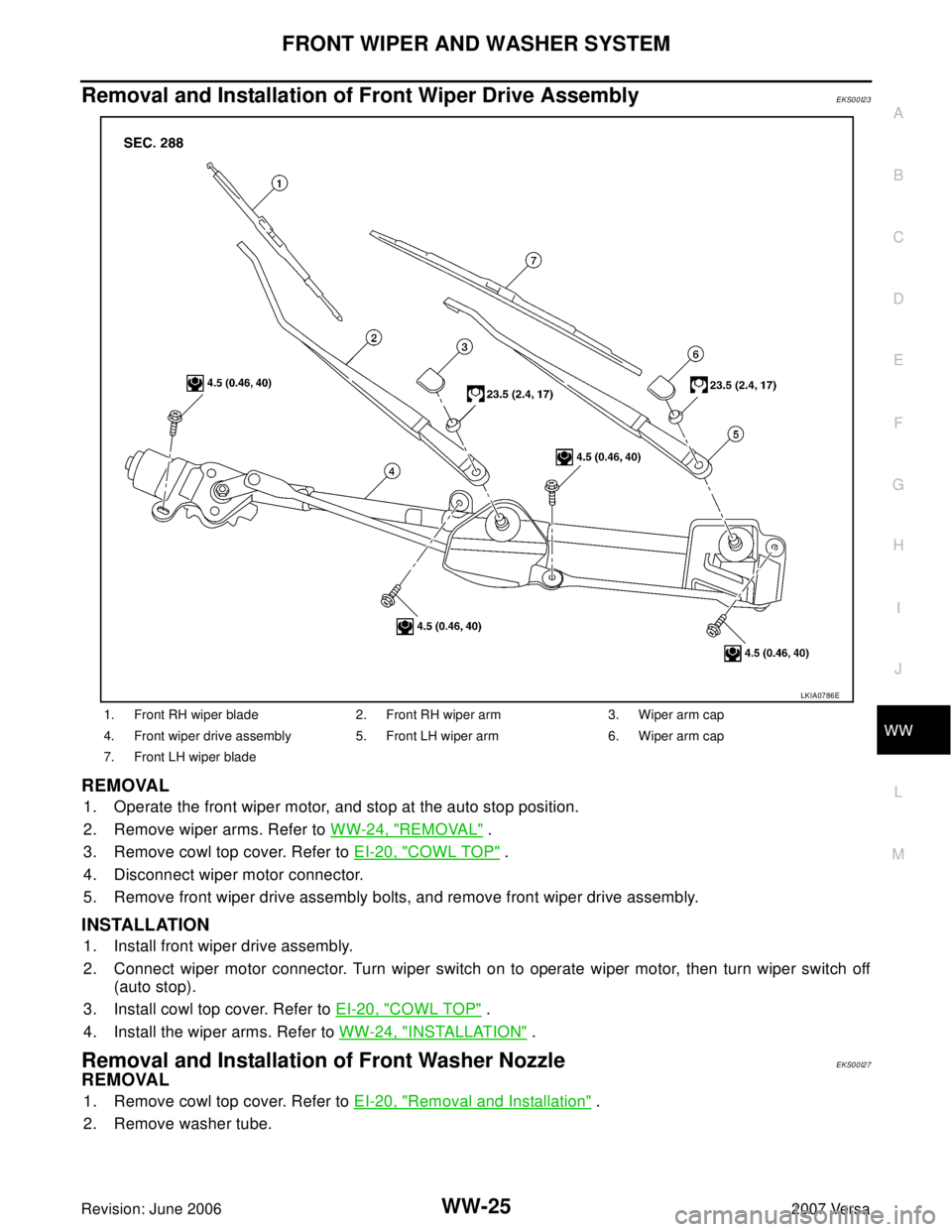

1. Front RH wiper blade 2. Front RH wiper arm 3. Wiper arm cap
4. Front wiper drive assembly 5. Front LH wiper arm 6. Wiper arm cap
7. Front LH wiper blade
LKIA0786E

WW-26
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
3. While pressing pawl (A) on the reverse side of front washer noz-
zle (1), remove front washer nozzle (1) from cowl top cover.
INSTALLATION
1. Install washer tube in nozzle.
2. Install nozzle to the vehicle.
3. Adjust nozzle spray location. Refer to WW-27, "
Washer Nozzle Adjustment" .
CAUTION:
The spray points differ, so be sure to install left and right nozzles correctly.
Inspection for Washer Nozzle EKS00I28
CHECK VALVE INSPECTION
Blow air in the injection direction, and make sure that air flows only
one way. Make sure that the reverse direction is not possible.
LKIA0793E
SKIB5665E

FRONT WIPER AND WASHER SYSTEM
WW-27
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
Washer Nozzle AdjustmentEKS00I25

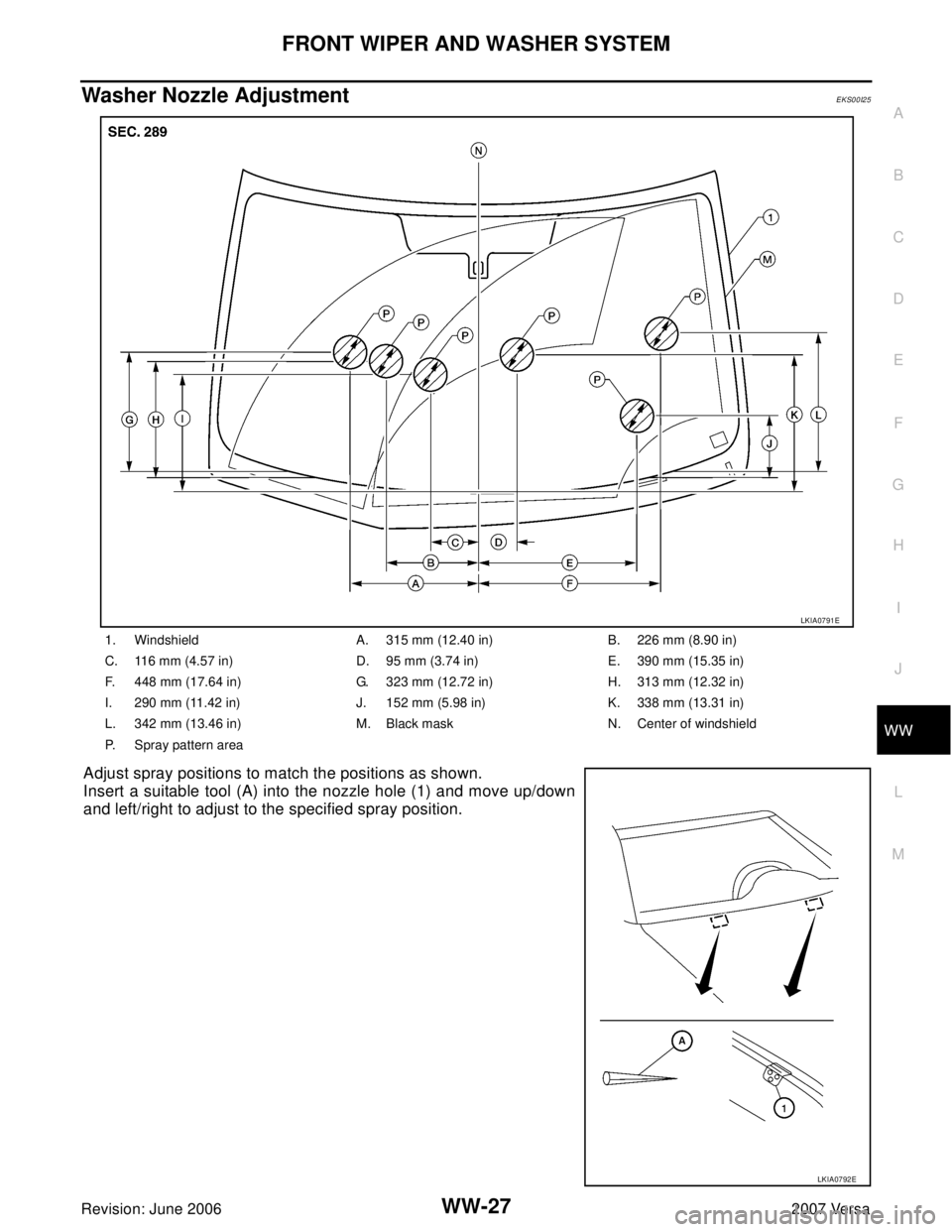

Adjust spray positions to match the positions as shown.
Insert a suitable tool (A) into the nozzle hole (1) and move up/down
and left/right to adjust to the specified spray position.
1. Windshield A. 315 mm (12.40 in) B. 226 mm (8.90 in)
C. 116 mm (4.57 in) D. 95 mm (3.74 in) E. 390 mm (15.35 in)
F. 448 mm (17.64 in) G. 323 mm (12.72 in) H. 313 mm (12.32 in)
I. 290 mm (11.42 in) J. 152 mm (5.98 in) K. 338 mm (13.31 in)
L. 342 mm (13.46 in) M. Black mask N. Center of windshield
P. Spray pattern area
LKIA0791E
LKIA0792E

WW-28
FRONT WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
Washer Tube LayoutEKS00I26
Removal and Installation of Front Wiper and Washer SwitchEKS00I2A
REMOVAL
1. Remove the steering column cover. Refer to IP-10, "INSTRUMENT PANEL ASSEMBLY" .
2. Disconnect the wiper and washer switch connector.
3. Pull wiper and washer switch (1) toward the passenger door
while pressing pawls (A) in direction shown by the arrow, and
remove it from the base.
INSTALLATION
Installation is in the reverse order of removal.
Inspection of Front Wiper and Washer Switch CircuitEKS00I29
Refer to LT- 6 8 , "Combination Switch Inspection" .
Removal and Installation of Washer TankEKS00I2B
REMOVAL
1. Remove the front grille. Refer to EI-19, "Removal and Installation" .
1. Washer nozzle LH 2. Washer nozzle RH 3. Joint washer tube
4. Washer tube 5. Clip 6. Clamp
7. Washer tank
SKIB5664E
SKIB5666E

FRONT WIPER AND WASHER SYSTEM
WW-29
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
2. Remove clip (A) and pull washer tank inlet (1) out of washer
tank.

: Vehicle front
3. Remove the front bumper. Refer to EI-14, "
Removal and Installation" .
4. Disconnect the washer motor connector and washer fluid level sensor connector.
5. Remove the washer tank screw (A).

: Vehicle front
6. Remove the washer tube (1), and remove washer tank (2) from
the vehicle.

: Vehicle front
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
After installation, add water up to the upper level of washer tank inlet, and check for water leaks.
Removal and Installation of Front Washer MotorEKS00I2C
REMOVAL
1. Remove the front fender protector RH. Refer to EI-22, "FENDER PROTECTOR" .
2. Disconnect washer motor connector (1) and remove washer
tube.

: Vehicle front
3. Pull out front washer motor (2) in the direction shown. Remove
the front washer motor (2) from washer tank.

: Vehicle front
INSTALLATION
Installation is in the reverse order of removal.
CAUTION:
When installing washer motor, there should be no packing twists, etc.
SKIB5667E
SKIB5668E
Washer tank nuts : 4.5 N·m (0.46 kg-m, 40 in-lb)
Washer tank screw : 4.5 N·m (0.46 kg-m, 40 in-lb)
SKIB5669E

WW-30
REAR WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
REAR WIPER AND WASHER SYSTEMPFP:28710
Components Parts and Harness Connector LocationEKS00ILH
System DescriptionEKS00ILI

The wiper switch (combination switch) is composed of a combination of 5 output terminals and 5 input ter-
minals. Terminal combination status is read by the BCM (body control module) when switch is turned ON.

The BCM controls rear wiper ON and INT (intermittent) operation.
Power is supplied at all times

through 40A fusible link (letter g , located in fuse and fusible link box)

to BCM terminal 70.
With the ignition switch in ON or START position, power is supplied

through 15A fuse [No. 4, located in the fuse block (J/B)]

to combination switch terminal 2, and

through 10A fuse [No. 6, located in the fuse block (J/B)]

to BCM terminal 38.
Ground is supplied

to BCM terminal 67 and

to combination switch terminal 12

through grounds M57 and M61.
WKIA5507E
1.Combination switch (wiper switch)
M282.BCM M18 and M20 (view with glove
box removed)3.Front and rear washer motor E2
(View with front fender protector LH
removed)
4. Rear wiper motor D404

REAR WIPER AND WASHER SYSTEM
WW-31
C
D
E
F
G
H
I
J
L
MA
B
WW
Revision: June 20062007 Versa
REAR WIPER OPERATION
When the ignition switch is in the ON or START position, and the rear wiper switch is in the ON position, the
BCM detects a rear wiper ON request through the combination switch (wiper switch) reading function and con-
trols the rear wiper motor as follows.
Power is supplied

through BCM terminal 55

to rear wiper motor terminal 1.
Ground is supplied

to rear wiper motor terminal 3

through grounds B117, B132 and D402.
With power and ground supplied, the rear wiper motor operates.
INTERMITTENT OPERATION
The rear wiper motor operates the wiper arm at low speed approximately every 7 seconds.
When the wiper switch is in the rear wiper INT position, the BCM detects a rear wiper INT request through the
combination switch (wiper switch) reading function.
When BCM operates rear wiper motor, power is supplied

through BCM terminal 55

to rear wiper motor terminal 1.
Ground is supplied

to rear wiper motor terminal 3

through grounds B117, B132 and D402.
With power and ground supplied, the rear wiper operates in intermittent mode.
AUTO STOP OPERATION
When the rear wiper arm is not located at the base of the rear window, and the rear wiper switch is turned
OFF, the rear wiper motor will continue to operate until the rear wiper arm is at the base of the rear window.
When the rear wiper arm reaches the base, rear wiper motor terminals 2 and 1 are connected.
Ground is supplied

to BCM terminal 44

through rear wiper motor terminal 2

through rear wiper motor terminal 3

through grounds B117, B132 and D402.
REAR WASHER OPERATION
When the ignition switch is in the ON or START position, and the front and rear washer switches are OFF, the
front and rear washer motor is supplied power

through 15A fuse [No. 4, located in the fuse block (J/B)]

to combination switch (wiper switch) terminal 14

through combination switch (wiper switch) terminal 11

to front and rear washer motor terminal 2.
When the rear wiper switch is in rear washer position, the BCM detects a rear washer signal by BCM wiper
switch reading function. Combination switch ground is supplied

to front and rear washer motor terminal 1

through combination switch (wiper switch) terminal 13

through combination switch (wiper switch) terminal 12

through grounds M57 and M61.
With ground supplied, the front and rear washer motor is operated in the rear direction.
When the BCM detects that the rear washer motor has operated for 0.4 seconds or longer, BCM operates the
rear wiper motor.
When the BCM detects that the rear washer switch is in OFF, the rear wiper motor cycles approximately 3
times and then stops.
If the rear washer is operated with the rear wiper switch in the INT position, normal rear wiper operation will
take over. Once the rear washer switch is released the rear wiper will return to INT operation.

WW-32
REAR WIPER AND WASHER SYSTEM
Revision: June 20062007 Versa
BCM WIPER SWITCH READING FUNCTION
Refer to BCS-3, "COMBINATION SWITCH READING FUNCTION" .
