REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa
3. CHECK HORN RELAY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R and horn relay connector.
3. Check continuity between IPDM E/R harness connector and
horn relay harness connector.
4. Check continuity between IPDM E/R harness connector and
ground.
OK or NG
OK >> Check condition of harness and connector.
NG >> Repair or replace harness.
Interior Lamp and Ignition Keyhole Illumination Function CheckEIS0091O
1. CHECK INTERIOR LAMP AND IGNITION KEYHOLE ILLUMINATION FUNCTION
When map lamp switch is in “DOOR” position, open the front door (LH or RH).
Does interior lamp illuminate?
YES >> Replace BCM. Refer to BCS-25, "Removal and Installation of BCM" .
NO >> Check interior lamp circuit. Refer to LT- 9 1 , "
INTERIOR ROOM LAMP" .
AB
Continuity
IPDM E/R
connectorTe r m i n a lHorn relay
connectorTe r m i n a l
E46 45 H-1 1 Yes
A
GroundContinuity
IPDM E/R connector Terminal
E46 45 No
WIIA1252E

REMOTE KEYLESS ENTRY SYSTEM
BL-73
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Remote Keyless Entry Receiver CheckEIS0091P
1. CHECK REMOTE KEYLESS ENTRY RECEIVER OUTPUT SIGNAL
1. Turn ignition switch OFF.
2. Check remote keyless entry receiver connector and ground signal with oscilloscope.
OK or NG
OK >> Remote keyless entry receiver circuit is OK.
NG >> GO TO 2.
2. CHECK REMOTE KEYLESS ENTRY RECEIVER INPUT VOLTAGE
1. Disconnect remote keyless entry receiver connector.
2. Check voltage between remote keyless entry receiver connector M23 terminal 4 and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
Te r m i n a l s
Keyfob
conditionSignal
(Reference value) (+)
(–) Remote
keyless
entry
receiver
connectorTe r m i n a l
M23 2 GroundNo function
Any button
is pressed
PIIB6457E
OCC3879D
OCC3880D
Te r m i n a l s
Voltage (V)
(Approx.) (+)
(–) Remote keyless
entry receiver
connectorTe r m i n a l
M23 4 Ground 4.5
PIIB6458E

BL-74
REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa
3. CHECK REMOTE KEYLESS ENTRY RECEIVER POWER SUPPLY CIRCUIT
1. Disconnect BCM connector.
2. Check continuity between BCM connector (A) M18 terminal 19 and remote keyless entry receiver connec-
tor (B) M23 terminal 4.
3. Check continuity between BCM connector (A) M18 terminal 19
and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-25, "Removal and Installation of BCM" .
NG >> Repair or replace the harness.
4. CHECK REMOTE KEYLESS ENTRY RECEIVER GROUND CIRCUIT
Check continuity between remote keyless entry receiver connector M23 terminal 1 and ground.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5. CHECK REMOTE KEYLESS ENTRY RECEIVER GROUND CIRCUIT
Check continuity between BCM connector (A) M18 terminal 18 and remote keyless entry receiver connector
(B) M23 terminal 1.
OK or NG
OK >> Replace BCM. Refer to BCS-25, "Removal and Installa-
tion of BCM" .
NG >> Repair or replace the harness.
AB
Continuity
BCM connector TerminalRemote keyless
entry receiver
connectorTe r m i n a l
M18 19 M23 4 Yes
A
GroundContinuity
BCM connector Terminal
M18 19 No
PIIB6459E
Remote keyless entry
receiver connectorTe r m i n a l
GroundContinuity
M23 1 Yes
PIIB6460E
AB
Continuity
BCM connector TerminalRemote keyless
entry receiver
connectorTe r m i n a l
M18 18 M23 1 Yes
PIIB6461E

REMOTE KEYLESS ENTRY SYSTEM
BL-75
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
6. CHECK REMOTE KEYLESS ENTRY RECEIVER SIGNAL CIRCUIT
1. Check continuity between BCM connector (A) M18 terminal 20 and remote keyless entry receiver connec-
tor (B) M23 terminal 2.
2. Check continuity between BCM connector (A) M18 terminal 20
and ground.
OK or NG
OK >> Replace remote keyless entry receiver. Refer to BL-79, "Removal and Installation of Remote Key-
less Entry Receiver" .
NG >> Repair or replace harness.
Keyfob Function (Lock) CheckEIS0091Q
1. CHECK KEYFOB FUNCTION
With CONSULT-II
Check keyfob function in “DATA MONITOR” mode with CONSULT-II. When pushing lock button of keyfob, the
corresponding monitor item should be turned as follows.
OK or NG
OK >> Keyfob is OK.
NG >> Replace keyfob.
Keyfob Function (Unlock) CheckEIS0091R
1. CHECK KEYFOB FUNCTION
With CONSULT-II
Check keyfob function in “DATA MONITOR” mode with CONSULT-II. When pushing unlock button of keyfob,
the corresponding monitor item should be turned as follows.
OK or NG
OK >> Keyfob is OK.
NG >> Replace keyfob.
AB
Continuity
BCM connector TerminalRemote keyless
entry receiver
connectorTe r m i n a l
M18 20 M23 2 Yes
A
GroundContinuity
BCM connector Terminal
M18 20 No
PIIB6462E
Test item Condition
KEYLESS LOCKPushing LOCK button: ON
Other than above: OFF
PIIB6463E
Test item Condition
KEYLESS UNLOCKPushing UNLOCK button: ON
Other than above: OFF
PIIB6464E

BL-76
REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa
ID Code Entry ProcedureEIS0091S
KEYFOB ID SET UP WITH CONSULT-II
NOTE:

If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A
specific ID code can be erased with CONSULT-II. However, when the ID code of a lost keyfob is not
known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all
remaining and/or new keyfobs must be re-registered.

When registering an additional keyfob, the existing ID codes in memory may or may not be erased.
If five ID codes are stored in memory, when an additional code is registered, only the oldest code
is erased. If less than five ID codes are stored in memory, when an additional ID code is registered,
the new ID code is added and no ID codes are erased.

Entry of maximum five ID codes is allowed. When more than five ID codes are entered, the oldest
ID code will be erased.

Even if same ID code that is already in the memory is input, the same ID code can be entered. The
code is counted as an additional code.
1. Refer to GI-38, "
CONSULT-II Start Procedure" .
2. Touch “MULTI REMOTE ENT”.
3. Touch “WORK SUPPORT”.
4. The items are shown on the figure can be set up.

“REMO CONT ID CONFIR”
Use this mode to confirm if a keyfob ID code is registered or
not.

“REMO CONT ID REGIST”
Use this mode to register a keyfob ID code.
NOTE:
Register the ID code when keyfob or BCM is replaced, or
when additional keyfob is required.

“REMO CONT ID ERASUR”
Use this mode to erase a keyfob ID code.
PIIB0596E
BCIA0031E
LIIA0207E

REMOTE KEYLESS ENTRY SYSTEM
BL-77
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

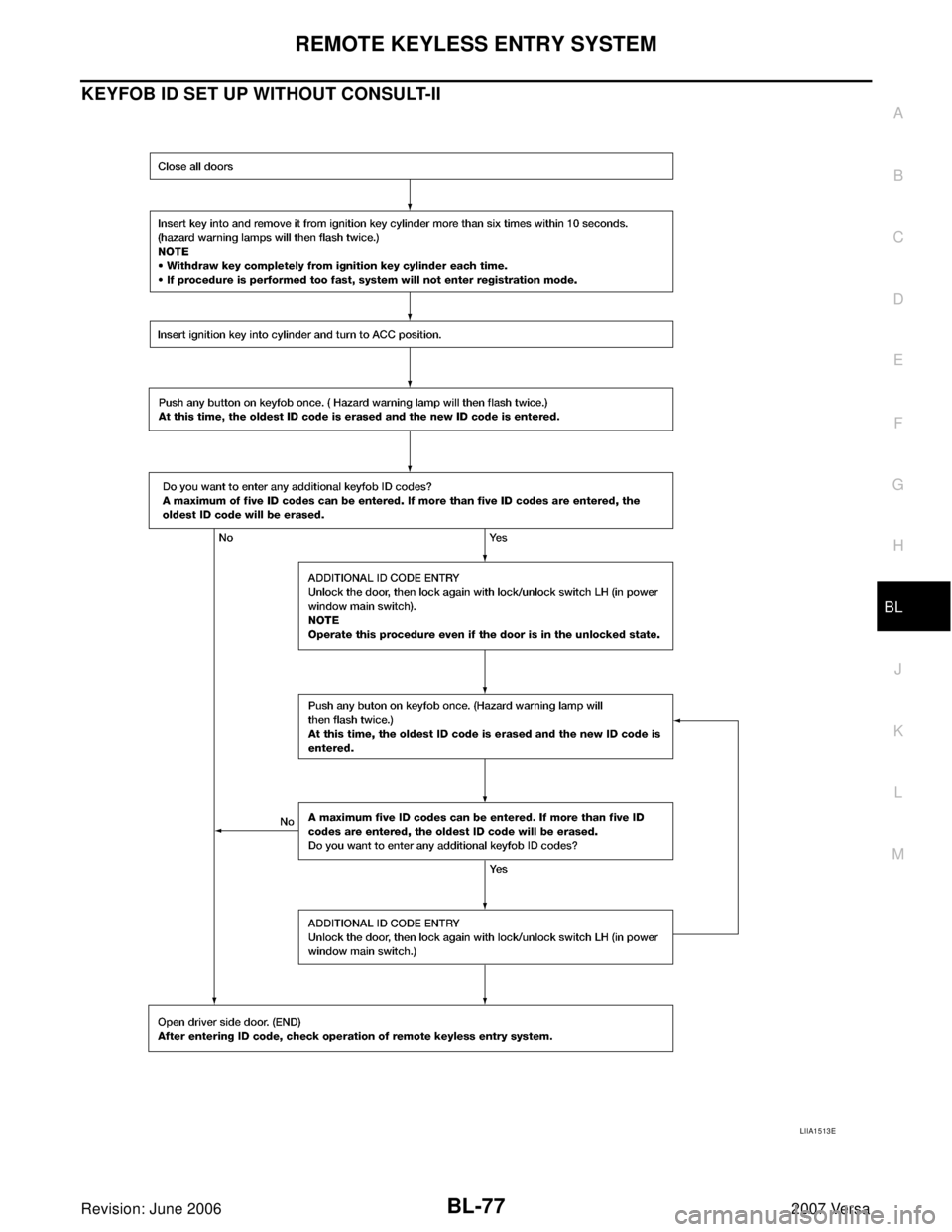

KEYFOB ID SET UP WITHOUT CONSULT-II
LIIA1513E

BL-78
REMOTE KEYLESS ENTRY SYSTEM
Revision: June 20062007 Versa
NOTE:

If a keyfob is lost, the ID code of the lost keyfob must be erased to prevent unauthorized use. A specific ID
code can be erased with CONSULT-II. However, when the ID code of a lost keyfob is not known, all con-
troller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new
keyfobs must be re-registered.
To erase all ID codes in memory, register one ID code (keyfob) five times. After all ID codes are erased,
the ID codes of all remaining and/or new keyfobs must be re-registered.

When registering an additional keyfob, the existing ID codes in memory may or may not be erased. If five
ID codes are stored in memory, when an additional code is registered, only the oldest code is erased. If
less than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is
added and no ID codes are erased.

If you need to activate more than two additional new keyfobs, repeat the procedure “Additional ID code
entry” for each new keyfob.

Entry of maximum five ID codes is allowed. When more than five ID codes are entered, the oldest ID code
will be erased.

Even if same ID code that is already in the memory is input, the same ID code can be entered. The code
is counted as an additional code.

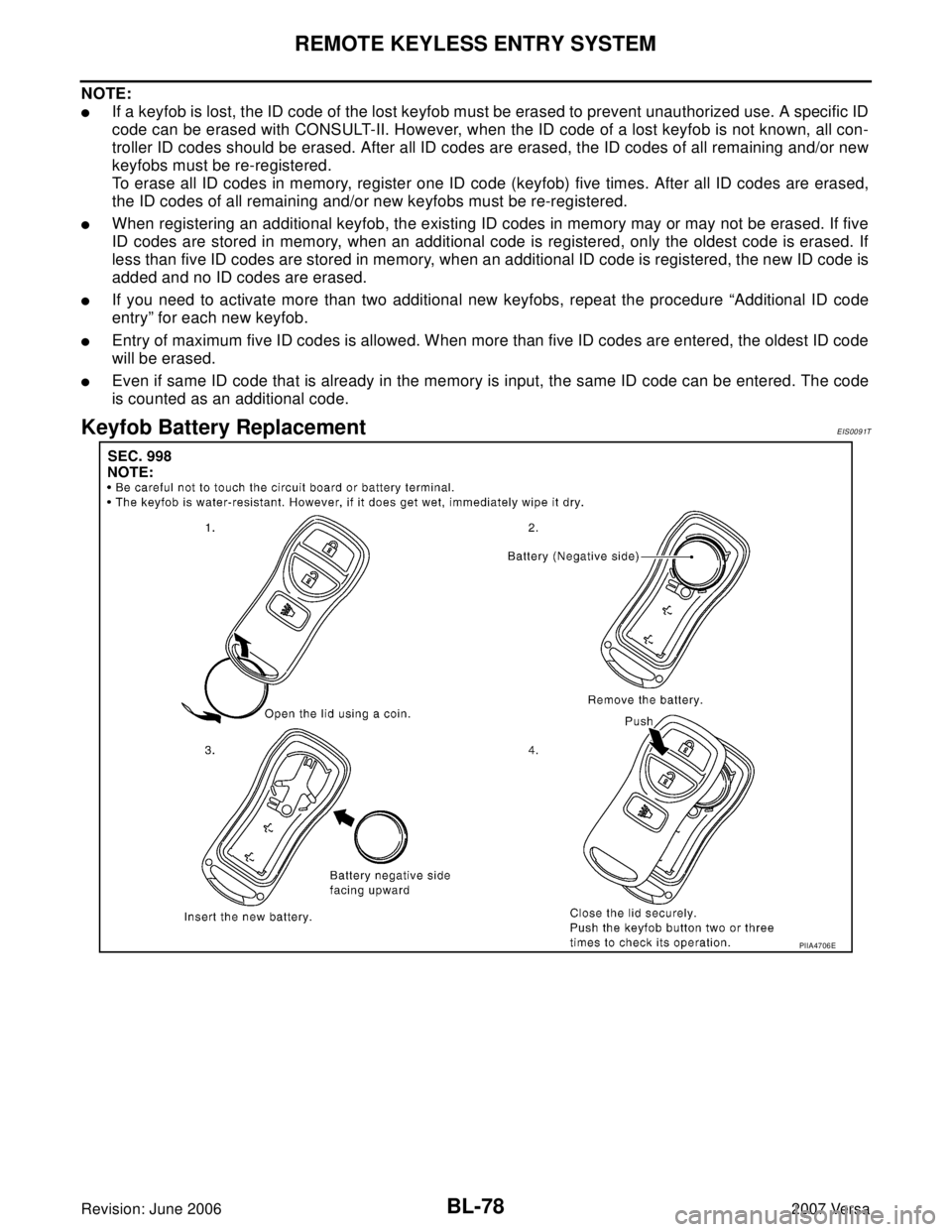

Keyfob Battery ReplacementEIS0091T
PIIA4706E

REMOTE KEYLESS ENTRY SYSTEM
BL-79
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
Removal and Installation of Remote Keyless Entry ReceiverEIS0091U
REMOVAL
1. Remove glove box assembly. Refer to IP-11, "Removal and Installation" .
2. Disconnect remote keyless entry receiver connector, remove
screw and remote keyless entry receiver.
INSTALLATION
Installation is in the reverse order of removal.
PIIB6541E

BL-80
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
INTELLIGENT KEY SYSTEMPFP:285e2
Component Parts and Harness Connector LocationEIS0091V
LIIA2591E

INTELLIGENT KEY SYSTEM
BL-81
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa

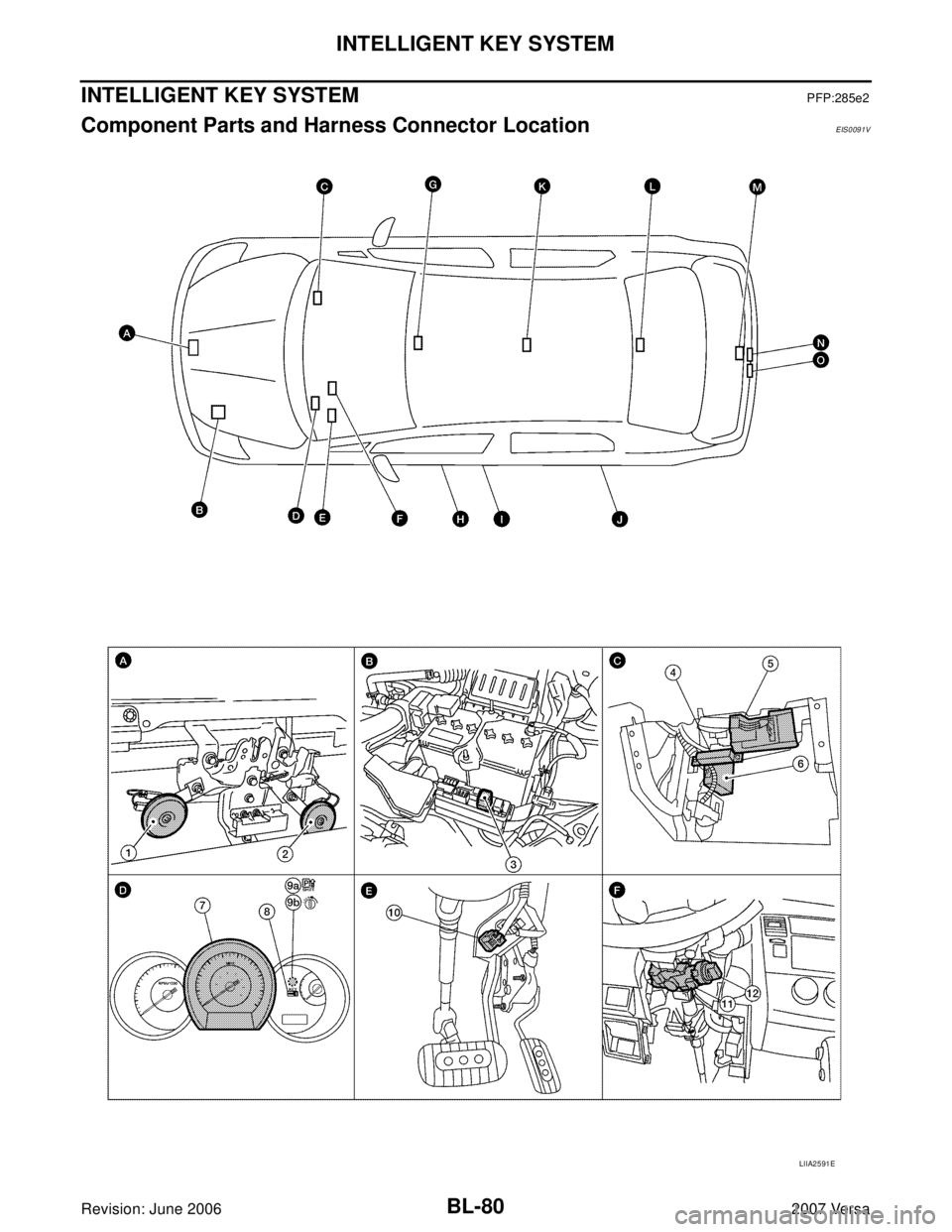

1. Horn (Low) E18, E20
(view with front fascia removed)2. Horn (High) E21, E22 3. Horn relay H-1
4. Instrument panel antenna M10
(view with glove box removed)5. BCM M18, M19, M20 6. Intelligent Key Unit M52
7. Combination meter M24 8. Intelligent key "KEY" warning indica-
tor9a.
9b.Intelligent key warning indicator (CVT)
Intelligent key warning indicator (M/T)
10. Stop lamp switch E13 11. Steering lock solenoid M6
(bottom view of steering column)12. Key switch and ignition knob switch
M73
13. CVT device (park position switch) M38 14. Intelligent key warning buzzer D6
(view with front door finisher LH
removed)15. Front outside antenna LH D10, RH
D106
16. Front door request switch LH D5, RH
D10317. Front door lock actuator LH (door
unlock sensor) D318. Front door switch LH B8, RH B108
19. Rear door switch LH B6, RH B116 20. Front console antenna B3
(view with front console removed)21. Rear floor antenna B12
(behind rear seat)
22. Back door request switch D406 23. Back door lock assembly (back door
switch) D405 (with back door open)24. Rear bumper antenna B2
(view with rear fascia removed)
LIIA2592E
