NISSAN LATIO 2007 Service Repair Manual

BL-92
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
List of Operation Related Parts
Parts marked with × are the parts related to operation.
Door lock operation
warningLock opera-
tion with
request switchLock operation with request switch and
the following condition is met.

Intelligent Key is inside the vehicle—activate—— —
Intelligent Key low battery warningWhen Intelligent Key is low battery, Intelli-
gent Key unit is detected after ignition
switch is turned ON.——Flash
(green)—— Operation ConditionWarning chime/buzzer Warning lamp
Chime
(combina-
tion meter)Buzzer
(driver
door)KEYLOCK
(M/T)P-SHIFT
(CVT)
Warning and alarm functions
Intelligent Key
Key switch
Ignition knob switch
Ignition switch ACC position input signal
Ignition switch ON position input signal
Door switch
Door request switch
Inside key antenna
Outside key antenna (Driver, Passenger)
Outside key antenna (rear bumper)
Intelligent Key warning buzzer
Intelligent Key unit
CAN communication system
BCM
Warning lamp
Warning chime (combination meter)
Ignition switch warning chime××× ××××
Ignition key warning chime
(When mechanical key used)××× ×××
OFF position warning chimeFor internal××× ××××××
For external×××× ×××××
Take away warning chimeRight after door is
closed××× × × ×××××
Any door is open××× × × ××××
Take away from
window××× × × ××××××
Door lock operation warning chime× ××××××××
Intelligent Key low battery warning××××××

INTELLIGENT KEY SYSTEM
BL-93
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
CHANGE SETTINGS FUNCTION
The settings for each function can be changed with the CONSULT-II.
Changing Settings Using CONSULT-II
The settings for the Intelligent Key system functions can be changed using CONSULT-II (WORK SUPPORT).
Refer to BL-113, "
WORK SUPPORT" .
NOTE:
Once a function setting is changed, it will remain effective even if the battery is disconnected.
INTELLIGENT KEY REGISTRATION
Intelligent Key-ID registration is performed using the CONSULT-II.
CAUTION:

After a new Intelligent Key-ID is registered, be sure to check the function.

When registering an additional Intelligent Key-ID, take any Intelligent Keys already registered and
Intelligent Keys for any other vehicles out of the vehicle before starting.
CONSULT-II can be used to check and delete Intelligent Key-IDs.
For further information, see the CONSULT-II Operation Manual NATS.
STEERING LOCK SOLENOID REGISTRATION
Steering Lock Solenoid ID Registration
CAUTION:

The method for registering a steering lock solenoid ID depends on the status of the steering lock
solenoid and Intelligent Key unit (new or old unit).

After registration is completed, press ignition switch with an Intelligent Key in the vehicle so that it
can be turned, and confirm that it cannot be turned even when ignition switch is pressed without
an Intelligent Key in the vehicle.
For further information, see the CONSULT-II Operation Manual NATS-IVIS/NVIS.
CAN Communication System DescriptionEIS0091X
Refer to LAN-4, "SYSTEM DESCRIPTION" .

BL-94
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa

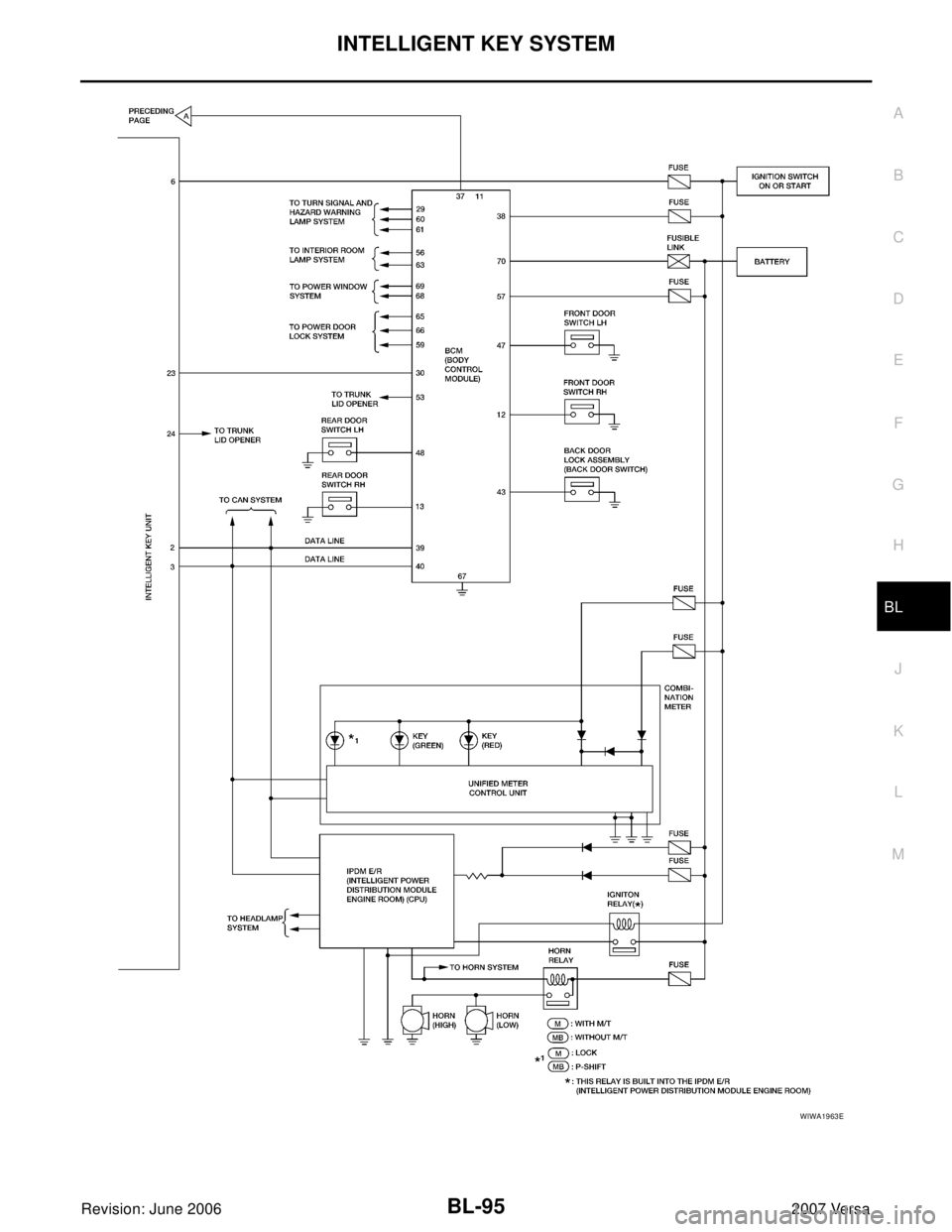

SchematicEIS0091Z
WIWA1962E

INTELLIGENT KEY SYSTEM
BL-95
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
WIWA1963E

BL-96
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa

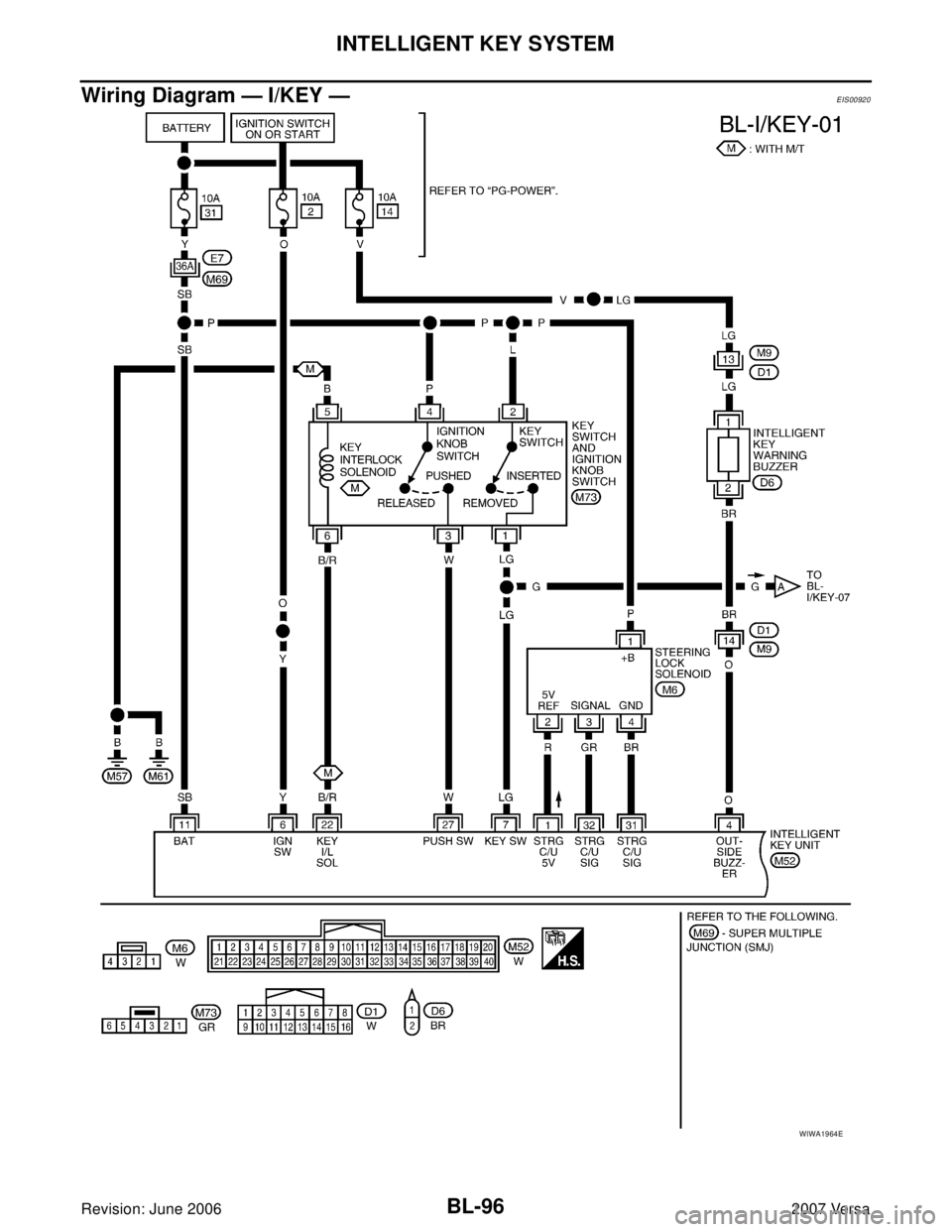

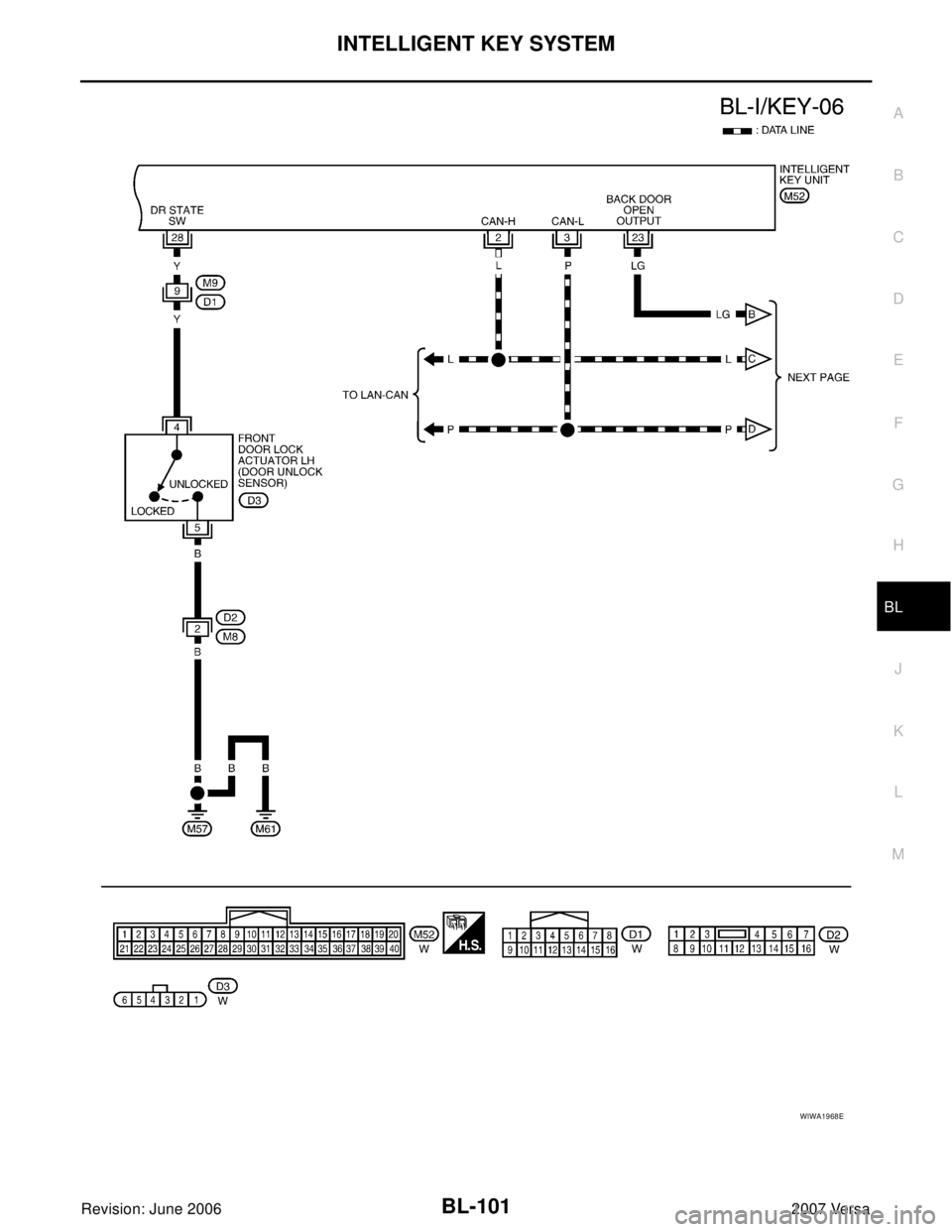

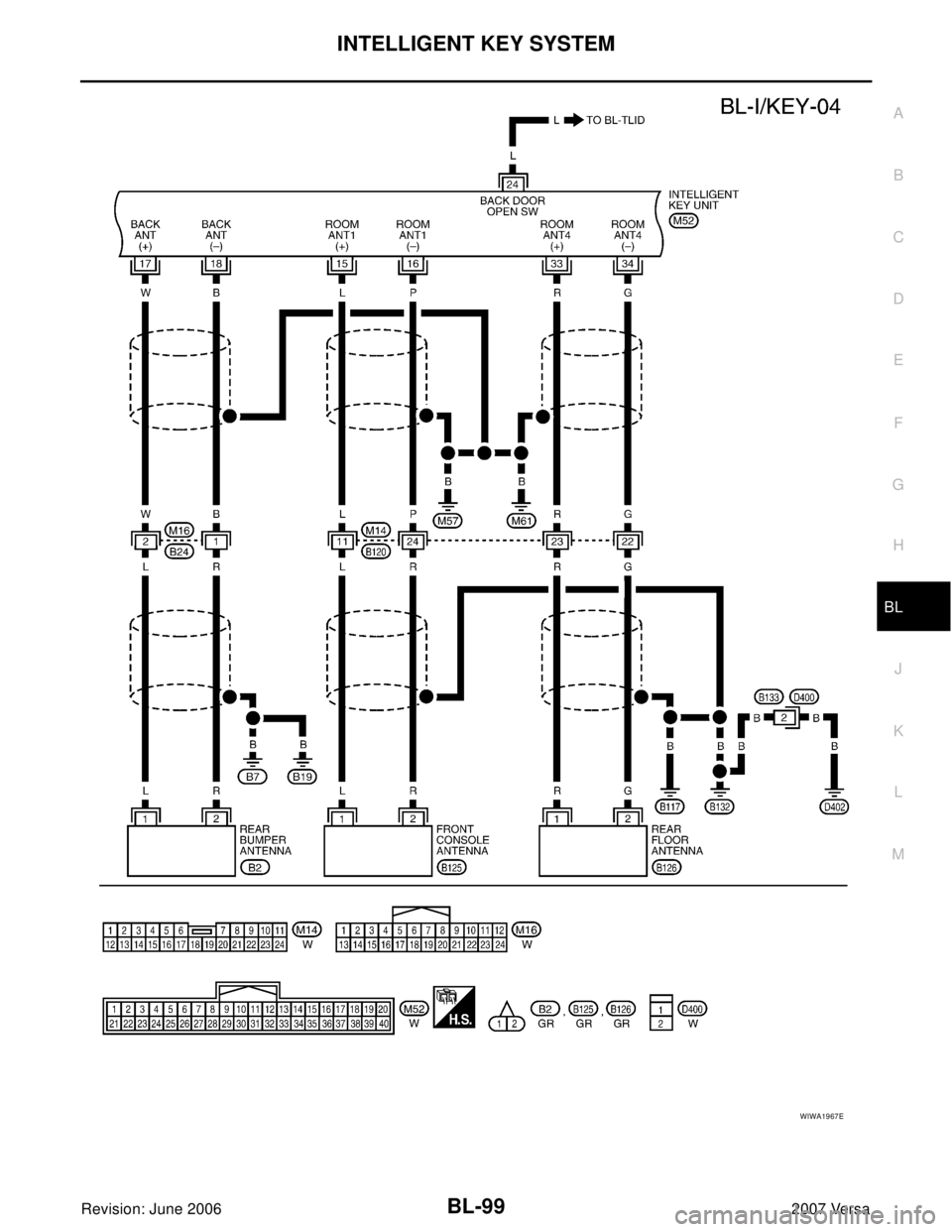

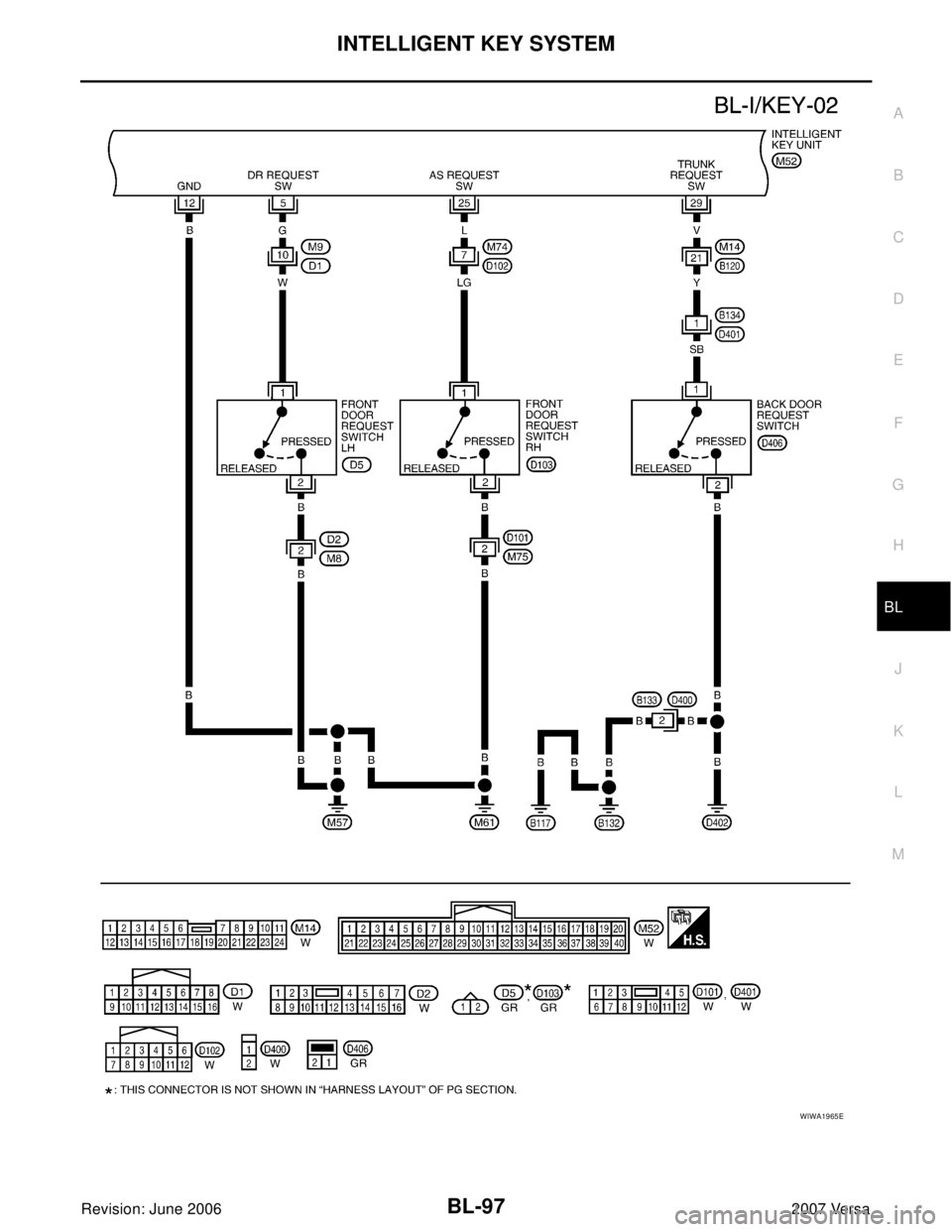

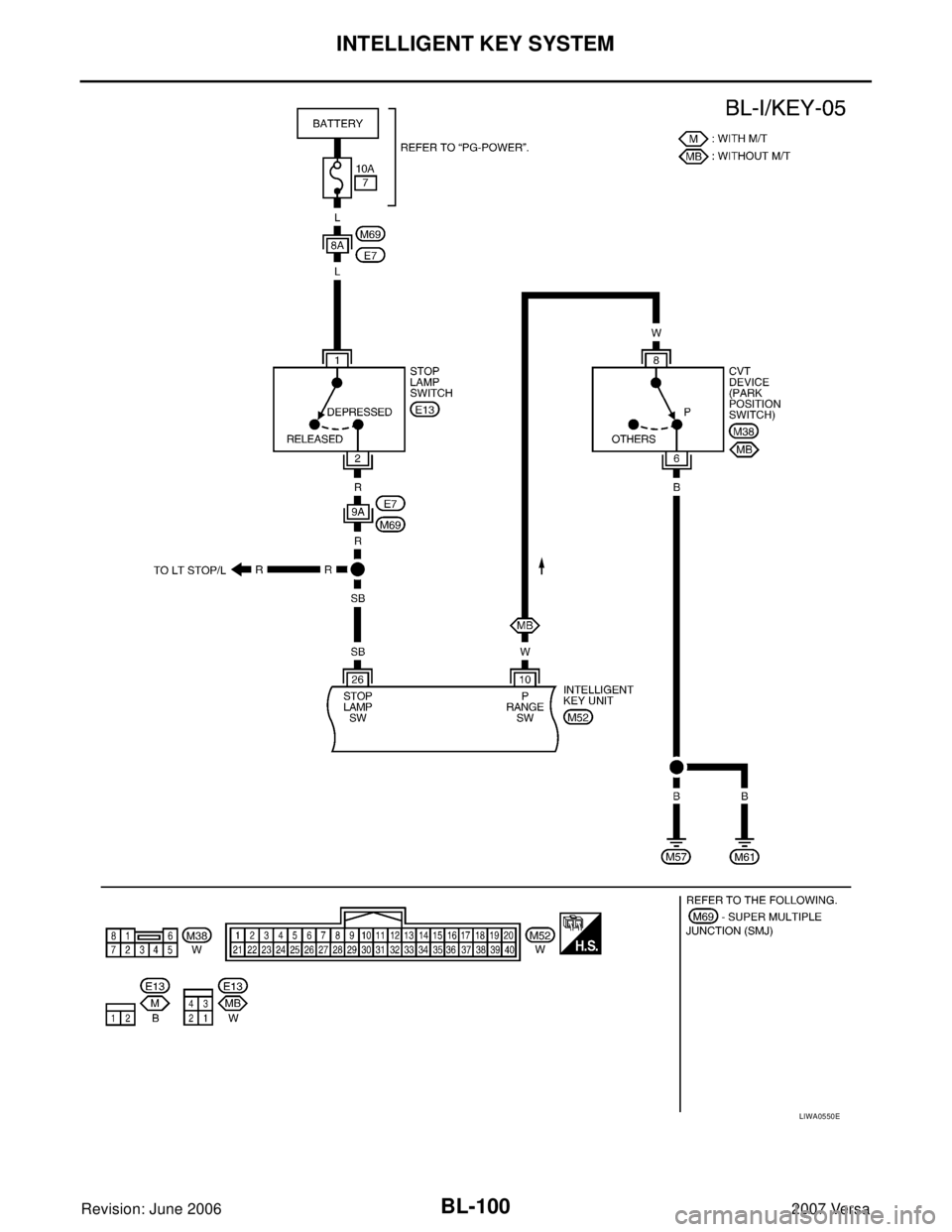

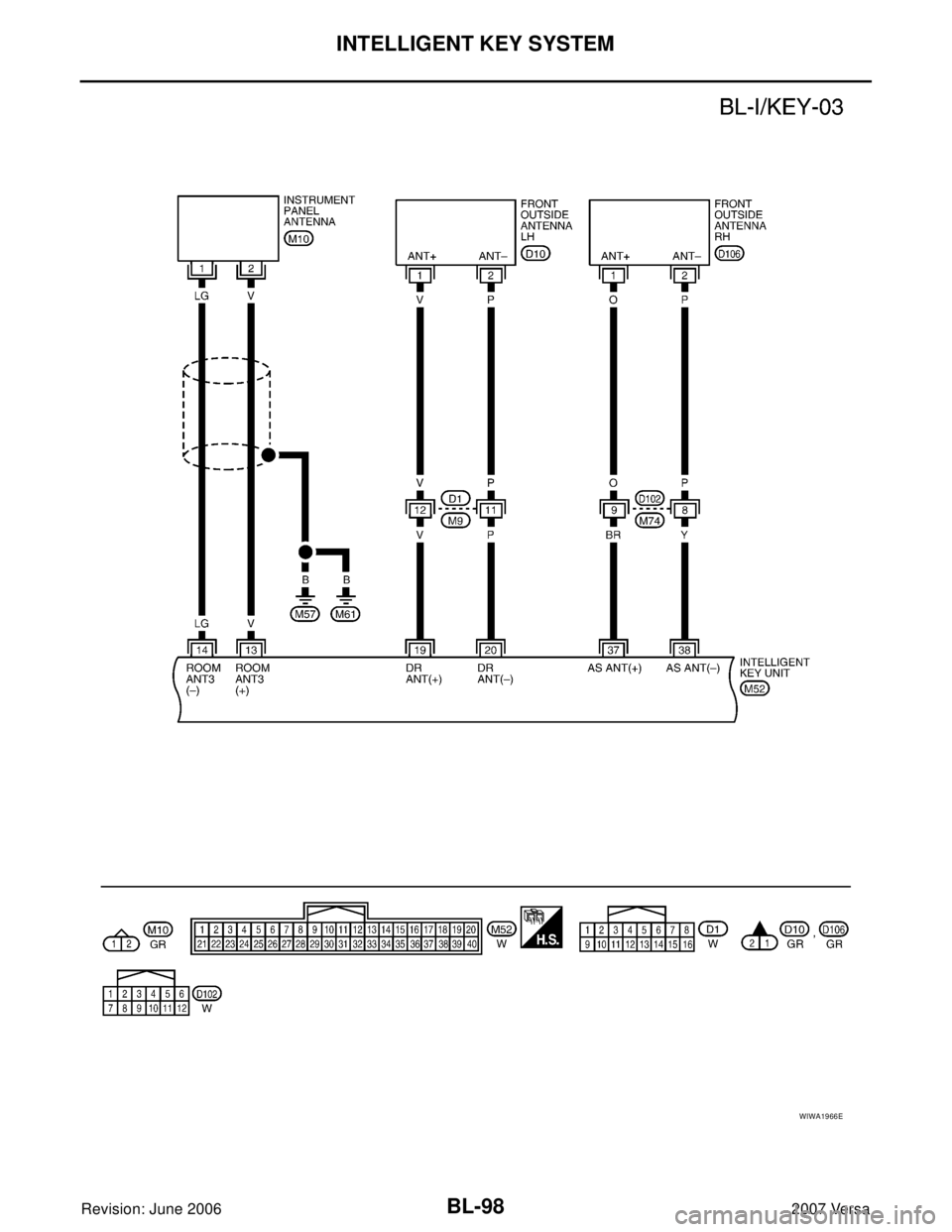

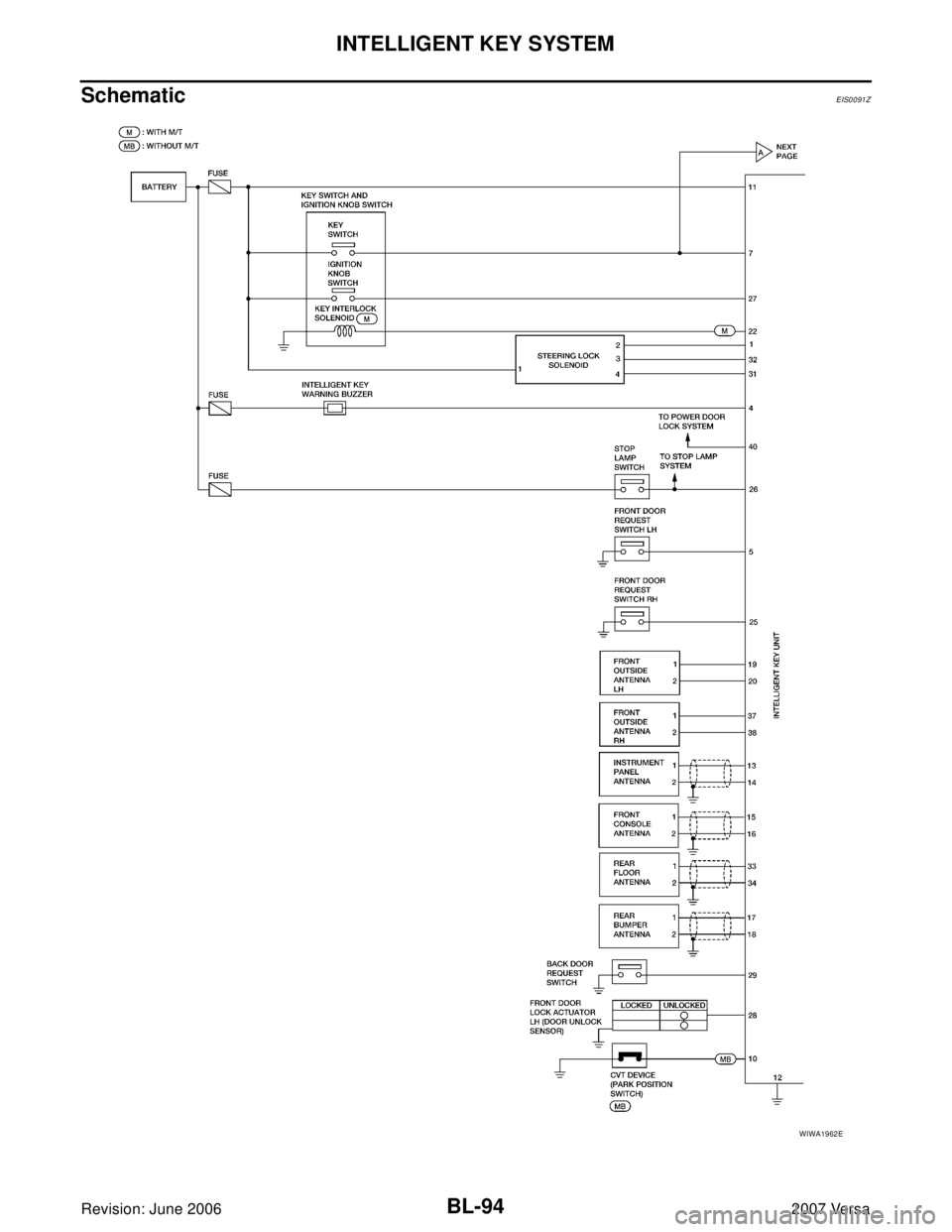

Wiring Diagram — I/KEY —EIS00920
WIWA1964E

INTELLIGENT KEY SYSTEM
BL-97
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
WIWA1965E

BL-98
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
WIWA1966E

INTELLIGENT KEY SYSTEM
BL-99
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
WIWA1967E

BL-100
INTELLIGENT KEY SYSTEM
Revision: June 20062007 Versa
LIWA0550E

INTELLIGENT KEY SYSTEM
BL-101
C
D
E
F
G
H
J
K
L
MA
B
BL
Revision: June 20062007 Versa
WIWA1968E
