• Align the positions for the bolts on drive plate with those of the
torque converter, and temporarily tighten bolts. Then, tighten bolts
to the specified torque.
• After completing installation, check for A/T fluid leakage, A/T fluid
level and A/T positions. Refer to MA-22, "
Checking A/T Fluid" and
AT-207, "
Checking of A/T Position". Converter nuts : 51 N·m (5.2 kg-m, 38 ft-lb)
WCIA0616E

AT-230
< SERVICE INFORMATION >
OVERHAUL
OVERHAUL
ComponentINFOID:0000000001703373
With ABS
SCIA7956E

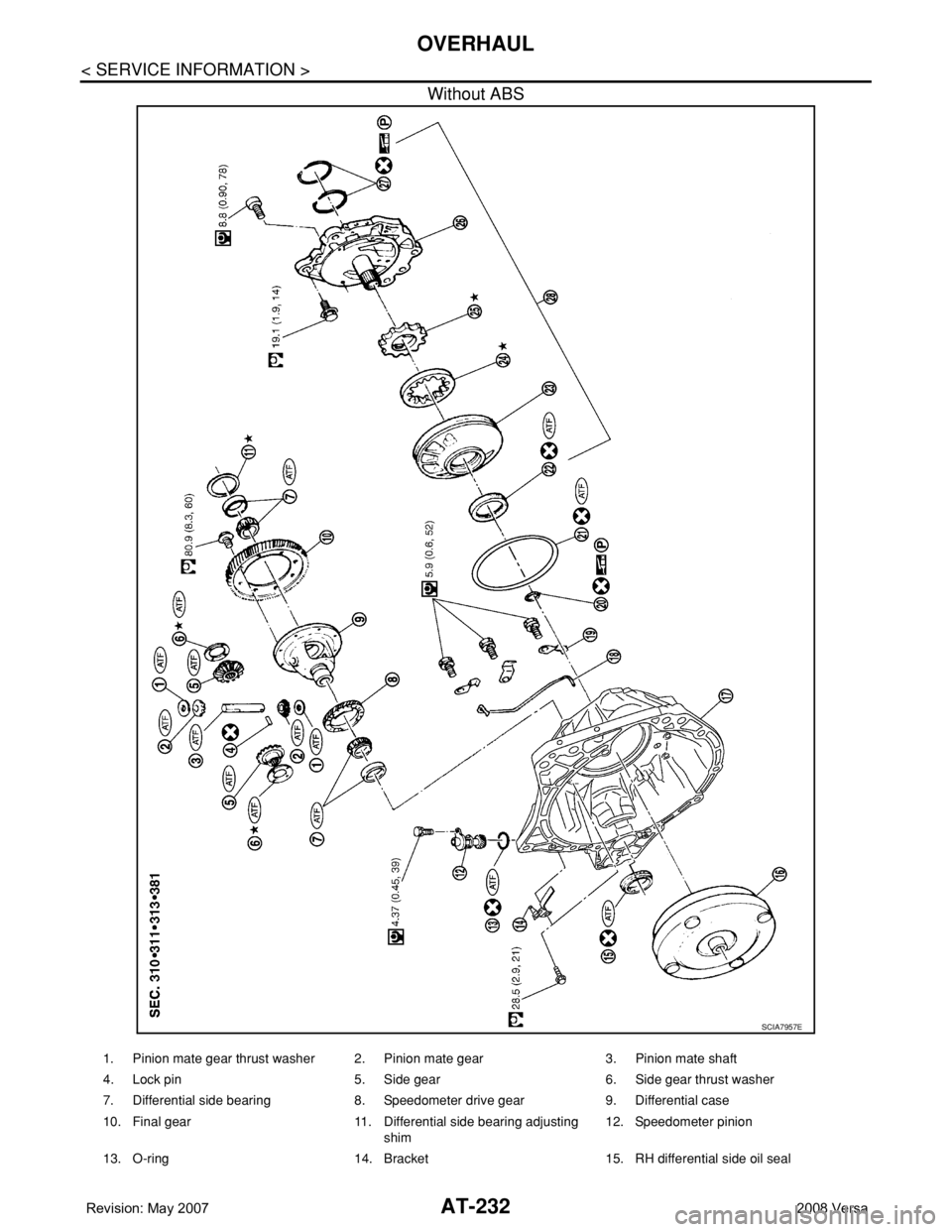

1. Pinion mate gear thrust washer 2. Pinion mate gear 3. Pinion mate shaft
4. Lock pin 5. Side gear 6. Side gear thrust washer
7. Differential side bearing 8. Speedometer drive gear 9. Differential case

OVERHAUL
AT-231
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
10. Final gear 11. Differential side bearing adjusting
shim12. Plug
13. O-ring 14. Bracket 15. RH differential side oil seal
16. Torque converter 17. Converter housing 18. Differential lubricant tube
19. Clip 20. O-ring 21. O-ring
22. Oil pump housing oil seal 23. Oil pump housing 24. Outer gear
25. Inner gear 26. Oil pump cover 27. Seal ring
28. Oil pump assembly
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".

AT-232
< SERVICE INFORMATION >
OVERHAUL
Without ABS
SCIA7957E

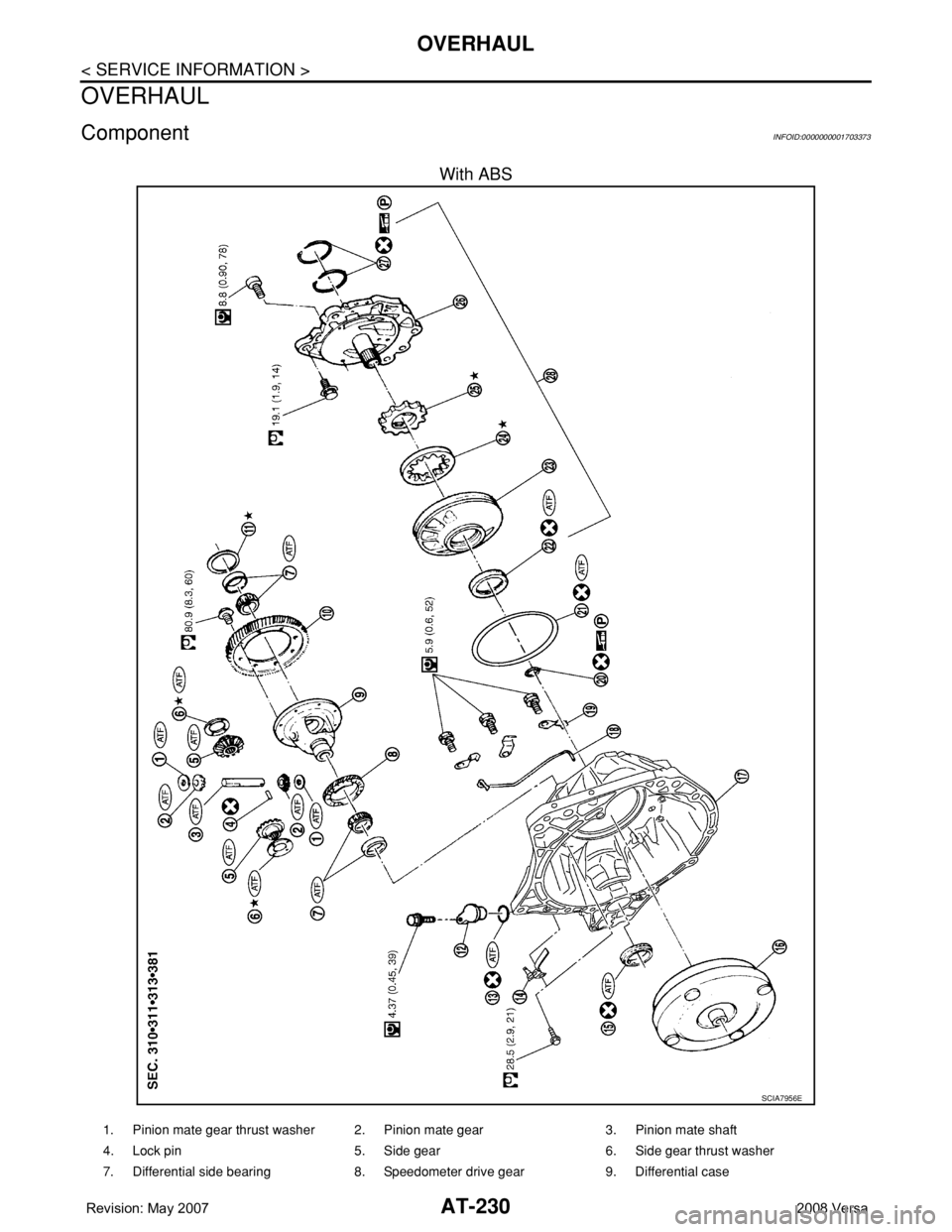

1. Pinion mate gear thrust washer 2. Pinion mate gear 3. Pinion mate shaft
4. Lock pin 5. Side gear 6. Side gear thrust washer
7. Differential side bearing 8. Speedometer drive gear 9. Differential case
10. Final gear 11. Differential side bearing adjusting
shim12. Speedometer pinion
13. O-ring 14. Bracket 15. RH differential side oil seal

OVERHAUL
AT-233
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
16. Torque converter 17. Converter housing 18. Differential lubricant tube
19. Clip 20. O-ring 21. O-ring
22. Oil pump housing oil seal 23. Oil pump housing 24. Outer gear
25. Inner gear 26. Oil pump cover 27. Seal ring
28. Oil pump assembly
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
SCIA7991E

AT-234
< SERVICE INFORMATION >
OVERHAUL

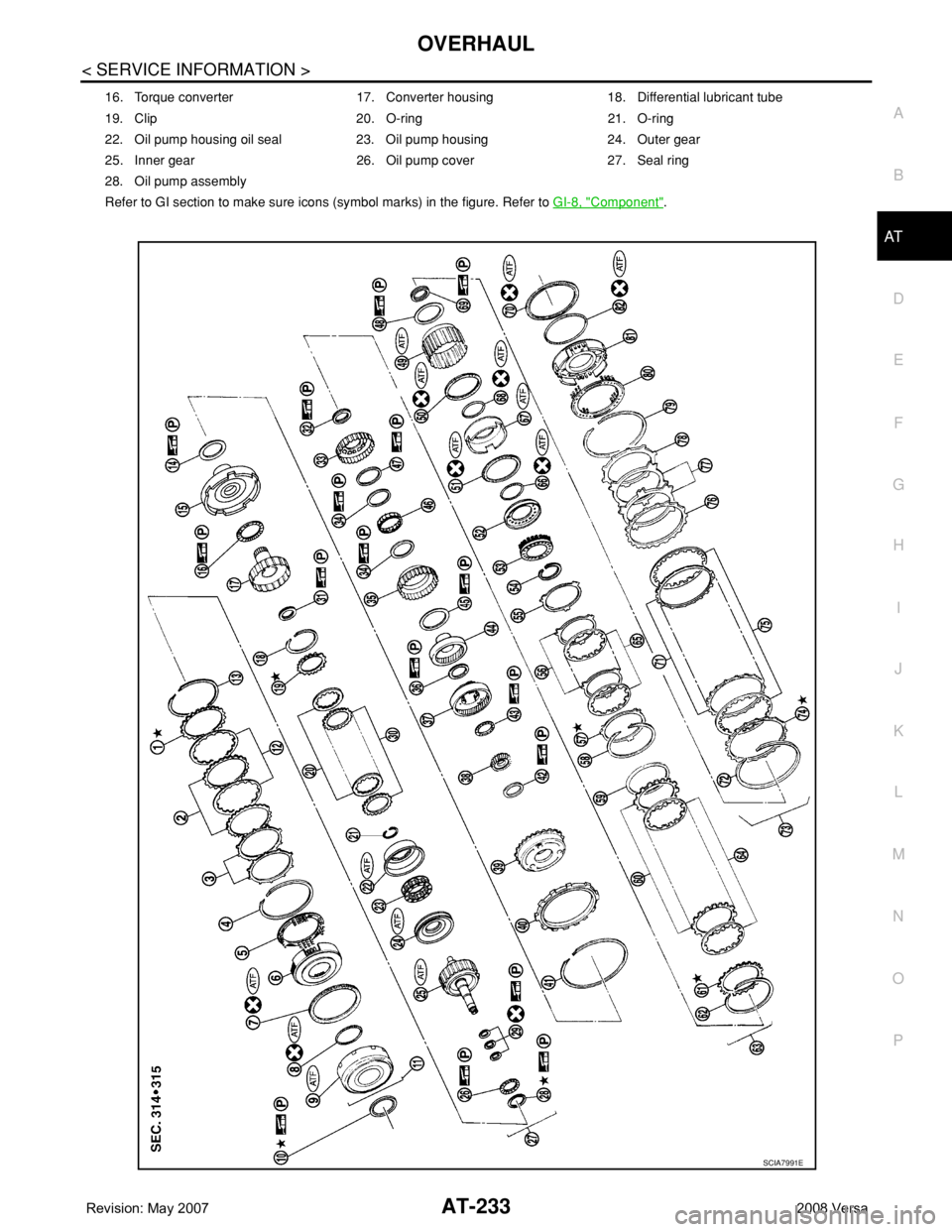

1. Retaining plate 2. Driven plate 3. Dish plate
4. Snap ring 5. Spring retainer assembly 6. Reverse clutch piston
7. Seal lip 8. D-ring 9. Reverse clutch drum
10. Thrust washer 11. Reverse clutch assembly 12. Drive plate
13. Snap ring 14. Needle bearing 15. Front sun gear
16. Needle bearing 17. High clutch hub 18. Snap ring
19. Retaining plate 20. Drive plate 21. Snap ring
22. Cancel cover 23. Spring retainer assembly 24. High clutch piston
25. Input shaft assembly (high clutch
drum)26. Needle bearing 27. High clutch assembly
28. Bearing race 29. Seal ring 30. Driven plate
31. Needle bearing 32. Needle bearing 33. Overrun clutch hub
34. End bearing 35. Forward clutch hub 36. Needle bearing
37. Rear planetary carrier 38. Rear sun gear 39. Front planetary carrier
40. Low one-way clutch 41. Snap ring 42. Needle bearing
43. Needle bearing 44. Rear internal gear 45. Thrust washer
46. Forward one-way clutch 47. Thrust washer 48. Thrust washer
49. Forward clutch drum 50. Seal lip 51. Seal lip
52. Overrun clutch piston 53. Spring retainer assembly 54. Snap ring
55. Dish plate 56. Driven plate 57. Retaining plate
58. Snap ring 59. Dish plate 60. Driven plate
61. Retaining plate 62. Snap ring 63. Forward clutch assembly and over-
run clutch assembly
64. Drive plate 65. Drive plate 66. D-ring
67. Forward clutch piston 68. D-ring 69. Needle bearing
70. Seal lip 71. Driven plate 72. Snap ring
73. Low & reverse brake assembly 74. Retaining plate 75. Drive plate
76. Retaining plate 77. Dish plate 78. Driven plate
79. Snap ring 80. Spring retainer assembly 81. Low & reverse brake piston
82. D-ring
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".

OVERHAUL
AT-235
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P

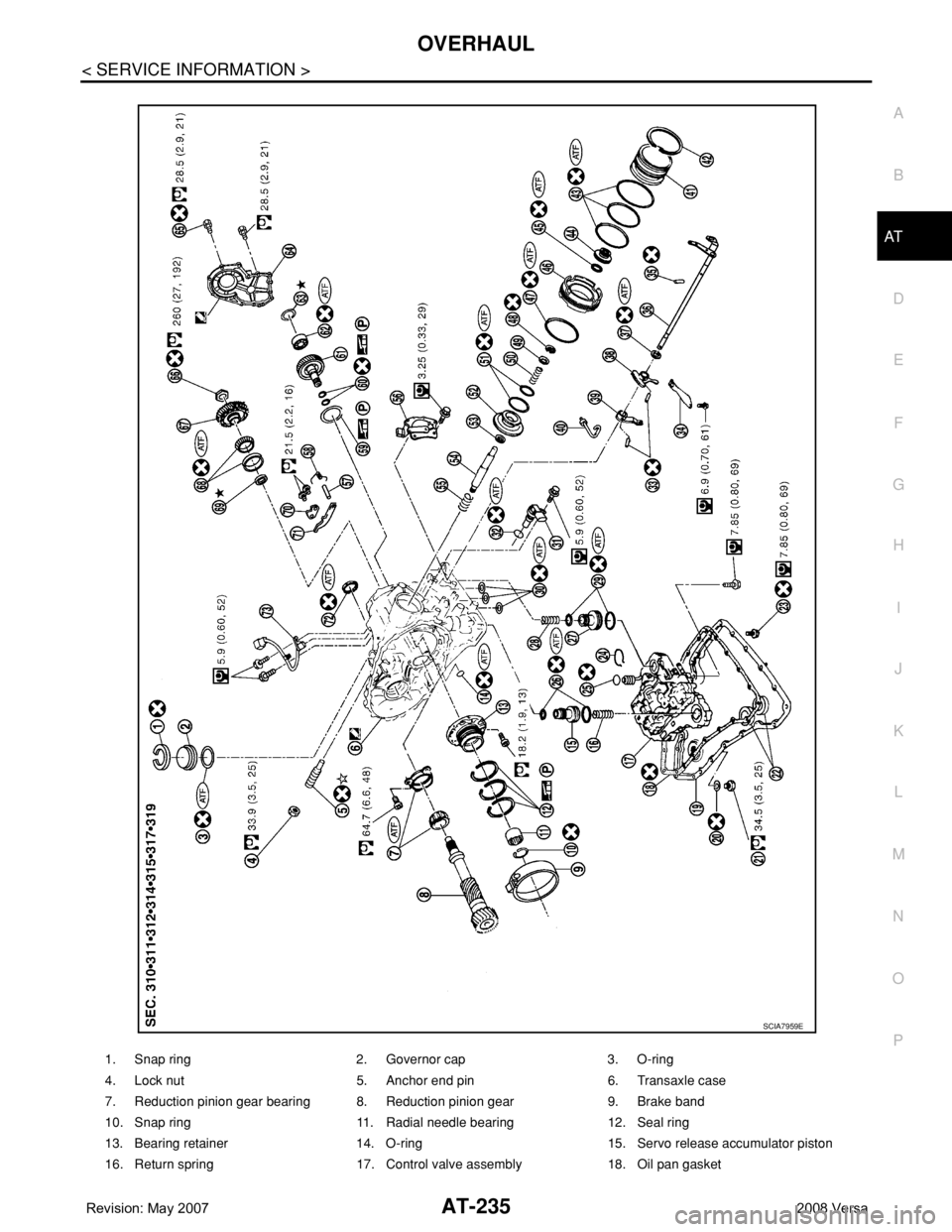

1. Snap ring 2. Governor cap 3. O-ring
4. Lock nut 5. Anchor end pin 6. Transaxle case
7. Reduction pinion gear bearing 8. Reduction pinion gear 9. Brake band
10. Snap ring 11. Radial needle bearing 12. Seal ring
13. Bearing retainer 14. O-ring 15. Servo release accumulator piston
16. Return spring 17. Control valve assembly 18. Oil pan gasket
SCIA7959E

AT-236
< SERVICE INFORMATION >
OVERHAUL
19. Oil pan 20. Drain plug gasket 21. Drain plug
22. Magnet 23. Oil pan fitting bolt 24. Snap ring
25. O-ring 26. O-ring 27. N-D accumulator piston
28. Return spring 29. O-ring 30. Lip seal
31. Turbine revolution sensor (power
train revolution sensor)32. O-ring 33. Retaining pin
34. Detent spring 35. Retaining pin 36. Manual shaft
37. Manual shaft oil seal 38. Manual plate 39. Parking rod plate
40. Parking rod 41. OD servo piston retainer 42. Snap ring
43. O-ring 44. OD servo piston 45. D-ring
46. Servo piston retainer 47. O-ring 48. E-ring
49. Spring retainer 50. OD servo return spring 51. D-ring
52. Band servo piston 53. Band servo thrust washer 54. Band servo piston stem
55. 2nd servo return spring 56. PNP switch 57. Parking shaft
58. Return spring 59. Thrust needle bearing 60. Seal ring
61. Output shaft 62. Output shaft bearing 63. Output shaft adjusting shim
64. Side cover 65. Side cover fitting bolt 66. Lock nut
67. Idler gear 68. Idler gear bearing 69. Reduction pinion gear adjusting
shim
70. Parking actuator support 71. Parking pawl 72. LH differential side oil seal
73. Revolution sensor
Refer to GI section to make sure icons (symbol marks) in the figure. Refer to GI-8, "
Component".
However, refer to the following symbol for others.
: Apply Genuine Anaerobic Liquid Gasket or equivalent.

OVERHAUL
AT-237
< SERVICE INFORMATION >
D
E
F
G
H
I
J
K
L
MA
B
AT
N
O
P
Oil ChannelINFOID:0000000001703374
SCIA8023E

AT-238
< SERVICE INFORMATION >
OVERHAUL

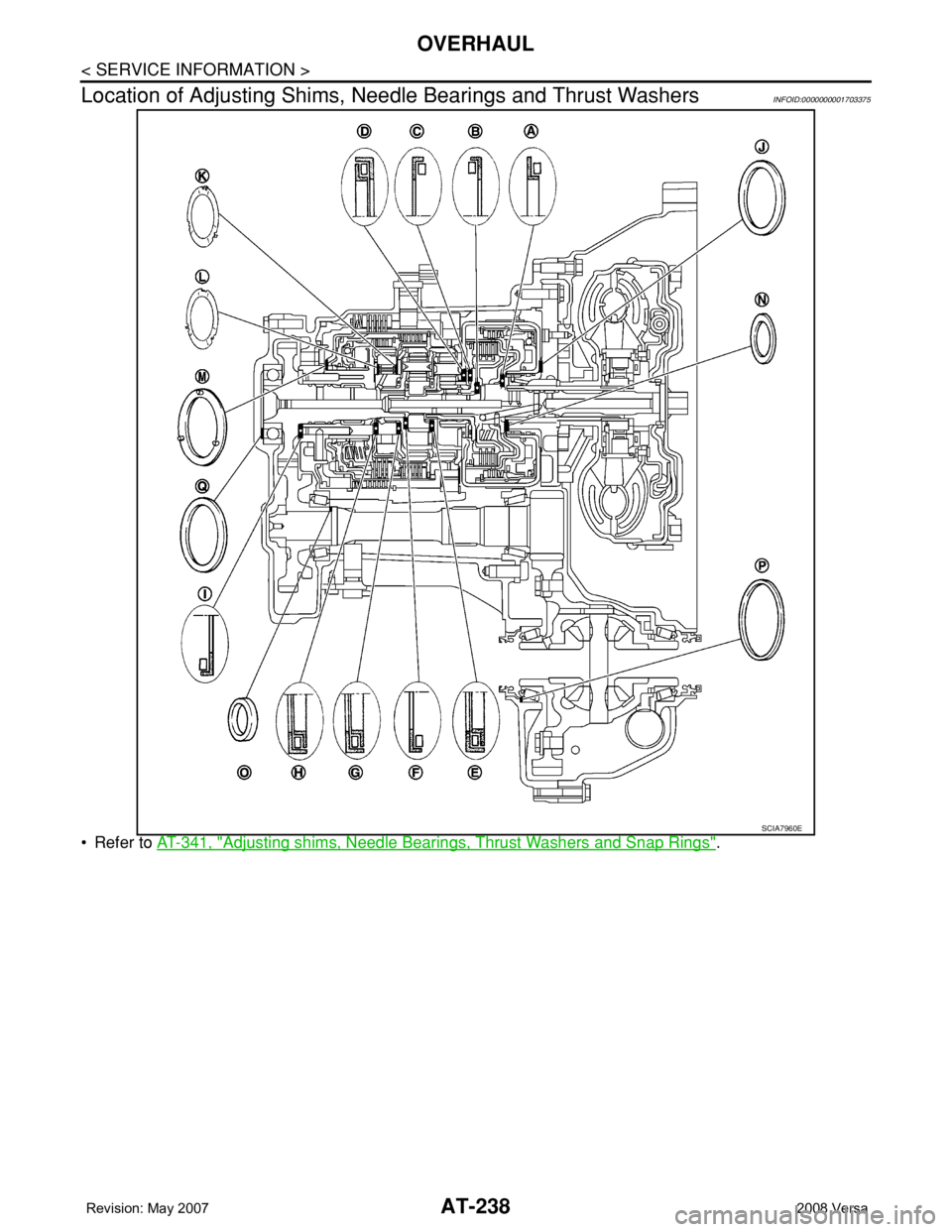

Location of Adjusting Shims, Needle Bearings and Thrust Washers
INFOID:0000000001703375
• Refer to AT-341, "Adjusting shims, Needle Bearings, Thrust Washers and Snap Rings".
SCIA7960E
