Page 751 of 4331

Page 752 of 4331

NISSAN LATIO 2009 Service Repair Manual BL
N
O P

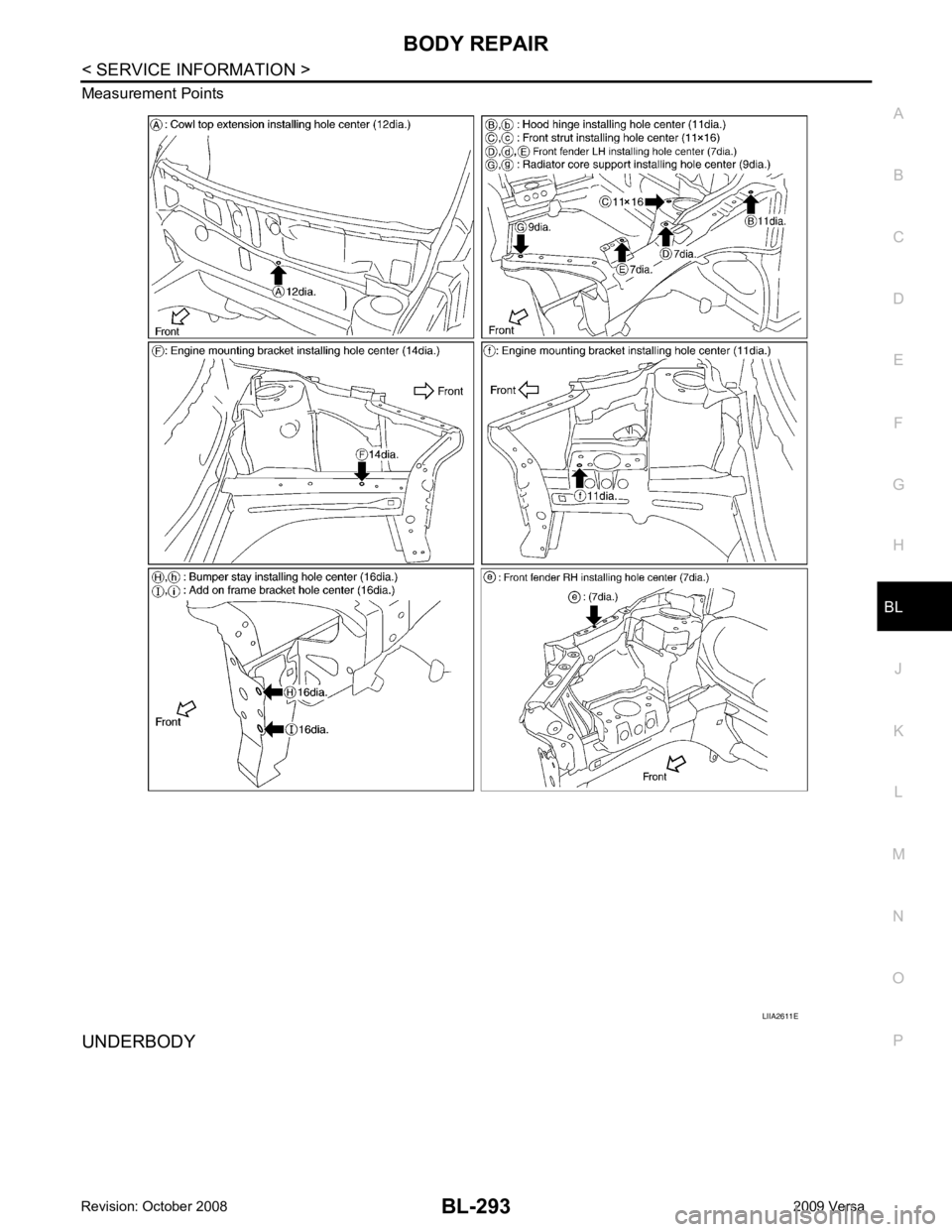

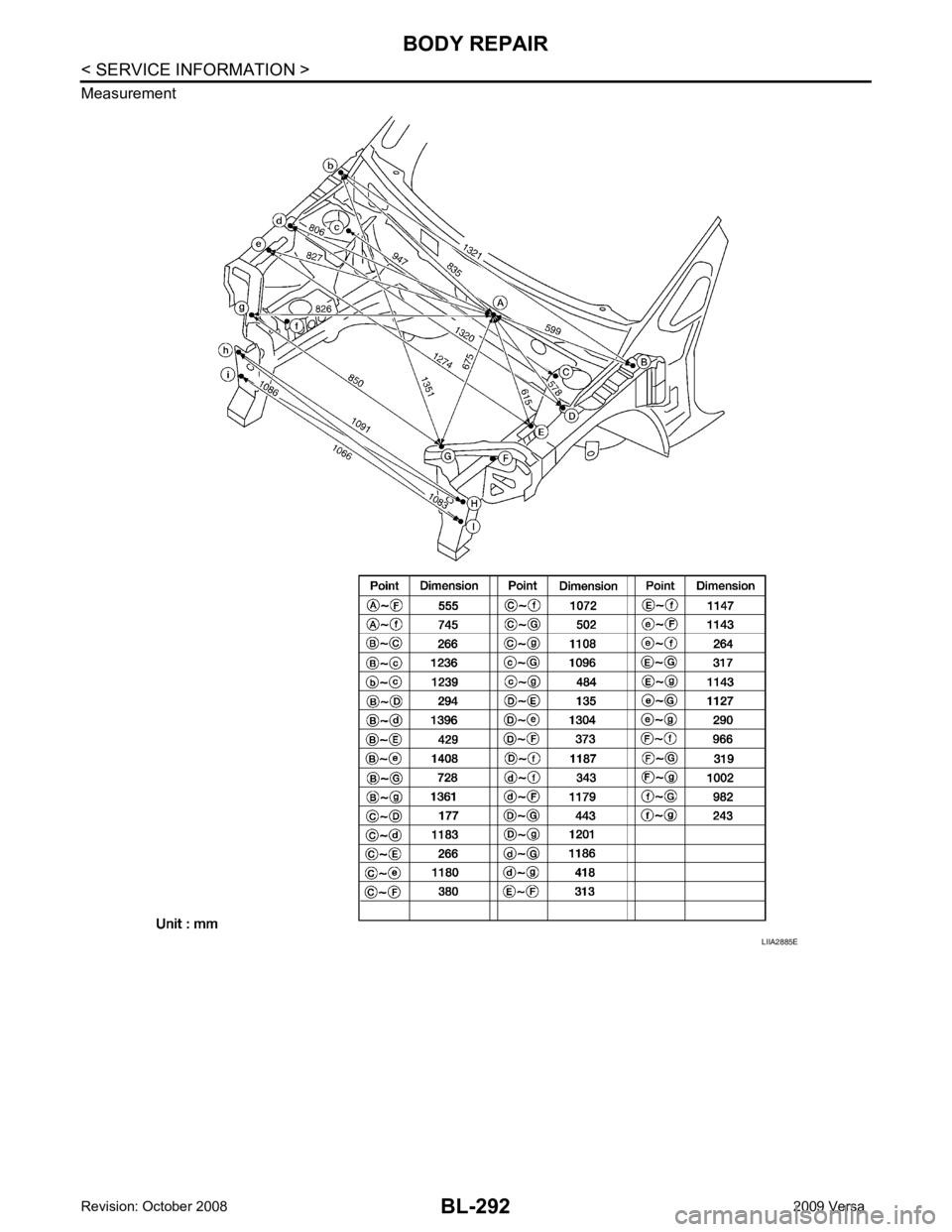

ENGINE COMPARTMENT

Page 753 of 4331

Page 754 of 4331

NISSAN LATIO 2009 Service Repair Manual BL
N
O P
Measurement Points
UNDERBODY

Page 755 of 4331

Page 756 of 4331

NISSAN LATIO 2009 Service Repair Manual BL
N
O P

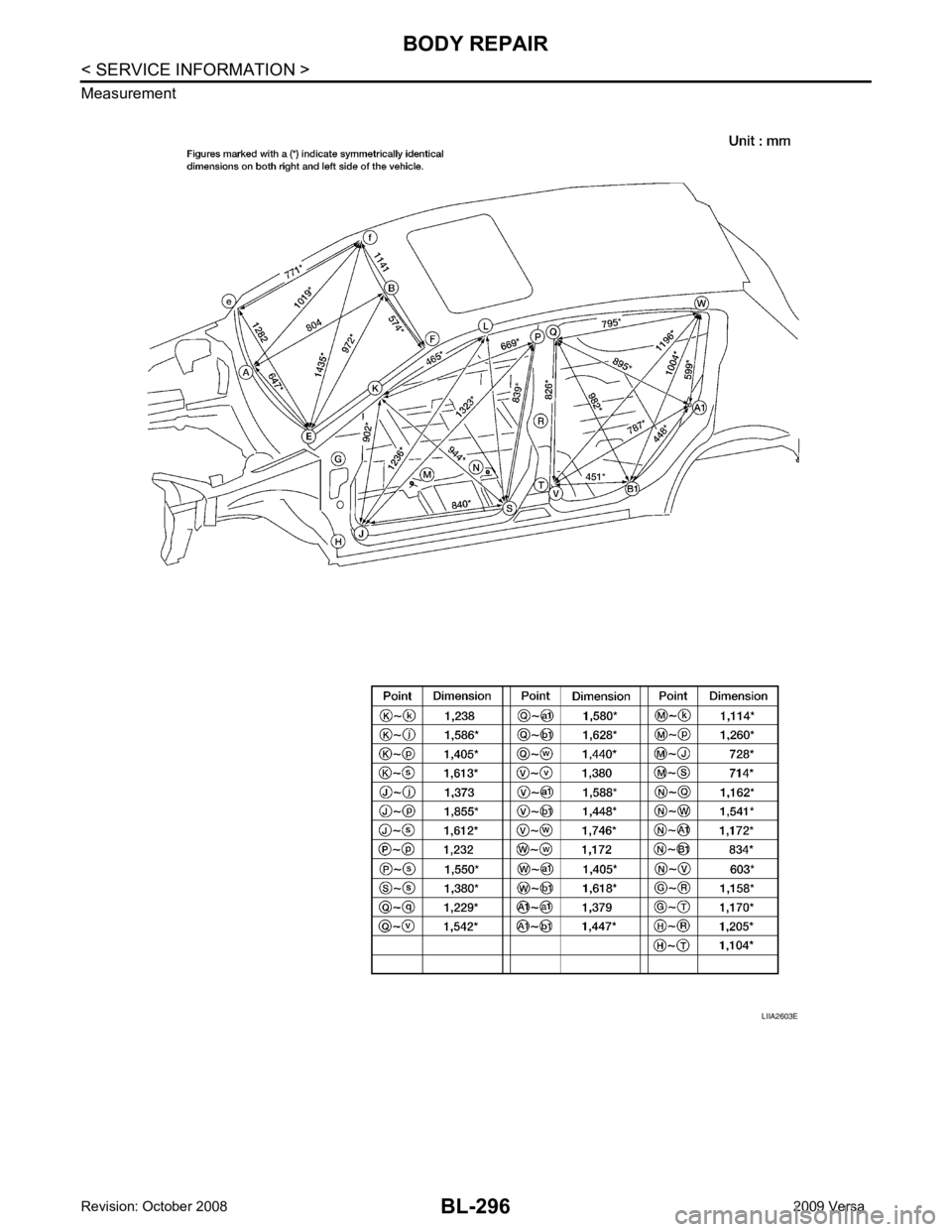

Measurement Points
PASSENGER COMPARTMENT HATCHBACK

Page 757 of 4331

Page 758 of 4331

NISSAN LATIO 2009 Service Repair Manual BL
N
O P

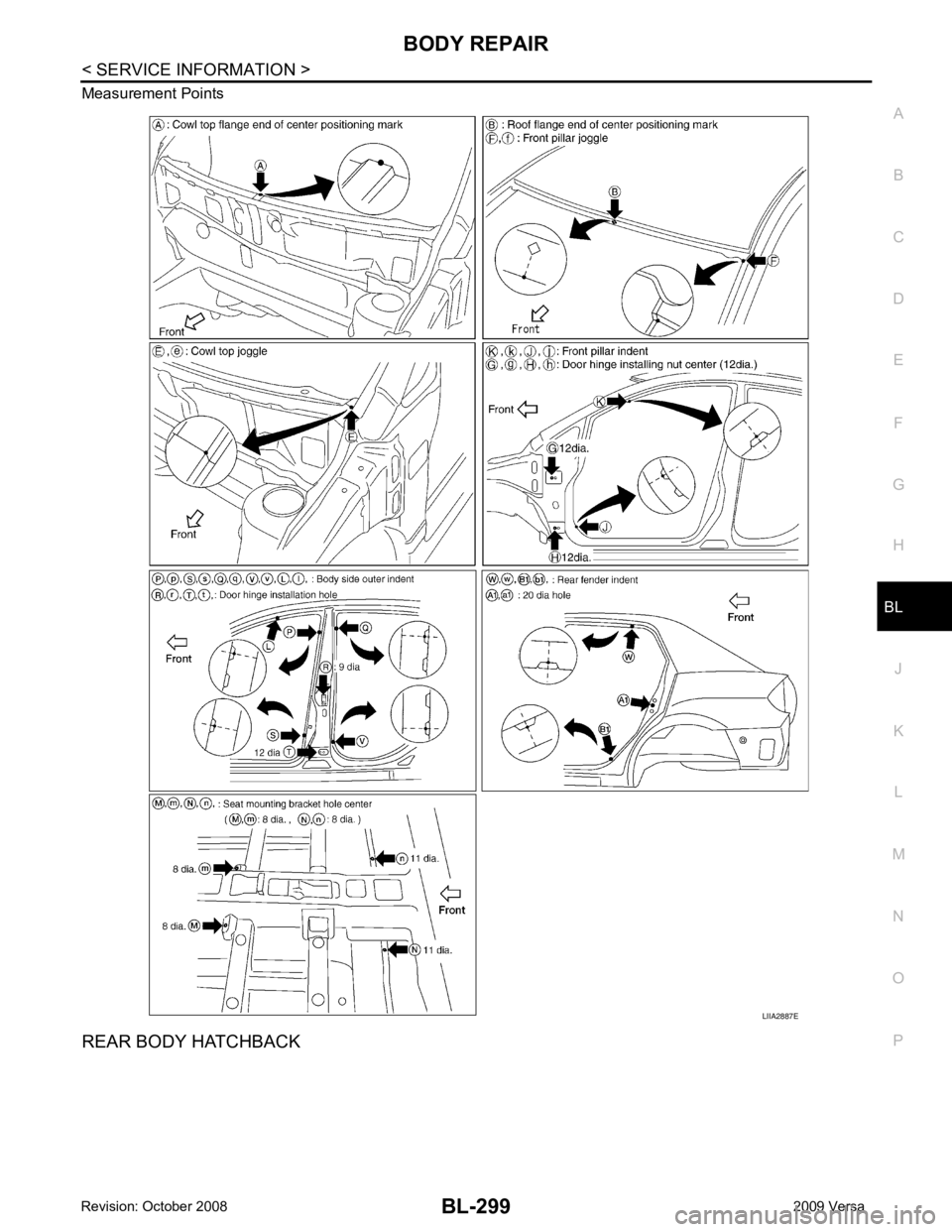

Measurement Points
PASSENGER COMPARTMENT SEDAN

Page 759 of 4331

Page 760 of 4331

NISSAN LATIO 2009 Service Repair Manual BL
N
O P
Measurement Points
REAR BODY HATCHBACK
