NISSAN LATIO 2009 Service Repair Manual

SIIA2245E
SIIA2246E
SIIA2247E

BL
N
O P
- Remove foam material remaining on vehicle side.
- Clean area in which foam was removed.
- Install service part.
- Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with the service
part.
2. Fill procedures before installation of service part.
- Remove foam material remaining on vehicle side.
- Clean area in which foam was removed.
- Fill foam material on wheelhouse outer side. NOTE:
Fill in enough to close gap with service part while avoiding flange area.
- Install service part.
NOTE:
Refer to label for information on working times.
Hatchback LIIA1082E

BL
N
O P
Replacement Operation INFOID:0000000004305160
DESCRIPTION 1. Body side outer 2. Front pillar lower reinforcement 3. Body side insulation (foam) front pil-
lar
4. Parcel shelf 5. Body side insulation (Foam) rear pil- lar6. Rear body side inner
7. Body side insulation strip, center pil- lar 8. Body side insulation strip, rear pillar
lower 9. Body side insulation (foam) roof side

BL
N
O P
The symbols used in this section for cutting and welding / brazing operations are shown below.

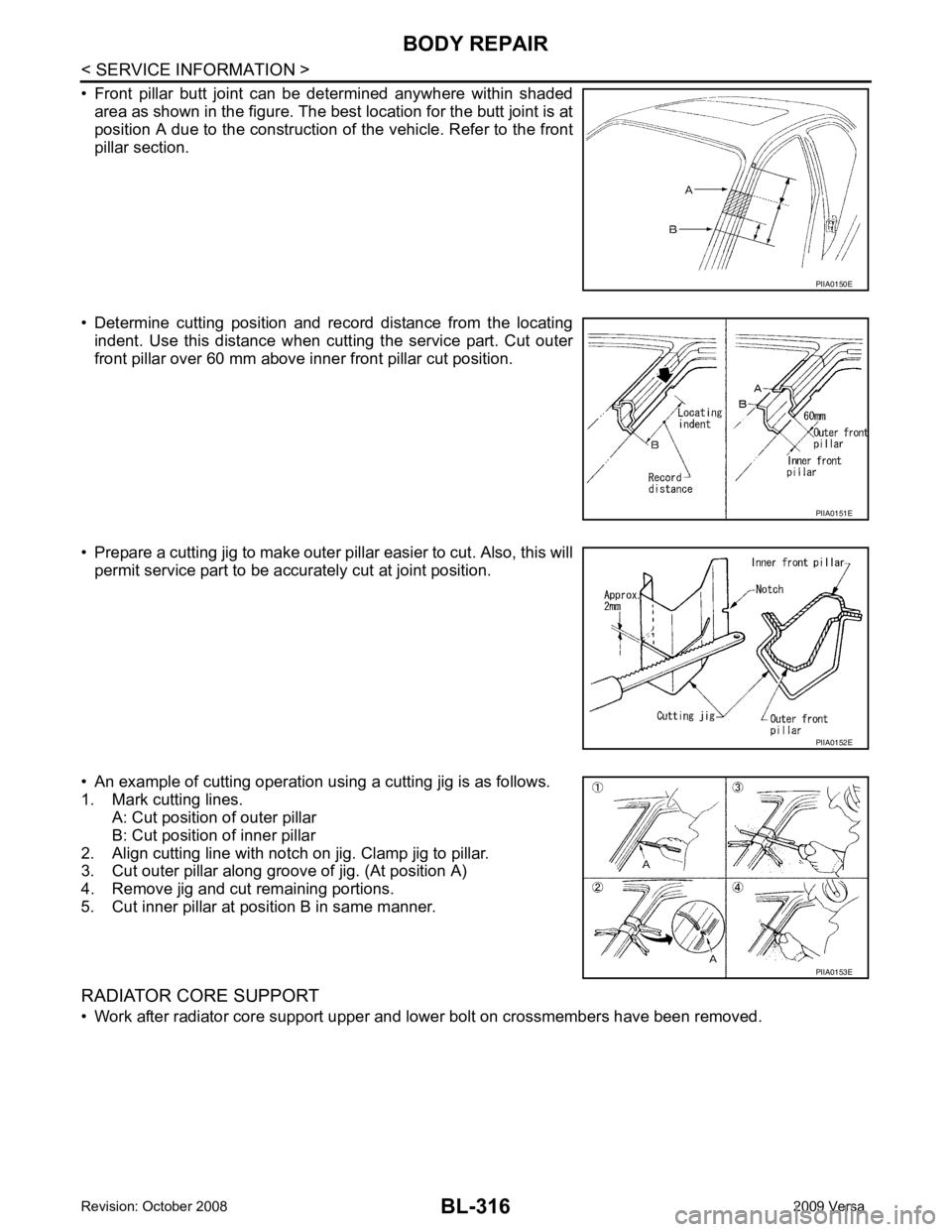

PIIA0151E
PIIA0152E
PIIA0153E

BL
N
O P
HOODLEDGE LH • Work after radiator core support upper and lower have been removed. Change Parts
z Radiator core side support z Radiator core support upper

BL
N
O P
FRONT SIDE MEMBER • Work after hoodledge and radiator core support have been removed. Change Parts
z Hoodledge reinforcement assembly zFront strut housing zFender bracket
z Cowl top side upper zHoodledge upper zHoodledge connector
