NISSAN LATIO 2010 Service Repair Manual

CVT-68
< SERVICE INFORMATION >[RE0F08B]
P0710 TRANSMISSION FLUID
TEMPERATURE SENSOR A

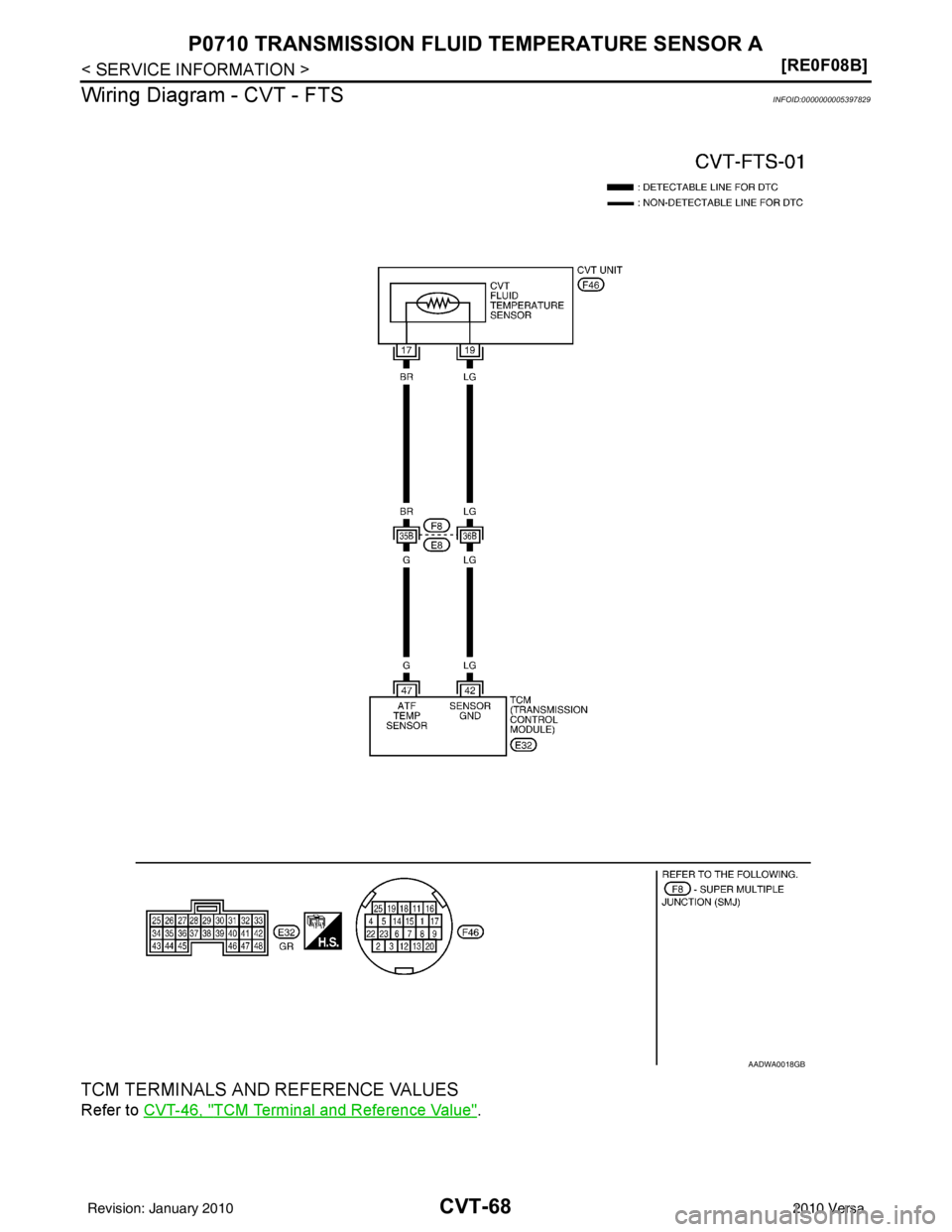

Wiring Diagram - CVT - FTS
INFOID:0000000005397829
TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-46, "TCM Terminal and Reference Value".
AADWA0018GB
Revision: January 20102010 Versa

P0710 TRANSMISSION FLUID TEMPERATURE SENSOR ACVT-69
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

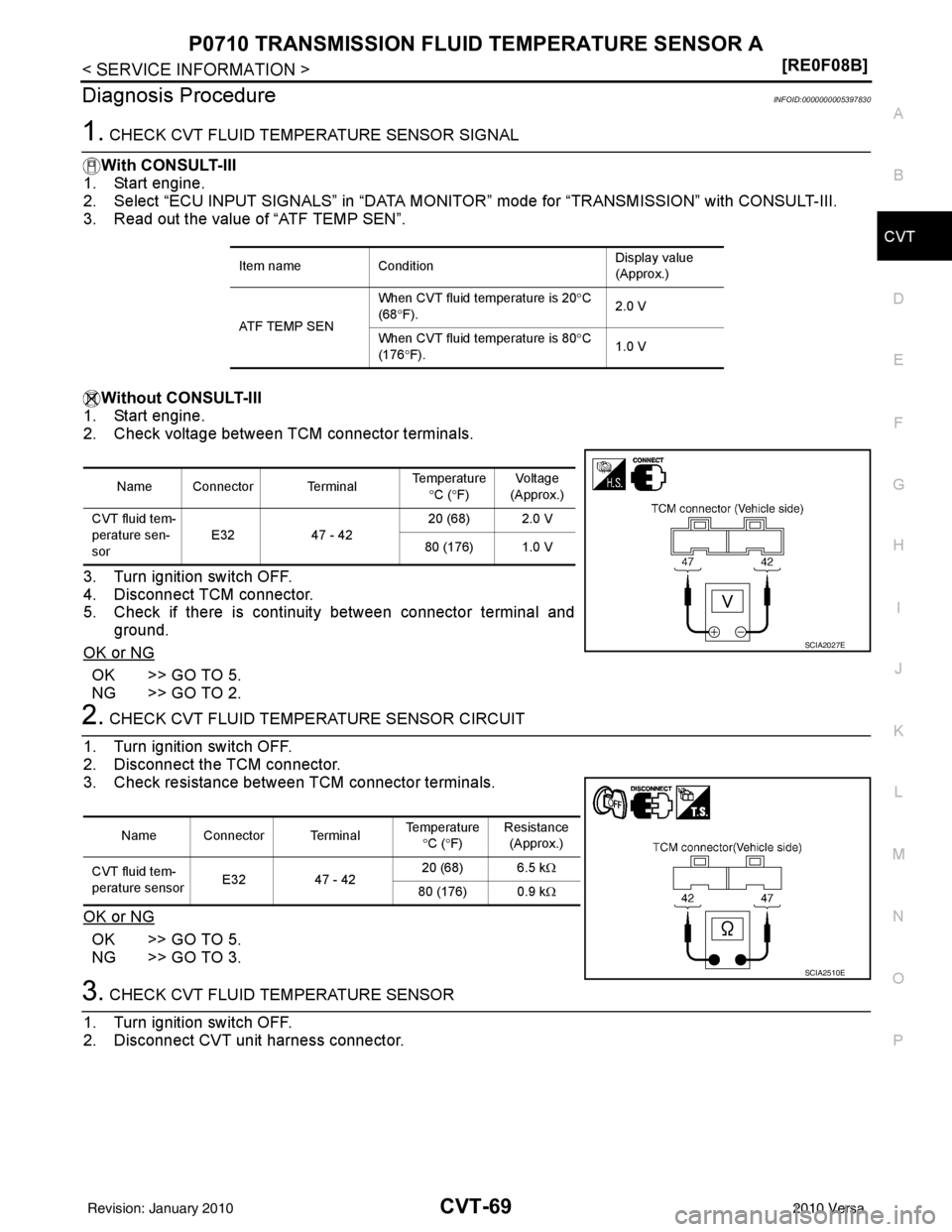

Diagnosis ProcedureINFOID:0000000005397830
1. CHECK CVT FLUID TEMP ERATURE SENSOR SIGNAL
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONITO R” mode for “TRANSMISSION” with CONSULT-III.
3. Read out the value of “ATF TEMP SEN”.
Without CONSULT-III
1. Start engine.
2. Check voltage between TCM connector terminals.
3. Turn ignition switch OFF.
4. Disconnect TCM connector.
5. Check if there is continuity between connector terminal and ground.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2. CHECK CVT FLUID TEMP ERATURE SENSOR CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect the TCM connector.
3. Check resistance between TCM connector terminals.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3. CHECK CVT FLUID TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector.
Item name Condition Display value
(Approx.)
ATF TEMP SEN When CVT fluid temperature is 20
°C
(68 °F). 2.0 V
When CVT fluid temperature is 80 °C
(176 °F). 1.0 V
Name Connector Terminal
Temperature
°C ( °F) Voltage
(Approx.)
CVT fluid tem-
perature sen-
sor E32
47 - 42 20 (68) 2.0 V
80 (176) 1.0 V
SCIA2027E
Name Connector Terminal Temperature
°C ( °F) Resistance
(Approx.)
CVT fluid tem-
perature sensor E32
47 - 42 20 (68) 6.5 k
Ω
80 (176) 0.9 k Ω
SCIA2510E
Revision: January 20102010 Versa

CVT-70
< SERVICE INFORMATION >[RE0F08B]
P0710 TRANSMISSION FLUID
TEMPERATURE SENSOR A
3. Check resistance between CVT unit harness connector termi-
nals.
4. Reinstall any part removed.
OK or NG
OK >> GO TO 4.
NG >> Replace the transaxle assembly. Refer to CVT-173, "
Removal and Installation".
4. CHECK HARNESS BETWEEN TCM AND CVT FLUID TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect the TCM connector and CVT unit harness connector.
3. Check continuity between TCM connector terminals and CVT unit harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair or replace damaged parts.
5.CHECK DTC
Perform CVT-67, "
DTC Confirmation Procedure" .
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
6.CHECK TCM
1. Check TCM input/output signals. Refer to CVT-46, "
TCM Terminal and Reference Value" .
2. If NG, re-check TCM pin terminals for damage or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Component InspectionINFOID:0000000005397831
CVT FLUID TEMPERATURE SENSOR
1. Turn ignition switch OFF.
2. Disconnect CVT unit harness connector.
Name Connector Terminal Te m p e r a -
ture °C ( °F) Resistance
(Approx.)
CVT fluid
temperature
sensor F46
17 - 19 20 (68) 6.5 k
Ω
80 (176) 0.9 k Ω
SCIA4679E
ItemConnector Terminal Continuity
TCM E3242
Ye s
CVT unit harness connector F46 19
TCM E3247
Ye s
CVT unit harness connector F46 17
SCIA4680E
Revision: January 20102010 Versa

P0710 TRANSMISSION FLUID TEMPERATURE SENSOR ACVT-71
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
3. Check resistance between CVT unit harness connector termi- nals.
4. If NG, replace the transaxle assembly. Refer to CVT-173,
"Removal and Installation" .
Name Connector Terminal Te m p e r a -
ture ° C (°F) Resistance
(Approx.)
CVT fluid
temperature
sensor F46
17 - 19 20 (68) 6.5 k
Ω
80 (176) 0.9 k Ω
SCIA4679E
Revision: January 20102010 Versa

CVT-72
< SERVICE INFORMATION >[RE0F08B]
P0715 INPUT SPEED SENSOR A
P0715 INPUT SPEED SENSOR A
DescriptionINFOID:0000000005397832
The primary speed sensor detects the primary pul
ley revolution speed and sends a signal to the TCM.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005397833
Remarks: Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000005397834
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0715” with CONSULT-III is detected when TCM does not receive the proper sig-
nal from the sensor.
Possible CauseINFOID:0000000005397835
• Harness or connectors (Sensor circuit is open or shorted.)
• Primary speed sensor
DTC Confirmation ProcedureINFOID:0000000005397836
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
2. Start engine and maintain the following conditions for at least 5 consecutive seconds.
VEHICLE SPEED: 10 km/h (6 MPH) or more
ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
ENG SPEED: 450 rpm or more
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
3. If DTC is detected, go to CVT-74, "
Diagnosis Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Item name Condition Display value
ENG SPEED SIG Engine running Closely matches the tach ometer reading.
PRI SPEED SEN During driving (lock-up ON) Approximately matches the engine speed.
Revision: January 20102010 Versa

P0715 INPUT SPEED SENSOR ACVT-73
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
Wiring Diagram - CVT - PRSCVTINFOID:0000000005397837
TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-46, "TCM Terminal and Reference Value".
AADWA0019GB
Revision: January 20102010 Versa

CVT-74
< SERVICE INFORMATION >[RE0F08B]
P0715 INPUT SPEED SENSOR A
Diagnosis Procedure
INFOID:0000000005397838
1.CHECK INPUT SIGNALS
With CONSULT-III
1. Start engine.
2. Select “ECU INPUT SIGNALS” in “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
3. Start vehicle and read out the value of “PRI SPEED SEN”.
OK or NG
OK >> GO TO 6.
NG >> GO TO 2.
2.CHECK PRIMARY SPEED SENSOR
1. Start engine.
2. Check voltage between TCM connector terminals.
3. Check the pulse with CONSULT-III or oscilloscope, when vehi- cle cruises.
OK or NG
OK >> GO TO 6.
NG - 1 >> Battery voltage is not supplied: GO TO 3.
NG - 2 >> Battery voltage is supplied, but there is a malfunction in the frequency: GO TO 4.
3. CHECK HARNESS BETWEEN TCM AND CVT UNI T HARNESS CONNECTOR (SENSOR POWER AND
SENSOR GROUND)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and primary speed sensor harness connector.
Item nameConditionDisplay value
PRI SPEED SEN During driving (lock-up
ON)Approximately matches
the engine speed.
Item Connector
TerminalData (Approx.)
TCM E32 10, 19 - 42Battery voltage
Name Condition
Primary speed sen-
sor When running at 20 km/h (12 MPH) in “L” position with the
closed throttle position signal OFF, use the CONSULT-III
pulse frequency measuring function.
CAUTION:
Connect the data link connector to the vehicle-side diag-
nosis connector.
Item Connector Terminal NameData (Ap-
prox.)
TCM E32 38 Primary speed sensor 1250 Hz
AWDIA0644GB
Revision: January 20102010 Versa

P0715 INPUT SPEED SENSOR ACVT-75
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P
3. Check continuity between TCM connector terminals and primary speed sensor harness connector terminals.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK HARNESS BETWEEN TC M AND CVT UNIT HARNESS CONNE CTOR (PRIMARY SPEED SEN-
SOR)
1. Turn ignition switch OFF.
2. Disconnect TCM connector and primary speed sensor harness connector.
3. Check continuity between TCM connector terminal and primary speed sensor harness connector terminal.
4. If OK, check harness for short to ground and short to power.
5. Reinstall any part removed.
OK or NG
OK >> GO TO 5.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
5. CHECK THE TCM SHORT
Replace same type TCM, perform self-diagnosis check. Erase self-diagnostic results and then drive the vehi-
cle [10 km/h (6 MPH) or more], perform self-diagnosis check. Refer to CVT-72, "
DTC Confirmation Proce-
dure".
Is the
“P0715” detected again?
YES >> Replace the primary speed sensor. Refer to CVT-169, "Removal and Installation".
NO >> Replace TCM. Refer to CVT-159, "
Removal and Installation".
6.CHECK DTC
Perform CVT-72, "
DTC Confirmation Procedure".
OK or NG
OK >> INSPECTION END
NG >> GO TO 7.
7.CHECK TCM
1. Check TCM input/output signals. Refer to CVT-46, "
TCM Terminal and Reference Value".
2. If NG, re-check TCM pin terminals for dam age or loose connection with harness connector.
OK or NG
OK >> INSPECTION END
NG >> Repair or replace damaged parts.
Item Connector Terminal Continuity
TCM E3242
Ye s
Primary speed sensor F501
TCM E3210, 19
Ye s
Primary speed sensor F503
AWDIA0648GB
Item Connector Terminal Continuity
TCM E3238
Ye s
Primary speed sensor F502
AWDIA0649GB
Revision: January 20102010 Versa

CVT-76
< SERVICE INFORMATION >[RE0F08B]
P0720 OUTPUT SPEED SENSOR
P0720 OUTPUT SPEED SENSOR
DescriptionINFOID:0000000005397839
The secondary speed sensor detects the revolution of
the CVT output shaft and emits a pulse signal. The
pulse signal is sent to the TCM, which converts it into vehicle speed.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000005397840
Remarks: Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000005397841
• This is an OBD-II self-diagnostic item.
• Diagnostic trouble code “P0720” with CONSULT-III is det ected TCM does not receive the proper signal from
the sensor.
Possible CauseINFOID:0000000005397842
• Harness or connectors (Sensor circuit is open or shorted.)
• Secondary speed sensor
DTC Confirmation ProcedureINFOID:0000000005397843
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If “DTC Confirmation Procedure” has been previously performed, alw ays turn ignition switch OFF and
wait at least 10 seconds before performing the next test.
After the repair, touch “ERASE” on “SELF-DIAG RESULTS” and then perform the following procedure to con-
firm the malfunction is eliminated.
WITH CONSULT-III
1. Turn ignition switch ON and select “DATA MONI TOR” mode for “TRANSMISSION” with CONSULT-III.
2. Start engine and maintain the following conditions for at least 12 consecutive seconds. ACC PEDAL OPEN: More than 1.0/8
RANGE: “D” position
Driving location: Driving the vehicle uphill (increased engine load) will help maintain the driving
conditions required for this test.
3. If DTC is detected, go to CVT-78, "
Diagnosis Procedure" .
WITH GST
Follow the procedure “WITH CONSULT-III”.
Item name Condition Display value
VSP SENSOR During driving Approximately matches the spee dometer reading.
Revision: January 20102010 Versa

P0720 OUTPUT SPEED SENSORCVT-77
< SERVICE INFORMATION > [RE0F08B]
D
E
F
G H
I
J
K L
M A
B
CVT
N
O P

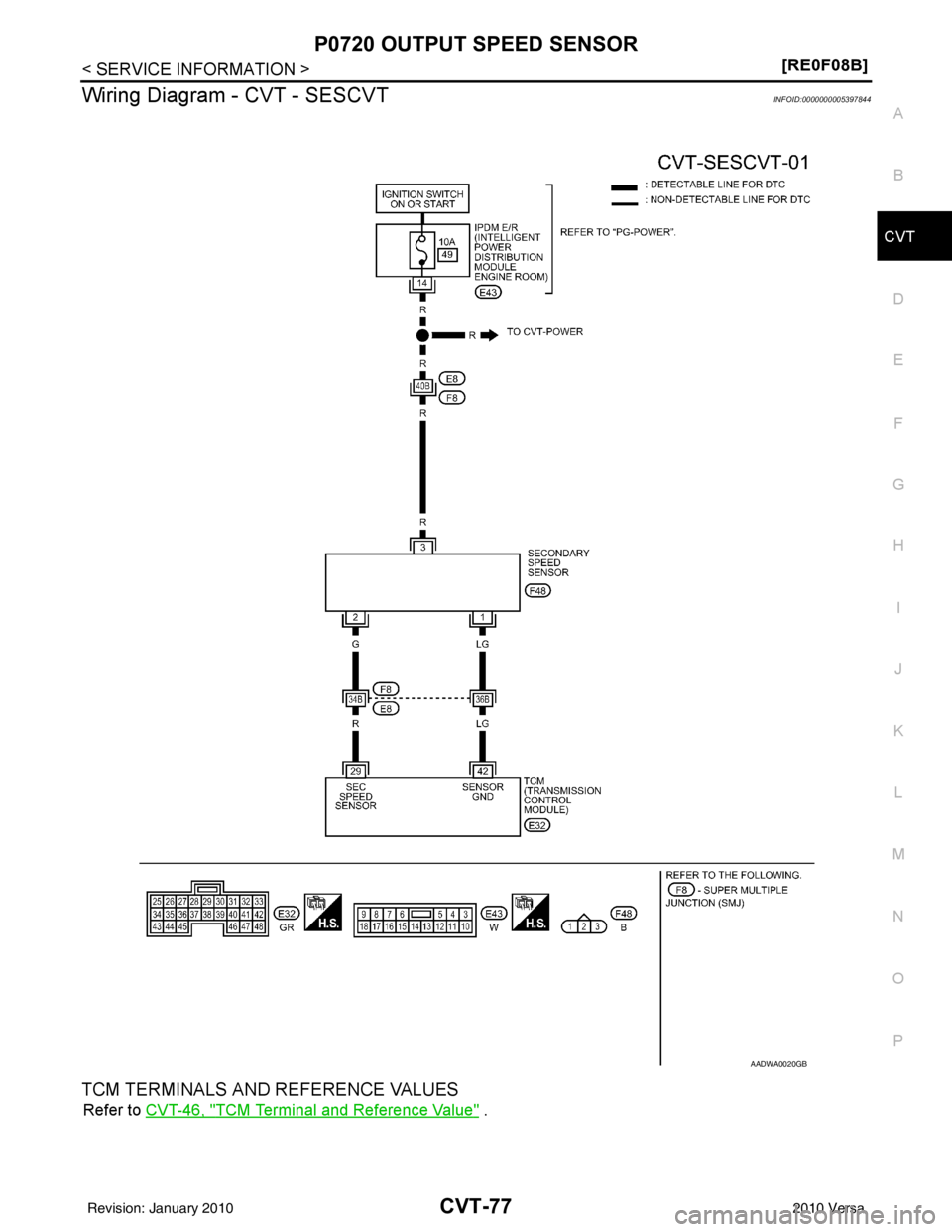

Wiring Diagram - CVT - SESCVTINFOID:0000000005397844
TCM TERMINALS AND REFERENCE VALUES
Refer to CVT-46, "TCM Terminal and Reference Value" .
AADWA0020GB
Revision: January 20102010 Versa
