WW-36
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
Removal
1. Remove the back door window garnish. Refer to EI-38, "Removal and Installation" .
2. Disconnect rear washer tube from rear washer nozzle.
3. Release retaining clips and remove washer nozzle.
Installation
Installation is in the reverse order of removal.
NOTE:
Inspect rear washer nozzle for proper spray pattern, adjust as necessary. Refer to WW-36, "
Washer Nozzle
Adjustment" .
WASHER FLUID RESERVOIR
Refer to WW-24, "Removal and Installation of Washer Tank" .
WIPER AND WASHER SWITCH
Refer to WW-24, "Removal and Installation of Front Wiper and Washer Switch" .
WASHER MOTOR
Refer to WW-25, "Removal and Installation of Front Washer Motor" .
Washer Nozzle AdjustmentINFOID:0000000005395097
Adjust the washer nozzle to specification using suitable tool as
shown.
• Rear washer nozzle (1)
• Back glass (2)
• Center line (A)
• 148 mm (5.83 in) (B)
• 27 mm (1.06 in) (C)
• 35 mm (1.38 in) (D)
• Black printed area (E)
• Spray target area (F)
LKIA0545E
Adjustable range : ±15° (In any direction)
LKIA0349E
WKIA6042E
Revision: January 20102010 Versa
Page 3742 of 3745
POWER SOCKETWW-37
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P
POWER SOCKET

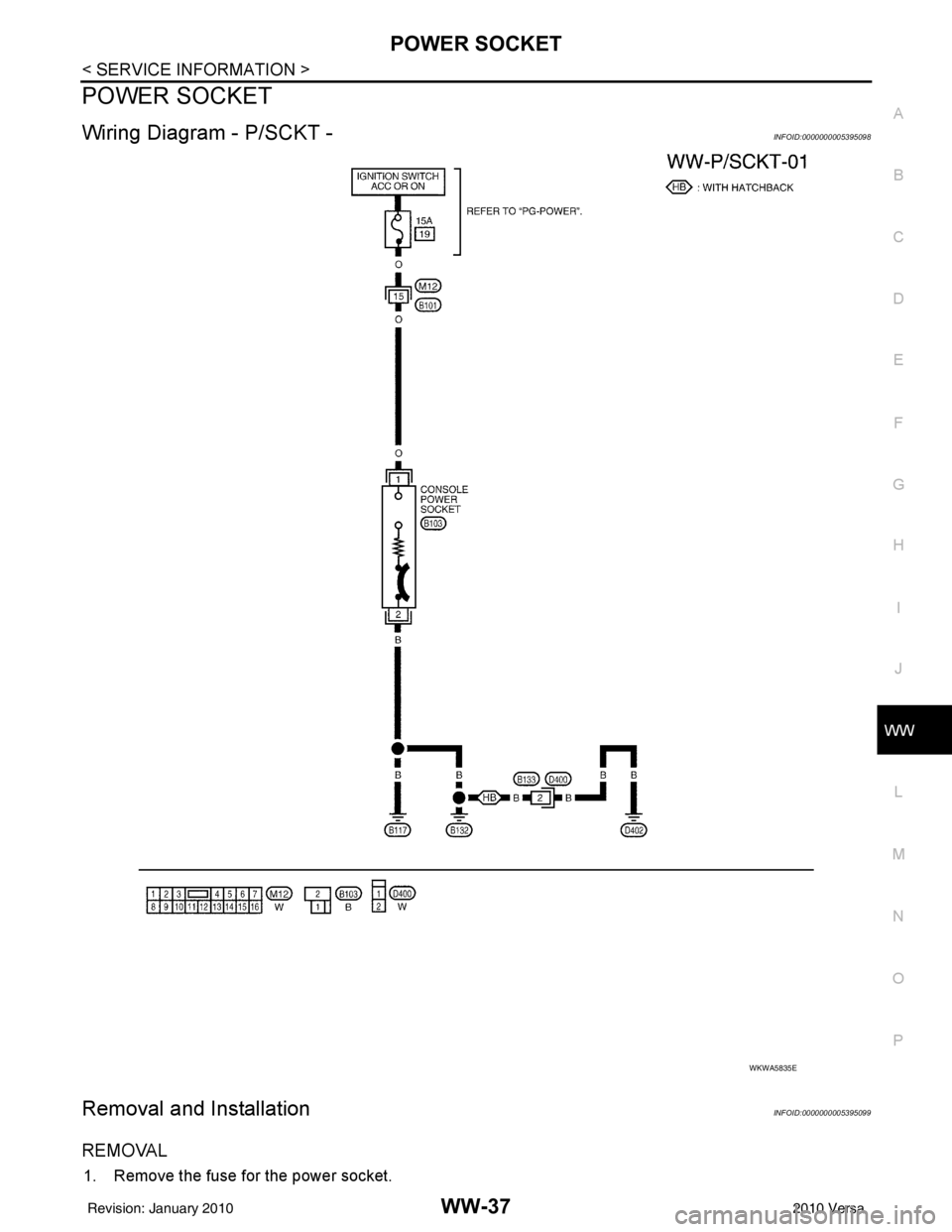

Wiring Diagram - P/SCKT -INFOID:0000000005395098
Removal and InstallationINFOID:0000000005395099
REMOVAL
1. Remove the fuse for the power socket.
WKWA5835E
Revision: January 20102010 Versa
Page 3743 of 3745
WW-38
< SERVICE INFORMATION >
POWER SOCKET
2. Remove the console mask. Refer to IP-11, "Component Parts" .
3. Insert one end of the Tool (A) into one of the square holes inside the power socket.
4. Lift up the handle of the Tool until the other end of the Tool is inside the socket and snaps into the other square hole in the
power socket.
5. Pull the power socket straight out with the Tool.
6. Disconnect power socket connector.
Installation
Installation is in the reverse order of removal.
NOTE:
Make sure to align the tab with the square notched area during
installation. Tool number:
— (J-42059)
AWMIA1182GB
AWMIA1183GB
Revision: January 20102010 Versa
Page 3744 of 3745
HORN
WW-39
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
WW
N
O P
HORN

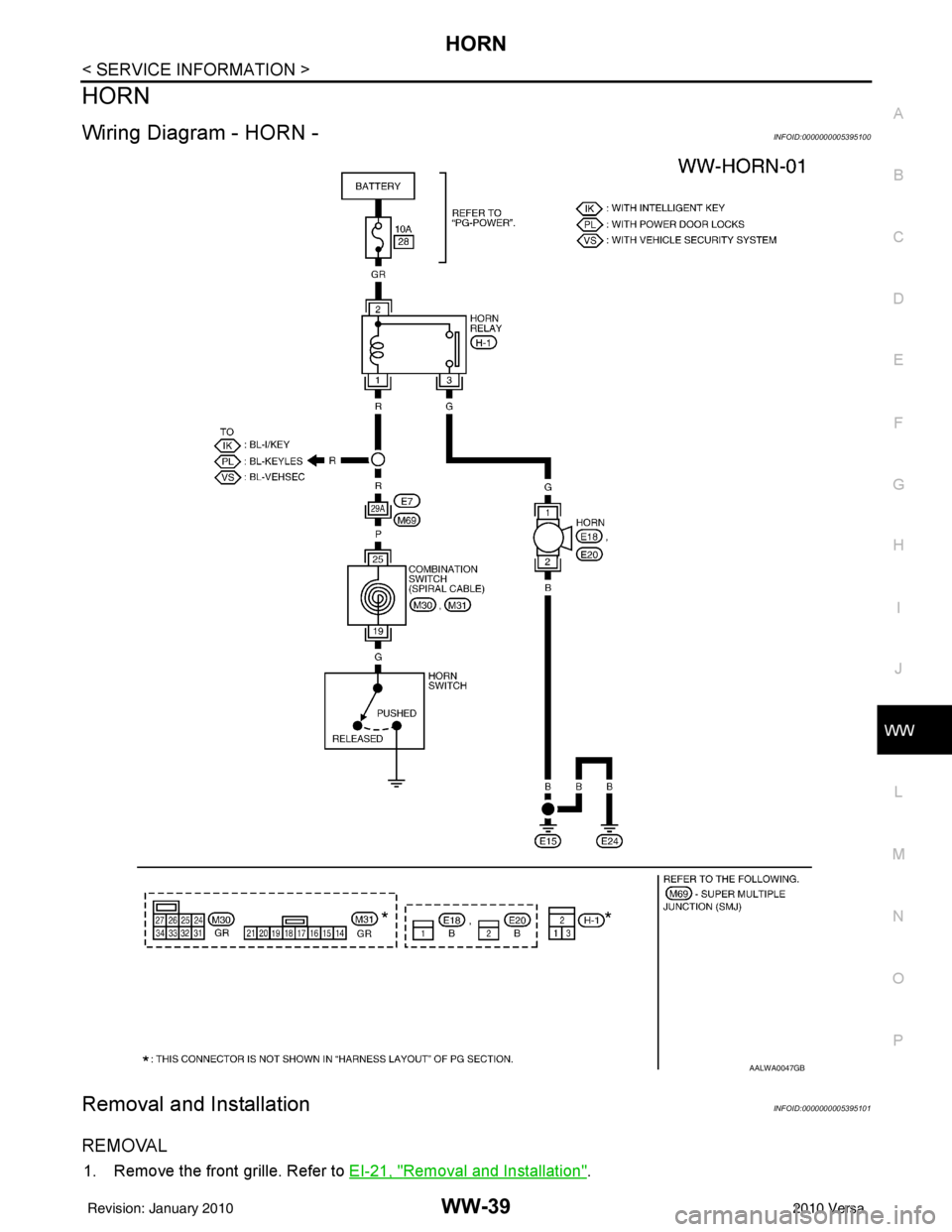

Wiring Diagram - HORN -INFOID:0000000005395100
Removal and InstallationINFOID:0000000005395101
REMOVAL
1. Remove the front grille. Refer to EI-21, "Removal and Installation".
AALWA0047GB
Revision: January 20102010 Versa
Page 3745 of 3745
WW-40
< SERVICE INFORMATION >
HORN
2. Disconnect the horn connector.
3. Remove the horn nut (A) and remove the horn (1).
INSTALLATION
Installation is in the reverse order of removal.
ALKIA1767ZZ
