NISSAN LATIO 2010 Service Repair Manual

EC-456
< ECU DIAGNOSIS >[HR16DE]
ECM
*: Accelerator pedal position sensor 2 signal and throttle position sensor 2 signal are converted by ECM internally. Thus, they
differ from
ECM terminals voltage signal.
TERMINAL LAYOUT
PHYSICAL VALUES
NOTE:
• ECM is located in the engine room left side near battery.
• Specification data are reference values and are measured between each terminal and ground.
• Pulse signal is measured by CONSULT-III.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doi ng so may result in dam-
age to the ECMs transistor. Use a ground ot her than ECM terminals, such as the ground.
COOLING FAN• Engine: After warning up, idle the
engine
• Air conditioner switch: OFF Engine coolant temperature is 98
°C
(208 °F) or less OFF
Engine coolant temperature is between
98 °C (208 °F) and 99 °C (210 °F) LOW
Engine coolant temperature is 100 °C
(212 °F) or more HIGH
HO2S2 HTR (B1) • Engine speed: Below 3,600 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at
idle for 1 minute under no load ON
VEHICLE SPEED • Turn drive wheels and compare CONSULT-III value with the speedometer in-
dication. Almost the same speed as
the speedometer indication
IDL A/V LEARN • Engine: running Idle air volume learning has not been per-
formed yet.
YET
Idle air volume learning has already been
performed successfully. CMPLT
TRVL AFTER MIL • Ignition switch: ON Vehicle has traveled after MIL has turned
ON.0 - 65,535 km
(0 - 40,723 miles)
A/F S1 HTR (B1) • Engine: After warming up, idle the engine 40 - 100%
AC PRESS SEN • Engine: Idle
• Both A/C switch and blower fan switch: ON (Compressor operates)
1.0 - 4.0 V
HO2 S2 DIAG2 (B1) NOTE:
The item is indicated, but not used. —
Monitor Item
Condition Values/Status
PBIA9221J
Revision: January 20102010 Versa

ECM
EC-457
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
TERMI-
NAL NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
1L Throttle control motor
(Open) [Ignition switch: ON]
• Engine stopped
• Selector lever position
: D (A/T), 1st (M/T)
• Accelerator pedal: Fully depressed Approximately 3.2 V
2SB Throttle contro
l motor power
supply [Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14 V)
3 G A/F sensor 1 heater [Engine is running]
•
Warm-up condition
• Idle speed (More than 140 seconds after starting en-
gine) Approximately 2.9 - 8.8 V
4 P Throttle contro l motor (Close)[Ignition switch: ON]
• Engine stopped
• Selector lever position
: D (A/T), 1st (M/T)
• Accelerator pedal: Fully released 0 - 14 V
5G Heated oxygen sensor 2
heater [Engine is running]
• Engine speed: Below 3,600 rpm after the
following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500
and 4,000 rpm for 1 minute and at idle for 1
minute under no load. Approximately 10 V
[Ignition switch: ON]
• Engine stopped
[Engine is running]
• Engine speed: Above 3,600 rpm. BATTERY VOLTAGE
(11 - 14 V)
PBIA8150J
PBIA8148J
PBIA8149J
PBIA8148J
Revision: January 20102010 Versa

EC-458
< ECU DIAGNOSIS >[HR16DE]
ECM
9PEVAP canister purge volume
control solenoid valve [Engine is running]
• Idle speed
• Accelerator pedal: Not depressed even
slightly, after engine starting. BATTERY VOLTAGE
(11 - 14 V)
[Engine is running]
• Engine speed: About 2,000 rpm (More than 100 seconds after starting engine) BATTERY VOLTAGE
(11 - 14 V)
10 11 B
B
ECM ground
[Engine is running]
• Idle speed Body ground
15 Y Throttle control motor relay [Ignition switch: OFF]
BATTERY VOLTAGE
(11 - 14 V)
[Ignition switch: ON] 0 - 1.0 V
17
18
21
22 R
LG
G
SB Ignition signal No. 1
Ignition signal No. 2
Ignition signal No. 4
Ignition signal No. 3 [Engine is running]
•
Warm-up condition
• Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle. 0 - 0.3 V
[Engine is running]
• Warm-up condition
• Engine speed: 2,500 rpm. 0.2 - 0.5 V
23 GR Fuel pump relay [Ignition switch: ON]
• For 1 second after turning ignition switch
ON
[Engine is running] 0 - 1.0 V
[Ignition switch: ON]
• More than 1 second after turning ignition switch ON BATTERY VOLTAGE
(11 - 14 V)
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)PBIB0050E
PBIB0520E
PBIA9265J
PBIA9266J
Revision: January 20102010 Versa

ECM
EC-459
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
25
29
30
31
V
Y
O
L Fuel injector No. 4
Fuel injector No. 3
Fuel injector No. 2
Fuel injector No. 1 [Engine is running]
•
Warm-up condition
• Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle. BATTERY VOLTAGE
(11 - 14 V)
[Engine is running]
• Warm-up condition
• Engine speed: 2,000 rpm BATTERY VOLTAGE
(11 - 14 V)
28 W EVAP canister vent control
valve [Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14 V)
32 P ECM relay
(Self shut-off) [Engine is running]
[Ignition switch: OFF]
• For a few seconds after turning ignition
switch OFF 0 - 1.0 V
[Ignition switch: OFF]
• More than a few seconds after turning igni- tion switch OFF BATTERY VOLTAGE
(11 - 14 V)
33 LG Throttle position sensor 1 [Ignition switch: ON]
• Engine stopped
• Selector lever position
: D (A/T), 1st (M/T)
• Accelerator pedal: Fully released More than 0.36 V
[Ignition switch: ON]
• Engine stopped
• Selector lever position : D (A/T), 1st (M/T)
• Accelerator pedal: Fully depressed Less than 4.75 V
34 O Throttle position sensor 2 [Ignition switch: ON]
• Engine stopped
• Selector lever position
: D (A/T), 1st (M/T)
• Accelerator pedal: Fully released Less than 4.75 V
[Ignition switch: ON]
• Engine stopped
• Selector lever position : D (A/T), 1st (M/T)
• Accelerator pedal: Fully depressed More than 0.36 V
36 Y Sensor ground
(Throttle position sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
37 W Knock sensor [Engine is running]
• Idle speed
Approximately 2.5 V
38 P Engine coolant temperature
sensor
[Engine is running] Approximately 0 - 4.8 V
Output voltage varies with en-
gine coolant temperature.
40 — Sensor ground
(Knock sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)PBIB0529E
PBIA4943J
Revision: January 20102010 Versa

EC-460
< ECU DIAGNOSIS >[HR16DE]
ECM
41 GR Refrigerant pressure sensor[Engine is running]
•
Warm-up condition
• Both A/C switch and blower fan switch: ON
(Compressor operates.) 1.0 - 4.0 V
42 V EVAP control system pres-
sure sensor [Ignition switch: ON]
Approximately 1.8 - 4.8 V
43 P Fuel tank temperature sen-
sor [Engine is running] Approximately 0 - 4.8 V
Output voltage varies with fuel
tank temperature
44 B Sensor ground
(Engine coolant temperature
sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
45 G Mass air flow sensor [Engine is running]
•
Warm-up condition
• Idle speed 0.9 - 1.3 V
[Engine is running]
• Warm-up condition
• Engine speed: 2,500 rpm 1.4 - 1.9 V
46 V Intake air temperature
sensor
[Engine is running] Approximately 0 - 4.8 V
Output voltage varies with intake
air temperature.
48 BR Sensor ground
(Refrigerant pressure sen-
sor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
49 W A/F sensor 1 [Engine is running]
•
Warm-up condition
• Engine speed: 2,000 rpm Approximately 1.8 V
Output voltage varies with air fuel
ratio.
50 W Heated oxygen sensor 2 [Engine is running]
• Revving engine from idle to 3,000 rpm
quickly after the following conditions are
met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at idle for 1
minute under no load. 0 - 1.0 V
51 O Sensor ground
(EVAP control system pres-
sure sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
52 LG Sensor ground
(Mass air flow sensor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
53 B A/F sensor 1 [Ignition switch: ON]Approximately 2.2 V
55 O Sensor ground
(Intake air temperature sen-
sor) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
59 O Sensor ground
(He
a

ted oxygen sensor 2) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
Revision: January 20102010 Versa

ECM
EC-461
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
61 W
Crankshaft position sensor
(POS) [Engine is running]
•
Warm-up condition
• Idle speed
NOTE:
The pulse cycle changes depending on rpm
at idle. Approximately 4.0 V
[Engine is running]
• Engine speed: 2,000 rpm Approximately 4.0 V
62 R Sensor ground
[Crankshaft position sensor
(POS)] [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
63 BR Sensor ground
[Camshaft position sensor
(PHASE)] [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
65 G Camshaft position sensor
(PHASE) [Engine is running]
•
Warm-up condition
• Idle speed NOTE:
The pulse cycle changes depending on rpm
at idle. Approximately 3.6
[Engine is running]
• Engine speed: 2,000 rpm. Approximately 3.6 V
69 L PNP signal [Ignition switch: ON]
• Selector lever position:
P or N (A/T), Neutral
(M/T) BATTERY VOLTAGE
(11 - 14 V)
[Ignition switch: ON]
• Except above Approximately 0 V
72 V Sensor power supply
(Throttle position sensor) [Ignition switch: ON]
Approximately 5 V
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)JMBIA2185GB
JMBIA2186GB
JMBIA2183GB
JMBIA2184GB
Revision: January 20102010 Versa

EC-462
< ECU DIAGNOSIS >[HR16DE]
ECM
73 PIntake valve timing control
solenoid valve [Engine is running]
•
Warm-up condition
• Idle speed BATTERY VOLTAGE
(11 - 14 V)
[Engine is running]
• Warm-up condition
• When revving engine up to 2,000 rpm quick- ly 7 - 10 V
74 W Sensor power supply
(Refrigerant pressure
sensor)
[Ignition switch: ON]
Approximately 5 V
75 BR Sensor power supply
[Crankshaft position sensor
(POS)] [Ignition switch: ON]
Approximately 5 V
76 W EVAP control system pres-
sure sensor power supply [Ignition switch: ON]
Approximately 5 V
78 O Sensor power supply
[Camshaft position sensor
(PHASE)] [Ignition switch: ON]
Approximately 5 V
83 P CAN communication line — —
84 L CAN communication line — —
88 LG DATA link connector — —
93 O Ignition switch [Ignition switch: OFF]
0V
[Ignition switch: ON] BATTERY VOLTAGE
(11 - 14 V)
99 R Stop lamp switch [Ignition switch: OFF]
• Brake pedal: Fully released
Approximately 0 V
[Ignition switch: OFF]
• Brake pedal: Slightly depressed BATTERY VOLTAGE
(11 - 14 V)
102 SB Sensor power supply
(Accelerator pedal position
sensor 2)
[Ignition switch: ON]
Approximately 5 V
103 GR Accelerator pedal position
sensor 2 [Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully released
0.3 - 0.6 V
[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully depressed 1.95 - 2.4 V
104 Y Sensor ground
(Accelerator pedal position
sensor 2) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
105 G Power supply for ECM [Ignition switch: ON]BATTERY VOLTAGE
(11 - 14 V)
106 P Sensor power supply
(Accelerator pedal position
sensor 1)
[Ignition switch: ON]
Approximately 5 V
108 B ECM ground [Engine is running]
• Idle speed
Body ground
TERMI-
NAL
NO. WIRE
COLOR ITEM
CONDITION DATA (DC Voltage)
PBIA4937J
Revision: January 20102010 Versa

ECM
EC-463
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) 11 0 G
Accelerator pedal position
sensor 1 [Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully released
0.6 - 0.9 V
[Ignition switch: ON]
• Engine stopped
• Accelerator pedal: Fully depressed 3.9 - 4.7 V
111 R Sensor ground
(Accelerator pedal position
sensor 1) [Engine is running]
•
Warm-up condition
• Idle speed Approximately 0 V
TERMI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
Revision: January 20102010 Versa

EC-464
< ECU DIAGNOSIS >[HR16DE]
ECM

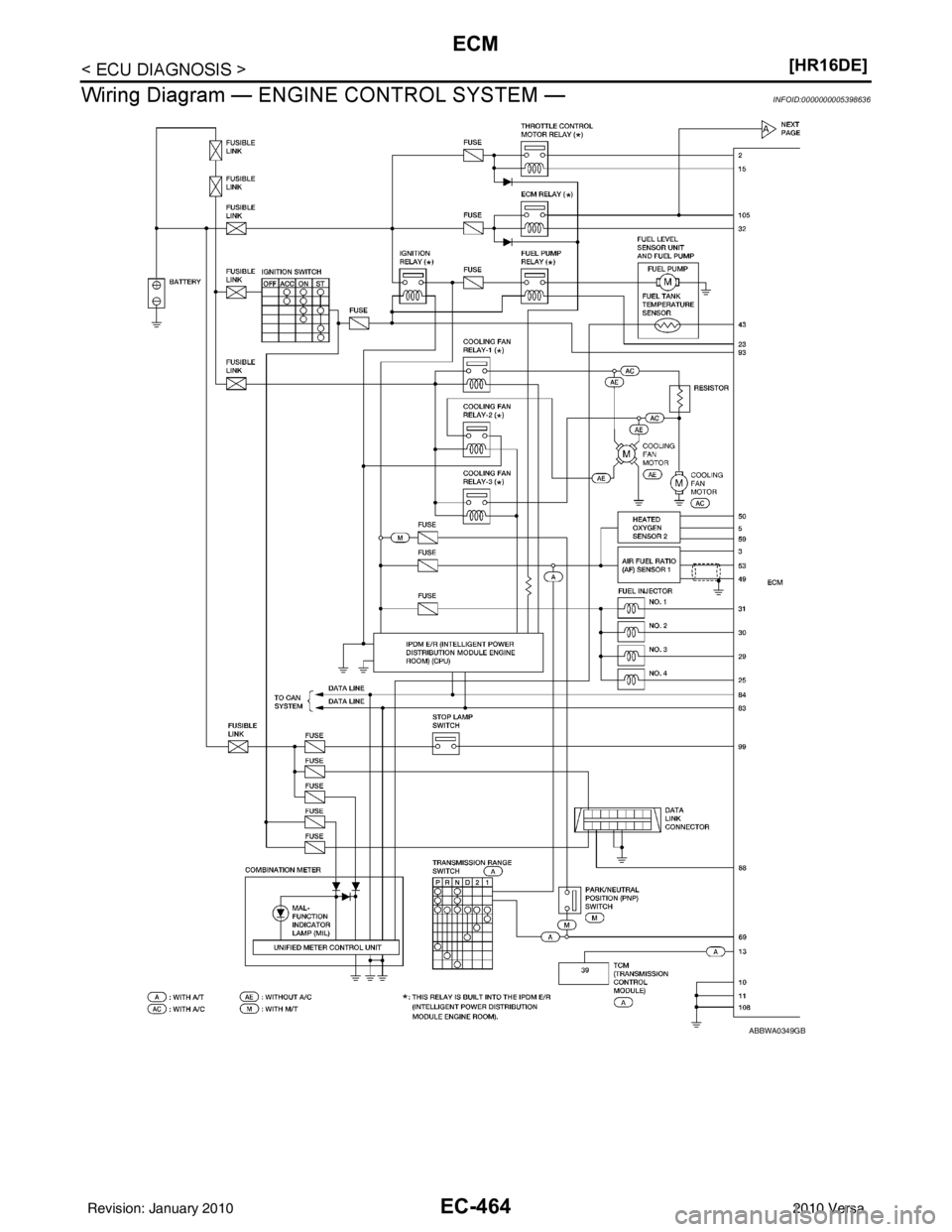

Wiring Diagram — ENGINE CONTROL SYSTEM —
INFOID:0000000005398636
ABBWA0349GB
Revision: January 20102010 Versa

ECM
EC-465
< ECU DIAGNOSIS > [HR16DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Fail SafeINFOID:0000000005398637
NON DTC RELATED ITEM
AABWA0306GB
Revision: January 20102010 Versa
