NISSAN LATIO 2010 Service Repair Manual

EC-506
< SERVICE INFORMATION >[MR18DE]
INDEX FOR DTC
*3: In Diagnostic Test
Mode II (Self-diagnostic results), this number is controlled by NISSAN.
P0705-P0734INFOID:0000000005532368
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012/ISO 15031-6.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
*3: When erasing this DTC, al ways use CONSULT-III or GST.
P0740-P0840INFOID:0000000005532369
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012/ISO 15031-6.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
DTC*1
Items
(CONSULT-III screen terms) Reference
CONSULT-III
GST*
2ECM*3
P0705 0705 T/M RANGE SENSOR A AT- 9 0 (A/T)
CVT-62
(CVT)
P0710 0710
FLUID TEMP SENSOR A*
4AT- 9 5 (A/T)
CVT-67
(CVT)
P0715 0715 INPUT SPEED SENSOR AC CVT-72
P07200720 OUTPUT SPEED SENSOR AT- 1 0 0 (A/T)
CVT-76
(CVT)
P0725 0725 ENGINE SPEED AT- 1 0 5
P07310731
1GR INCORRECT RATIO*4AT- 1 0 9
P0732 0732
2GR INCORRECT RATIO*4AT- 11 2
P0733 0733
3GR INCORRECT RATIO*4AT- 11 5
P0734 0734
4GR INCORRECT RATIO*4AT- 11 8
DTC*1
Items
(CONSULT-III screen terms) Reference
CONSULT-III
GST*
2ECM*3
P0740 0740 TORQUE CONVERTERC AT- 1 2 3 (A/T)
CVT-84
(CVT)
P0744 0744 TORQUE CONVERTER AT- 1 2 8
(A/T)
CVT-89
(CVT)
P0745 0745 PC SOLENOID A AT- 1 3 3
(A/T)
CVT-91
(CVT)
P0746 0746 PC SOLENOID A CVT-96
P07500750 SHIFT SOLENOID A AT- 1 3 8
P07550755 SHIFT SOLENOID B AT- 1 4 3
P07760776 PC SOLENOID B CVT-98
P07780778 PC SOLENOID B CVT-100
P08400840 FLUID PRESS SEN/SW A CVT-105
Revision: January 20102010 Versa

INDEX FOR DTCEC-507
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
P0850-P1574INFOID:0000000005532370
*1: 1st trip DTC No. is
the same as DTC No.
*2: This number is prescri bed by SAE J2012/ISO 15031-6.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
P1610-P1615INFOID:0000000005532371
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescri bed by SAE J2012/ISO 15031-6.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
P1715-P1805INFOID:0000000005532372
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescri bed by SAE J2012/ISO 15031-6.
DTC*1
Items
(CONSULT-III screen terms) Reference
CONSULT-III
GST*
2ECM*3
P0850 0850 P-N POS SW/CIRCUIT EC-901
P11481148 CLOSED LOOP-B1 EC-907
P12111211 TCS C/U FUNCTN EC-908
P12121212 TCS/CIRC EC-909
P12171217 ENG OVER TEMP EC-910
P12251225 CTP LEARNING-B1 EC-919
P12261226 CTP LEARNING-B1 EC-921
P14211421 COLD START CONTROL EC-923
P15641564 ASCD SW EC-925
P15721572 ASCD BRAKE SW EC-931
P15741574 ASCD VHL SPD SEN EC-940
DTC*1
Items
(CONSULT-III screen terms) Reference
CONSULT-III
GST*
2ECM*3
P1610 1610 LOCK MODE BL-259
P16111611 ID DISCORD,IMMU-ECM BL-259
P16121612 CHAIN OF ECM-IMMU BL-259
P16141614 CHAIN OF IMMU-KEY BL-259
P16151615 DIFFERENCE OF KEY BL-259
DTC*1
Items
(CONSULT-III screen terms) Reference
CONSULT-III
GST*
2ECM*3
P1715 1715 IN PULY SPEED EC-942 (A/T)
EC-942
(CVT)
P1740 1740 SLCT SOLENOID CVT-124
P1760 1760 OVER CLUTCH SOLENOID AT- 1 4 8
P17771777 STEP MOTOR CVT-129
P17781778 STEP MOTOR CVT-133
P18051805 BRAKE SW/CIRCUIT EC-944
Revision: January 20102010 Versa

EC-508
< SERVICE INFORMATION >[MR18DE]
INDEX FOR DTC
*3: In Diagnostic Test
Mode II (Self-diagnostic results), this number is controlled by NISSAN.
P2100-P2A00INFOID:0000000005532373
*1: 1st trip DTC No. is the same as DTC No.
*2: This number is prescribed by SAE J2012/ISO 15031-6.
*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.
DTC*1
Items
(CONSULT-III screen terms) Reference
CONSULT-III
GST*
2ECM*3
P2100 2100 ETC MOT PWR-B1 EC-948
P21012101 ETC FNCTN/CIRC-B1 EC-952
P21032103 ETC MOT PWR EC-948
P 2 11 82 11 8 E T C M O T- B 1 EC-958
P 2 11 92 11 9 E T C A C T R - B 1 EC-963
P21222122 APP SEN 1/CIRC EC-965
P21232123 APP SEN 1/CIRC EC-965
P21272127 APP SEN 2/CIRC EC-970
P21282128 APP SEN 2/CIRC EC-970
P21352135 TP SENSOR-B1 EC-977
P21382138 APP SENSOR EC-982
P2A002A00 A/F SENSOR1 (B1) EC-989
Revision: January 20102010 Versa

PRECAUTIONSEC-509
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
PRECAUTIONS
Precaution for Supplemental
Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000006046363
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the battery, and wait at least 3 minutes before performing any service.
Precaution Necessary for Steering Wheel Rotation After Battery Disconnect
INFOID:0000000006046364
NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-
TEM).
• Remove and install all control units after disconnecti ng both battery cables with the ignition knob in the
″ LOCK ″ position.
• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS , an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK ″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
Revision: January 20102010 Versa

EC-510
< SERVICE INFORMATION >[MR18DE]
PRECAUTIONS
6. Perform a self-diagnosis check of a
ll control units using CONSULT-III.
Precaution for Procedure without Cowl Top CoverINFOID:0000000005532375
When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.
On Board Diagnosis (OBD) System of Engine and A/T, CVTINFOID:0000000005532376
The ECM has an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to warn the
driver of a malfunction causing emission deterioration.
CAUTION:
• Be sure to turn the ignition sw itch OFF and disconnect the battery ground cable before any repair or
inspection work. The open/short circuit of related sw itches, sensors, solenoid valves, etc. will cause
the MIL to light up.
• Be sure to connect and lock the connectors secure ly after work. A loose (unlocked) connector will
cause the MIL to light up due to the open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)
• Certain systems and components, especially those related to OBD, may use a new style slide-lock- ing type harness connector. For descrip tion and how to disconnect, refer to PG-66
.
• Be sure to route and secure the harnesses properly after work. The interference of the harness with
a bracket, etc. may cause the MIL to li ght up due to the short circuit.
• Be sure to connect rubber tubes properly afte r work. A misconnected or disconnected rubber tube
may cause the MIL to light up due to the malfunction of the fuel injection system, etc.
• Be sure to erase the unnecessary malfunction info rmation (repairs completed) from the ECM and
TCM (Transmission control module) before returning the vehicle to the customer.
PrecautionINFOID:0000000005532377
•Always use a 12 volt battery as power source.
• Do not attempt to disconnect battery cables while engine is
running.
• Before connecting or disconnecting the ECM harness con-
nector, turn ignition switch OFF and disconnect negative bat-
tery cable. Failure to do so may damage the ECM because
battery voltage is applied to ECM even if ignition switch is
turned OFF.
• Before removing parts, turn ig nition switch OFF and then dis-
connect negative battery cable.
• Do not disassemble ECM.
• If battery cable is disconnected, the memory will return to the
initial ECM values.
The ECM will now start to self-c ontrol at its initial values.
Engine operation can vary slightly in this case. However, this
is not an indication of a malf unction. Do not replace parts
because of a slight variation.
• If the battery is disconnected, the following emission-related
diagnostic information will be lost within 24 hours.
- Diagnostic trouble codes
- 1st trip diagnostic trouble codes
PIIB3706J
SEF289H
PBIA9222J
Revision: January 20102010 Versa

PRECAUTIONSEC-511
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
-
Freeze frame data
- 1st trip freeze frame data
- System readiness test (SRT) codes
- Test values
• When connecting ECM harness connector, fasten (B) it
securely with a lever (1) as far as it will go as shown in the fig-
ure.
- ECM (2)
- Loosen (A)
• When connecting or disconnecting pin connectors into or
from ECM, take care not to damage pin terminals (bend or
break).
Make sure that there are not any bends or breaks on ECM pin
terminal, when connecting pin connectors.
• Securely connect ECM harness connectors.
A poor connection can cause an extremely high (surge) volt-
age to develop in coil and cond enser, thus resulting in dam-
age to ICs.
• Keep engine control system harness at least 10 cm (4 in) away
from adjacent harness, to prevent engine control system mal-
functions due to receiving externa l noise, degraded operation
of ICs, etc.
• Keep engine control system parts and harness dry.
• Before replacing ECM, perform “ECM Terminals and Refer-
ence Value” inspection and m ake sure ECM functions prop-
erly. Refer to EC-605, "
ECM Terminal and Reference Value".
• Handle mass air flow sensor carefully to avoid damage.
• Do not disassemble mass air flow sensor.
• Do not clean mass air flow senso r with any type of detergent.
• Do not disassemble electric th rottle control actuator.
• Even a slight leak in the air intake system can cause serious
incidents.
• Do not shock or jar the camsh aft position sensor (PHASE),
crankshaft position sensor (POS).
• After performing each TROUBLE DIAGNOSIS, perform DTC
Confirmation Procedure or Overall Function Check.
The DTC should not be displ ayed in the DTC Confirmation
Procedure if the repair is completed. The Overall Function
Check should be a good result if the repair is completed.
PBIB2947E
PBIB0090E
MEF040D
SEF217U
Revision: January 20102010 Versa

EC-512
< SERVICE INFORMATION >[MR18DE]
PRECAUTIONS
•
When measuring ECM signals with a circuit tester, never allow
the two tester probes to contact.
Accidental contact of probes will cause a short circuit and
damage the ECM power transistor.
• Do not operate fuel pump when there is no fuel in lines.
• Tighten fuel hose clamps to the specified torque.
- Fuel level sensor unit and fuel pump (1)
- Fuel pressure regulator (2)
- Fuel level sensor (3)
- Fuel tank temperature sensor (4)
• Do not depress accelerator pedal when starting.
• Immediately after starting, do not rev up engine unnecessar-
ily.
• Do not rev up engine just prior to shutdown.
SEF348N
BBIA0704E
SEF709Y
Revision: January 20102010 Versa

PRECAUTIONSEC-513
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
•
When installing C.B. ham radio or a mobile phone, be sure to
observe the following as it may adversely affect electronic
control systems depending on installation location.
- Keep the antenna as far as possible from the electronic con-
trol units.
- Keep the antenna feeder line more than 20 cm (8 in) away
from the harness of electronic controls.
Do not let them run para llel for a long distance.
- Adjust the antenna and feeder line so that the standing-wave
radio can be kept smaller.
- Be sure to ground the radio to vehicle body.
SEF708Y
Revision: January 20102010 Versa

EC-514
< SERVICE INFORMATION >[MR18DE]
PREPARATION
PREPARATION
Special Service ToolINFOID:0000000005532378
The actual shapes of Kent
-Moore tools may differ from those of special service tools illustrated here.
Commercial Service ToolINFOID:0000000005532379
Tool number
(Kent-Moore No.)
Tool name Description
(J-44321)
Fuel pressure gauge
Kit Checking fuel pressure
(J-44321-6)
Fuel pressure adapter Connecting fuel pressure gauge to quick connec-
tor type fuel lines.
KV10118400
Fuel tube adapter Measuring fuel pressure
LEC642
LBIA0376E
PBIB3043E
Tool number
(Kent-Moore No.)
Tool name Description
Leak detector
i.e.: (J-41416) Locating the EVAP leak
EVAP service port
adapter
i.e.: (J-41413-OBD) Applying positive pressure through EVAP service
port
S-NT703
S-NT704
Revision: January 20102010 Versa

PREPARATIONEC-515
< SERVICE INFORMATION > [MR18DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

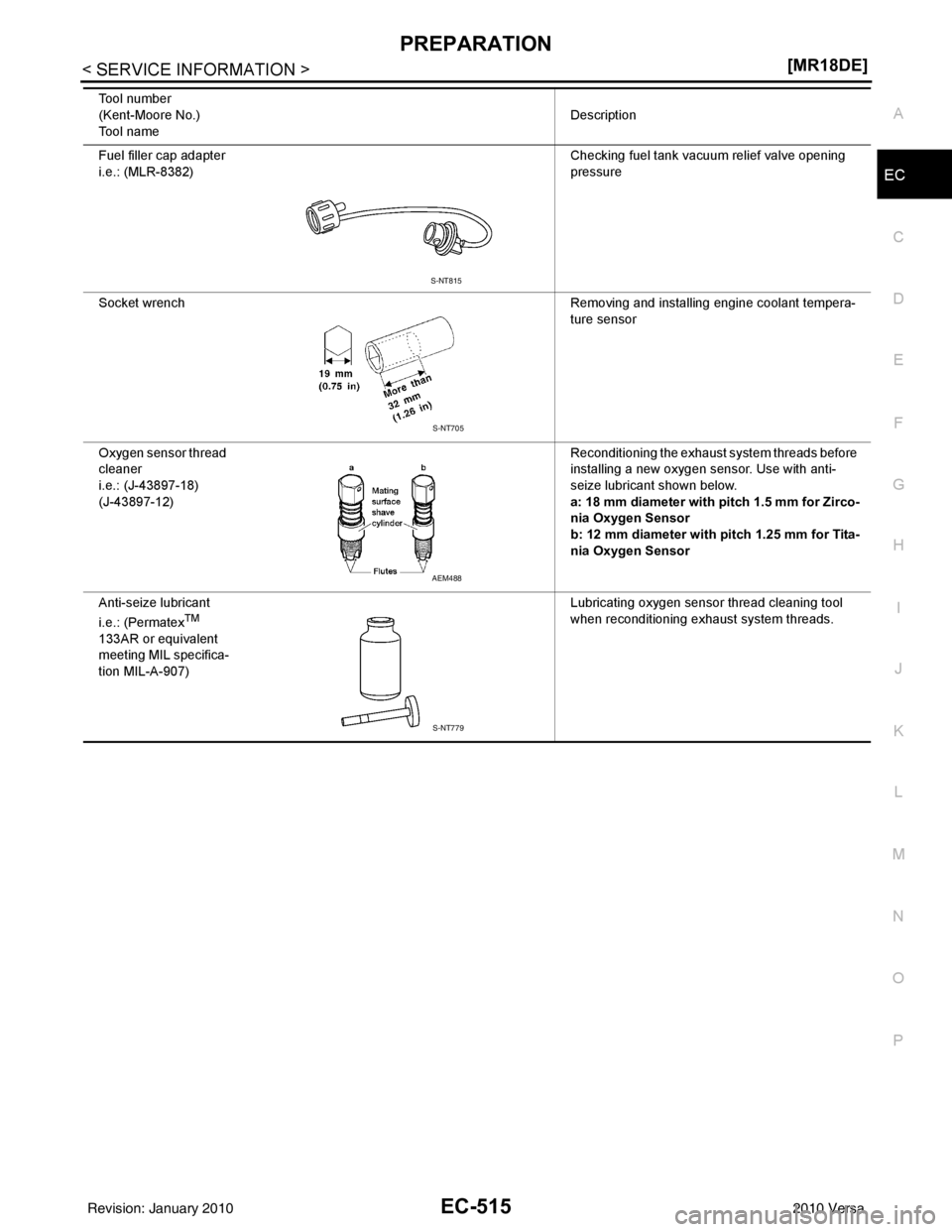

Fuel filler cap adapter
i.e.: (MLR-8382)
Checking fuel tank vacuum relief valve opening
pressure
Socket wrench Removing and installing engine coolant tempera-
ture sensor
Oxygen sensor thread
cleaner
i.e.: (J-43897-18)
(J-43897-12) Reconditioning the exhaust system threads before
installing a new oxygen sensor. Use with anti-
seize lubricant shown below.
a: 18 mm diameter with pitch 1.5 mm for Zirco-
nia Oxygen Sensor
b: 12 mm diameter with pitch 1.25 mm for Tita-
nia Oxygen Sensor
Anti-seize lubricant
i.e.: (Permatex
TM
133AR or equivalent
meeting MIL specifica-
tion MIL-A-907) Lubricating oxygen sensor thread cleaning tool
when reconditioning exhaust system threads.
Tool number
(Kent-Moore No.)
Tool name
Description
S-NT815
S-NT705
AEM488
S-NT779
Revision: January 20102010 Versa
