CONTENTS
AUDIO, VISUAL, NAVIGATION & TELEPHONE SYS- TEM
AUDIO WITHOUT NAVIGATION
SERVICE INFORMATION .. ..........................
3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ......
3
PREPARATION ...................................................5
Commercial Service Tool .................................... ......5
AUDIO .................................................................6
Component Parts Location .................................. ......6
System Description ...................................................6
Schematic .................................................................8
Wiring Diagram - AUDIO - .........................................9
Audio Unit (Base System) Harness Connector
Terminal Layout ......................................................
15
Terminal and Reference Value for Audio Unit
(Base System) .........................................................
15
Audio Unit (Premium System) Harness Connector
Terminal Layout ......................................................
16
Terminal and Reference Value for Audio Unit
(Premium System) ..................................................
16
IPod Adapter Harness Connector Terminal Layout
....
18
Terminal and Reference Value for IPod Adapter ....19
Trouble Diagnosis ...................................................20
Noise Inspection ......................................................21
Power Supply Circuit Inspection .............................22
Steering Switch Check (With Bluetooth) .................22
Sound Is Not Heard from Front Door Speaker
(Base System) .........................................................
24
Sound Is Not Heard from Rear Door Speaker
(Base System) .........................................................
25
Sound Is Not Heard from Front Door Speaker or
Tweeter (Premium System) ....................................
26
Sound Is Not Heard from Rear Door Speaker
(Premium System) ............................................... ....
27
Removal and Installation .........................................29
iPod® CONNECTOR ........................................31
Removal and Installation .........................................31
iPod® ADAPTER ..............................................32
Removal and Installation .........................................32
AUDIO ANTENNA .............................................33
Location of Antenna ............................................. ....33
Removal and Installation of Roof Antenna ..............33
TELEPHONE .....................................................35
Component Parts and Harness Connector Loca-
tion ...........................................................................
35
System Description ..................................................35
Wiring Diagram - H/PHON - ....................................37
Bluetooth Control Unit Harness Connector Termi-
nal Layout ............................................................ ....
39
Terminal and Reference Value for Bluetooth Con-
trol Unit ....................................................................
39
Bluetooth Control Unit Self-Diagnosis Function ......41
Workflow .............................................................. ....41
Power Supply and Ground Circuit Inspection for
Bluetooth Control Unit .............................................
42
Steering Wheel Audio Co ntrol Switch Does Not
Operate ................................................................ ....
43
Voice Activated Control Function Does Not Oper-
ate ........................................................................ ....
43
Removal and Installation .........................................46
AUDIO WITH NAVIGATION
SERVICE INFORMATION .. .........................
50
PRECAUTIONS .................................................50
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ....
50
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ...................................
50
Revision: May 2010 2011 Versa

AV-2
PREPARATION .............................................. ...52
Commercial Service Tool .................................... ...52
AUDIO ................................................................53
Component Parts Location .................................. ...53
System Description .................................................54
Schematic ...............................................................55
Wiring Diagram - AUDIO - ......................................56
AV Control Unit Harness Connector Terminal Lay-
out ...........................................................................
61
Terminal and Reference Value for AV Control Unit
...
61
On-Board Diagnosis ...............................................63
Noise Inspection .................................................. ...66
Symptom Chart .......................................................66
AV Control Unit Power and Ground Supply Circuit
Inspection ............................................................ ...
69
Steering Switch Check ...........................................69
Sound Is Not Heard from Front Door Speaker or
Front Tweeter .........................................................
70
Sound Is Not Heard from Rear Speaker .................72
Removal and Installation ..................................... ...73
NAVIGATION SYSTEM .................................. ...76
How to Proceed with Trouble Diagnosis .............. ...76
TELEPHONE .....................................................77
Component Parts and Harness Connector Loca-
tion ....................................................................... ...
77
System Description .................................................77
Wiring Diagram - H/PHON - ....................................79
Bluetooth Control Unit Harness Connector Termi-
nal Layout ...............................................................
81
Terminal and Reference Value for Bluetooth Con-
trol Unit ....................................................................
81
Bluetooth Control Unit Self-Diagnosis Function ......82
Workflow .................................................................83
Power Supply and Ground Circuit Inspection for
Bluetooth Control Unit .............................................
83
Steering Wheel Audio Control Switch Does Not
Operate ...................................................................
84
Voice Activated Control Function Does Not Oper-
ate ...........................................................................
84
Removal and Installation .........................................86
USB CONNECTOR AND AUX JACK ............ ...90
Removal and Installation .........................................90
AUDIO ANTENNA .......................................... ...91
Location of Antenna ............................................. ...91
Removal and Installation of Roof Antenna ..............91
GPS ANTENNA .................................................93
Location of Antenna ............................................. ...93
Removal and Installation of GPS Antenna ..............93
Revision: May 2010 2011 Versa

PRECAUTIONSAV-3
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
SERVICE INFORMATION
PRECAUTIONS
Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000006412032
The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the SRS and SB section of this Service Man-
ual.
WARNING:
• To avoid rendering the SRS inoper ative, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.
• Improper maintenance, including in correct removal and installation of the SRS can lead to personal
injury caused by unintentional act ivation of the system. For removal of Spiral Cable and Air Bag
Module, see the SRS section.
• Do not use electrical test equipm ent on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS
WARNING:
• When working near the Airbag Diagnosis Sensor Un it or other Airbag System sensors with the Igni-
tion ON or engine running, DO NOT use air or el ectric power tools or strike near the sensor(s) with a
hammer. Heavy vibration could activate the sensor( s) and deploy the air bag(s), possibly causing
serious injury.
• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the battery, and wait at least 3 minutes before performing any service.
Precaution Necessary for Steering Wheel Rotation After Battery Disconnect
INFOID:0000000006412033
NOTE:
• This Procedure is applied only to models with Intelligent Key system and NATS (NISSAN ANTI-THEFT SYS-
TEM).
• Remove and install all control units after disconnecti ng both battery cables with the ignition knob in the
″ LOCK ″ position.
• Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NATS , an electrically controlled steering lock mech-
anism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery power is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables. NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
Revision: May 2010 2011 Versa

AV-4
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
PRECAUTIONS
5. When the repair work is completed, return the ignition switch to the
″LOCK ″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of a ll control units using CONSULT-III.
Revision: May 2010 2011 Versa

PREPARATIONAV-5
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
PREPARATION
Commercial Service ToolINFOID:0000000005931273
Tool name Description
Power tool Loosening bolts and nuts
PBIC0191E
Revision: May 2010 2011 Versa

AV-6
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
AUDIO
AUDIO
Component Parts LocationINFOID:0000000006217254
iPod® is a trademark of Apple inc., registered in the U.S. and other countries.
System DescriptionINFOID:0000000005931275
BASE SYSTEM
Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times
• through 20A fuse (No. 27, located in the fuse and fusible link box)
1. Combination meter M24
2. Steering wheel audio control switch-
es (with Bluetooth) 3. iPod® adapter M49 (premium sys-
tem)
4. iPod® side M50 (premium system) 5. Audio unit M43 (base system) Audio unit M40, M43, M44 (premium
system)6. Front door speaker LH D12, RH
D112
7. Rear door speaker LH D207, RH D307 8. Front tweeter LH M46, RH M47 (pre-
mium system) (view with front pillar
garnish removed) 9. Bluetooth antenna (hatchback) [view
with luggage side lower finisher (RH)
removed]
10. Bluetooth control unit B121, B122 (hatchback) 11. Bluetooth antenna (sedan) (view
with trunk side finisher RH removed) 12. Bluetooth control unit B121, B122
(sedan)
AWNIA2088ZZ
Revision: May 2010 2011 Versa

AUDIOAV-7
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P
• to audio unit terminal 19.
With the ignition switch in the ACC or ON position, power is supplied
• through 10A fuse (No. 20, located in the fuse and fusible link box)
• to audio unit terminal 7.
Ground is supplied through the case of the audio unit.
Then audio signals are supplied
• through audio unit terminals 2, 3, 4, 5, 11, 12, 13 and 14
• to terminals + and - of front door speaker LH and RH and
• to terminals + and - of rear door speaker LH and RH.
PREMIUM SYSTEM
Refer to Owner's Manual for audio system operating instructions.
Power is supplied at all times
• through 20A fuse (No. 27, located in the fuse and fusible link box)
• to audio unit terminal 19.
With the ignition switch in the ACC or ON position, power is supplied
• through 10A fuse (No. 20, located in the fuse and fusible link box)
• to audio unit terminal 7.
Ground is supplied
• to audio unit terminals 20 and 61
• through body grounds M57 and M61.
Then audio signals are supplied
• through audio unit terminals 2, 3, 4, 5, 11, 12, 13, and 14
• to terminals + and - of front door speaker LH and RH and
• to terminals + and - of front tweeter LH and RH and
• to terminals + and - of rear door speaker LH and RH.
Steering Wheel Audio Contro l Switches (with Bluetooth)
When one of steering wheel audio control switches is pus hed, the resistance in steering switch circuit changes
depending on which button is pushed.
SPEED SENSITIVE VOLUME SYSTEM (PREMIUM SYSTEM)
Volume level of this system goes up and down automatica lly in proportion to the vehicle speed. The control
level can be selected by the customer. Refer to Owner's Manual for operating instructions.
Revision: May 2010 2011 Versa

AV-8
< SERVICE INFORMATION >[AUDIO WITHOUT NAVIGATION]
AUDIO
Schematic
INFOID:0000000005931276
PREMIUM SYSTEM
ABNWA0849GB
Revision: May 2010 2011 Versa

AUDIOAV-9
< SERVICE INFORMATION > [AUDIO WITHOUT NAVIGATION]
C
D
E
F
G H
I
J
L
M A
B
AV
N
O P

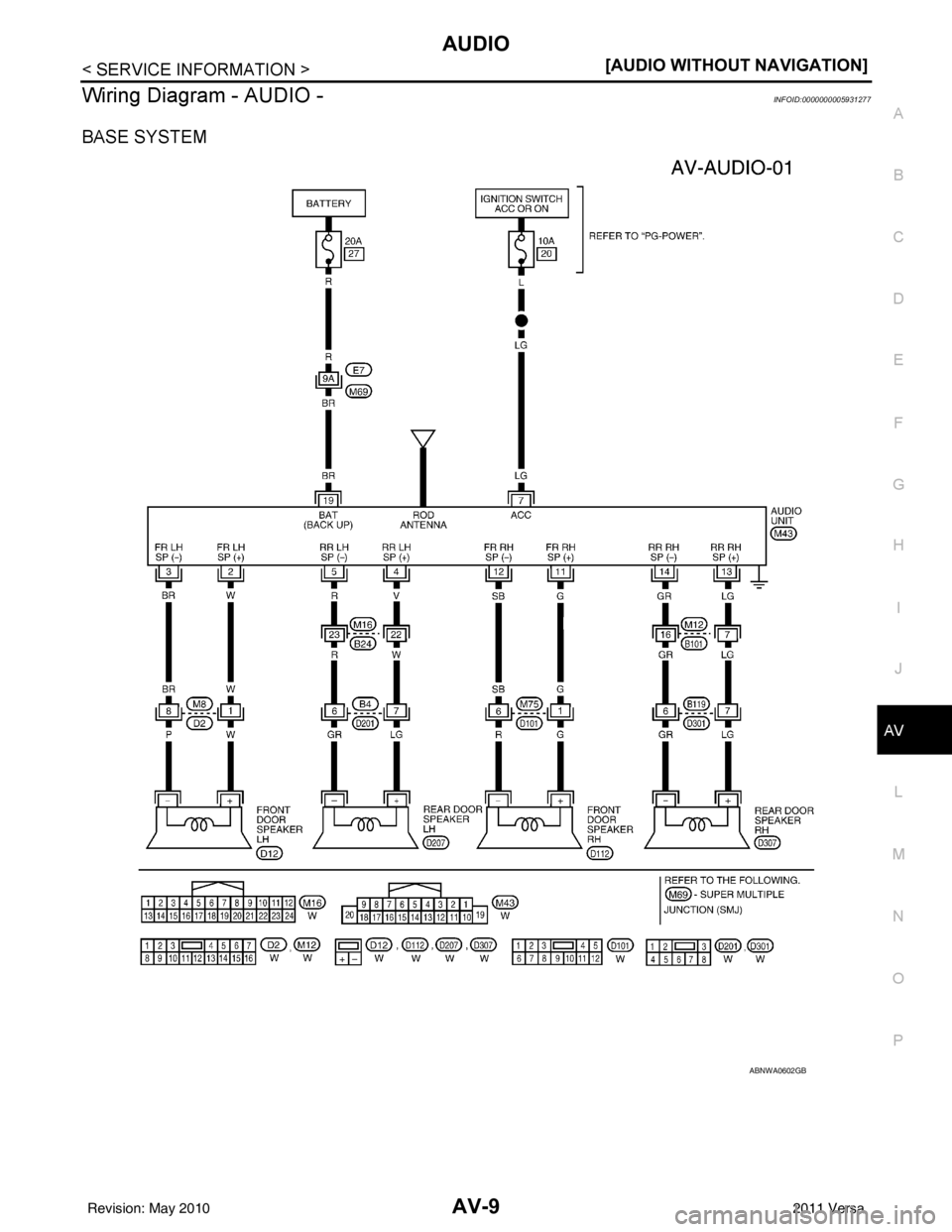

Wiring Diagram - AUDIO -INFOID:0000000005931277
BASE SYSTEM
ABNWA0602GB
Revision: May 2010 2011 Versa
