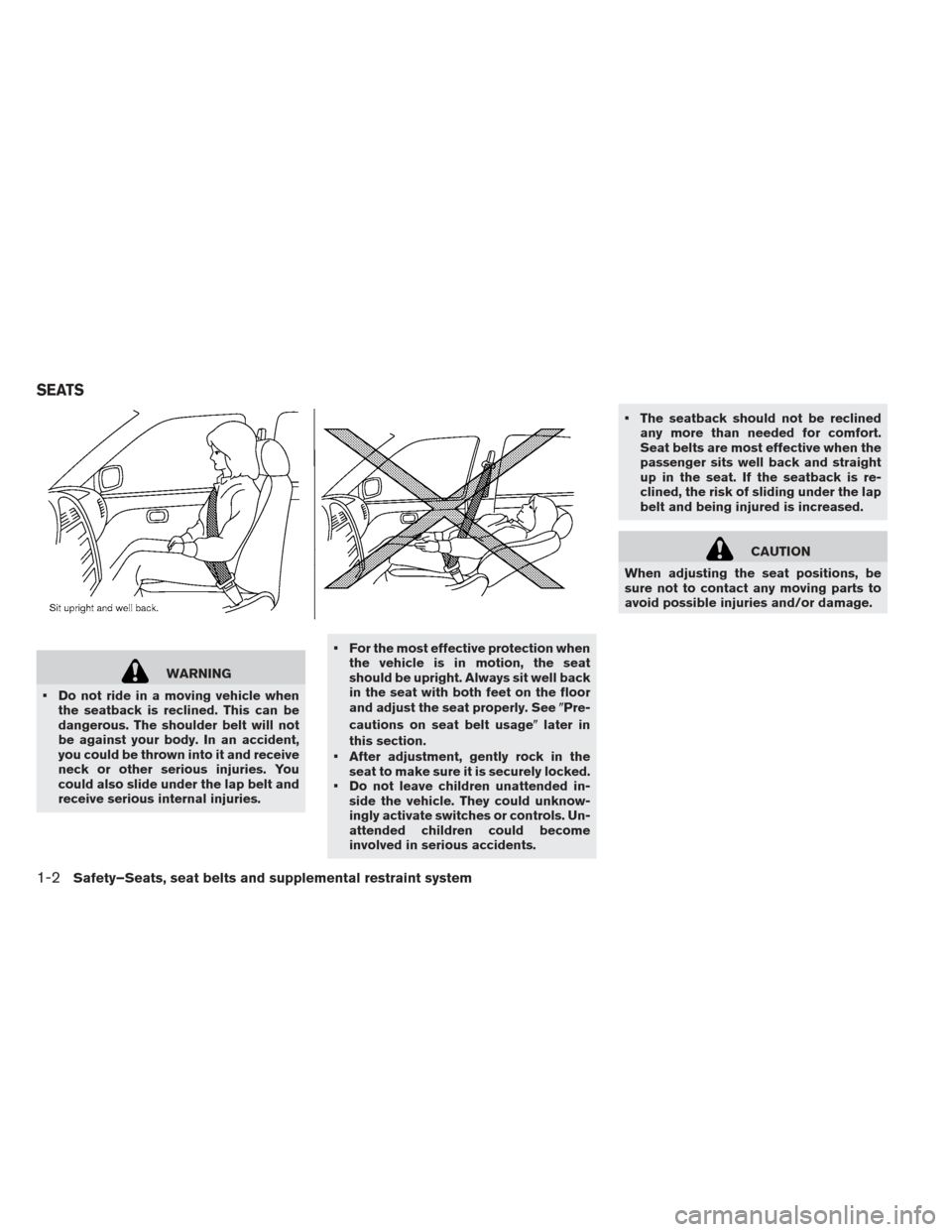

WARNING
Do not ride in a moving vehicle when the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries. For the most effective protection when
the vehicle is in motion, the seat
should be upright. Always sit well back
in the seat with both feet on the floor
and adjust the seat properly. See Pre-
cautions on seat belt usage later in
this section.
After adjustment, gently rock in the seat to make sure it is securely locked.
Do not leave children unattended in- side the vehicle. They could unknow-
ingly activate switches or controls. Un-
attended children could become
involved in serious accidents. The seatback should not be reclined
any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
SEATS
1-2Safety–Seats, seat belts and supplemental restraint system
Page 92 of 402

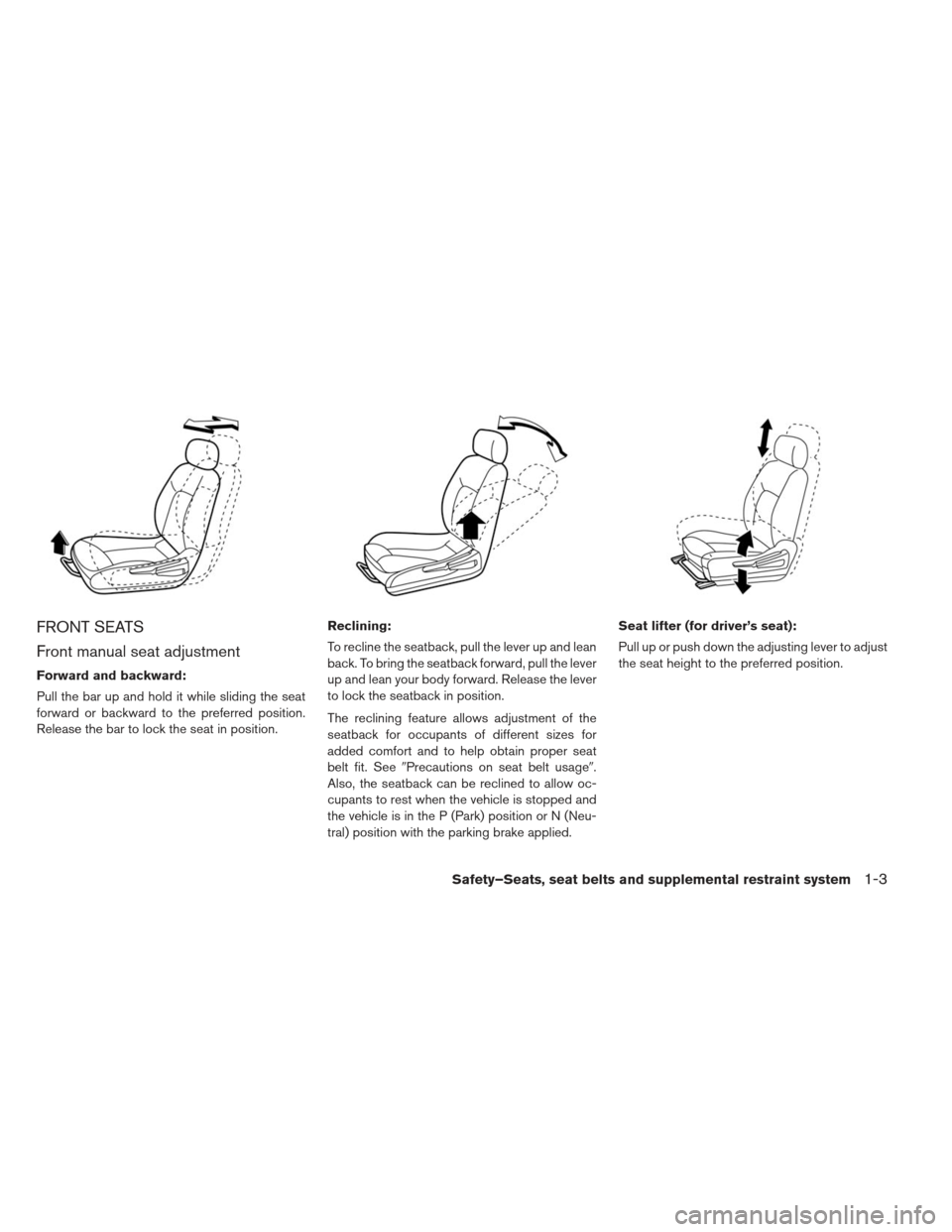

FRONT SEATS
Front manual seat adjustment
Forward and backward:
Pull the bar up and hold it while sliding the seat
forward or backward to the preferred position.
Release the bar to lock the seat in position.Reclining:
To recline the seatback, pull the lever up and lean
back. To bring the seatback forward, pull the lever
up and lean your body forward. Release the lever
to lock the seatback in position.
The reclining feature allows adjustment of the
seatback for occupants of different sizes for
added comfort and to help obtain proper seat
belt fit. See
Precautions on seat belt usage.
Also, the seatback can be reclined to allow oc-
cupants to rest when the vehicle is stopped and
the vehicle is in the P (Park) position or N (Neu-
tral) position with the parking brake applied. Seat lifter (for driver’s seat):
Pull up or push down the adjusting lever to adjust
the seat height to the preferred position.
Safety–Seats, seat belts and supplemental restraint system1-3
Page 93 of 402

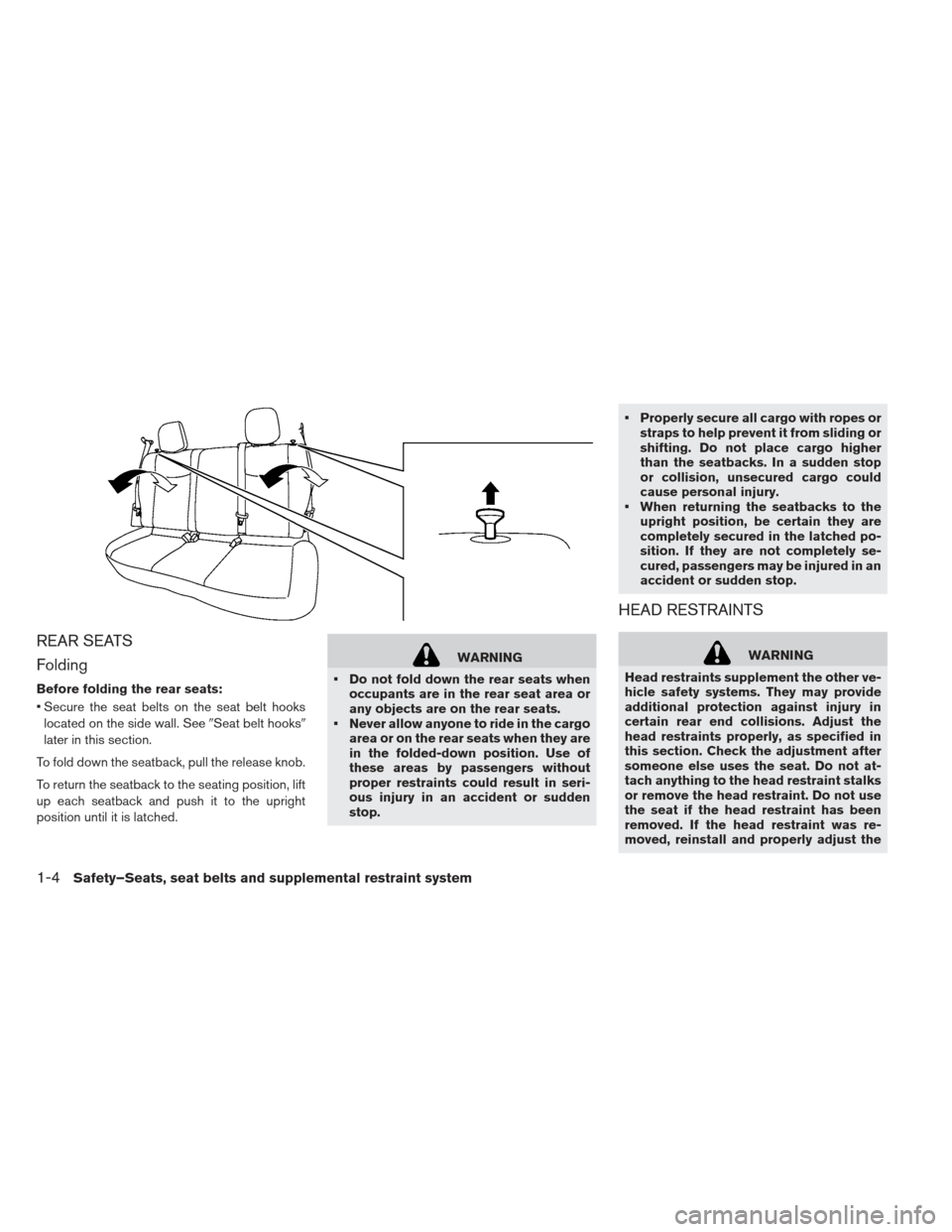

REAR SEATS
Folding
Before folding the rear seats:
Secure the seat belts on the seat belt hookslocated on the side wall. See Seat belt hooks
later in this section.
To fold down the seatback, pull the release knob.
To return the seatback to the seating position, lift
up each seatback and push it to the upright
position until it is latched.
WARNING
Do not fold down the rear seats when occupants are in the rear seat area or
any objects are on the rear seats.
Never allow anyone to ride in the cargo area or on the rear seats when they are
in the folded-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury in an accident or sudden
stop. Properly secure all cargo with ropes or
straps to help prevent it from sliding or
shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
When returning the seatbacks to the upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in an
accident or sudden stop.
HEAD RESTRAINTS
WARNING
Head restraints supplement the other ve-
hicle safety systems. They may provide
additional protection against injury in
certain rear end collisions. Adjust the
head restraints properly, as specified in
this section. Check the adjustment after
someone else uses the seat. Do not at-
tach anything to the head restraint stalks
or remove the head restraint. Do not use
the seat if the head restraint has been
removed. If the head restraint was re-
moved, reinstall and properly adjust the
1-4Safety–Seats, seat belts and supplemental restraint system
Page 94 of 402
head restraint before an occupant uses
the seating position. Failure to follow
these instructions can reduce the effec-
tiveness of the head restraints. This may
increase the risk of serious injury or

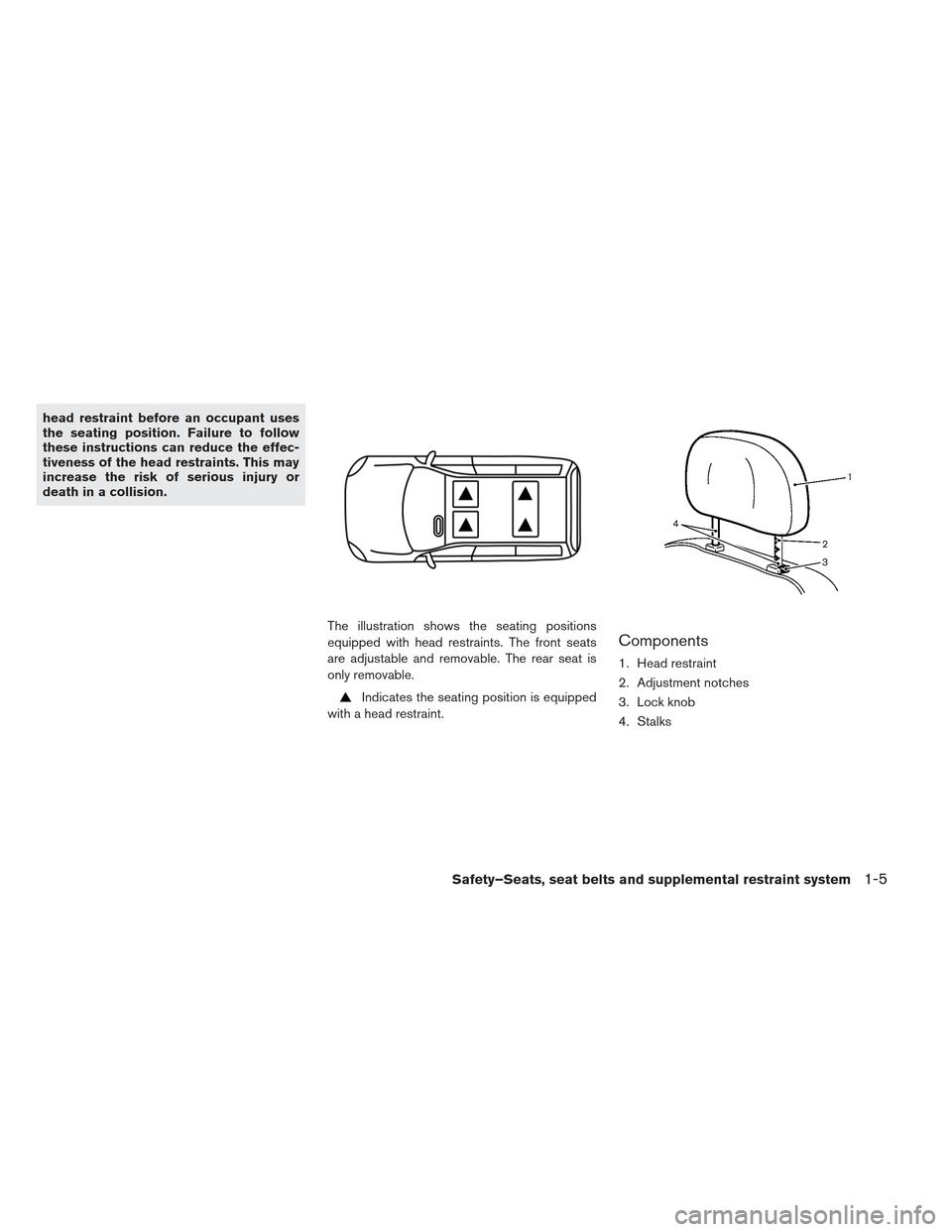

death in a collision.The illustration shows the seating positions
equipped with head restraints. The front seats
are adjustable and removable. The rear seat is
only removable.
Indicates the seating position is equipped
with a head restraint.
Components
1. Head restraint
2. Adjustment notches
3. Lock knob
4. Stalks
Safety–Seats, seat belts and supplemental restraint system1-5
Page 95 of 402

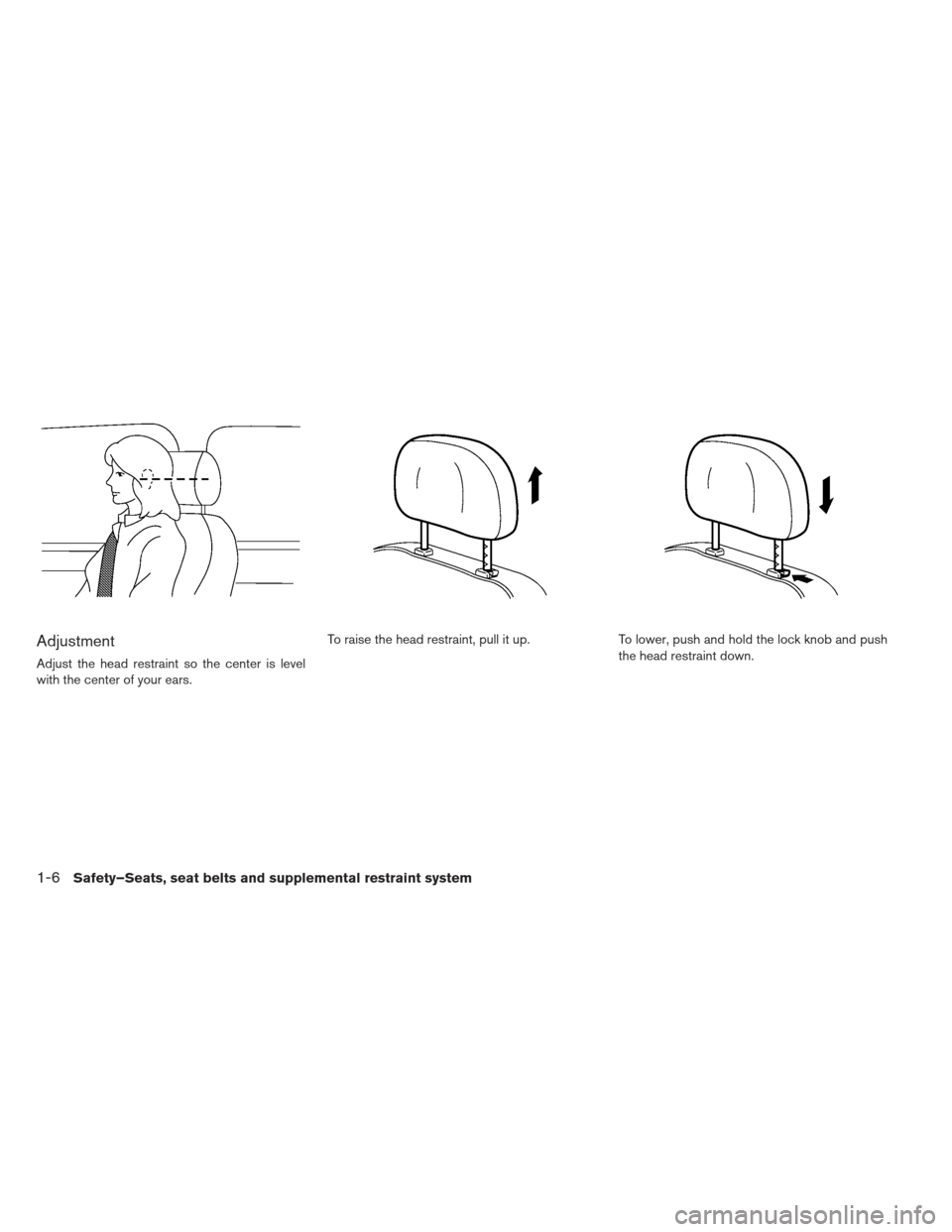

Adjustment
Adjust the head restraint so the center is level
with the center of your ears.To raise the head restraint, pull it up.
To lower, push and hold the lock knob and push
the head restraint down.
1-6Safety–Seats, seat belts and supplemental restraint system
Page 96 of 402

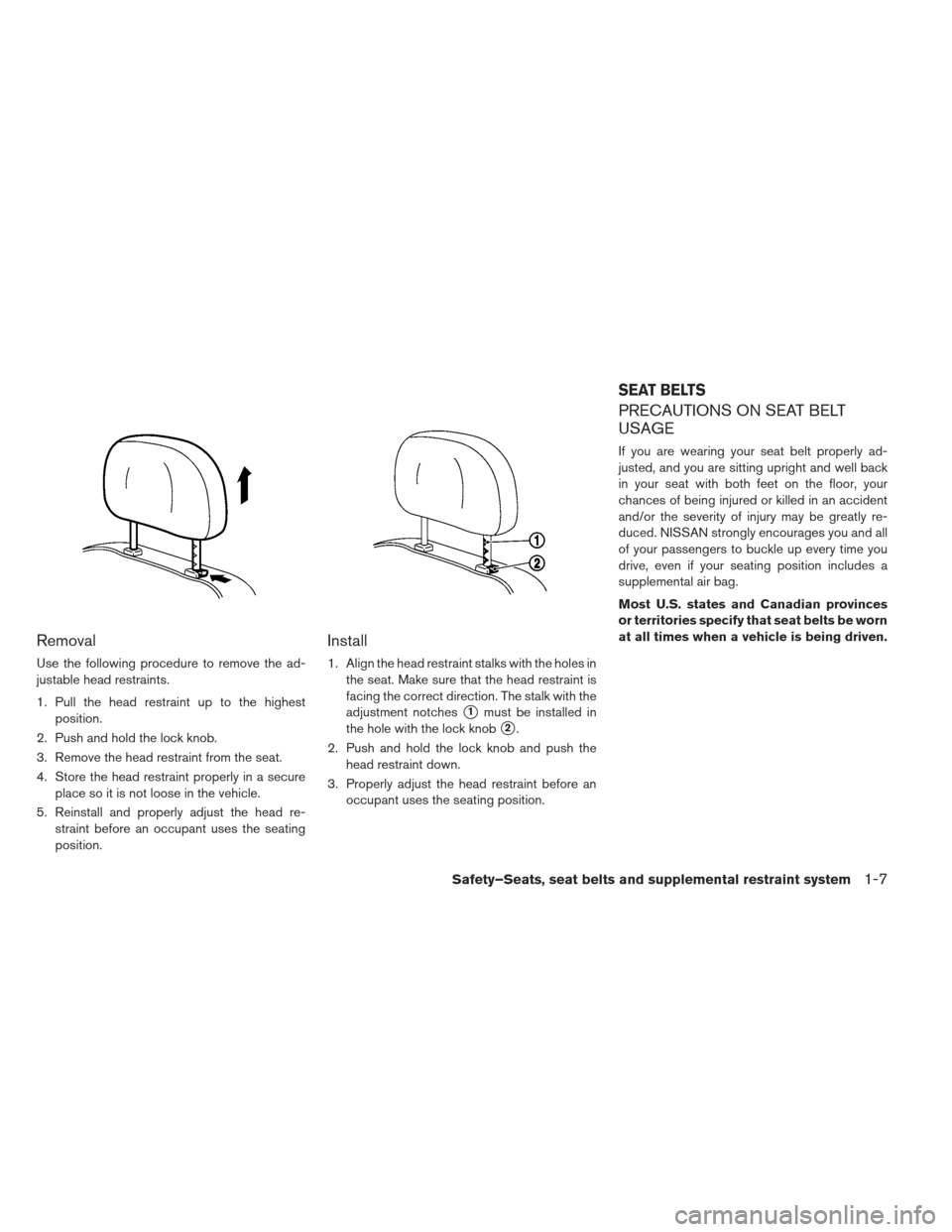

Removal
Use the following procedure to remove the ad-
justable head restraints.
1. Pull the head restraint up to the highestposition.
2. Push and hold the lock knob.
3. Remove the head restraint from the seat.
4. Store the head restraint properly in a secure place so it is not loose in the vehicle.
5. Reinstall and properly adjust the head re- straint before an occupant uses the seating
position.
Install
1. Align the head restraint stalks with the holes inthe seat. Make sure that the head restraint is
facing the correct direction. The stalk with the
adjustment notches
1must be installed in
the hole with the lock knob
2.
2. Push and hold the lock knob and push the head restraint down.
3. Properly adjust the head restraint before an occupant uses the seating position.
PRECAUTIONS ON SEAT BELT
USAGE
If you are wearing your seat belt properly ad-
justed, and you are sitting upright and well back
in your seat with both feet on the floor, your
chances of being injured or killed in an accident
and/or the severity of injury may be greatly re-
duced. NISSAN strongly encourages you and all
of your passengers to buckle up every time you
drive, even if your seating position includes a
supplemental air bag.
Most U.S. states and Canadian provinces
or territories specify that seat belts be worn
at all times when a vehicle is being driven.
SEAT BELTS
Safety–Seats, seat belts and supplemental restraint system1-7
Page 97 of 402

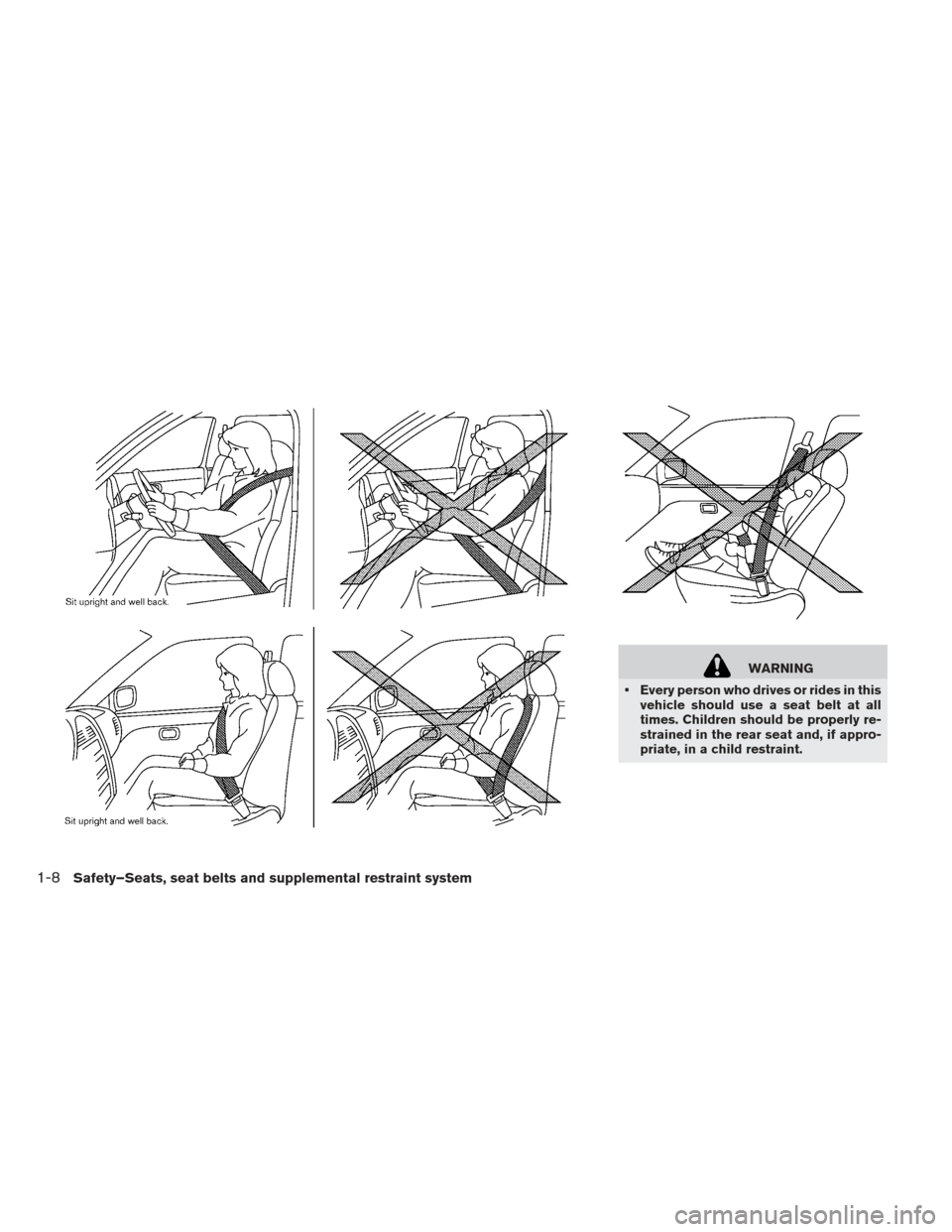

WARNING
Every person who drives or rides in this vehicle should use a seat belt at all
times. Children should be properly re-
strained in the rear seat and, if appro-
priate, in a child restraint.
1-8Safety–Seats, seat belts and supplemental restraint system
Page 98 of 402

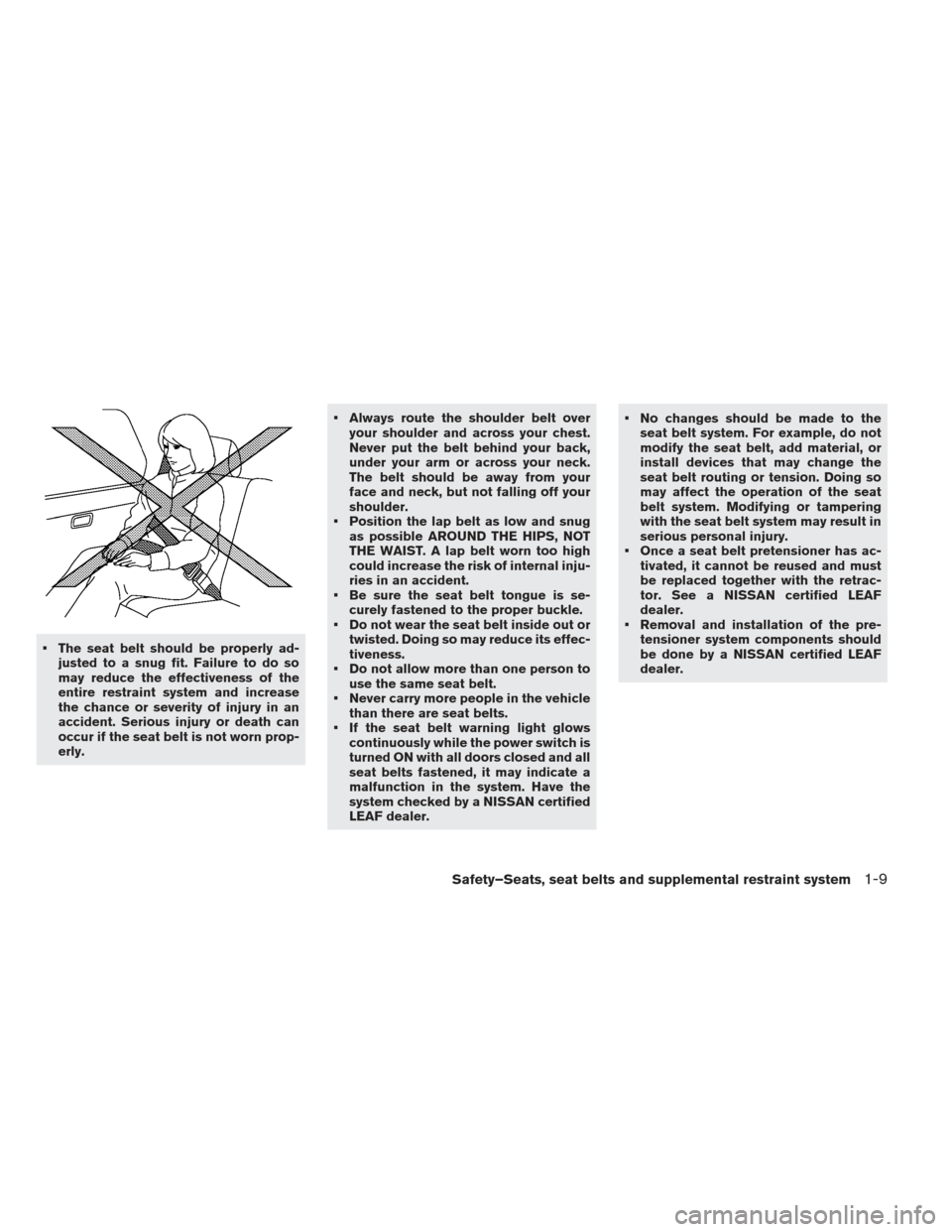

The seat belt should be properly ad-justed to a snug fit. Failure to do so
may reduce the effectiveness of the
entire restraint system and increase
the chance or severity of injury in an
accident. Serious injury or death can
occur if the seat belt is not worn prop-
erly. Always route the shoulder belt over
your shoulder and across your chest.
Never put the belt behind your back,
under your arm or across your neck.
The belt should be away from your
face and neck, but not falling off your
shoulder.
Position the lap belt as low and snug as possible AROUND THE HIPS, NOT
THE WAIST. A lap belt worn too high
could increase the risk of internal inju-
ries in an accident.
Be sure the seat belt tongue is se- curely fastened to the proper buckle.
Do not wear the seat belt inside out or twisted. Doing so may reduce its effec-
tiveness.
Do not allow more than one person to use the same seat belt.
Never carry more people in the vehicle than there are seat belts.
If the seat belt warning light glows continuously while the power switch is
turned ON with all doors closed and all
seat belts fastened, it may indicate a
malfunction in the system. Have the
system checked by a NISSAN certified
LEAF dealer. No changes should be made to the
seat belt system. For example, do not
modify the seat belt, add material, or
install devices that may change the
seat belt routing or tension. Doing so
may affect the operation of the seat
belt system. Modifying or tampering
with the seat belt system may result in
serious personal injury.
Once a seat belt pretensioner has ac- tivated, it cannot be reused and must
be replaced together with the retrac-
tor. See a NISSAN certified LEAF
dealer.
Removal and installation of the pre- tensioner system components should
be done by a NISSAN certified LEAF
dealer.
Safety–Seats, seat belts and supplemental restraint system1-9
Page 99 of 402

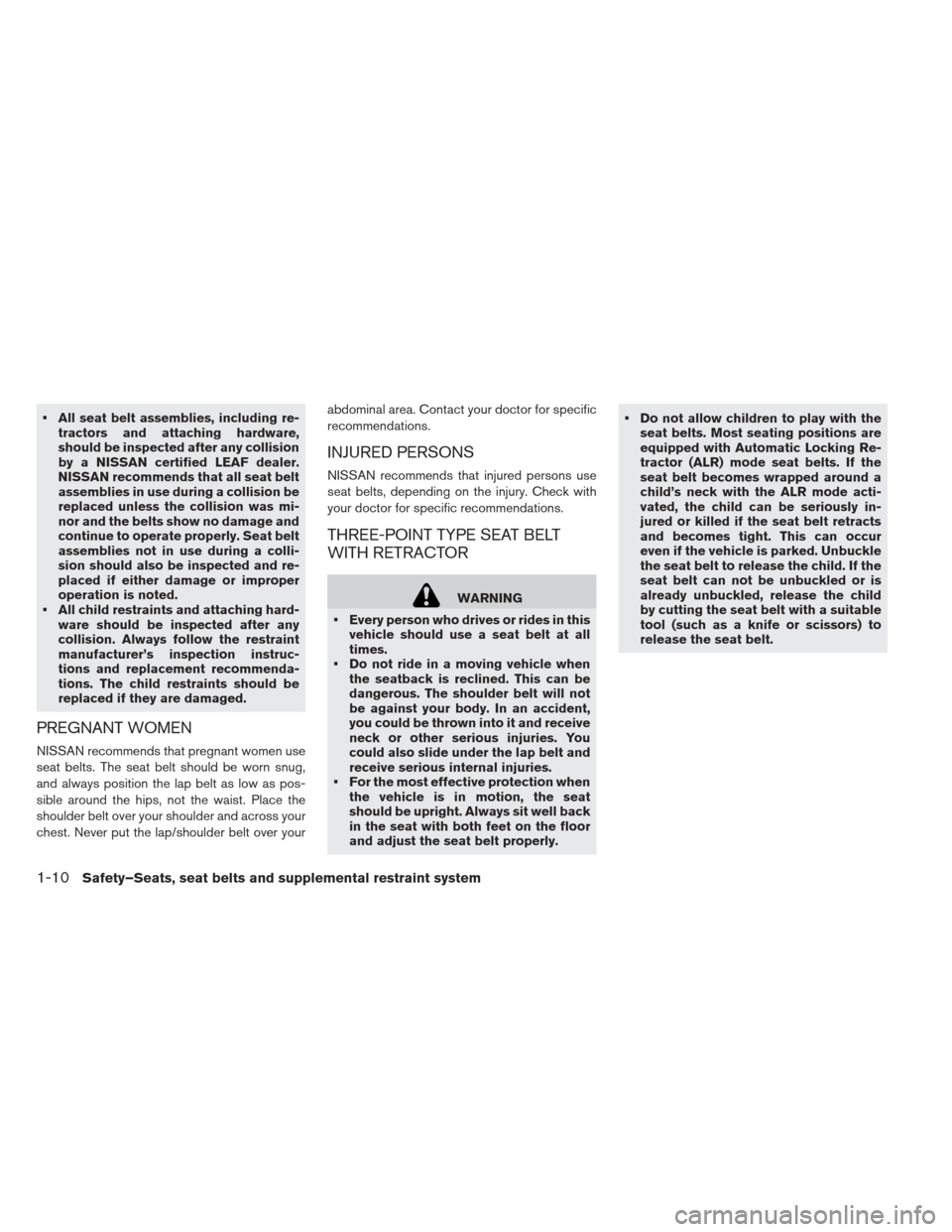

All seat belt assemblies, including re-tractors and attaching hardware,
should be inspected after any collision
by a NISSAN certified LEAF dealer.
NISSAN recommends that all seat belt
assemblies in use during a collision be
replaced unless the collision was mi-
nor and the belts show no damage and
continue to operate properly. Seat belt
assemblies not in use during a colli-
sion should also be inspected and re-
placed if either damage or improper
operation is noted.
All child restraints and attaching hard- ware should be inspected after any
collision. Always follow the restraint
manufacturer’s inspection instruc-
tions and replacement recommenda-
tions. The child restraints should be
replaced if they are damaged.
PREGNANT WOMEN
NISSAN recommends that pregnant women use
seat belts. The seat belt should be worn snug,
and always position the lap belt as low as pos-
sible around the hips, not the waist. Place the
shoulder belt over your shoulder and across your
chest. Never put the lap/shoulder belt over your abdominal area. Contact your doctor for specific
recommendations.
INJURED PERSONS
NISSAN recommends that injured persons use
seat belts, depending on the injury. Check with
your doctor for specific recommendations.
THREE-POINT TYPE SEAT BELT
WITH RETRACTOR
WARNING
Every person who drives or rides in this vehicle should use a seat belt at all
times.
Do not ride in a moving vehicle when the seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and receive
neck or other serious injuries. You
could also slide under the lap belt and
receive serious internal injuries.
For the most effective protection when the vehicle is in motion, the seat
should be upright. Always sit well back
in the seat with both feet on the floor
and adjust the seat belt properly. Do not allow children to play with the
seat belts. Most seating positions are
equipped with Automatic Locking Re-
tractor (ALR) mode seat belts. If the
seat belt becomes wrapped around a
child’s neck with the ALR mode acti-
vated, the child can be seriously in-
jured or killed if the seat belt retracts
and becomes tight. This can occur
even if the vehicle is parked. Unbuckle
the seat belt to release the child. If the
seat belt can not be unbuckled or is
already unbuckled, release the child
by cutting the seat belt with a suitable
tool (such as a knife or scissors) to
release the seat belt.
1-10Safety–Seats, seat belts and supplemental restraint system
Page 100 of 402

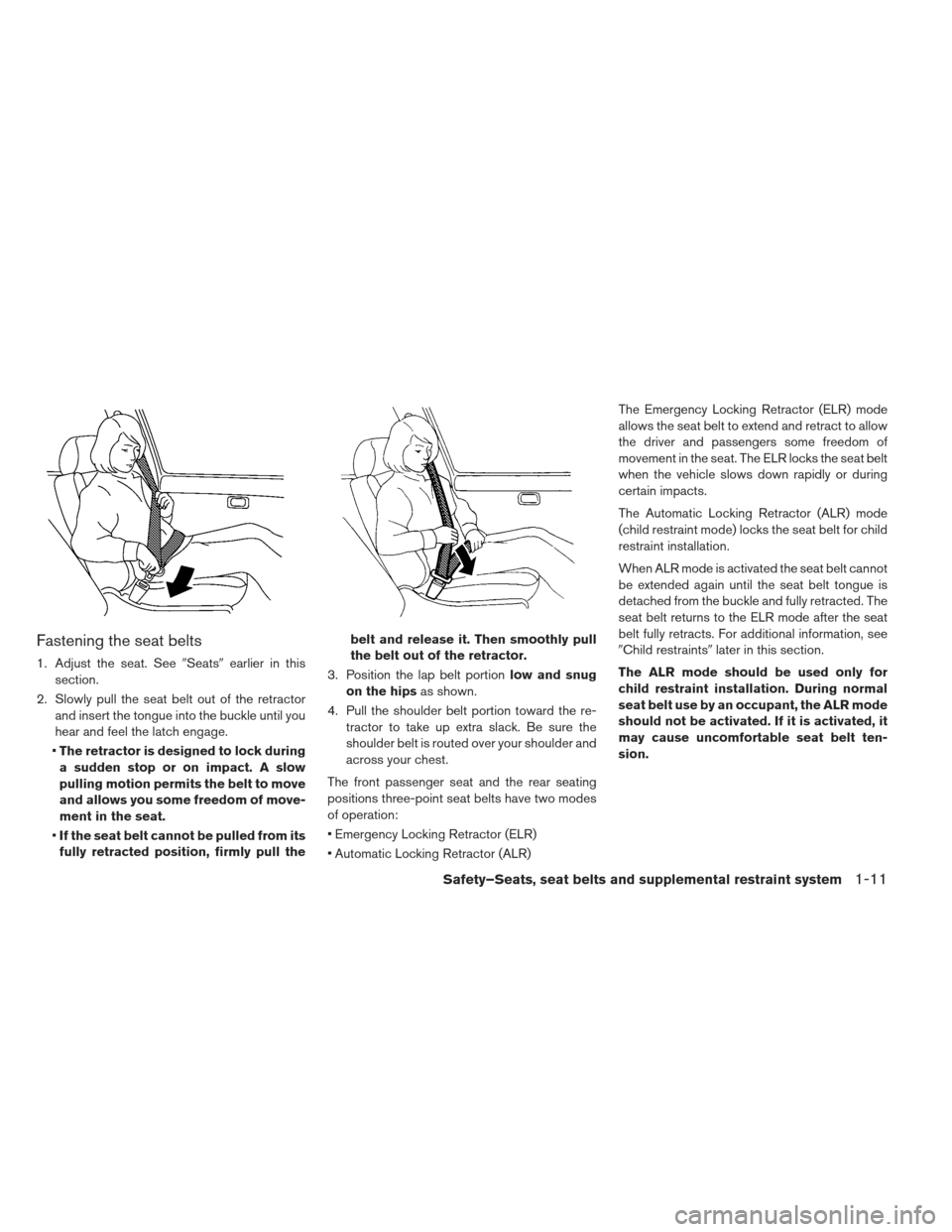

Fastening the seat belts
1. Adjust the seat. SeeSeatsearlier in this
section.
2. Slowly pull the seat belt out of the retractor and insert the tongue into the buckle until you
hear and feel the latch engage.
The retractor is designed to lock during
a sudden stop or on impact. A slow
pulling motion permits the belt to move
and allows you some freedom of move-
ment in the seat.
If the seat belt cannot be pulled from its
fully retracted position, firmly pull the belt and release it. Then smoothly pull
the belt out of the retractor.
3. Position the lap belt portion low and snug
on the hips as shown.
4. Pull the shoulder belt portion toward the re- tractor to take up extra slack. Be sure the
shoulder belt is routed over your shoulder and
across your chest.
The front passenger seat and the rear seating
positions three-point seat belts have two modes
of operation:
Emergency Locking Retractor (ELR)
Automatic Locking Retractor (ALR) The Emergency Locking Retractor (ELR) mode
allows the seat belt to extend and retract to allow
the driver and passengers some freedom of
movement in the seat. The ELR locks the seat belt
when the vehicle slows down rapidly or during
certain impacts.
The Automatic Locking Retractor (ALR) mode
(child restraint mode) locks the seat belt for child
restraint installation.
When ALR mode is activated the seat belt cannot
be extended again until the seat belt tongue is
detached from the buckle and fully retracted. The
seat belt returns to the ELR mode after the seat
belt fully retracts. For additional information, see
Child restraints
later in this section.
The ALR mode should be used only for
child restraint installation. During normal
seat belt use by an occupant, the ALR mode
should not be activated. If it is activated, it
may cause uncomfortable seat belt ten-
sion.
Safety–Seats, seat belts and supplemental restraint system1-11
