Page 71 of 402

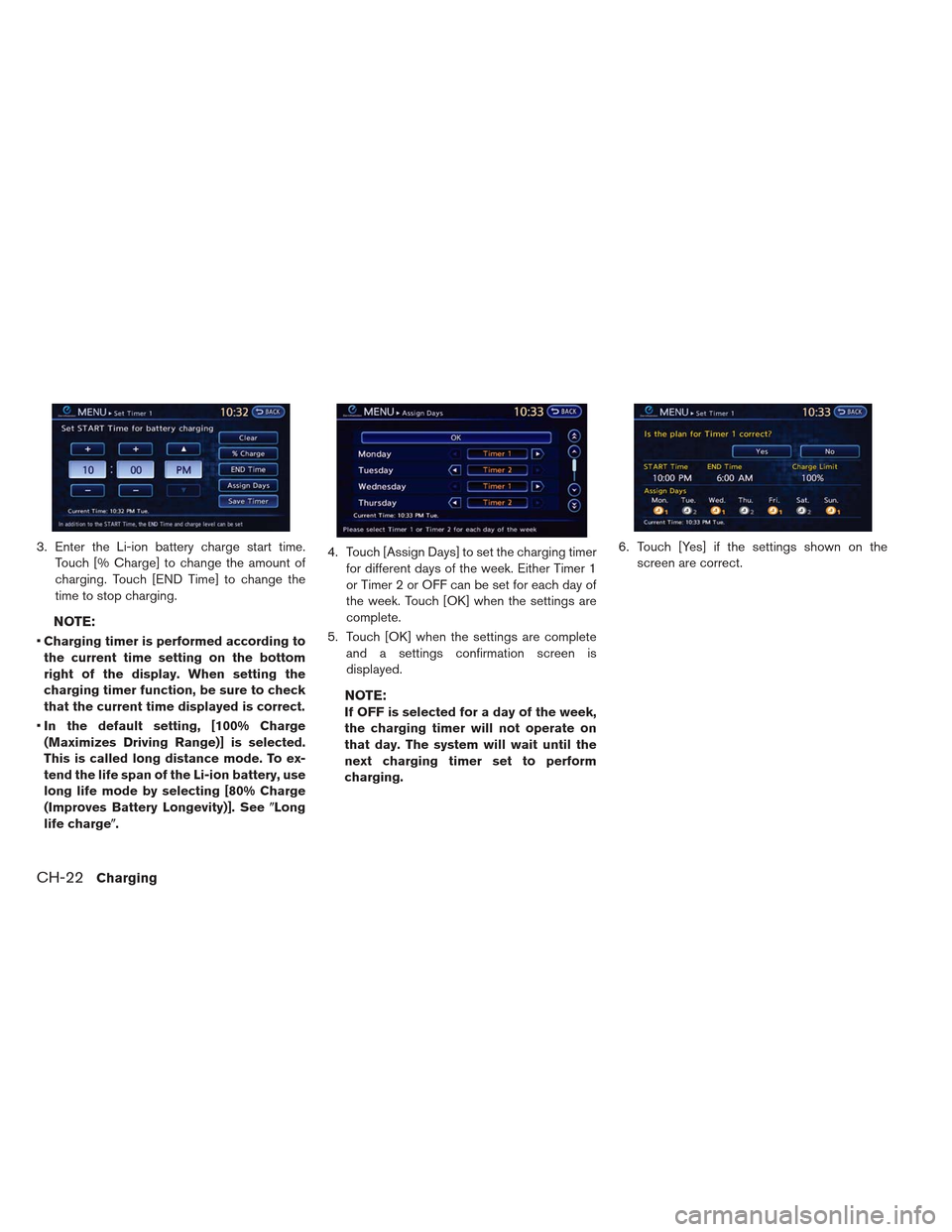

NISSAN LEAF 2013 1.G Manual PDF 3. Enter the Li-ion battery charge start time.Touch [% Charge] to change the amount of
charging. Touch [END Time] to change the
time to stop charging.
NOTE:
Charging timer is performed according to
th

Page 72 of 402

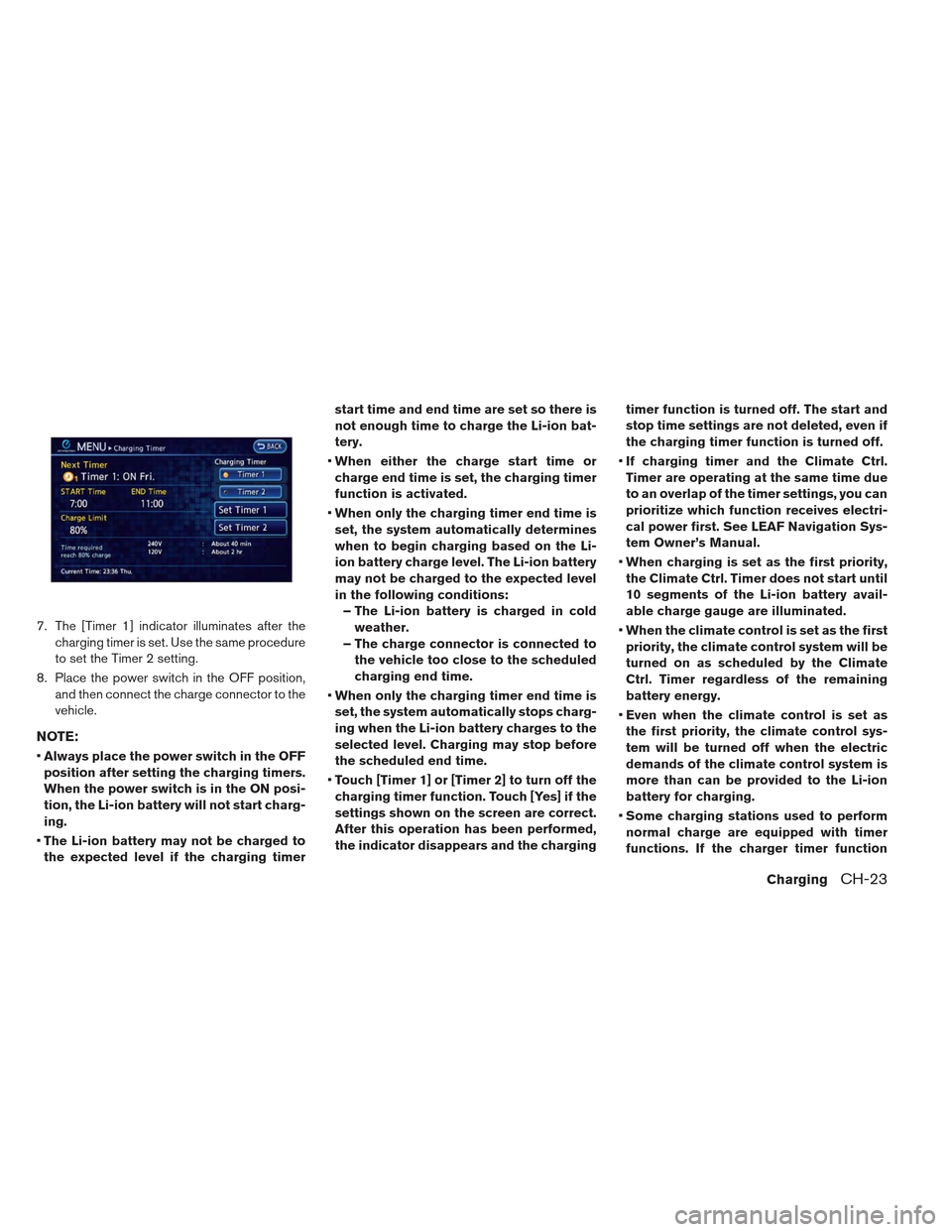

NISSAN LEAF 2013 1.G Manual PDF 7. The [Timer 1] indicator illuminates after thecharging timer is set. Use the same procedure
to set the Timer 2 setting.
8. Place the power switch in the OFF position, and then connect the charge con

Page 73 of 402

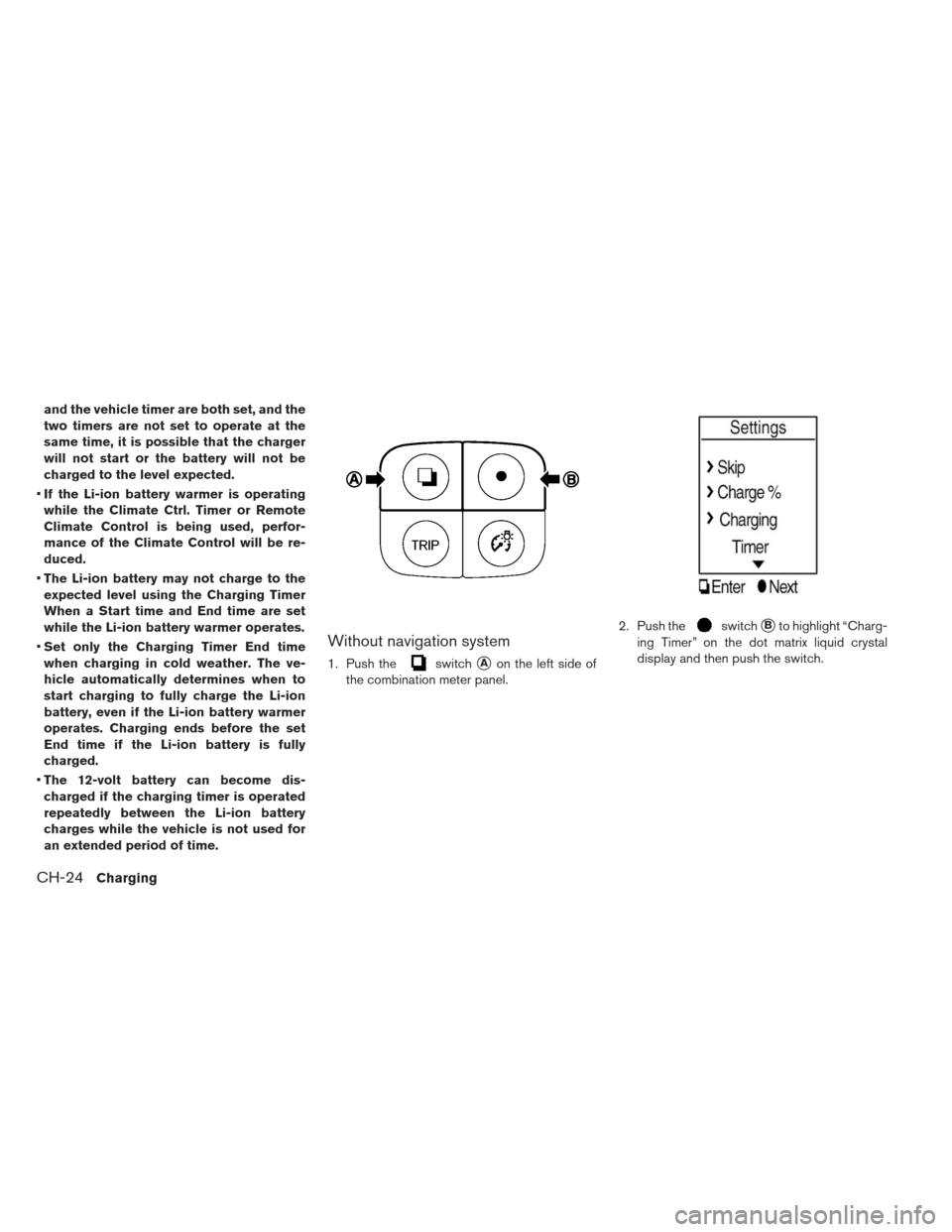

NISSAN LEAF 2013 1.G Manual PDF and the vehicle timer are both set, and the
two timers are not set to operate at the
same time, it is possible that the charger
will not start or the battery will not be
charged to the level expected.

Page 74 of 402

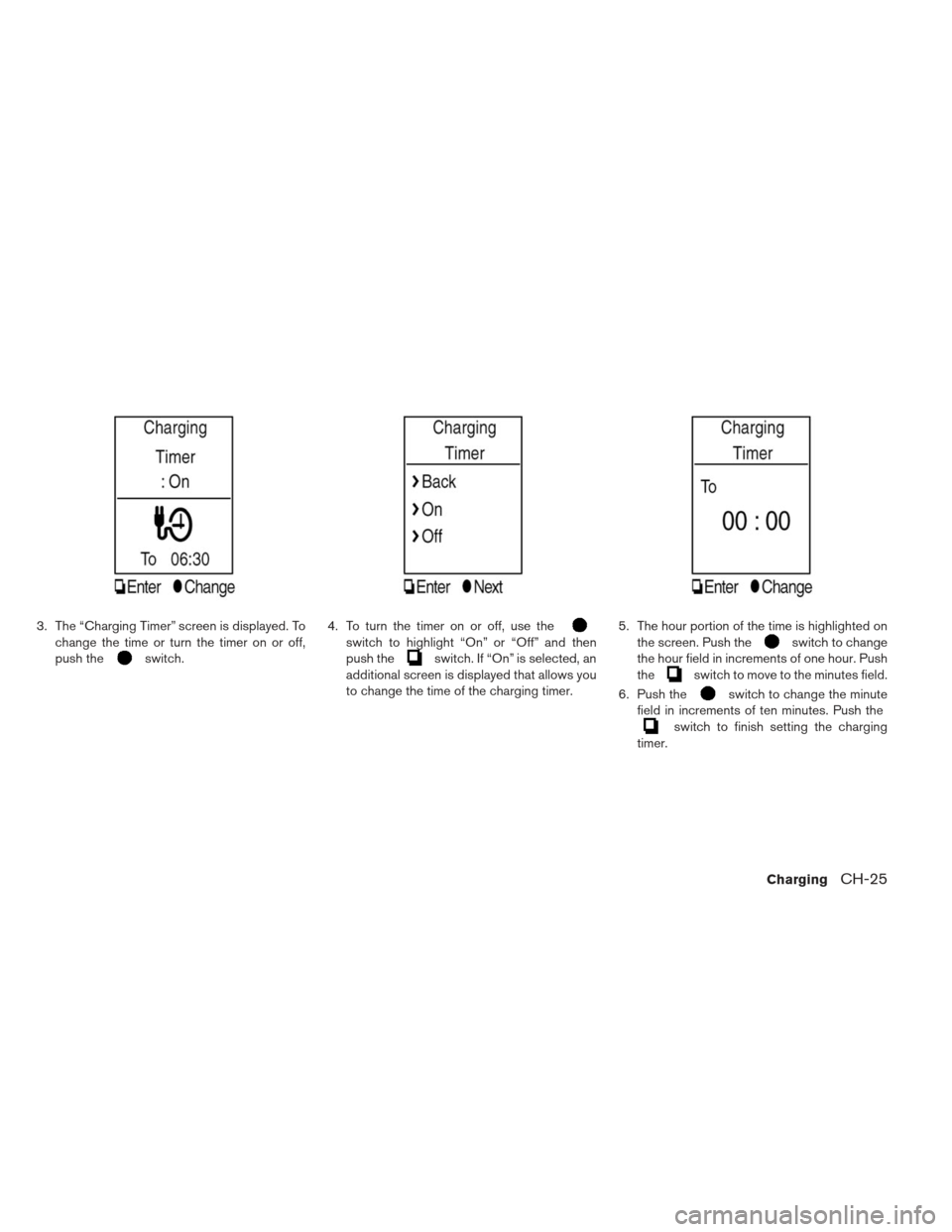

NISSAN LEAF 2013 1.G Manual PDF 3. The “Charging Timer” screen is displayed. Tochange the time or turn the timer on or off,
push the
switch. 4. To turn the timer on or off, use the
switch to highlight “On” or “Off” and t

Page 75 of 402

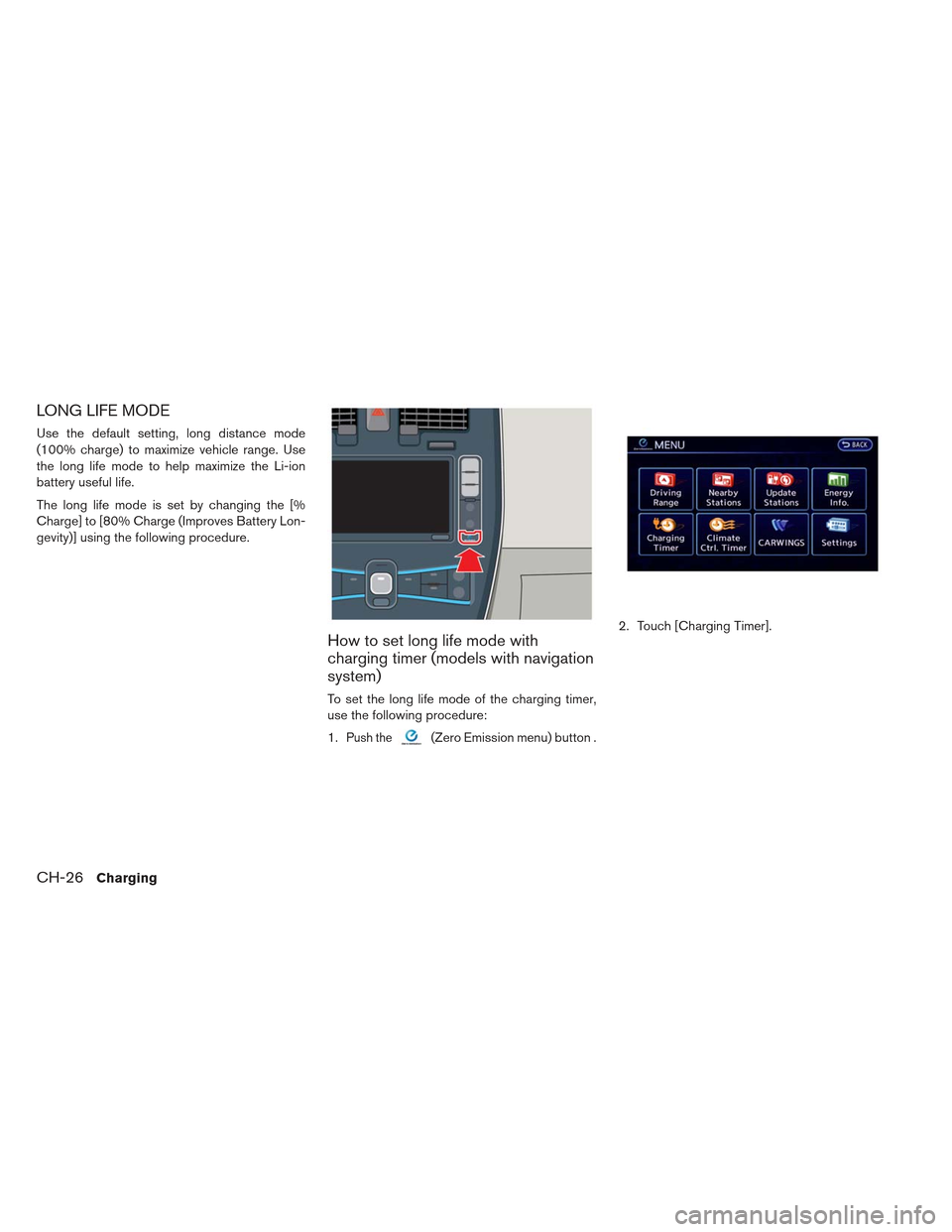

NISSAN LEAF 2013 1.G Manual PDF LONG LIFE MODE
Use the default setting, long distance mode
(100% charge) to maximize vehicle range. Use
the long life mode to help maximize the Li-ion
battery useful life.
The long life mode is set by

Page 76 of 402

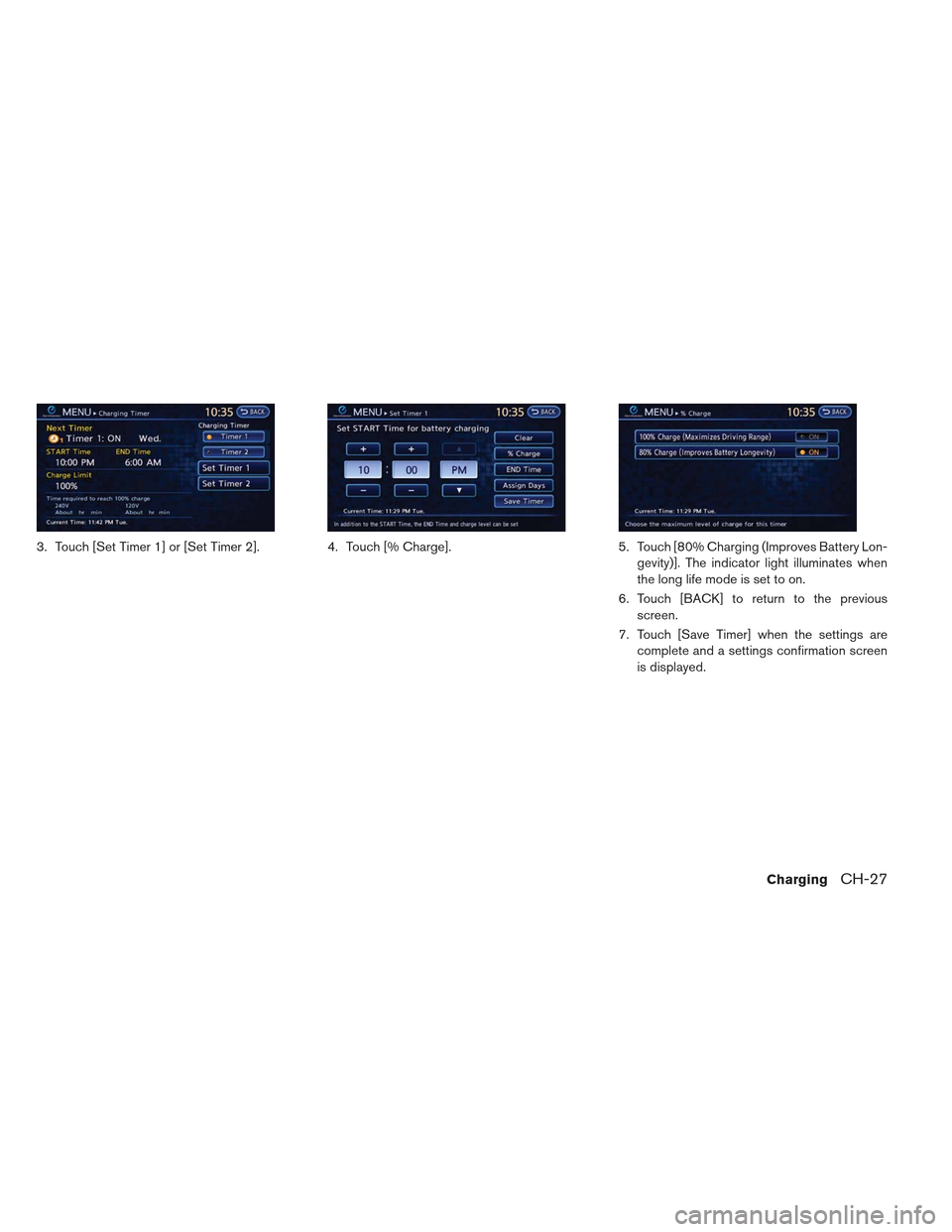

NISSAN LEAF 2013 1.G Manual PDF 3. Touch [Set Timer 1] or [Set Timer 2].4. Touch [% Charge].5. Touch [80% Charging (Improves Battery Lon-
gevity)]. The indicator light illuminates when
the long life mode is set to on.
6. Touch [BACK

Page 77 of 402

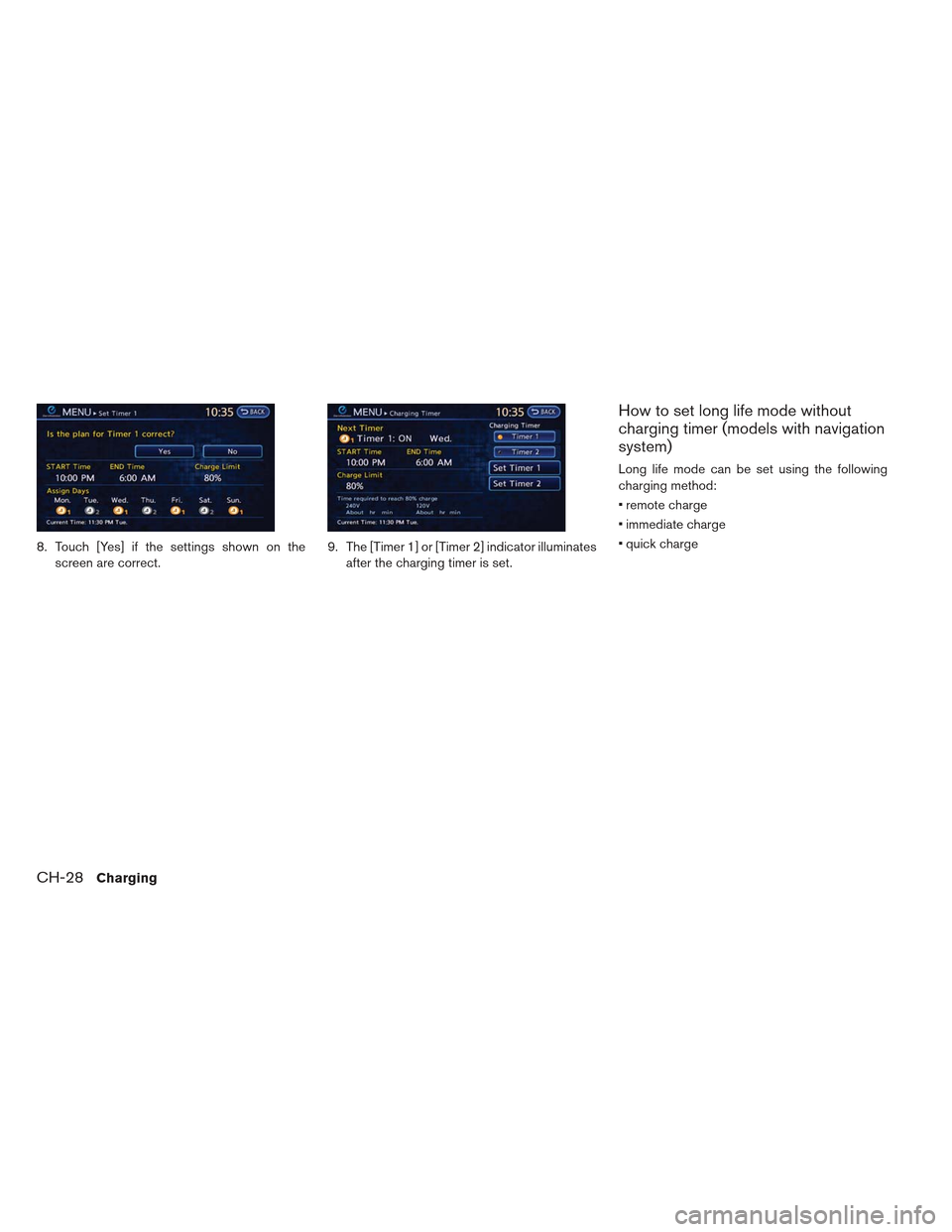

NISSAN LEAF 2013 1.G Manual PDF 8. Touch [Yes] if the settings shown on thescreen are correct. 9. The [Timer 1] or [Timer 2] indicator illuminates
after the charging timer is set.
How to set long life mode without
charging timer (mo

Page 78 of 402

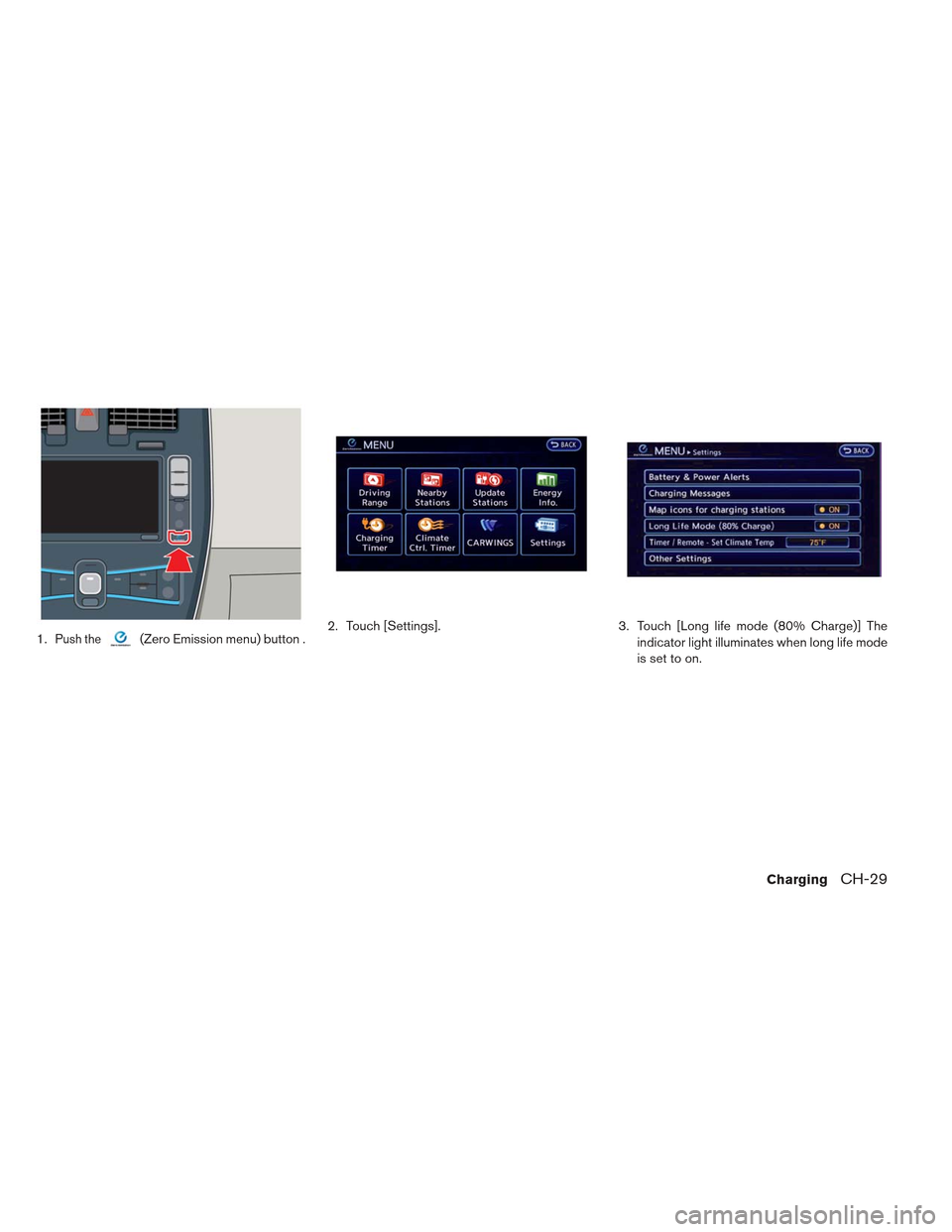

NISSAN LEAF 2013 1.G Manual PDF 1.Push the(Zero Emission menu) button .2. Touch [Settings].
3. Touch [Long life mode (80% Charge)] The
indicator light illuminates when long life mode
is set to on.
ChargingCH-29

Page 79 of 402

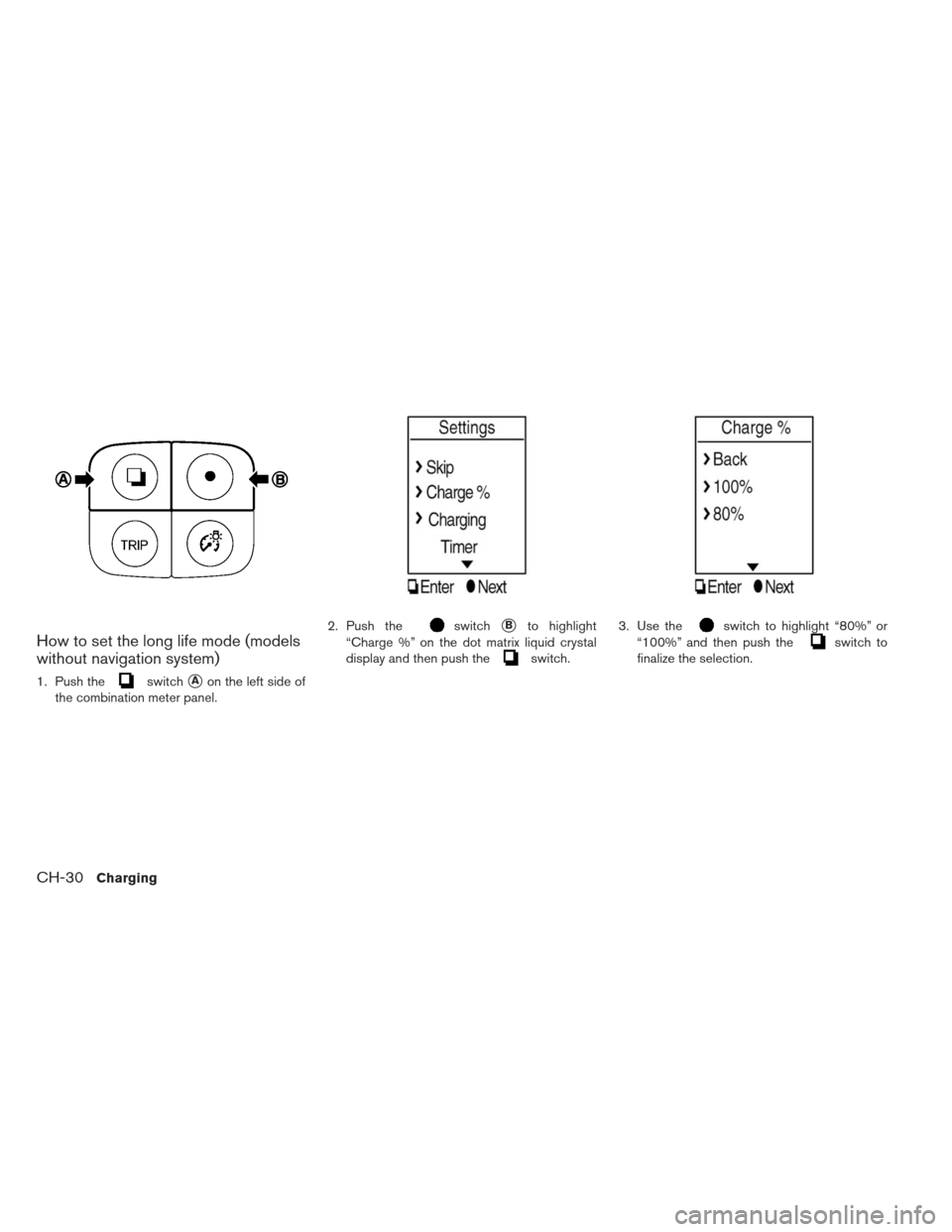

NISSAN LEAF 2013 1.G Manual PDF How to set the long life mode (models
without navigation system)
1. Push theswitchAon the left side of
the combination meter panel. 2. Push the
switchBto highlight
“Charge %” on the dot matrix l

Page 80 of 402

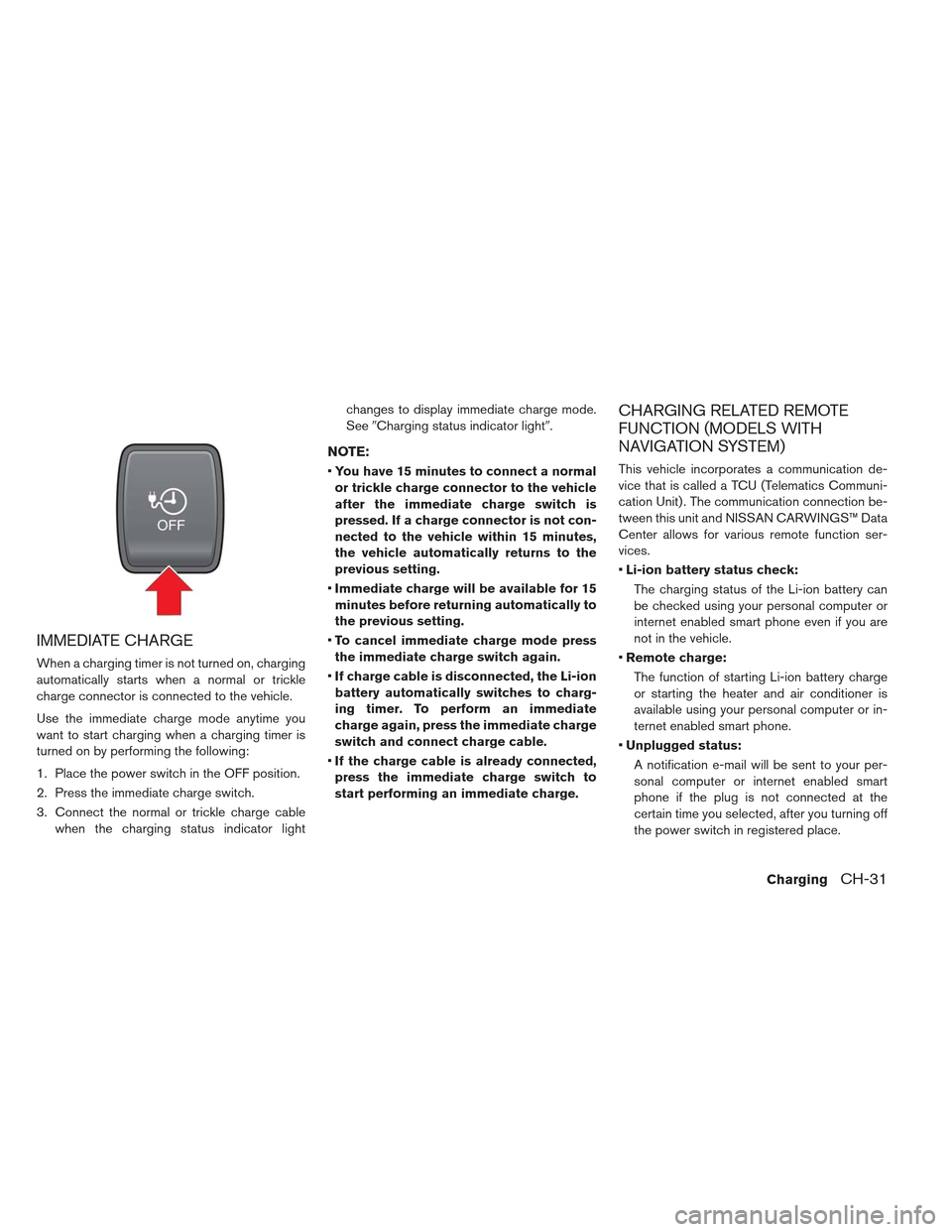

NISSAN LEAF 2013 1.G Manual PDF IMMEDIATE CHARGE
When a charging timer is not turned on, charging
automatically starts when a normal or trickle
charge connector is connected to the vehicle.
Use the immediate charge mode anytime you
