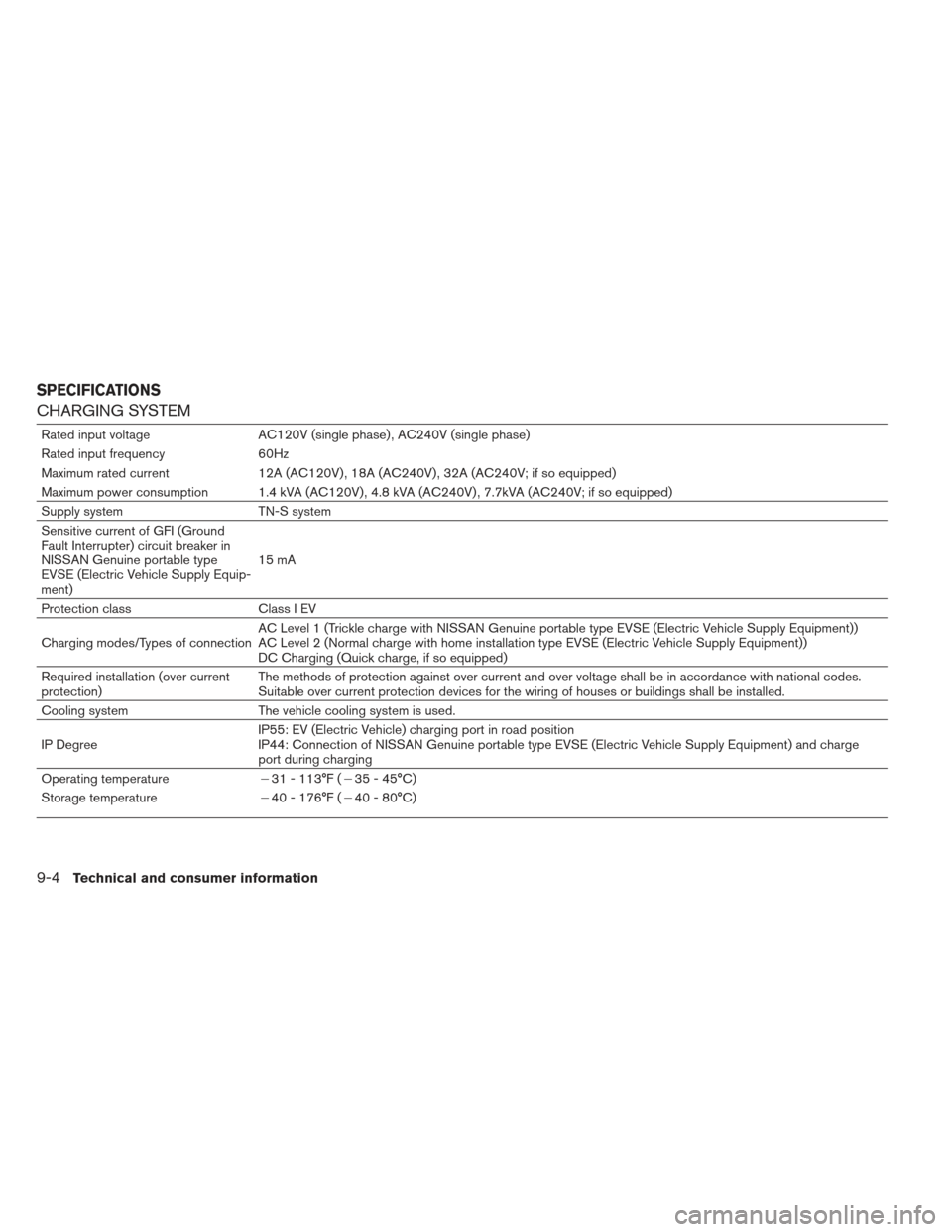

CHARGING SYSTEM
Rated input voltageAC120V (single phase) , AC240V (single phase)
Rated input frequency 60Hz
Maximum rated current 12A (AC120V) , 18A (AC240V) , 32A (AC240V; if so equipped)
Maximum power consumption 1.4 kVA (AC120V) , 4.8 kVA (AC240V) , 7.7kVA (AC240V; if so equipped)
Supply system TN-S system
Sensitive current of GFI (Ground
Fault Interrupter) circuit breaker in
NISSAN Genuine portable type
EVSE (Electric Vehicle Supply Equip-
ment) 15 mA
Protection class Class I EV
Charging modes/Types of connection AC Level 1 (Trickle charge with NISSAN Genuine portable type EVSE (Electric Vehicle Supply Equipment))
AC Level 2 (Normal charge with home installation type EVSE (Electric Vehicle Supply Equipment))
DC Charging (Quick charge, if so equipped)
Required installation (over current
protection) The methods of protection against over current and over voltage shall be in accordance with national codes.
Suitable over current protection devices for the wiring of houses or buildings shall be installed.
Cooling system The vehicle cooling system is used.
IP Degree IP55: EV (Electric Vehicle) charging port in road position
IP44: Connection of NISSAN Genuine portable type EVSE (Electric Vehicle Supply Equipment) and charge
port during charging
Operating temperature 31 - 113°F (35 - 45°C)
Storage temperature 40 - 176°F (40 - 80°C)
SPECIFICATIONS
9-4Technical and consumer information
Page 372 of 402

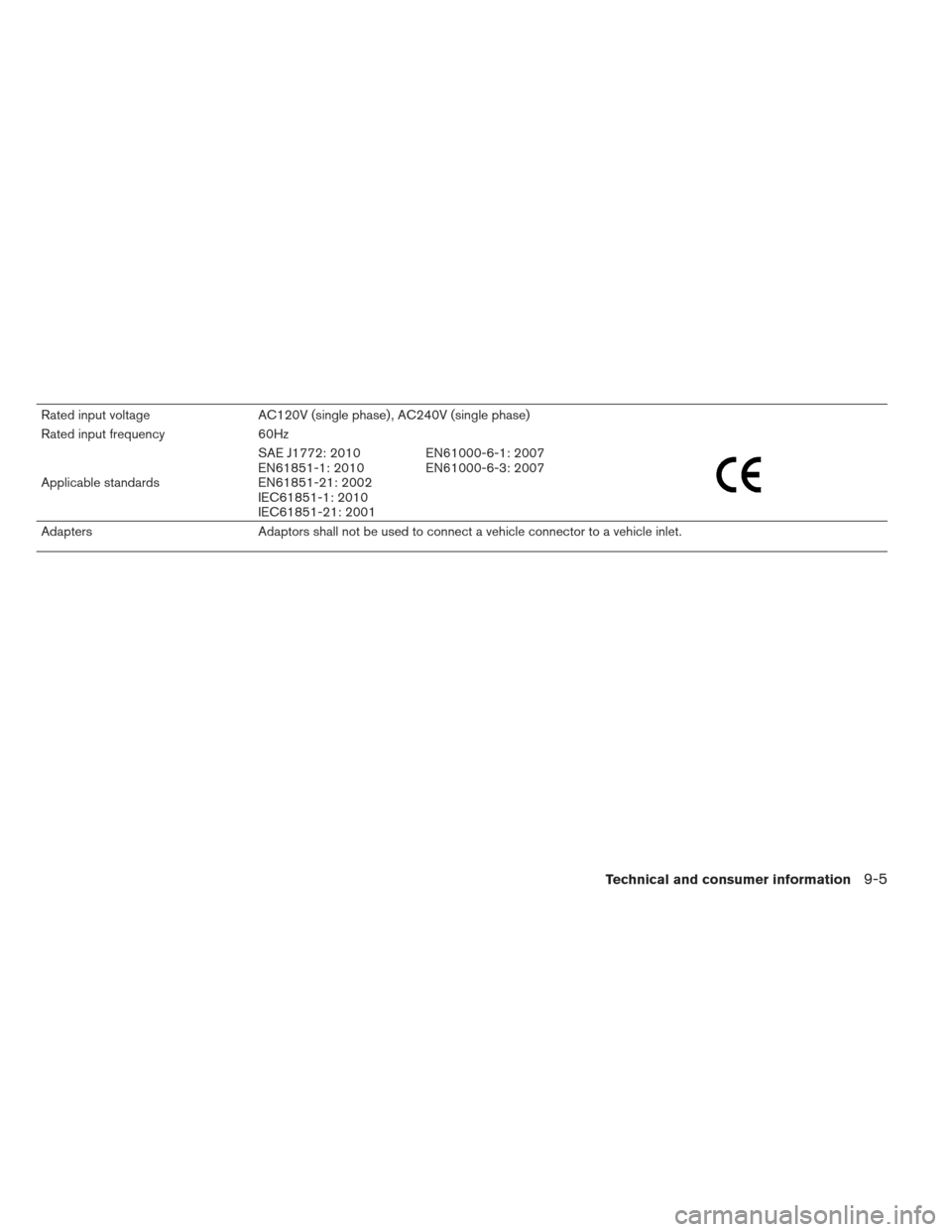

Rated input voltageAC120V (single phase) , AC240V (single phase)
Rated input frequency 60Hz
Applicable standards SAE J1772: 2010
EN61851-1: 2010
EN61851-21: 2002
IEC61851-1: 2010
IEC61851-21: 2001EN61000-6-1: 2007
EN61000-6-3: 2007
Adapters
Adaptors shall not be used to connect a vehicle connector to a vehicle inlet.
Technical and consumer information9-5
Page 373 of 402

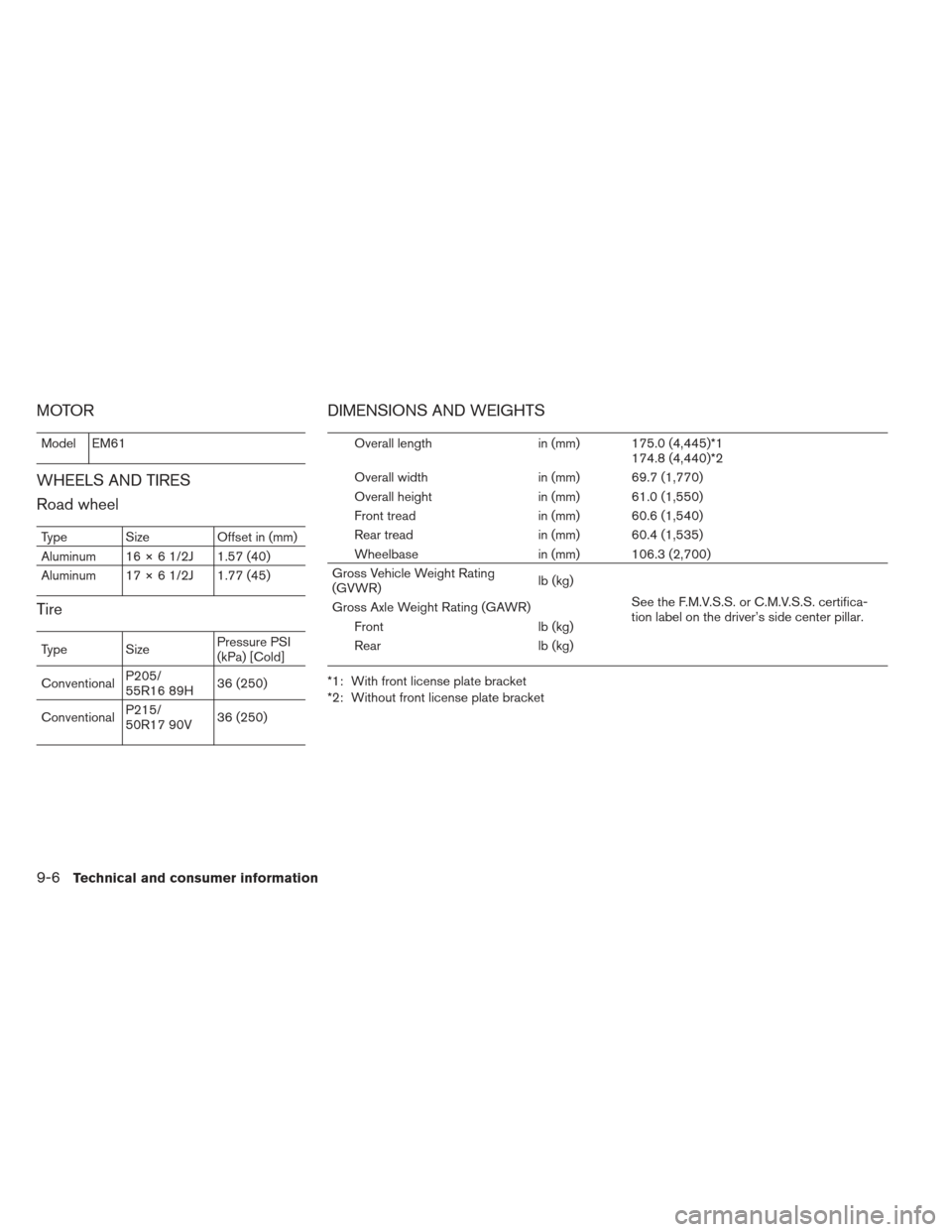

MOTOR
Model EM61
WHEELS AND TIRES
Road wheel
Type SizeOffset in (mm)
Aluminum 16 × 6 1/2J 1.57 (40)
Aluminum 17 × 6 1/2J 1.77 (45)
Tire
Type Size Pressure PSI
(kPa) [Cold]
Conventional P205/
55R16 89H 36 (250)
Conventional P215/
50R17 90V 36 (250)
DIMENSIONS AND WEIGHTS
Overall length
in (mm) 175.0 (4,445)*1
174.8 (4,440)*2
Overall width in (mm) 69.7 (1,770)
Overall height in (mm) 61.0 (1,550)
Front tread in (mm) 60.6 (1,540)
Rear tread in (mm) 60.4 (1,535)
Wheelbase in (mm) 106.3 (2,700)
Gross Vehicle Weight Rating
(GVWR) lb (kg)
See the F.M.V.S.S. or C.M.V.S.S. certifica-
tion label on the driver’s side center pillar.
Gross Axle Weight Rating (GAWR)
Front lb (kg)
Rear lb (kg)
*1: With front license plate bracket
*2: Without front license plate bracket
9-6Technical and consumer information
Page 374 of 402
When planning to travel in another country,
you should first find out if the charging equipment
is compatible with that country’s electrical sys-
tem.
When transferring the registration of your
vehicle to another country, state, province
or district,it may be necessary to modify the
vehicle to meet local laws and regulations.
The laws and regulations for motor vehicle safety
standards vary according to the country, state,
province or district; therefore, vehicle specifica-
tions may differ.
When any vehicle is to be taken into an-
other country, state, province or district
and registered, its modifications, transpor-
tation, and registration are the responsibil-
ity of the user. NISSAN is not responsible
for any inconvenience that may result.

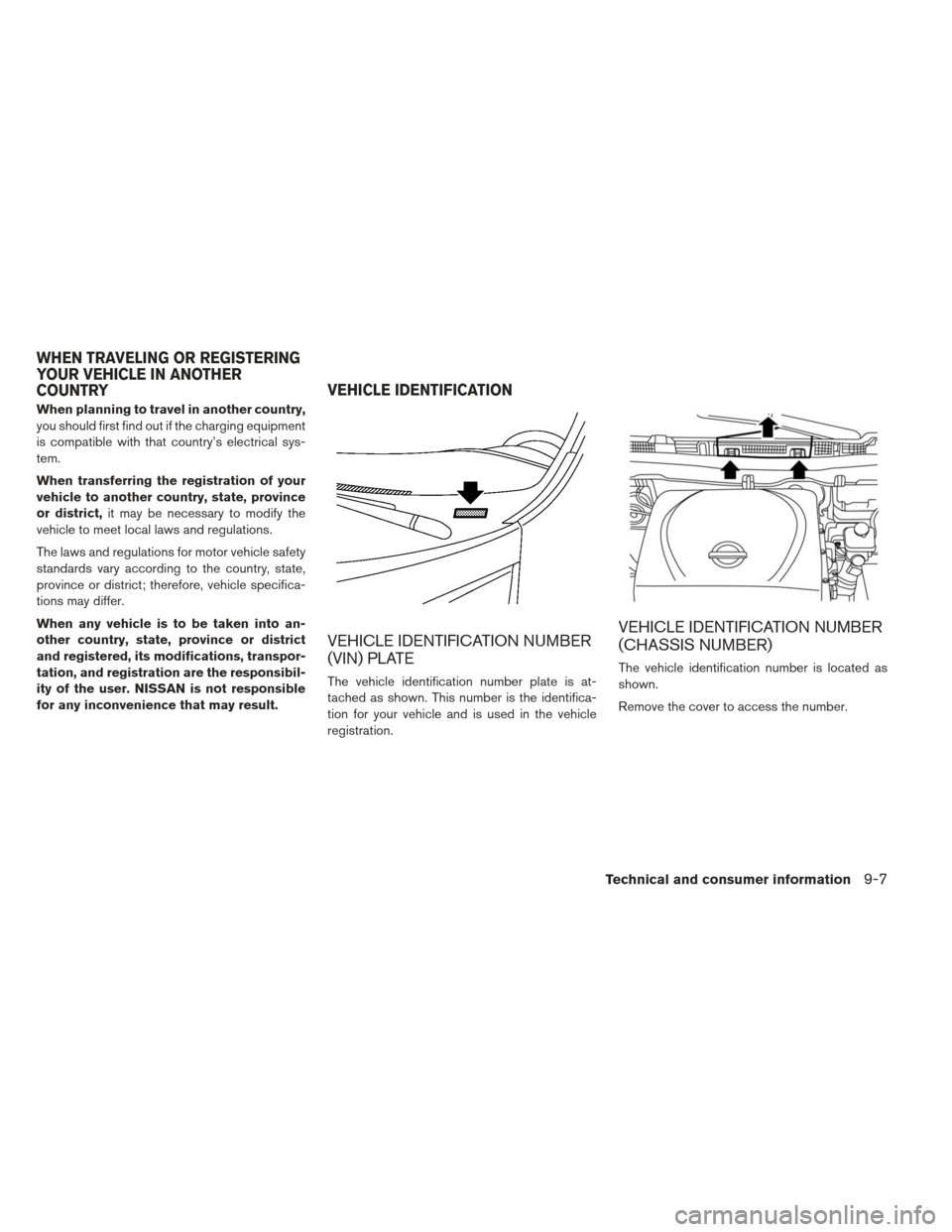

VEHICLE IDENTIFICATION NUMBER
(VIN) PLATE
The vehicle identification number plate is at-
tached as shown. This number is the identifica-
tion for your vehicle and is used in the vehicle
registration.
VEHICLE IDENTIFICATION NUMBER
(CHASSIS NUMBER)
The vehicle identification number is located as
shown.
Remove the cover to access the number.
WHEN TRAVELING OR REGISTERING
YOUR VEHICLE IN ANOTHER
COUNTRY VEHICLE IDENTIFICATION
Technical and consumer information9-7
Page 375 of 402

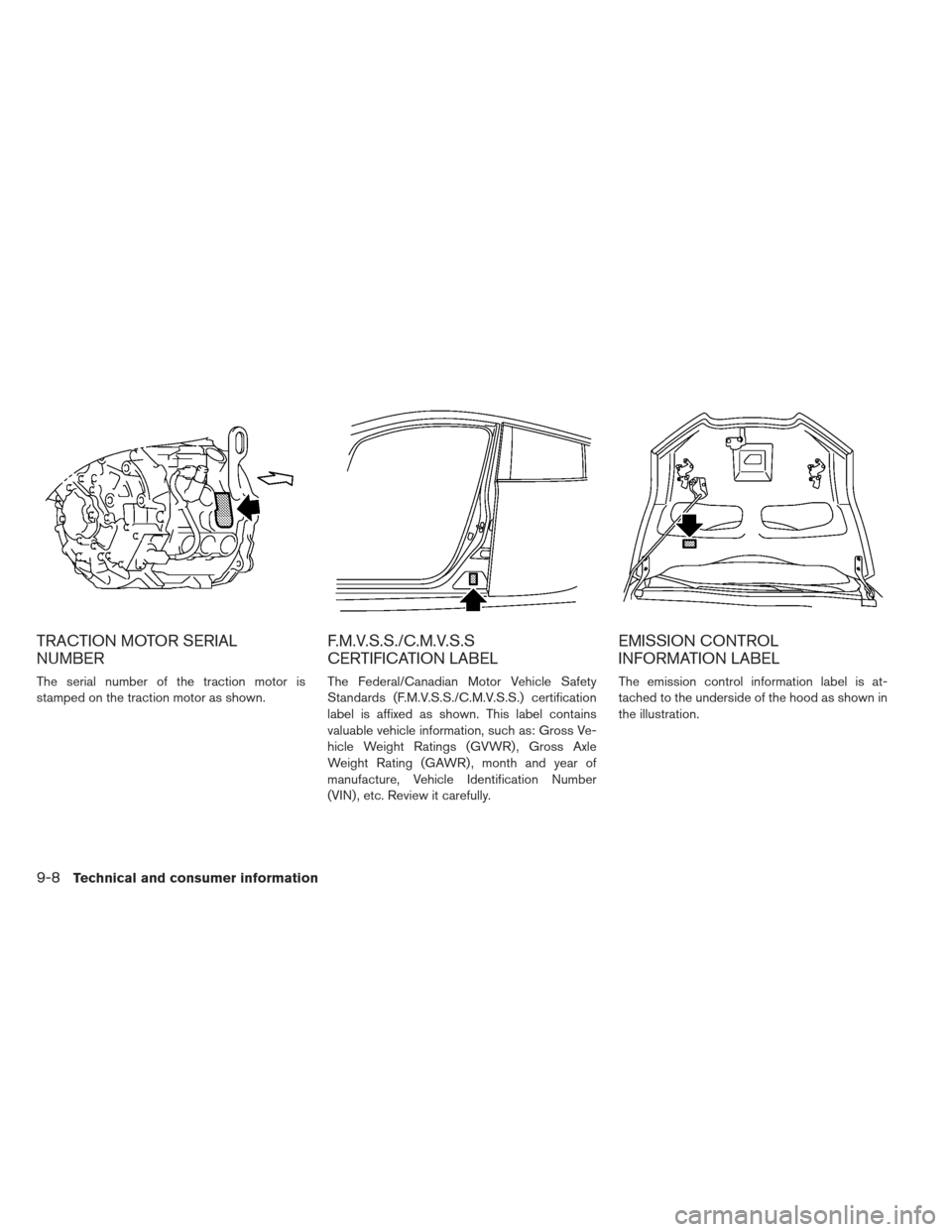

TRACTION MOTOR SERIAL
NUMBER
The serial number of the traction motor is
stamped on the traction motor as shown.
F.M.V.S.S./C.M.V.S.S
CERTIFICATION LABEL
The Federal/Canadian Motor Vehicle Safety
Standards (F.M.V.S.S./C.M.V.S.S.) certification
label is affixed as shown. This label contains
valuable vehicle information, such as: Gross Ve-
hicle Weight Ratings (GVWR) , Gross Axle
Weight Rating (GAWR) , month and year of
manufacture, Vehicle Identification Number
(VIN) , etc. Review it carefully.
EMISSION CONTROL
INFORMATION LABEL
The emission control information label is at-
tached to the underside of the hood as shown in
the illustration.
9-8Technical and consumer information
Page 376 of 402

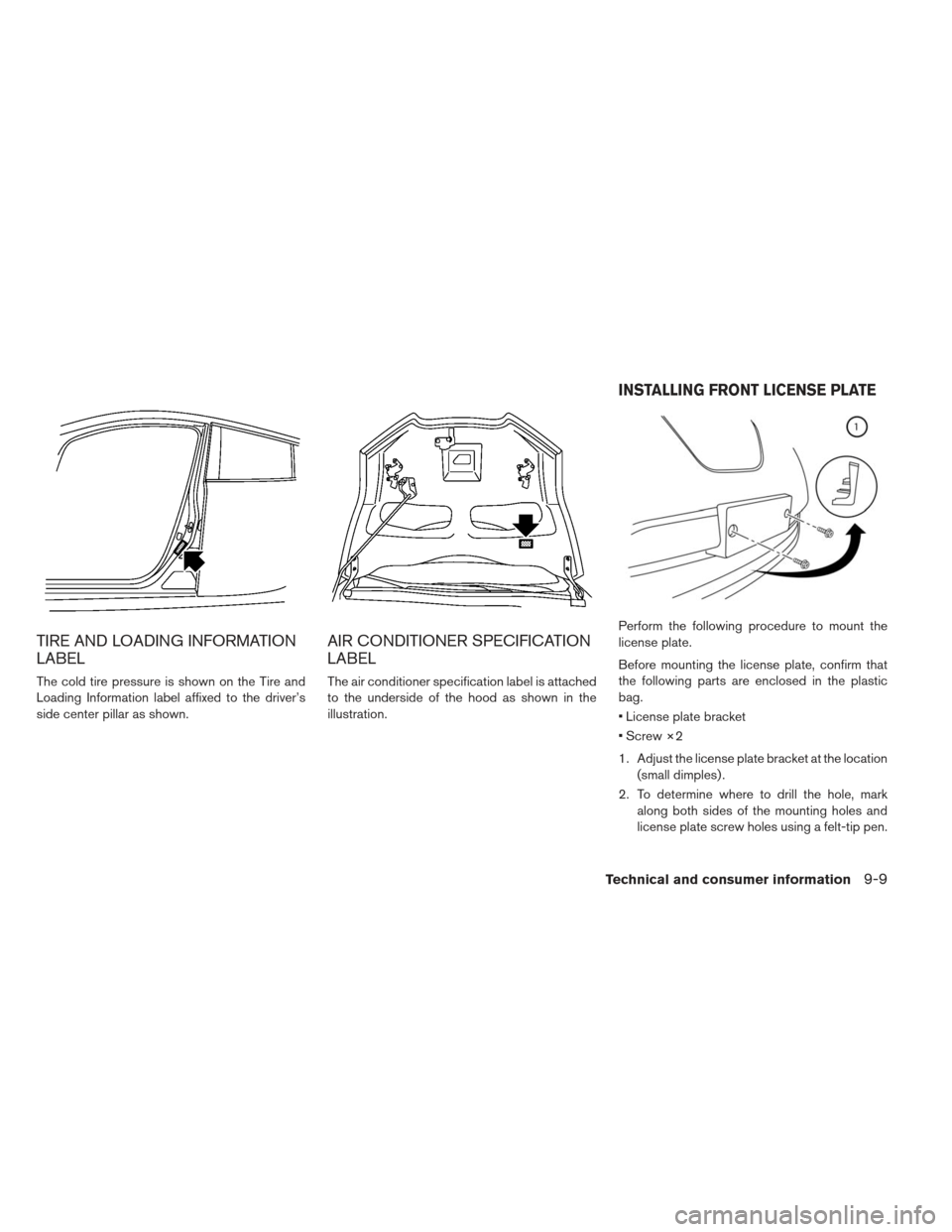

TIRE AND LOADING INFORMATION
LABEL
The cold tire pressure is shown on the Tire and
Loading Information label affixed to the driver’s
side center pillar as shown.
AIR CONDITIONER SPECIFICATION
LABEL
The air conditioner specification label is attached
to the underside of the hood as shown in the
illustration.Perform the following procedure to mount the
license plate.
Before mounting the license plate, confirm that
the following parts are enclosed in the plastic
bag.
License plate bracket
Screw ×2
1. Adjust the license plate bracket at the location
(small dimples) .
2. To determine where to drill the hole, mark along both sides of the mounting holes and
license plate screw holes using a felt-tip pen.
INSTALLING FRONT LICENSE PLATE
Technical and consumer information9-9
Page 377 of 402
3. Remove the license plate bracket and con-nect the arcs from the ovals. Mark the point in
the center of each oval. These are pilot drilling
locations.
Use a 0.49 in (12.5 mm) drill bit for the license
plate screw holes and carefully open holes in
the places marked. (Make sure that the drill
only goes through the fascia.)
4. Install the license plate with two 0.23 in (6 mm) screws.
WARNING
It is extremely dangerous to ride in the cargo area inside the vehicle. In a col-
lision, people riding in these areas are
more likely to be seriously injured or
killed.
Do not allow people to ride in any area of your vehicle that is not equipped
with seats and seat belts.
Be sure everyone in your vehicle is in a seat and using a seat belt properly.
TERMS
It is important to familiarize yourself with the fol-
lowing terms before loading your vehicle:
Curb Weight (actual weight of your vehicle) -
vehicle weight including: standard and optional
equipment, fluids, emergency tools, and spare
tire assembly. This weight does notinclude
passengers and cargo.
GVW (Gross Vehicle Weight) - curb weight plus the combined weight of passengers and
cargo.
GVWR (Gross Vehicle Weight Rating) - maxi- mum total combined weight of the unloaded
vehicle, passengers, luggage, hitch, trailer
tongue load and any other optional equipment. This information is located on the F.M.V.S.S./
C.M.V.S.S. label.
GAWR (Gross Axle Weight Rating) - maximum weight (load) limit specified for the front or rear
axle. This information is located on the
F.M.V.S.S./C.M.V.S.S. label.
GCWR (Gross Combined Weight Rating) - The maximum total weight rating of the vehicle,
passengers, cargo, and trailer.
Vehicle Capacity Weight, Load limit, Total load capacity - maximum total weight limit specified
of the load (passengers and cargo) for the ve-
hicle. This is the maximum combined weight of
occupants and cargo that can be loaded into
the vehicle. If the vehicle is used to tow a trailer,
the trailer tongue weight must be included as
part of the cargo load. This information is lo-
cated on the Tire and Loading Information label.
Cargo capacity - permissible weight of cargo, the subtracted weight of occupants from the
load limit.
VEHICLE LOADING INFORMATION
9-10Technical and consumer information
Page 378 of 402

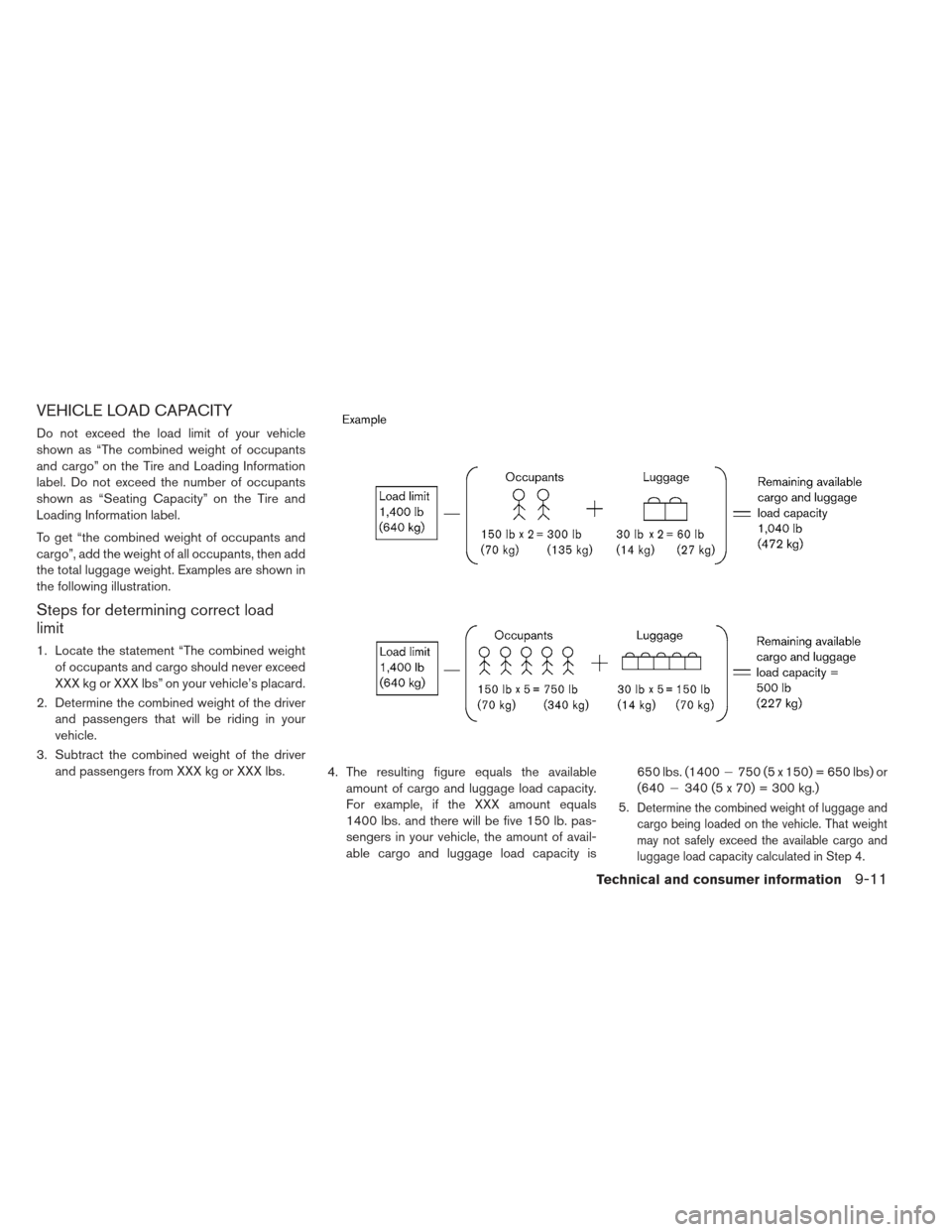

VEHICLE LOAD CAPACITY
Do not exceed the load limit of your vehicle
shown as “The combined weight of occupants
and cargo” on the Tire and Loading Information
label. Do not exceed the number of occupants
shown as “Seating Capacity” on the Tire and
Loading Information label.
To get “the combined weight of occupants and
cargo”, add the weight of all occupants, then add
the total luggage weight. Examples are shown in
the following illustration.
Steps for determining correct load
limit
1. Locate the statement “The combined weightof occupants and cargo should never exceed
XXX kg or XXX lbs” on your vehicle’s placard.
2. Determine the combined weight of the driver and passengers that will be riding in your
vehicle.
3. Subtract the combined weight of the driver and passengers from XXX kg or XXX lbs. 4. The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the XXX amount equals
1400 lbs. and there will be five 150 lb. pas-
sengers in your vehicle, the amount of avail-
able cargo and luggage load capacity is 650 lbs. (1400
750 (5 x 150) = 650 lbs) or
(640 340 (5 x 70) = 300 kg.)
5.
Determine the combined weight of luggage and
cargo being loaded on the vehicle. That weight
may not safely exceed the available cargo and
luggage load capacity calculated in Step 4.
Technical and consumer information9-11
Page 379 of 402

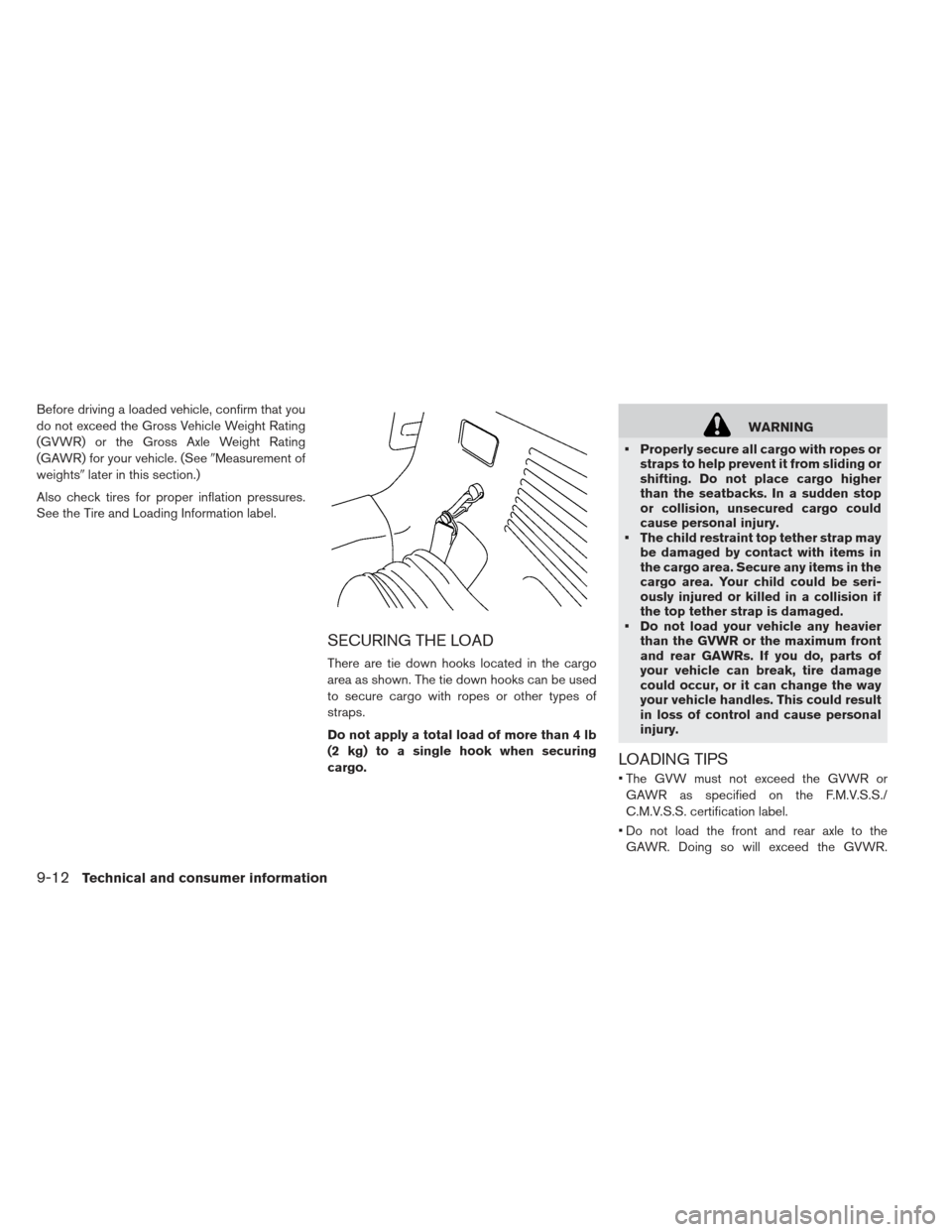

Before driving a loaded vehicle, confirm that you
do not exceed the Gross Vehicle Weight Rating
(GVWR) or the Gross Axle Weight Rating
(GAWR) for your vehicle. (SeeMeasurement of
weights later in this section.)
Also check tires for proper inflation pressures.
See the Tire and Loading Information label.
SECURING THE LOAD
There are tie down hooks located in the cargo
area as shown. The tie down hooks can be used
to secure cargo with ropes or other types of
straps.
Do not apply a total load of more than 4 lb
(2 kg) to a single hook when securing
cargo.
WARNING
Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
The child restraint top tether strap may be damaged by contact with items in
the cargo area. Secure any items in the
cargo area. Your child could be seri-
ously injured or killed in a collision if
the top tether strap is damaged.
Do not load your vehicle any heavier than the GVWR or the maximum front
and rear GAWRs. If you do, parts of
your vehicle can break, tire damage
could occur, or it can change the way
your vehicle handles. This could result
in loss of control and cause personal
injury.
LOADING TIPS
The GVW must not exceed the GVWR or
GAWR as specified on the F.M.V.S.S./
C.M.V.S.S. certification label.
Do not load the front and rear axle to the GAWR. Doing so will exceed the GVWR.
9-12Technical and consumer information
Page 380 of 402
WARNING
Properly secure all cargo with ropes or straps to help prevent it from sliding or
shifting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
Do not load your vehicle any heavier than the GVWR or the maximum front
and rear GAWRs. If you do, parts of
your vehicle can break, tire damage
could occur, or it can change the way
your vehicle handles. This could result
in loss of control and cause personal
injury.
Overloading not only can shorten the life of your vehicle and the tire, but can
cause unsafe vehicle handling and
longer braking distances. This may
cause a premature tire failure, which
could result in a serious accident and
personal injury. Failures caused by
overloading are not covered by the ve-
hicle’s warranty.
MEASUREMENT OF WEIGHTS
Secure loose items to prevent weight shifts that
could affect the balance of your vehicle. When
the vehicle is loaded, drive to a scale and weigh
the front and the rear wheels separately to deter-
mine axle loads. Individual axle loads should not
exceed either of the Gross Axle Weight Ratings
(GAWR) . The total of the axle loads should not
exceed the Gross Vehicle Weight Rating
(GVWR) . These ratings are given on the vehicle
certification label. If weight ratings are exceeded,
move or remove items to bring all weights below
the ratings. Do not tow a trailer with your vehicle.
TOWING A TRAILER
Technical and consumer information9-13
