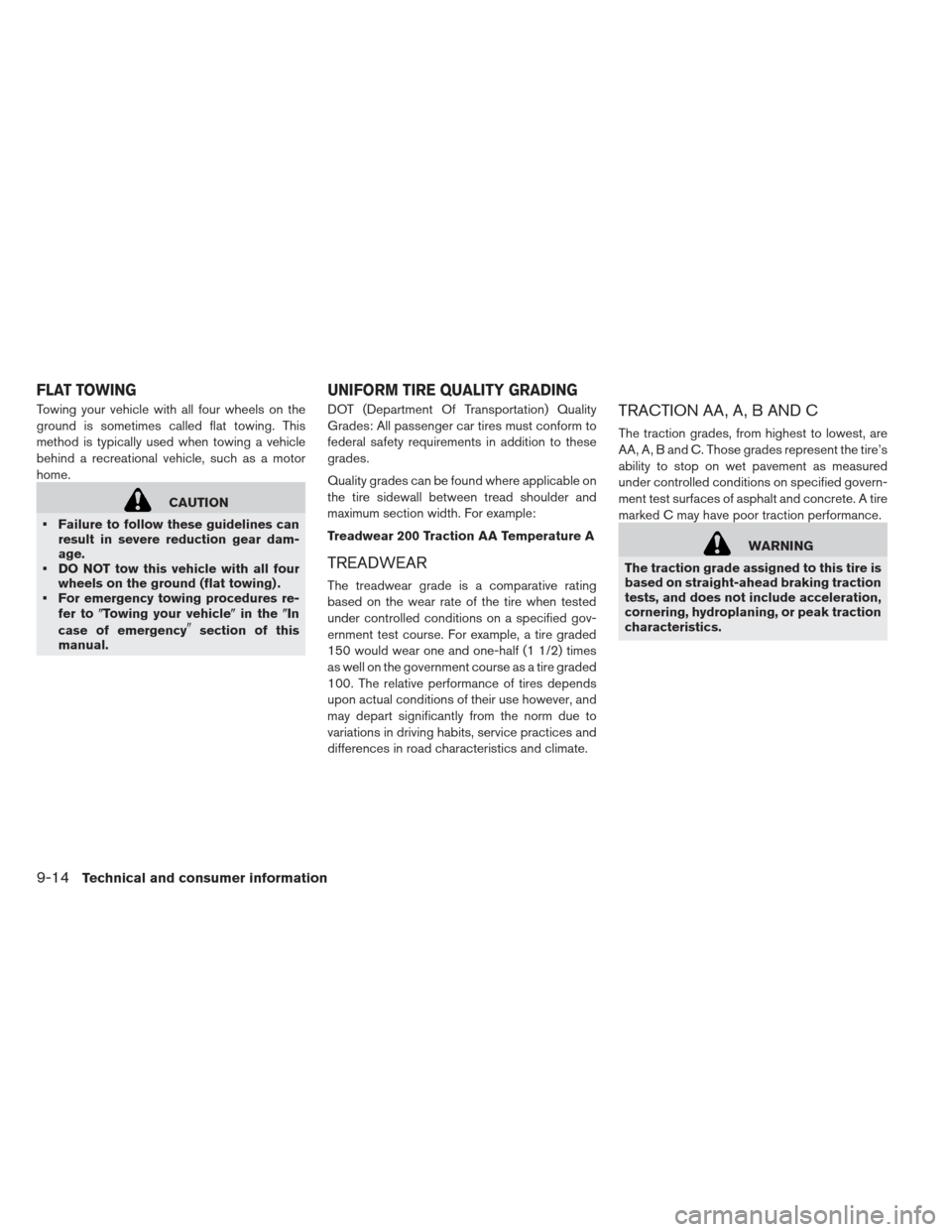

Towing your vehicle with all four wheels on the
ground is sometimes called flat towing. This
method is typically used when towing a vehicle
behind a recreational vehicle, such as a motor
home.
CAUTION
Failure to follow these guidelines can result in severe reduction gear dam-
age.
DO NOT tow this vehicle with all four wheels on the ground (flat towing) .
For emergency towing procedures re-
fer to Towing your vehicle in theIn
case of emergency
section of this
manual. DOT (Department Of Transportation) Quality
Grades: All passenger car tires must conform to
federal safety requirements in addition to these
grades.
Quality grades can be found where applicable on
the tire sidewall between tread shoulder and
maximum section width. For example:
Treadwear 200 Traction AA Temperature A
TREADWEAR
The treadwear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course. For example, a tire graded
150 would wear one and one-half (1 1/2) times
as well on the government course as a tire graded
100. The relative performance of tires depends
upon actual conditions of their use however, and
may depart significantly from the norm due to
variations in driving habits, service practices and
differences in road characteristics and climate.
TRACTION AA, A, B AND C
The traction grades, from highest to lowest, are
AA, A, B and C. Those grades represent the tire’s
ability to stop on wet pavement as measured
under controlled conditions on specified govern-
ment test surfaces of asphalt and concrete. A tire
marked C may have poor traction performance.
WARNING
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration,
cornering, hydroplaning, or peak traction
characteristics.
FLAT TOWING UNIFORM TIRE QUALITY GRADING
9-14Technical and consumer information
Page 382 of 402

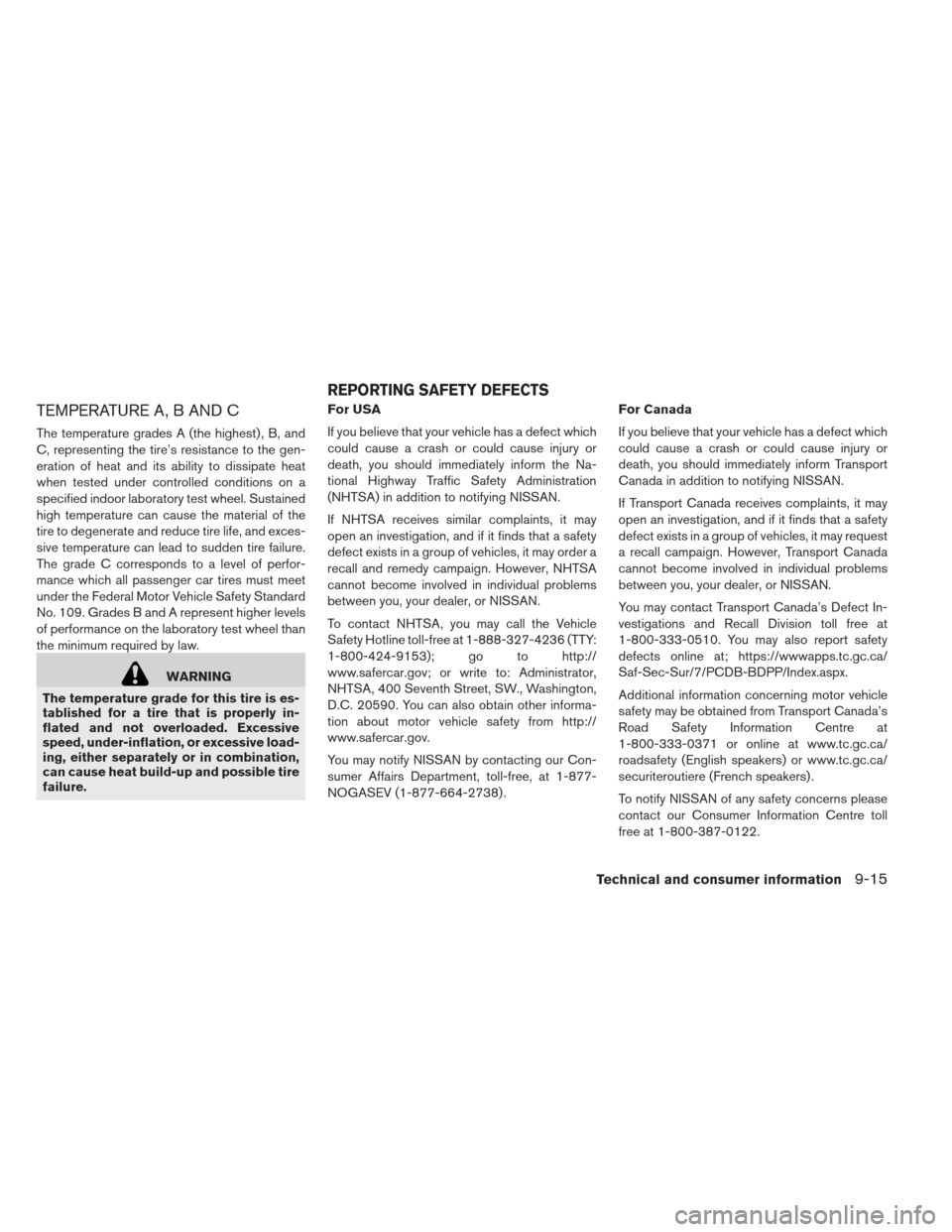

TEMPERATURE A, B AND C
The temperature grades A (the highest) , B, and
C, representing the tire’s resistance to the gen-
eration of heat and its ability to dissipate heat
when tested under controlled conditions on a
specified indoor laboratory test wheel. Sustained
high temperature can cause the material of the
tire to degenerate and reduce tire life, and exces-
sive temperature can lead to sudden tire failure.
The grade C corresponds to a level of perfor-
mance which all passenger car tires must meet
under the Federal Motor Vehicle Safety Standard
No. 109. Grades B and A represent higher levels
of performance on the laboratory test wheel than
the minimum required by law.
WARNING
The temperature grade for this tire is es-
tablished for a tire that is properly in-
flated and not overloaded. Excessive
speed, under-inflation, or excessive load-
ing, either separately or in combination,
can cause heat build-up and possible tire
failure. For USA
If you believe that your vehicle has a defect which
could cause a crash or could cause injury or
death, you should immediately inform the Na-
tional Highway Traffic Safety Administration
(NHTSA) in addition to notifying NISSAN.
If NHTSA receives similar complaints, it may
open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may order a
recall and remedy campaign. However, NHTSA
cannot become involved in individual problems
between you, your dealer, or NISSAN.
To contact NHTSA, you may call the Vehicle
Safety Hotline toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to http://
www.safercar.gov; or write to: Administrator,
NHTSA, 400 Seventh Street, SW., Washington,
D.C. 20590. You can also obtain other informa-
tion about motor vehicle safety from http://
www.safercar.gov.
You may notify NISSAN by contacting our Con-
sumer Affairs Department, toll-free, at 1-877-
NOGASEV (1-877-664-2738) . For Canada
If you believe that your vehicle has a defect which
could cause a crash or could cause injury or
death, you should immediately inform Transport
Canada in addition to notifying NISSAN.
If Transport Canada receives complaints, it may
open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may request
a recall campaign. However, Transport Canada
cannot become involved in individual problems
between you, your dealer, or NISSAN.
You may contact Transport Canada’s Defect In-
vestigations and Recall Division toll free at
1-800-333-0510. You may also report safety
defects online at; https://wwwapps.tc.gc.ca/
Saf-Sec-Sur/7/PCDB-BDPP/Index.aspx.
Additional information concerning motor vehicle
safety may be obtained from Transport Canada’s
Road Safety Information Centre at
1-800-333-0371 or online at www.tc.gc.ca/
roadsafety (English speakers) or www.tc.gc.ca/
securiteroutiere (French speakers) .
To notify NISSAN of any safety concerns please
contact our Consumer Information Centre toll
free at 1-800-387-0122.
REPORTING SAFETY DEFECTS
Technical and consumer information9-15
Page 383 of 402

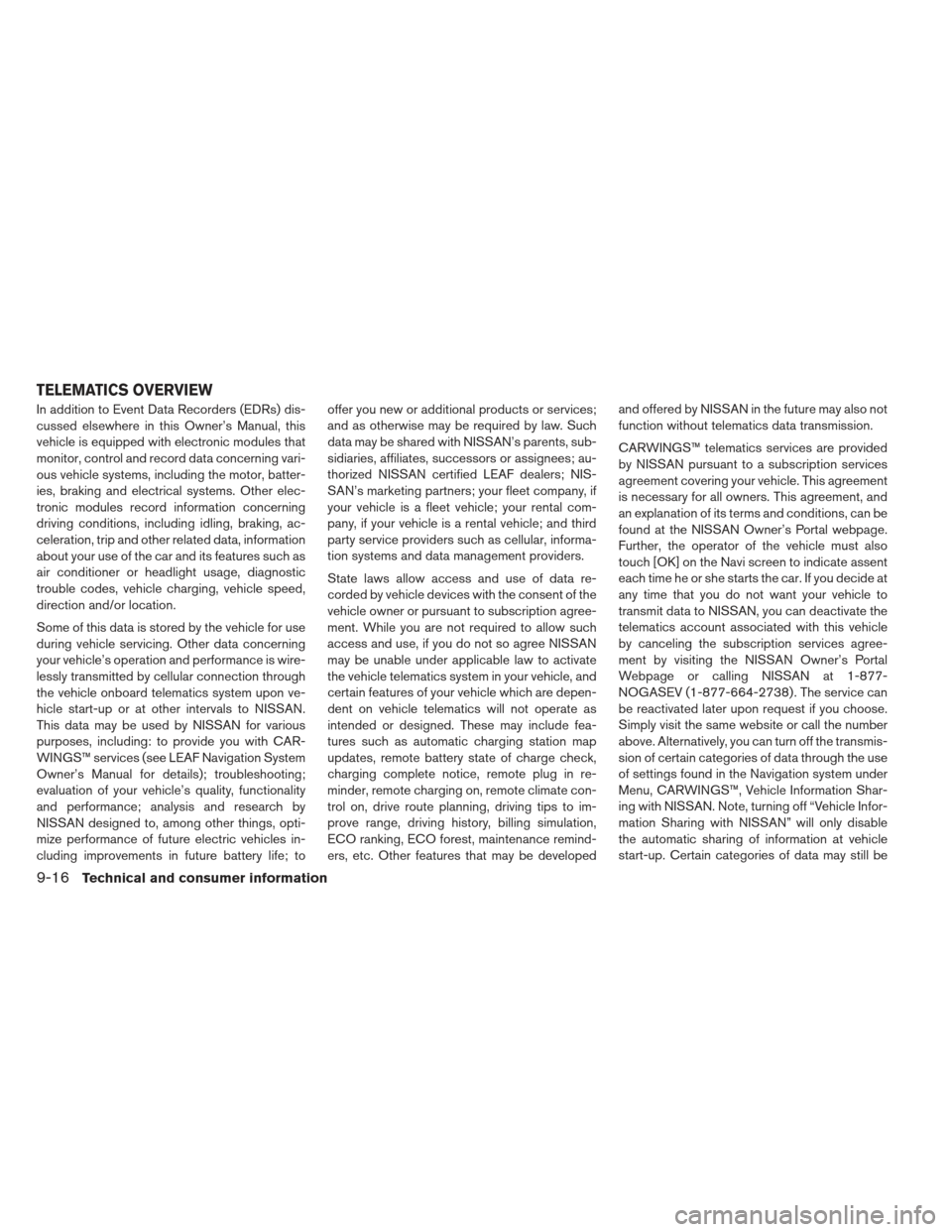

In addition to Event Data Recorders (EDRs) dis-
cussed elsewhere in this Owner’s Manual, this
vehicle is equipped with electronic modules that
monitor, control and record data concerning vari-
ous vehicle systems, including the motor, batter-
ies, braking and electrical systems. Other elec-
tronic modules record information concerning
driving conditions, including idling, braking, ac-
celeration, trip and other related data, information
about your use of the car and its features such as
air conditioner or headlight usage, diagnostic
trouble codes, vehicle charging, vehicle speed,
direction and/or location.
Some of this data is stored by the vehicle for use
during vehicle servicing. Other data concerning
your vehicle’s operation and performance is wire-
lessly transmitted by cellular connection through
the vehicle onboard telematics system upon ve-
hicle start-up or at other intervals to NISSAN.
This data may be used by NISSAN for various
purposes, including: to provide you with CAR-
WINGS™ services (see LEAF Navigation System
Owner’s Manual for details); troubleshooting;
evaluation of your vehicle’s quality, functionality
and performance; analysis and research by
NISSAN designed to, among other things, opti-
mize performance of future electric vehicles in-
cluding improvements in future battery life; tooffer you new or additional products or services;
and as otherwise may be required by law. Such
data may be shared with NISSAN’s parents, sub-
sidiaries, affiliates, successors or assignees; au-
thorized NISSAN certified LEAF dealers; NIS-
SAN’s marketing partners; your fleet company, if
your vehicle is a fleet vehicle; your rental com-
pany, if your vehicle is a rental vehicle; and third
party service providers such as cellular, informa-
tion systems and data management providers.
State laws allow access and use of data re-
corded by vehicle devices with the consent of the
vehicle owner or pursuant to subscription agree-
ment. While you are not required to allow such
access and use, if you do not so agree NISSAN
may be unable under applicable law to activate
the vehicle telematics system in your vehicle, and
certain features of your vehicle which are depen-
dent on vehicle telematics will not operate as
intended or designed. These may include fea-
tures such as automatic charging station map
updates, remote battery state of charge check,
charging complete notice, remote plug in re-
minder, remote charging on, remote climate con-
trol on, drive route planning, driving tips to im-
prove range, driving history, billing simulation,
ECO ranking, ECO forest, maintenance remind-
ers, etc. Other features that may be developedand offered by NISSAN in the future may also not
function without telematics data transmission.
CARWINGS™ telematics services are provided
by NISSAN pursuant to a subscription services
agreement covering your vehicle. This agreement
is necessary for all owners. This agreement, and
an explanation of its terms and conditions, can be
found at the NISSAN Owner’s Portal webpage.
Further, the operator of the vehicle must also
touch [OK] on the Navi screen to indicate assent
each time he or she starts the car. If you decide at
any time that you do not want your vehicle to
transmit data to NISSAN, you can deactivate the
telematics account associated with this vehicle
by canceling the subscription services agree-
ment by visiting the NISSAN Owner’s Portal
Webpage or calling NISSAN at 1-877-
NOGASEV (1-877-664-2738) . The service can
be reactivated later upon request if you choose.
Simply visit the same website or call the number
above. Alternatively, you can turn off the transmis-
sion of certain categories of data through the use
of settings found in the Navigation system under
Menu, CARWINGS™, Vehicle Information Shar-
ing with NISSAN. Note, turning off “Vehicle Infor-
mation Sharing with NISSAN” will only disable
the automatic sharing of information at vehicle
start-up. Certain categories of data may still be
TELEMATICS OVERVIEW
9-16Technical and consumer information
Page 384 of 402

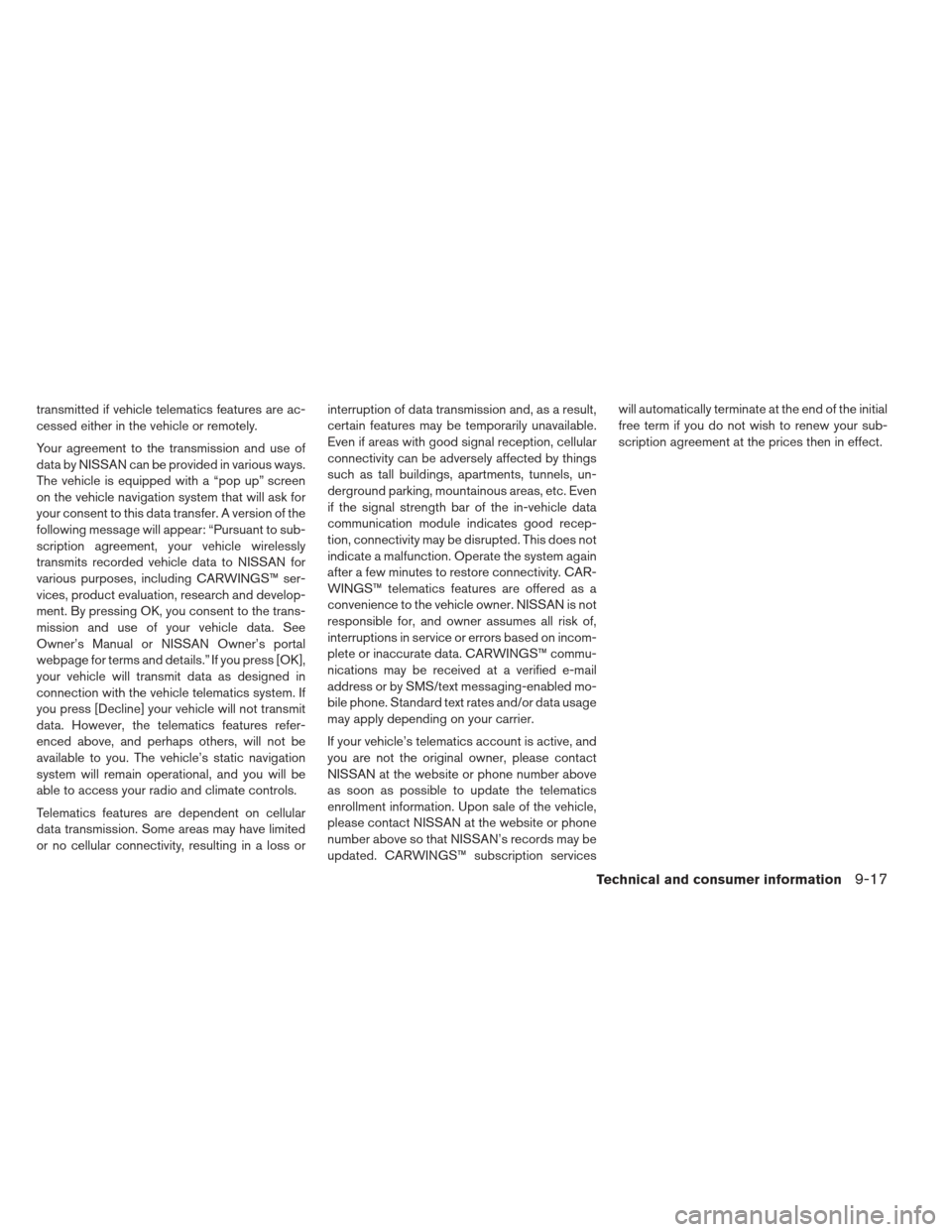

transmitted if vehicle telematics features are ac-
cessed either in the vehicle or remotely.
Your agreement to the transmission and use of
data by NISSAN can be provided in various ways.
The vehicle is equipped with a “pop up” screen
on the vehicle navigation system that will ask for
your consent to this data transfer. A version of the
following message will appear: “Pursuant to sub-
scription agreement, your vehicle wirelessly
transmits recorded vehicle data to NISSAN for
various purposes, including CARWINGS™ ser-
vices, product evaluation, research and develop-
ment. By pressing OK, you consent to the trans-
mission and use of your vehicle data. See
Owner’s Manual or NISSAN Owner’s portal
webpage for terms and details.” If you press [OK],
your vehicle will transmit data as designed in
connection with the vehicle telematics system. If
you press [Decline] your vehicle will not transmit
data. However, the telematics features refer-
enced above, and perhaps others, will not be
available to you. The vehicle’s static navigation
system will remain operational, and you will be
able to access your radio and climate controls.
Telematics features are dependent on cellular
data transmission. Some areas may have limited
or no cellular connectivity, resulting in a loss orinterruption of data transmission and, as a result,
certain features may be temporarily unavailable.
Even if areas with good signal reception, cellular
connectivity can be adversely affected by things
such as tall buildings, apartments, tunnels, un-
derground parking, mountainous areas, etc. Even
if the signal strength bar of the in-vehicle data
communication module indicates good recep-
tion, connectivity may be disrupted. This does not
indicate a malfunction. Operate the system again
after a few minutes to restore connectivity. CAR-
WINGS™ telematics features are offered as a
convenience to the vehicle owner. NISSAN is not
responsible for, and owner assumes all risk of,
interruptions in service or errors based on incom-
plete or inaccurate data. CARWINGS™ commu-
nications may be received at a verified e-mail
address or by SMS/text messaging-enabled mo-
bile phone. Standard text rates and/or data usage
may apply depending on your carrier.
If your vehicle’s telematics account is active, and
you are not the original owner, please contact
NISSAN at the website or phone number above
as soon as possible to update the telematics
enrollment information. Upon sale of the vehicle,
please contact NISSAN at the website or phone
number above so that NISSAN’s records may be
updated. CARWINGS™ subscription serviceswill automatically terminate at the end of the initial
free term if you do not wish to renew your sub-
scription agreement at the prices then in effect.
Technical and consumer information9-17
Page 385 of 402

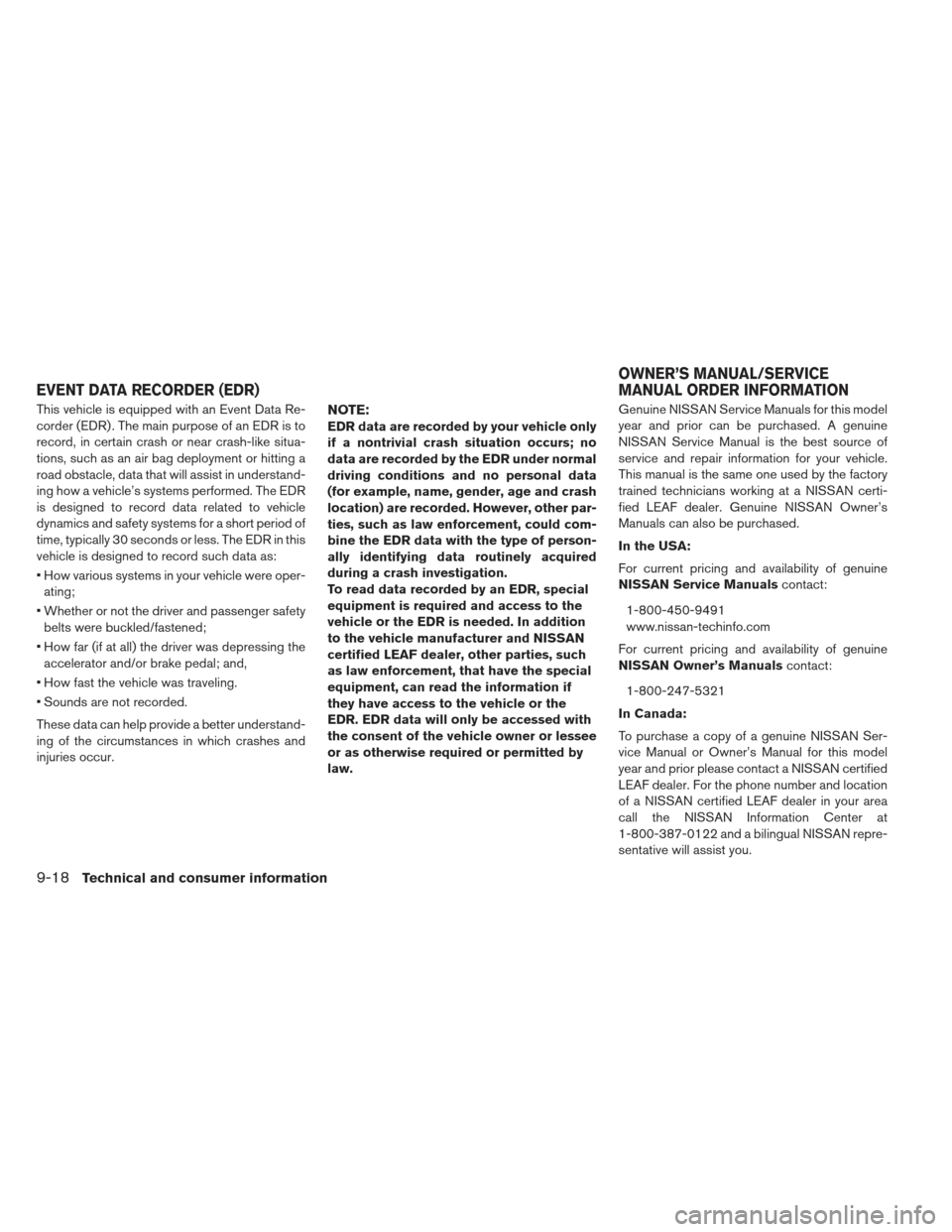

This vehicle is equipped with an Event Data Re-
corder (EDR) . The main purpose of an EDR is to
record, in certain crash or near crash-like situa-
tions, such as an air bag deployment or hitting a
road obstacle, data that will assist in understand-
ing how a vehicle’s systems performed. The EDR
is designed to record data related to vehicle
dynamics and safety systems for a short period of
time, typically 30 seconds or less. The EDR in this
vehicle is designed to record such data as:
How various systems in your vehicle were oper-ating;
Whether or not the driver and passenger safety belts were buckled/fastened;
How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
How fast the vehicle was traveling.
Sounds are not recorded.
These data can help provide a better understand-
ing of the circumstances in which crashes and
injuries occur.NOTE:
EDR data are recorded by your vehicle only
if a nontrivial crash situation occurs; no
data are recorded by the EDR under normal
driving conditions and no personal data
(for example, name, gender, age and crash
location) are recorded. However, other par-
ties, such as law enforcement, could com-
bine the EDR data with the type of person-
ally identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special
equipment is required and access to the
vehicle or the EDR is needed. In addition
to the vehicle manufacturer and NISSAN
certified LEAF dealer, other parties, such
as law enforcement, that have the special
equipment, can read the information if
they have access to the vehicle or the
EDR. EDR data will only be accessed with
the consent of the vehicle owner or lessee
or as otherwise required or permitted by
law. Genuine NISSAN Service Manuals for this model
year and prior can be purchased. A genuine
NISSAN Service Manual is the best source of
service and repair information for your vehicle.
This manual is the same one used by the factory
trained technicians working at a NISSAN certi-
fied LEAF dealer. Genuine NISSAN Owner’s
Manuals can also be purchased.
In the USA:
For current pricing and availability of genuine
NISSAN Service Manuals
contact:
1-800-450-9491
www.nissan-techinfo.com
For current pricing and availability of genuine
NISSAN Owner’s Manuals contact:
1-800-247-5321
In Canada:
To purchase a copy of a genuine NISSAN Ser-
vice Manual or Owner’s Manual for this model
year and prior please contact a NISSAN certified
LEAF dealer. For the phone number and location
of a NISSAN certified LEAF dealer in your area
call the NISSAN Information Center at
1-800-387-0122 and a bilingual NISSAN repre-
sentative will assist you.
EVENT DATA RECORDER (EDR) OWNER’S MANUAL/SERVICE
MANUAL ORDER INFORMATION
9-18Technical and consumer information
Page 386 of 402

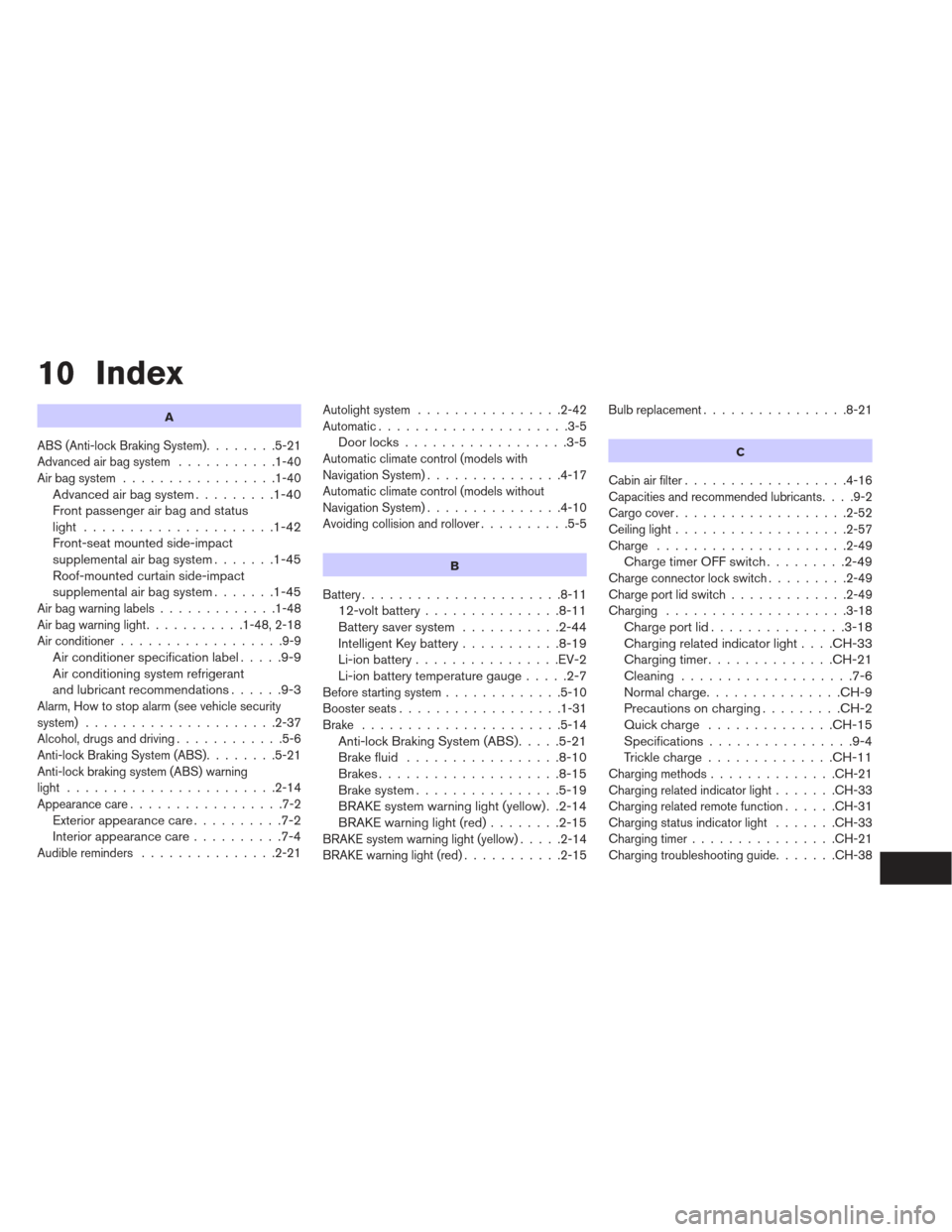

10 Index
A
ABS (Anti-lock Braking System)........5-21
Advanced air bag system ...........1-40
Air bag system .................1-40
Advanced air bag system .........1-40
Front passenger air bag and status
light .................... .1-42
Front-seat mounted side-impact
supplemental air bag system .......1-45
Roof-mounted curtain side-impact
supplemental air bag system .......1-45
Airbagwarninglabels.............1-48
Airbagwarninglight...........1-48,2-18
Air conditioner..................9-9
Air conditioner specification label .....9-9
Air conditioning system refrigerant
and lubricant recommendations ......9-3
Alarm, How to stop alarm (see vehicle security
system) .....................2-37
Alcohol, drugs and driving............5-6
Anti-lock Braking System (ABS) ........5-21
Anti-lock braking system (ABS) warning
light .......................2-14
Appearance care .................7-2
Exterior appearance care ..........7-2
Interior appearance care ..........7-4
Audible reminders...............2-21 Autolight system
................2-42
Automatic.....................3-5
Door locks ................. .3-5
Automatic climate control (models with
Navigation System)...............4-17
Automatic climate control (models without
Navigation System) ...............4-10
Avoiding collision and rollover ..........5-5
B
Battery......................8-11
12-volt battery .............. .8-11
Battery saver system ...........2-44
Intelligent Key battery ...........8-19
Li-ion battery ............... .EV-2
Li-ion battery temperature gauge .....2-7
Before starting system.............5-10
Boosterseats..................1-31
Brake ......................5-14
Anti-lock Braking System (ABS) .....5-21
Brake fluid ................ .8-10
Brakes ................... .8-15
Brake system ............... .5-19
BRAKE system warning light (yellow) . .2-14
BRAKE warning light (red) ........2-15
BRAKE system warning light (yellow) .....2-14
BRAKE warning light (red) ...........2-15 Bulbreplacement................8-21
C
Cabin air filter
..................4-16
Capacities and recommended lubricants ....9-2
Cargocover...................2-52
Ceiling light ...................2-57
Charge .....................2-49
Charge timer OFF switch .........2-49
Charge connector lock switch .........2-49
Chargeportlidswitch.............2-49
Charging ....................3-18
Charge port lid .............. .3-18
Charging related indicator light . . . .CH-33
Charging timer ............. .CH-21
Cleaning .................. .7-6
Normal charge .............. .CH-9
Precautions on charging .........CH-2
Quick charge ............. .CH-15
Specifications ............... .9-4
Trickle charge ............. .CH-11
Chargingmethods..............CH-21
Charging related indicator light .......CH-33
Charging related remote function ......CH-31
Charging status indicator light .......CH-33
Chargingtimer................CH-21
Chargingtroubleshootingguide.......CH-38
Page 387 of 402

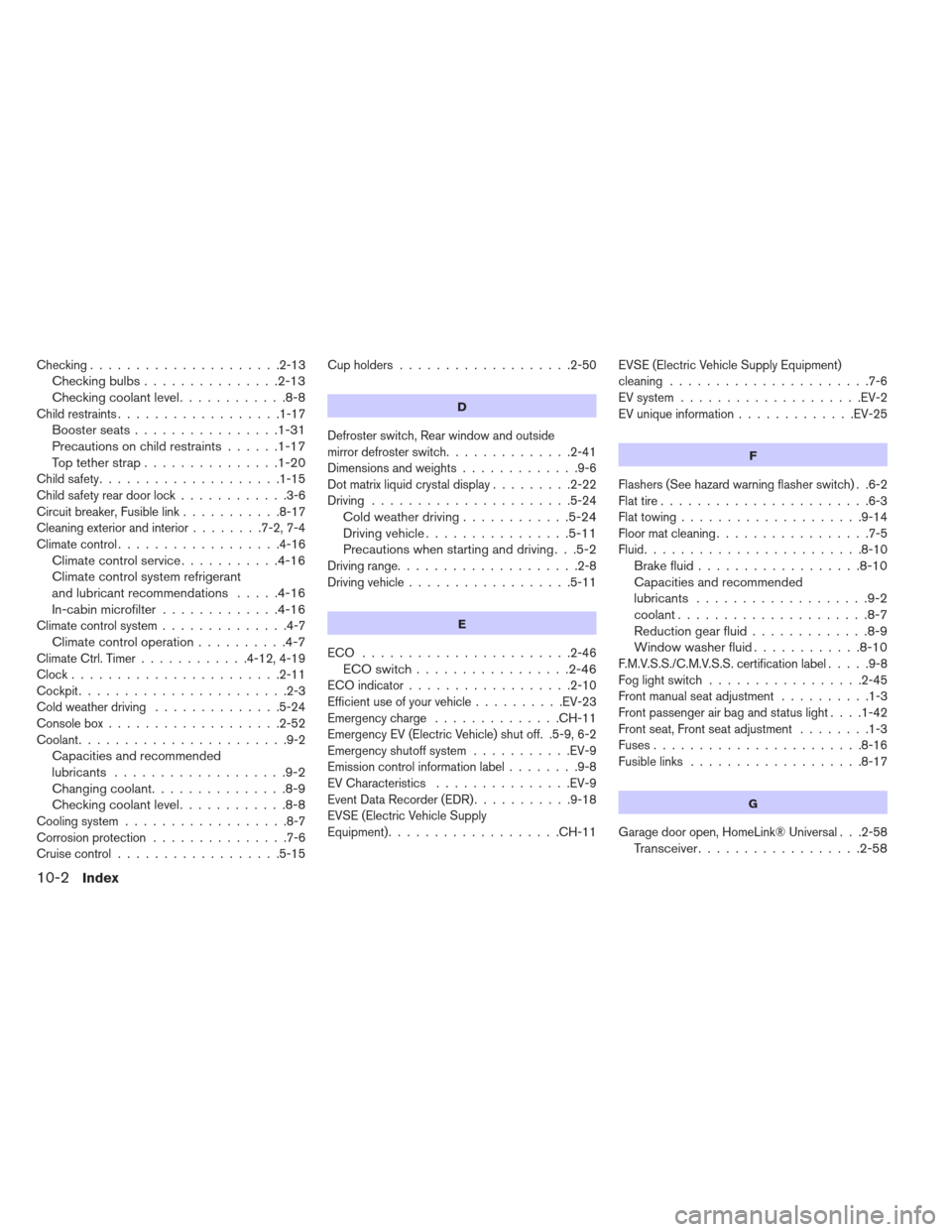

Checking.....................2-13
Checking bulbs .............. .2-13
Checking coolant level ............8-8
Child restraints..................1-17
Booster seats............... .1-31
Precautions on child restraints ......1-17
Top tether strap .............. .1-20
Child safety....................1-15
Child safety rear door lock ............3-6
Circuitbreaker,Fusiblelink...........8-17
Cleaning exterior and interior ........7-2,7-4
Climatecontrol..................4-16
Climate control service ...........4-16
Climate control system refrigerant
and lubricant recommendations .....4-16
In-cabin microfilter .............4-16
Climate control system ..............4-7
Climate control operation ..........4-7
Climate Ctrl. Timer............4-12,4-19
Clock.......................2-11
Cockpit .......................2-3
Cold weather driving ..............5-24
Console box ...................2-52
Coolant.......................9-2
Capacities and recommended
lubricants .................. .9-2
Changing coolant .............. .8-9
Checking coolant level ............8-8
Cooling system..................8-7
Corrosionprotection ...............7-6
Cruise control ..................5-15 Cupholders...................2-50
D
Defroster switch, Rear window and outside
mirror defroster switch
..............2-41
Dimensionsandweights.............9-6
Dot matrix liquid crystal display .........2-22
Driving ......................5-24
Cold weather driving ............5-24
Driving vehicle ............... .5-11
Precautions when starting and driving . . .5-2
Driving range ....................2-8
Driving vehicle ..................5-11
E
ECO .......................2-46
ECO switch................ .2-46
ECOindicator..................2-10
Efficient use of your vehicle ..........EV-23
Emergency charge ..............CH-11
Emergency EV (Electric Vehicle) shut off. .5-9, 6-2
Emergency shutoff system ...........EV-9
Emission control information label ........9-8
EV Characteristics ...............EV-9
Event Data Recorder (EDR) ...........9-18
EVSE (Electric Vehicle Supply
Equipment) ...................CH-11 EVSE (Electric Vehicle Supply Equipment)
cleaning
......................7-6
EV system ....................EV-2
EV unique information .............EV-25
F
Flashers (See hazard warning flasher switch) . .6-2
Flat tire.......................6-3
Flattowing....................9-14
Floormatcleaning.................7-5
Fluid ........................8-10
Brake fluid ................. .8-10
Capacities and recommended
lubricants .................. .9-2
coolant .................... .8-7
Reduction gear fluid .............8-9
Window washer fluid ............8-10
F.M.V.S.S./C.M.V.S.S. certification label .....9-8
Foglightswitch .................2-45
Frontmanualseatadjustment ..........1-3
Front passenger air bag and status light ....1-42
Front seat, Front seat adjustment ........1-3
Fuses.......................8-16
Fusiblelinks ...................8-17
G
Garage door open, HomeLink® Universal . . .2-58
Transceiver ................. .2-58
10-2Index
Page 388 of 402

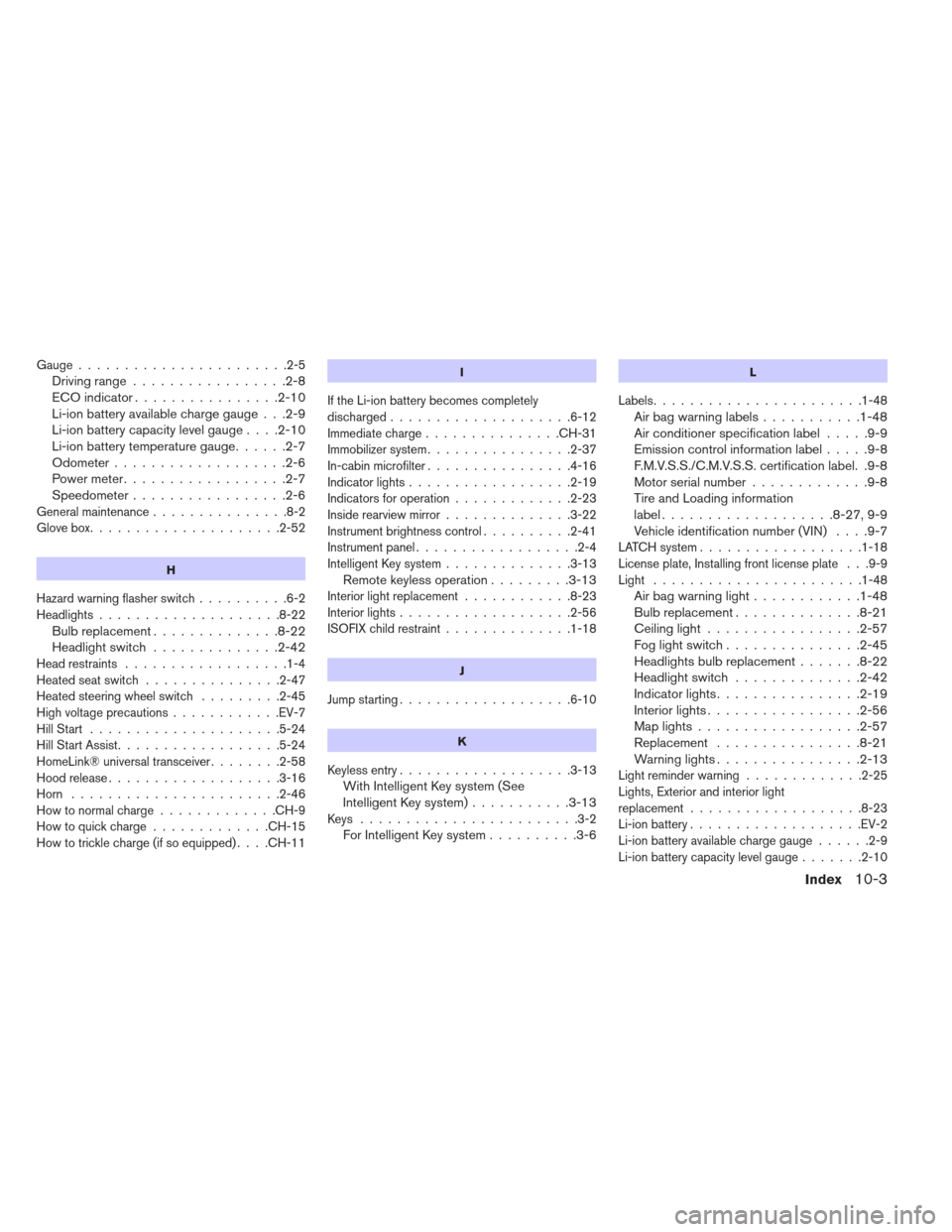

Gauge.......................2-5
Driving range................ .2-8
ECO indicator ............... .2-10
Li-ion battery available charge gauge . . .2-9
Li-ion battery capacity level gauge . . . .2-10
Li-ion battery temperature gauge ......2-7
Odometer .................. .2-6
Power meter ................. .2-7
Speedometer ................ .2-6
Generalmaintenance...............8-2
Glovebox.....................2-52
H
Hazard warning flasher switch ..........6-2
Headlights ....................8-22
Bulb replacement ............. .8-22
Headlight switch ............. .2-42
Head restraints..................1-4
Heatedseatswitch ...............2-47
Heated steering wheel switch .........2-45
High voltage precautions ............EV-7
HillStart .....................5-24
Hill Start Assist ..................5-24
HomeLink® universal transceiver ........2-58
Hood release ...................3-16
Horn .......................2-46
Howtonormalcharge.............CH-9
Howtoquickcharge.............CH-15
How to trickle charge (if so equipped) ....CH-11
I
If the Li-ion battery becomes completely
discharged....................6-12
Immediate charge ...............CH-31
Immobilizer system ................2-37
In-cabin microfilter ................4-16
Indicatorlights..................2-19
Indicators for operation .............2-23
Inside rearview mirror ..............3-22
Instrument brightness control ..........2-41
Instrument panel ..................2-4
Intelligent Key system ..............3-13
Remote keyless operation .........3-13
Interior light replacement............8-23
Interior lights ...................2-56
ISOFIX child restraint ..............1-18
J
Jump starting...................6-10
K
Keylessentry...................3-13
With Intelligent Key system (See
Intelligent Key system) ...........3-13
Keys ........................3-2
For Intelligent Key system ..........3-6
L
Labels.......................1-48
Air bag warning labels...........1-48
Air conditioner specification label .....9-9
Emission control information label . . . . .9-8
F.M.V.S.S./C.M.V.S.S. certification label. .9-8
Motor serial number .............9-8
Tire and Loading information
label .................. .8-27, 9-9
Vehicle identification number (VIN) . . . .9-7
LATCH system ..................1-18
License plate, Installing front license plate . . .9-9
Light .......................1-48
Air bag warning light ............1-48
Bulb replacement ............. .8-21
Ceiling light ................ .2-57
Fog light switch .............. .2-45
Headlights bulb replacement .......8-22
Headlight switch ............. .2-42
Indicator lights ............... .2-19
Interior lights ................ .2-56
Map lights ................. .2-57
Replacement ............... .8-21
Warning lights ............... .2-13
Lightreminderwarning .............2-25
Lights, Exterior and interior light
replacement...................8-23
Li-ion battery ...................EV-2
Li-ion battery available charge gauge ......2-9
Li-ion battery capacity level gauge .......2-10
Index10-3
Page 389 of 402

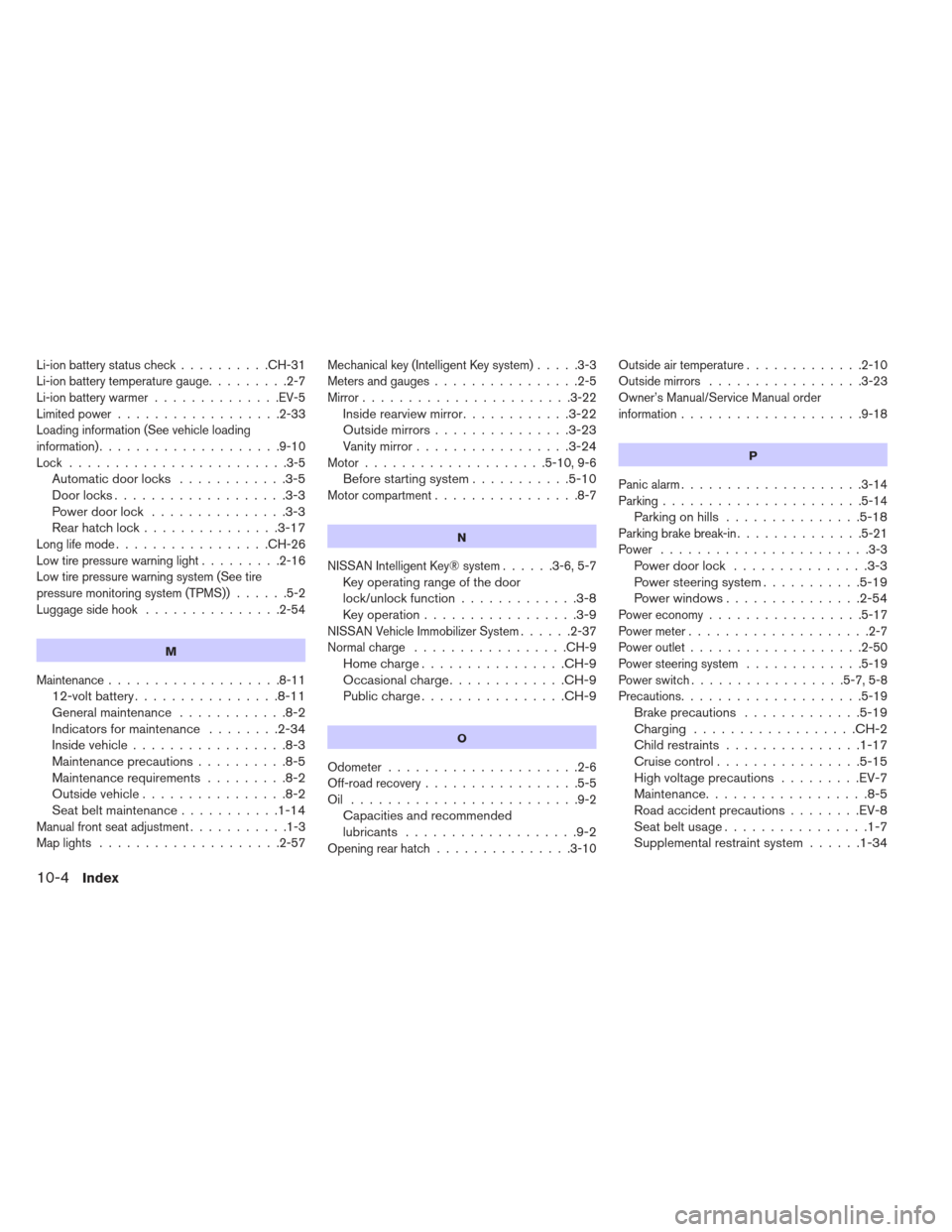

Li-ion battery status check..........CH-31
Li-ion battery temperature gauge .........2-7
Li-ion battery warmer ..............EV-5
Limited power ..................2-33
Loading information (See vehicle loading
information) ....................9-10
Lock ........................3-5
Automatic door locks ............3-5
Door locks .................. .3-3
Power door lock .............. .3-3
Rear hatch lock .............. .3-17
Long life mode.................CH-26
Low tire pressure warning light .........2-16
Low tire pressure warning system (See tire
pressure monitoring system (TPMS)) ......5-2
Luggage side hook ...............2-54
M
Maintenance...................8-11
12-volt battery ............... .8-11
General maintenance ............8-2
Indicators for maintenance ........2-34
Inside vehicle ................ .8-3
Maintenance precautions ..........8-5
Maintenance requirements .........8-2
Outside vehicle ............... .8-2
Seat belt maintenance ...........1-14
Manual front seat adjustment ...........1-3
Maplights ....................2-57 Mechanical key (Intelligent Key system)
.....3-3
Meters and gauges ................2-5
Mirror .......................3-22
Inside rearview mirror ............3-22
Outside mirrors .............. .3-23
Vanity mirror ................ .3-24
Motor....................5-10,9-6
Before starting system...........5-10
Motor compartment................8-7
N
NISSAN Intelligent Key® system ......3-6,5-7
Key operating range of the door
lock/unlock function.............3-8
Key operation ................ .3-9
NISSAN Vehicle Immobilizer System ......2-37
Normalcharge .................CH-9
Home charge ............... .CH-9
Occasional charge .............CH-9
Public charge ............... .CH-9
O
Odometer.....................2-6
Off-road recovery .................5-5
Oil .........................9-2
Capacities and recommended
lubricants .................. .9-2
Opening rear hatch...............3-10 Outside air temperature
.............2-10
Outside mirrors .................3-23
Owner’s Manual/Service Manual order
information ....................9-18
P
Panic alarm....................3-14
Parking ......................5-14
Parking on hills .............. .5-18
Parking brake break-in..............5-21
Power .......................3-3
Power door lock .............. .3-3
Power steering system ...........5-19
Power windows .............. .2-54
Powereconomy.................5-17
Powermeter....................2-7
Power outlet...................2-50
Power steering system .............5-19
Powerswitch.................5-7,5-8
Precautions ....................5-19
Brake precautions .............5-19
Charging ................. .CH-2
Child restraints .............. .1-17
Cruise control ............... .5-15
High voltage precautions .........EV-7
Maintenance ................. .8-5
Road accident precautions ........EV-8
Seat belt usage ............... .1-7
Supplemental restraint system ......1-34
10-4Index
Page 390 of 402
When starting and driving..........5-2
Push starting...................6-12
Q
Quickcharge .................CH-15
R
Rapidairpressureloss..............5-6
Rearcenterseatbelt ..............1-14
Rear door lock, Child safety rear door lock . . .3-6
Rear hatch....................3-17
Rearseats.....................1-4
Rearview monitor .................4-2
Rear window and outside mirror defroster
switch .......................2-41
Rear window wiper and washer switch ....2-40
Reductiongearfluid................8-9
Remotecharge ................CH-31
Remoteclimatecontrol.............4-23
Remote keyless entry function, For Intelligent
Keysystem....................3-13
Repairing flat tire .................6-4
Repairing tire ...................6-6
Reporting safety defects ............9-15
Road accident precautions ...........EV-8
Roadside assistance program ..........6-2
Rollover ......................5-5
S
Safety.......................1-15
Child seat belts .............. .1-15
Reporting safety defects ..........9-15
Sceneguide..................EV-22
At home after driving...........EV-22
Before driving your vehicle (models
with navigation system) ..........EV-13
Charging the Li-ion battery .......EV-10
Driving the vehicle .............EV-18
Parking the vehicle ............EV-21
Starting your vehicle ...........EV-17
Seat adjustment..................1-3
Front manual seat adjustment ........1-3
Front seats ................. .1-3
Seat belt(s)....................1-15
Child safety ................ .1-15
Infants ................... .1-15
Injured persons .............. .1-10
Larger children .............. .1-16
Precautions on seat belt usage .......1-7
Pregnant women ............. .1-10
Rear center seat belt ............1-14
Seat belt cleaning ............. .7-5
Seat belt extenders .............1-14
Seat belt hooks .............. .1-13
Seat belt maintenance ...........1-14
Seat belts .................. .1-7
Seat belts with pretensioners .......1-47
Seat belt warning light ...........2-18 Shoulder belt height adjustment
.....1-13
Small children ............... .1-15
Three-point type ............. .1-10
Seat(s) , Seats...................1-2
Heated seats............... .2-47
Security system (NISSAN Vehicle Immobilizer
System) , EV system start ............2-37
Servicing climate control ............4-16
Shifting ......................5-11
Electric shift control system ........5-11
Shoulder belt height adjustment, For front
seats.......................1-13
Soft bottle holders ................2-51
Solar cell module .................7-3
Speedometer ...................2-6
Starting ......................5-10
Before starting system ...........5-10
Jump starting ............... .6-10
Precautions when starting and driving . . .5-2
Push starting ............... .6-12
Status light, Front passenger air bag ......1-42
Steering .....................2-45
Heated steering wheel ...........2-45
Power steering system ...........5-19
Tilting steering column ...........3-20
Stopping the vehicle...............6-5
Storage......................2-50
Stowing golf bags ................2-53
Sun visors ....................3-21
Supplemental air bag warning labels ......1-48
Supplemental air bag warning light . . .1-48, 2-18
Index10-5
