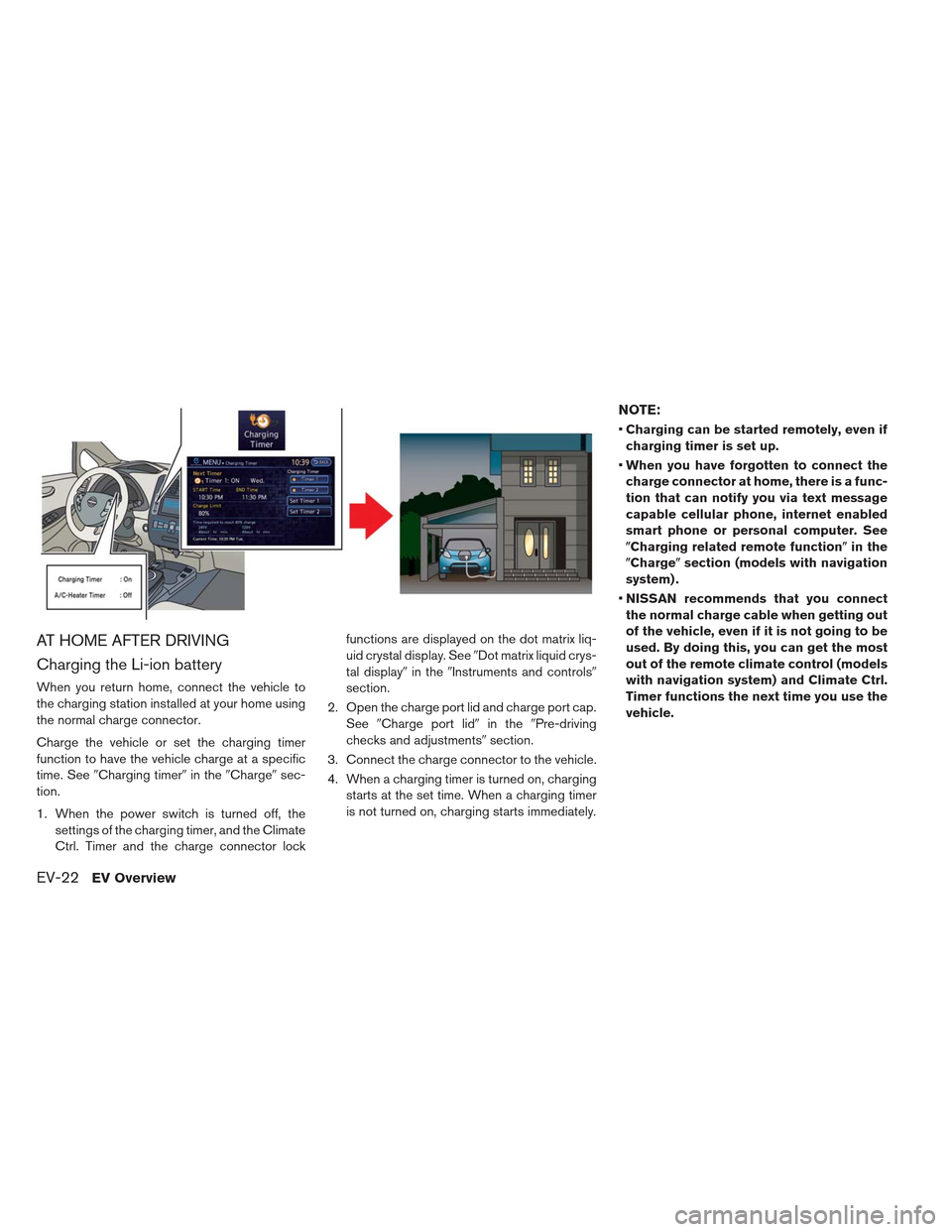

AT HOME AFTER DRIVING
Charging the Li-ion battery
When you return home, connect the vehicle to
the charging station installed at your home using
the normal charge connector.
Charge the vehicle or set the charging timer
function to have the vehicle charge at a specific
time. SeeCharging timer in theCharge sec-
1. When the power switch is turned off, the settings of the charging timer, and the Climate
Ctrl. Timer and the charge connector lock functions are displayed on the dot matrix liq-
uid crystal display. See
Dot matrix liquid crys-
tal display in theInstruments and controls
2. Open the charge port lid and charge port cap. See Charge port lid in thePre-driving
checks and adjustments section.
3. Connect the charge connector to the vehicle.
4. When a charging timer is turned on, charging starts at the set time. When a charging timer
is not turned on, charging starts immediately.
Charging can be started remotely, even if
charging timer is set up.
When you have forgotten to connect the
charge connector at home, there is a func-
tion that can notify you via text message
capable cellular phone, internet enabled
smart phone or personal computer. See
Charging related remote function in the
Charge section (models with navigation
NISSAN recommends that you connect
the normal charge cable when getting out
of the vehicle, even if it is not going to be
used. By doing this, you can get the most
out of the remote climate control (models
with navigation system) and Climate Ctrl.
Timer functions the next time you use the
Page 42 of 402
The distance you can drive the vehicle (range)
varies considerably depending upon available
charge, weather, temperature, usage, battery
age, topography, and driving style.
Vehicle range depends on a number of factors.
When the Li-ion battery is new, the estimated
vehicle range with a fully charged Li-ion battery is
approximately 100 miles (160 km) based on the
EPA laboratory test commonly called the LA4
mode drive cycle. This test represents city driving
conditions. Your actual range can vary, either
initially or as the battery ages and with use over
time. The majority of drivers will experience ve-
hicle ranges between 62 to 138 miles (99 to 222
km) based on the many factors that affect vehicle
range. SeeImprove driving range later in this
section for information of the factors that affect
vehicle range and how to use the vehicle to
maximize vehicle range.

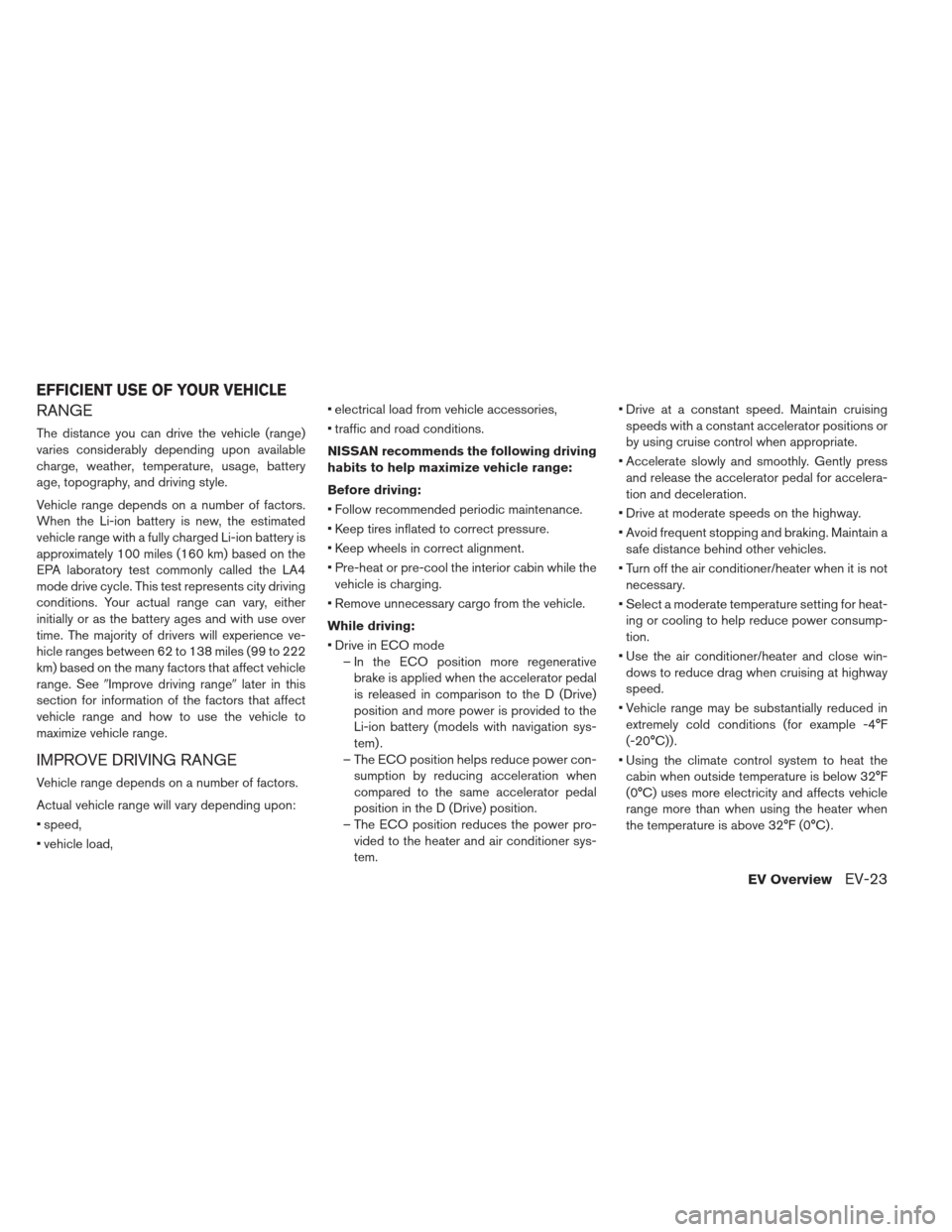

IMPROVE DRIVING RANGE
Vehicle range depends on a number of factors.
Actual vehicle range will vary depending upon:
vehicle load, electrical load from vehicle accessories,
traffic and road conditions.
NISSAN recommends the following driving
habits to help maximize vehicle range:
Follow recommended periodic maintenance.
Keep tires inflated to correct pressure.
Keep wheels in correct alignment.
Pre-heat or pre-cool the interior cabin while the
vehicle is charging.
Remove unnecessary cargo from the vehicle.
Drive in ECO mode – In the ECO position more regenerativebrake is applied when the accelerator pedal
is released in comparison to the D (Drive)
position and more power is provided to the
Li-ion battery (models with navigation sys-
– The ECO position helps reduce power con- sumption by reducing acceleration when
compared to the same accelerator pedal
position in the D (Drive) position.
– The ECO position reduces the power pro- vided to the heater and air conditioner sys-
tem. Drive at a constant speed. Maintain cruising
speeds with a constant accelerator positions or
by using cruise control when appropriate.
Accelerate slowly and smoothly. Gently press and release the accelerator pedal for accelera-
tion and deceleration.
Drive at moderate speeds on the highway.
Avoid frequent stopping and braking. Maintain a safe distance behind other vehicles.
Turn off the air conditioner/heater when it is not necessary.
Select a moderate temperature setting for heat- ing or cooling to help reduce power consump-
Use the air conditioner/heater and close win- dows to reduce drag when cruising at highway
Vehicle range may be substantially reduced in extremely cold conditions (for example -4°F
Using the climate control system to heat the cabin when outside temperature is below 32°F
(0°C) uses more electricity and affects vehicle
range more than when using the heater when
the temperature is above 32°F (0°C) .
EFFICIENT USE OF YOUR VEHICLE
Page 43 of 402

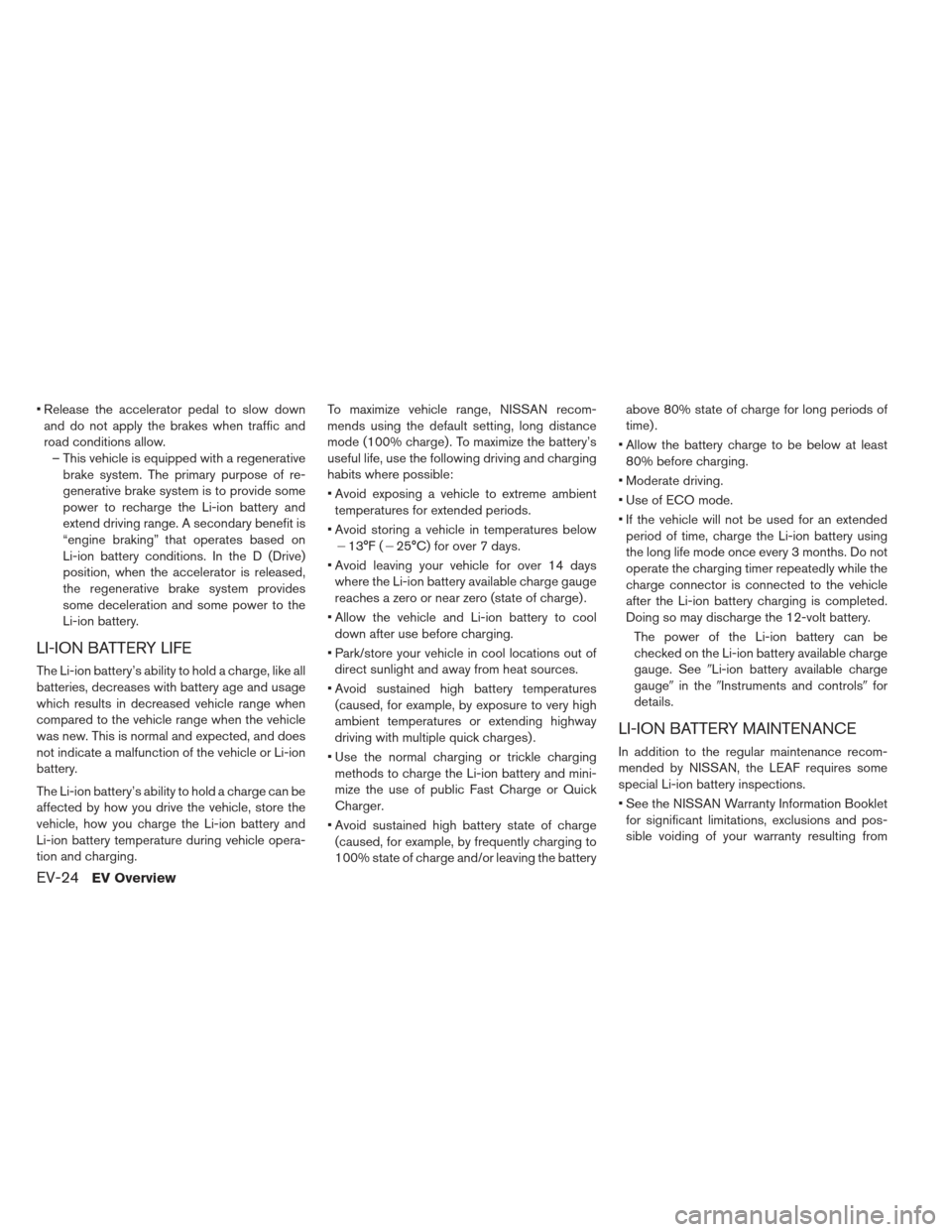

Release the accelerator pedal to slow downand do not apply the brakes when traffic and
road conditions allow. – This vehicle is equipped with a regenerative brake system. The primary purpose of re-
generative brake system is to provide some
power to recharge the Li-ion battery and
extend driving range. A secondary benefit is
“engine braking” that operates based on
Li-ion battery conditions. In the D (Drive)
position, when the accelerator is released,
the regenerative brake system provides
some deceleration and some power to the
LI-ION BATTERY LIFE
The Li-ion battery’s ability to hold a charge, like all
batteries, decreases with battery age and usage
which results in decreased vehicle range when
compared to the vehicle range when the vehicle
was new. This is normal and expected, and does
not indicate a malfunction of the vehicle or Li-ion
The Li-ion battery’s ability to hold a charge can be
affected by how you drive the vehicle, store the
vehicle, how you charge the Li-ion battery and
Li-ion battery temperature during vehicle opera-
tion and charging. To maximize vehicle range, NISSAN recom-
mends using the default setting, long distance
mode (100% charge) . To maximize the battery’s
useful life, use the following driving and charging
habits where possible:
Avoid exposing a vehicle to extreme ambient
temperatures for extended periods.
Avoid storing a vehicle in temperatures below 13°F (25°C) for over 7 days.
Avoid leaving your vehicle for over 14 days where the Li-ion battery available charge gauge
reaches a zero or near zero (state of charge) .
Allow the vehicle and Li-ion battery to cool down after use before charging.
Park/store your vehicle in cool locations out of direct sunlight and away from heat sources.
Avoid sustained high battery temperatures (caused, for example, by exposure to very high
ambient temperatures or extending highway
driving with multiple quick charges) .
Use the normal charging or trickle charging methods to charge the Li-ion battery and mini-
mize the use of public Fast Charge or Quick
Avoid sustained high battery state of charge (caused, for example, by frequently charging to
100% state of charge and/or leaving the battery above 80% state of charge for long periods of
Allow the battery charge to be below at least 80% before charging.
Use of ECO mode.
If the vehicle will not be used for an extended period of time, charge the Li-ion battery using
the long life mode once every 3 months. Do not
operate the charging timer repeatedly while the
charge connector is connected to the vehicle
after the Li-ion battery charging is completed.
Doing so may discharge the 12-volt battery.
The power of the Li-ion battery can be
checked on the Li-ion battery available charge
gauge. See Li-ion battery available charge
gauge in theInstruments and controls for
LI-ION BATTERY MAINTENANCE
In addition to the regular maintenance recom-
mended by NISSAN, the LEAF requires some
special Li-ion battery inspections.
See the NISSAN Warranty Information Booklet for significant limitations, exclusions and pos-
sible voiding of your warranty resulting from
Page 44 of 402
failure to have these necessary inspections, re-
pairs and/or adjustments performed.
See the NISSAN Service and Maintenance Guide for a detailed explanation of the Li-ion
battery inspection and intervals.METERS AND INDICATORS
The vehicle has two displays to provide informa-
tion regarding vehicle operation:
Master warning lights:
The master warning lights are located in the
The master warning lights illuminate when any
warning lights or indicators illuminate in the lower
display or when messages are displayed on the
dot matrix liquid crystal display.
For additional information, see Master warning
light in the Instruments and controls section.
EV UNIQUE INFORMATION
Page 45 of 402

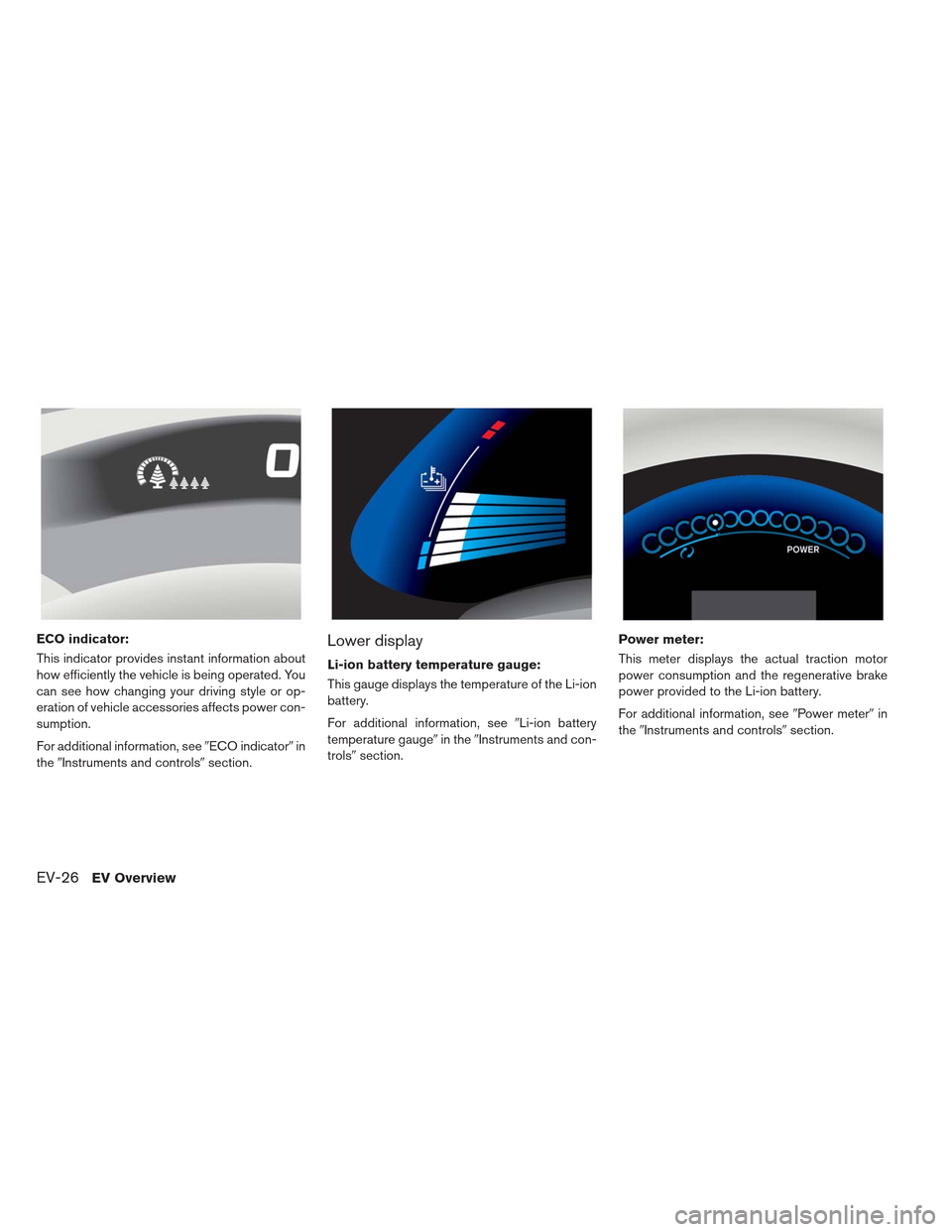

This indicator provides instant information about
how efficiently the vehicle is being operated. You
can see how changing your driving style or op-
eration of vehicle accessories affects power con-
For additional information, seeECO indicatorin
the Instruments and controls section.Lower display
Li-ion battery temperature gauge:
This gauge displays the temperature of the Li-ion
For additional information, see Li-ion battery
temperature gauge in theInstruments and con-
trols section. Power meter:
This meter displays the actual traction motor
power consumption and the regenerative brake
power provided to the Li-ion battery.
For additional information, see
the Instruments and controls section.
Page 46 of 402

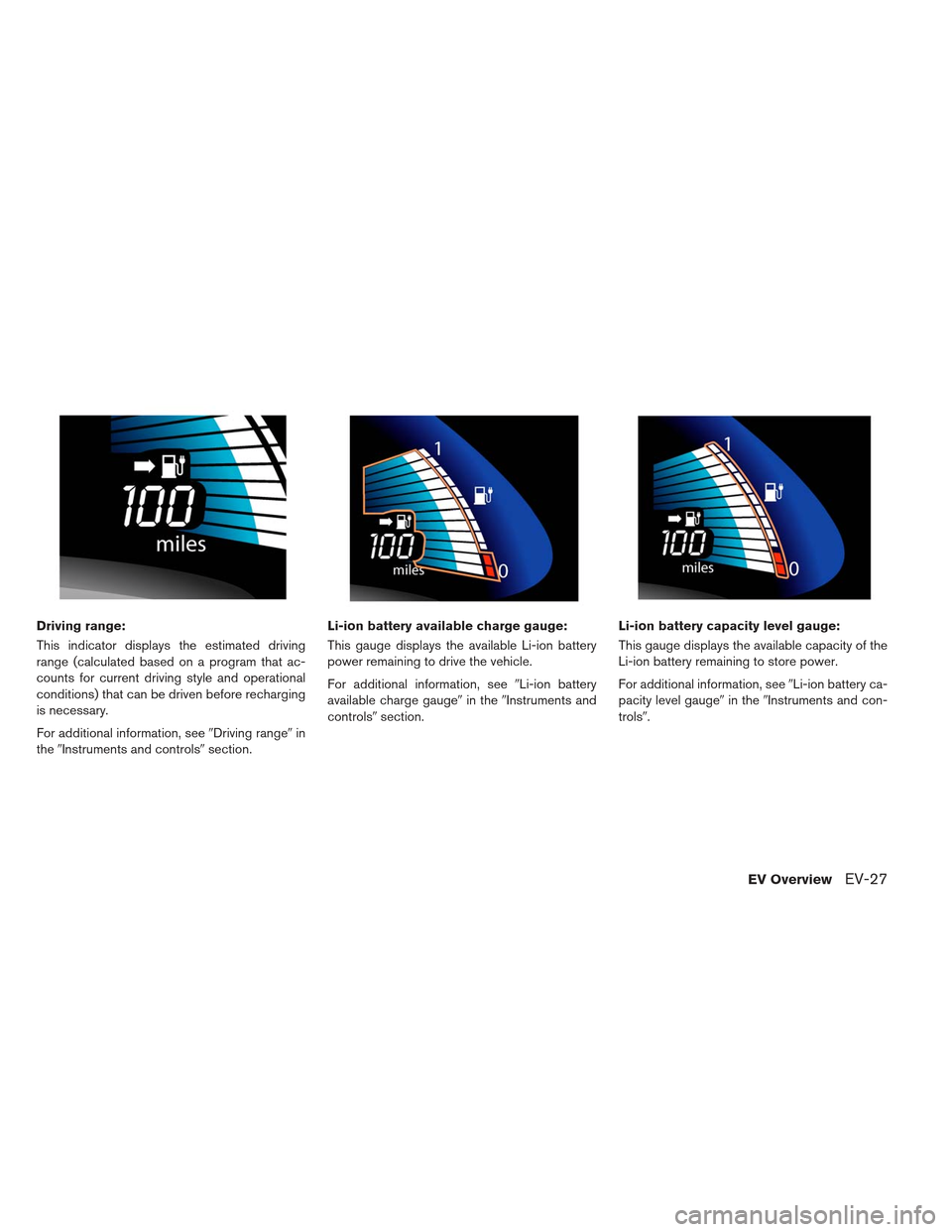

This indicator displays the estimated driving
range (calculated based on a program that ac-
counts for current driving style and operational
conditions) that can be driven before recharging
For additional information, seeDriving rangein
the Instruments and controls section.Li-ion battery available charge gauge:
This gauge displays the available Li-ion battery
power remaining to drive the vehicle.
For additional information, see
available charge gauge in theInstruments and
controls section. Li-ion battery capacity level gauge:
This gauge displays the available capacity of the
Li-ion battery remaining to store power.
For additional information, see
Li-ion battery ca-
pacity level gauge in theInstruments and con-
Page 47 of 402

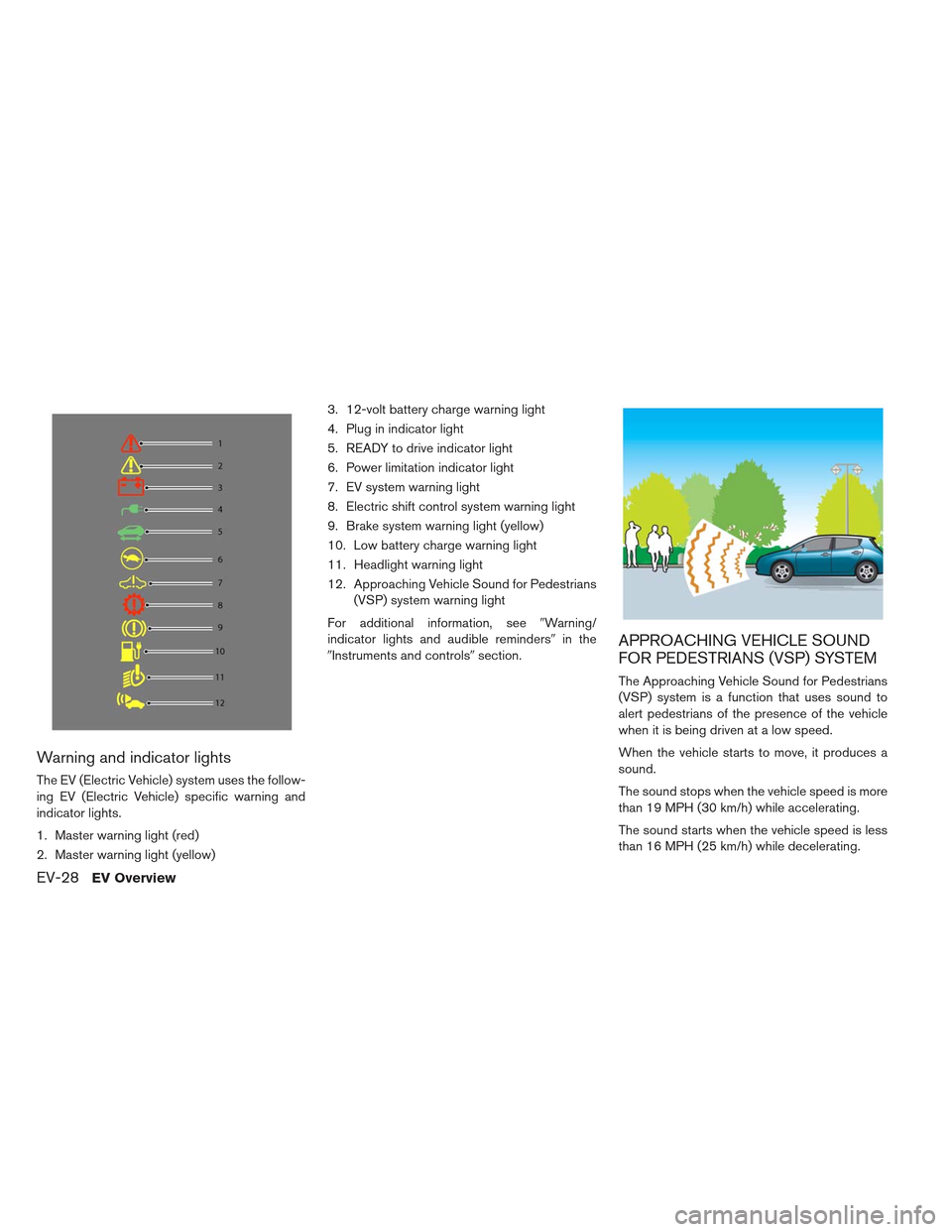

Warning and indicator lights
The EV (Electric Vehicle) system uses the follow-
ing EV (Electric Vehicle) specific warning and
1. Master warning light (red)
2. Master warning light (yellow)3. 12-volt battery charge warning light
4. Plug in indicator light
5. READY to drive indicator light
6. Power limitation indicator light
7. EV system warning light
8. Electric shift control system warning light
9. Brake system warning light (yellow)
10. Low battery charge warning light
11. Headlight warning light
12. Approaching Vehicle Sound for Pedestrians
(VSP) system warning light
For additional information, see Warning/
indicator lights and audible reminders in the
Instruments and controls section.
APPROACHING VEHICLE SOUND
FOR PEDESTRIANS (VSP) SYSTEM
The Approaching Vehicle Sound for Pedestrians
(VSP) system is a function that uses sound to
alert pedestrians of the presence of the vehicle
when it is being driven at a low speed.
When the vehicle starts to move, it produces a
The sound stops when the vehicle speed is more
than 19 MPH (30 km/h) while accelerating.
The sound starts when the vehicle speed is less
than 16 MPH (25 km/h) while decelerating.
Page 48 of 402

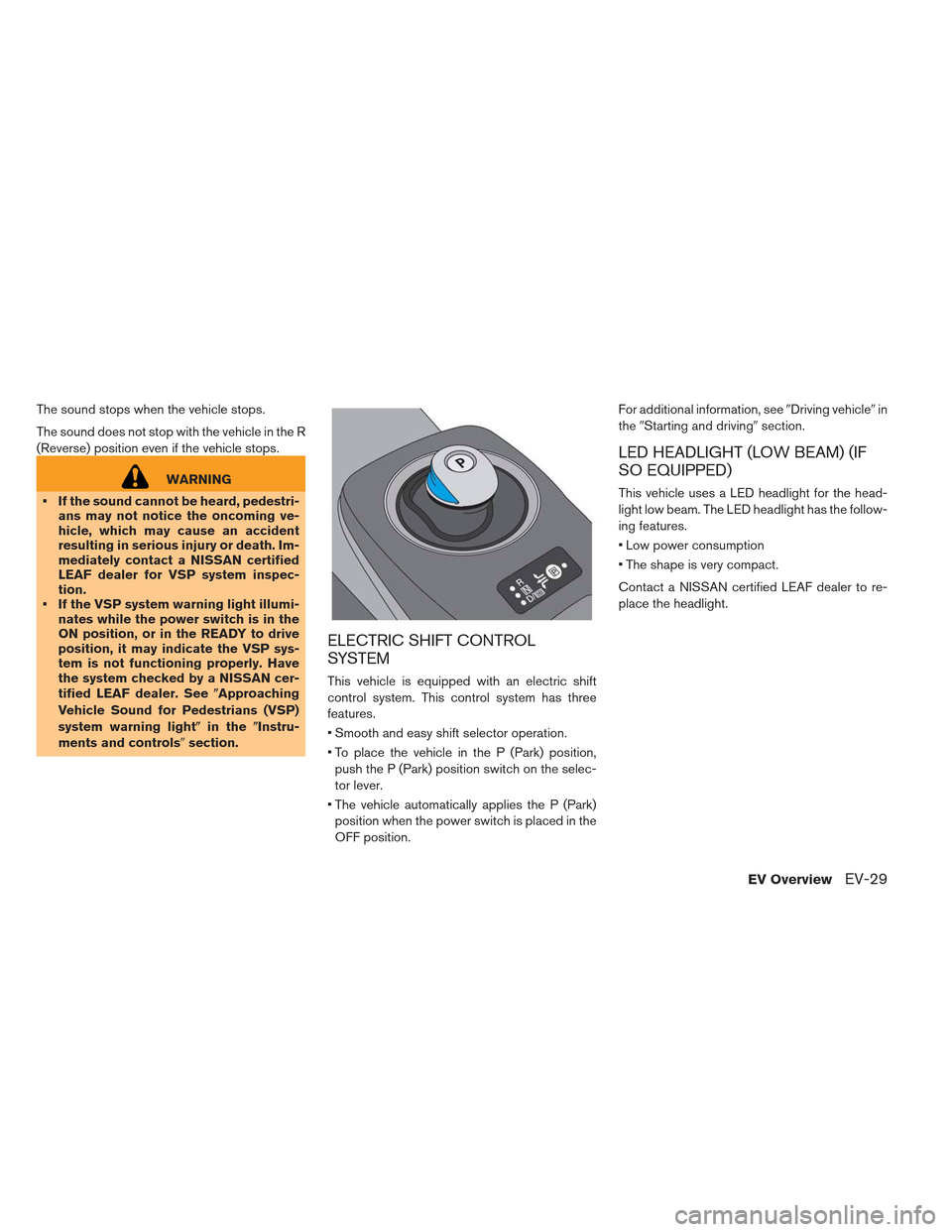

The sound stops when the vehicle stops.
The sound does not stop with the vehicle in the R
(Reverse) position even if the vehicle stops.
If the sound cannot be heard, pedestri- ans may not notice the oncoming ve-
hicle, which may cause an accident
resulting in serious injury or death. Im-
mediately contact a NISSAN certified
LEAF dealer for VSP system inspec-
If the VSP system warning light illumi- nates while the power switch is in the
ON position, or in the READY to drive
position, it may indicate the VSP sys-
tem is not functioning properly. Have
the system checked by a NISSAN cer-
tified LEAF dealer. See Approaching
Vehicle Sound for Pedestrians (VSP)
system warning light in theInstru-
ments and controls section.
ELECTRIC SHIFT CONTROL
This vehicle is equipped with an electric shift
control system. This control system has three
Smooth and easy shift selector operation.
To place the vehicle in the P (Park) position,
push the P (Park) position switch on the selec-
The vehicle automatically applies the P (Park) position when the power switch is placed in the
OFF position. For additional information, see
the Starting and driving section.
LED HEADLIGHT (LOW BEAM) (IF
This vehicle uses a LED headlight for the head-
light low beam. The LED headlight has the follow-
Low power consumption
The shape is very compact.
Contact a NISSAN certified LEAF dealer to re-
place the headlight.
Page 49 of 402

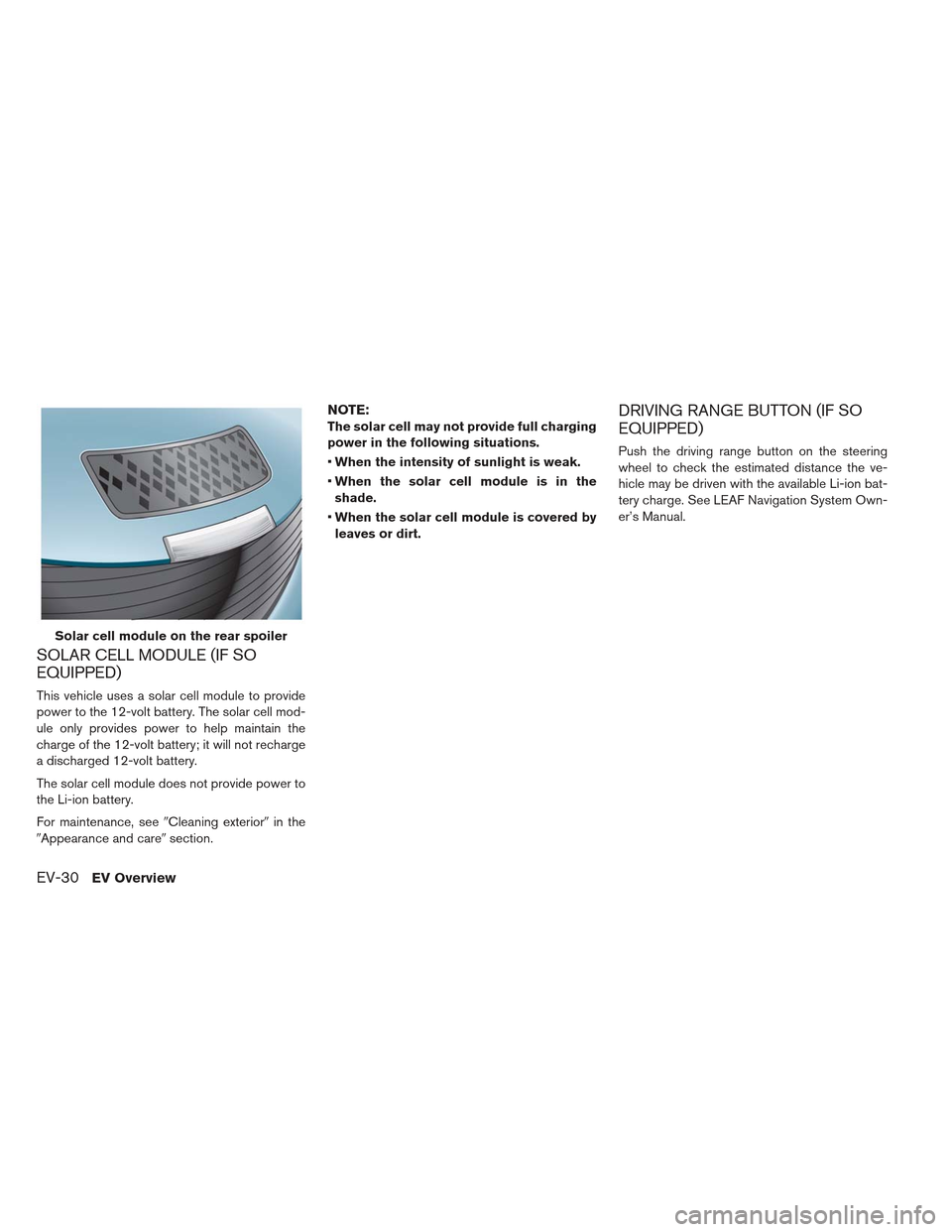

SOLAR CELL MODULE (IF SO
This vehicle uses a solar cell module to provide
power to the 12-volt battery. The solar cell mod-
ule only provides power to help maintain the
charge of the 12-volt battery; it will not recharge
a discharged 12-volt battery.
The solar cell module does not provide power to
the Li-ion battery.
For maintenance, seeCleaning exteriorin the
Appearance and care section.
The solar cell may not provide full charging
power in the following situations.
When the intensity of sunlight is weak.
When the solar cell module is in the
When the solar cell module is covered by
leaves or dirt.DRIVING RANGE BUTTON (IF SO
Push the driving range button on the steering
wheel to check the estimated distance the ve-
hicle may be driven with the available Li-ion bat-
tery charge. See LEAF Navigation System Own-
Solar cell module on the rear spoiler
Page 50 of 402
Precautions on charging................. .CH-2
Types of charge and how to charge the Li-ion
battery ........................... .CH-5
How to normal charge ................ .CH-9
How to trickle charge (if so equipped) .......CH-11
How to quick charge (if so equipped) .......CH-15
Charge connector lock switch ...........CH-18
If the charge connector can not be unlocked . . .CH-20
Charging methods ................... .CH-21
Charging timer ................... .CH-21Long life mode
Immediate charge .................. .CH-31
Charging related remote function (models with
navigation system) ................. .CH-31
Charging related indicator lights ............CH-33
Charging status indicator lights ...........CH-33
EVSE (Electric Vehicle Supply Equipment)
control box indicator light ..............CH-36
Charging troubleshooting guide ............CH-38
