NISSAN LEAF 2014 1.G Owners Manual
Manufacturer: NISSAN, Model Year: 2014, Model line: LEAF, Model: NISSAN LEAF 2014 1.GPages: 397, PDF Size: 9.45 MB
Page 351 of 397

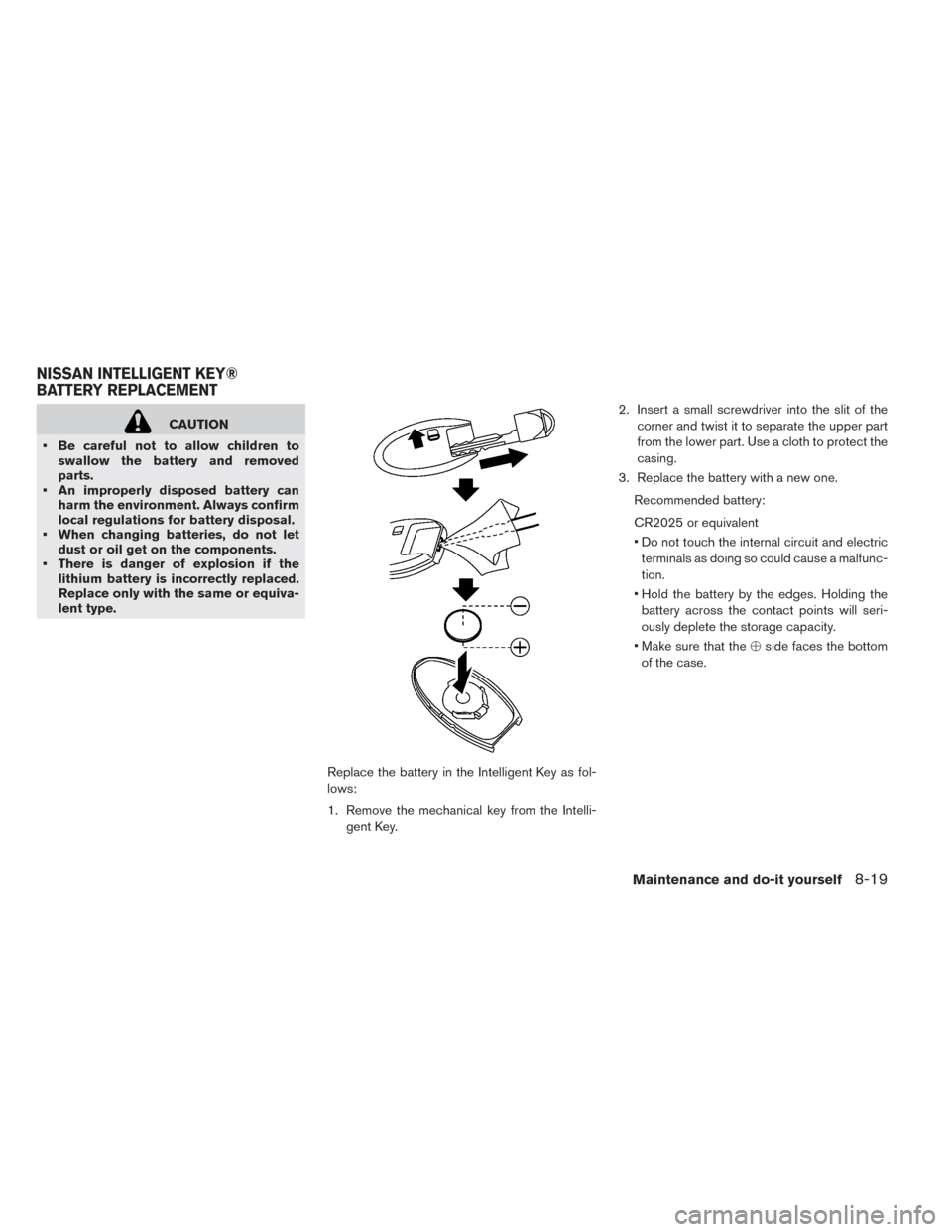

CAUTION
• Be careful not to allow children to
swallow the battery and removed
parts.
• An improperly disposed battery can
harm the environment. Always confirm
local regulations for battery disposal.
• When changing batteries, do not let
dust or oil get on the components.
• There is danger of explosion if the
lithium battery is incorrectly replaced.
Replace only with the same or equiva-
lent type.
Replace the battery in the Intelligent Key as fol-
lows:
1. Remove the mechanical key from the Intelli-
gent Key.2. Insert a small screwdriver into the slit of the
corner and twist it to separate the upper part
from the lower part. Use a cloth to protect the
casing.
3. Replace the battery with a new one.
Recommended battery:
CR2025 or equivalent
• Do not touch the internal circuit and electric
terminals as doing so could cause a malfunc-
tion.
• Hold the battery by the edges. Holding the
battery across the contact points will seri-
ously deplete the storage capacity.
• Make sure that theside faces the bottom
of the case.
NISSAN INTELLIGENT KEY®
BATTERY REPLACEMENT
Maintenance and do-it yourself8-19
Page 352 of 397

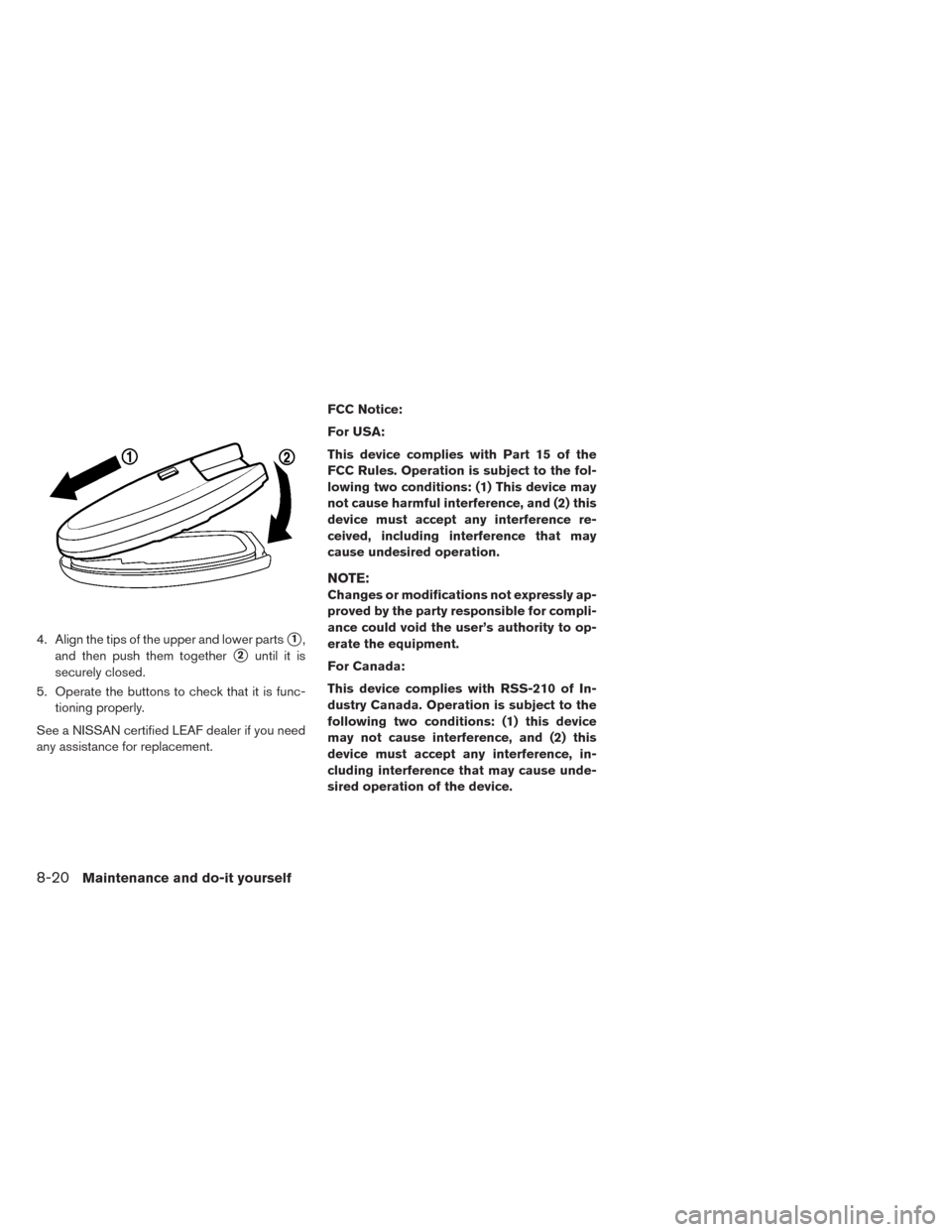

4. Align the tips of the upper and lower parts1,
and then push them together
2until it is
securely closed.
5. Operate the buttons to check that it is func-
tioning properly.
See a NISSAN certified LEAF dealer if you need
any assistance for replacement.FCC Notice:
For USA:
This device complies with Part 15 of the
FCC Rules. Operation is subject to the fol-
lowing two conditions: (1) This device may
not cause harmful interference, and (2) this
device must accept any interference re-
ceived, including interference that may
cause undesired operation.
NOTE:
Changes or modifications not expressly ap-
proved by the party responsible for compli-
ance could void the user’s authority to op-
erate the equipment.
For Canada:
This device complies with RSS-210 of In-
dustry Canada. Operation is subject to the
following two conditions: (1) this device
may not cause interference, and (2) this
device must accept any interference, in-
cluding interference that may cause unde-
sired operation of the device.
8-20Maintenance and do-it yourself
Page 353 of 397

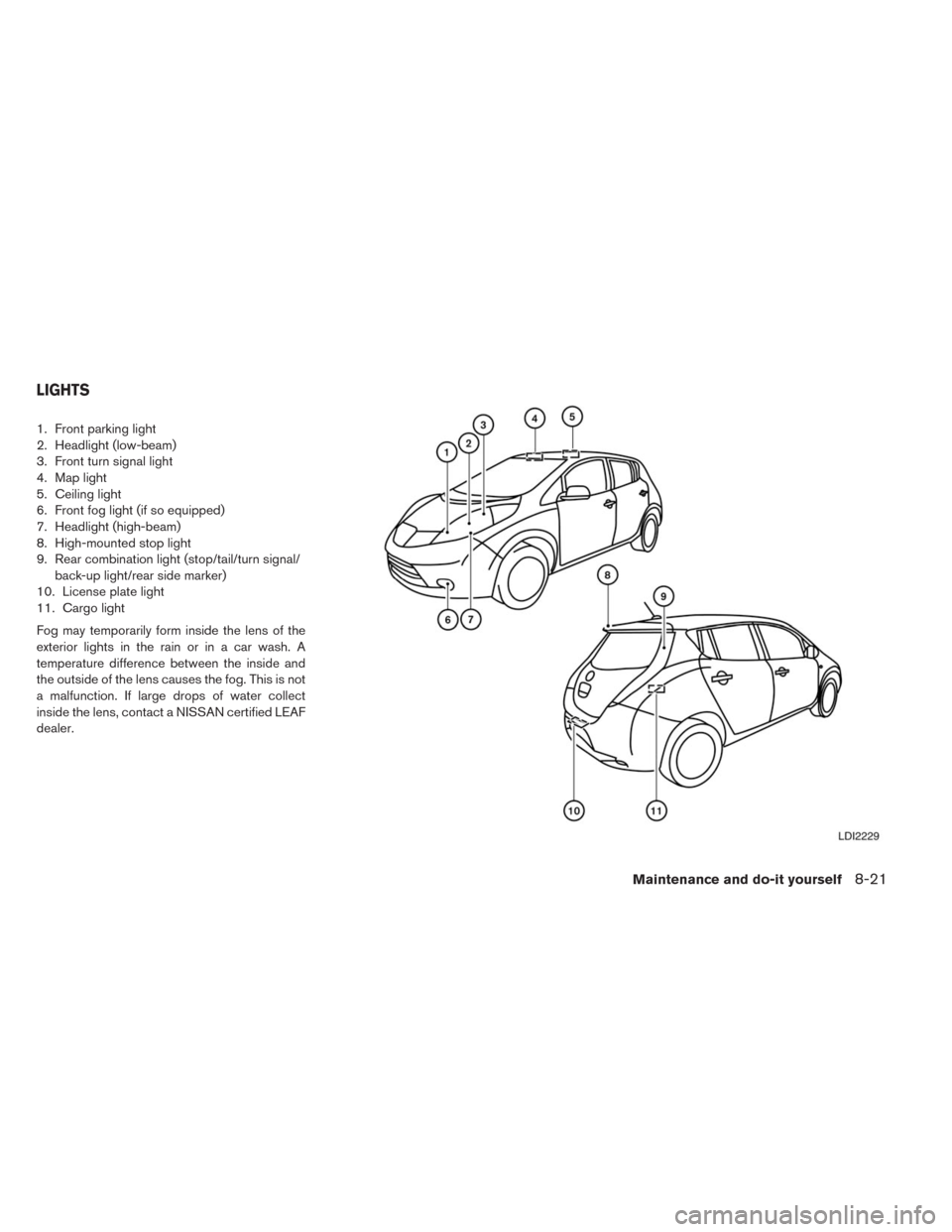

1. Front parking light
2. Headlight (low-beam)
3. Front turn signal light
4. Map light
5. Ceiling light
6. Front fog light (if so equipped)
7. Headlight (high-beam)
8. High-mounted stop light
9. Rear combination light (stop/tail/turn signal/
back-up light/rear side marker)
10. License plate light
11. Cargo light
Fog may temporarily form inside the lens of the
exterior lights in the rain or in a car wash. A
temperature difference between the inside and
the outside of the lens causes the fog. This is not
a malfunction. If large drops of water collect
inside the lens, contact a NISSAN certified LEAF
dealer.
LIGHTS
Maintenance and do-it yourself8-21
Page 354 of 397

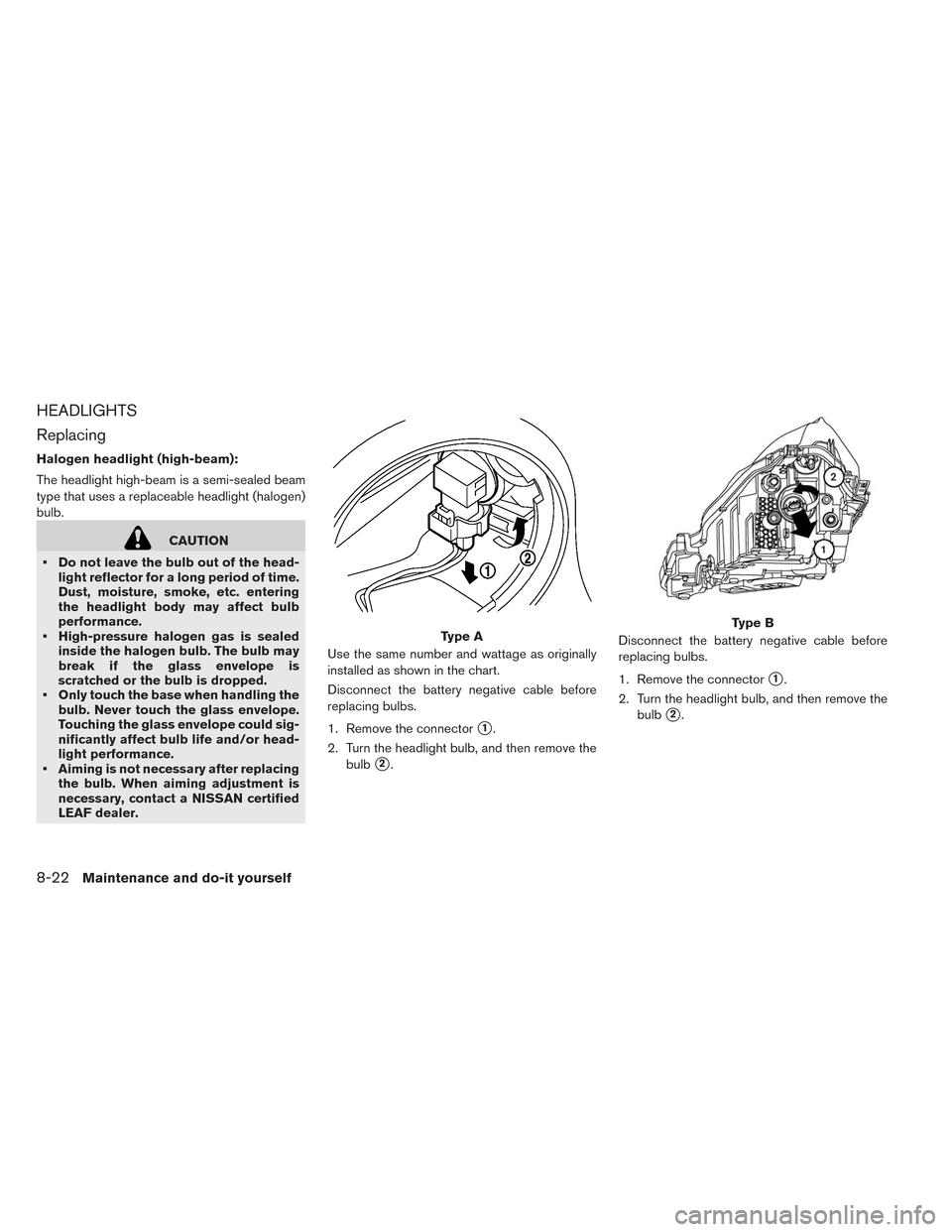

HEADLIGHTS
Replacing
Halogen headlight (high-beam):
The headlight high-beam is a semi-sealed beam
type that uses a replaceable headlight (halogen)
bulb.
CAUTION
• Do not leave the bulb out of the head-
light reflector for a long period of time.
Dust, moisture, smoke, etc. entering
the headlight body may affect bulb
performance.
• High-pressure halogen gas is sealed
inside the halogen bulb. The bulb may
break if the glass envelope is
scratched or the bulb is dropped.
• Only touch the base when handling the
bulb. Never touch the glass envelope.
Touching the glass envelope could sig-
nificantly affect bulb life and/or head-
light performance.
• Aiming is not necessary after replacing
the bulb. When aiming adjustment is
necessary, contact a NISSAN certified
LEAF dealer.Use the same number and wattage as originally
installed as shown in the chart.
Disconnect the battery negative cable before
replacing bulbs.
1. Remove the connector
1.
2. Turn the headlight bulb, and then remove the
bulb
2.Disconnect the battery negative cable before
replacing bulbs.
1. Remove the connector
1.
2. Turn the headlight bulb, and then remove the
bulb
2.
Type AType B
8-22Maintenance and do-it yourself
Page 355 of 397

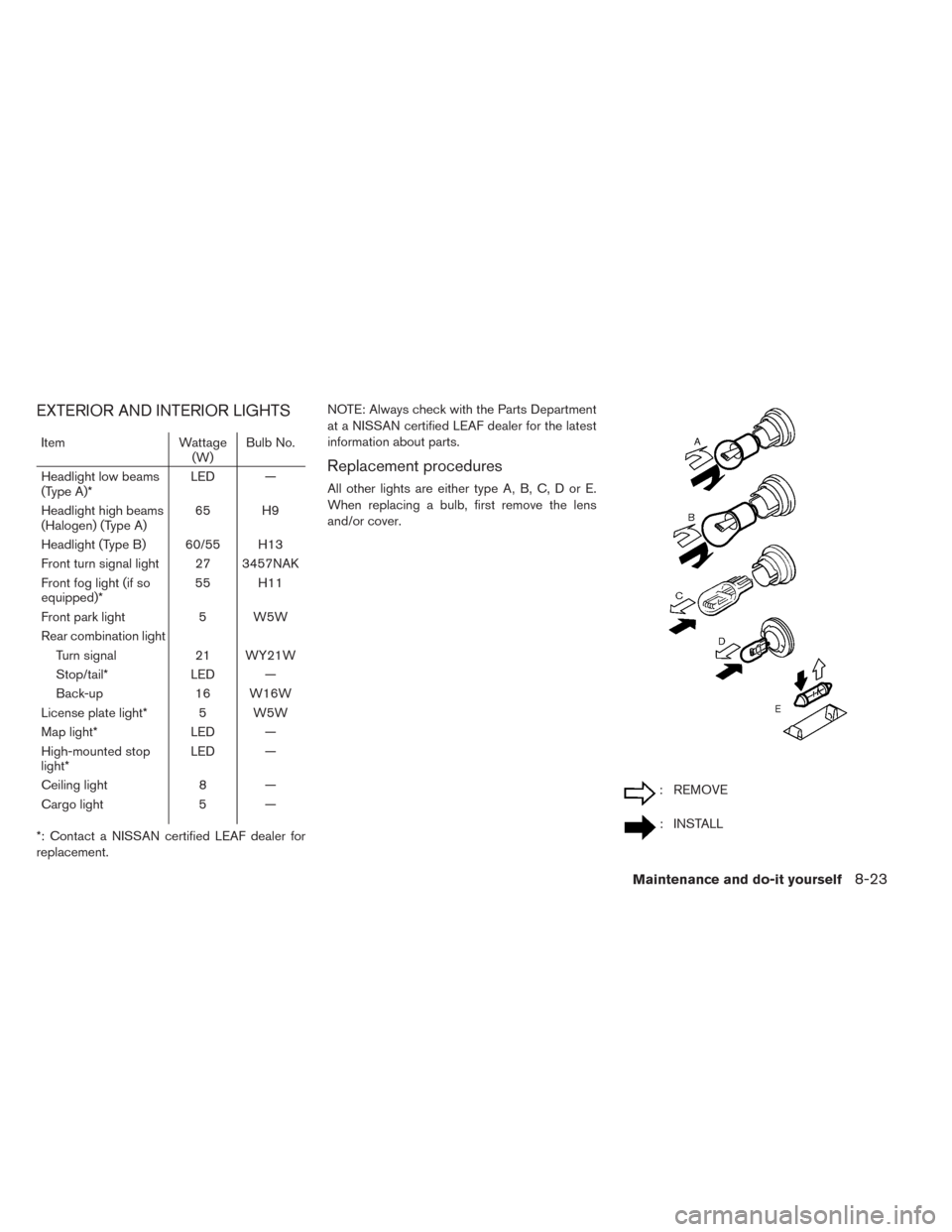

EXTERIOR AND INTERIOR LIGHTS
Item Wattage
(W)Bulb No.
Headlight low beams
(Type A)*LED —
Headlight high beams
(Halogen) (Type A)65 H9
Headlight (Type B) 60/55 H13
Front turn signal light 27 3457NAK
Front fog light (if so
equipped)*55 H11
Front park light 5 W5W
Rear combination light
Turn signal 21 WY21W
Stop/tail* LED —
Back-up 16 W16W
License plate light* 5 W5W
Map light* LED —
High-mounted stop
light*LED —
Ceiling light 8 —
Cargo light 5 —
*: Contact a NISSAN certified LEAF dealer for
replacement.NOTE: Always check with the Parts Department
at a NISSAN certified LEAF dealer for the latest
information about parts.
Replacement procedures
All other lights are either type A, B, C, D or E.
When replacing a bulb, first remove the lens
and/or cover.
: REMOVE
: INSTALL
Maintenance and do-it yourself8-23
Page 356 of 397

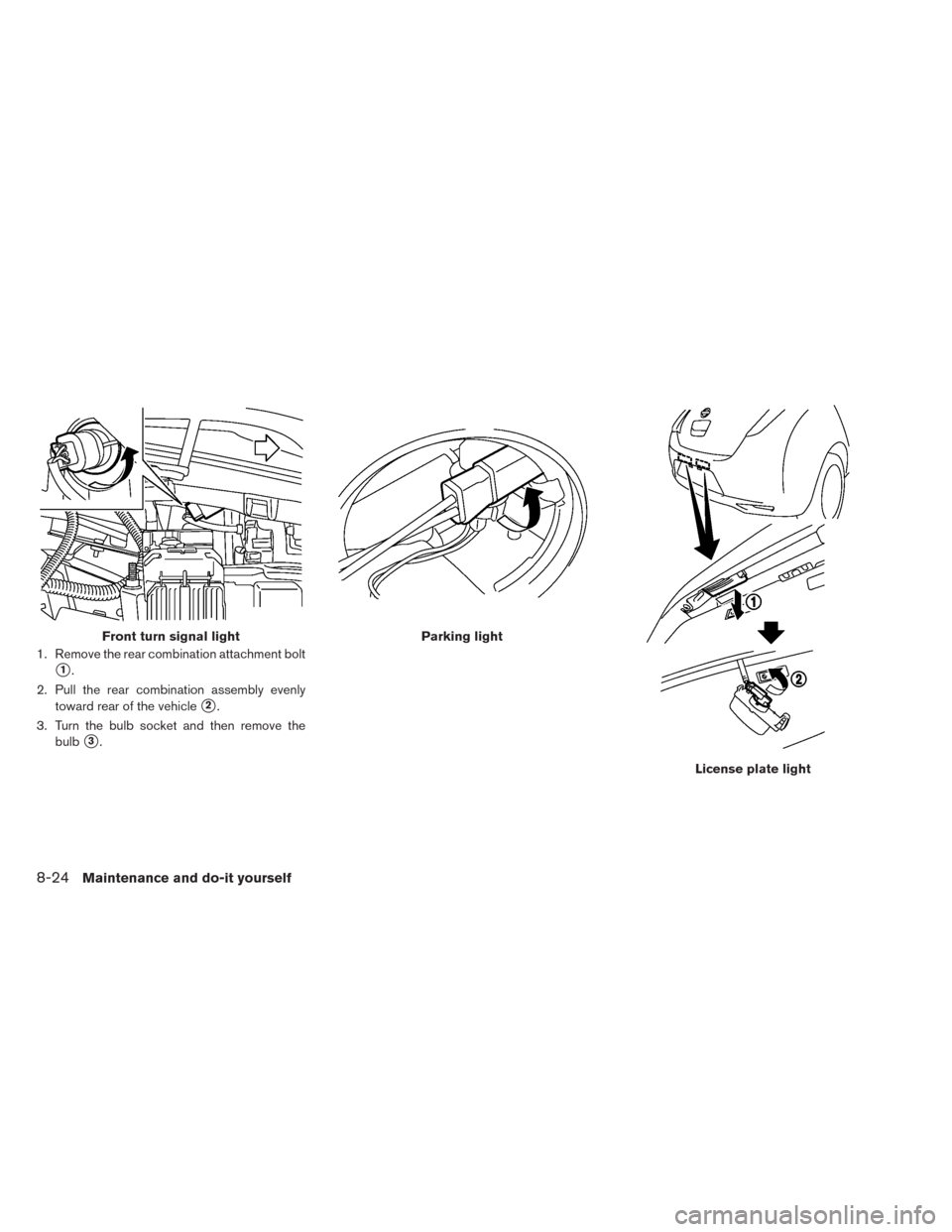

1. Remove the rear combination attachment bolt
1.
2. Pull the rear combination assembly evenly
toward rear of the vehicle
2.
3. Turn the bulb socket and then remove the
bulb
3.
Front turn signal lightParking light
License plate light
8-24Maintenance and do-it yourself
Page 357 of 397

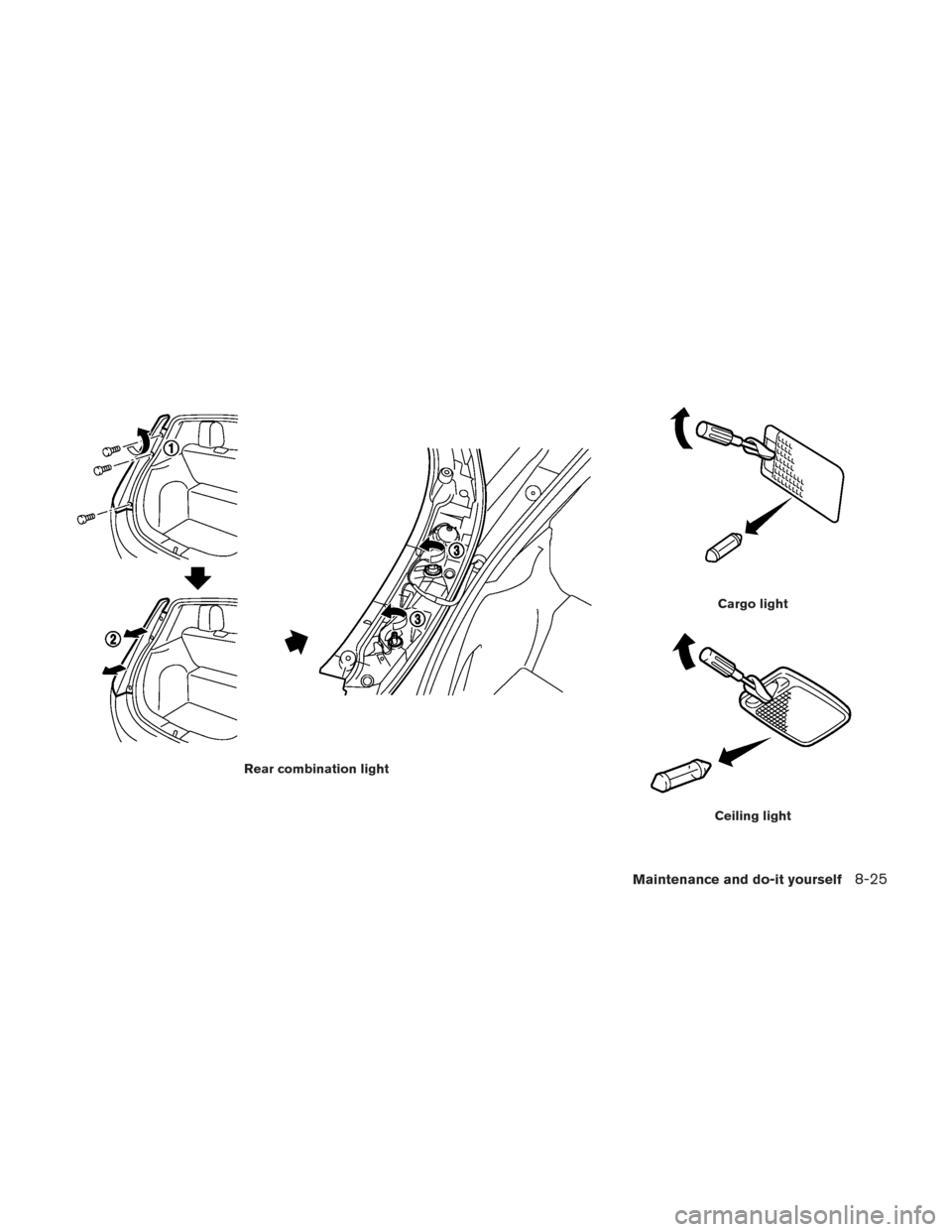

Rear combination light
Cargo light
Ceiling light
Maintenance and do-it yourself8-25
Page 358 of 397

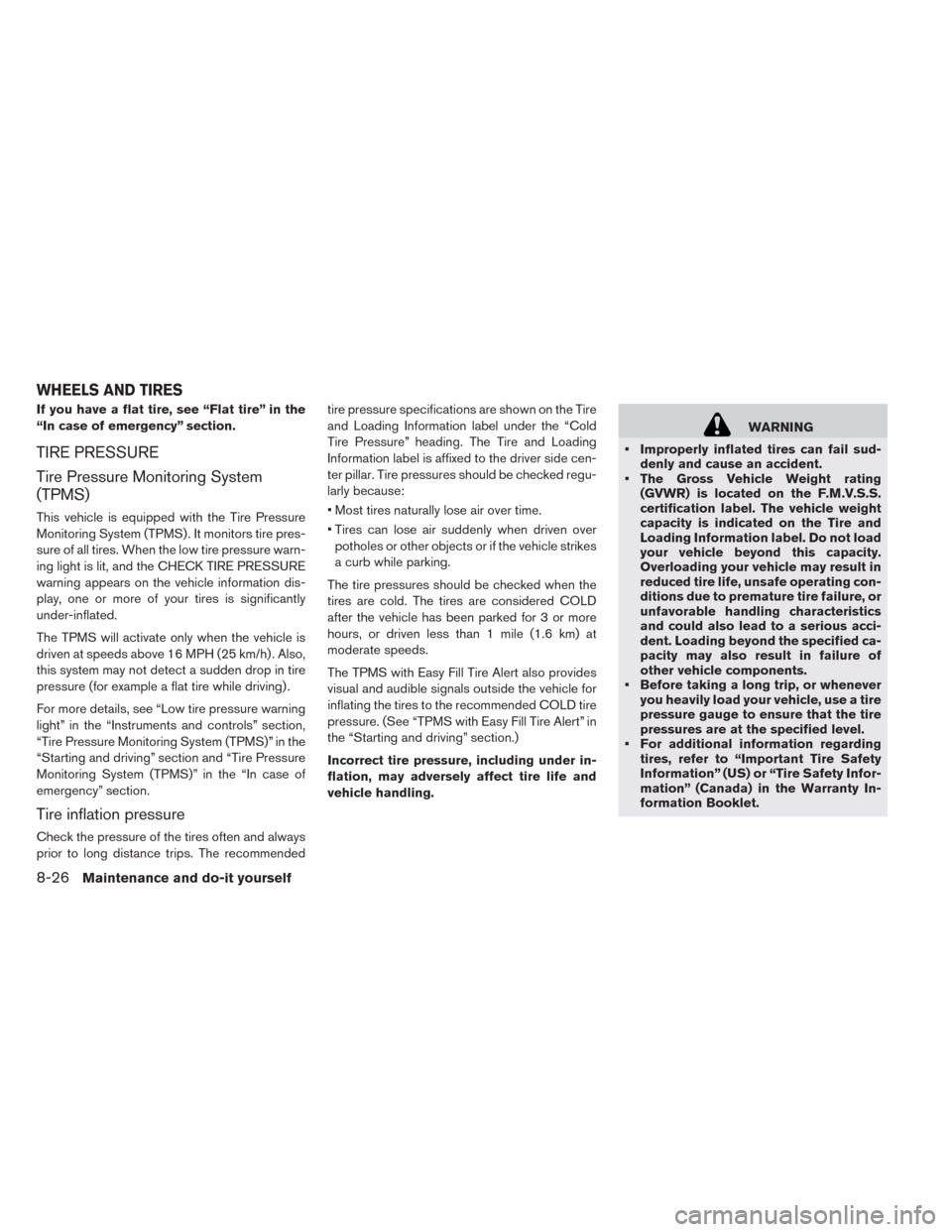

If you have a flat tire, see “Flat tire” in the
“In case of emergency” section.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire pres-
sure of all tires. When the low tire pressure warn-
ing light is lit, and the CHECK TIRE PRESSURE
warning appears on the vehicle information dis-
play, one or more of your tires is significantly
under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) . Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving) .
For more details, see “Low tire pressure warning
light” in the “Instruments and controls” section,
“Tire Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Tire Pressure
Monitoring System (TPMS)” in the “In case of
emergency” section.
Tire inflation pressure
Check the pressure of the tires often and always
prior to long distance trips. The recommendedtire pressure specifications are shown on the Tire
and Loading Information label under the “Cold
Tire Pressure” heading. The Tire and Loading
Information label is affixed to the driver side cen-
ter pillar. Tire pressures should be checked regu-
larly because:
• Most tires naturally lose air over time.
• Tires can lose air suddenly when driven over
potholes or other objects or if the vehicle strikes
a curb while parking.
The tire pressures should be checked when the
tires are cold. The tires are considered COLD
after the vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6 km) at
moderate speeds.
The TPMS with Easy Fill Tire Alert also provides
visual and audible signals outside the vehicle for
inflating the tires to the recommended COLD tire
pressure. (See “TPMS with Easy Fill Tire Alert” in
the “Starting and driving” section.)
Incorrect tire pressure, including under in-
flation, may adversely affect tire life and
vehicle handling.
WARNING
• Improperly inflated tires can fail sud-
denly and cause an accident.
• The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.S.
certification label. The vehicle weight
capacity is indicated on the Tire and
Loading Information label. Do not load
your vehicle beyond this capacity.
Overloading your vehicle may result in
reduced tire life, unsafe operating con-
ditions due to premature tire failure, or
unfavorable handling characteristics
and could also lead to a serious acci-
dent. Loading beyond the specified ca-
pacity may also result in failure of
other vehicle components.
• Before taking a long trip, or whenever
you heavily load your vehicle, use a tire
pressure gauge to ensure that the tire
pressures are at the specified level.
• For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
WHEELS AND TIRES
8-26Maintenance and do-it yourself
Page 359 of 397

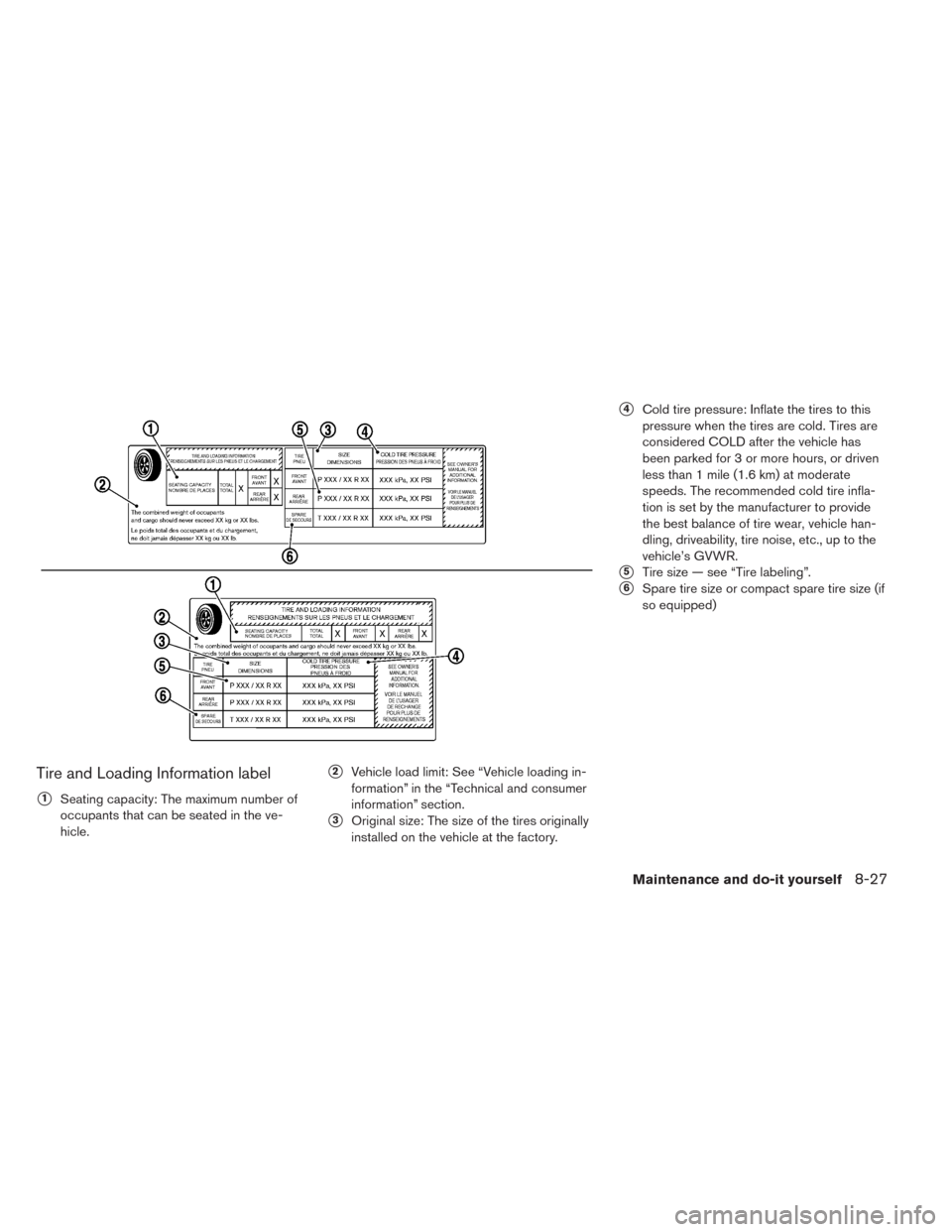

Tire and Loading Information label
1Seating capacity: The maximum number of
occupants that can be seated in the ve-
hicle.
2Vehicle load limit: See “Vehicle loading in-
formation” in the “Technical and consumer
information” section.
3Original size: The size of the tires originally
installed on the vehicle at the factory.
4Cold tire pressure: Inflate the tires to this
pressure when the tires are cold. Tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds. The recommended cold tire infla-
tion is set by the manufacturer to provide
the best balance of tire wear, vehicle han-
dling, driveability, tire noise, etc., up to the
vehicle’s GVWR.
5Tire size — see “Tire labeling”.
6Spare tire size or compact spare tire size (if
so equipped)
Maintenance and do-it yourself8-27
Page 360 of 397

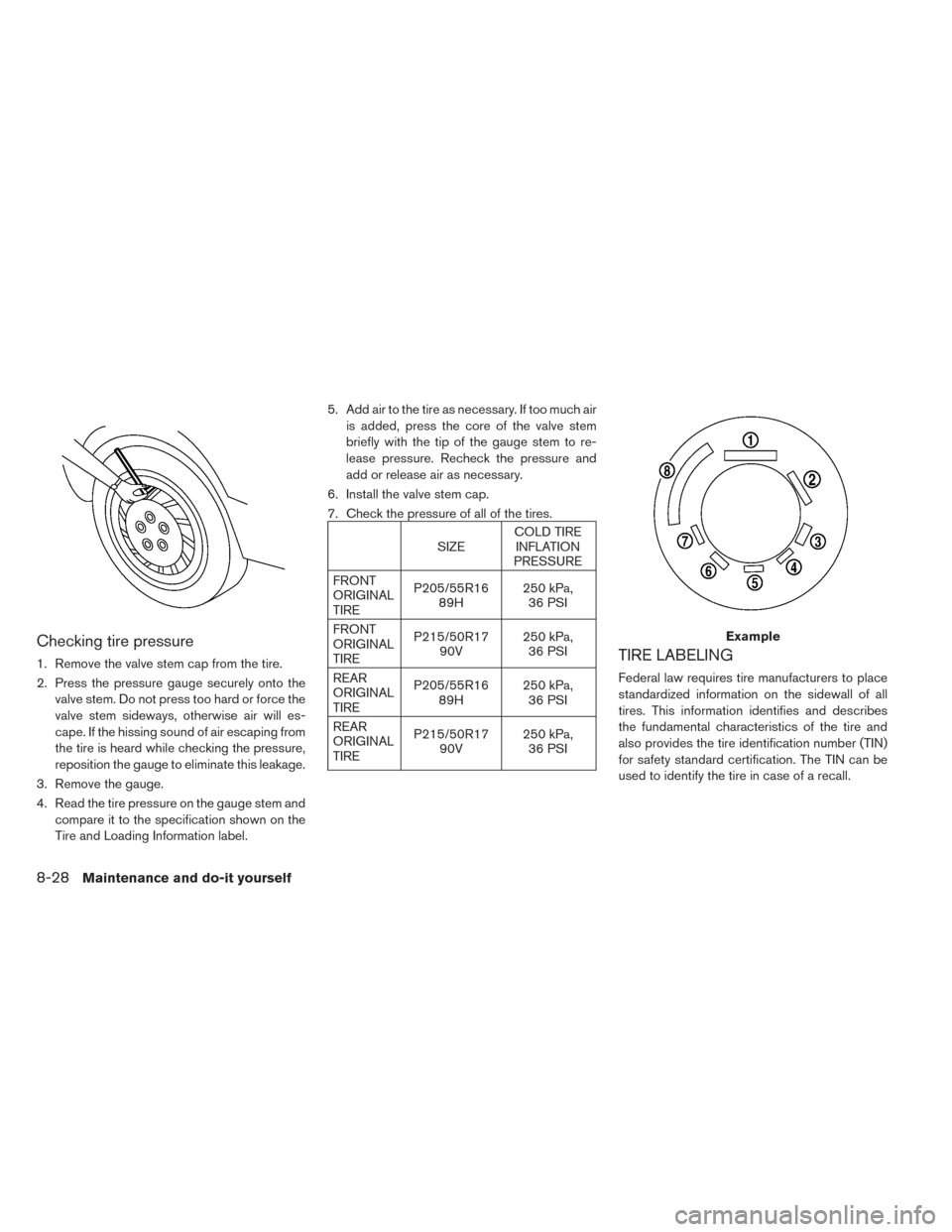

Checking tire pressure
1. Remove the valve stem cap from the tire.
2. Press the pressure gauge securely onto the
valve stem. Do not press too hard or force the
valve stem sideways, otherwise air will es-
cape. If the hissing sound of air escaping from
the tire is heard while checking the pressure,
reposition the gauge to eliminate this leakage.
3. Remove the gauge.
4. Read the tire pressure on the gauge stem and
compare it to the specification shown on the
Tire and Loading Information label.5. Add air to the tire as necessary. If too much air
is added, press the core of the valve stem
briefly with the tip of the gauge stem to re-
lease pressure. Recheck the pressure and
add or release air as necessary.
6. Install the valve stem cap.
7. Check the pressure of all of the tires.
SIZECOLD TIRE
INFLATION
PRESSURE
FRONT
ORIGINAL
TIREP205/55R16
89H250 kPa,
36 PSI
FRONT
ORIGINAL
TIREP215/50R17
90V250 kPa,
36 PSI
REAR
ORIGINAL
TIREP205/55R16
89H250 kPa,
36 PSI
REAR
ORIGINAL
TIREP215/50R17
90V250 kPa,
36 PSI
TIRE LABELING
Federal law requires tire manufacturers to place
standardized information on the sidewall of all
tires. This information identifies and describes
the fundamental characteristics of the tire and
also provides the tire identification number (TIN)
for safety standard certification. The TIN can be
used to identify the tire in case of a recall.
Example
8-28Maintenance and do-it yourself
