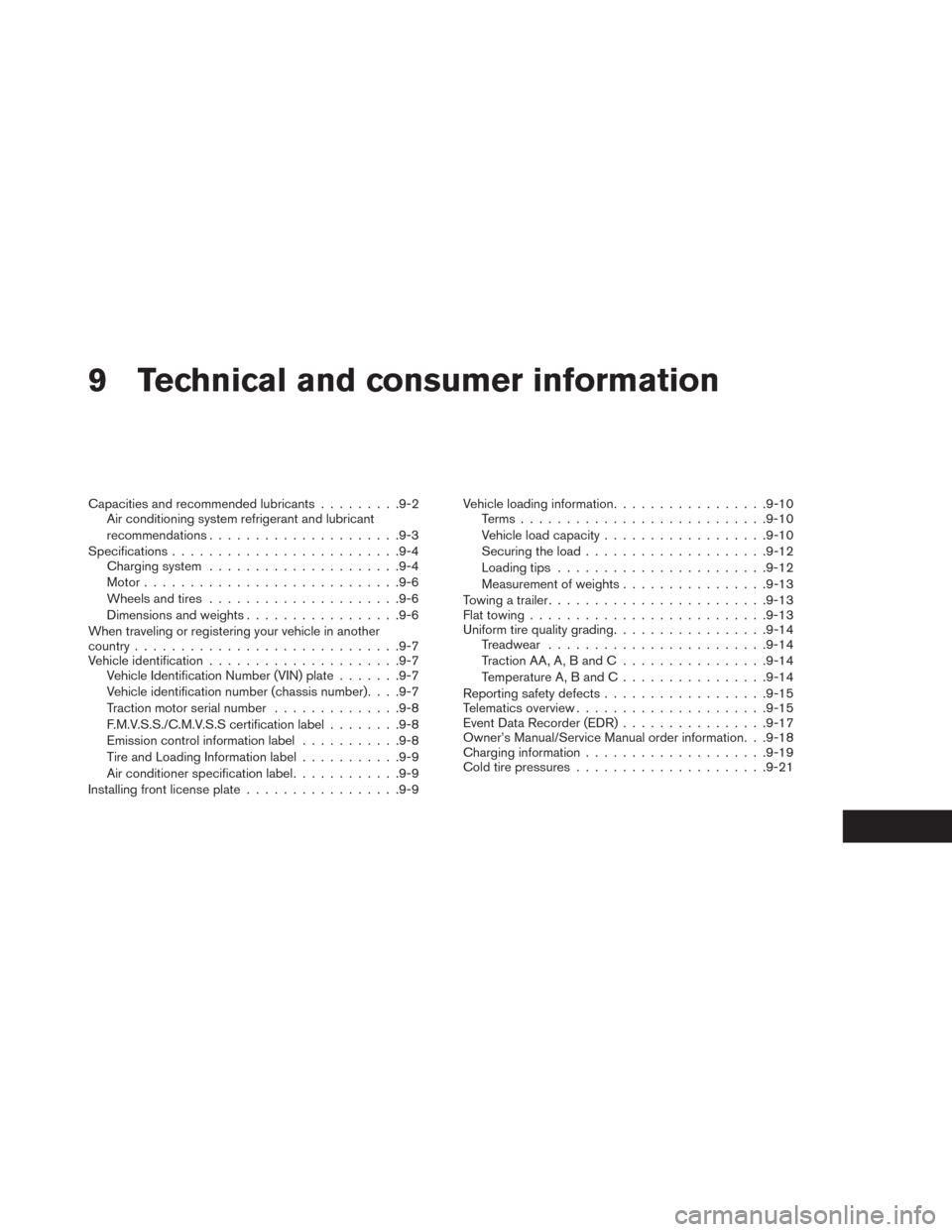

9 Technical and consumer information
Capacities and recommended lubricants.........9-2
Air conditioning system refrigerant and lubricant
recommendations.....................9-3
Specifications.........................9-4
Charging system.....................9-4
Motor............................9-6
Wheels and tires.....................9-6
Dimensions and weights.................9-6
When traveling or registering your vehicle in another
country.............................9-7
Vehicle identification.....................9-7
Vehicle Identification Number (VIN) plate.......9-7
Vehicle identification number (chassis number). . . .9-7
Traction motor serial number..............9-8
F.M.V.S.S./C.M.V.S.S certification label........9-8
Emission control information label...........9-8
Tire and Loading Information label...........9-9
Air conditioner specification label............9-9
Installing front license plate.................9-9Vehicle loading information.................9-10
Terms...........................9-10
Vehicle load capacity..................9-10
Securing the load....................9-12
Loading tips.......................9-12
Measurement of weights................9-13
Towing a trailer........................9-13
Flat towing..........................9-13
Uniform tire quality grading.................9-14
Treadwear........................9-14
Traction AA, A, B and C................9-14
Temperature A, B and C................9-14
Reporting safety defects..................9-15
Telematics overview.....................9-15
Event Data Recorder (EDR)................9-17
Owner’s Manual/Service Manual order information. . .9-18
Charging information....................9-19
Cold tire pressures
.....................9-21

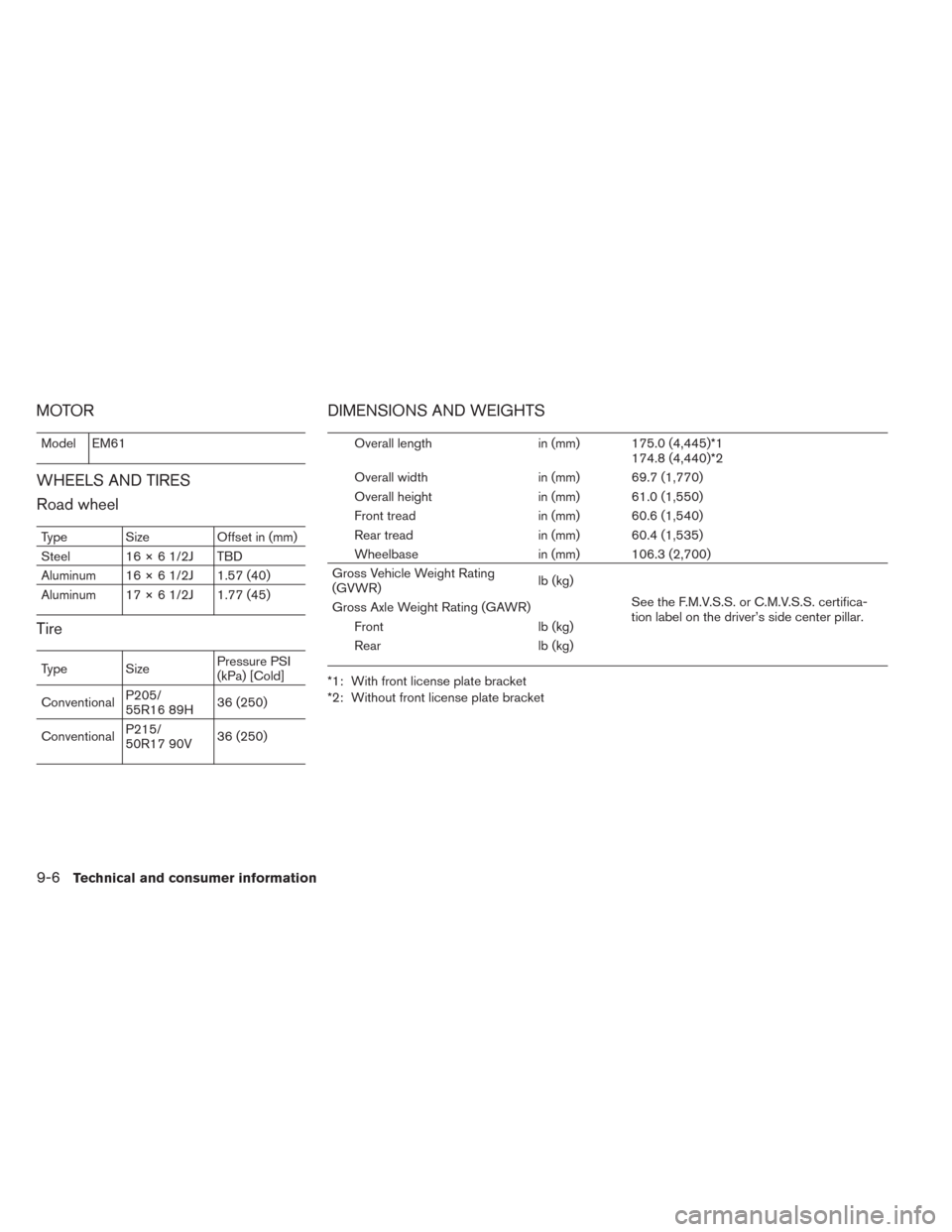

MOTOR
Model EM61
WHEELS AND TIRES
Road wheel
Type Size Offset in (mm)
Steel 16 × 6 1/2J TBD
Aluminum 16 × 6 1/2J 1.57 (40)
Aluminum 17 × 6 1/2J 1.77 (45)
Tire
Type SizePressure PSI
(kPa) [Cold]
ConventionalP205/
55R16 89H36 (250)
ConventionalP215/
50R17 90V36 (250)
DIMENSIONS AND WEIGHTS
Overall length in (mm) 175.0 (4,445)*1
174.8 (4,440)*2
Overall width in (mm) 69.7 (1,770)
Overall height in (mm) 61.0 (1,550)
Front tread in (mm) 60.6 (1,540)
Rear tread in (mm) 60.4 (1,535)
Wheelbase in (mm) 106.3 (2,700)
Gross Vehicle Weight Rating
(GVWR)lb (kg)
See the F.M.V.S.S. or C.M.V.S.S. certifica-
tion label on the driver’s side center pillar. Gross Axle Weight Rating (GAWR)
Front lb (kg)
Rear lb (kg)
*1: With front license plate bracket
*2: Without front license plate bracket
9-6Technical and consumer information
