If you have a flat tire, see “Flat tire” in the
“In case of emergency” section.
TIRE PRESSURE
Tire Pressure Monitoring System
(TPMS)
This vehicle is equipped with the Tire Pressure
Monitoring System (TPMS) . It monitors tire pres-
sure of all tires. When the low tire pressure warn-
ing light is lit, and the CHECK TIRE PRESSURE
warning appears on the vehicle information dis-
play, one or more of your tires is significantly
under-inflated.
The TPMS will activate only when the vehicle is
driven at speeds above 16 MPH (25 km/h) . Also,
this system may not detect a sudden drop in tire
pressure (for example a flat tire while driving) .
For more details, see “Low tire pressure warning
light” in the “Instruments and controls” section,
“Tire Pressure Monitoring System (TPMS)” in the
“Starting and driving” section and “Tire Pressure
Monitoring System (TPMS)” in the “In case of
emergency” section.
Tire inflation pressure
Check the pressure of the tires often and always
prior to long distance trips. The recommendedtire pressure specifications are shown on the Tire
and Loading Information label under the “Cold
Tire Pressure” heading. The Tire and Loading
Information label is affixed to the driver side cen-
ter pillar. Tire pressures should be checked regu-
larly because:
• Most tires naturally lose air over time.
• Tires can lose air suddenly when driven over
potholes or other objects or if the vehicle strikes
a curb while parking.
The tire pressures should be checked when the
tires are cold. The tires are considered COLD
after the vehicle has been parked for 3 or more
hours, or driven less than 1 mile (1.6 km) at
moderate speeds.
The TPMS with Easy Fill Tire Alert also provides
visual and audible signals outside the vehicle for
inflating the tires to the recommended COLD tire
pressure. (See “TPMS with Easy Fill Tire Alert” in
the “Starting and driving” section.)
Incorrect tire pressure, including under in-
flation, may adversely affect tire life and
vehicle handling.
WARNING
• Improperly inflated tires can fail sud-
denly and cause an accident.
• The Gross Vehicle Weight rating
(GVWR) is located on the F.M.V.S.S.
certification label. The vehicle weight
capacity is indicated on the Tire and
Loading Information label. Do not load
your vehicle beyond this capacity.
Overloading your vehicle may result in
reduced tire life, unsafe operating con-
ditions due to premature tire failure, or
unfavorable handling characteristics
and could also lead to a serious acci-
dent. Loading beyond the specified ca-
pacity may also result in failure of
other vehicle components.
• Before taking a long trip, or whenever
you heavily load your vehicle, use a tire
pressure gauge to ensure that the tire
pressures are at the specified level.
• For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
WHEELS AND TIRES
8-26Maintenance and do-it yourself

Tire and Loading Information label
1Seating capacity: The maximum number of
occupants that can be seated in the ve-
hicle.
2Vehicle load limit: See “Vehicle loading in-
formation” in the “Technical and consumer
information” section.
3Original size: The size of the tires originally
installed on the vehicle at the factory.
4Cold tire pressure: Inflate the tires to this
pressure when the tires are cold. Tires are
considered COLD after the vehicle has
been parked for 3 or more hours, or driven
less than 1 mile (1.6 km) at moderate
speeds. The recommended cold tire infla-
tion is set by the manufacturer to provide
the best balance of tire wear, vehicle han-
dling, driveability, tire noise, etc., up to the
vehicle’s GVWR.
5Tire size — see “Tire labeling”.
6Spare tire size or compact spare tire size (if
so equipped)
Maintenance and do-it yourself8-27

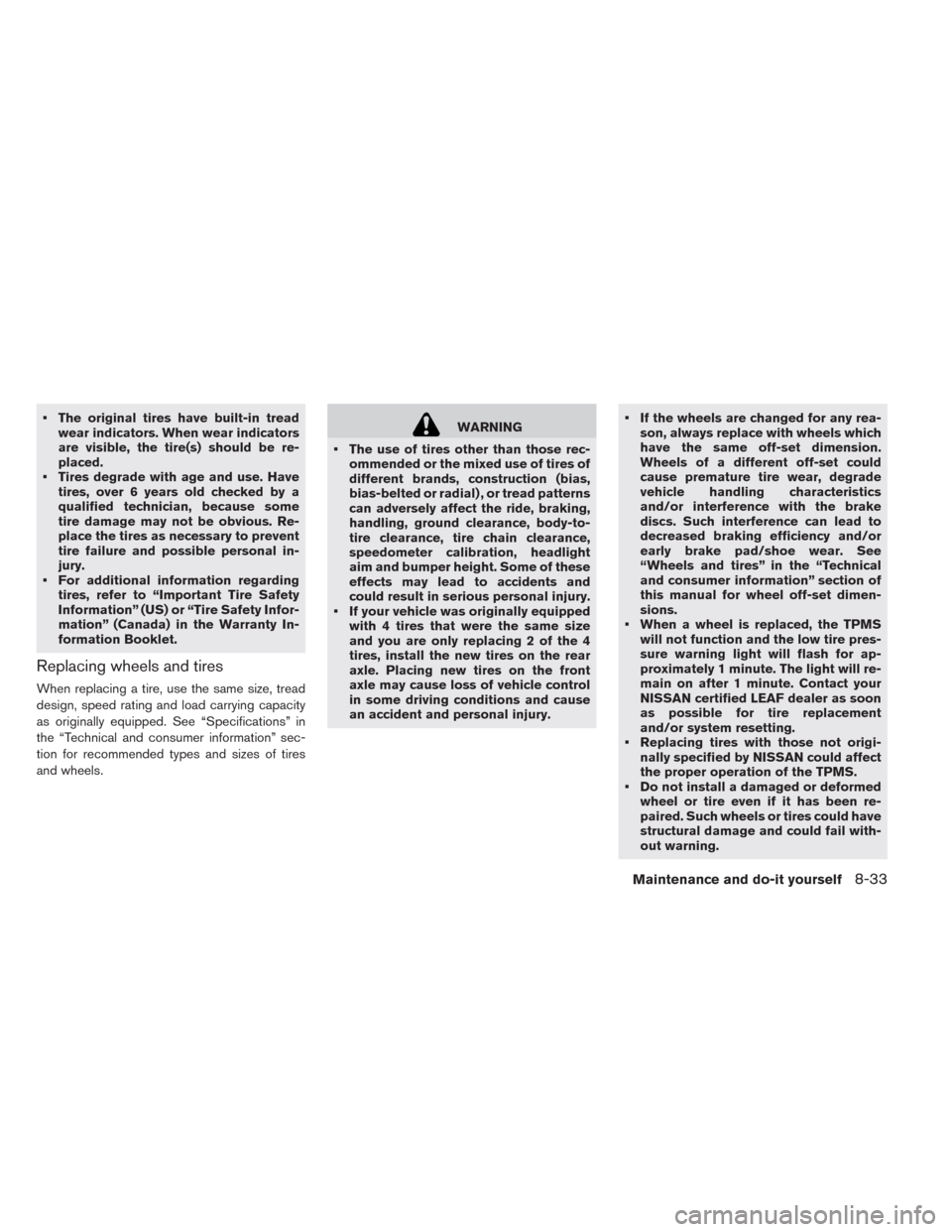

• The original tires have built-in tread
wear indicators. When wear indicators
are visible, the tire(s) should be re-
placed.
• Tires degrade with age and use. Have
tires, over 6 years old checked by a
qualified technician, because some
tire damage may not be obvious. Re-
place the tires as necessary to prevent
tire failure and possible personal in-
jury.
• For additional information regarding
tires, refer to “Important Tire Safety
Information” (US) or “Tire Safety Infor-
mation” (Canada) in the Warranty In-
formation Booklet.
Replacing wheels and tires
When replacing a tire, use the same size, tread
design, speed rating and load carrying capacity
as originally equipped. See “Specifications” in
the “Technical and consumer information” sec-
tion for recommended types and sizes of tires
and wheels.
WARNING
• The use of tires other than those rec-
ommended or the mixed use of tires of
different brands, construction (bias,
bias-belted or radial) , or tread patterns
can adversely affect the ride, braking,
handling, ground clearance, body-to-
tire clearance, tire chain clearance,
speedometer calibration, headlight
aim and bumper height. Some of these
effects may lead to accidents and
could result in serious personal injury.
• If your vehicle was originally equipped
with 4 tires that were the same size
and you are only replacing 2 of the 4
tires, install the new tires on the rear
axle. Placing new tires on the front
axle may cause loss of vehicle control
in some driving conditions and cause
an accident and personal injury.• If the wheels are changed for any rea-
son, always replace with wheels which
have the same off-set dimension.
Wheels of a different off-set could
cause premature tire wear, degrade
vehicle handling characteristics
and/or interference with the brake
discs. Such interference can lead to
decreased braking efficiency and/or
early brake pad/shoe wear. See
“Wheels and tires” in the “Technical
and consumer information” section of
this manual for wheel off-set dimen-
sions.
• When a wheel is replaced, the TPMS
will not function and the low tire pres-
sure warning light will flash for ap-
proximately 1 minute. The light will re-
main on after 1 minute. Contact your
NISSAN certified LEAF dealer as soon
as possible for tire replacement
and/or system resetting.
• Replacing tires with those not origi-
nally specified by NISSAN could affect
the proper operation of the TPMS.
• Do not install a damaged or deformed
wheel or tire even if it has been re-
paired. Such wheels or tires could have
structural damage and could fail with-
out warning.
Maintenance and do-it yourself8-33

9 Technical and consumer information
Capacities and recommended lubricants.........9-2
Air conditioning system refrigerant and lubricant
recommendations.....................9-3
Specifications.........................9-4
Charging system.....................9-4
Motor............................9-6
Wheels and tires.....................9-6
Dimensions and weights.................9-6
When traveling or registering your vehicle in another
country.............................9-7
Vehicle identification.....................9-7
Vehicle Identification Number (VIN) plate.......9-7
Vehicle identification number (chassis number). . . .9-7
Traction motor serial number..............9-8
F.M.V.S.S./C.M.V.S.S certification label........9-8
Emission control information label...........9-8
Tire and Loading Information label...........9-9
Air conditioner specification label............9-9
Installing front license plate.................9-9Vehicle loading information.................9-10
Terms...........................9-10
Vehicle load capacity..................9-10
Securing the load....................9-12
Loading tips.......................9-12
Measurement of weights................9-13
Towing a trailer........................9-13
Flat towing..........................9-13
Uniform tire quality grading.................9-14
Treadwear........................9-14
Traction AA, A, B and C................9-14
Temperature A, B and C................9-14
Reporting safety defects..................9-15
Telematics overview.....................9-15
Event Data Recorder (EDR)................9-17
Owner’s Manual/Service Manual order information. . .9-18
Charging information....................9-19
Cold tire pressures
.....................9-21

3. Remove the license plate bracket and con-
nect the arcs from the ovals. Mark the point in
the center of each oval. These are pilot drilling
locations.
Use a 0.49 in (12.5 mm) drill bit for the license
plate screw holes and carefully open holes in
the places marked. (Make sure that the drill
only goes through the fascia.)
4. Install the license plate with two 0.23 in (6
mm) screws.
WARNING
• It is extremely dangerous to ride in the
cargo area inside the vehicle. In a col-
lision, people riding in these areas are
more likely to be seriously injured or
killed.
• Do not allow people to ride in any area
of your vehicle that is not equipped
with seats and seat belts.
• Be sure everyone in your vehicle is in a
seat and using a seat belt properly.
TERMS
It is important to familiarize yourself with the fol-
lowing terms before loading your vehicle:
• Curb Weight (actual weight of your vehicle) -
vehicle weight including: standard and optional
equipment, fluids, emergency tools, and spare
tire assembly. This weightdoes notinclude
passengers and cargo.
• GVW (Gross Vehicle Weight) - curb weight
plus the combined weight of passengers and
cargo.
• GVWR (Gross Vehicle Weight Rating) - maxi-
mum total combined weight of the unloaded
vehicle, passengers, luggage, hitch, trailer
tongue load and any other optional equipment.This information is located on the F.M.V.S.S./
C.M.V.S.S. label.
• GAWR (Gross Axle Weight Rating) - maximum
weight (load) limit specified for the front or rear
axle. This information is located on the
F.M.V.S.S./C.M.V.S.S. label.
• GCWR (Gross Combined Weight Rating) - The
maximum total weight rating of the vehicle, pas-
sengers, cargo, and trailer.
• Vehicle Capacity Weight, Load limit, Total load
capacity - maximum total weight limit specified
of the load (passengers and cargo) for the ve-
hicle. This is the maximum combined weight of
occupants and cargo that can be loaded into
the vehicle. If the vehicle is used to tow a trailer,
the trailer tongue weight must be included as
part of the cargo load. This information is lo-
cated on the Tire and Loading Information label.
• Cargo capacity - permissible weight of cargo,
the subtracted weight of occupants from the
load limit.
VEHICLE LOAD CAPACITY
Do not exceed the load limit of your vehicle
shown as “The combined weight of occupants
and cargo” on the Tire and Loading Information
label. Do not exceed the number of occupants
VEHICLE LOADING INFORMATION
9-10Technical and consumer information

shown as “Seating Capacity” on the Tire and
Loading Information label.
To get “the combined weight of occupants and
cargo”, add the weight of all occupants, then add
the total luggage weight. Examples are shown in
the following illustration.
Steps for determining correct load
limit
1. Locate the statement “The combined weight
of occupants and cargo should never exceed
XXX kg or XXX lbs” on your vehicle’s placard.
2. Determine the combined weight of the driver
and passengers that will be riding in your
vehicle.
3. Subtract the combined weight of the driver
and passengers from XXX kg or XXX lbs.
4. The resulting figure equals the available
amount of cargo and luggage load capacity.
For example, if the XXX amount equals
1400 lbs. and there will be five 150 lb. pas-
sengers in your vehicle, the amount of avail-
able cargo and luggage load capacity is
650 lbs. (1400 − 750 (5 x 150) = 650 lbs) or
(640 − 340 (5 x 70) = 300 kg.)
5. Determine the combined weight of luggage
and cargo being loaded on the vehicle. Thatweight may not safely exceed the available
cargo and luggage load capacity calculated in
Step 4.
Before driving a loaded vehicle, confirm that you
do not exceed the Gross Vehicle Weight Rating(GVWR) or the Gross Axle Weight Rating
(GAWR) for your vehicle. (SeeMeasurement of
weightslater in this section.)
Also check tires for proper inflation pressures.
See the Tire and Loading Information label.
Technical and consumer information9-11

Front passenger air bag and status light....1-42
Front seat, Front seat adjustment........1-3
Fuses.......................8-16
Fusiblelinks ...................8-17
G
Garage door open, HomeLink® Universal . . .2-59
Transceiver..................2-59
Gauge.......................2-5
Driving range..................2-8
ECOindicator ................2-10
Li-ion battery available charge gauge....2-9
Li-ion battery capacity level gauge.....2-10
Li-ion battery temperature gauge.......2-7
Odometer....................2-6
Power meter..................2-7
Speedometer..................2-6
Generalmaintenance...............8-2
Glovebox ....................2-53
H
Hazard warning flasher switch..........6-2
Headlights....................8-22
Bulb replacement...............8-22
Headlightswitch...............2-43Heated seat switch...............2-47
Heated steering wheel switch.........2-46
Highvoltageprecautions............EV-7
HillStart .....................5-25
Hill Start Assist.................5-25
HomeLink® universal transceiver........2-59
Hood release...................3-16
Horn .......................2-47
How to normal charge.............CH-9
How to quick charge.............CH-15
How to trickle charge (if so equipped)....CH-11
I
If the Li-ion battery becomes completely
discharged....................6-11
Immediate charge...............CH-26
Immobilizer system................2-38
In-cabin microfilter................4-15
Indicatorlights..................2-20
Indicators for operation.............2-24
Inside rearview mirror..............3-21
Instrument brightness control..........2-42
Instrument panel..................2-4
Intelligent Key system..............3-13
Remote keyless operation..........3-13
Interior light replacement............8-23
Interior lights...................2-58ISOFIX child restraint..............1-19
J
Jump starting...................6-9
K
Keyless entry...................3-13
With Intelligent Key system (See Intelligent
Key system)..................3-13
Keys ........................3-2
For Intelligent Key system...........3-6
L
Labels ......................1-48
Airbagwarninglabels............1-48
Air conditioner specification label.......9-9
Emission control information label......9-8
F.M.V.S.S./C.M.V.S.S. certification label . . .9-8
Motor serial number..............9-8
Tire and Loading information label . . .8-27, 9-9
Vehicle identification number (VIN)......9-7
LATCH system..................1-19
License plate, Installing front license plate . . .9-9
Light .......................1-48

Airbagwarninglight.............1-48
Bulb replacement...............8-21
Ceiling light..................2-58
Foglightswitch................2-45
Headlights bulb replacement........8-22
Headlightswitch...............2-43
Indicatorlights................2-20
Interior lights.................2-58
Maplights...................2-58
Replacement.................8-21
Warninglights ................2-14
Light reminder warning.............2-26
Lights, Exterior and interior light
replacement...................8-23
Li-ion battery...................EV-2
Li-ion battery available charge gauge......2-9
Li-ion battery capacity level gauge.......2-10
Li-ion battery status check..........CH-26
Li-ion battery temperature gauge........2-7
Li-ion battery warmer..............EV-5
Limited power..................2-34
Loading information (See vehicle loading
information)....................9-10
Lock........................3-5
Automatic door locks.............3-5
Door locks...................3-3
Power door lock................3-3
Rearhatchlock................3-17Low tire pressure warning light.........2-17
Low tire pressure warning system (See tire
pressure monitoring system (TPMS))......5-2
Luggage side hook...............2-55
M
Maintenance...................8-12
12-volt battery................8-12
General maintenance.............8-2
Indicators for maintenance..........2-35
Insidevehicle..................8-3
Maintenanceprecautions...........8-5
Maintenance requirements..........8-2
Outside vehicle.................8-2
Seat belt maintenance............1-15
Manual front seat adjustment...........1-3
Maplights ....................2-58
Mechanical key (Intelligent Key system).....3-3
Meters and gauges................2-5
Mirror.......................3-21
Inside rearview mirror............3-21
Outside mirrors................3-23
Vanity mirror..................3-21
Motor....................5-11,9-6
Before starting system............5-10
Motor compartment................8-7
N
NISSAN Intelligent Key® system......3-6,5-7
Key operating range of the door lock/unlock
function.....................3-8
Key operation..................3-9
NISSAN Vehicle Immobilizer System......2-38
Normal charge.................CH-9
Home charge................CH-9
Occasional charge.............CH-9
Publiccharge ................CH-9
O
Odometer.....................2-6
Off-road recovery.................5-5
Oil .........................9-2
Capacities and recommended lubricants . .9-2
Opening rear hatch...............3-10
Outside air temperature.............2-10
Outside mirrors.................3-23
Owner’s Manual/Service Manual order
information....................9-18
P
Panic alarm....................3-14
